Kerry Motors L6 User manual

User Manual
Model No.: L6

Congratulations on your
new Model L6 electric
scooter !
We are happy you chose
to Ride new L6 Electric
Scooter.
We hope you find it to be
a Great riding experience,
Adding efficiency and fun
to Your daily commuting.

This manual was written to help you understand the proper use
and maintenance of model L6 electric scooter. It is important
for you to understand your new MODEL L6 electric scooter; its
features and performance, so that you will enjoy the most from
your first and every ride. Also, it is important that your first ride
with model L6 will be in a remote location, without any
obstacles.
Always follow the local laws and regulations.
•Never ride your L6 scooter in conditions of poor visibility.
•Do not do stunts, wheelies or jumps. They will increase your
chances of injury and damage your model L6.
•Never carry passengers
The responsibility for model L6 maintenance is yours, and will help
reduce risks of injuries. Therefore, read this manual and follow it's
instructions, they will help you avoid these risks.
We're not liable for incidental damages or consequential damages
due directly or indirectly to the use of this product.
WARNINGS & GENERAL INFORMATION

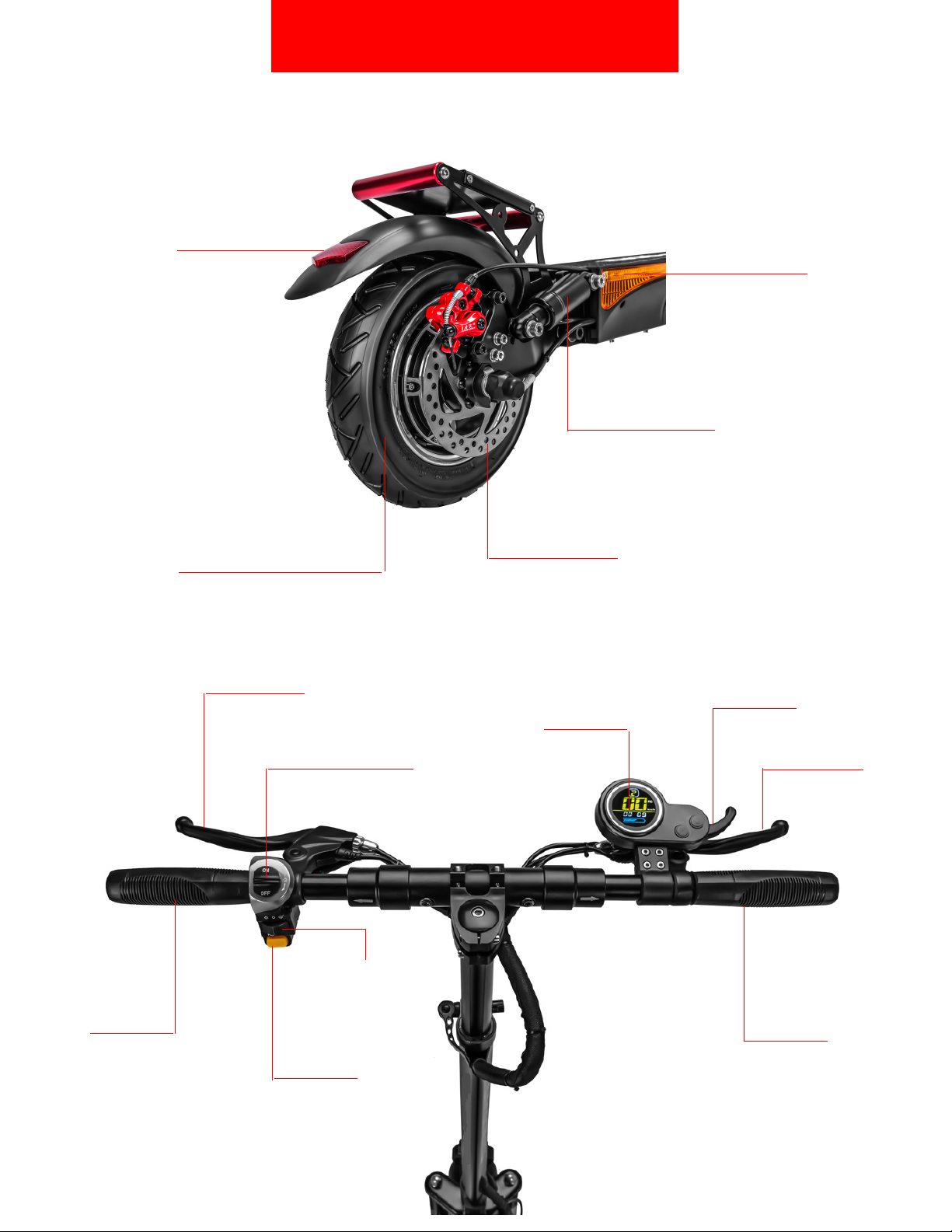

LANGFEITE L6 MAIN PARTS
140 brake disc
tire
Rear suspension
Rear light
Signal light
Brake lever
Brake lever
Throttle
Display
Front light button
Horn
Grip Grip
Signal light
button

MODEL L6
ANTI SKID GRIPS
THROTTLE
LCD DISPALY
ALUMINIUM DECK
MOTOR
Disc brake
SUSPENSION TURN LIGHT
QUICK FOLDING
MECHANISM HORN
BRAKE LEVER
FRONT SUSPENSION
HEADLIGHTS
DISC BRAKE
TIRE
HANDLEBAR
MUDGUARD
LITHIUM ION BATTERY
LIGHT BUTTON
BRAKE LEVER
REAR LIGHT
QUICK FOLDING
MECHANISM
CHARGING PORT

Specification
Size
Overall size (MM) 1160*570*1210 mm
Size after folding (MM)
1140*220*470 mm
Carton size (MM) 1220*260*480mm
Weight Max. Loading (KG)
150kg
Net weight (KG) 23kg
Application People Age Adult
Speed
Top speed (KM/H) 38km/h
Range (KM) 10.4Ah 30 Km, 20.8Ah 60km
(With 75kg load, on a flat road )
Grade Ability 30degree
Working temperature -10
℃
～40
℃
Storage temperature -10
℃
～40
℃
Battery
Battery type 18650 Lithium battery
Rated voltage (V)
48V
Input voltage (V) 54.6V
Battery capacity (AH) 10.4Ah /15.6Ah / 20.8Ah
Motor
Motor type DC brushless motor
Motor rated power
500 Watt
Rated output power Peak 800Watt
Rated voltage 48V
Charger
Rated power (W) 109.2W
Input voltage (V)
100-230VAC
Output voltage (V) 54.6V
Rated current
2A
Charging time 20.8Ah / 10 Hours
Other features
Wheel size
10 inch
Frame material Aluminium alloy 6061
Waterproof
IPX4
Suspension Front suspension*2 + Rear suspension*2
Display
color display
Speed up Throttle
Brake
front disc brake + rear disc brake + electronic brake
Signal turn light Available
Model No. : L6
Single Motor, 500 Watt, 48V
10.4Ah: 325.00 USD
15.6Ah: 360.00 USD
20.8Ah: 395.00 USD

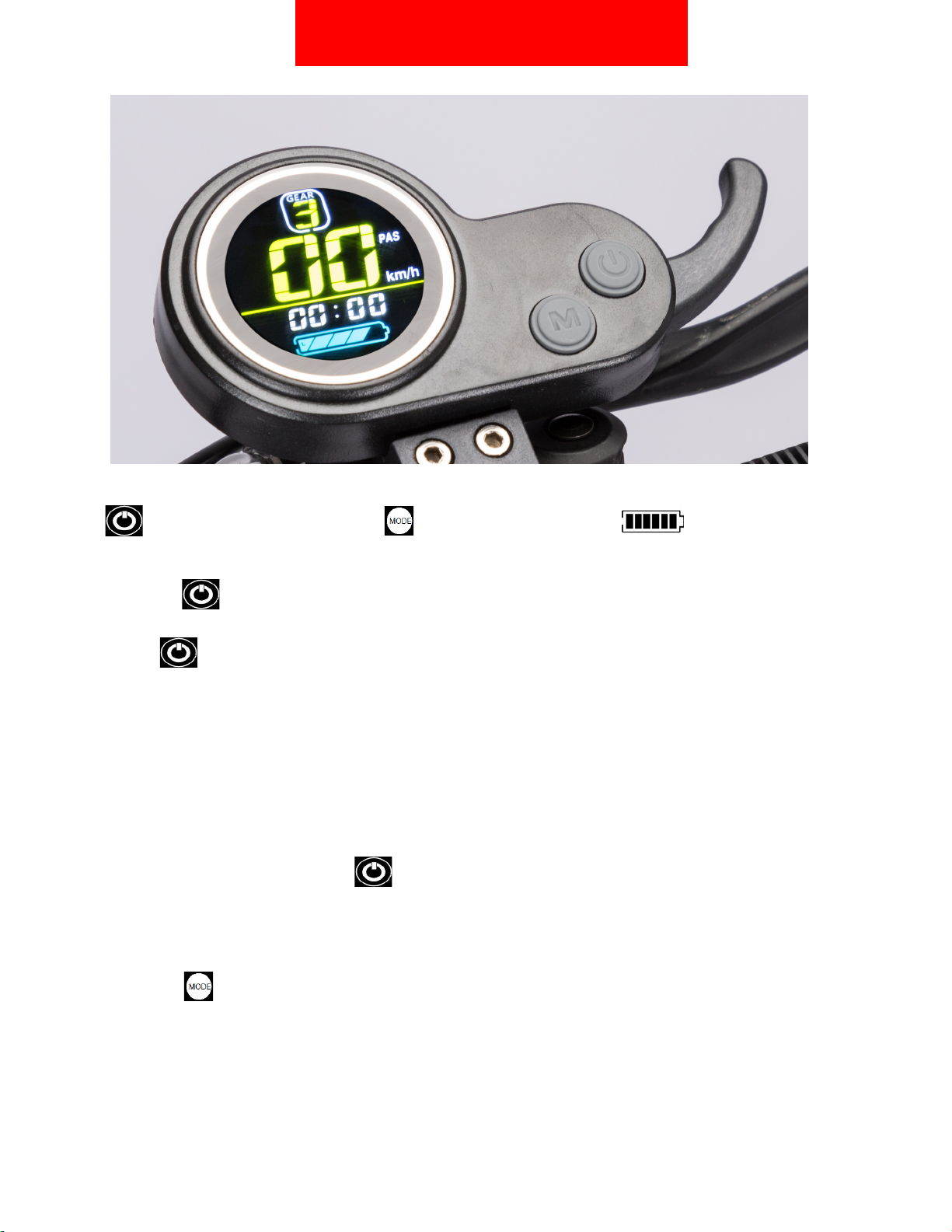

ON/OFF button MODE button Battery status
Pressing to power the scooter on
Press for three seconds to shut down the system.
AUTO OFF
After five minutes of non-using any function, the scooter will be automatically power off.
In power on condition, pressing by turns, we can find TRIP，ODO，VOL on the LCD display.
TRIP is Single mileage, ODO is cumulative mileage, VOL is battery voltage
by turns to change the speed mode, 1 is slow speed, 2 is medium speed, 3 is fast speed.
Pressing
LANGFEITE L6 Display Manual

Parameter settings
together for 2 seconds , will enter the instrument parameter setting interface.
Pressing
and then press by turns, we can find P01, P02, P03, P04, P05, P06, P07, P08, P09
First of all, we can see P00
P00: Wheel diameter setting
At P02, press for 3 seconds, we can see the number is flashing, and then we can press to increase
the number, and press to reduce the number.
P01: Under-voltage setting
The standard Parameter should be 41.5 for the 48V electric scooter. So please don't change this.
P02: Number of pole pairs setting
This P00 setting has been programed by the controller, and the P00 setting on the display is not workable.
so please ignore this P00 setting.
The default number is 15, when we increase or reduce this number, the speed on the display will be changed.
( Please note this speed changed on the display is NOT scooter's real speed ).

P03: Speed signal selection setting
This P03 setting has been programed by the controller, and the P03 setting on the
display is not workable. so please ignore this P03 setting.
P04: KPH / MPH selection setting
At P04, pressing for 3 seconds, we can see the number 0 or 1 is flashing.
0 is KPH, and 1 is MPH
We can press to change the KM to Mile, and press to change the Mile to KM.
Press together to save the setting.
P05: Non-zero start and zero start selection settings
P06: Cruise and Non-cruise selection settings
According to our country's regulations, the electric kick scooters should be with kick start
So all of our scooters are programed as Non-zero start mode by the controller. And we can't
program that by display. So this P05 is not workable, and please ignore this P05 setting.
At P06, pressing for 3 seconds, we can see the number 0 or 1 is flashing.
0 is Non-cruise , and 1 is Cruise
We can press to change from 0 to 1, and press to change from 1 to 0
P07: Soft start and hard start selection settings
This P07 setting has been programed by the controller, and the P07 setting on the display is not workable.
so please ignore this P07 setting.

P09: EBS brake strength adjustment
This P09 setting on the display is not workable. so please ignore this P09 setting.
P08: Speed limit adjustment in percentage
This P08 setting can adjust the scooter's real top speed.
At P08, pressing for 3 seconds, we can see the number 100% is flashing.
When the number is in 100%, means the scooter can reach the 100% top speed, and if we want to
reduce the top speed, we can press to reduce the percentage number. ( for example, if we
want 50% of the top speed, we can reduce the percentage number to be 50%
And we can press to increase the percentage number.

HOW TO FOLD L6 SCOOTER
123
4 5 6

RECORD SERIAL NUMBERS:
Write down the serial number of your model L6. Keep this
information separately and in a safe place. Each model L6 has a
unique serial number. These numbers can provide information that
may be useful later on for insurance claims and in case of loss or
theft.
To find your model L6 serial number:

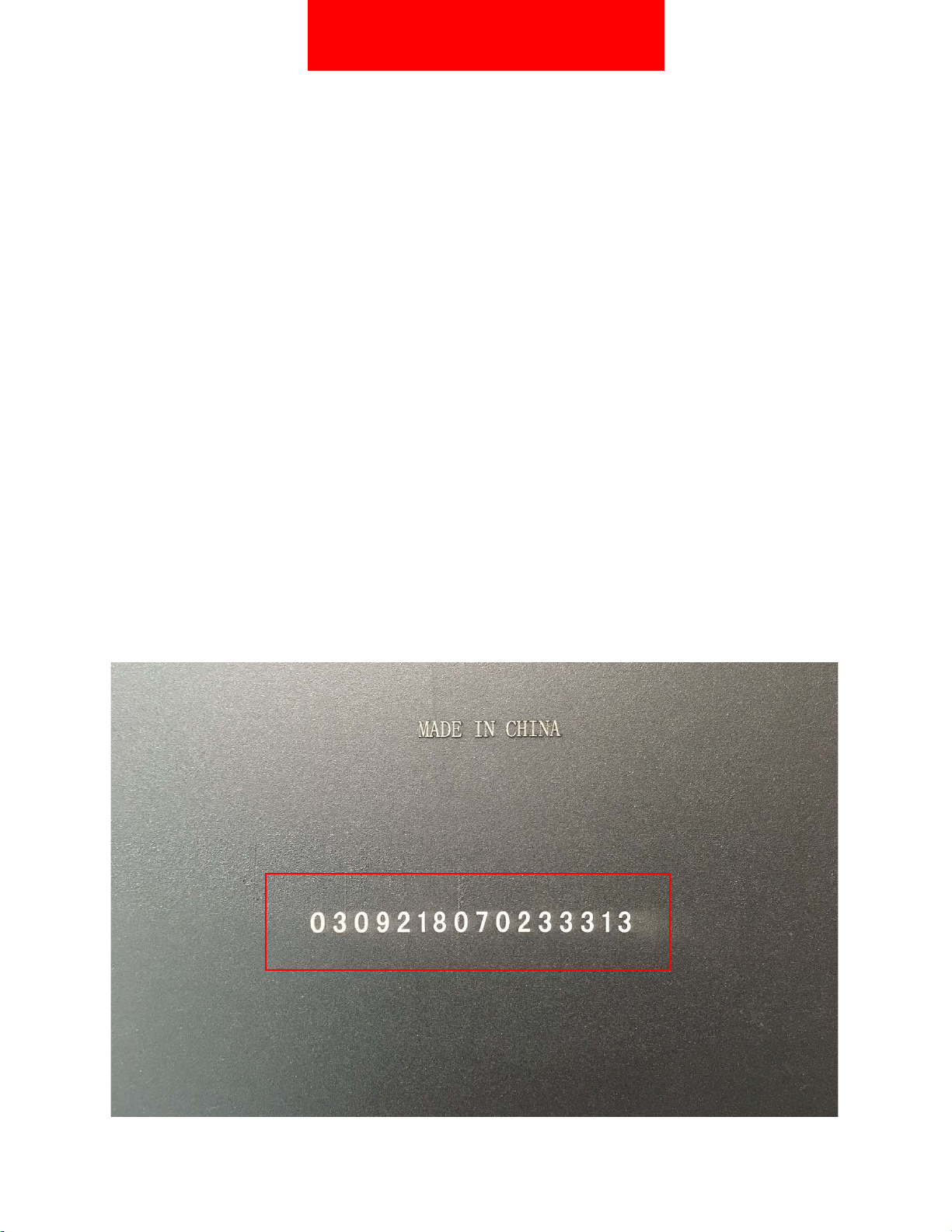

1. The number is on the backside of the board, for example as
below:
Serial number: 030921807023313
L6 SERIAL NUMBERS

SAFETY DRIVING ATTENTION
Get to know your L6 before driving it Test your control over it. Make
your turns slowly and cautiously, and give yourself stopping distance
To gain control over your scooter, practice your first ride on your L6 in
an open space with no obstacles to disturb you
The L6 requires a short adjustment and break-in period
for all moving parts to adjust themselves into their correct position
Before each ride always:
1. Check your brakes function
2. Check the tires for signs of wear
Spin them to make sure that they are not yet in need of replacing Make
sure that the wheels are freely rotating clear of the brakes
3. Perform a visual inspection :
That all screws and nuts are tight and in place
Note if anything looks amiss, or is showing signs of wear
If you are unsure, bring your L6 to Kerry Motors authorized distributor, or you
may also contact us for after-sales via E-mail: [email protected]
RIDING TECHNIQUE:
Before riding position your foot as close as possible to the front section of
the scooter, and your other foot on the ground. Make sure that your driving
route is clear
To start riding, boost yourself forwards (as on non-motorized scooters)
with your foot that is on the ground. Place it on the scooter immediately
afterwards and press the thumb lever downwards, tilting your body
forwards, so you won’t fall backwards during acceleration

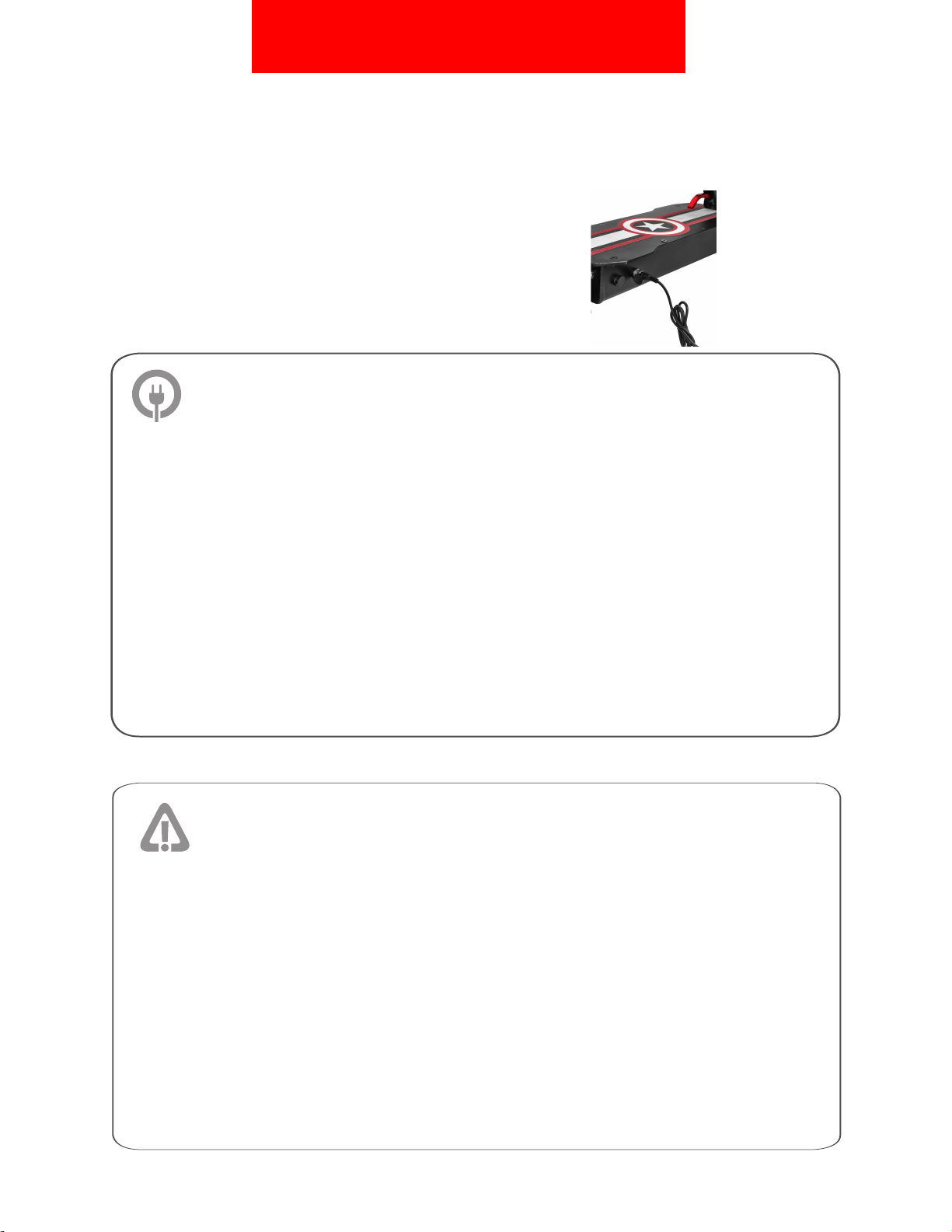

Your model L6 has an external charger.
Connect the charging cable to Model L6's charging socket under the footboard, on
the right side at the rear. Than connect the chargers electric cable to an electrical
outlet.
Charging Light Red - Battery is charging.
Charging Light Green - Charging is complete.
CHARGING AND BATTERY
MAXIMIZE YOUR BATTERY’S PERFORMANCE:
1. For its initial charge, FULLY charge your L6
This conditions the battery for future life-span
2. Do NOT leave a fully charged battery connected to a charger,
since overcharging may shorten it’s lifetime
3. Avoid extreme temperatures Always try to keep the battery between 15°c and 25°c
(59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the
battery. A device with a hot or cold battery may not work temporarily
4. At least once a month fully charge the battery
5. From time to time discharge the battery by riding.
Use all stored energy in the battery
6. Before storing it for a long period charge the battery half way
Do not operate the scooter while charging!
Charge the battery only using Kerry Motors approved charger
The use, storage or charging of the model L6 battery outside specified limits may result in
the annulment of the warranty, battery damage, and an ineffective battery charge
DO NOT CUT, OPEN, CRUSH OR PUNCTURE BATTERIES!
IN THE EVENT OF A BATTERY LEAK, PREVENT CONTACT OF LIQUID WITH SKIN OR EYES.
IF THIS HAPPENS, WASH THE AFFECTED AREAS IMMEDIATELY WITH WATER AND SEEK
MEDICAL HELP
BATTERY SAFETY REGULATIONS:

As you accelerate, lean forwards.
As you brake, tilt your weight backwards!
Avoid putting body weight on the handle bars whilst accelerating and
decelerating!
Keep one foot behind the other, (it's more comfortable to place one foot
forward and the other one turned backwards at 70-90°, like on skate/
surfboard). It will help you gain more stability
Turns - The turns on L6 are done as on skis/surf/snowboard. The handle-bar
should be in parallel to the body. Before turning look at the approaching
direction and make sure turning is safe
Braking - Tilt your weight backwards so that the brake action will come
through the feet and not through the handlebar and steering system. It is
best to learn how to adjust the centre of gravity while stopping, otherwise
there is a dual concern: forward tipping over and/or wear and breaking of
the handlebar and steering system
Riding, like most sports, involves risks of injury and damage.
By choosing to ride L6 scooter the responsibility
and all inherent risk is on you. It is crucial that you know,
understand and act according to safety rules

Warranty 1 year manufacturer’s warranty on the frame and 1 year on all other parts. Not covered under warranty. Wear and tear, Tyres, lights, decrease battery capacity, water/flood damage, gears, brakes, paintwork, misuse or accidents, modifications, repairs and failure to service your e-scooter by qualified e-scooter mechanic every 6 months.
