Ketra X 2 User manual

X2
KEYPAD
Instlltion Guide
Model
X2-ND  KetraNet Mesh Keypad 120277 V~
X2-INC  KetraNet Mesh + 600 W Incandescent Dimmer 120 V~

Risk of electric shock. Use in dry locations only.
Turn power OFF at circuit breker or remove fuse. Dmge to this product cused by wiring with power
on voids the wrrnty.
Due to the risk of electric shock, a licensed electricin should instll this power supply unit in strict
complince with the Ntional Electricl Code nd ny stte or locl code which my pply.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: ( 1 ) this device may not cause harmful interference, and ( 2 ) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
• This device may not cause interference.
• This device must accept any interference, including interference that may cause undesired
operation of the device.
!Wrning
2|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Contents
Product Overview 4
Included Components/Specs 5
Specifications 5
Dimension Drawings 6
Dimmer Load 7
Wiring Diagrams 8
Installation 10
X2-ND AC Input, Non-dimming 10
Retrofit Important Notes 12
Retrofit Instructions 12
X2-INC Incandescent Dimmer 13
Retrofit Important Notes 15
Replacing Button Chassis 16
Operation 17
Warranty  Tech Support 18
3|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Product Overview
Ketra’s X2 keypad oers users a classic button-style interface for the
complete control of a lighting system.
X2s come in two models: a wireless KetraNet Mesh controller and a wireless KetraNet
Mesh controller with onboard incandescent dimmer. The latter is ideal for spaces where
both Ketra and traditional lighting sources need to be controlled. Fitting within a
standard wall box and either Decora® or Claro wall plates, the X2 is perfect for retrofit
installations as well as new construction.

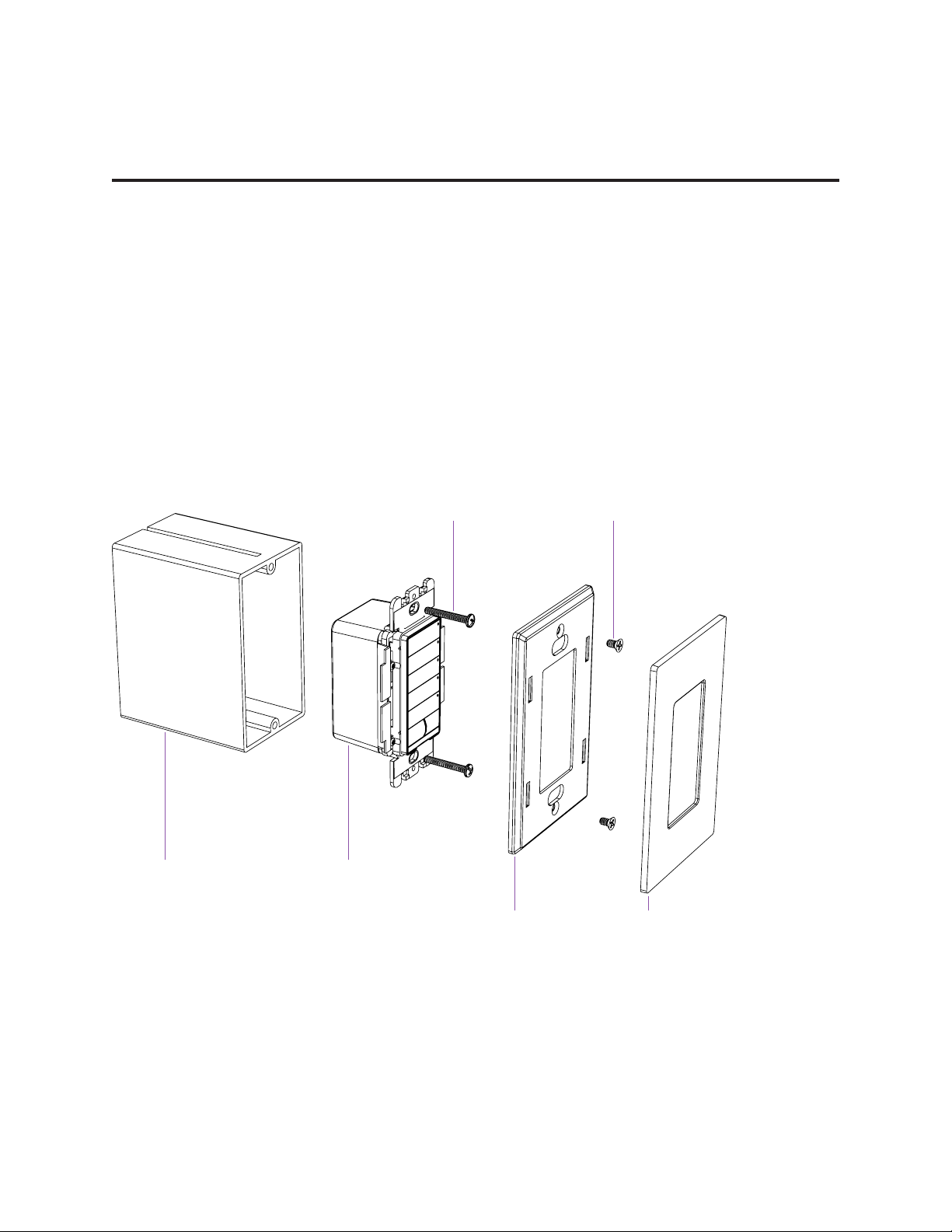

fig. 1
Backbox X2 With
Button Chassis
X2 Mounting
Screws
Wall Plate
Mounting Screws
Wall Plate Mount Single Gang
Wall Plate
4|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Included Components/Specs
Specifications
X2 with button chassis
( 2 ) #632 × 0.75 in (6.35 mm)
wall plate mounting screws
Serial number stickers
Wall plate mount
( 2 ) #632 × 1 in (25.4 mm)
X2 mounting screws
Wire nuts
Single gang wall plate
Environmental
Ambient Operating
Temperature
0° to 40°C
Storage Temperature -20˚ to 80 ˚C
Humidity 095%, Non-condensing
Certification UL, cUL, FCC Class B, RoHS
Location UL Damp Location, IP20
Mechanical
Weight 8.8 oz/250 kg
Housing Material Flame Retardant Polymer
Wireless
Frequency 24052480 MHz
Output Power 1820 dBm
Electrical
Input Wiring 16 AWG Flying Leads
Voltage X2.ND 120277 VA
X2.INC 120 V
Power Consumption 2 W
Frequency 50/60 Hz
X2.ND.AC
SN: KX12345678
DC: V0216
X2.D.ELV
SN: KX12345678
DC: V0216
5|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Dimension Drawings
4.1 in
(105 mm)
2.6 in
(66.23 mm)
1.4 in
(35.3 mm)
3.3 in
(83.6 mm)
0.3 in (7.6 mm)
0.2 in (6.1 mm)
1.3 in
(32.98 mm)
1.7 in (43.97 mm)
multi-gang trim
2.4 in
(60.15 mm)
6|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Dimmer Load
X2-INC Load Type and Capacity Chart
Load Type Single Gang Multigang
Incandescent 600 W 500 W
Dimmer capacity rated at 25 ˚C ambient temperature; derate incandescent and halogen loads an additional
100 W at 40 ˚C temperature ambient.
7|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Wiring Diagrams
X2 Keypad
X2 ND
X2 INC X2 ND
LOAD
LOAD
BlackHot/Line
Hot/Line
Hot/Line
Hot/Line
Red Black
Black White
White Green
Traveler 2
(not used)
Green
Hot/Line
120277 V
50/60 Hz
WhiteNeutral
Neutral
Neutral
Ground Ground
GreenGround
Ground
Ground
Traveler 1 Traveler 1
Traveler 2 Traveler 2
3-way
switch
3-way
switch
X2 Keypad, AC
input, no dimmer
X2 Keypad,
INC dimmer
Switch - Load + Switch
X2 Keypad Ketra Retrofit
Switch - Load + Switch
3-Way Switch
8|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

WIRING DIAGRAMS
X2 INC X2 ND
LOAD
LOAD
Hot/Line
Hot/Line
Hot/Line Hot/Line
Red
Black
Black
White
White
Traveler 2
(not used)
Green
Green
Neutral
Neutral
Ground Ground
Ground
Ground
Traveler 1 Traveler 1
Traveler 2 Traveler 2
3-way
switch
3-way
switch
X2 Keypad, AC
input, no dimmer
X2 Keypad,
INC dimmer
Load - Split Switches
3-Way Switch
Load - Split Switches
X2 Keypad Ketra Retrofit
9|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Installation
X2-ND AC Input, Non-dimming
New Construction
1. Install wall box (single gang wall box with at least 14 in volume only).
2. If installing in a multigang box, the side-fins must be removed for fit (see figures 2 and 3).
3. Run power to wall box utilizing stranded or solid core 1218 AWG wire (see figure 4).
4. Prepare the wire for connection to lead wire: A. Strip 8.5 mm of wire for insertion into the wire nut.
B. Twist the stranded wire to prevent fraying (tinning optional).
5. Using the provided wire nuts, attach each X2 lead wire to the corresponding conductor. Black-Line,
White-Neutral, Green-Ground (see figure 5).
fig. 2
fig. 4
fig. 3
fig. 5
continued on next page
10|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

INSTALLATION
fig. 6
fig. 8 fig. 9
fig. 7
6. Ensure that no conductors are visible after insertion, and that no stray wires are exposed.
7. Carefully tuck wires back into wall box.
8. Mount the X2 to the wall box using supplied fasteners. Leave the fasteners snug, not fully tight
(see figure 6).
9. Secure Wall Plate Mount to the X2 using the supplied fasteners (see figure 7).
Note: If the X2’s button chassis is not aligned with the wall plate mount, remove the mount and
adjust the position of the X2. Secure the wall plate mount with the fasteners when satisfied.
10. Place one serial number sticker on the back of the wall plate. The other can go on building plans or
control drawings (see figure 8).
11. Attach Wall Plate to Wall Plate mount. It will snap into place (see figure 9).
12. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
X2.D.ELV
SN: KX12345678
DC: V0216
Installation is complete.
Refer to Design Studio Software for commissioning details.
11|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

INSTALLATION
Retrofit Important Notes
•This wiring scheme is for standard in-line 2-Way light switches.
•The wall box should have a volume of 14 in or greater.
•The X2 does not have to be on the same circuit as any Ketra fixtures, as all control signals are wireless.
•Ketra fixtures to be controlled by the X2 should have an uninterrupted source of power. They should
NOT be wired to a light switch or other intermediary device that could cut their power. If you are
replacing lamps that are already wired to a light switch, it is recommend that the light switch be
physically replaced by the X2 (see figure 10).
Retrofit Instructions
1. Turn o power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section, page 13.

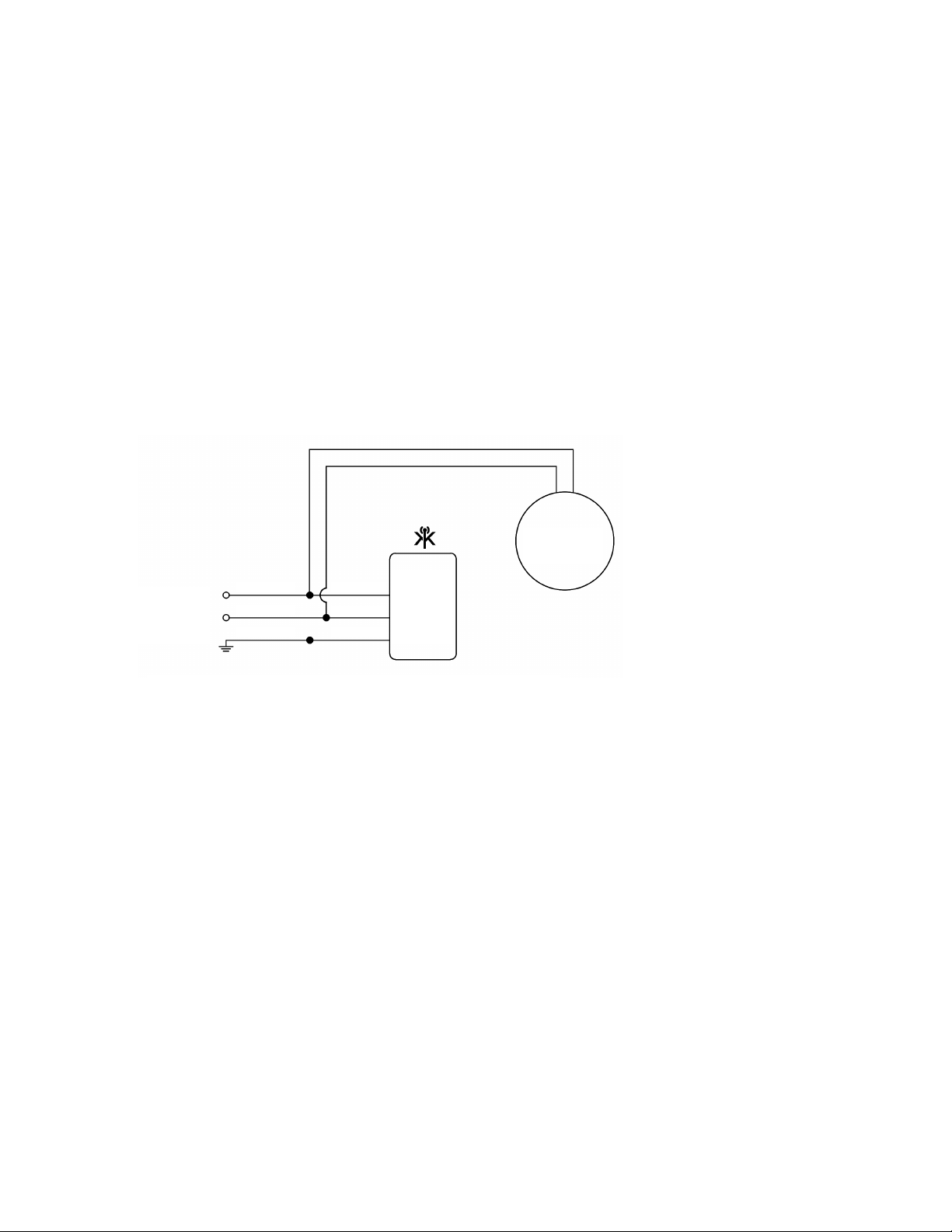

120V~
50/60 Hz X2 ND
Ketra
LOAD
Hot/Line Black
White
Green
Neutral
Ground
* X2 and load on same circuit should be wired in parallel, not series.
12|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

INSTALLATION
X2-INC Incandescent Dimmer
NEW CONSTRUCTION

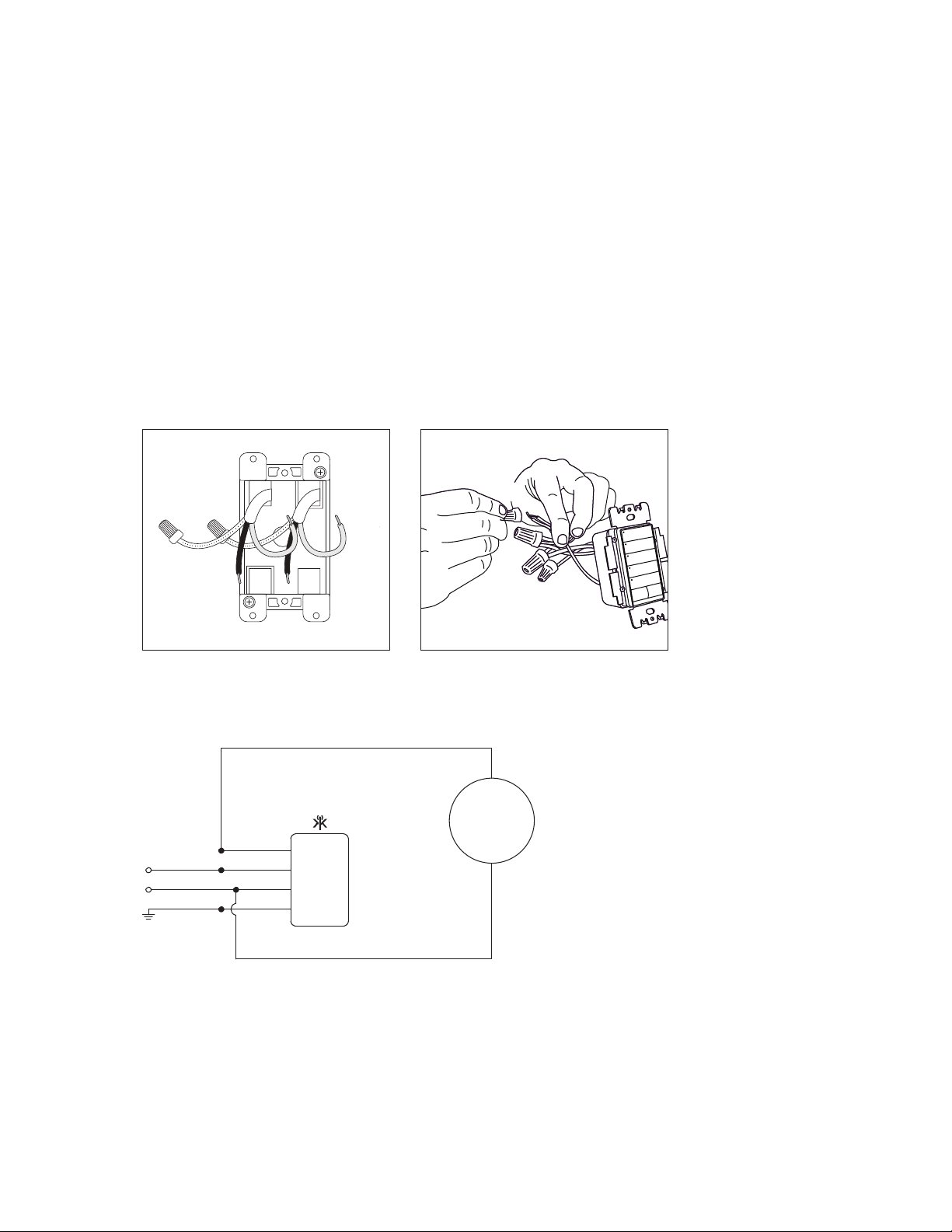

1. Install wall box (single gang wall box with at least 14 in cubic inch volume only).
2. Run power to wall box utilizing stranded or solid core 1218 AWG wire (see figure 10).
3. Prepare the wire for connection to lead wire: A. Strip 0.3 in (8.5 mm) of wire for insertion into the wire
nut. B. Twist the stranded wire to prevent fraying (tinning optional).
4. Using the provided wire nuts, attach each X2 lead wire to the corresponding conductor. Black-Line,
White-Neutral, Green-Ground, Red-Dimmed Line (see figures 11  12).
X2 Keypad - INC
120V~
50/60 Hz
X2 INC
LOAD
Hot/Line Black
Red
White
Green
Neutral
Ground
Warning: Do not connect Dimmed Line (Red) to AC Input Line (Black)
5. Ensure that no conductors are visible after insertion, and that no stray wires are exposed.
6. Carefully tuck wires back into wall box.
fig. 10
fig. 12
fig. 11
13|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

INSTALLATION

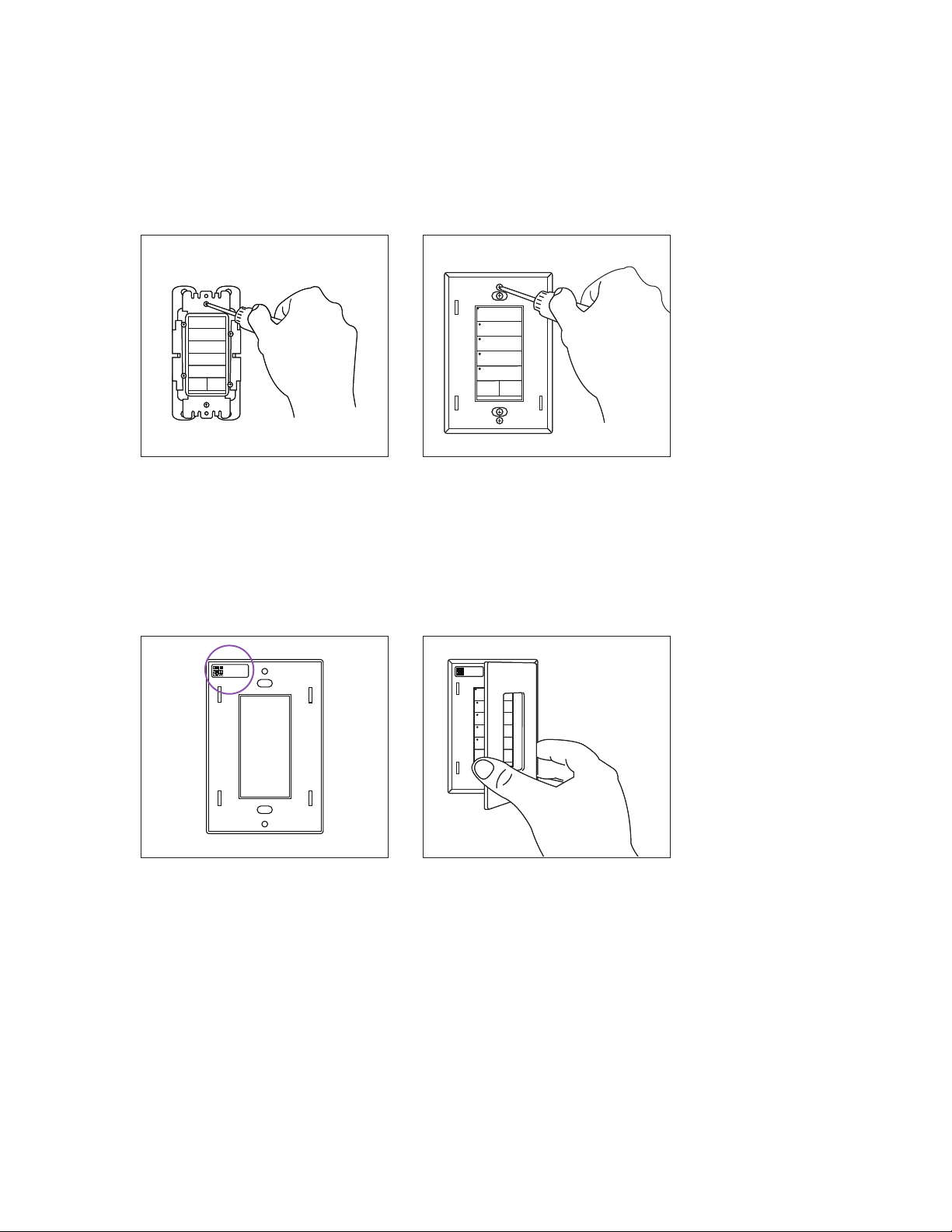

7. Mount the X2 to the wall box using supplied fasteners (see figure 13).
8. Secure Wall Plate Mount to the X2 using the supplied fasteners (see figure 14).
9. Remove Serial Number Sticker from sheet and ax it to the back of the Wall Plate (see figure 15).
10. Attach Wall Plate to Wall Plate mount. It will snap into place (see figure 16).
11. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
Installation is complete.
Refer to Design Studio Software for commissioning details.
fig. 13
fig. 15 fig. 16
fig. 14
X2.D.ELV
SN: KX12345678
DC: V0216
X2.D.ELV
SN: KX12345678
DC: V0216
14|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

INSTALLATION
Retrofit Important Notes
•This wiring scheme is for standard in-line dimmer.
•Wall box should have volume of 14 in or greater.
•The X2 Keypad and Ketra products require a constant, uninterrupted source of electricity. Power
needs to be run directly to Ketra fixtures being controlled by the X2 Keypad. Ketra fixtures to be
controlled by the X2 Keypad do not have to be connected to the same circuit, as the control signal is
wireless. However, non-Ketra fixtures will need to be on the same circuit and wired in-line if they are
to be controlled by an X2 with onboard incandescent dimmer.
•For a dimmer retrofit installation using incandescent loads, the incoming and outgoing line
connections should NOT be tied together. Instead, the incoming line should be tied to the X2’s black
line wire, while the outgoing line is tied to the X2’s red dimmed-line wire. Refer to page 13’s “X2
Keypad: Incandescent Dimmer” wiring diagram for an illustration of the proper wiring.
1. Turn o power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section for the non-dimming model, page 13.
15|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

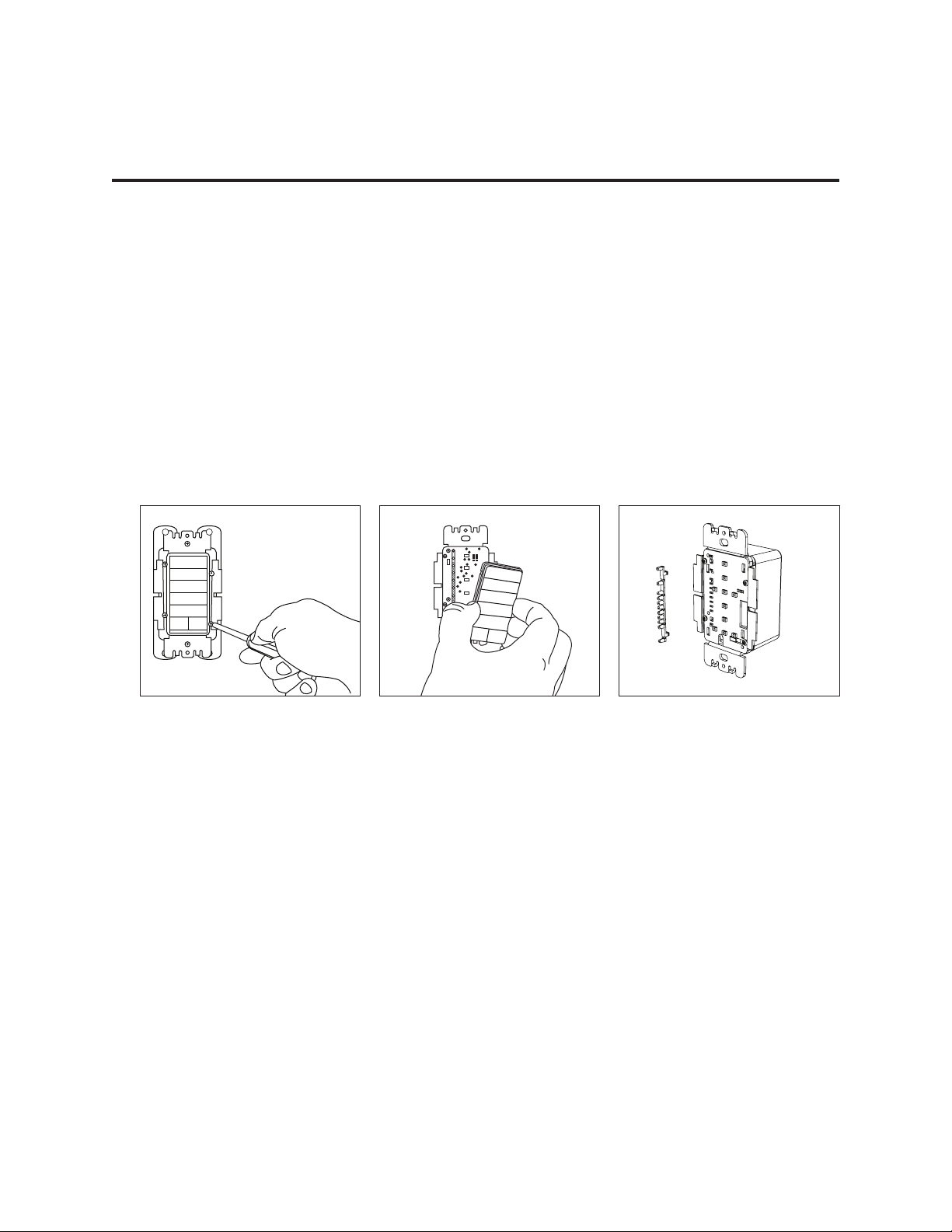

Replacing Button Chassis
The X2’s button chassis can be replaced. The replacement chassis must have the same button layout as
the original. To replace the button chassis, follow these steps:
1. Pull airgap switch out.
2. (If X2 already installed) Snap the wall plate o of its mount, and then unscrew and remove the mount.
Save screws.
3. Using a Phillips (PH1) screwdriver, unscrew the bottom-right screw that holds the button chassis in
place (see figure 10).
4. Apply pressure to exposed left edge of button chassis until it pops loose, and then gently remove
(see figure 11).
5. If removing the chassis detached the light guide from the board, reapply the light guide. The light guide
is a thin, black rubber strip with chimneys on top (see figure 12). To reapply, fit the two pegs on the
underside of the light guide into the two square holes on the board.
Note: The light guide’s orientation matters. Its surface should have a groove at the very bottom, just
above the last chimney.
6. Apply replacement button chassis immediately, applying equal pressure to all four corners to ensure
that the new chassis snaps into place.
Note: Your replacement chassis must have the same button layout as the original.
7. Reapply the bottom-right screw that holds the chassis in place. Ensure airgap switch is pressed in fully.
fig. 11 fig. 12fig. 10
16|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Operation
Airgap Switch
Pull out to disconnect power
to device.
Status LEDs
Highlight activated button.
Keypad Buttons
Press to activate or deactivate
stored scenes or shows.
Intensity Buttons
Increase or decrease light
intensity. Double tap up or down
to go to the max/min intensity of
the selected scene.
17|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

Warranty  Tech Support
Limited warranty terms can be found at:
www.ketra.com/warranty
For questions and technical support please contact:
(844) 5886445
k[email protected]
Ketra and KetraNET are trademarks or registered trademarks of Lutron Ketra LLC, in the US and/ or
other countries.
18|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

19|X2 INSTALLATION GUIDE
770-000026-01 r12
© 2019 Ketra, Inc. All rights reserved

6231 E. Stssney Ln.
Bldg. 13, Suite 400
Austin, TX 78744
ketr.com
512.872.4349
77000002601 r12
