Ketra X 2 User manual

X2
INSTALLATION GUIDE
Supported models:
X2-ND - KetraNet Mesh Keypad 120-277V
X2-INC - KetraNet Mesh + 600W Incandescent Dimmer 120V
*Available in multiple colors. Refer to specications sheet.

PAGE 2 X2 INSTALLATION GUIDE
770-000026-01 r08
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shock Hazard. May result in serious injury or death.
Turn power OFF at circuit breaker or remove fuse. Damage to this
product caused by wiring with power on voids the warranty.
Due to risk of electric shock, a licensed electrician should install this power
supply unit in strict compliance with the National Electric Code and any state or
local code which may apply.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
! !
WARNING

PAGE 3 X2 INSTALLATION GUIDE
770-000026-01 r08
Product Overview............................................................................................................................................... page 4
Included Components / Specs.......................................................................................................................... page 5
Dimension Drawings.......................................................................................................................................... page 6
Dimmer Load....................................................................................................................................................... page 7
Wiring Diagrams................................................................................................................................................. page 8
Installation............................................................................................................................................................ page 10
Replacing Button Chassis................................................................................................................................. page 16

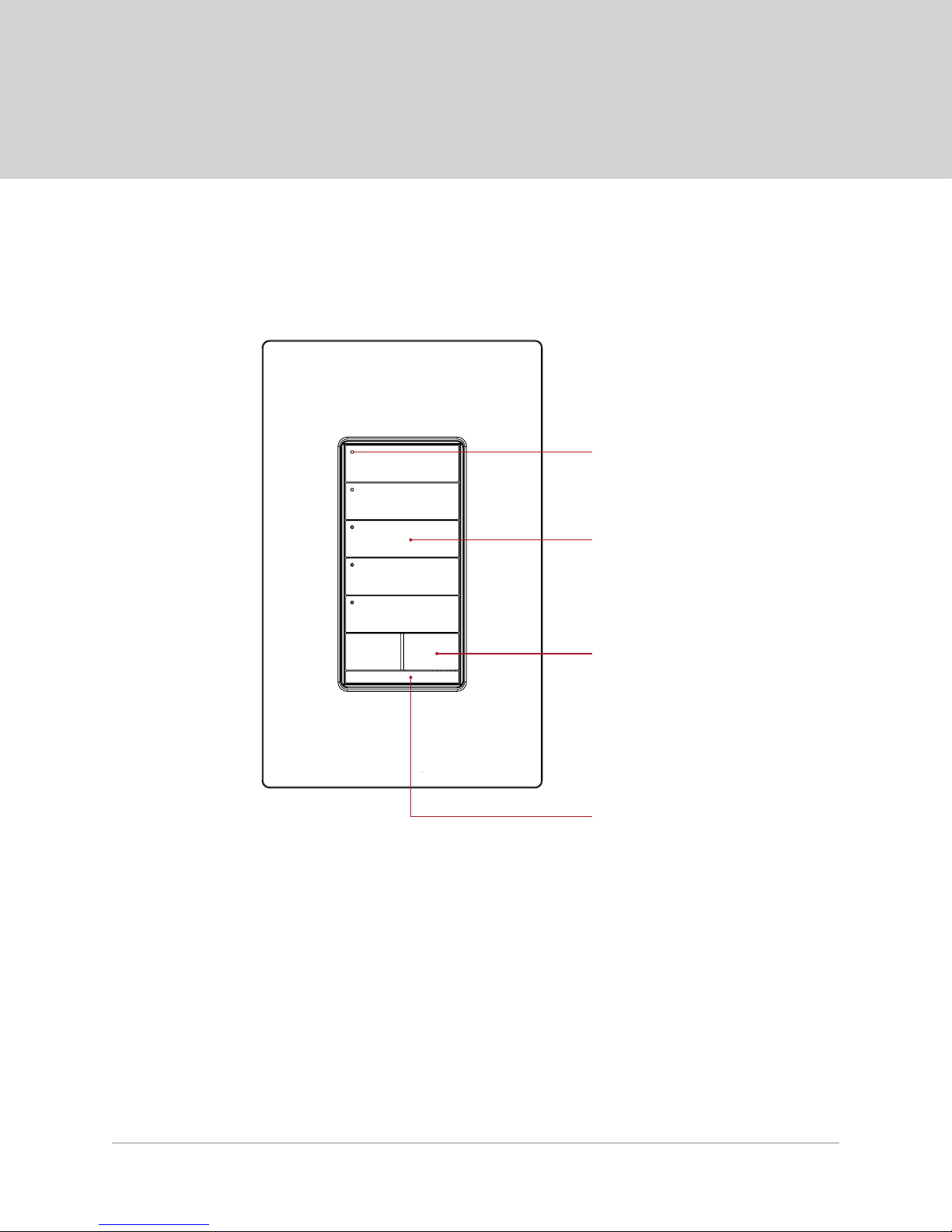

Operation.............................................................................................................................................................. page 17
Warranty & Tech Support................................................................................................................................. page 18
TABLE OF CONTENTS

PAGE 4 X2 INSTALLATION GUIDE
770-000026-01 r08
PRODUCT OVERVIEW
Ketra’s X2 keypad oers users a classic button-style
interface for the complete control of a lighting system.
X2s come in two models: a wireless KetraNet Mesh controller and a wireless KetraNet
Mesh controller with onboard incandescent dimmer. The latter is ideal for spaces
where both Ketra and traditional lighting sources need to be controlled. Fitting within a
standard wall box and either Decora® or Claro wall plates, the X2 is perfect for retrofit
installations as well as new construction.
X2 Mounting
Screws
Wall Plate
Mounting
Screws
Backbox X2 With
Button Chassis
Wall Plate
Mount
Single Gang
Wall Plate

PAGE 5 X2 INSTALLATION GUIDE
770-000026-01 r08
(2) #6-32 X 1/4”
WALL PLATE
MOUNTING SCREWS
(2) #6-32 X 1”
X2 MOUNTING
SCREWS
WIRE
NUTS
SERIAL
NUMBER STICKERS
X2 WITH
BUTTON CHASSIS
WALL PLATE
MOUNT
SINGLE GANG
WALL PLATE
X2.D.ELV
SN:KX12345678
DC:V0216
X2.ND.AC
SN: KX12345678
DC: V0216

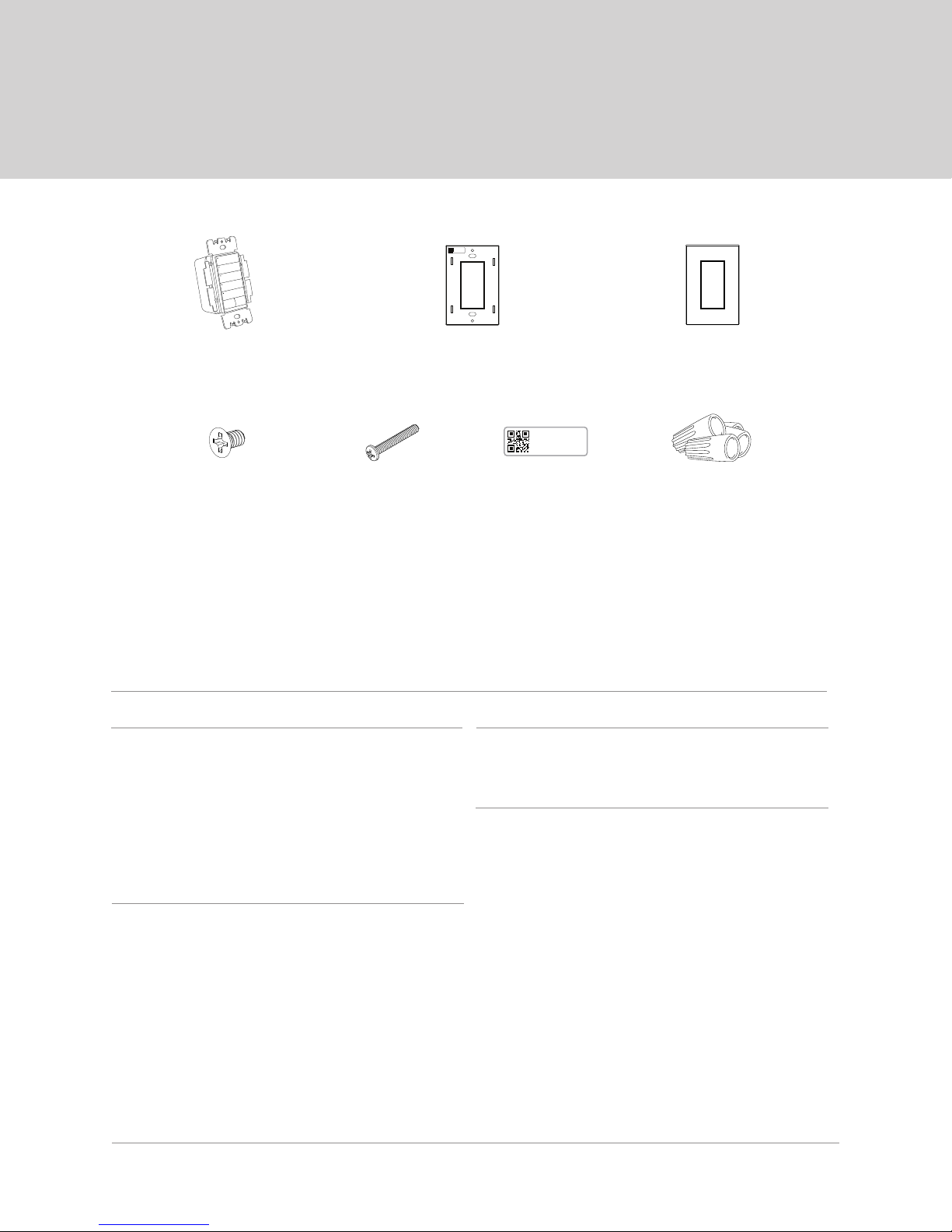

INCLUDED COMPONENTS / SPECS
Environmental
Ambient Operating
Temperature
0° to 40°C
Storage Temperature -20° to 80°C
Humidity 0-95%, Non-condensing
Certication UL, cUL, FCC Class B, RoHS
Location UL Damp location, IP20
Mechanical
Weight 8.8oz/250kg
Housing Material Flame Retardant Polymer
Wireless
Frequency 2405 - 2480 MHz
Output Power 18 - 20 dBm
Electrical
Input Wiring 16 AWG Flying Leads
Voltage X2.ND 120-277 VAC
X2.INC 120VAC
Power Consumption 2W
Frequency 50/60 Hz
SPECIFICATIONS

PAGE 6 X2 INSTALLATION GUIDE
770-000026-01 r08
DIMENSION DRAWINGS
2.6"
[66.23mm]
1.3"
[32.98mm]
3.3"
[83.60mm]
4.1"
[105.00mm]
1.7"
[43.97mm]
MULTI-GANG TRIM
2.4"
[60.15mm]
.3"
[7.60mm]
1.4"
[35.30mm]
.2"
[6.10mm]
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.872.4349
DRAWN BY:
DATE:
SHEET NAME
SHEET
SCALE:
CHECKED BY:
OF
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
DRAWING #:
REVISION #:
DRAWING TYPE:
11
X2 KEYPAD - PRODUCT
DOCUMENT DRAWING
NTS
GEB
DL, CEH
07/21/2016
01
775-000015-02
PDD
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
PROPRIETARY
2.6"
[66.23mm]
1.3"
[32.98mm]
3.3"
[83.60mm]
4.1"
[105.00mm]
1.7"
[43.97mm]
MULTI-GANG TRIM
2.4"
[60.15mm]
.3"
[7.60mm]
1.4"
[35.30mm]
.2"
[6.10mm]
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.872.4349
DRAWN BY:
DATE:
SHEET NAME
SHEET
SCALE:
CHECKED BY:
OF
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
DRAWING #:
REVISION #:
DRAWING TYPE:
11
X2 KEYPAD - PRODUCT
DOCUMENT DRAWING
NTS
GEB
DL, CEH
07/21/2016
01
775-000015-02
PDD
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
PROPRIETARY
2.6"
[66.23mm]
1.3"
[32.98mm]
3.3"
[83.60mm]
4.1"
[105.00mm]
1.7"
[43.97mm]
MULTI-GANG TRIM
2.4"
[60.15mm]
.3"
[7.60mm]
1.4"
[35.30mm]
.2"
[6.10mm]
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.872.4349
DRAWN BY:
DATE:
SHEET NAME
SHEET
SCALE:
CHECKED BY:
OF
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
DRAWING #:
REVISION #:
DRAWING TYPE:
11
X2 KEYPAD - PRODUCT
DOCUMENT DRAWING
NTS
GEB
DL, CEH
07/21/2016
01
775-000015-02
PDD
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
PROPRIETARY
2.6"
[66.23mm]
1.3"
[32.98mm]
3.3"
[83.60mm]
4.1"
[105.00mm]
1.7"
[43.97mm]
MULTI-GANG TRIM
2.4"
[60.15mm]
.3"
[7.60mm]
1.4"
[35.30mm]
.2"
[6.10mm]
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.872.4349
DRAWN BY:
DATE:
SHEET NAME
SHEET
SCALE:
CHECKED BY:
OF
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
DRAWING #:
REVISION #:
DRAWING TYPE:
11
X2 KEYPAD - PRODUCT
DOCUMENT DRAWING
NTS
GEB
DL, CEH
07/21/2016
01
775-000015-02
PDD
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KETRA, INC. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF KETRA, INC.
IS PROHIBITED.
PROPRIETARY

PAGE 7 X2 INSTALLATION GUIDE
770-000026-01 r08
DIMMER LOAD
X2-INC Load Type and Capacity Chart
Load Type Single Gang Multigang
Incandescent 600W 500W
Dimmer capacity rated at 25˚C ambient temperature; derate incandescent
and halogen loads an additional 100W at 40˚C temperature ambient.

PAGE 8 X2 INSTALLATION GUIDE
770-000026-01 r08
WIRING DIAGRAMS
* X2 and load on same circuit should be
wired in parallel, not series.
Retrofit Installation
120V~
50/60 HZ
X2 KEYPAD - ND X2 KEYPAD - INC
120-277V~
50/60 HZ
ND
INC
SWITCH - LOAD + SWITCH
3-Way Switch
SWITCH - LOAD + SWITCH
X2 Keypad Ketra Retrofit
ND

PAGE 9 X2 INSTALLATION GUIDE
770-000026-01 r08

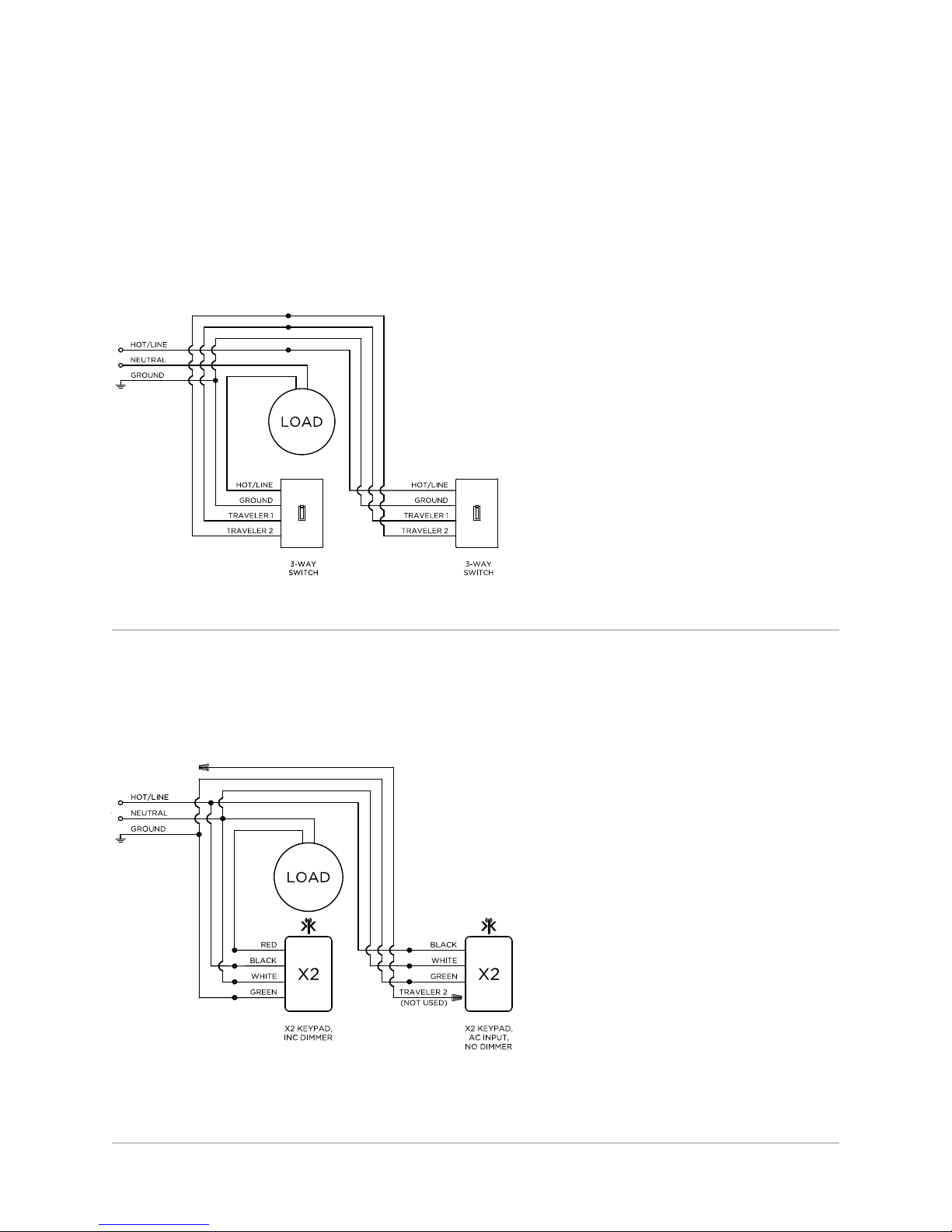

WIRING DIAGRAMS
LOAD - SPLIT SWITCHES
3-Way Switch
LOAD - SPLIT SWITCHES
X2 Keypad Ketra Retrofit
NDINC

PAGE 10 X2 INSTALLATION GUIDE
770-000026-01 r08
X2-ND AC INPUT, NON-DIMMING
New Construction
1. Install wall box (single gang wall box with at least 14 in3volume only).
2. If installing in a multigang box, the side-fins must be removed for fit. (See Figs 1 and 2)
INSTALLATION
3. Run power to wall box utilizing stranded or solid core 12-18 AWG wire. (See Fig 3)
4. Prepare the wire for connection to lead wire: A. Strip 8.5 mm of wire for insertion into the wire nut. B. Twist
the stranded wire to prevent fraying (tinning optional).
5. Using the provided wire nuts, attach each X2 lead wire to the corresponding conductor. Black-Line, White-
Neutral, Green-Ground. (See Fig 4)
11 12
D
C
B
E
F
13 14

PAGE 11 X2 INSTALLATION GUIDE
770-000026-01 r08
6. Ensure that no conductors are visible after insertion, and that no stray wires are exposed.
7. Carefully tuck wires back into wall box.

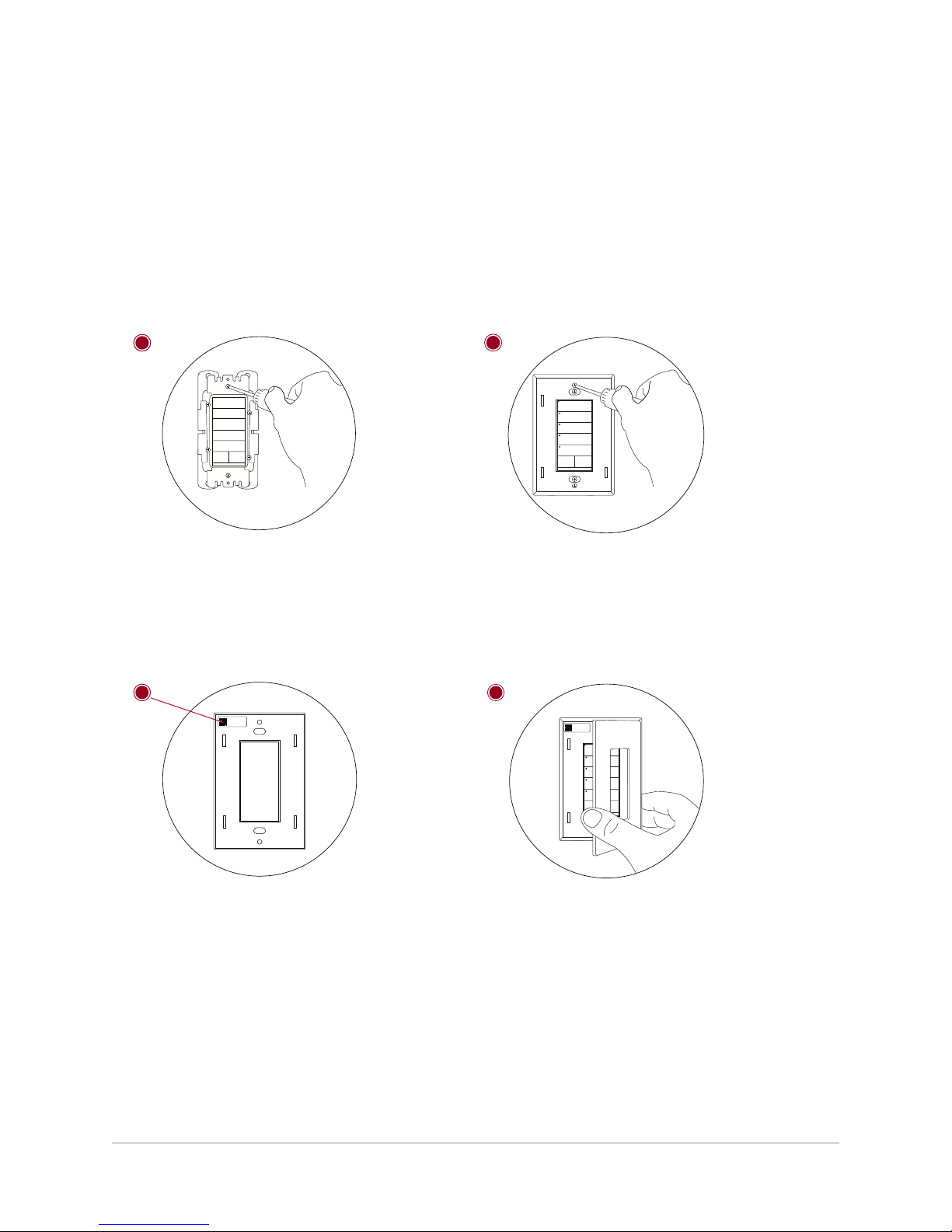

8. Mount the X2 to the wall box using supplied fasteners. Leave the fasteners snug, not fully tight.
(See Fig 5)
9. Secure Wall Plate Mount to the X2 using the supplied fasteners. (See Fig 6)
Note: If the X2’s button chassis is not aligned with the wall plate mount, remove the mount and adjust
the position of the X2. Secure the wall plate mount with the fasteners when satisfied.
10. Place one serial number sticker on the back of the wall plate. The other can go on building plans or
control drawings. (See Fig 7)
11. Attach Wall Plate to Wall Plate mount. It will snap into place.(See Fig 8)
12. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
INSTALLATION
AC INPUT, NON-DIAMMING
Installation is complete.
Refer to Design Studio Software for commissioning details.
15 16
X2.D.ELV
SN: KX12345678
DC: V0216
X2.D.ELV
SN: KX12345678
DC: V0216
17 8

PAGE 12 X2 INSTALLATION GUIDE
770-000026-01 r08
INSTALLATION
AC INPUT, NON-DIAMMING
Retrofit Important Notes
• This wiring scheme is for standard in-line 2-Way light switches.
• The wall box should have a volume of 14 in3or greater.
• The X2 does not have to be on the same circuit as any Ketra fixtures, as all control signals are wireless.
• Ketra fixtures to be controlled by the X2 should have an uninterrupted source of power. They should NOT
be wired to a light switch or other intermediary device that could cut their power. If you are replacing
lamps that are already wired to a light switch, it is recommend that the light switch be physically replaced
by the X2. (See Fig 9)
Retrofit Instructions
1. Turn off power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section, Page 10.
* X2 and load on same circuit should be wired in parallel, not series.
9
KETRA
LOAD
ND
120V~
50/60 HZ

PAGE 13 X2 INSTALLATION GUIDE
770-000026-01 r08
INSTALLATION
INCANDESCENT DIMMER
X2-INC INCANDESCENT DIMMER
New Construction
1. Install wall box (single gang wall box with at least 14 in3cubic inch volume only).
2. Run power to wall box utilizing stranded or solid core 12-18 AWG wire. (See Fig 1)
3. Prepare the wire for connection to lead wire: A. Strip 8.5 mm of wire for insertion into the wire nut. B.
Twist the stranded wire to prevent fraying (tinning optional).
4. Using the provided wire nuts, attach each X2 lead wire to the corresponding conductor. Black-Line,
White-Neutral, Green-Ground, Red-Dimmed Line. (See Fig 2 & 3)
Warning- Do not connect Dimmed Line (Red) to AC Input Line (Black)
5. Ensure that no conductors are visible after insertion, and that no stray wires are exposed.
6. Carefully tuck wires back into wall box.
120V~
50/60 HZ
X2 KEYPAD - INC
INC
PAGE 12 X2 INSTALLATION GUIDE
770-000026-01 PAGE 13X2 INSTALLATION GUIDE 770-000026-01
11. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
12.Installation is complete. Refer to Design Studio Software for
commissioning details.
Retrot
Important Notes:
• This wiring scheme is for standard in-line 2-Way light switches.
• Wall box should have volume of 14 in3or greater.
• The X2 Keypad and Ketra products require a constant, uninterrupted
source of electricity. Power needs to be run directly to xtures being
controlled by the X2 Keypad. Ketra xtures to be controlled by the X2
Keypad do not have to be connected to the same circuit, as the
control signal is wireless.
1. Turn o power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section for the AC-input
non-dimming model, Page 11.
INSTALLATION (AC INPUT NON DIM) INSTALLATION (ELV DIMMER)
X2-__-ELV-JB-1-__-____
New Construction
1. Install wall box (single gang wall box with at least 14 in3cubic inch
volume only).
2. Run power to wall box utilizing stranded or solid core 12-18 AWG wire.
(See Fig 1)
21
3. Prepare the wire for connection to lead wire: a. Strip 8.5 mm of wire
for insertion into the wire nut. b. Twist the stranded wire to prevent
fraying (tinning optional).
11
PAGE 12 X2 INSTALLATION GUIDE
770-000026-01 PAGE 13X2 INSTALLATION GUIDE 770-000026-01
11. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
12.Installation is complete. Refer to Design Studio Software for
commissioning details.
Retrot
Important Notes:
• This wiring scheme is for standard in-line 2-Way light switches.
• Wall box should have volume of 14 in3or greater.
• The X2 Keypad and Ketra products require a constant, uninterrupted
source of electricity. Power needs to be run directly to xtures being
controlled by the X2 Keypad. Ketra xtures to be controlled by the X2
Keypad do not have to be connected to the same circuit, as the
control signal is wireless.
1. Turn o power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section for the AC-input
non-dimming model, Page 11.
INSTALLATION (AC INPUT NON DIM) INSTALLATION (ELV DIMMER)
X2-__-ELV-JB-1-__-____
New Construction
1. Install wall box (single gang wall box with at least 14 in3cubic inch
volume only).
2. Run power to wall box utilizing stranded or solid core 12-18 AWG wire.
(See Fig 1)
21
3. Prepare the wire for connection to lead wire: a. Strip 8.5 mm of wire
for insertion into the wire nut. b. Twist the stranded wire to prevent
fraying (tinning optional).
12
3

PAGE 14 X2 INSTALLATION GUIDE
770-000026-01 r08
7. Mount the X2 to the wall box using supplied fasteners. (See Fig 4)
8. Secure Wall Plate Mount to the X2 using the supplied fasteners. (See Fig 5)
9. Remove Serial Number Sticker from sheet and affix it to the back of the Wall Plate. (See Fig 6)
10. Attach Wall Plate to Wall Plate mount. It will snap into place. (See Fig 7)
11. Energize circuit.
Note: Indicator lights will power on if unit is properly wired.
Installation is complete.
Refer to Design Studio Software for commissioning details.
INSTALLATION
INCANDESCENT DIMMER
PAGE 14 X2 INSTALLATION GUIDE
770-000026-01 PAGE 15X2 INSTALLATION GUIDE 770-000026-01
INSTALLATION (ELV DIMMER)
7
6
7. Mount the X2 to the wall box using supplied fasteners. (See Fig 4)
8. Secure Wall Plate Mount to the X2 using the supplied fasteners.
(See Fig 5)
9. Remove Serial Number Sticker from sheet and ax it to the back of
the Wall Plate. (See Fig 6)
10.Attach Wall Plate to Wall Plate mount. It will snap into place.
(See Fig 7)
5
SN LABEL
(430-000029-01/02)
4
4. Using the provided wire nuts, attach each X2 lead wire to the
corresponding conductor. Black-Line, White-Neutral, Green-Ground,
Red-Dimmed Line. (See Fig 2 & 3)
*Warning- Do not connect Dimmed Line (Red) to AC Input Line (Black)
5. Ensure that no conductors are visible after insertion, and that no stray
wires are exposed.
6. Carefully tuck wires back into wall box.
RED
BLACK
WHITE
GREEN
X2 KEYPAD,
ELV DIMMER
LOAD
X2 KEYPAD,
AC INPUT, NO DIMMER
HOT/LINE
NEUTRAL
GROUND
120V~
50/60 Hz
X2
BLACK
WHITE
GREEN
HOT/LINE
NEUTRAL
GROUND
120-277V~
50/60 Hz
X2
KEY
KETRANET MESH
WIRELESS NETWORK
GENERAL NOTES:
1. KETRANET MESH IS KETRA'S
WIRELESS CONTROL PROTOCOL.
2. A NODE IS A KETRANET MESH
ENABLED WIRELESS DEVICE.
3. 50 KETRANET MESH NODES MAX.
PER INSTALLATION NETWORK.
4. ALL KETRANET MESH NODES TO
BE INSTALLED WITHIN 50'-0"
RANGE OF THE NEAREST NODE.
SHEET
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.347.1100
OF
SHEET NAME
SCALE:
CHECKED BY:
DRAWN BY:
DATE:
REVISION #:
DRAWING #:
DRAWING TYPE:
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
1 1
WD
00
05/10/2016
CEH
GEB
NTS
KETRA
X2 KEYPAD
X2 KEYPAD
ELV DIMMER
3
!!
INSTALLATION (ELV DIMMER)
PAGE 14 X2 INSTALLATION GUIDE
770-000026-01 PAGE 15X2 INSTALLATION GUIDE 770-000026-01
INSTALLATION (ELV DIMMER)
7
6
7. Mount the X2 to the wall box using supplied fasteners. (See Fig 4)
8. Secure Wall Plate Mount to the X2 using the supplied fasteners.
(See Fig 5)
9. Remove Serial Number Sticker from sheet and ax it to the back of
the Wall Plate. (See Fig 6)
10.Attach Wall Plate to Wall Plate mount. It will snap into place.
(See Fig 7)
5
SN LABEL
(430-000029-01/02)
4
4. Using the provided wire nuts, attach each X2 lead wire to the
corresponding conductor. Black-Line, White-Neutral, Green-Ground,
Red-Dimmed Line. (See Fig 2 & 3)
*Warning- Do not connect Dimmed Line (Red) to AC Input Line (Black)
5. Ensure that no conductors are visible after insertion, and that no stray
wires are exposed.
6. Carefully tuck wires back into wall box.
RED
BLACK
WHITE
GREEN
X2 KEYPAD,
ELV DIMMER
LOAD
X2 KEYPAD,
AC INPUT, NO DIMMER
HOT/LINE
NEUTRAL
GROUND
120V~
50/60 Hz
X2
BLACK
WHITE
GREEN
HOT/LINE
NEUTRAL
GROUND
120-277V~
50/60 Hz
X2
KEY
KETRANET MESH
WIRELESS NETWORK
GENERAL NOTES:
1. KETRANET MESH IS KETRA'S
WIRELESS CONTROL PROTOCOL.
2. A NODE IS A KETRANET MESH
ENABLED WIRELESS DEVICE.
3. 50 KETRANET MESH NODES MAX.
PER INSTALLATION NETWORK.
4. ALL KETRANET MESH NODES TO
BE INSTALLED WITHIN 50'-0"
RANGE OF THE NEAREST NODE.
SHEET
3815 S. CAPITAL OF TEXAS HWY
SUITE 100
AUSTIN, TX 78704
P: 512.347.1100
OF
SHEET NAME
SCALE:
CHECKED BY:
DRAWN BY:
DATE:
REVISION #:
DRAWING #:
DRAWING TYPE:
FOR REFERENCE ONLY
NOT FOR
CONSTRUCTION
1 1
WD
00
05/10/2016
CEH
GEB
NTS
KETRA
X2 KEYPAD
X2 KEYPAD
ELV DIMMER
3
!!
INSTALLATION (ELV DIMMER)
14 5
X2.D.ELV
SN: KX12345678
DC: V0216
X2.D.ELV
SN: KX12345678
DC: V0216
17 8

PAGE 15 X2 INSTALLATION GUIDE
770-000026-01 r08
INSTALLATION
INCANDESCENT DIMMER
Retrofit Important Notes:
• This wiring scheme is for standard in-line dimmer.
• Wall box should have volume of 14 in3 or greater.
• The X2 Keypad and Ketra products require a constant, uninterrupted source of electricity. Power needs
to be run directly to Ketra fixtures being controlled by the X2 Keypad. Ketra fixtures to be controlled by
the X2 Keypad do not have to be connected to the same circuit, as the control signal is wireless. However,
non-Ketra fixtures will need to be on the same circuit and wired in-line if they are to be controlled by
an X2 with onboard incandescent dimmer.
• For a dimmer retrofit installation using incandescent loads, the incoming and outgoing line connections
should NOT be tied together. Instead, the incoming line should be tied to the X2’s black line wire, while
the outgoing line is tied to the X2’s red dimmed-line wire. Refer to page 8’s “X2 Keypad: Incandescent
Dimmer” wiring diagram for an illustration of the proper wiring.
1. Turn off power feed to the switch to be replaced.
2. Remove existing switch.
3. Continue with step 3 in the New Construction section for the non-dimming model, Page 10.

PAGE 16 X2 INSTALLATION GUIDE
770-000026-01 r08
REPLACING BUTTON CHASSIS
The X2’s button chassis can be replaced. The replacement chassis must have the same button layout as the
original. To replace the button chassis, follow these steps:
1. Pull airgap switch out.
2. (If X2 already installed) Snap the wall plate off of its mount, and then unscrew and remove the mount.
Save screws.
3. Using a Phillips (PH1) screwdriver, unscrew the bottom-right screw that holds the button chassis in place.
(See Fig 1)
4. Apply pressure to exposed left edge of button chassis until it pops loose, and then gently remove.
(See Fig 2)
5. If removing the chassis detached the light guide from the board, reapply the light guide. The light
guide is a thin, black rubber strip with chimneys on top. (See Fig 3.) To reapply, fit the two pegs on the
underside of the light guide into the two square holes on the board.
Note: The light guide’s orientation matters. Its surface should have a groove at the very bottom, just
above the last chimney.
6. Apply replacement button chassis immediately, applying equal pressure to all four corners to ensure that
the new chassis snaps into place.
Note: Your replacement chassis must have the same button layout as the original.
7. Reapply the bottom-right screw that holds the chassis in place. Ensure airgap switch is pressed in fully.
11 12
REVISIONS
ZONE REV. ECO DESCRIPTION DATE APPROVED
C
A
C
EE
A
00
1:1
21
8/19/2015
R.CONROY
TOLERANCES:
C
PROPRIETARYAND CONFIDENTIAL
820-000063-01
SUBA, X2, BACK END, NO
DIMMER
00
SCALE:
NOTES:
3

PAGE 17 X2 INSTALLATION GUIDE
770-000026-01 r08
OPERATION
Keypad Buttons
Press to activate or
deactivate stored scenes
or shows.
Intensity Buttons
Increase or decrease
light intensity. Double
tap up or down to go to
the max/min intensity
of the selected scene.
Airgap Switch
Pull out to disconnect
power to device.
Status LEDs
Highlight activated button.

PAGE 18 X2 INSTALLATION GUIDE
770-000026-01 r08
WARRANTY & TECH SUPPORT
Limited warranty terms can be found at:
ketra.com/warranty
For questions and technical support please contact:
[phone]
[e-mail]

6321 E. Stassney Ln.
Suite 400
Austin, TX 78744
ketra.com
[phone]
