Kett PM-600 User manual

Seed & Grain Moisture Tester PM-600
Operating Manual

CONTENTS
1. Specifications..................................................................................... 2
2. Names of Parts................................................................................... 3
3. Keyboard............................................................................................. 4
4. Display ................................................................................................ 5
5. Before Measurement.......................................................................... 6
6. Measurement Methods ...................................................................... 7
7. Displaying the AverageValue ........................................................... 13
8. Preforming Moisture Content Bias Adjustment.............................. 14
9. Replacing the Batteries and Error Code Display ............................ 16
10. Auto Power Off ................................................................................... 16

1. Specifications
Measuring principle : Dielectric constant (50MHz)
Applications : Grain seeds and other agricultural products(See PM-600 PRODUCT LIST)
Measuring range : 1.0〜40.0% (depends on products)
Accuracy : S.E.C 0.2〜0.5% (for less than 20% moisture content)
S.E.C : Standard Error of Calibration
Capacity : Sample weight : 20〜200gr
Sample volume: 240mL
Compensations for : Weight : with built-in load cell
Temperature : with built-in thermistor
Bias : −9.9〜＋9.9%
Functions : Weight / litre
Memory-back-up
Auto power off
Average
Display : LCD
Power supply : Alkaline batteries (1.5V "LR6"x4)
Power consumption : 6V
Dimensions : 130(W)×185(D)×210(H)mm
Weight 1.5kg
Accessories : Funnel, Sample cup, Brush, Alkaline batteries (1.5V "LR6"×4),
Operating manual and Product list
2

3
2. Names of Parts
Measuring section
Top ring
Display
Keyboard
Grip
Battery cover
Brush
Operating manual
Product list
ACCESSORIES
Funnel
Sample cup
Batteries
MAIN BODY
PM-600PRODUCT LIST

3. Keyboard
4
Power is turned on.
Power is turned off.
Bias adjustment can be entered.
For measuring moisture.
For selecting product number.
(1) In MEA(measurement) mode,
weight/litre is displayed.
(2) In BIAS mode, "-" sigh can be
entered.
(1) In MEA mode, average value is
displayed.
(2) In BIAS and SELECT mode, "0" can
be entered.

4. Display
5
Battery Indicator
Indicators of Function
(1) Pour When the PM-600 becomes
ready for measurement,
"Pour" blinks.
(2) Bias Bias adjustment
(3) Ave Average
Moisture Unit
Indication of
(1)Moisture
(2)Weight/Litre
(3)Bias adjustment value
Number of Measurement
Product Number
Product Name and Type Number Weight/Litre Unit

(1)Remove the funnel and sample cup from the unit.
(2)Load the batteries.
The unit is powered by four LR6 batteries.
Place the batteries in the compartment correctly.
(3)The PM-600 features an integrated balance. For best ac-
curacy, place the unit on a horizontal surface, in a loca-
tion that is not subject to wind or vibration.
Attempting measurement while holding the unit in your hand
or in a location where wind or vibration is present reduce pre-
cision or make accurate measurement impossible.
(4)Prepare the sample to be measured before measurement.
Allow it to equilibrate to the ambient temperature of the
PM-600.
6
5.Before Measurement

7
6-1. Turn on the PM-600
(1)Press key.
(Buzzer sounds for 2 seconds.)
All indicators will be displayed (Figure1).
(2)After 4 seconds, the product number (01~99) and the product
name (4 characters), "T" and "%" indicators will be displayed
(Figure2).
6. Measurement Methods
Figure 1
Figure 2

6-2. Select the Product.
Example : Product No. 41 to
Product No. 43

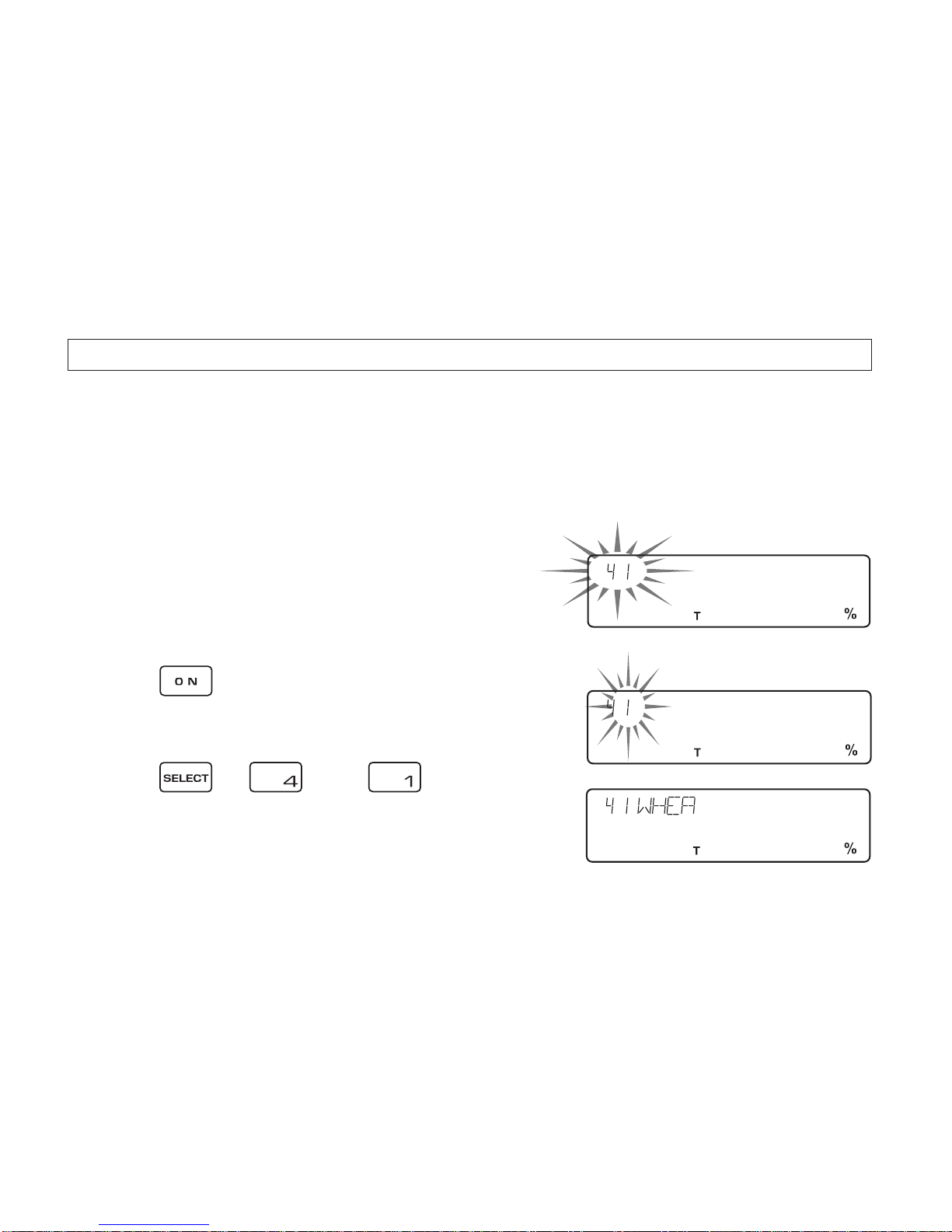

(1)Press key.
Be sure that Product No. "41" is blinking (Figure 3).
(2)Press key.
"1" is blinking (Figure 4).
(3)Press key (Figure 5).
Note : The product number is retained in the non-volatile
memory when the PM-600 power is off.
8
Figure 5
Figure 3
Figure 4

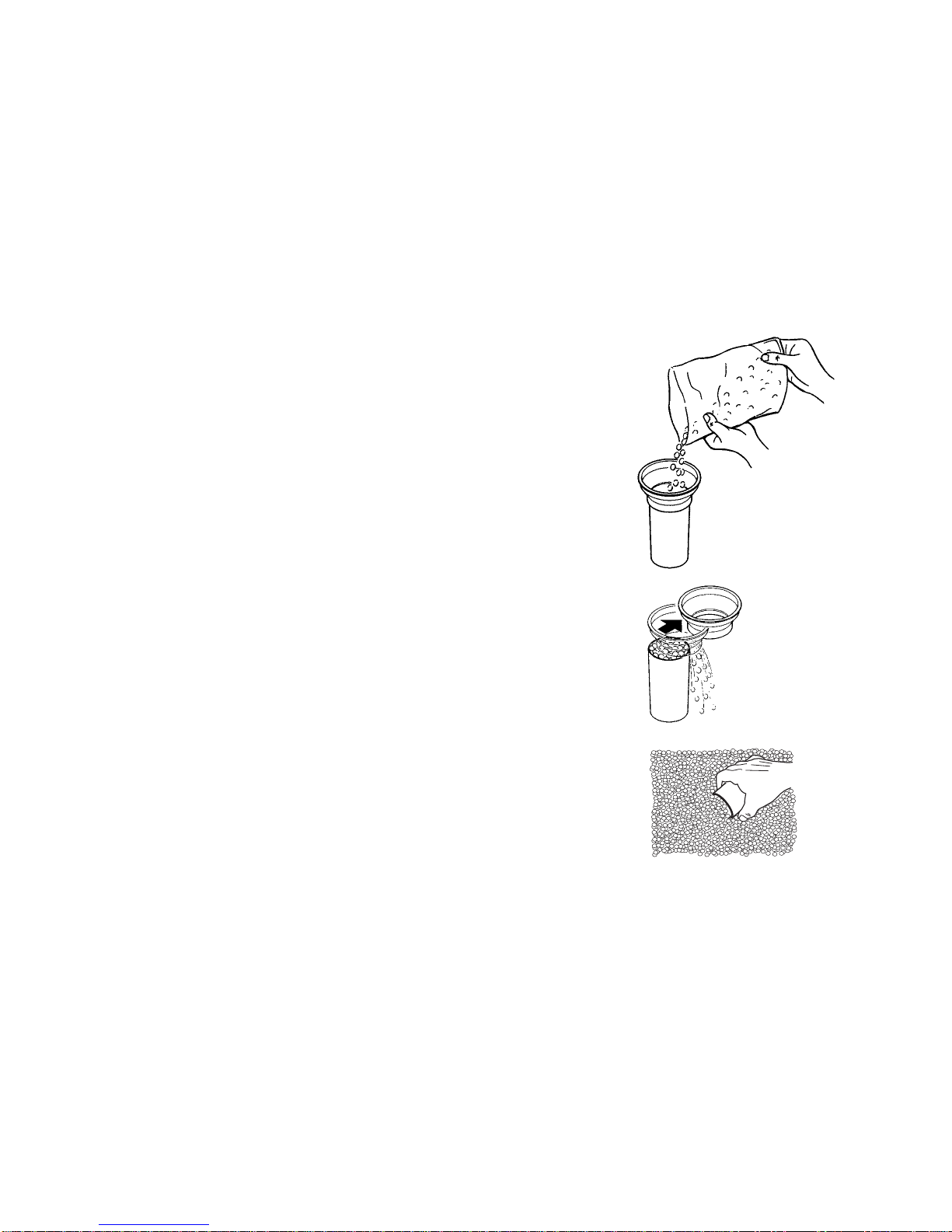

6-3. Pour the sample into the sample cup.
(1)Place the funnel on top of the sample cup.
Pour the sample to be tested into the cup until it overflows
(Figure 6).
(2)It shoud take about 4~5 seconds.
(3)Remove the funnel and level the cup by pulling the funnel
accross the top edge(Figure 7).
Caution : Never use the sample cup to take a sample directly
as shown in Figure 8.
Always use the funnel.
9
Figure 6
Figure 7
Figure 8

10
6-4. Pour the sample into the measuring section.

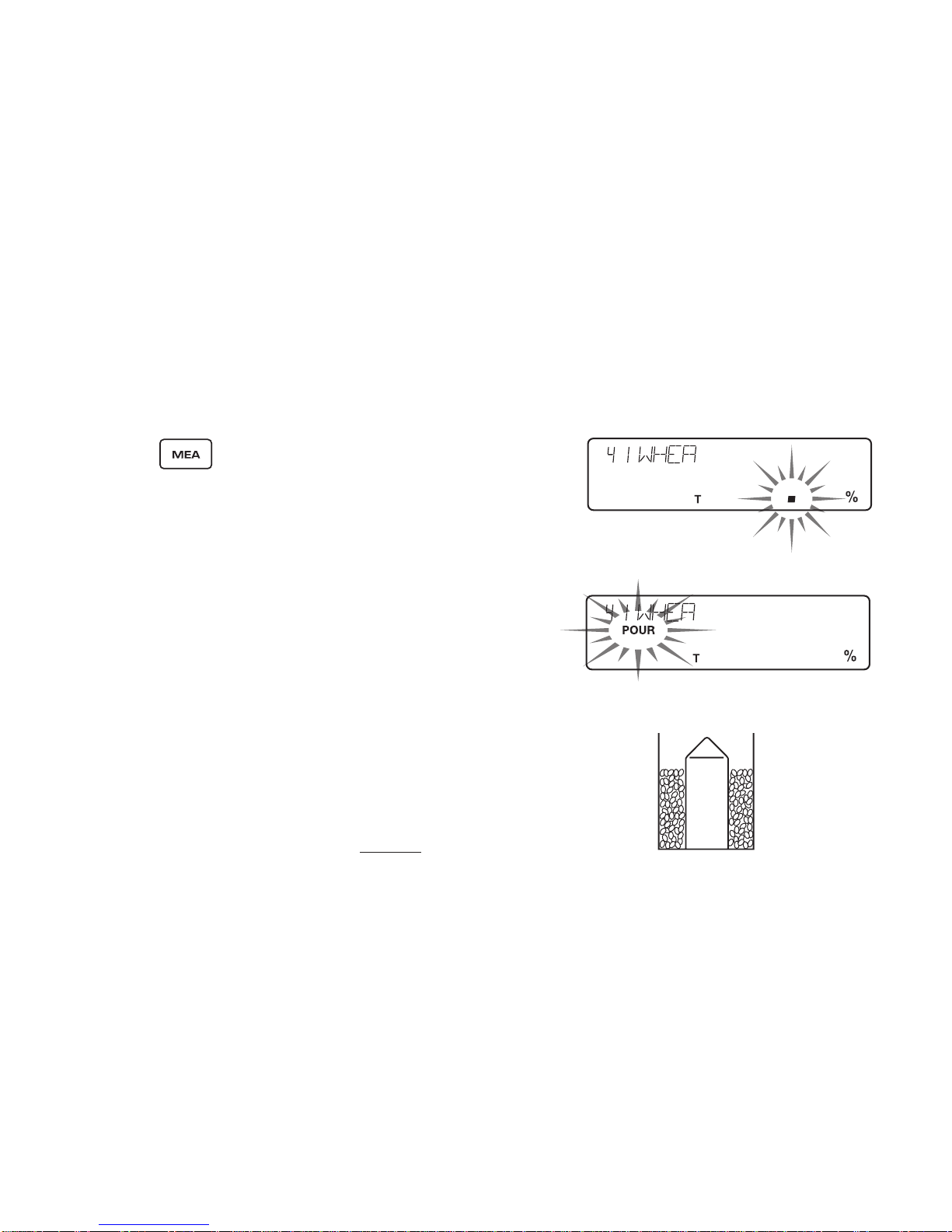

(1)Press key.
The decimal point blinks (Figure 9).
The PM-600 is performing zero-adjustment of the built-in scale
while the decimal point is blinking.
Caution : Be sure not to touch the unit at this moment.
(2)Pour the sample into the unit when the "POUR" indicator be-
gins blinking (Figure 10).
Caution : Pour the sample into the center of the measuring
section at a speed at which the entire sample is
poured in about 5 ~ 6 seconds.
Pour the sample in to be even (Figure 11).
Note 1 : For tea sample which is not so smooth as grain,
pour the sample, a little shaking the sample cup
and aiming at the center point of the unit.
Figure 9
Figure 10
Figure 11

11
Note 2 : When "Corn Cane" or "Flattened Barley" or "Tapi-
oca Flour" is measured, the sample is sometimes
put on the top of testing chamber as per Figure A.
In that case, drop the sample on the top into the
testing chamber while a decimal point is blinking
(Figure 12).
Note 3 : When "Pine Pulp" or "Tapioca Chips" or "Tapioca
Pellets" is measured, the sample may be put be-
tween testing chamber as per Figure B. In that case,
the sample which can not be put into testing cham-
ber should be either removed or cut fine into small
pieces prior to measurement (Figure 13).
Figure 12
Figure 13

12
(3)After the "POUR" indicator goes out, the decimal point blinks
10 seconds.
The moisture content and the number of measurement are
displayed (Figure 14).
The unit measures weight of the sample while the decimal
point is blinking after the "POUR" indicator goes out.
Caution : Do not pour more sample in during this period or
the measurement precision will be greatly down-
graded.
Do not put more sample into the measuring sec-
tion even if some spills out.
(4)Press key, weight/litre is displayed.(Figure 15).
(5) Dispose of the sample (Figure 16).
The moisture content or weight/litre is displayed during this
time. If you wish to continue with further measurement, re-
sume the procedure from step 6-3 "Pour the sample into the
sample cup".
Figure 14
Figure 15
Figure 16

13
Press key to display the average of the measured
values.
When the number of measurement is between 2 and 9, "AVE",
the number of measurements and the average moisture are
displayed (Figure 17).
Next press key, the number of measurements and the
average weight/litre are displayed (Figure 18).
Note : Once key is pressed the number of measure-
ments goes back to "1".
7. Displaying the Average Value
Figure 17
Figure 18

14
8. Performing Moisture Content Bias Adjustment
Moisture content bias adjustment can be made from -9.9~
+9.9% for each product.
Input a bias value if the moisture content has any discrepancy
against the official standard.
The bias value is not cleared, when the power is off.
Example : Product No. 41
BIAS value shoud be decreased by 0.4.
(1) Set the unit to the bias adjustment mode.
Confirm if the power is turned off.
Press key.
(2)Select the product.
Press key, key and key.
(Figure 19, Figure 20, Figure 21)
Figure 21
Figure 20
Figure 19

15

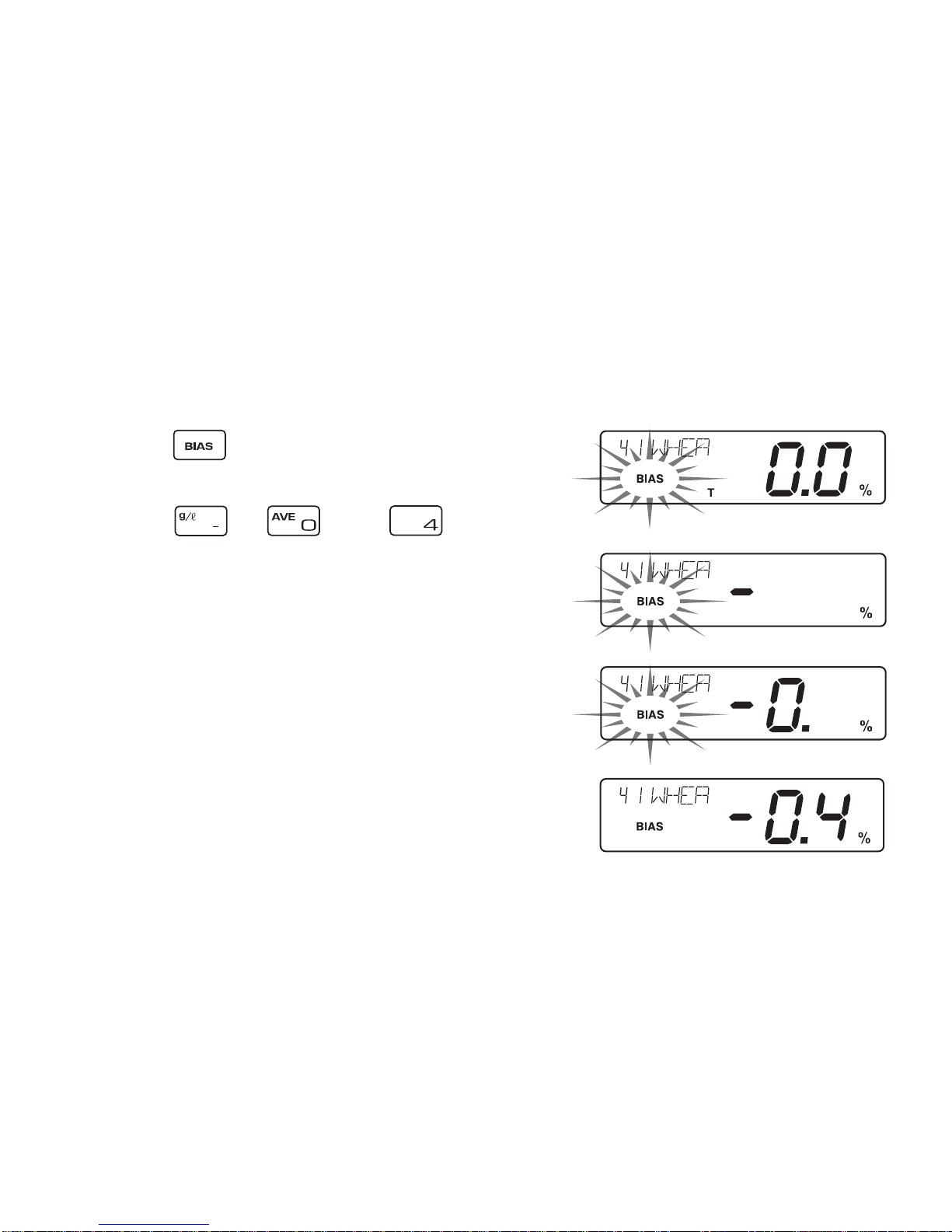

(3)Input the bias.
Press key.
The "BIAS" sign blinks. (Figure 22)
Press key, key and key (Figure 23,
Figure 24).
The "BIAS" sign stops blinking (Figure 25).
Figure 23
Figure 22
Figure 25
Figure 24

When inactive, the unit will automatically power off
in approximately five minutes.
10. Auto Power Off
16

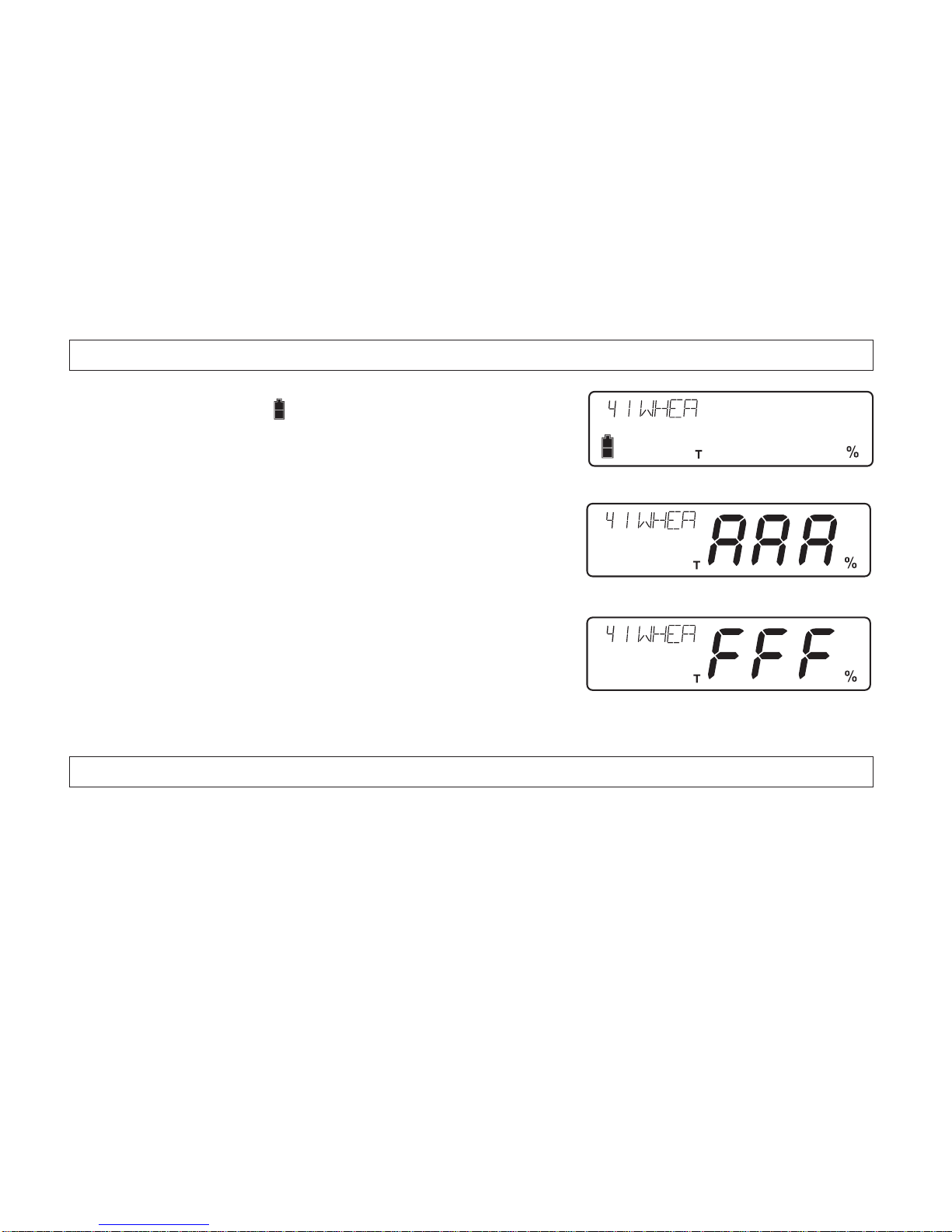

(1)The battery indicator ( ) is displayed when the batteries are
exhausted (Figure 26).
Replace all four with new batteries.
(2)When moisture underflows the lowest limit of the measuring
range, LCD displays "A A A " (Figure 27).
(3)When moisture overflows the range, LCD displays "F F F " (Fig-
ure 28).
Figure 26
Figure 27
Figure 28
9. Replacing the Batteries and Error Code Display
