Kettler PF25 User manual
Assembly Instructions
Wall Mounted Parasol
PF25
Sept 2020
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE
USE AND CARE OF YOUR GARDEN FURNITURE. ASSEMBLY
TIME
PERSONS
REQUIRED
60
MINUTES
Parts List
Helpful advice before you begin:
1. We suggest you spend a short time reading
through this leaet and then follow the
simple step by step instructions.
2. Do not discard any of the packaging until
you have checked that you have all the
parts and the pack of ttings.
3. Assemble this product on a soft surface.
4. To ensure an easier assembly, we strongly
advise that all ttings are only nger
tightened during initial assembly. Only
upon completion of the assembly should
all xing points be fully tightened.
5. Keep ttings out of children’s reach.
6. Do not use any other tools other than
those recommended to build this product.
7. In the unlikely event that this product has
missing or damaged parts, please visit our
website www.kettler.co.uk
Do not discard any of the packaging
until you have checked that you have
all the parts and the pack of xings.

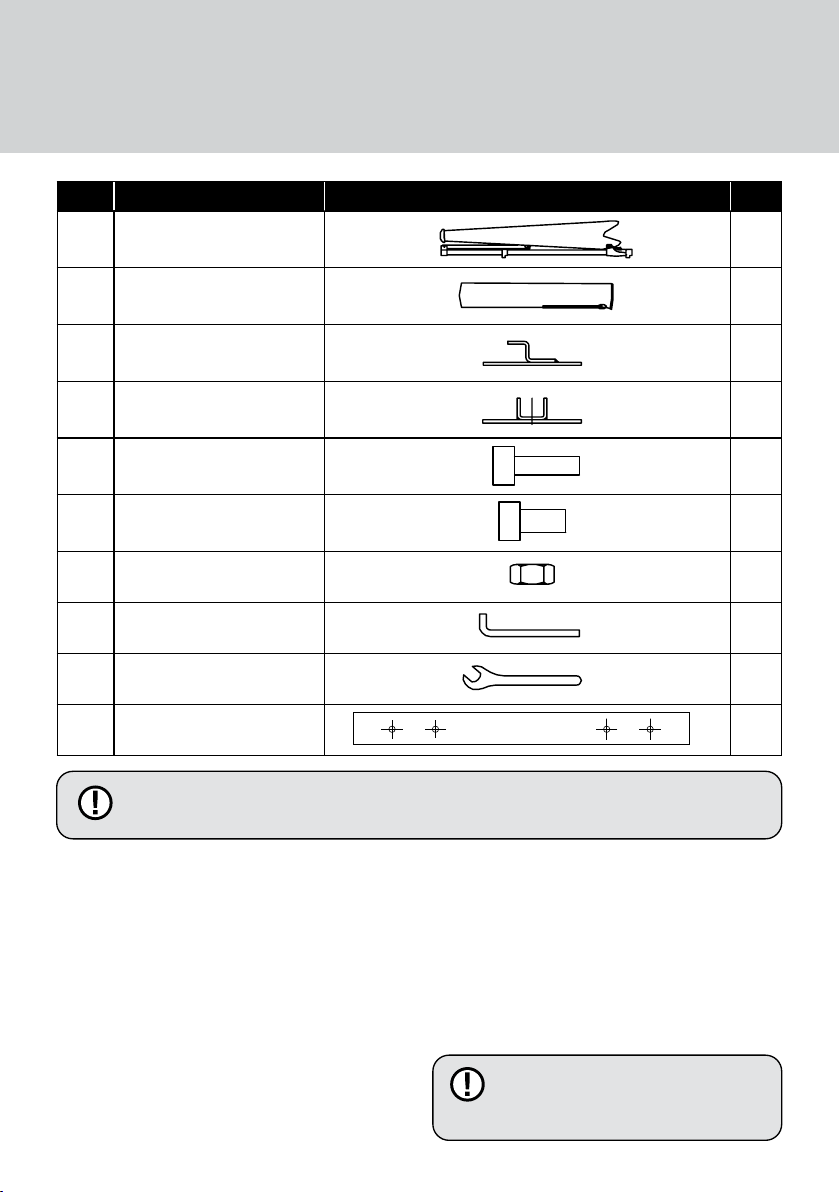

Part Description Qty
A Frame 1
BProtective Cover - with 3
part supporting rod 1
C Wall Bracket 1 1
D Wall Bracket 2 1
E Bolt M6x55 1
F Bolt M6x35 1
G Nut 2
H Alen Key 1
I Spanner 1
JCard Drilling Template 1
TOP
DRILLING TEMPLATE
Wall xings are not included. Please visit your local DIY centre/hardware store to
purchase appropriate xings for the type of wall you wish to attach the parasol to.
Using the fold-out template provided, (part K) mark and then drill the holes in the wall.
Use a spirit level to ensure the template is vertical before drilling.
Assembly - Wall Fixing
1
Wall
Ground Ground
Electric Drill
(not Included)
1103mm
This height can be
determined by your
preference
or the limitations of
your location.
(1008mm)
TOP
DRILLING TEMPLATE
J
2
C
D
Loosely x the
brackets to the
wall by inserting
YOUR
APPROPRIATE
FIXINGS through
the TOP holes in
each bracket.
4
6
5
3
Assembly - Wall Fixing
A
Rotate the
brackets 90°
before drilling
the holes Rotate the
brackets back
into position
and x in
place with
YOUR
APPROPRIATE
FIXINGS.
Tighten all
FIXINGS.
securely.
Oer the parasol
into place to check
that the brackets
are in the correct
position before
proceeding.
108mm108mm
Mark the lower
hole position of
the bracket.
Mark the lower
hole position of
the bracket.
C
D
Assembly
G
F
F
I
G
H
A
7
7.1
7.2
Assembly
8.1
8.2
8
Slider
UNTIE
TO OPEN
Push the button to slide the parasol up to the middle position. Turn the crank
clockwise to open it completely and then slide the parasol up to the desired position.
Operating Instructions
9
PUSH
BUTTON TO
SLIDE
Operating Instructions
10.1
10.2
10
Slider
TO CLOSE
Push the button to slide the parasol into the middle position.
Turn the crank anti-clockwise to close the canopy.
Operating Instructions
11
B
Supporting
rod ts into
slit in fabric
at the bottom
of the zip to
help place
the cover on
the parasol
and frame.
Operating Instructions
12
B
The parasol should be closed and the night cover tted in windy
conditions and when not in use. Failure to do so may result in
damage to the parasol.
Information
NIGHT COVER
TO COVER
FRAME AND
CANOPY.
This parasol has UV50+ protection. What does that mean?
For example, a fabric with a UPF rating of 50 only allows 1/50th of the sun’s UV
radiation to pass through it. This means that this fabric will reduce your skin’s
UV radiation exposure by 50 times (98% UV block).
UV
Hand wash canopy
The canopy can be carefully removed and washed via hand only. We advise putting
back onto the frame to dry naturally.
For Your Safety
• This product may only be used for its intended purpose as furniture for residential properties.
• Check all components regularly for correct function, damage and loose connections especially
at the start of the season and at 1-2 month intervals dependent on use.
• Damaged components may endanger your safety or shorten the life of the product. Replace all
damaged parts immediately. Use only spare parts manufactured by Kettler. Should you wish to
purchase spare parts, they can be ordered directly from: www.kettler.co.uk/shop
• Kettler will not be responsible for damaged caused by improper use.
Attention
• Whilst assembling this product keep out of the reach of children. (Choking hazard –
contains small parts)
• Ensure that your working area is free of possible sources of danger, for example don’t
leave any tools lying around.
• Always dispose of packaging material in such a way that it may not cause any danger.
There is always a risk of suocation if children play with plastic bags!
• We reserve the right to make changes for technical reasons.
Warranty For Home Use
KETTLER parasols are covered by a
12 MONTH WARRANTY.
The warranty applies to domestic use only.
The warranty does not cover accidental
damage (including wind damage) or mis-use.
To validate your warranty, register at
www.kettler.co.uk and quote the product
code from the front of this booklet.
www.kettler.co.uk
12
Month
Warranty
