Keys Fitness CARDIOZONE E-CZ200 User manual

315-00116
08/07 Rev A

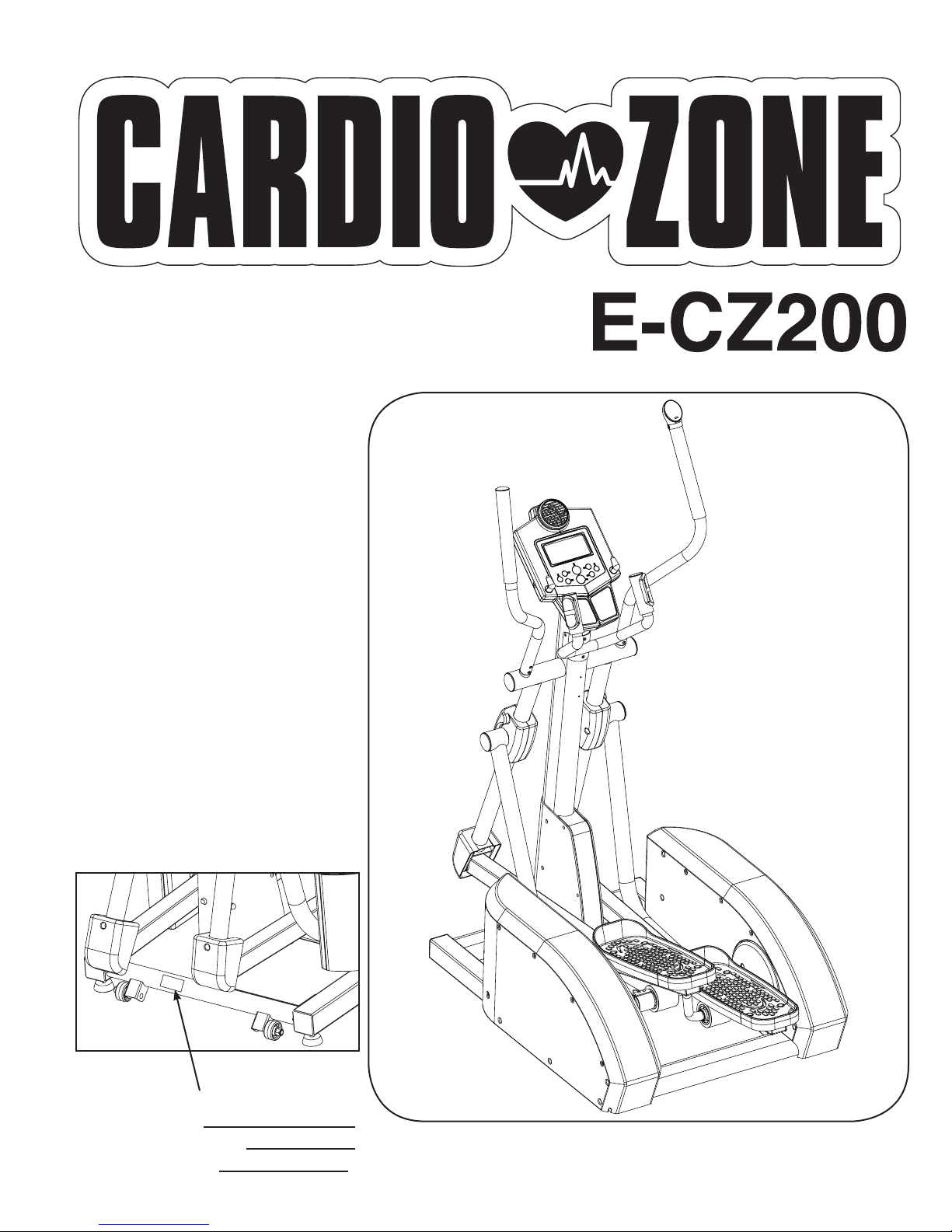

SERIAL TAG IS LOCATED ON THE FRAME
Model Name: E-CZ200
Date of Purchase:
Serial Number:
Customer Service
[phone]
Manufactured By:
Keys Fitness Products
4009 Distribution Drive
Suite 250
Garland, TX 75041
Owner’s Manual
E-CZ200 Elliptical

2
Important Safety Information 3
Assembly 6
Console Instructions 11
Monitoring Your Heart Rate 17
Warm-Up Exercises 18
Troubleshooting 21
Parts List 22
Exploded Views 23
Warranty Information 24
Table of Contents

3
WARNING! Before using this unit or starting any exercise program, consult your physician.
This is especially important for persons over the age of 35 and/or persons with pre-existing
health problems. The manufacturer or distributor assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
WARNING! To reduce the risk of electrical shock, burns, fire, or other possible injuries to the
user, it is important to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS
1. It is the owner's responsibility to ensure that all users of this unit have read the Owner's
Manual and are familiar with warnings and safety precautions.
2. This unit has a user maximum capacity of 300 pounds.
3. The unit should only be used on a level surface and is intended for indoor use only. The unit
should not be placed in a garage, patio, or near water and should never be used while you are
wet. CardioZone recommends a mat be placed under the unit to protect floor or carpet and for
easier cleaning.
4. Follow safety information in regards to plugging in your unit. Do not run the power cord
underneath your unit. Do not operate the unit with a damaged or frayed power cord.
5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not
use the unit with bare feet, sandals, socks or stockings.
6. Always examine your unit before using to ensure all parts are in working order.
7. Allow the unit to fully stop before dismounting.
8. Pets should never be allowed near the unit.
9. Do not leave children unsupervised near or on the unit.
10. Never operate the unit where oxygen is being administered, or where aerosol products are
being used.
11. Never insert any object or body parts into any opening.
12. For safety and to prevent damage to your unit, no more than one person should use the
unit at a time.
13. Always unplug the unit before cleaning and/or servicing. Service to your unit should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer.
14. Failure to follow these instructions will void the unit warranty.
Important Safety Information

4
Important Safety Information
SAFETY PRECAUTIONS AND TIPS FOR CHEST STRAP
1. It is the owner's responsibility to ensure that all users of this unit have read the Owner's
Manual and are familiar with warnings and safety precautions.
2. Do not place chest strap near devices that generate large magnetic fields. TV sets, elec-
tric motors, radios, and high voltage power lines can affect the transmitter’s performance.
These items can interfere with the heart rate signal and possibly affect the heart rate read-
ings on the console.
3. Handle the Chest Strap with care. Dropping the transmitter might cause damage that could
void the warranty.
4. Do not use the chest strap if you have a cardiac pacemaker or if your are taking medications
for a heart condition. Medication or electrical pulses from the pacemaker can interfere with
accurate heart rate readings.
5. Do not bend the strips inside the chest strap. This can cause the chest strap to lose
conductivity.
6. The chest strap has batteries that need to be replaced periodically. A faulty battery can
cause an inaccurate reading.

5
Thank you for purchasing the Cardiozone E-CZ200 Elliptical! The quality product you have
chosen was designed to meet your needs for cardiovascular exercise. Before you start, please
read the Owner’s Manual and become familiar with the operation of your new unit.
Remember to take time to perform stretching exercises, provided in this manual, to help avoid
injury.
If you are taking medication, consult your physician to see what affect the medication will have
on your exercise heart rate.
If you have heart problems, your are not active, and/or are over the age of 35 years, do not
use the pre-set programs or start an exercise program without first contacting and receiving
approval from your physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the
console. CardioZone recommends a sealed water bottle for beverages consumed while using
the unit.
Please review the following drawing below to familiarize yourself with the listed
parts.
Important Safety Information
CONSOLE
AC ADAPTER
LEVELER FEET
2 PER SIDE
PEDALS
PULSE GRIP
HANDLEBARS
HANDLEBARS
