Owner’s Manual
CardioMax 700e Elliptical
Customer Service
[phone]
Keys Fitness Products
4009 Distribution Drive
Suite 250
Garland, TX 75041
www.keysfitness.com
07/04

Table of Contents
Important Safety Information 3
Before You Start 4
Assembly 5-10
Exploded View 11-12
Parts List 13
Monitoring Your Heart Rate 14
Target Heart Rate Zone 15
Program Profiles 16
Programs and Operations 17
Console Buttons 18
Moving Instructions 19
Warm Up Exercises 20
Warranty 21
2

Important Safety Information
WARNING! Before using this unit or starting any exercise program, consult your physician. This is especial-
ly important for persons over the age of 35 and/or persons with pre-existing health problems. The manufac-
turer or distributor assumes no responsibility for personal injury or property damage sustained by or through
the use of this product.
WARNING! To reduce the risk of electrical shock, burns, fire, or other possible injuries to the user, it is impor-
tant to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS
1. It is the owner’s responsibility to ensure that all users of this unit have read the Owner’s Manual and are
familiar with warnings and safety precautions.
2. This unit has a user maximum capacity of 275 pounds.
3. The unit should only be used on a level surface and is intended for indoor use only. The unit should not
be placed in a garage, patio, or near water and should never be used while you are wet. Keys recommends a
mat be placed under the unit to protect floor or carpet and for easier cleaning.
4. Follow safety information in regards to plugging in your unit. Keep the power cord away from the rollers
and do not run the power cord underneath your unit. Do not operate the unit with a damaged or frayed power
cord.
5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use the unit
with bare feet, sandals, socks or stockings.
6. Always examine your unit before using to ensure all parts are in working order.
7. Allow the unit to fully stop before dismounting.
8. Pets should never be allowed near the unit.
9. Do not leave children unsupervised near or on the unit.
10. Never operate the unit where oxygen is being administered, or where aerosol products are being used.
11. Never insert any object or body parts into any opening.
12. For safety and to prevent damage to your unit, no more than one person should use the unit at a time.
13. Always unplug the unit before cleaning and/or servicing. Service to your unit should only be performed
by an authorized service representative, unless authorized and/or instructed by the manufacturer.
14. Failure to follow these instructions will void the unit warranty.
3

Before You Start
Thank you for purchasing the Cardio Max 700e Elliptical! This quality product you have chosen was
designed to meet your needs for cardiovascular exercise. Before you start, please read the Owner's Manual and
become familiar with the operation of your new unit.
Remember to take the time to perform the stretching exercises provided to avoid injury.
If you are taking medication, consult your physician to see if the medication will affect your exercise heart
rate.
If you have heart problems, you are not active, and/or are over the age of 35 years, do not use the pre-set
programs or start an exercise program without first contacting and receiving approval from your physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the console. Keys
Fitness recommends a sealed water bottle for beverages consumed while using the unit.
Please review the following drawing below to familiarize yourself with the listed parts.
4
CONSOLE
FAN SWITCH
FAN
TRANSPORT WHEEL
POWER CONNECTOR
PULSE HANDLEBARS
LATCHES

Assembly
5
MAIN FRAME(1)
LOWER HANDLEBAR(90&91)
PEDAL TUBE(33&34)
PEDAL(36&37)
UPPER HANDLEBAR JOINT
COVER (104&105)
UPPER HANDLEBAR(96&99)
FRONT STABILIZER(2)
CONSOLE(76)
ALUMINUM RAILS(52&53)
CONSOLE TUBE(72)
Assembly Parts
LOWER HANDLEBAR JOINT
COVER (106&107)

Assembly
6
Assembly Accessories
CARRIAGE BOLT(4) - 2
WASHER(26) - 6
WASHER(39) - 6
WASHER(94) - 6 CAP NUT(95) - 4
ALLEN WENCH SCREW DRIVER
NUT CAP(85) - 2
LOCKNUT(40) - 4 CARRIAGE BOLT(93) - 4
Screw(30) - 6 Nylon Locknut(38) - 4
ARC WASHER(5) - 2 CAP NUT(6)-2

Assembly
7
1. Attach the Front Stabilizer(2) onto the
Main Frame(1) with the two Carriage
Bolts(4), two Arc Washers(5) and two Cap
Nuts(6).
2. First take off both Rollers(49) by
removing Bolts(48) from the Main
Frame(1). Install the Aluminum
Rails(52&53) to the Main Frame(1).
First slide on the four Washers(51)
before installing the Aluminum
Rails(52&53). After the rails are
installed, reinstall the Rollers(49) with
Hex Head Bolts(48).
Figure 2
Figure 1
INSTRUCTIONS FOR ASSEMBLY:
Unpack the box in a clear area. Check to make sure all components are present and in good condition.
Do not dispose of the packing material until the assembly is completed. Tools have been provided for
you to use when assembling the product. If you need assistance please go to our website at
www.keysfitness.com or call 1 888-340-0482.

Assembly
8
4. Slide the Console Tube Cover(71) onto
the Console Tube(12). Connect the Upper
Electronic Wire(69) to the Lower
Electronic Wire(70). Last, slide the
Console Tube(12) into the Main Frame(1)
using six Screws(30) and six Washers(16).
Figure 4
3. Install the Left Pedal(36) onto the Left
Pedal Tube(33) using two Hex Head
Bolts(38). Then install the Left Pedal
Tube(33) to the U Bracket(19) with
Carriage Screw(20), Washer(21), and
Nylock Nut(22). Repeat Step 3 to assemble
the right side.
Figure 3

Assembly
9
5. Connect the Upper Electronic Wire(70)
and the two Pulse Cables(75) to the
Console(76). Next, fasten the Console(76) to
the top of the Console Tube(12) using four
Screws(83).
Note: The four Screws(83) will already be
installed into the back of the Console(76)
when you remove it from the box.
6. First, install the Left Lower Handlebar(90)
onto the Console Tube(72). Use Washer(21),
Nylock Nut(22), and a Nut Cap(85).
Connect the Upper Left Handlebar(96) to the
Lower Left Handlebar(90) with two Carriage
Bolts(93), two Washers(94), and two Cap
Nuts(95). Insert the Connecting Tube(84) into
the bottom of the Lower Left Handlebar(90)
using Screw(87), Washer(26), and a Nylock
Nut(27). Last, repeat step 6 to assemble the
right side.
Figure 5
Figure 6

Assembly
10

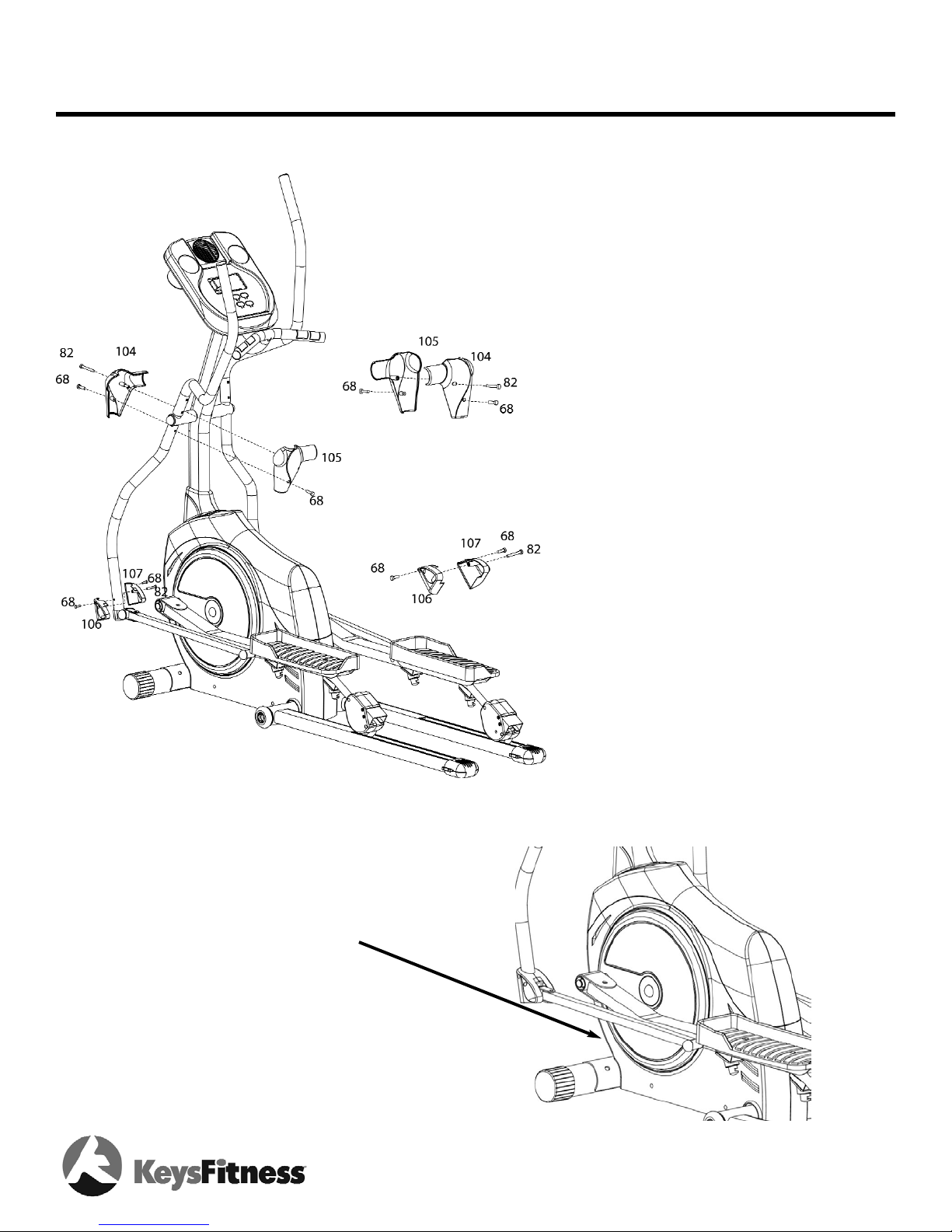

7. First fit the Upper Handlebar Joints
(104&105) over the joints where the Upper
Handlebars and Lower Handlebars meet.
Secure the Upper Handlebar
Joint(104&105) together using two
Screws(68) and two Screws(82). Last, fit
the Lower Handlebar Joints(106&107)
where the Lower Handlebars and
Connecting Tubes join using two
Screws(68) and two Screws(82).
Congratulations! You have completed
the assembly of your new CardioMax 700e
Elliptical.
Figure 7
INSERT THE AC
ADAPTER HERE

Exploded View
11
Handlebar Assembly

Exploded View
12

Parts List
REF # DESCRIPTION QTY REF # DESCRIPTION QTY
1 MAIN FRAME 1 55 SCREW 2
2 FRONT STABILIZER 2 56 PLASTIC CLIP 1 2
3 WHEEL CAP 2 57 MOVING TUBE CAP 2
4 CARRIAGE BOLT 2 58 PLASTIC CLIP 2 2
5 ARC WASHER 8*19*1.5(mm) 2 59 IDLER SPRING 1
6 CAP NUT M8 2 60 HEX HEAD BOLT 3/8"*26 1
7 BELT 490 J6 1 61 NYLOCK NUT 3/8" 1
8 PULLEY 1 62 IDLER PLATE 1
9 MAGNET 1 63 SPACER FOR IDLER WHEEL 1
10 AXLE FOR PULLEY 2 64 IDLER WHEEL 48*26*29(mm) 1
11 BEARING 6004ZZ 2 65 BEARING 6000zz 1
12 BEARING NUT 8*13*6(mm) 5 66 C CLIP 1
13 BIG WASHER 40*24*2.5(mm) 1 67 SPEED SENSOR 1
14 CRANK 2 68 SCREW 21
15 NUT M10 2 69 LOWER ELECTRONIC WIRE 1
16 BEARING 6804 2 70 UPPER ELECTRONIC WIRE 1
17 WASHER 20*38*1.0(mm) 4 71 CONSOLE TUBE COVER 1
18 C CLIP 2 72 CONSOLE TUBE 1
19 U BRACKET 2 73 HANDLEBAR CAP 31.8(mm) 2
20 CARRIAGE SCREW 2 74 ADJUSTABLE CAP 2
21 WASHER 13*26*2.0(mm) 6 75 HAND PULSE 2
22 NYLOCK NUT 1/2" 6 76 CONSOLE 1
23 SPACER FOR MAGWHEEL 1 77 LEFT MAIN COVER 1
24 MAGWHEEL 1 78 RIGHT MAIN COVER 1
25 AXLE FOR MAGWHEEL 1 79 OVAL COVER 1
26 WASHER 8*19*1.5(mm) 13 80 ROUND COVER 1
27 NYLOCK NUT M8 8 81 SMALL COVER 2
28 OUTSIDE BEARING COLLAR 1 82 SCREW 9
29 BEARING 6200ZZ 2 83 SCREW 4
30 SCREW 6 84 CONNECTING TUBE 2
31 BC NUT 3/8" 1 85 NUT CAP 4
32 BOLT 16 86 SPACER FOR IDLER WHEEL 2
33 LEFT PEDAL TUBE 1 87 SCREW 2
34 RIGHT PEDAL TUBE 1 88 SCREW 2
35 BUSHING 12.7*25.4*14(mm) 12 89 U BRACKET 2
36 LEFT PEDAL 1 90 LOWER HANDLEBAR LEFT 1
37 RIGHT PEDAL 1 91 LOWER HANDLEBAR RIGHT 1
38 HEX HEAD BOLT 4 92 BUSHING 16.1*38.3*10(mm) 2
39 WASHER 10*26*2.0(mm) 6 93 CARRIAGE BOLT 4
40 NYLOCK NUT 10*26*2.0(mm) 5 94 WASHER 6*13*1.0(mm) 4
41 PLASTIC CLIP 4 95 CAP NUT 4
42 NUT CAP 4 96 UPPER HANDLEBAR LEFT 1
43 BUSHING 6 97 FOAM GRIP 2
44 BEARING 608ZZ 8 98 HANDLEBAR CAP 31.8(mm) 2
45 SQUARE TUBE CAP 2 99 UPPER HANDLEBAR RIGHT 1
46 ROLLER 2 100 BEARING 2
47 HEX HEAD BOLT 2 101 WASHER 6*13*1.0(mm) 1
48 HEX HEAD BOLT 2 102 LEFT ROLLER COVER 2
49 TRANSPORT ROLLER 2 103 RIGHT ROLLER COVER 2
50 SPACER 8*12.5*4(mm) 4 104 UPPER HANDLEBAR JOINT COVER A 2
51 WASHER 8*19*1.5(mm) 4 105 UPPER HANDLEBAR JOINT COVER B 2
52 ALUMINUM RAIL LEFT 1 106 LOWER HANDLEBAR JOINT COVER A 2
53 ALUMINUM RAIL RIGHT 1 107 LOWER HANDLEBAR JOINT COVER B 2
54 BOLT 6
CM700e ELLIPTICAL PARTS LIS
T
13

Monitoring Your Heart Rate
Monitoring Your Heart Rate
To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your
target heart rate zone. The American Heart Association (AHA) defines this target as 60%-75% percent of your
maximum heart rate.
Your maximum heart rate may be roughly calculated by subtracting your age from 220. Your maximum heart
rate and aerobic capacity naturally decreases as you age. This may vary from one person to another, but use
this number to find your approximate effective target zone. For example, the maximum heart rate for an aver-
age 40 year-old is 180 bpm. The target heart rate zone is 60%-75% of 180 or 108-135 bpm. See Fitness Safety
below.
Before beginning your workout, check your normal resting heart rate. Place your fingers lightly against your
neck, or against your wrist over the main artery. After finding your pulse, count the number of beats in 10 sec-
onds. Multiply the number of beats by six to determine your pulse rate per minute. We recommend taking your
heart rate at these times; at rest, after warming up, during your workout and two minutes into your cool down,
to accurately track your progress as it relates to better fitness.
During your first several months of exercising, the AHA recommends aiming for the lower part of the target
heart rate zone-60%, then gradually progressing up to 75%.
According to the AHA, exercising above 75% of your maximum heart rate may be too strenuous unless you
are in top physical condition. Exercising below 60% of your maximum will result in minimal cardiovascular
conditioning.
Check your pulse recovery rate – If your pulse is over 100 bpm five minutes after you stop exercising, or if
it’s higher than normal the morning after exercising, your exertion may have been too strenuous for your cur-
rent fitness level. Rest and reduce the intensity next time.
Fitness Safety The target heart rate chart indicates average rate zones for different ages. A variety of different
factors (including medication, emotional state, temperature and other conditions) can affect the target heart
rate zone that is best for you. Your physician or health care professional can help you determine the exercise
intensity that is appropriate for your age and condition.
14
(MHR) = Maximum Heart Rate
(THR) = Target Heart Rate
220 - age = maximum heart rate (MHR)
MHR x .60 = 60% of your maximum heart rate.
MHR x .75 = 75% of your maximum heart rate.
For example, if you are 30 years old, your calculations will be as follows:
220 - 30 = 190
190 x .60 = 114 (low end or 60% of MHR)
190 x .75 = 142 (high end or 75% of MHR)
30 year-old (THR) Target Heart Rate would be 114-142
See Heart Rate Table for additional calculations.

Target Heart Rate Zone
15
100%
85%
75%
60%
Serious
athletic
training range
Cardiovascular
conditioning
range
Fat burning
range
20 25 30 35 40 45 50 55 60 65
AGE
200 195 190 185 180 175 170 165 160 155
170 166 162 157 153 149 145 140 136 132
150 146 143 139 135 131 128 124 120 116
120 117 114 111 108 105 102 99 96 93
TARGET HEART RATE ZONE

Program Profiles
Programs:
Manual Program
Press the button "PROG" to enter the manual P1 profile. The workload level will be shown on the dis-
play. You can have full control of changing workload level by press " +" or "-" key and pedaling the Fitness
Equipment at the same time.
Programs
These are total five profiles (P2 to P5) for selection. Each press of the button "PROG", the display will
show the profile you select. Please see the profile charts on the page 4 .
These profiles allow users to have full control of changing workload level by pressing "+" or "-" key and ped-
aling the Fitness Equipment at the same time.
Heart Function
There are five different heart functions (P7 to P11) can be selected by end users as below :
Press the button "PROG" to advance to the Heart Function. The symbol "?" will appear and the percentage of
maximum heart rate will be shown on the bottom of the display. You can select which percentage of maximum
heart rate on your age you would like to be as following :
P7 ……………….50% Maximum Heart Rate
P8 ……………….60% Maximum Heart Rate
P9 ……………….75% Maximum Heart Rate
P10 ………….….85% Maximum Heart Rate
P11 ……………..95% Maximum Heart Rate
16
P1
P7 MAX 50% P8 MAX 60%
P10 MAX 85% P11 MAX 95%
P9 MAX 75%
P2
P6
P3 P4
P5

Programs and Operation
FUNCTIONS:
1. Programming TIME:
You can set your exercise time from 0 to 99 minutes by pressing the "SELECT" key to the time function and
use "+" key to increase or "-" key to decrease your desired time. Each press of the "+" key will advance time
by one minute (hold the "+" or "-"key for rapid continuous increment or decrement.) If you do not wish to
enter in a set time leave it at zero.
2. Programming DISTANCE:
Depress "SELECT" key to advance to the distance function, then use "+" or "-" key to enter your desired tar-
get trip distance. Each press of the "+" or "-" key will increase or decrease distance by 0.5Km or Mile (hold
the key for rapid continuous). If you do not wish to set a total distance leave it at zero.
3. Programming CALORIES:
Depress "SELECT" key to advance to the calories windows, then use "+" or "-"
key to enter your desired calories burned, each press of "+" or "-" key will increase or decrease calories by 10
Kcal. If you do not wish to enter total calories leave it at zero.
4: Programming HIGH AND LOW PULSE RATE LIMIT:
Depress "SELECT" key to advance to the pulse function, then use "+" or "-" key to enter your desired high
and low pulse rate limit. Each press of " +" or "-"
key will advance 5 pulse rate. If your pulse rate is above the high pulse limit you programmed, the computer
will generate a tone to warn you to stop exercise. In contrast, if your pulse rate is lower than your desired low
pulse rate limit, the buzzer will also beep to remind you to continue your exercise.
5: Programming AGE:
Depress "SELECT" key to advance to the age is shown on the display. Press "+" or " - " key to input your age
for heart function using. Note: Age function is only used on programs P7-P11.
17

Console Buttons
18
KEYS:
SELECT Key:
Use select key into the setting mode, and cycle through the functions as below :
To select the different speed scale, depress and hold the button of "Select" for two seconds. The speed
scale will flash. Press the button "+" or "-" to select it.
+ Key :
Depress this key to increase the values of the setting mode, or increase the level of the workload.
-/ RESET Key:
Depress this key to decrease the value of the setting mode, or decrease the level of the workload. If you
hold down this key for 3 seconds, all values expect the pulse limit and age will be returned to zero simul-
taneously.
PROGRAM Key:
Depress this key to select the exercise programs from P1 to P11.
Kcal/Watt Key:
Depress this key to change the unit of consumption from Watt to Calorie or from Calorie to Watt.
Note:
The "Time" functions will become count-up timer, when the programming exercise time count down to
0:00 at which time the timer will count up from 0:00 and a beeper will sound for 3 seconds, so do the
function "Trip" and "Calories"
Changing KM/H to MPH:
1. Choose Program One
2. Push Select and hold Select until screen clears and RPM - KM/H or MPH will be flashing
3. Use Plus (+) button to change the setting
4. Let console resume program

Moving Instructions
CAUTION! TO REDUCE THE POSSIBILITY OF INJURY WHILE LIFTING, BEND YOUR LEGS AND
KEEP YOUR BACK STRAIGHT. AS YOU LEAN THE UNIT, LIFT USING YOUR LEGS, NOT YOUR
BACK.
With the elliptical tracks in the locked position(safety latch is engaged), grasp the console tube and place one
foot on the base as shown in Figure 1. Next, with a firm grasp on console tube, place one foot on the center of
the base of the mainframe and carefully tilt the unit back until it rolls freely on the transport wheels. Using
extreme caution, move the unit to the desired location as shown in Figure 2. To set the unit down, place one
foot on the center of the base of the mainframe and carefully lower unit onto base in a resting position. Do not
attempt to move the unit over an uneven or rough surface.
19
Figure 1 Figure 2

Warm Up Exercises
TOE TOUCH STRETCH
Stand bending your knees slightly and slowly bend forward from your hips.
Allow your back and shoulders to relax as you reach down toward your toes
as far as possible. Hold for 15 counts, then relax. This will stretch your ham-
strings, back of knees, and back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite foot toward you and
rest it against the inner thigh of your extended leg. Reach toward your toes as
far as possible. Hold for 15 counts, then relax. This will stretch your ham-
strings, lower back, and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place your hands against
a wall. Keep your back leg straight and your back foot flat on the floor. Bend
your front leg, lean forward and move your hips toward the wall. Hold for 15
counts, then relax. To cause further stretching of the Achilles tendon, bend
your back leg as well. This will stretch your calves, Achilles tendons, and
ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and grasp one foot with
your other hand. Bring your heel as close to your buttocks as possible. Hold
for 15 counts, then relax. This will stretch your quadriceps and hip muscles.
INNER THIGH STRETCH
Sit with the soles of your feet together and your knees outward. Pull your
feet toward your groin area as far as possible. Hold for 15 counts, then relax.
This will stretch your quadriceps and hip muscles.
EXERCISE GUIDELINES
WARNING! Before beginning this or any exercise program, you should consult your physician. This is espe-
cially important for individuals over the age of 35 or individuals with pre-existing health problems.
Warming up prepares the body for the exercise by increasing circulation, supplying more oxygen to the mus-
cles and raising body temperature. Begin each workout with 5 to 10 minutes of stretching and light exercise
to warm up. The photos on this page show several forms of basic stretching you may perform before your
workouts. In order to achieve an adequate warm-up, perform each stretch three times.
20
