Seaward PrimeTest 125 EL User manual

PrimeTest 125 EL Operating Instructions
1
Operating Instructions
Represented in Australia by:
EMONA Instruments Pty Ltd
78 Parramatta Rd
Camperdown NSW 2050
Tel: [phone]
www.emona.com.au, www.protag.com.au
[email protected]u
Part Number 372A580 Revision 4
© 2017 Seaward Electronic Ltd

PrimeTest 125 EL Operating Instructions
2
Limited Warranty & Limitation of Liability
SEAWARD Electronic Limited guarantees this
product to be free from defects in material and
workmanship under normal use and service for a
period of 1 year. The period of warranty will be
effective at the day of delivery.
(c) Copyright 2017
All rights reserved. Nothing from this edition may be
multiplied, or made public in any form or manner,
either electronically, mechanically, by photocopying,
recording, or in any manner, without prior written
consent from SEAWARD Electronic Limited. This
also applies to accompanying drawings and
diagrams.
Due to a policy of continuous development
SEAWARD Electronic Limited reserves the right to
alter the equipment specification and description
outlined in this publication without prior notice and
no part of this publication shall be deemed to be
part of any contract for the equipment unless
specifically referred to as an inclusion within such
contract.

PrimeTest 125 EL Operating Instructions
3

PrimeTest 125 EL Operating Instructions
4
Contents
1Important Information ......................................5
2Introduction ......................................................7
3Performing Tests ..............................................9
3.1 Testing a Class I Appliance .............................................. 9
3.2 Testing a Class I Appliance with Leakage....................... 11
3.3 Testing a Class II Appliance............................................ 13
3.4 Testing a Class II Appliance with Leakage...................... 14
3.5 Testing a mains cord ...................................................... 16
3.6 Testing an extension lead ............................................... 17
3.7a Test an EPOD (Powerboard) ......................................... 18
3.7b Test an EPOD/Extension Lead with MOV and/or RCDs 19
4Troubleshooting .............................................22
5Specification...................................................23
6Maintenance...................................................24
7Battery Check ................................................25
7.1 Battery Replacement ................................................. 25
8Fuse................................................................26
8.1 Fuse Replacement ..................................................... 26
9Service and Calibration ..................................27

PrimeTest 125 EL Operating Instructions
5
1 Important Information
These operating instructions are intended for the
use of adequately trained personnel.
The following symbols are used in these operating
instructions and on the PrimeTest 125 EL.
Caution, risk of electric shock.
Indicates instructions must be followed
to avoid danger to persons.
Caution, risk of danger. The operating
instructions must be adhered to in order
to avoid danger.
Caution, risk of electric shock.
Always ensure that the equipment under
test is disconnected from any supply
before connecting to the tester.
It is the responsibility of the user to ensure that the
operation of the unit is correct and that the accuracy
of the measurements are within specification.
Before use, ensure unit is clean and dry; visually
inspect all leads, connectors and case. Any damage
or wear must be rectified prior to use.
Standard Accessories
Part Number
Mains Supply Test lead
44B165
Black Test Lead 1m
347A002
Australian IEC mains cord 0.5m
325A005

PrimeTest 125 EL Operating Instructions
6
Figure 1. PrimeTest 125 EL Front View
Figure 2. PrimeTest 125 EL End View

PrimeTest 125 EL Operating Instructions
7
2 Introduction
The PrimeTest 125 EL is a hand held battery
powered unit suitable for carrying out electrical
safety checks on:
Class I appliances
Class II appliances
IEC mains leads
Extension leads
Overview
With reference to Figures 1 and 2.
1. The LCD
2. CL I Test / Cord Sequence Button
3. CL II Test Sequence Button
4. Leakage Test Sequence Button
5. Test/Mains outlet socket
9. Mains inlet socket
10. IEC Test Connection
11. Earth/Insulation Test Terminal
User Interface
The LCD display shows test progress, results for
individual tests and the overall test result for an
appliance or mains cord.
Measurements displayed next to the RPE icon
indicate the resistance of the protective earth
conductor.
Measurements displayed next to the RISO icon
indicate the resistance measured by the insulation
test.
Measurements displayed next to the ILEAK icon
indicate the leakage current measured while the
appliance under test is powered from the mains
supply at the tester mains outlet socket.
Tests are initiated using the three push buttons.

PrimeTest 125 EL Operating Instructions
8
Power ON/OFF = press and hold the CL I and CL II
test buttons simultaneously, PrimeTest 125 EL will
power on/off when buttons are released.
Note: The unit will automatically switch OFF
after approximately 3 minutes if no keys
are pressed.

PrimeTest 125 EL Operating Instructions
9
3 Performing Tests

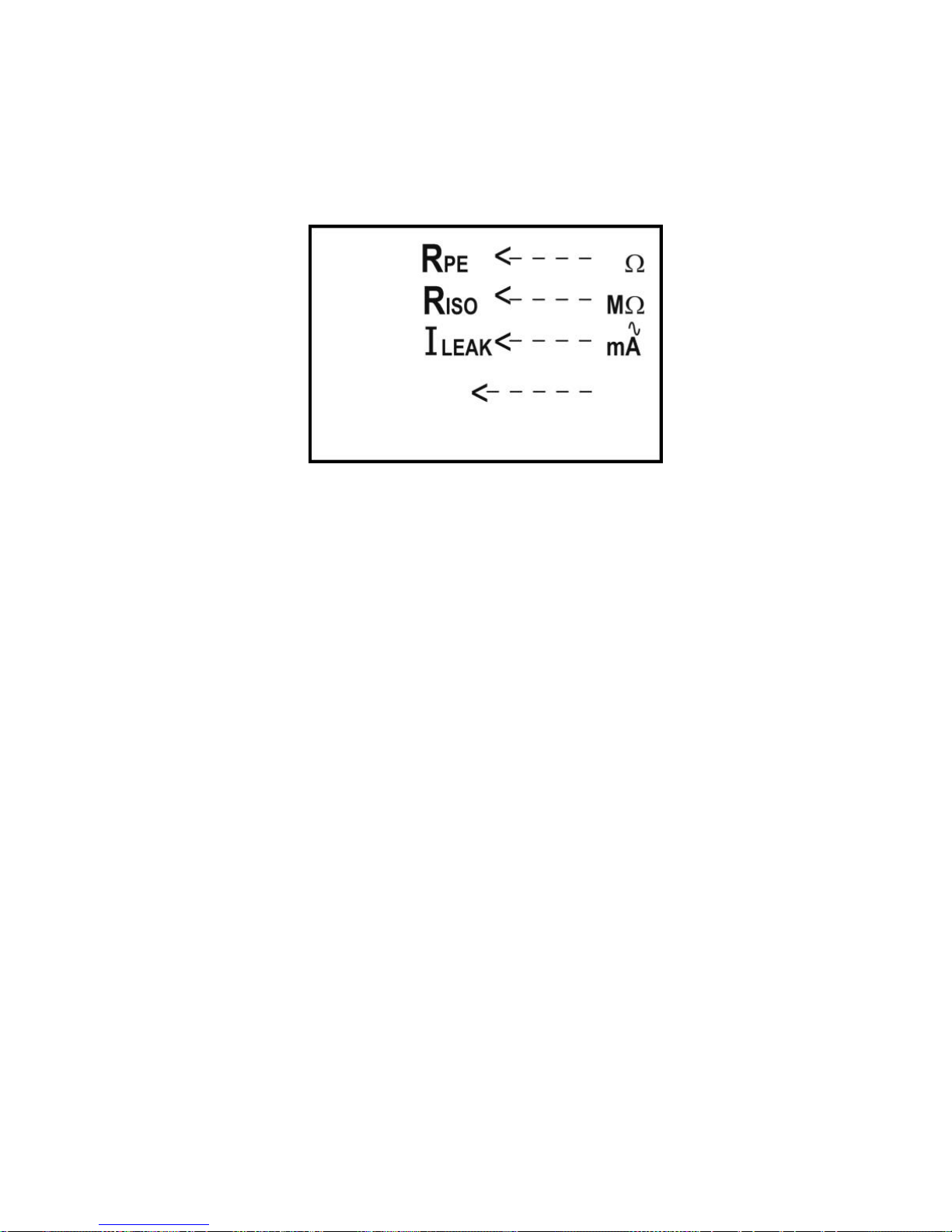

Press keys CL I and CL II test buttons together to
switch on the unit. When the unit is ready the
display will be as shown below.
3.1 Testing a Class I Appliance
Visually inspect the appliance as per requirements
of AS/NZS3760. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the black test lead into the Earth/Insulation test
terminal on the PrimeTest 125 EL end panel.
Plug the appliance into the PrimeTest 125 EL front
panel test socket.
Connect the black test probe to an exposed metal
part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press the CL I test button to start a Class I test
sequence.
The PrimeTest 125 EL will now test the continuity of
the protective earth.

PrimeTest 125 EL Operating Instructions
10

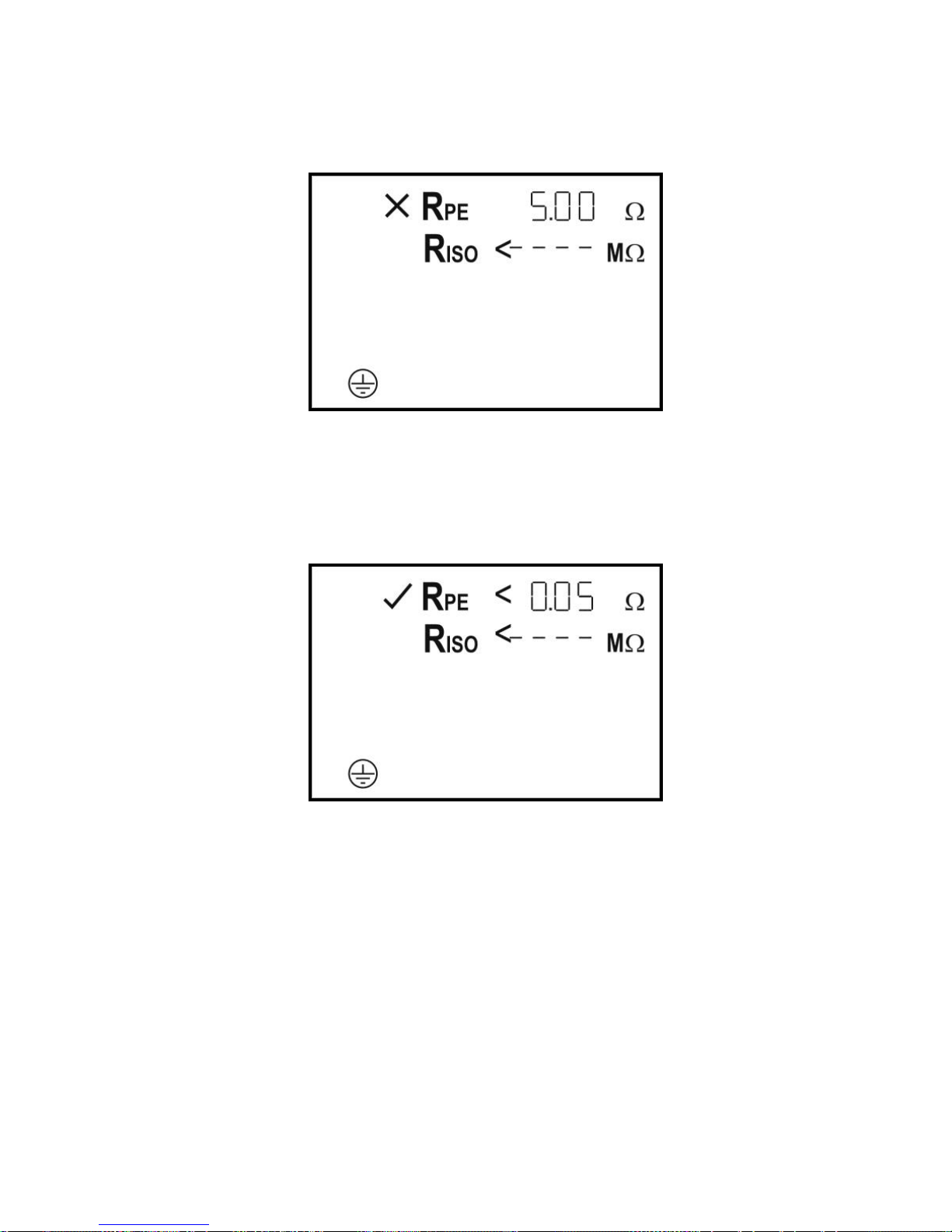

If the measured value is greater than the 1 ohm
pass/fail threshold, the measured value is displayed
and the unit indicates a fail result as shown below.
If the measured value is less than or equal to the 1
ohm pass/fail threshold, the measured value is
displayed and the unit indicates a pass result, as
shown below.
If the Earth Continuity test has passed then the unit
will proceed with an Insulation test.
Note: The power switch on the appliance under
test must be in the ON position to perform
an insulation test. If no appliance is
detected the PrimeTest 125 EL will display
LO LOAD.
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PrimeTest 125 EL to detect. In this case, press the
CL I test button to continue.

PrimeTest 125 EL Operating Instructions
11

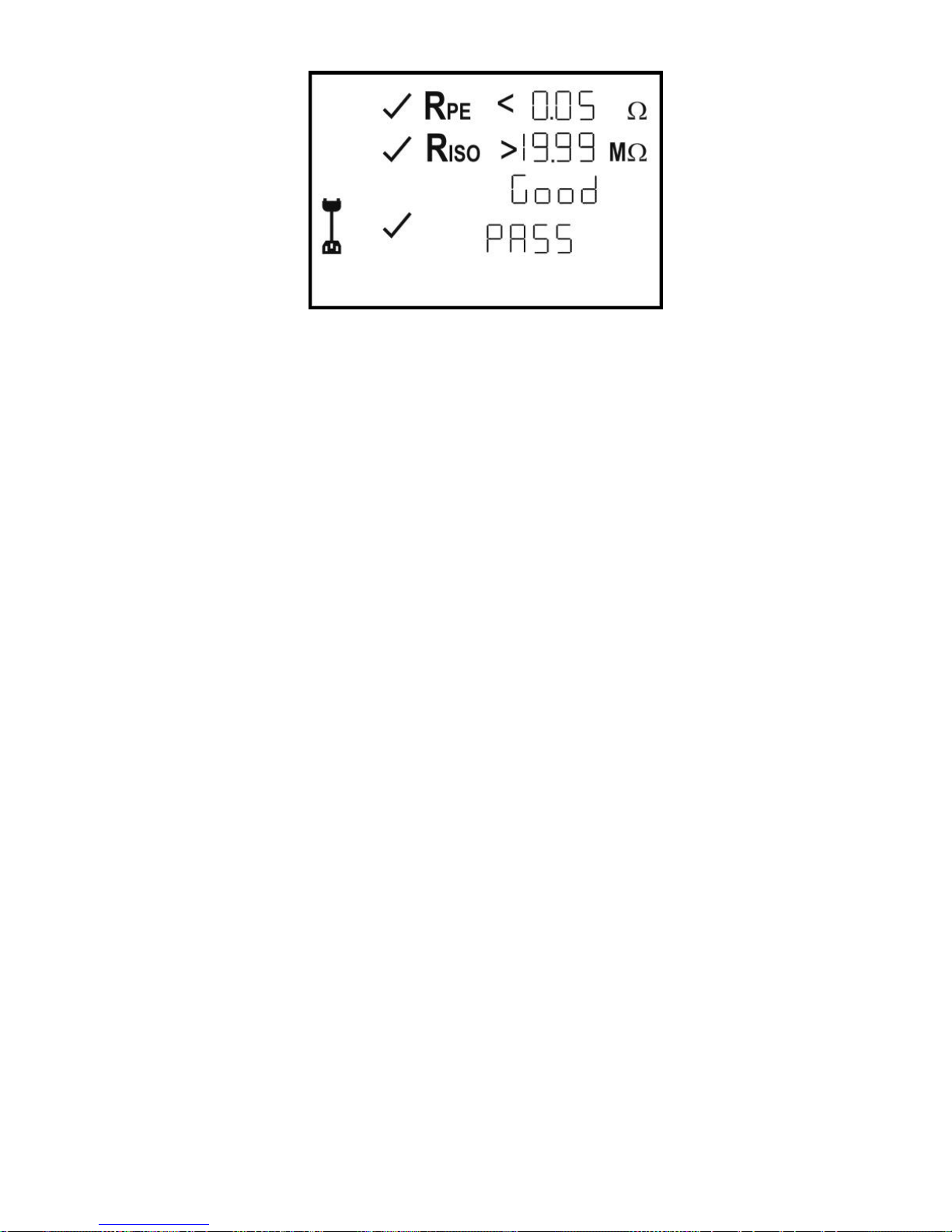

If the Insulation test measures below the 1Mohm
pass/fail threshold, the measured value is displayed
and the unit indicates a fail.
If the measured value is greater than or equal to the
1 Mohm pass/fail threshold, the measured value is
displayed and the unit indicates a pass result.
3.2 Testing a Class I Appliance with Leakage
Visually inspect the appliance as per requirements
of AS/NZS3760. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the mains lead into the PrimeTest 125 EL and a
mains supply socket.
When plugging the mains lead into the
PrimeTest 125 EL ensure that the polarity
orientation of the connector is correct. DO
NOT FORCE THE PLUG INTO THE
CONNECTOR, doing so may damage the
PrimeTest 125 EL.
Plug the black test lead into the Earth/Insulation test
terminal on the PrimeTest 125 EL end panel.
Plug the appliance into the PrimeTest 125 EL front
panel test socket.
Connect the black test probe to an exposed metal
part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press and hold the Leakage button and then the CL
I test button.
The PrimeTest 125 EL will now test the continuity of
the protective earth.
If the measured value is greater than the 1 ohm
pass/fail threshold, the measured value is displayed
and the unit indicates a fail.

PrimeTest 125 EL Operating Instructions
12
If the measured value is less than or equal to the 1
ohm pass/fail threshold, the measured value is
displayed and the unit indicates a pass result.
The unit will proceed with a Leakage test.
Note: The power switch on the appliance under
test must be in the ON position to perform
a leakage test. If no appliance is detected
the PrimeTest 125 EL will display LO
LOAD.
The ILEAK icon will flash, press the Leakage button
to start a Leakage test.
The mains supply status is checked and the status
is indicated using the LN, LE and NE enunciators of
the LCD.
LN
LE
NE
Mains status
ON
ON
OFF
Correct
Flash
Flash
OFF
No mains
OFF
Flash
Flash
Earth fault
OFF
Flash
Flash
Live/neutral reversed
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PrimeTest 125 EL to detect. In this case, press the
Leakage button to continue.
Note: If the High Load enunciator is displayed,
the load presented by the appliance may be
too great for the PrimeTest 125 EL and
users should carry out an insulation test.
Continuing with the leakage test may blow
the fuse.
If the Leakage current is greater than 5mA the FAIL
enunciator is illuminated.

PrimeTest 125 EL Operating Instructions
13

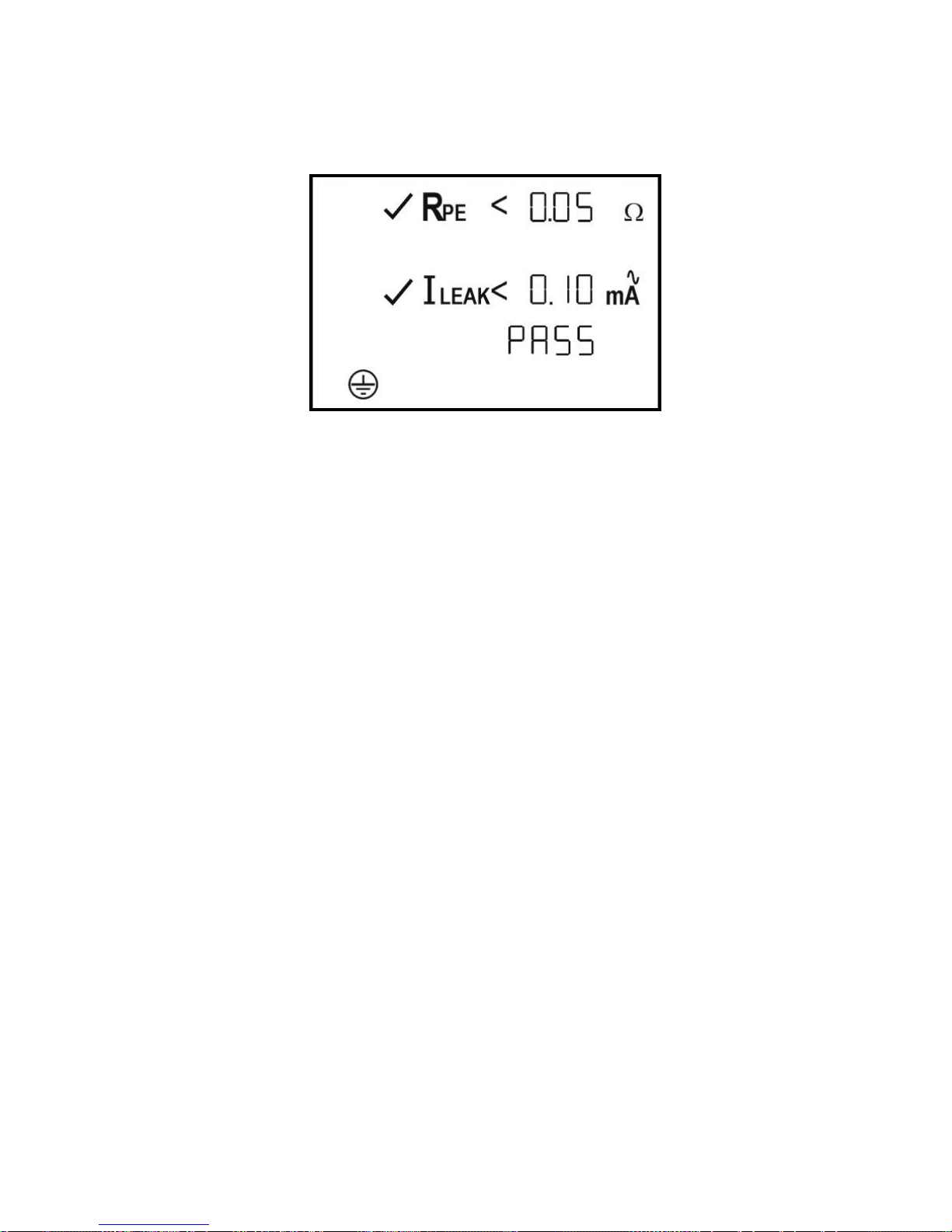

If the Leakage current is less than or equal to 5mA a
tick is placed next to the ILEAK enunciator.
The PASS enunciator is illuminated.
3.3 Testing a Class II Appliance
Visually inspect the appliance as per requirements
of AS/NZS3760. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the black test lead into the Earth/Insulation test
terminal on the PrimeTest 125 EL end panel.
Plug the appliance into the PrimeTest 125 EL front
panel test socket.
Connect the black test probe to an exposed metal
part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press the CL II test button to start a Class II test
sequence.
Note: The power switch on the appliance under
test must be in the ON position to perform
an insulation test. If no appliance is
detected the PrimeTest 125 EL will display
LO LOAD.

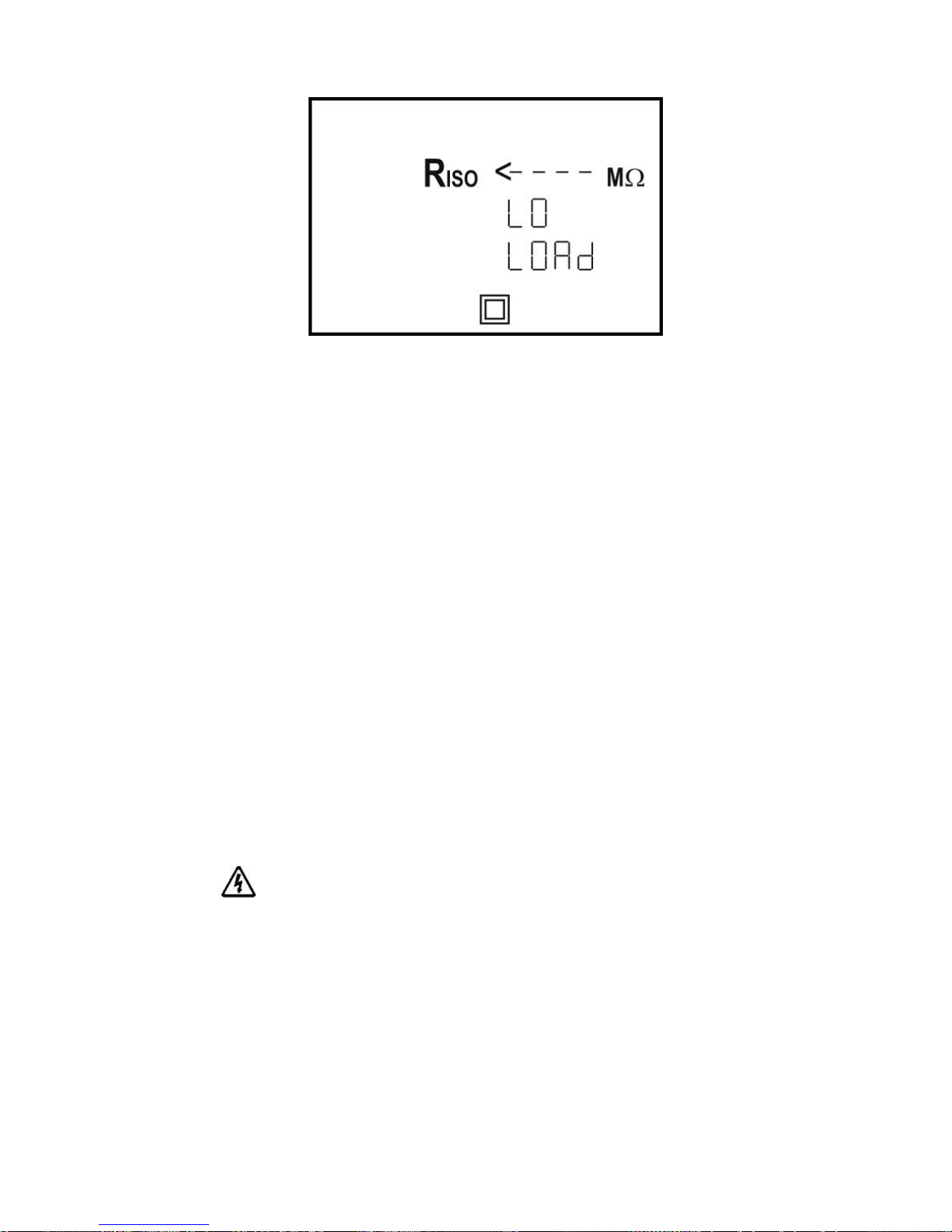

If the LO LOAd enunciator remains on the display,
the load presented by the appliance may be too
small for the PrimeTest 125 EL to detect. In this
case, press the CL II test button to continue.

PrimeTest 125 EL Operating Instructions
14
The unit will now perform an Insulation test.
If the Insulation Resistance is less than 1Mohm the
FAIL enunciator is illuminated.
If the Insulation Resistance is greater than or equal
to 1Mohm a tick is placed next to the RISO
enunciator.
The PASS enunciator is illuminated.
3.4 Testing a Class II Appliance with Leakage
Visually inspect the appliance as per requirements
of AS/NZS3760. If the appliance passes a visual
inspection, proceed with the electrical tests.
Plug the mains lead into the PrimeTest 125 EL and a
mains supply socket.
When plugging the mains lead into the
PrimeTest 125 EL ensure that the polarity
orientation of the connector is correct. DO
NOT FORCE THE PLUG INTO THE
CONNECTOR, doing so may damage the
PrimeTest 125 EL.
Plug the black test lead into the Earth/Insulation test
terminal on the PrimeTest 125 EL end panel.
Plug the appliance into the PrimeTest 125 EL front
panel test socket.

PrimeTest 125 EL Operating Instructions
15
Connect the black test probe to an exposed metal
part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press and hold the Leakage button and then the CL
II test button to perform the Class II test sequence
including a Leakage test.
Note: The power switch on the appliance under
must be in the ON position to perform an
leakage test. If no appliance is detected
the PrimeTest 125 EL will display LO
LOAD.
The ILEAK icon will flash, press the Leakage button
to start a Leakage test.
The mains supply status is checked and the status
is indicated using the LN, LE and NE enunciators of
the LCD.
LN
LE
NE
Mains status
ON
ON
OFF
Correct
Flash
Flash
OFF
No mains
OFF
Flash
Flash
Earth fault
OFF
Flash
Flash
Live/neutral reversed
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PrimeTest 125 EL to detect. In this case, press the
Leakage button to continue.
Note: If the High Load enunciator is displayed,
the load presented by the appliance may be
too great for the PrimeTest 125 EL and the
user should carry out an Insulation test.
Continuing with the leakage test may blow
the fuse.

PrimeTest 125 EL Operating Instructions
16
If the Leakage current is greater than 1mA the FAIL
enunciator is illuminated.
If the Leakage current is less than or equal to 1mA a
tick is placed next to the ILEAK enunciator.
The PASS enunciator is illuminated.
3.5 Testing a mains cord
Visually inspect the appliance as per requirements
of AS/NZS3760. If the cord passes a visual
inspection proceed with the electrical tests.
Plug the mains cord under test into the IEC socket
and the front panel mains socket on the PrimeTest
125 EL.
Press the CL I test sequence button.
The PrimeTest 125 EL will first test the continuity of
the protective earth.
If the measured value is greater than 1 ohm a cross
is placed next to the RPE enunciator, a FAIL is
indicated.
If the measured value is less than or equal to 1 ohm
a tick is placed next the RPE enunciator.
The unit will proceed with the Insulation test.
If the Insulation Resistance is less than 1 Mohm a
cross is placed next to the RISO enunciator.
If the Insulation Resistance is greater than or equal
to 1 Mohm a tick is placed next to the RISO
enunciator.
The unit will proceed with the wiring test, checking
the live and neutral conductors for short or open
circuits or reversed connections.
If the wiring is correct a tick is placed next to the
cord enunciator, the GOOd enunciator is illuminated
and a PASS is indicated for the sequence.

PrimeTest 125 EL Operating Instructions
17
Note: If the tested cord has a wiring fault, one of
the following enunciators will be
illuminated in place of GOOd
OPEn indicates that either the live or neutral
conductor is broken (open circuit) or the plug top
fuse has blown
Shrt indicates that the live and neutral
conductors are shorted together
CrOS indicates that the live and neutral
connections are crossed (live and neutral
conductors reversed)
3.6 Testing an extension lead
Visually inspect the appliance as per requirements
of AS/NZS3760. If the cord passes a visual
inspection proceed with the electrical tests.
Plug the supplied 0.5m IEC lead into the IEC socket
and into a mains outlet on the extension lead. Plug
the mains plug of the extension lead into the front
panel mains socket on the PrimeTest 125 EL.
The extension lead can now be tested in the same
manner as an IEC as described above.

PrimeTest 125 EL Operating Instructions
18
3.7a Test an EPOD (Powerboard)
Visually inspect the appliance as per requirements
of AS/NZS3760. If the cord passes a visual
inspection proceed with the electrical tests.
AS/NZS3760 requires an earth resistance test to be
performed to each outlet.
Operators have the choice of carrying out two test
sequences for EPODs:
Procedure A: a complete test sequence is carried
out for every socket (earth, insulation and polarity)
Procedure B:. a complete test sequence is carried
out on the very last socket. Only an earth resistance
test is carried out on the remaining sockets.
Procedure A:
1. Plug powerboard lead into mains outlet socket on
the PrimeTest 125 EL.
2. Plug IEC Lead into the IEC socket on the top of
the PrimeTest 125 EL.
3. Plug the IEC Lead plug into the first socket of the
EPOD.
4. Press CL I test button to perform a complete test
sequence covering earth, insulation and polarity to
test the socket.
5. Repeat sequence on every socket.
Procedure B:
1. Plug powerboard lead into mains outlet socket on
the PrimeTest 125 EL.
2. Plug IEC Lead into the IEC socket on the top of
the PrimeTest 125 EL.
3. Plug the IEC Lead plug into the first socket of the
EPOD.
Note: First socket is defined as the closest
socket to the power lead.

PrimeTest 125 EL Operating Instructions
19
4. Press the CL I and LKGE buttons simultaneously.
The PrimeTest 125 EL an earth test.
5. Repeat step 4 on every socket until the last
socket.
6. At the last socket, press the CL I button to do a
complete test.
Note: Last socket is defined as the socket
furthest from the power lead.
3.7b Test an EPOD/Extension Lead with MOV
and/or RCDs
Visually inspect the appliance as per requirements
of AS/NZS3760. If the cord passes a visual
inspection proceed with the electrical tests.
AS/NZS3760 requires an earth resistance test to be
performed to each outlet.
This test sequence uses a leakage test to replace an
insulation test at 500V DC to avoid triggering the
MOV (surge protector) or to apply power to the RCD
to allow circuit connections.
Operators have the choice of carrying out two test
sequences for EPODs with MOV and/or RCD:
Procedure A: a complete test sequence is carried
out for every socket (earth, leakage and polarity)
Procedure B: a complete test sequence is carried
out on the very last socket. Only an earth test is
carried out on the remaining sockets.
Note: For extension leads with RCDs, follow 3.7b
Procedure A and carry out a single socket test.
