Keysight S9100A User manual

Review 1.0, 20190730
RackMountKit, InstallationGuide
Keysight
S9100A5G BaseStation
ManufacturingTestSolution
This Installation Guide contains procedures for installation of the Keysight S9100AX
portion into an EIA Rack Cabinet using a 1CP110A Rack Mount Flange and Handle Kit.
Keysight S9100A 5G Base Station Manufacturing Test Solution
consists of the following three products:
Keysight S9100AX which is an S9100A IF Subsystem (PXIe chassis and modules,
rugged front panel, and cables); see Keysight S9100AX Rack Mount Flange Kit
and Handle Kit (S9100-90021).
Keysight E7770A Common Interface Unit (CIU); for rack mounting instructions,
refer to the Keysight E7770-68700 Rack Mount Kit.
Keysight M1740A mmWave Transceiver for 5G; the product is not rack mounted.

Notices
© Keysight Technologies, Inc. 2019
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a foreign
language) without prior agreement and
written consent from Keysight
Technologies, Inc. as governed by
United States and international
copyright laws.
Manual Part Number
S9100-90021
Edition
Edition 1, July, 2019
Printed in USA
Published By
Keysight Technologies
1400 Fountaingrove Parkway
Santa Rosa, CA 95403
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED “AS IS,” AND
IS SUBJECT TO BEING CHANGED,
WITHOUT NOTICE, IN FUTURE
EDITIONS. FURTHER, TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT
DISCLAIMS ALL WARRANTIES, EITHER
EXPRESS OR IMPLIED, WITH REGARD
TO THIS MANUAL AND ANY
INFORMATION CONTAINED HEREIN,
INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS
OR FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE
FURNISHING, USE, OR
PERFORMANCE OF THIS DOCUMENT
OR OF ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE
USER HAVE A SEPARATE WRITTEN
AGREEMENT WITH WARRANTY TERMS
COVERING THE MATERIAL IN THIS
DOCUMENT THAT CONFLICT WITH
THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE
AGREEMENT SHALL CONTROL.
KEYSIGHT TECHNOLOGIES DOES NOT
WARRANT THIRD-PARTY SYSTEM-
LEVEL (COMBINATION OF CHASSIS,
CONTROLLERS, MODULES, ETC.)
PERFORMANCE, SAFETY, OR
REGULATORY COMPLIANCE, UNLESS
SPECIFICALLY STATED.
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance with
the terms of such license.
U.S. Government Rights
The Software is “commercial computer
software,” as defined by Federal
Acquisition Regulation (“FAR”) 2.101.
Pursuant to FAR 12.212 and 27.405-3
and Department of Defense FAR
Supplement (“DFARS”) 227.7202, the
U.S. government acquires commercial
computer software under the same
terms by which the software is
customarily provided to the public.
Accordingly, Keysight provides the
Software to U.S. government customers
under its standard commercial license,
which is embodied in its End User
License Agreement (EULA), a copy of
which can be found at
http://www.keysight.com/find/sweula. The
license set forth in the EULA represents
the exclusive authority by which the
U.S. government may use, modify,
distribute, or disclose the Software. The
EULA and the license set forth therein,
does not require or permit, among other
things, that Keysight: (1) Furnish
technical information related to
commercial computer software or
commercial computer software
documentation that is not customarily
provided to the public; or (2) Relinquish
to, or otherwise provide, the
government rights in excess of these
rights customarily provided to the
public to use, modify, reproduce,
release, perform, display, or disclose
commercial computer software or
commercial computer software
documentation. No additional
government requirements beyond
those set forth in the EULA shall apply,
except to the extent that those terms,
rights, or licenses are explicitly required
from all providers of commercial
computer software pursuant to the FAR
and the DFARS and are set forth
specifically in writing elsewhere in the
EULA. Keysight shall be under no
obligation to update, revise or otherwise
modify the Software. With respect to
any technical data as defined by FAR
2.101, pursuant to FAR 12.211 and
27.404.2 and DFARS 227.7102, the U.S.
government acquires no greater than
Limited Rights as defined in FAR 27.401
or DFAR 227.7103-5 (c), as applicable in
any technical data.
Safety Notices
A CAUTION notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not
proceed beyond a CAUTION notice until
the indicated conditions are fully
understood and met.
A WARNING notice denotes a hazard. It
calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in personal injury or death.
Do not proceed beyond a WARNING
notice until the indicated conditions are
fully understood and met.
ii

iii
Contents
1 Rack Mount Kit Installation 1
1. 1 General Guidelines 1
2 Rack Mount Kit Installation for the S9100AX 3
2. 1 Rack Mount the S9100AX (Part of the S9100A) Using the 1CP110A Rack Mount
Flange and Handle Kit 3
2. 1. 1 Removing Feet from the Bottom of the PXIe Chassis 5
2. 1. 2 Attaching Leveling Slides to the Bottom of the PXIe Chassis 5
2. 1. 3 Attaching the Support Nuts and Rails to the Rack 6
2. 1. 4 Attaching the Rack Mount Flanges to the Rack 7
2. 1. 5 Removing Left and Right Side Handles from the PXIe Chassis 8
3 Rack Mount Kit Installation for the E7770A CIU 9

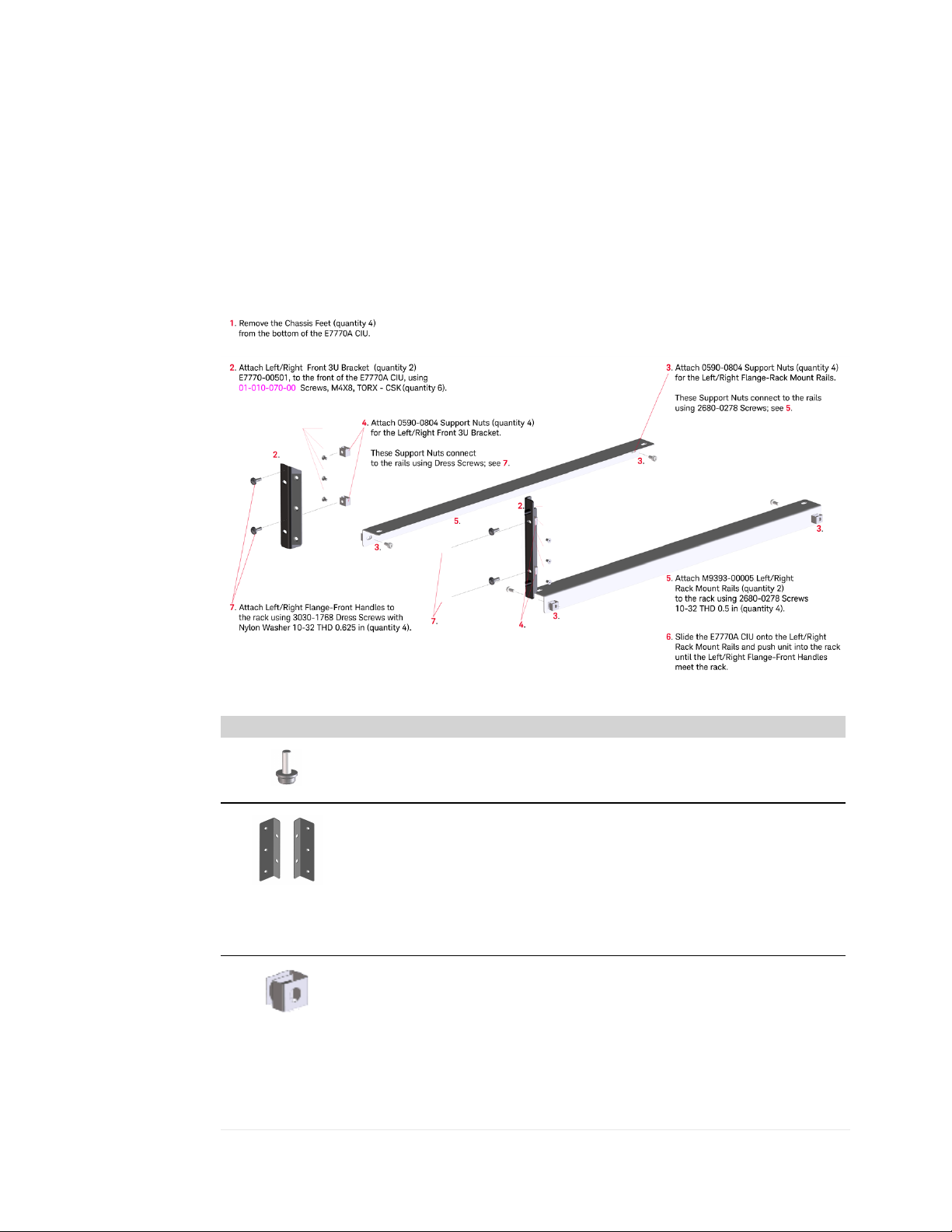

3. 1 Rack Mount the E7770A (Part of the S9100A) Using the 1CP1xxA Rack Mount
Flange and Handle Kit 9
3. 1. 1 Attaching the Support Nuts and Rails to the Rack 11
3. 1. 2 Attaching the Rack Mount Flanges to the Rack for the E7770A CIU 12

iv

1 Rack Mount Kit Installation
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 1
1 Rack Mount Kit Installation
This Installation Guide contains procedures for installation of the Keysight S9100AX
portion of the KeysightS9100A 5GBaseStation ManufacturingTestSolution into an
EIA Rack Cabinet using a Keysight 1CP110A Rack Mount Flange and Handle Kit.
KeysightS9100A 5GBaseStation ManufacturingTestSolution
consists of the following three products:
Keysight S9100AX which is an S9100A IF Subsystem (PXIe chassis and
modules, rugged front panel, and cables)
Keysight E7770A Common Interface Unit (CIU); for rack mounting instructions,
refer to the Keysight E7770-68700 Rack Mount Kit.
Keysight M1740A mmWave Transceiver for 5G;
the product is not rack mounted.
1. 1 General Guidelines
When rack mounting the KeysightS9100A 5GBaseStation
ManufacturingTestSolution, follow these general guidelines:
1. Always begin installing the chassis and heavy instruments at the bottom of the
rack and work up. This maintains a lower center of gravity and reduces the
possibility of the rack tipping.
2. Anti-tipping feet, if available with the rack, should always be extended.
3. The heaviest instrument in the chassis should always be mounted
at the bottom of the rack.
4. For maximum cooling and optimum rack thermal efficiency, place the
instrument or chassis with the greatest power consumption towards the top of
the rack. This promotes efficient cooling since heat rises when placed nearer to
the top of the rack, high power instruments will not unnecessarily heat other
instruments. However, in doing this, do not violate the guideline that the
heaviest instruments should be placed at the bottom of the rack.
5. If instruments or modules in the chassis are consuming maximum power,
1U of rack space is required for ventilation below the chassis.
Rack Mount Kit Installation for the S9100AXonpage3
Rack Mount Kit Installation for the E7770A CIUonpage9

2 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

2 Rack Mount Kit Installation for the S9100AX
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 3
2 Rack Mount Kit Installation for the S9100AX
2. 1 Rack Mount the S9100AX (Part of the S9100A)
Using the 1CP110A Rack Mount Flange and Handle Kit

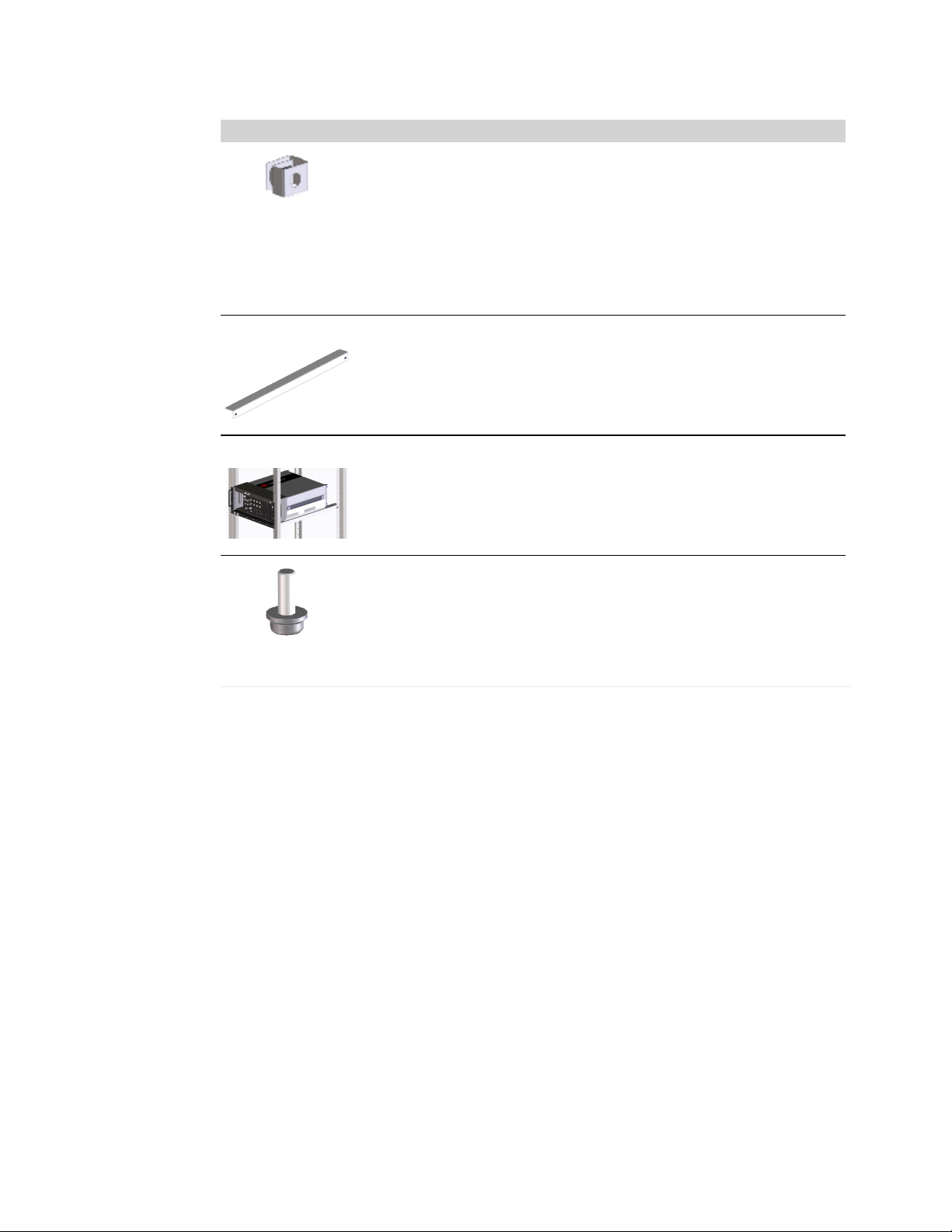

Item Qty Part Number and Description ...
14 Remove the Chassis Feet (quantity 4)
from the bottom of the S9100AX (PXIe Chassis).
22
4
5023-3550 Left/Right Leveling Slides
0515-0382 Screw-Machine w/ Washer Torx-T20 M4x0.7 12 mm
Attach 5023-3550 Left/Right Leveling Slides (quantity 2),
to the bottom of the S9100AX (PXIe Chassis)
in place of the Chassis Feet (quantity 4) removed in 1,
using 0515-0382 Screws M4x0.7, 12 mm (quantity 4).
32
8
5003-0215 (Left) and 5003-0216 (Right) Flange-Front Handles
0515-2043 Screw-Machine Torx-T20 M4x0.7 8 mm
Attach Left/Right Flange-Front Handles (quantity 2)
5003-0215 (Left) and 5003-0216 (Right),
to the “inside” front of the S9100AX (PXIe Chassis),

2 Rack Mount Kit Installation for the S9100AX
Item Qty Part Number and Description ...
using 0515-2043 Screws M4x0.7, 8 mm (quantity 8).
44
4
0590-0804 Support Nuts-Sheetmetal 10-32 THD 0.5 in
2680-0278 Screw-Machine w/ Washer Torx-T25
Attach 0590-0804 Support Nuts (quantity 4)
for the Left/Right Flange-Rack Mount Rails.
These Support Nuts connect to the rails
using 2680-0278 Screws; see 6.
56 0590-0804 Support Nuts-Sheetmetal 10-32 THD 0.5 in
Attach 0590-0804 Support Nuts (quantity 6)
for the Left/Right Front Handle Rails and Filler Panel.
These Support Nuts connect to the rails
using Dress Screws; see 9and 10.
62 M9393-00005 Left/Right Rack Mount Rails
Attach M9393-00005 Left/Right Rack Mount Rails (quantity 2)
to the rack using 2680-0278 Screws 10-32 THD 0.5 in (quantity 4).
72 Remove Left/Right Side Handles (quantity 2)
along with a total of 4 screws; one handle on
each side of the S9100AX (PXIe Chassis).
8Slide the S9100AX (PXIe Chassis) onto the Left/Right
Rack Mount Rails and push unit into the rack
until the Left/Right Flange-Front Handles meet the rack.
94 3030-1768 Dress Screws w/ Nylon Washer 10-32 THD 0.625 in
Attach Left/Right Flange-Front Handles to
the rack using 3030-1768 Dress Screws with
Nylon Washer 10-32 THD 0.625 in (quantity 4).
10 1 5003-0219 1U Filler Panel
Attach 5003-0219 1U Filler Panel (quantity 1)
to the front of the rack
using 3030-1768 Dress Screws with
Nylon Washer 10-32 THD 0.625 in (quantity 2).
4 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

2 Rack Mount Kit Installation for the S9100AX
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 5

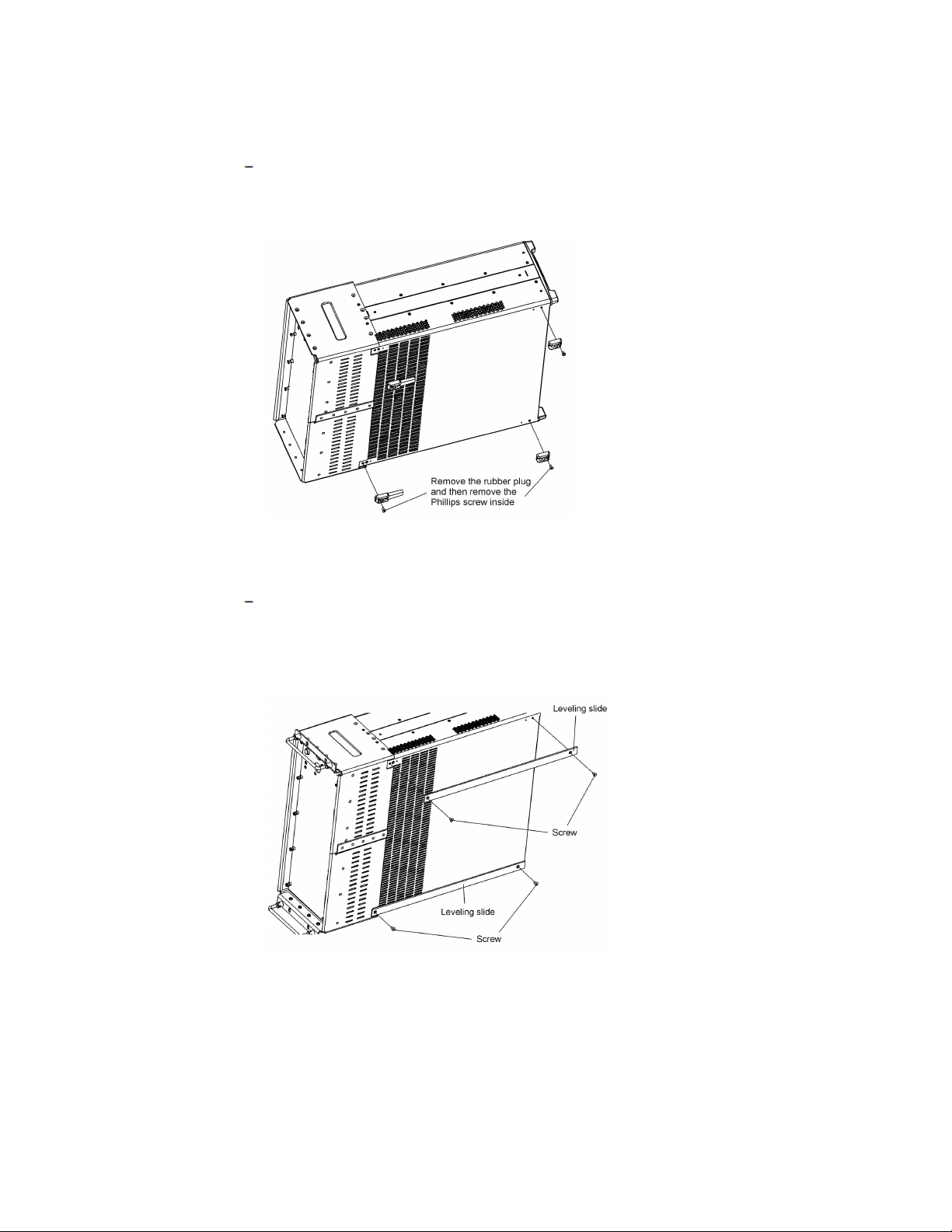

2. 1. 1 Removing Feet from the Bottom of the PXIe Chassis
Remove the Feet (quantity 4) from the bottom of the S9100AX (PXIe Chassis) by
pulling out the small rubber insert on each foot and removing the Phillips screw
that attaches the foot to the chassis.
2. 1. 2 Attaching Leveling Slides to the Bottom of the PXIe Chassis
Attach 5023-3550 Left/Right Leveling Slides (quantity 2),
to the bottom of the S9100AX (PXIe Chassis)
in place of the removed Chassis Feet (quantity 4),
using 0515-0382 Screws M4x0.7, 12 mm (quantity 4).

2 Rack Mount Kit Installation for the S9100AX

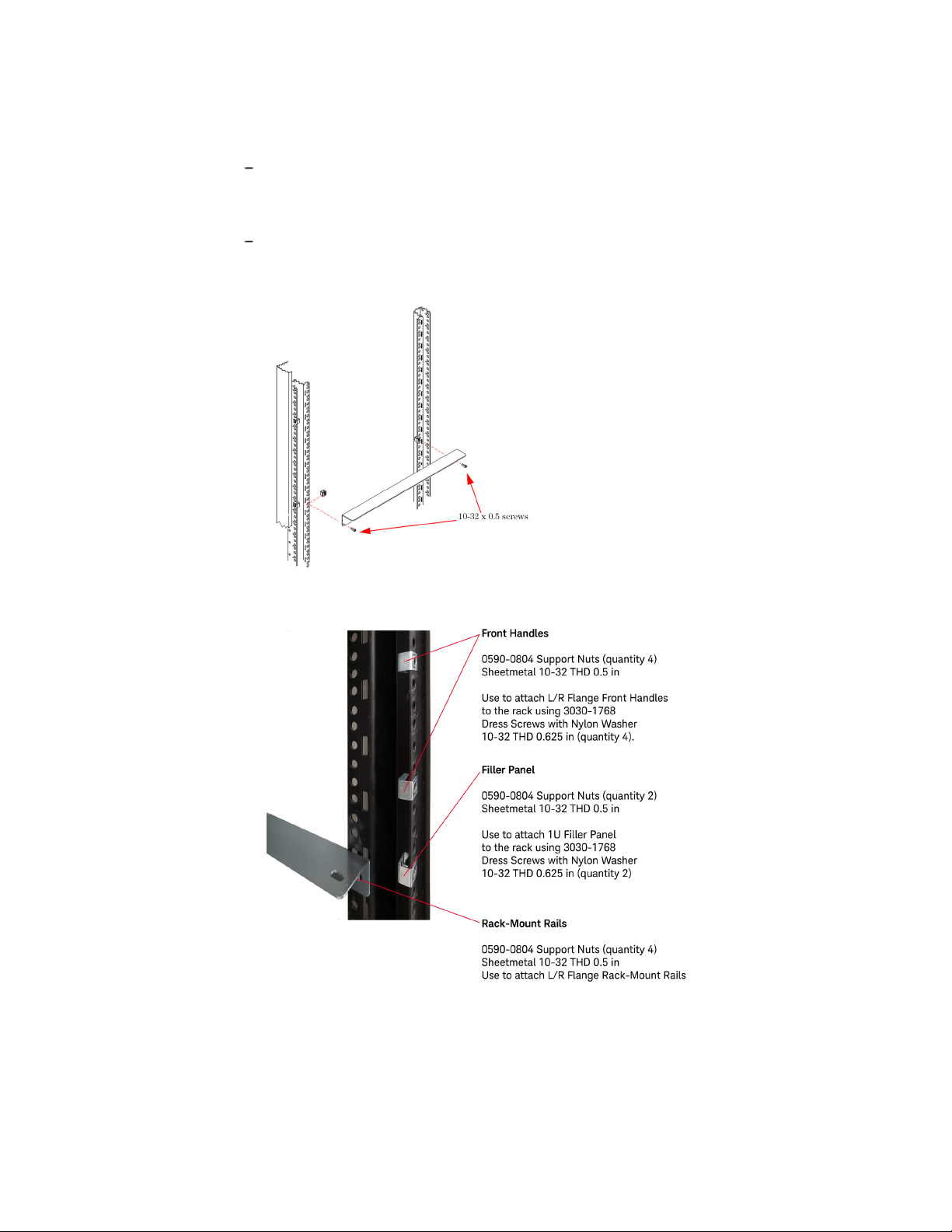

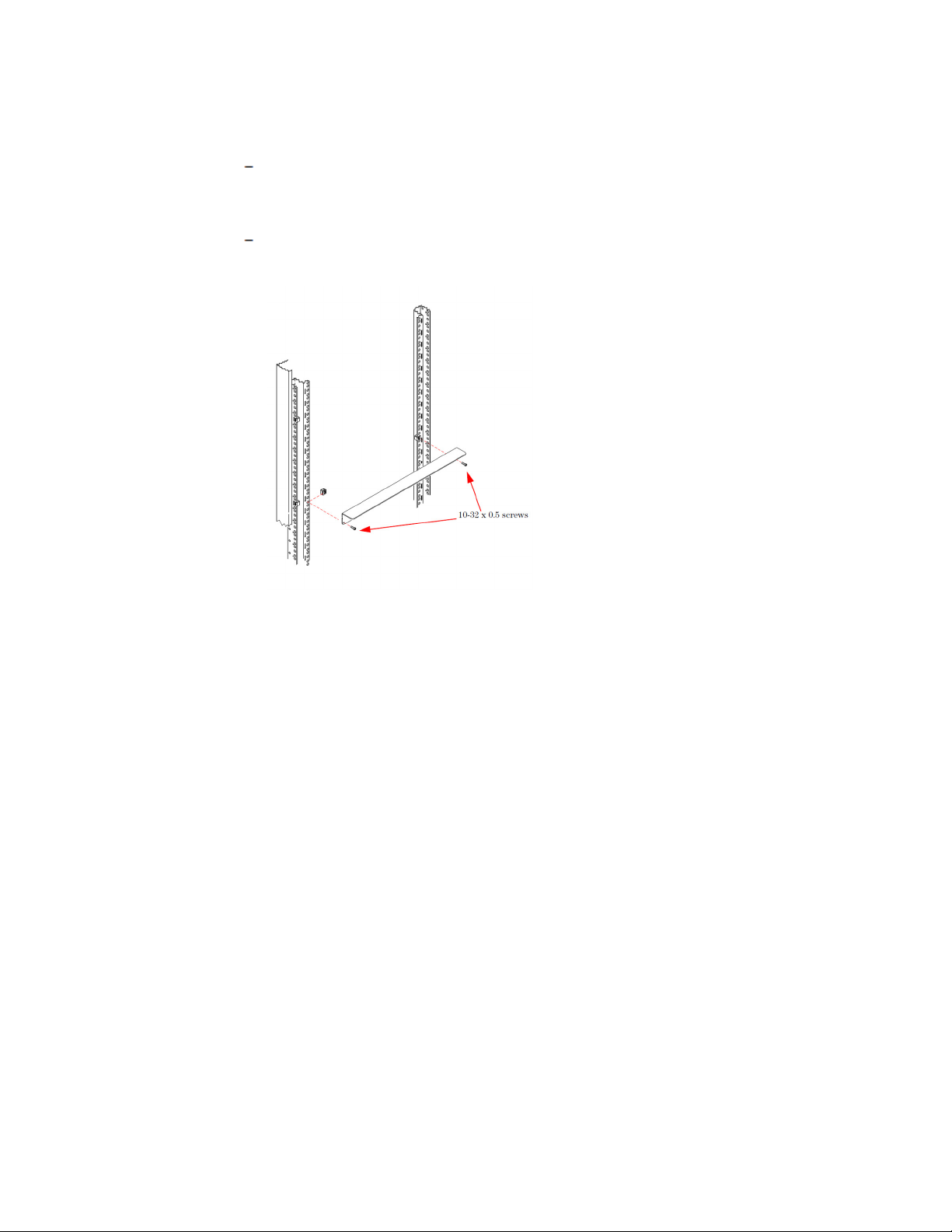

2. 1. 3 Attaching the Support Nuts and Rails to the Rack
Attach 0590-0804 Support Nuts (quantity 4) for the Left/Right Flange-Rack
Mount Rails. These Support Nuts connect to the rails using 2680-0278 Screws.
Attach M9393-00005 Left/Right Rack Mount Rails (quantity 2)
to the rack using 2680-0278 Screws 10-32 THD 0.5 in (quantity 4).
6 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

2 Rack Mount Kit Installation for the S9100AX
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 7
2. 1. 4 Attaching the Rack Mount Flanges to the Rack
Attach 0590-0804 Support Nuts (quantity 6) for the Left/Right Front Handle
Rails and Filler Panel. These Support Nuts connect to the rails using
DressScrews.
Attach Left/Right Flange-Front Handles to the rack using 3030-1768
DressScrews with Nylon Washer 10-32 THD 0.625 in (quantity 4).

2 Rack Mount Kit Installation for the S9100AX
2. 1. 5 Removing Left and Right Side Handles from the PXIe Chassis
Remove Left and Right Side Handles (quantity 2) along with a total of 4 screws;
one handle from each side of the S9100AX (PXIe Chassis).
Do not stand the S9100AX (PXIe Chassis) on its side; the
side handles may cause the chassis to tip over.
8 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

3 Rack Mount Kit Installation for the E7770A CIU
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 9
3 Rack Mount Kit Installation for the E7770A CIU
3. 1 Rack Mount the E7770A (Part of the S9100A) Using
the 1CP1xxA Rack Mount Flange and Handle Kit
Item Qty Part Number and Description ...
14 Remove the Chassis Feet (quantity 4)
from the bottom of the E7770A Common Interface Unit(CIU).
22
6
E7770-00501 (Left) and E7770-00501 (Right) Front 3U Bracket
01-010-070-00 Screw, M4X8, TORX - CSK
Attach Left/Right Front 3U Bracket (quantity 2) E7770-00501,
to the “inside” front of the E7770A Common Interface Unit(CIU),
using 01-010-070-00 Screws, M4X8, TORX - CSK (quantity 6).
34
4
0590-0804 Support Nuts-Sheetmetal 10-32 THD 0.5 in
2680-0278 Screw-Machine w/ Washer Torx-T25
Attach 0590-0804 Support Nuts (quantity 4)
for the Left/Right Flange-Rack Mount Rails.
These Support Nuts connect to the rails
using 2680-0278 Screws; see 5.

3 Rack Mount Kit Installation for the E7770A CIU
Item Qty Part Number and Description ...
44 0590-0804 Support Nuts-Sheetmetal 10-32 THD 0.5 in
Attach 0590-0804 Support Nuts (quantity 4)
for the Left/Right Front 3U Bracket.
These Support Nuts connect to the rails
using Dress Screws; see 7.
52 M9393-00005 Left/Right Rack Mount Rails
Attach M9393-00005 Left/Right Rack Mount Rails (quantity 2)
to the rack using 2680-0278 Screws 10-32 THD 0.5 in (quantity 4).
6Slide the E7770A Common Interface Unit(CIU) onto the Left/Right
Rack Mount Rails and push unit into the rack
until the Left/Right Flange-Front Handles meet the rack.
74 3030-1768 Dress Screws w/ Nylon Washer 10-32 THD 0.625 in
Attach Left/Right Flange-Front Handles to
the rack using 3030-1768 Dress Screws with
Nylon Washer 10-32 THD 0.625 in (quantity 4).
10 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

3 Rack Mount Kit Installation for the E7770A CIU
KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 11
3. 1. 1 Attaching the Support Nuts and Rails to the Rack
Attach 0590-0804 Support Nuts (quantity 4) for the Left/Right Flange-Rack
Mount Rails. These Support Nuts connect to the rails using 2680-0278 Screws.
Attach M9393-00005 Left/Right Rack Mount Rails (quantity 2)
to the rack using 2680-0278 Screws 10-32 THD 0.5 in (quantity 4).

3 Rack Mount Kit Installation for the E7770A CIU
3. 1. 2 Attaching the Rack Mount Flanges to the Rack for the
E7770A CIU
Attach 0590-0804 Support Nuts (quantity 4) for the Left/Right Front Handle
Rails.
These Support Nuts connect to the rails using DressScrews.
Attach Left/Right Flange-Front Handles to the rack using 3030-1768
DressScrews with Nylon Washer 10-32 THD 0.625 in (quantity 4).
12 KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide

KeysightS9100A 5GBaseStation ManufacturingTestSolution, RackMountKit InstallationGuide 13

Where to Find the Latest Information
Documentation is updated periodically. For the latest information about these products, including instrument software upgrades,
application information, and product information, browse to one of the following URLs, according to the name of your product:
KeysightS9100A 5GBaseStation ManufacturingTestSolution
www.keysight.com/find/solution-5GNR
KeysightM9019A PXIe Chassis: 18-slot, 3U, 24 GB/s, Gen 3
KeysightM9037APXIe HighPerformance EmbeddedController (Option EC1)
KeysightM9024APXIe HighPerformance SystemModule (Option SM1)
KeysightM9410APXIeVXT VectorTransceiver
KeysightM9155C PXIHybrid DualSPDT CoaxialSwitch
KeysightM9300APXIe FrequencyReference
KeysightE7770A Common Interface Unit(CIU)
KeysightM1740A mmWave Transceiver for 5G (Option RH1 or Option RH2)
To access the Keysight licensing website:
http://www.keysight.com/find/licensing
To receive the latest updates by email, subscribe to Keysight Email Updates:
www.keysight.com/find/MyKeysight
To get information on preventing instrument damage:
www.keysight.com/find/PreventingInstrumentRepair
Is your product software up-to-date?
Periodically, Keysight releases software updates to fix known defects and incorporate product enhancements.
To search for software updates for your product, go to the Keysight Technical Support website at:
www.keysight.com/find/techsupport
Contacting Keysight
Assistance with test and measurements and information on finding a local Keysight office are available at:
www.keysight.com/find/assist
This information is subject to change
without notice.
© Keysight Technologies 2019
Edition 1, July, 2019
Printed in USA
S9100-90021
www.keysight.com
Other manuals for S9100A
2
Table of contents
Other Keysight Transceiver manuals

Keysight
Keysight M9410A User manual

Keysight
Keysight M9420A User manual

Keysight
Keysight S9100A User guide

Keysight
Keysight E7760B User manual

Keysight
Keysight S9100A User guide

Keysight
Keysight N7081A User manual

Keysight
Keysight M1742A User manual

Keysight
Keysight M9471A User manual

Keysight
Keysight S9115A User manual
