Kia Opirus 2007 User manual

kia, tthe ccompany
Now that you are the owner of a Kia Vehicle, you’ll probably be
asked a lot of questions about your vehicle and the company like
“What is a Kia?,” “Who is Kia?,” “What does ‘Kia’ mean?”
Here are some answers. First, Kia is the oldest car company in
Korea. It’s a company that has thousands of employees focused
on building high-quality vehicles at affordable prices.
The first syllable, Ki, in the word “Kia” means “to arise from to
the world” or “to come up out of to the world.” The second syl-
lable, a, means “Asia.” So, the word Kia, means “to arise from”
or “to come up out of Asia to the world.”
Enjoy your Vehicle!

i
Thank you for choosing a Kia vehicle.
When you require service, remember that your dealer
knows your vehicle best. Your dealer has factory-trained
technicians, recommended special tools, genuine Kia
replacement parts and is dedicated to your complete sat-
isfaction.
Because subsequent owners require this important infor-
mation as well, this publication should remain with the
vehicle if it is sold.
This manual will familiarize you with operational, main-
tenance and safety information about your new vehicle. It
is supplemented by a Warranty and Consumer
Information manual that provides important information
on all warranties regarding your vehicle. If your vehicle
is equipped with an audio system, you will also have a
Kia Integrated Audio System manual explaining its oper-
ation. We urge you to read these publications carefully
and follow the recommendations to help assure enjoyable
and safe operation of your new vehicle.
Kia offers a great variety of options, components and fea-
tures for its various models.
Therefore, the equipment described in this manual, along
with the various illustrations, may not all be applicable to
your particular vehicle.
The information and specifications provided in this man-
ual were accurate at the time of printing. Kia reserves the
right to discontinue or change specifications or design at
any time without notice and without incurring any obli-
gation. If you have questions, always check with your
Kia Dealer.
We assure you of our continuing interest in your motor-
ing pleasure and satisfaction in your Kia vehicle.
© 2006 Kia Motors Corp.
All rights reserved. Reproduction by any means, elec-
tronic or mechanical, including photocopying, recording,
or by any information storage and retrieval system or
translation in whole or part is not permitted without writ-
ten authorization from Kia Motors Corporation.
Printed in Korea
For ewor d

ii
1
2
3
4
5
6
7
8
9
Introduction
Your vehicle at a glance
Knowing your vehicle
Driving your vehicle
Driving tips
In case of an emergency
Maintenance
Specifications
Index
t abl e of cont ent s

1
How to use this manual / 1-2
Vehicle break-in process / 1-3
Introduction

Introduction
21
We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strong-
ly recommend that you read the
entire manual. Especially, in order to
prevent death or injury, at the very
least, you must read the WARNING
and CAUTION sections spread
throughout the manual, which are
easily recognized by their special
markings listed.
Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you learn about features,
important safety information, and
driving tips under various road condi-
tions.
The general layout of the manual is
provided in the Table of Contents. A
good place to start is the index;it has
an alphabetical listing of all informa-
tion in your manual.
Sections:This manual has eight sec-
tions plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want.
You’ll find various WARNING’s,
CAUTION’s, and NOTICE’s in this
manual. These WARNING’s,
CAUTION’s and NOTICE’s were pre-
pared to enhance your personal
safety and continued satisfaction
with Kia vehicle.You should carefully
read and follow ALL procedures and
recommendations provided in these
WARNING’s, CAUTION’s and
NOTICE’s.
NOTICE
A NOTICE indicates interesting or
helpful information is being provid-
ed.
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situa-
tion in which harm, serious bod-
ily injury or death could result if
the warning is ignored.
CAUTION
A CAUTION indicates a situation
in which damage to your vehicle
could result if the caution is
ignored.

13
Introduction
VEHICLE BREAK-IN
PROCESS
No special break-in period is need-
ed.By following a few simple precau-
tions for the first 600 miles (1,000
km) you may add to the perform-
ance, economy and life of your vehi-
cle.
• Do not race the engine.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Avoid full-throttle starts.

2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

Your vehicle at a glance
22
INTERIOR OVERVIEW
OGH006002
1. Door lock/unlock button....................3-12
2. Power window switches....................3-16
3. Outside rearview mirror control
switch ...............................................3-88
4. Seat adjust knob ..............................3-21
5. Hood release lever...........................3-84
6. Parking brake pedal .........................4-15
7. Parking brake release lever..............4-15
8. Instrument panel illumination...........4-35
9. Steering wheel .................................4-19
10. Instrument cluster...........................4-33
11. Inside rearview mirror ....................3-91
12.Trunk release lever.........................3-81
13. Fuel filler lid release button............3-85
14. Seat................................................3-21
15. Master power door lock control......3-13
16. Master power window control lock..3-18
17. Brake pedal....................................4-12
18.Vent controls...................................4-69
19. Steering wheel tilt...........................4-19
20. Power adjustable pedal switch*......4-14
*: if equipped

23
Your vehicle at a glance

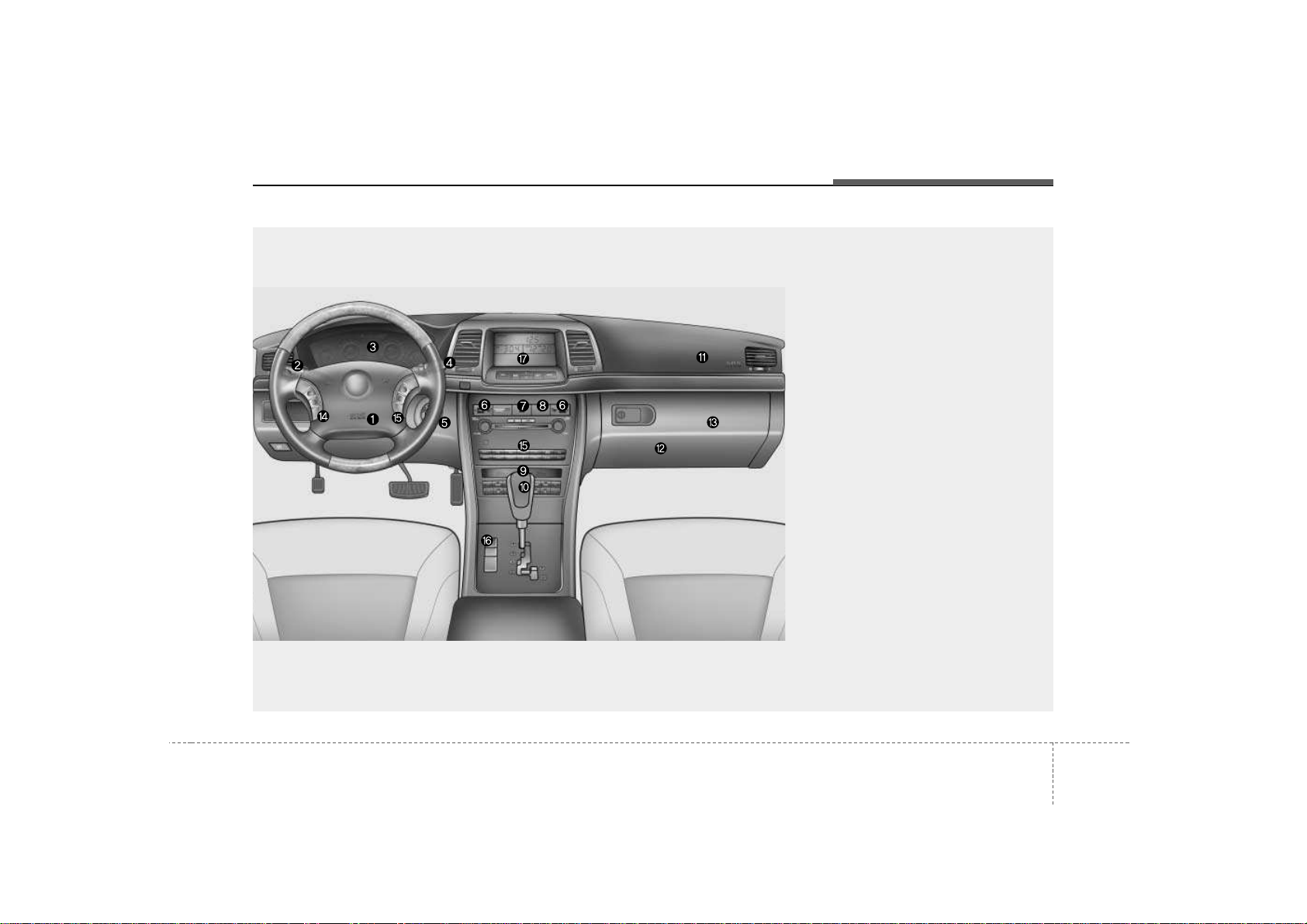

INSTRUMENT PANEL OVERVIEW
1. Driver’s Air Bag...................................3-63
2. Light control / Turn signals..........4-48,4-50
3. Instrument cluster...............................4-33
4. Wiper/Washer .....................................4-54
5. Ignition switch.......................................4-2
6. Seat warmer .......................................3-28
7. Hazard..........................................4-59,6-2
8. Rear climate control selection button..4-72
9. Climate control system .......................4-60
10. Shift lever............................................4-7
11. Front passenger’s air bag.................3-63
12. Glove box..........................................3-95
13.Trunk lid control button......................3-80
14. Audio controls*................................3-107
15. Auto cruise controls*.........................4-21
16. Electronic stability program*.............4-28
17.Trip computer*.................................3-127
*: if equipped
OGH006001N

Your vehicle at a glance
42
ENGINE COMPARTMENT
OGH056001N
1.Windshield washer fluid reservoir.......7-19
2. Power steering fluid reservoir.............7-16
3. Engine oil filler cap .............................7-12
4. Auto transaxle oil dipstick...................7-17
5. Air cleaner...........................................7-20
6. Brake fluid reservoir............................7-15
7. Engine oil dipstick...............................7-12
8. Radiator cap .......................................7-14
9. Positive battery terminal..............6-4, 7-26
10. Engine coolant reservoir...................7-13
11. Negative battery terminal..........6-4, 7-26

3
Keys / 3-2
Remote keyless entry / 3-5
e-key (Electronic key) / 3-8
Immobilizer system / 3-11
Door locks / 3-12
Windows / 3-16
Seats / 3-21
Driver position memory system / 3-35
Safety belts / 3-37
Air bags-advanced supplemental restraint
system / 3-60
Trunk / 3-80
Hood / 3-84
Fuel filler lid / 3-85
Mirrors / 3-88
Interior lights / 3-93
Storage compartments / 3-94
Interior features / 3-97
Air purifier / 3-102
Sunroof / 3-103
Antenna / 3-106
Audio remote control / 3-107
Audio systems / 3-108
Knowing your vehicle

Knowing your vehicle
23
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle. Key operations
➀Master key
Used to start the engine, lock and
unlock the doors, lock and unlock
the glove box, and open the trunk.
➁Sub key
Used only to start the engine and
lock and unlock the door.
➂Transmitter
Used to lock and unlock the doors
and trunk (trunk can only be
opened with the transmitter when
the trunk lid control button located
in the glove compartment is
turned on).
➃ e-key (electronic key)
Used to start the engine, lock and
unlock the doors and open the
trunk (the trunk can only be
opened with the e-key when the
trunk lid control button located in
the glove compartment is turned
on)
➄Mechanical key
Used to lock and unlock the doors
and trunk, and lock and unlock the
glove box.
KEYS
OGH036001N
OGH026001E
OGH026001-1
Type A
Type B ➃
➄
➁
➀
➂

33
Knowing your vehicle
Restrictions in handling keys
When leaving keys with parking lot
and valet attendants, the following
procedures will ensure that your
vehicle’s trunk and glove box com-
partment can not be opened in your
absence.
1GHA2004
WARNING - Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
WARNING
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used,the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in the
wiring.

Knowing your vehicle
43
With master and sub key
(type A, if equipped)
1. Unlock the glove box with the mas-
ter key and open it.
2. Set the trunk lid control button in
the glove box compartment to off
(not depressed). In the off posi-
tion, the trunk can not be unlocked
with either the trunk release lever
inside the car or trunk open button
of the transmitter.
3. Close the glove box, and lock the
glove box using the master key.
4. Leave the attendant with the sub
key. The trunk and glove box are
secured because the sub key only
allows engine start and door lock
and unlock.
With e-key
(type B, if equipped)
1. Depress and hold the release but-
ton (➀) and remove the mechani-
cal key.
2. Using the mechanical key, unlock
the glove box then open it.
3. Set the trunk lid control button in
the glove box compartment to off
(not depressed). In the off posi-
tion, the trunk cannot be unlocked
with either the trunk release lever
inside the car or an e-key.
4. Close and then lock the glove box
using the mechanical key.
5. Leave the e-key with the atten-
dant. The trunk and glove box are
secure with the mechanical key.
1GHA2005
➀

35
Knowing your vehicle
➀Lock button
➁Unlock button
➂ Trunk lid open button
➀Lock ( )
All doors are locked if the lock but-
ton is pressed. Also, the trunk is
locked and cannot be opened with
the outside handle.
➁Unlock ( )
All doors are unlocked if the
unlock button is pressed.Also, the
trunk is unlocked and can be
opened with the outside handle.
➂ Trunk lid open ( )
The trunk lid opens if this button is
pressed. If this button is pressed
while all the doors are locked, the
trunk will open, however it will
remain locked when closed.
If any door is unlocked, the trunk
will remain unlocked when closed.
When the trunk lid control button
in the glove box is OFF, the trunk
will not open or unlock even when
the button on the transmitter is
pressed.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
1GHA2006
➀
➂
➁

Knowing your vehicle
63
NOTICE
The transmitter will not work if any
of following occur:
- The ignition key is in ignition
switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is
weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, con-
tact an authorized Kia Dealer.

NOTICE
Keep the transmitter away from
water or any liquid. If the keyless
entry system is inoperative due to
exposure to water or liquids, it will
not be covered by your manufactur-
er vehicle warranty.
Operational distance may vary
depending upon the area the trans-
mitter is used in. For example, if the
vehicle is parked near police sta-
tions, government and public offices,
broadcasting stations, military instal-
lations, airports, or transmitting tow-
ers, etc.
Remember, if you lock the doors with
the transmitter, be sure to unlock the
doors with the transmitter. If you
unlock the doors with the ignition key,
the theft-alarm system will be activat-
ed and the alarm will sound. The
alarm can be disarmed if the ignition
key is inserted into the ignition switch
and the ignition switch is turned to
“ON” for at least 30 seconds.

37
Knowing your vehicle
Battery replacement
Transmitter uses a 3 volt lithium bat-
tery which will normally last for sev-
eral years. When replacement is
necessary, use the following proce-
dure.
1. Insert a slim tool into the slot and
gently pry open the transmitter
center cover (➀).
2. Replace the battery with new one.
When replacing the battery, make
sure the battery positive “+” sym-
bol faces up as indicated in the
illustration.
3. Install the battery in the reverse
order of removal.
✽✽NOTICE
The keyless entry system transmit-
ter is designed to give you years of
troublefree use, however it can mal-
function if exposed to moisture or
static electricity. If you are unsure
how to use your transmitter or
replace the battery, contact an
authorized Kia dealer.
1GHA2007
➀
CAUTION
• Using the wrong battery can
cause the transmitter to mal-
function. Be sure to use the
correct battery.
• To avoid damaging the trans-
mitter, don't drop it, get it wet,
or expose it to heat or sun-
light.

Knowing your vehicle
83
With possession of an e-key, you can
lock or unlock a door and even start
the engine without inserting the key.
Function and instructions of buttons
on an e-key are similar to the remote
keyless entry. (See page 3-6 for the
remote keyless entry)
E-key functions
With possession of an e-key you can
lock and unlock the vehicle doors,
and unlock the trunk and the e-key
enables starting of the engine as
well. Detailed information is as fol-
lows:
Unlocking
With all doors closed, when you keep
this e-key and pull a front outside
door handle, all doors are open after
0.5 second.
When the e-key is recognized in the
area of 0.7m~1m from the front out-
side door handle, other people can
also open the door without posses-
sion of the e-key.
Locking
The lock button (in the front outside
door handle), when pressed with all
doors closed, locks all the doors.The
lock button will only operate when
the e-key is within 0.7m~1m from the
outside door handle. If, however, a
front door handle is pulled again the
door will open. If you want to make
sure that a door has locked or not,
you should check the locking lever
inside the vehicle or pull the rear out-
side door handle.
e-KEY (ELECTRONIC KEY, IF EQUIPPED)
OGH026001-1

39
Knowing your vehicle
Trunk lid open
If you are within 0.7m~1m from the
outside trunk handle, with your e-key
in your possession, the trunk lid will
open when you press the trunk han-
dle. If you attempt to close the trunk
with the e-key left in the trunk the lid
will not close.
NOTICE
The e-key if left in some areas of the
trunk near surrounding electronic
equipment, the trunk lid re-opening
function may not work. Do not place
the e-key in the trunk, but keep it in
your possession at all times.
Start-up
You can start the engine without
inserting the key. For detailed infor-
mation refer to the chapter 4 of this
manual for starting the engine with
an e-key.
Deactivating of e-key
When using 2 e-keys, if you lock a
door with e-key A from outside of the
vehicle, while the following all condi-
tions are met, e-key B will be deacti-
vated.
• the ignition switch is in the LOCK
position.
• e-key is removed from the ignition
switch.
• e-key B is placed in the vehicle.
If this occurs, the alarm will sound for
approximately 6 seconds. However,
the function of start-up possible with
inserting e-key B and the unlock but-
ton on it can be operated.
When trying to activate e-key B,
unlock a door with e-key A or press
the unlock button on e-key B.
While using the e-key, take note
of the following facts:
1.The e-key door lock/unlock func-
tion will work only when all doors
are closed.
2.When unlocking a door using the
e-key, activation occurs 0.5 sec-
ond after you initially grip the out-
side door handle. Therefore, wait
0.5 second before trying to open
door.
3.While in possession of an e-key, a
door may inadvertently be
unlocked if a front outside door
handle is touched or when high-
pressurized car washing is occur-
ring.
4.When leaving the vehicle, always
keep your e-key with you.

Knowing your vehicle
103
NOTICE
• If, for some reason, you happen to
lose your e-key you will not be able
to start the engine. Tow the vehi-
cle, if necessary, and contact an
authorized Kia dealer.
• A maximum of 2 e-keys can be reg-
istered to a single vehicle. If you
lose an e-key you should immedi-
ately take the vehicle and key to
your authorized Kia dealer to pro-
tect it from potential theft. Battery replacement
An e-key battery should last for sev-
eral years, but if the indicator light
gets weak or the e-key is not working
properly, try replacing the battery
with a new one. If you are unsure
how to use your e-key or replace the
battery, contact an authorized Kia
dealer.
NOTICE
The circuit inside the e-key can have
a problem if exposed to moisture or
static electricity. If you are unsure
how to use your e-key or replace the
battery, contact an authorized Kia
dealer.
1. Pry open the rear cover of the e-
key.
2. Replace the battery with new one.
3. Install the battery in the reverse
order of removal.
1GHA2009
CAUTION
• Using the wrong battery can
cause the e-key to malfunc-
tion. Be sure to use the cor-
rect battery.
• Circuits inside the e-key may
develop problems when
dropped, exposed to moisture
or static electricity.
• If you suspect that your e-key
might have sustained some
damage, or you feel your e-key
is not working correctly, con-
tact an authorized Kia dealer.
