Sorento
Features & Functions Guide
www.kia.com
Consumer / Roadside Assistance:
1-800-333-4KIA (4542)
See Back Cover for Vehicle
Maintenance Schedule
Always check the Owner’s Manual for complete
operating information and safety warnings.
1 3 5
R
642
N
Instrument
Cluster
Panel / Stalk /
Steering Wheel
Controls
Center Panel
Controls Roof Panel
Controls
Driver’s
Controls SafetySeating
Before Delivery Key Feature Walkthrough - Demonstrate the following with the customer
Confirm “Good Battery” with the Kia Battery Tester Verify all tire pressures are to spec (see driver’s door label) LF_______ LR_______ RF_______ RR_______ Verify all remote keyless entry lock/unlock Ensure floormats are snapped into place (if applicable) Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet, Tire
Warranty booklet, and Features & Functions Guide)
Climate Control System - pages 16-17 Max Defrost: Select Defrost , then select High or Max Fan Speed
Windshield/Rear Wipers & Washers - page 7
SORENTO CUSTOMER DELIVERY CHECKLIST
Owner’s Name: VIN: Mileage: Dealership Name: Sales Consultant: Date:
*if equipped
Automatic*
3rd Row Air Conditioning
Control*
Manual*
AUTO DUAL
OUTSIDE
A/C
A/C
OFF
MODE
MODE
DUAL
REAR
PUSH
REARFRONT
AUTO
PUSH
OFF
MAX
A/C
A/C A/C
REAR
0123
4
OFF
AU TO DUA L
OUTSIDE
A/C
A/C
OFF
MODE
MODE
DU AL
REAR
PUSH
REARFRONT
AU TO
PUSH
OF F
Windshield Wiper/Washer Rear Wiper/Washer
MIST
OFF
INT
LO
HI
FRONT
INT
MI ST: Single wipe
INT: Intermittent
wipe
LO: Slow wipe
HI: Fast wipe
Adjust intermittent
wipe speed
Pull to spray
and wipe
OFF: Wiper o

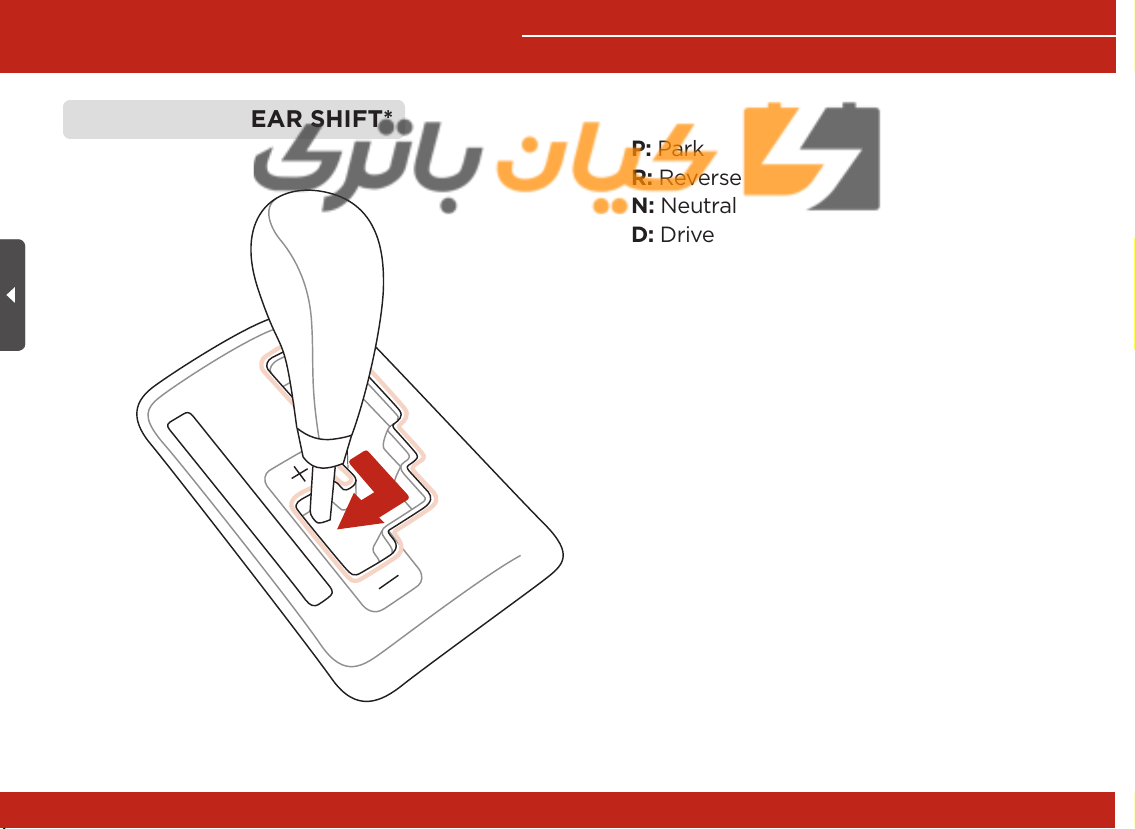

Manual Gear Shift* - page 19
Demonstrate lifting ring for reverse gear
1 3 5
R
642
N
AInspect*: At rst 7,500 miles, inspect all items associated with column B except propeller shaft -
then every 15,000 miles afterwards
Lubricate: All locks and hinges, front and rear driveshaft u-joint
Change: Engine oil and oil lter
Perform: Rotate Tires
BInspect*: Propeller shaft**, cooling system, drive shaft and boots, battery condition, brake uid,
clutch** uid, brake lines, hoses and connections, brake pedal and operation, chassis/body nuts
and bolts, disc brakes and pads**, exhaust pipe and mufer, front suspension ball joints, fuel tank,
cap, lines and hoses, power steering pump, belt and hoses, parking brakes, steering operation
and linkage, suspension mounting bolts, air cleaner element, air conditioning compressor/air
conditioner refrigerant/performance**
Replace: Climate control air lter**
CInspect*: Rear differential oil**, transfer case oil**, manual transmission uid**
DInspect*: Fuel lter, fuel tank air lter
Replace: Air cleaner element,
E
Inspect*: Drive belts
FInspect*: Valve clearance
G
Replace: Spark plugs
* and, if necessary, adjust, clean, replace or correct
** If equipped
Transfer case oil and rear differential oil should be changed anytime they have been submerged in water.
Inspect water pump when replacing the drive belt or timing belt.
When adding coolant, use only a qualied coolant additive for your vehicle and never mix hard water in the coolant lled at the factory. An improper coolant mixture can
result in serious malfunction or engine damage.
The drive belt should be replaced when cracks occur or tension is reduced excessively.
Check tire pressure once a month or more.
NORMAL
MAINTENANCE
SCHEDULE
When your vehicle requires service, remember that your dealer knows your
vehicle best. Your dealer has factory-trained technicians, recommended
special tools, genuine Kia replacement parts, and is dedicated to your
complete satisfaction. For expert advice and quality service, see your
authorized Kia dealer.
Warranty may be voided if maintenance schedule is not followed.
Call 1-800-333-4KIA (4542) for Roadside Assistance.
See your Owner’s Manual for more details and complete maintenance information, including severe maintenance schedule.
Kia Sorento Features & Functions Guide
Part Number: UX110-PS-004
© 2010 Kia Motors America, Inc.
All rights reserved.
APush to turn wiper ON/OFF
BPush to spray and wipe
+
OFF
OFF
+
OFF
A
B

NOTES
KIA DELIVERY FIRST –The Priority That Delivers More
Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable,
safe and dependable driving. Kia is committed to quality, innovation, safety and – above all – your satisfaction.
Using This Guide
The information contained in this guide will help you become familiar with the operation and features of your
new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations ensure the
instructions are easy to follow.
This Features & Functions Guide provides an overview of vehicle operation and equipment. It is not meant as
a substitute for your Owner’s Manual. Your Owner’s Manual contains specific information about the operation
and maintenance of your Kia vehicle, including safety information, cautions and warnings that you need to
know. In the interest of your safety and that of your family, and to help you avoid risks that may result in death or
serious injury, Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the
important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle
specifications without notice in advance or after the fact, and assumes no liability in connection with such
changes.
Warning: Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe
personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and
use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and
focus away from the safe operation of a vehicle or which are not permissible by law should never be used during
operation of the vehicle.
Sorento
Getting to know your
Instrument
Cluster
Panel / Stalk /
Steering Wheel
Controls
Center Panel
Controls
Roof Panel
Controls
Driver’s
Controls
Safety Seating
Instrument
Cluster
Panel / Stalk /
Steering Wheel
Controls
Center Panel
Controls Roof Panel
Controls
Driver’s
Controls SafetySeating
Tire Pressure Monitoring System (TPMS) - page 2 ECOMINDER®(ECO) Indicator* - page 3 Engine Start/Stop Button* - page 5 Audio System* - page 10 Digital Clock - page 15 Seat Warmers* - page 15 Folding 2nd & 3rd Row Seats* - page 21
Front Active Headrests - page 21 Smart Key* - page 22 Rear Seat Entertainment System* - page 25 Rear View Backup Camera* - page 26 Backup Warning System* - page 26 PASSENGER AIR BAG OFF Indicator - page 27
During Delivery Key Feature Walkthrough - Demonstrate the following with the customer
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360°Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up
AM/FM/CD/MP3/SIRIUS Satellite Radio* - page 10
SORENTO CUSTOMER DELIVERY CHECKLIST ...continued
Sales Consultant: Date: Sales Manager: Date: Customer: Date:
Cruise Control - page 8
Demonstrate operation
POWER
PUSH
AUDIO
TUNE
ENTER FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUP
FM2
88.1 98.1 104.187.9 107.9 87.9
106.50 MHZ
CH5
S T
CD-IN
CD
FM/AM
SAT
+
MODE
VOL
VOL
Hightlight lines: 6pt Black lines: .75pt Gray lines: .75pt Detail lines: .5pt All illustrations should t in the ballpark of 4”w x 2.5”h
_
RES
SET
_
+
CANCEL
-
+
MODE
VOL
VOL
RES
SET
-
+
CANCEL
CRUISE
-
+
MODE
VOL
VOL
ON
OFF
Navigation System* - page 13
For further navigation system operation, refer to the Digital Navigation System Users Manual.
POWER
PUSH
AUDIO
TUNE
ENTER FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUPCD
FM2
88.1 98.1 104.187.9 107.9 87.9
106.50 MHZ
CH5
S T
CD-IN
FM/AM
SAT
TUNE
VOLUME
PWRPUSH
FILE
CD-IN
FM/AM
SEEK
TRACK
SAT
CD
AUX
MAP
VOICE
DEST
ROUTE
SETUP
PHONE
Steering Wheel Bluetooth®
Controls* - page 9 Demonstrate operation, and painr customer’s phone.

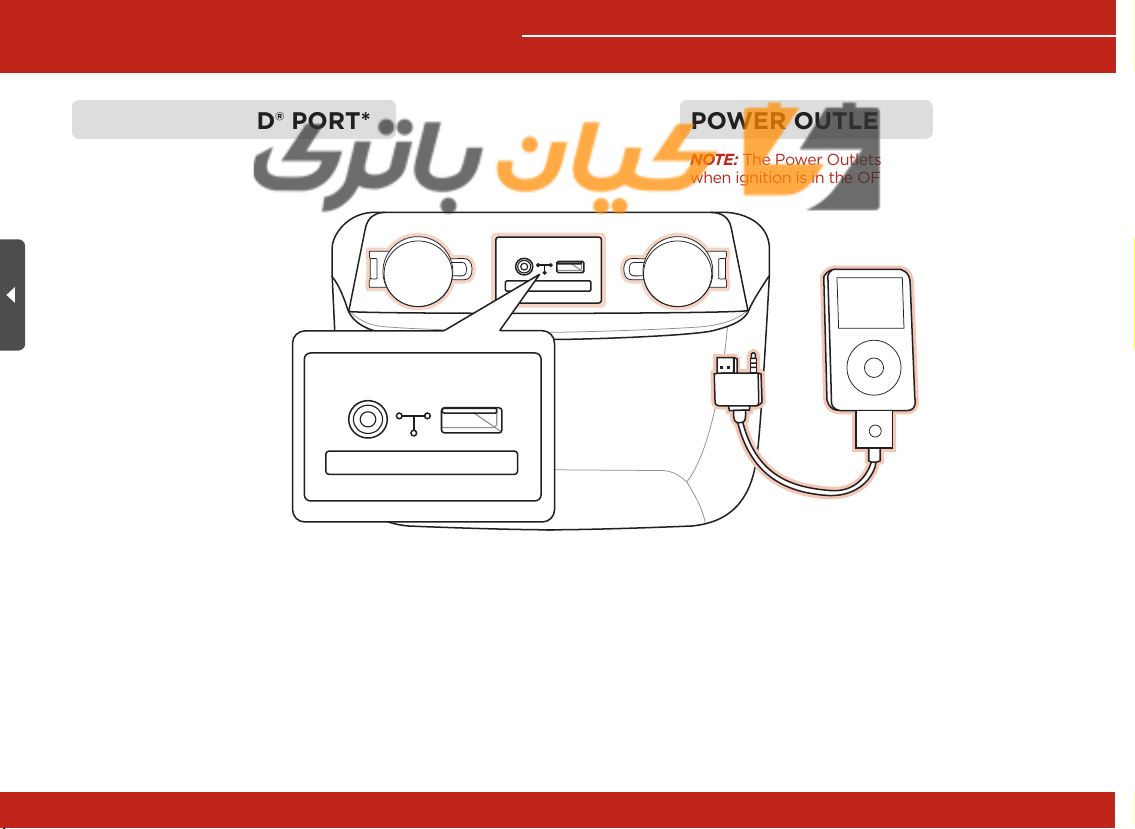

AUX/USB/iPod®Port - page 14
The Kia Power Cable is needed in order to operate an iPod®through the vehicle’s Audio System. The PC Cable provided by Apple Inc. may cause malfunction and should not be used for Kia vehicles.
AUX iPOD USB
AUX iPOD USB
RES
SET
-
+
CANCEL
CRUISE
-
+
MODE
VOL
VOL
RES
SET
-
+
CANCEL
CRUISE
-
+
MODE
VOL
VOL
29

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 1
*If equipped
FEATURES & FUNCTIONS GUIDEn
QUICK GUIDE
Instrument Cluster
02
• Tire Pressure Monitoring System
(TPMS) 02
• Indicator & Warning Lights 03
• ECOMINDER® (ECO) Indicator* 03
Panel / Stalk / Steering Wheel
Controls
04
• Electronic Stability Control (ESC) 04
• Instrument Panel Dimmer* 04
• Downhill Brake Control (DBC) 04
• Hill-Start Assist Control (HAC) 04
• 4WD Transfer Mode* 05
• Engine Start/Stop Button* 05
• Headlights 06
• High Beams 06
• Turn Signals & Fog Lights* 06
• Windshield Wipers & Washers 07
• Rear Wiper & Washer 07
• Steering Wheel Audio Controls 08
• Cruise Control 08
• Steering Wheel Bluetooth® Controls* 09
Center Panel Controls
10
• Audio System* 10
• Audio System Options* 10
• CD/AUX/USB/iPod® Operation 11
• SIRIUS Satellite Radio® Operation* 12
• Navigation System* 13
• AUX/USB/iPod® Port 14
• Power Outlets* 14
• Digital Clock 15
• Seat Warmers* 15
• Automatic Climate Control* 16
• Manual Climate Control* 17
• Automatic Gear Shift* 18
• Manual Gear Shift* 19
Seating
20
• Power Adjustable Driver’s Seat*20
• Manual Driver’s Seat* 20
• Folding 2nd & 3rd Row Seats* 21
• Front Active Headrests* 21
• Front Seat Headrest Adjustment 21
Driver’s Controls - Exterior
22
• Smart Key* 22
• Remote Keyless Entry* 23
• Double-Turn Lock/Unlock All* 23
• Fuel Cap / Malfunction Indicator
(Check Engine Light) 23
Driver’s Controls - Interior
24
• Power Windows, Window Lock &
Central Door Lock 24
• Power/Heated Outside Mirrors* 24
Roof Panel Controls
25
• Rear Seat Entertainment System* 25
Safety
26
• Rear View Backup Camera* 26
• Backup Warning System
(Rear Parking Assist System)* 26
• Occupant Classication System (OCS)/
PASSENGER AIR BAG OFF Indicator 27
• Child Safety Locks 27
• Safety Belts 28
Maintenance (see back cover)
CONTENTS
 Page 02
®(ECO) Indicator* Page 03
 Page 07
 Page 08
®Controls Page 09
 Page 10
 Page 13
 Page 14
 Page 16
 Page 19
 Page 21
 Page 21
 Page 27

2KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
INSTRUMENT CLUSTERn
TIRE PRESSURE MONITORING SYSTEM (TPMS)
A Tachometer
BTurn Signal Indicators
CSpeedometer
DEngine Temperature Gauge
EIndicator & Warning Lights
FGear Shift Position Indicator
GOdometer/Tripmeter
HTrip Computer*
IFuel Gauge
JTrip/Reset Button
The indicator functions as both, Low Tire Pressure Light and
TPMS Malfunction Indicator.
If one or more tires are signicantly under-inated the indicator
will illuminate. Other causes for the indicator to illuminate are a
spare tire without TPMS or a change in temperature (cold).
• Inate tire(s) to specications to turn o Low Tire Pressure
Light . This specication can be found on a label attached to
the front driver’s door jamb.
• The TPMS Malfunction Indicator will illuminate after it
blinks for approximately one minute when there is a problem
with the Tire Pressure Monitoring System. See your dealer for
service.
NOTE: Tire pressure should be checked
at least once a month. Only adjust tire
pressure on “cold tires.”
NOTE: Consult your dealer for service
if Low Tire Pressure Light remains
illuminated after inating your tire(s).
NOTE: For proper maintenance, safety,
and maximum fuel economy, you
must always maintain recommended
tire ination pressures and stay within
the load limits and weight distribution
recommended for your vehicle.
TRIP E/T AVG RANGE
20
8
7
6
5
4
3
2
1
0
40
20
40
60
80 100 120 140160
180
200
220
240
60 80
MPH
x1000rpm km/h
TRIP/
RESET
100
120
140
H
C
F
E
150
0
MPG
miles
KEY
OUT
LOCK
OFF
D
A
B
G
E
C
F
HI
J

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 3
*If equipped
INSTRUMENT CLUSTERn
INDICATOR & WARNING LIGHTS
ECOMINDER®(ECO) INDICATOR
For more information on the function of all indicator and
warning lights, please refer to the Owner’s Manual.
 
 
 
- ECOMINDER™ Indicator
 
- Immobilizer Indicator*
 
- Electronic Stability Control (ESC) Indicator
- Electronic Stability Control (ESC) OFF Indicator
 
System (TPMS) Malfunction Indicator
 
- Malfunction Indicator
 
- Front Fog Light Indicator*
 
 
 
 
 
 
- Cruise SET Indicator
 Indicator
 
 
NOTE: Your vehicle’s instrument cluster & indicator light
locations may dier from those in the illustrations. See
your Owner’s Manual for more details.
TRIP E/T AVG RANGE
20
8
7
6
5
4
3
2
1
0
40
20
40
60
80 100 120 140160
180
200
220
240
60 80
MPH
x1000rpm km/h
TRIP/
RESET
100
120
140
H
C
F
E
150
0
MPG
miles
KEY
OUT
LOCK
OFF
NOTE: To turn the ECOMINDER® indicator OFF/ON, press the TRIP button 1 or
more times until ECO mode is displayed. Then press and hold the TRIP button for
more than 1 second until ECO function turns OFF or ON.
The ECOMINDER® (ECO) indicator, which is identied on your instrument
cluster by the “ECO” name, is displayed to help improve fuel eciency.
While in ECO mode, the ECOMINDER® indicator will illuminate when the
vehicle is operated in a manner that achieves maximum fuel economy.
Fuel economy depends on the driver’s driving habits and road conditions.
Tips to improve your fuel eciency
1 Drive smoothly and accelerate at a moderate rate
2 Drive at moderate speeds
3 Keep tires inated to the recommended pressure
4 Be sure the wheels are properly aligned
For more information on improving Fuel Economy, refer to www.kia.com Owners
section, section 5 of your Owner’s Manual or your local dealership.

4KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
n
ELECTRONIC STABILITY CONTROL
(ESC)
The ESC system is designed to help stabilize
the vehicle during cornering maneuvers. It is a
good idea to keep the ESC turned on for daily
driving whenever possible.
A Press ESC button to turn ESC OFF/ON.
NOTE: ESC is active by default at vehicle start-up.
INSTRUMENT PANEL DIMMER*
B With parking lights/headlights ON, press
the (+) or (-) to adjust the brightness of
the instrument panel illumination.
DOWNHILL BRAKE CONTROL (DBC)
DBC helps drivers maneuver down steep hills
by automatically braking for them, allowing
drivers to focus solely on steering.
C Press button to turn DBC ON/OFF.
NOTE: The DBC will turn OFF when button is pressed
again or vehicle speed is over 38 mph.
WARNING: If the red indicator illuminates, the DBC
system may have malfunctioned. Take your vehicle to an
authorized KIA dealer and have the system checked.
HILL-START ASSIST CONTROL (HAC)
HAC helps prevent the vehicle from rolling
backwards when accelerating from a stop
while on a steep incline.
NOTE: The HAC automatically activates whether the ESC
is OFF or ON but does NOT activate when the ESC has
malfunctioned.
NOTE: The HAC does not operate when the gear shift is
in the P (Park) or the N (Neutral) position.
+
OFF
OFF
+
OFF
A
B
C
D - Backup Warning System OFF button
(see page 26 for more details)
D

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 5
*If equipped
4WD TRANSFER MODE*
Press the 4WD Transfer
Mode selector button to
activate or deactivate
4WD Lock mode.
LOCK
x
4WD AUTO MODE:
The vehicle operates similar to
conventional 2WD vehicles. If the
system determines that there is
a need for the 4WD mode, the
engine’s driving power is distributed
to all four wheels automatically
without driver intervention.
NOTE: When driving on normal roads,
deactivate 4WD Lock mode by pressing the
4WD Lock mode button (indicator light will
go OFF).
4WD LOCK MODE:
Activates 4WD for climbing or
descending sharp grades, o-road
driving, driving on sandy and muddy
roads, etc., to maximize traction.
NOTE: Reduce speed when turning corners
in 4WD.
LOCK
x
ENGINE START/STOP BUTTON*

NOTE: To unlock steering wheel
and use electrical accessories:
• ACCESSORY position
(Orange Light) A
Press the ENGINE START/STOP
button while in the OFF position
without depressing the brake
pedal
• ON position (Green Light) B
Press the ENGINE START/STOP
button while in ACC position
without depressing brake pedal
NOTE: To use ENGINE START/
STOP button, you must have
the transmitter key fob on your
person or inserted in the fob
holder.
NOTE: To use the ENGINE
START/STOP button, you must
have the transmitter key fob on
your person or inserted in the
fob holder.
WARNING: Never press the
ENGINE START/STOP button
while the vehicle is in motion
except in an emergency. If the
engine stops while the vehicle is
in motion, this would result in loss
of directional control and braking
function, which could cause an
accident.
To start the engine:
1. Depress the brake pedal
2. Press the ENGINE START/STOP button while in Park
LOCK
x
TRIP
RESET
A
B

6KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
n
HIGH BEAMS
HEADLIGHTS TURN SIGNALS & FOG LIGHTS*
OFF
Headlights
Pg. 142
OFF
OFF
OFF
OFF
:Parking Lights
:Headlights
AUTO Function*
Fog Lights ON
Fog Lights OFF
Right Turn
Signal
One-
Touch
Lane
Change
Signal
Left Turn
Signal
High Beams ON
High Beams Flash
OFF
Headlights
Pg. 142
OFF
OFF
OFF
OFF
Headlights
Pg. 142
OFF
OFF
OFF
One-Touch Lane Change Signal is activated by
moving the turn signal slightly for less than 1.5
seconds and then releasing. The lane change signal
will blink 3 times.
NOTE: When the Right or Left Turn Signals cancel, they will blink 3
additional times.
NOTE: Headlights must be ON for Fog Light operation.

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 7
*If equipped
n
WINDSHIELD WIPERS & WASHERS REAR WIPER & WASHER
M I S T: Single wipe
I N T: Intermittent wipe
LO: Slow wipe
HI: Fast wipe
Adjust intermittent
wipe speed
Pull to spray
and wipe
OFF: Wiper o
A Push to turn wiper ON/OFF for
continuous wipe
B Push to spray and wipe
NOTE: Located left of steering wheel on dash.
MIST
OFF
INT
LO
HI
FRONT
INT
+
OFF
OFF
+
OFF
A
B

8KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
RES
SET
-
+
CANCEL
ON
OFF
RES
SET
_
+
CANCEL
ON
OFF
+
MODE
VOL
VOL
-
+
MODE
VOL
VOL
_
D
A
B
C
G
F
H
E
n
A Audio Mode: Press to cycle through
FM1-2 / AM / SAT 1-3 / CD / USB / AUX
(iPod®)
NOTE: Pressing the Mode button for more than 1
second will turn Audio Mode OFF.
B Adjust Volume: Raises or lowers speaker
volume
C Seek/Preset
Radio Mode: Press to advance through
Preset Stations. Press and hold to AUTO
SEEK
CD/USB/iPod® Mode: Press to TRACK
UP/DOWN. Press & hold to FF/REW.
D Mute Audio: Mutes all audio
STEERING WHEEL
AUDIO CONTROLS CRUISE CONTROL
E Cruise Control ON/OFF:
To turn Cruise Control ON/OFF:
– Press the Cruise Control ON/OFF button E
F
Resume Cruising Speed: Resume or increase
Cruising Speed
G Set Cruising Speed: Set or decrease Cruising
Speed
H
Cruise Control Cancel: Cancel Cruise Control setting
To cancel Cruise Control setting, do one of the following:
– Press the brake pedal
– Press the CANCEL button H
NOTE: This system is designed to function above
approximately 25 mph.
System ON/OFF
RES/+:
Resume or Increase
Cruising Speed
-/SET:
Set or Decrease
Cruising Speed

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 9
*If equipped
RES
SET
-
+
CANCEL
-
+
MODE
VOL
VOL
ON
OFF
C
B
A
D
E
n
NOTE: When using Voice Recognition, some phones may reverse
the names in the contact list from {FIRST NAME} {LAST NAME}
to {LAST NAME} {FIRST NAME}.
NOTE: If experiencing diculty in using Voice Recognition to
place a call, be sure you are using the actual full contact name
as entered in your phone book, not a casual or nick-name (e.g.,
if name was entered as “Robert Smith”, say, “Call Robert Smith”,
not “Call Bob Smith”).
NOTE: Phone book transfer upload time varies by phone model
and with number of phone book entries.
NOTE: Changing language may delete paired phones.
NOTE: Because of dierences in phone quality, service providers
and Bluetooth® chip programming, functionality may dier from
one phone to another.
NOTE: Refer to Section 4 of your Owner’s Manual for more
specic Bluetooth® phone pairing and operation instructions.
WARNING: Do not use a cellular phone or perform Bluetooth®
settings (e.g. pairing a phone) while driving.
A Volume button: Raises or lowers speaker volume
B Mute button: Mute the microphone during a call
C Talk button: Activates voice recognition, brings
up menus and places calls. Push to place a call
with minmal vocal command prompts from the
system.
D Receive Call button: Receives and transfers
calls. Push to place a call using vocal command
prompts from the system, or to answer an
incoming call.
E End Call button: Ends calls or cancels functions
Bluetooth®Audio Speaker Adaptation (Driver’s Voice)
For users with accents, this option improves perfor-
mance of voice recognition to a particular user’s voice.
1 Press END CALL button E
for 10 seconds
2 Say “Record Prole”
3 Say “Yes”
4 Say the words shown on Audio System display
Bluetooth® FAQs on www.kia.com Owners section
STEERING WHEEL
BLUETOOTH®CONTROLS*
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Kia is
under license. A Bluetooth® enabled cell phone is required to use
Bluetooth® wireless technology.

10 KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
CENTER PANEL CONTROLSn
AM/FM/CD/MP3/SIRIUS SATELLITE RADIO AUDIO SYSTEM*
AUDIO SYSTEM OPTIONS*
NOTE: For further audio system
operations, refer to pages 11 - 13.
NOTE: SIRIUS Satellite Radio service
not available in AK or HI.
NOTE: SIRIUS Satellite Radio service
requires a subscription; 3-month
trial subscription included with
vehicle purchase.
NOTE: Forcing a CD into the slot
may damage the player.
NOTE: Only equipped options will
be displayed.
NOTE: Only equipped options
will be displayed.
POWER
PUSH
AUDIO
TUNE
ENTER
FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUP
FM2
88.1 98.1 104.187.9 107.9 87.9
106.50 MHZ
CH5
S T
CD-IN
CD
FM/AM
SAT
FM/AM Modes
Select SIRIUS Satellite
Radio Mode
CD Mode
Power ON/OFF or
Volume Control
Radio/SIRIUS® Preset
Buttons (1 – 6)
Select Radio Station/
CD Track
POWER
PUSH
AUDIO
TUNE
ENTER
FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUP
FM2
88.1 98.1 104.187.9 107.9 87.9
106.50 MHZ
CH5
S T
CD-IN
CD
FM/AM
SAT
Setup Mode
Adjust Radio
Station, MP3 File
or Audio
Search Catalog/
File Folder
Scan Radio
Stations/CD
Tracks
Mute
Press the SETUP button, then use the Tune Dial to cycle through the available options*. Press the
Tune Dial to select an option to adjust. Possible options include the following:
• Scroll
• SDVC (Speed Dependent Volume Control)
• Power Bass* Setup
• SIRIUS Satellite Radio Setup
• Phone* Setup

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 11
*If equipped
CENTER PANEL CONTROLSn
CD/AUX/USB/iPOD® OPERATION
CD Indicator Light
AUX/iPod® Modes
Display CD/MP3/
iPod® Track info
Adjust iPod®
Track or Audio
POWER
PUSH
AUDIO
TUNE
ENTER
FILE
PUSH
VOLUME
SETUP
FM/AM
SAT
CD
CD-IN
CD
RPT DISCRDM
01 02’25”
TRACK
A.RDM
654321CD
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
AUX
INFO
Insert CD
Eject CD
CD Mode
Select CD/AUX/
USB/iPod® Track
Scan CD/
AUX/USB/
iPod® Track
Select iPod®
Category
Random CD/
AUX/USB/
iPod® Track Repeat CD/AUX/USB/
iPod® Track
NOTE: For further audio system operations, refer to pages 10, and 12 - 13.
NOTE: Forcing a CD into the slot may damage the player.
NOTE: Only equipped options will be displayed.

12 KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
SIRIUS SATELLITE RADIO OPERATION*
NOTE: For further audio system operations, refer to pages 10 - 11 and 13.
NOTE: SIRIUS Satellite Radio service not available in AK or HI.
NOTE: SIRIUS Satellite Radio service requires a subscription; 3-month trial subscription included with vehicle purchase.
NOTE: Only equipped options will be displayed.
CENTER PANEL CONTROLSn
POWER
PUSH
AUDIO
TUNE
ENTER
FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUPCD
CD-IN
FM/AM
SAT
TUNE
VOLUME
PWR PUSH
FILE
CD-IN
FM/AM
SEEK
TRACK
SAT
CD
AUX
MAP
VOICE
DEST
ROUTE
SETUP
PHONE
SAT 1
ARTIST NAME
8 9 121 14 60
CH
100
CHANNEL NAME
Select SIRIUS
Satellite Radio
Mode
Select Previous/Next
Channel. Press & hold
to cycle through
Channels
Channel Preset Buttons.
Press & hold to save
current Channel
Scan Radio
Stations. Press
again to stop
Rotate
to scroll
Channels or
Categories.
Press to
select
Display Category Items.
Press ENTER button to
select Channel
Display
Channel
Information

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 13
*If equipped
POWER
PUSH
AUDIO
TUNE
ENTER
FILE
PUSH
VOLUME
SCAN MUTE
3 4 5 61 2
CAT
FOLDER
SEEK
TRACK
INFO
AUX
SETUPCD
CD-IN
FM/AM
SAT
TUNE
VOLUME
PWR PUSH
FILE
CD-IN
FM/AM
SEEK
TRACK
SAT
CD
AUX
MAP
VOICE
DEST
ROUTE
SETUP
PHONE
SAT 1
ARTIST NAME
8 9 121 14 60
CH
100
CHANNEL NAME
AM/FM/CD/MP3/SIRIUS SATELLITE RADIO WITH NAVIGATION SYSTEM*
WARNING: Prolonged use of the Navigation system in ACC mode may drain the vehicle’s battery. A warning screen may appear
periodically to remind users that the Navigation system should be operated with the engine running to prevent battery discharge.
NOTE: For further navigation system operation, refer to the Digital Navigation System Users Manual.
NOTE: For further SIRIUS Satellite Radio operations, refer to pages 10 and 12.
NOTE: SIRIUS Satellite Radio service not available in AK or HI.
NOTE: SIRIUS Satellite Radio service requires a subscription; 3-month trial subscription included with vehicle purchase.
NOTE: Only equipped options will be displayed.
Power ON/OFF
& Volume Control
SIRIUS Satellite
Radio Mode
CD/AUX Mode
Select Radio
Station / CD Track
Adjust Radio
Station, SAT or
CD/MP3 Track
Map View
Destination
Menu
Route Menu
Setup Menu
Phone Menu
CENTER PANEL CONTROLSn
AM/FM Mode

14 KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
CENTER PANEL CONTROLSn
AUX/USB/iPOD® PORT*
WARNING: To avoid damage to your USB device:
– Connect the device AFTER starting the vehicle. Make sure the device is not plugged in when starting.
– Disconnect carefully. Change the audio system to a mode other than AUX / USB or turn the system o before
disconnecting the device.
WARNING: The Kia Power Cable is needed in order to operate an iPod® with the audio buttons on the Audio System. The
PC Cable provided by Apple may cause malfunction and should not be used for Kia vehicles. The Kia iPod® Power Cable
may be purchased through your Kia dealership.
AUX iPod USB
AUX iPod USB
NOTE: The Power Outlets are inactive
when ignition is in the OFF position.
POWER OUTLETS*

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 15
*If equipped
CENTER PANEL CONTROLSn

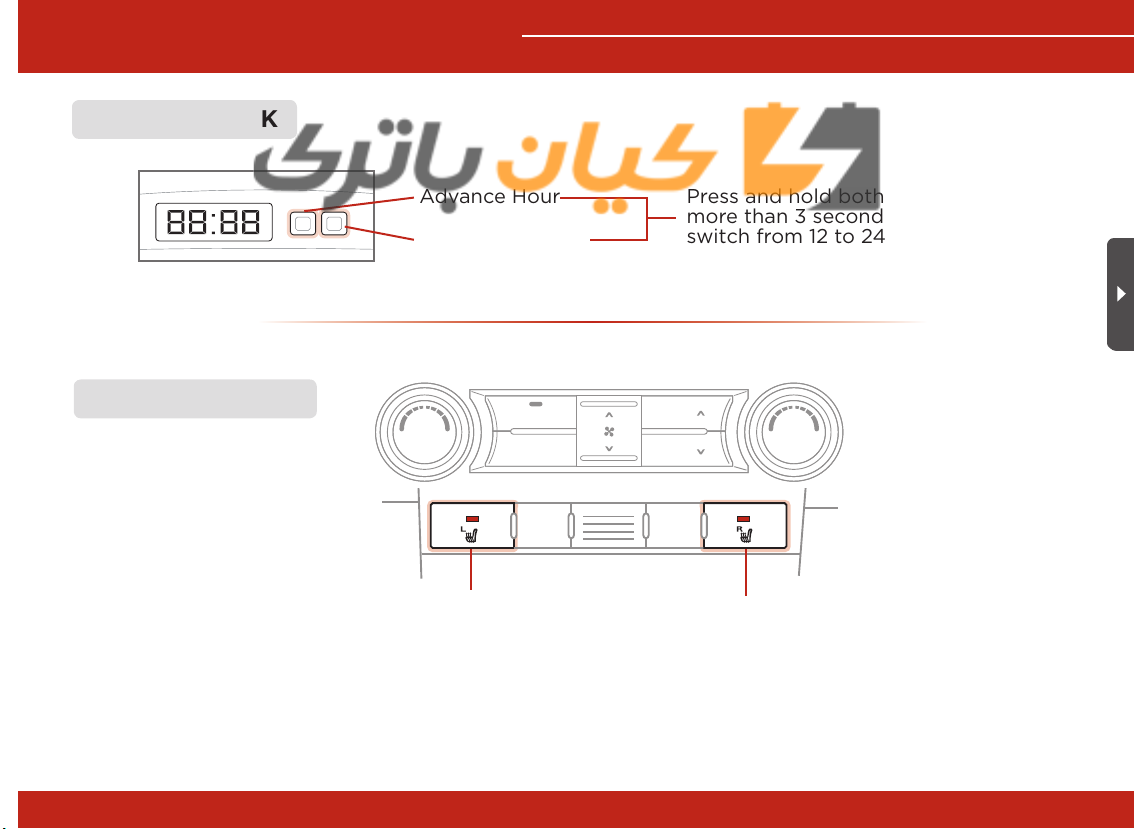

DIGITAL CLOCK
Advance Hour Press and hold both for
more than 3 seconds to
switch from 12 to 24 hour
formats
Advance Minutes
SEAT WARMERS*
A/C
OFF
MODE
MODE
DUAL
AUTO
PUSH PUSH
Driver Seat Warmer ON/OFF Passenger Seat Warmer ON/OFF
NOTE: With the seat warmer switch in the ON position, the heating system in the seat turns o or on automatically depending on
the seat temperature.
NOTE: System does NOT turn o when ignition is cycled. To turn o system, press the seat warmer switch.

16 KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
CENTER PANEL CONTROLSn
AUTOMATIC CLIMATE CONTROL*
NOTE: Defrost Mode activates A/C and opens Fresh Air Vent.
NOTE: Keep inside glass as clean as possible to reduce window fogging.
NOTE: During Auto Operation the A/C indicator will NOT illuminate. The
fan speed, air intake, air ow and air conditioning may be engaged at
any time to reach desired temperature and reduce humidity.
A Windshield defroster
B Rear window defroster
C Recirculated air/fresh air
D 3rd row air conditioning ON/OFF
button*
E Climate Control display
F Driver’s Temperature control
G Automatic Climate Control Mode
H Air Conditioning ON/OFF button
I Front Blower OFF button
J Front Fan speed
K Mode selection
L Passenger’s temperature control
M Dual temperature control mode
Max Defrost:
1. Select Defrost Mode A
2. Select Max Fan Speed J
3. Set Temperature to Hot F
Defogging:
1. Select Defrost Mode A
2. Select Max Fan Speed J
3. Select desired Temperature F
Climate Control Auto Function:
Press G AUTO to select Full Auto Operation
Press K MODE buttons to control which vents air
ows through
Press M DUAL to select Dual Temperature Control
Operation
OFF
AUTO DUAL
OUTSIDE
A/C
A/C
OFF
MODE
MODE
DUAL
REARREARFRONT
AUTO
PUSH PUSH
D
A
B C
E
F
G
H
I
J K
M
L

Always check the Owner’s Manual for complete operating information and safety warning
KIA DELIVERY FIRST – The Priority That Delivers More 17
*If equipped
3RD ROW AIR CONDITIONING
CONTROL*
CENTER PANEL CONTROLSn
MANUAL CLIMATE CONTROL* A Air Conditioning
B Recirculated air
C Rear Defroster
D 3rd row air conditioning ON/OFF*
E Fan Speed
F Mode selection
G Temperature adjustment
H Ticket holder*
I 3rd row air conditioning fan speed*
Max Defrost:
1. Select Defrost or Floor/Defrost Mode F
2. Select High Fan Speed for quick Defrost E
3. Select desired Temperature G
Defogging:
1. Select Defrost Mode F
2. Select Max Fan Speed E
3. Select desired Temperature G
NOTE: Defrost Mode activates A/C and opens Fresh Air Vent.
NOTE: MAX A/C Mode automatically engages Recirculated Air.
NOTE: Keep inside glass as clean as possible to reduce window
fogging.
OFF
AUTO DUAL
OUTSIDE
A/C
A/C
OFF
MODE
MODE
DUAL
REARREARFRONT
AUTO
PUSH PUSH
I
MAX
A/C
A/C A/C
REAR
0123
4
OFF
E
AB
D
C
F
G
H
NOTE: Included in Manual & Automatic
Climate Control Systems

18 KIA DELIVERY FIRST –
The Priority That Delivers More
*If equipped
CENTER PANEL CONTROLSn
AUTOMATIC GEAR SHIFT*
P
R
N
D
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Sport Mode Upshift
[–]: Sport Mode Downshift
Sport Mode: Move shift lever from D
to left gate
Sport Mode Shifting: Move shift
lever up (+) to Upshift or (-) to
Downshift
NOTE: Press brake pedal and lock release button
to move gearshift from N to P, N to R or from P to
any gear.
