Car Multimedia System
USER’S MANUAL
Functions and services in this manual may differ from those in the actual vehicle.

Thank you for purchasing this KIA
Motors Car Multimedia System.
This user’s manual explains how to use the KIA Motors Car
Multimedia System.
Before using the product, read the contents of this user’s
manual carefully and use this product safely.
•The screens shown in this manual may differ with the actual screens of the product.
•The design and specification of this product may change without prior notification for
product improvement.
•When transferring the vehicle to another individual, include this user’s manual so that the
next driver can continue its use.
Note
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Part15.21 statement
Changes or modifications not expressly approved by the manufacturer (or party responsible) for compliance
could void the user’s authority to operate the equipment
This device comply with part15 of FCC rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device & its accessories must accept any interference received, including interference that may cause
undesired operation.

Name of Each Component
Name of Each Component
Head unit
The image of this product may be different from the actual product.
1. Power button/Volume knob
•Press to turn the power on.
•When power is on, press and hold to turn power off.
•When power is on, press to turn Audio off.
•Turn left/right to control volume
2. HOME button
Press to go to the home screen.
3. PHONE button
Press to go to the phone screen.
4. Reset hole
Press with a thin object to reset the unit when it does not operate normally.
5. Custom button (☆)
Press to move to the [Custom button] menu. After setting a desired function, press to use
the desired function.
3

Name of Each Component
6. < SEEK/TRACK > button
When it is pressed for a short time.
•Radio mode: Plays previous/next available frequency or station.
•Media mode: Plays previous/next file.
When it is pressed and held
•Radio mode: Plays previous/next available frequency or station.
•Media mode : Rewinds or fast forwards the file.
7. RADIO button
Press to go to the radio screen.
8.MEDIA button
Press to go to the available media.
9. SETUP button
Press to go to the settings screen.
10. Tune/Enter knob
In Radio mode, turn left/right to change the frequency or station.
In Media mode, turn left/right to change file and press to select the desired file.
4

Name of Each Component

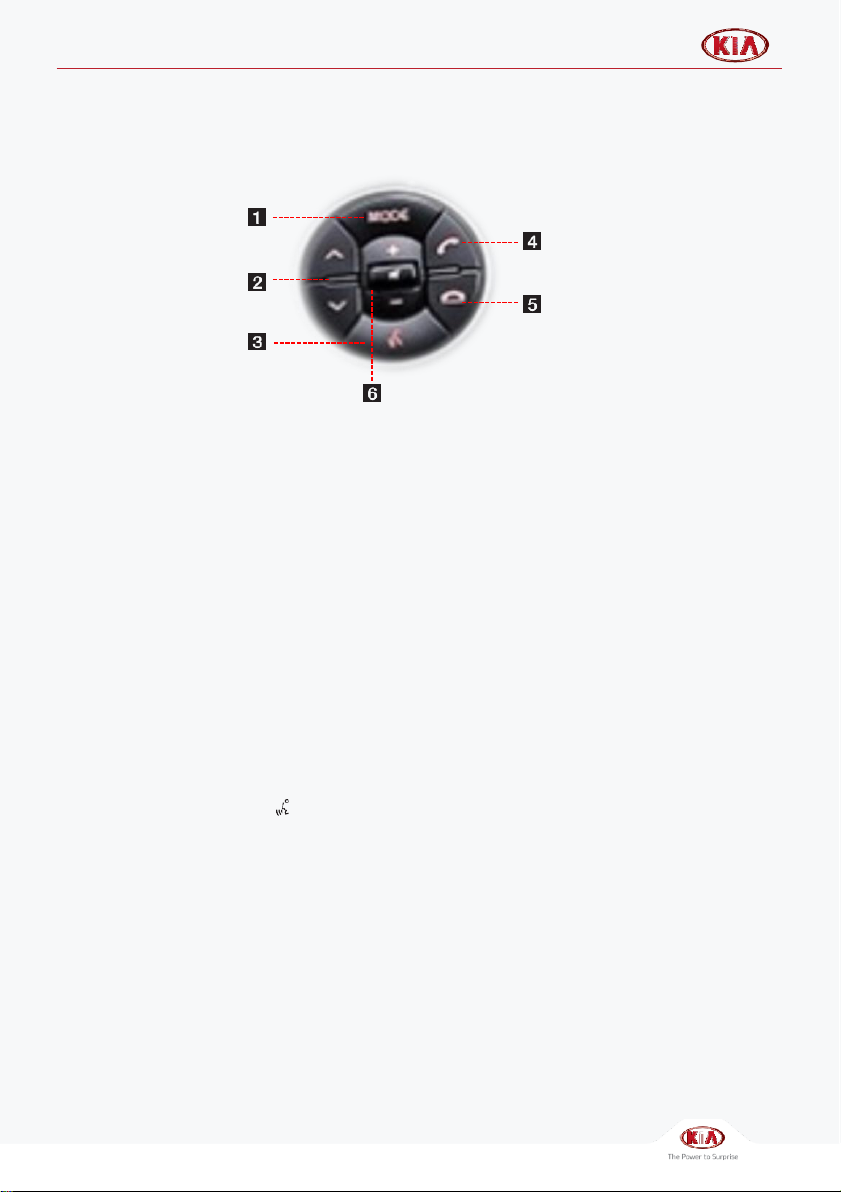

Steering Wheel Remote Control
The image of this product may be different from the actual product.
1. MODE button
•Each time this button is pressed, the Radio or Media mode is changed.
•If the media is not connected, it is changed in the order FM > AM > FM.
•When it is pressed and held, move to Advanced settings "Steering wheel MODE
button".
2. ∧/∨button
When it is pressed for a short time
•Radio mode: Plays previous/next Favourites.
•Media mode: Plays previous/next file.
When it is pressed and held
•AM mode: Plays previous/next available frequency or station
•Media mode: Rewinds or fast forwards the file.
3. Voice Recognition button ( )
Press to switch to voice recognition mode.
To cancel it, press and hold the button again.
5

Name of Each Component
4. button
Press to operate Bluetooth hands-free function.
•Press to accept a call.
•Press tomake acallfrom last calls.
•Press andholdfor redialing.
5. button
•Press toend the phone callduring acall.
•Press to rejectthe callin the incoming callscreen.
•Press toend Voicememorecording.
6. +/- button
Increases or decreases the volume level.
Mute button
Press to mute the sound. (It will be paused in some media modes.)
6

Basic operation
Basic operation
System ON/OFF
The image of this product may be different from the actual product.
Starting the system for the first time
1. Press the Engine Start button. Once the system is turned on, the booting process will start and
the safety warning page is displayed.
2. Press [Confirm]. If you want to change the system language, press [Language].
7
Note
•You cannot operate the system while it is booting up. It may take some time for all of the
features to be ready.
•The safety warning page is displayed every time the ignition is turned on. The displayed
warnings are related to safety, please closely read and comply with the safety warnings.
•If there is no operation for 10 seconds in the safety warning screen, the system
automatically switches to the last played mode.
Turning the system off
Press and hold Power button on the head unit.
To turn the system on again, press power button on the head unit.
Note
Pay attention to the volume setting when turning the system on. A sudden output of
extreme volume upon turning the system on could lead to hearing impairment. Adjust the
volume to a suitable levels before turning off the system or set the startup volume in sound
Settings menu.

Basic operation
AV ON/OFF or Volume Adjustment
AV OFF
Press Power button on the head unit when the AV is ON.
AV ON
Press Power button on the head unit when the AV is OFF.
Adjusting the volume
Turn the Volume knob to control volume.
Note
When you turn the system off, the current volume level is automatically memorised.
Whenever you turn the system on, it operates at the memorised volume level if you do not set
the startup volume in sound Sound settings menu.
Resetting thesystem
This feature is used to reset the system in the occurrence of an unforeseen error or problem.Pre
ss“RESET”hole.(The use of aclip orpinis recommended whenresetting the system.)
8

HOME screen
HOME screen

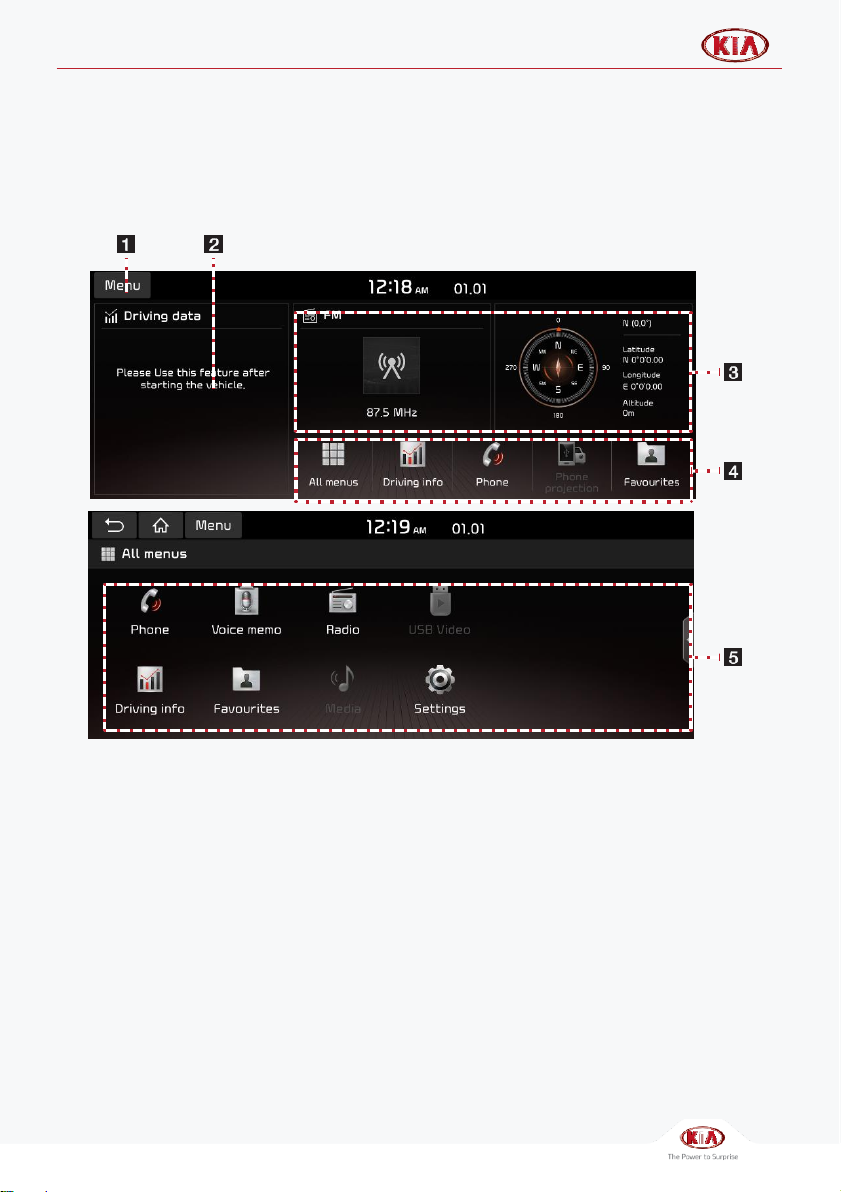

Configuration for Home screen
The detailed menu in each layout can be adjusted by user.
1. Menu
Editing the [Edit Home widgets] or [Edit Home icons].
2 Driving Data widget
↟Provides a brief view of the driving data screen.
↟Press the area on the widget to move to the Driving Data screen.
3 Home widgets
↟You can edit the desired widget on the widget menu.
↟Press the area to move to the radio mode or the media mode currently playing.
4 Home icon
↟You can edit the desired icon on the Home icon menu.
↟Press the area on the icon to move to the desired menu.
9

HOME screen
5 All menus
Scroll the Home screen sideways to move to all the items of the system menu.
•[Phone]: Operates bluetooth hands-free and audio function.
•[Voice memo]: Moves to the voice memo menu.
•[Radio]: Converts to the last played radio mode.
•[USB Video]: Converts to the last played USB video mode.
•[Driving info]: Moves to the driving info menu.
•[Favourites]: Moves to the Favourites menu.
•[Media]: Converts to the last played media mode.
•[Settings]: Moves to the settings menu.
10

시작하
기
Media

Playing USB
Playing USB

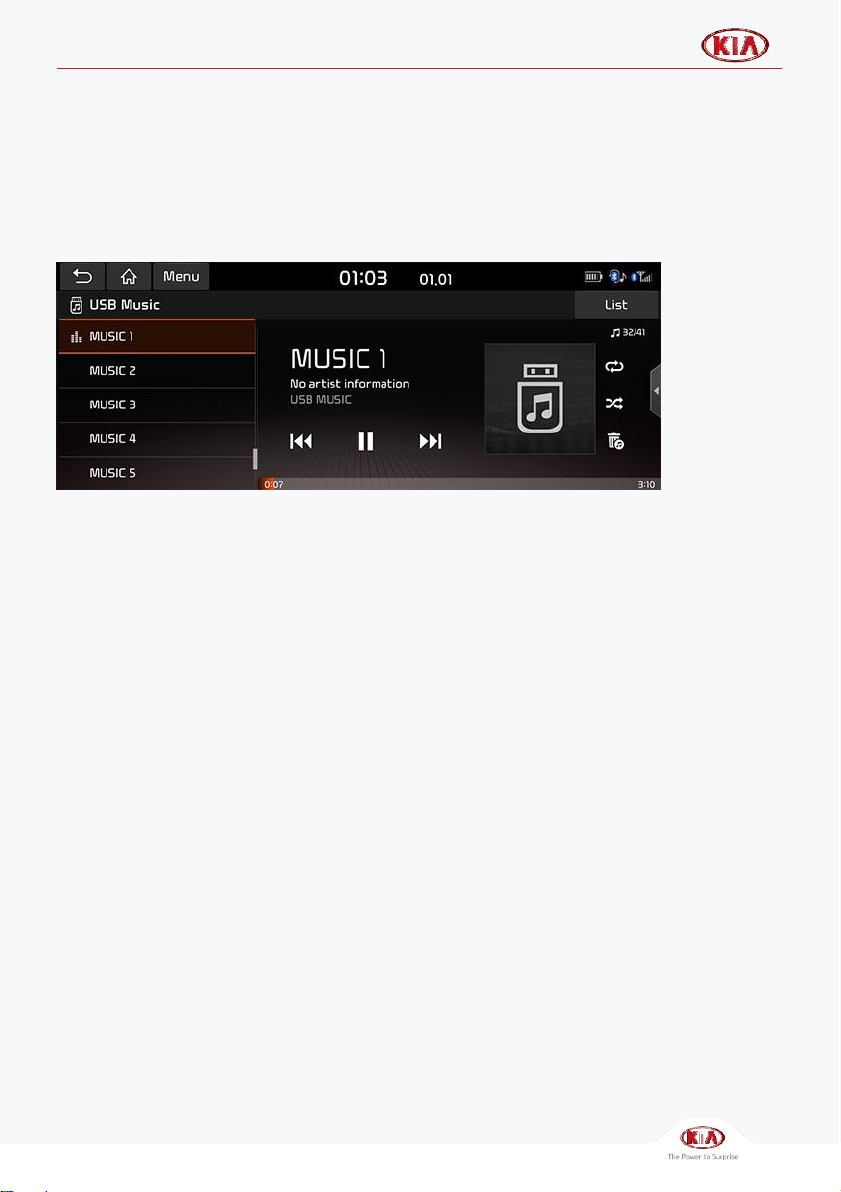

Playing USB Music
You can play music files saved in a USB memory device.
Connect an USB device to the USB port. Playback will start automatically.
Note
•To play USB Music while a different source is playing, press [MEDIA] > [USB Music].
•Press [Menu] > [Songs for this artist] or [Songs for this album] to move to the list menu
screen.
12

Playing USB
Pause
You can pause the playing file.
Press [ ll ] on screen.
Press [▶] on screen to play it again.
Skip
You can play the previous or next file.
13
Position
Description
Screen
•
Press [l◀◀/▶▶l].
•
Pressing [l◀◀] after 3 seconds of playback time plays the current file
from the beginning.
Search
You can rewind/fast forward to a specific point of a file.
Position
Description
Screen
Press and hold
[l◀◀/▶▶l] and then release at the point you want.
Note
When you drag or touch the desired part on the progress bar, the music of the selected
part plays.

Playing USB

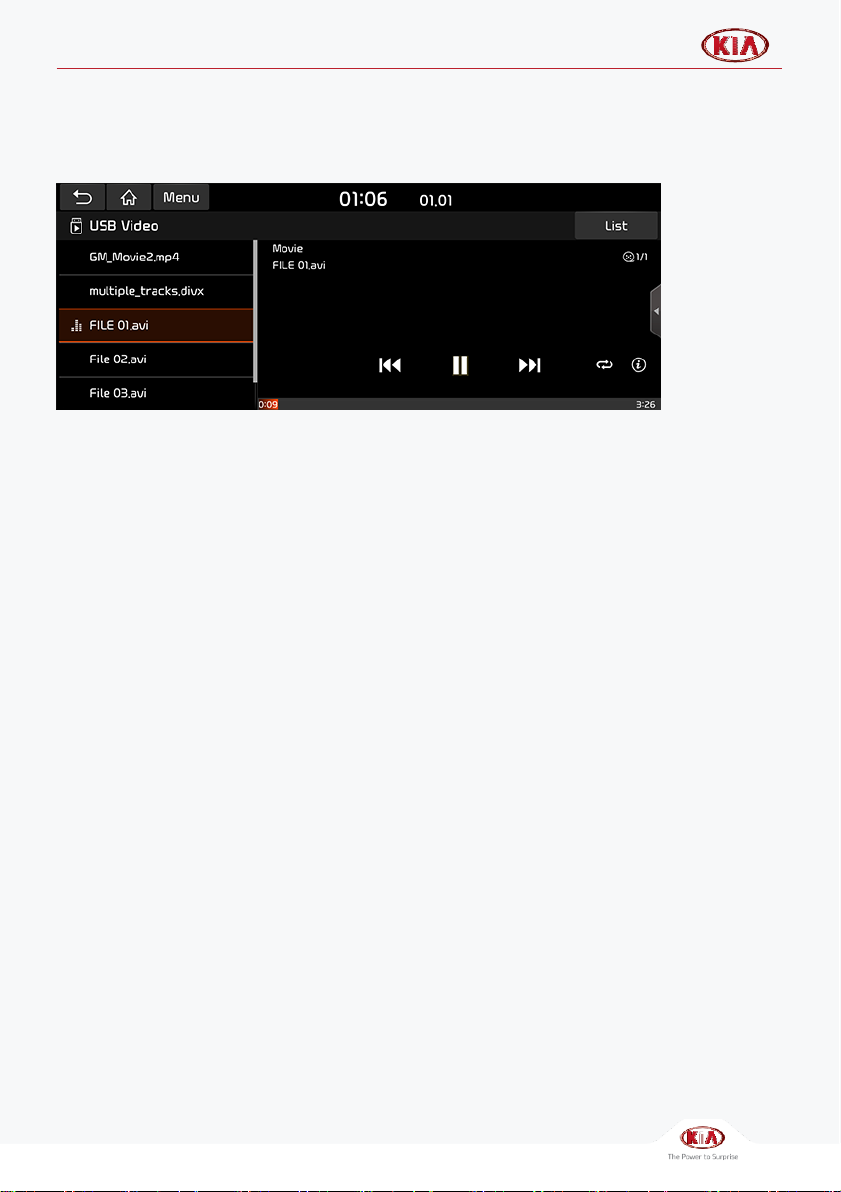

Playing USB Video
You can play video files saved in a USB memory device.
Connect a USB device to the USB port and playback starts automatically.
Note
•To play USB Video while a different source is playing, press [MEDIA] > [USB Video].
•Video is not available while driving. (Because of traffic regulations, video is only available
while the vehicle is stopped or the transmission lever is put to P position.)
14

Playing USB
Pause
You can pause the playing file.
Press [ ll ] on screen.
Press [▶] on screen to play it again.
Skip
You can play the previous or next file.
15
Position
Description
Screen
•
Press [l◀◀/▶▶l].
•
Pressing [l◀◀] after 3 seconds of playback time plays the current file
from the beginning.
Search
You can rewind/fast forward to a specific point of a file.
Position
Description
Screen
Press and hold [
l◀◀/▶▶l] and then release at the point you want.
Note
When you drag or touch the desired part on the progress bar, the vedio of the selected
part plays.

Bluetooth® audio
Bluetooth® audio
Playing Bluetooth audio
•Music saved in the mobile phone can be played in the car through Bluetooth audio
streaming.
•Bluetooth audio can be played only when a Bluetooth® phone has been connected. To play
Bluetooth audio, connect the Bluetooth phone to the car system. For more information on
connecting Bluetooth, please refer to the "Pairing and connecting the unit and a Bluetooth
phone" part.
•If Bluetooth is disconnected while playing Bluetooth audio, the audio stream will be
interrupted.
•The audio streaming function may not be supported in some mobile phones. Only one
function can be used at a time between the Bluetooth hands-free or Bluetooth audio
function. For example, if you convert to the Bluetooth hands-free while playing Bluetooth
audio, the music will be discontinued.
•Playing music from the car is not possible when there are no music files saved in the
mobile phone.

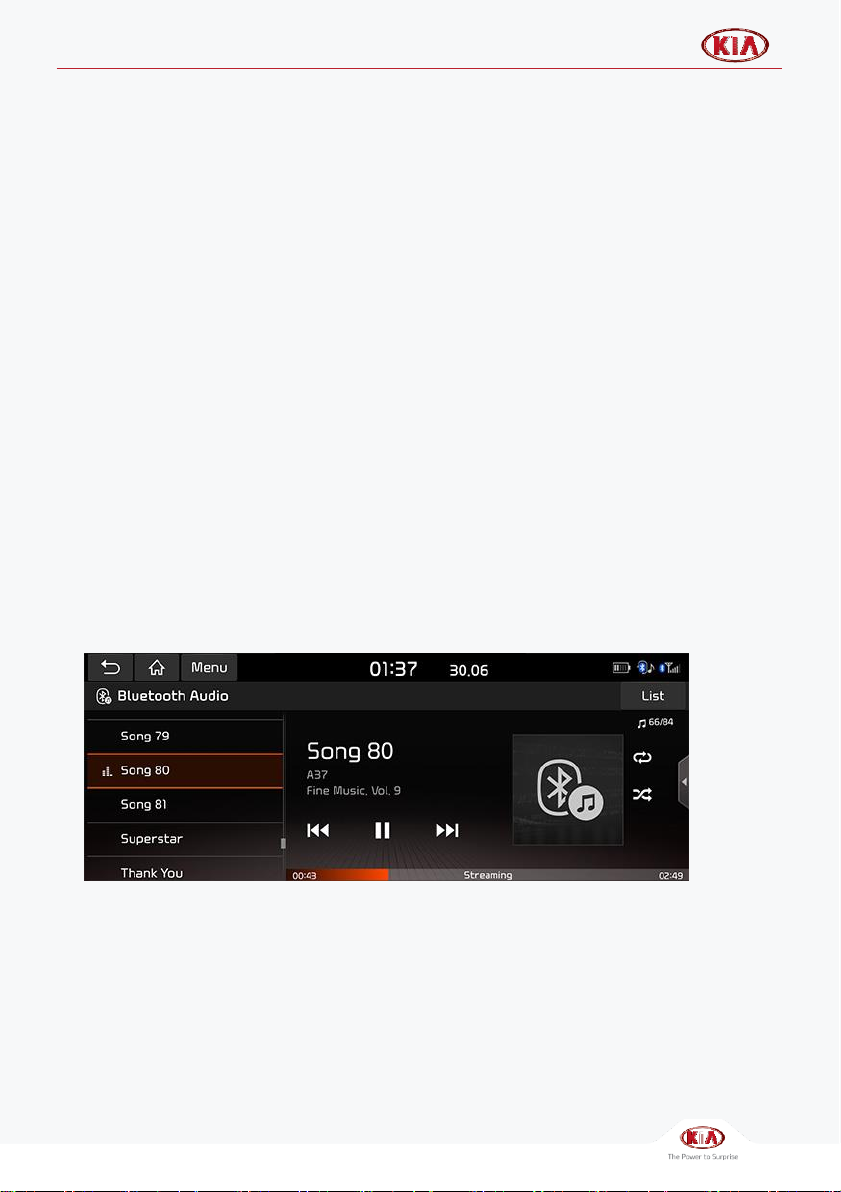

Starting the Bluetooth® audio
1. Connect your Bluetooth device to the head unit.
2. Press [MEDIA] on the head unit. The Bluetooth audio screen is displayed.
Note
To play Bluetooth audio while a different source is playing, press [MEDIA] > [Bluetooth
Audio].
16

Bluetooth® audio
Pause
You can pause the playing file.
Press [ ll ] on screen.
Press [▶] on screen to play it again.
Skip
You can play the previous or next file.
17
Position
Description
Screen
•
Press [l◀◀/▶▶l].
•
Pressing [l◀◀] after 3 seconds of playback time plays the current file
from the beginning.
Bluetooth connections or Bluetooth settings
1. Press [Menu] > [Bluetooth connections] or [Bluetooth settings].
2. For more details, refer to the "Bluetooth".

Voice memo
Voice memo
Making a voice memo
Press [Voice memo] on the Home screen.
Record
Start/Pause/Stop the voice memo.
18
Position
Description
Screen
•
To run voice memo, touch [●].
•
To pause voice memo, touch [ll] during recording. If
you want to restart the voice memo, touch [●].
•
To stop voice memo, touch [■] during recording.

Voice memo
Playing a voice memo
Press [Voice memo] on the Home screen.
To play a desired voice memo, select it in the voice memo list.
Pause
You can pause the playing file. P
ress [ll] during playback.
Press [▶] to play it again.
Skip
You can play the previous or next voice memo.
19
Position
Description
Screen
•
Press [l◀◀/▶▶l].
•
Pressing [l◀◀] after 3 seconds of playback time plays the current file
from the beginning.
Search
You can rewind/fast forward to a specific point of a voice memo.
Position
Description
Screen
If you touch and hold
l◀◀/▶▶l] and release at the desired part, that part is
played.

시작하
기
Radio
