Kinetronics SV-4400U User manual

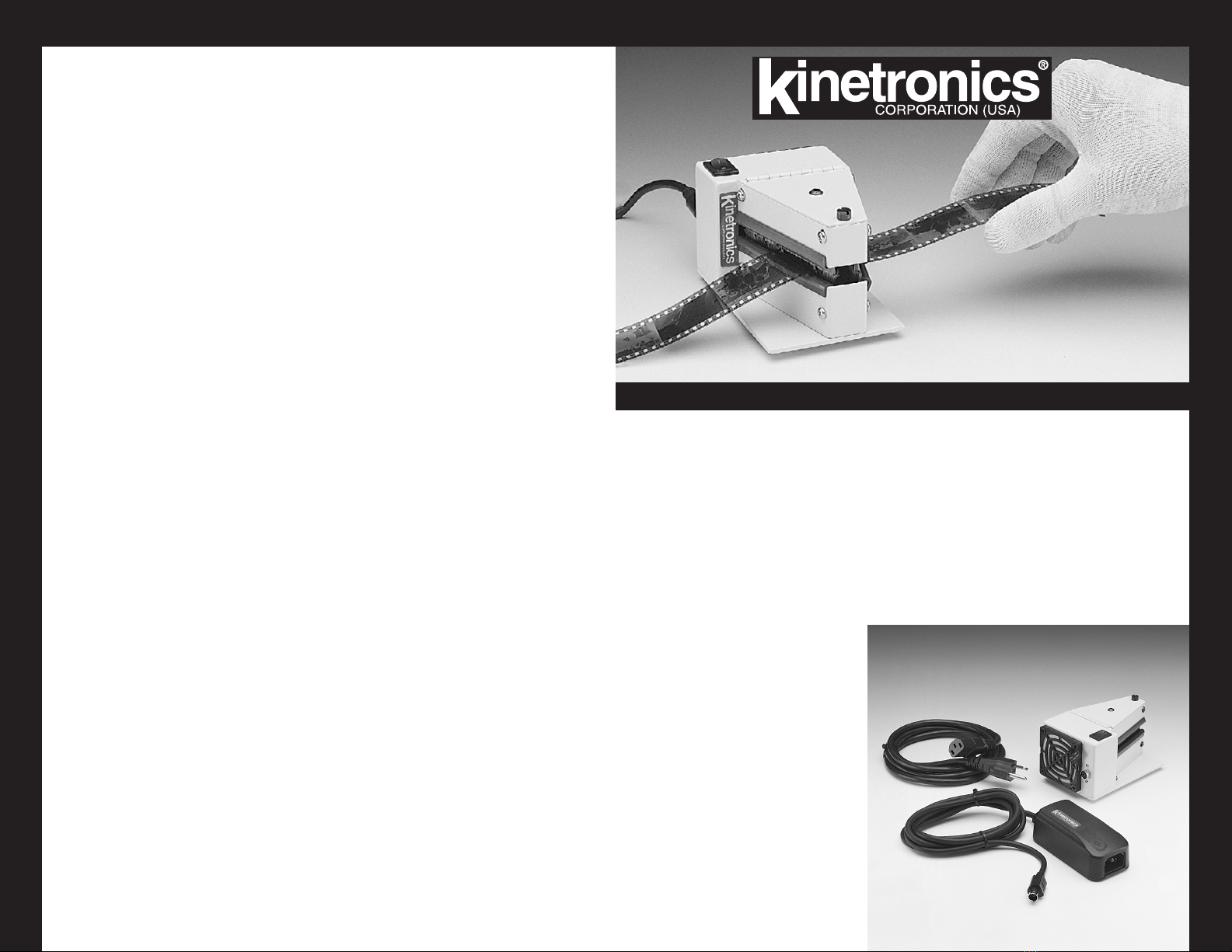

Thank you for purchasing your new StaticVac®film cleaning machine. It will
provide years of effective operation if three simple maintenance procedures are
followed.
Begin by connecting the cord from the transformer to the machine and plugging
the machine into a GROUNDED (three wire) outlet. If an extension cord is
necessary be sure to use a GROUNDED type. Failure to properly ground your
machine may result in damage to the machine or other electronic equipment.
Place the StaticVac as close as possible to the printer or projection gate for the
best performance. You will find eight (8) small magnets located in the plastic
bag Each magnet has foam
adhesive tape for mounting
to your printer. Use four (4)
for mounting if printing front
to back and four (4) for
mounting if you are printing
left to right or right to left.
The on/off switch is located
on top of the machine and
when pressed “red” will
show on the switch and the
“green” LED indicator will
light. The machine can be
run continuously during
normal operation and need
not be turned off when not
in use.
STATICVAC FILM CLEANER MODEL SV-4400U
TROUBLE CHECKS INSTRUCTION SHEET
ENGLISH
ENGLISH
REMEMBER, TO ENSURE PROPER
PERFORMANCE, CLEAN EMITTERS,
BRUSHES AND FILTER REGULARLY.
It will save time and money. If service should be necessary, call, write or fax
Kinetronics Service Department.
SYMPTOM: No power (green light won’t come on).
REMEDY:
Check to see if the unit is plugged into a properly
grounded outlet. Check if on/off switch is on. Check
connecting cord.
SYMPTOM: Film does not pull easily through machine or “catches.”
REMEDY:
Check brush tension. Adjust the brushes by
loosening the SS screws on each side of the brushes. Film
should pass smoothly with a light tension.
SYMPTOM: Film has “dust spots” remaining after cleaning.
REMEDIES:
a) With the machine unplugged, open the lid and check for
accumulated dust in brushes. Vacuum thoroughly.Brushes may
also be washed in mild shampoo and water.
b) With the machine unplugged, open the lid, check to see that
the emitter pins are free of dust. Clean with a cotton swab.
c) Check the filter. If dirty, replace or clean.
d) Check brush tension. (You may wish to remove and
shampoo brushes with gentle baby shampoo, rinse carefully,
comb brush hair straight and let AIR DRY.)
SYMPTOM: Fan/blower stops or won’t run.
REMEDY:
With the machine unplugged, check that there are no
obstacles caught in the fan.
If your machine has some other problem or the above remedies don’t work,
service help is available at 1-800-624-3204 (in U.S. and Canada) or
941-951-2432, FAX 941.955.5992, or contact your local Dealer or
Distributor.
Part No. 405.1E
Brush (anti-static) 419.1 4
Circuit Board 441 1
Emitter Pin 439 2
Fan/Blower (Papst) 426 1
Filter Assembly A425 1
Filter Retainer 448 1
Filters (10 pack) A411 0
Filters (50 pack) A411/5 0
Finger Guard 427 1
Instruction Manual 405 1
Ionizer 438 1
LED Lens (green) 450 1
Magnet 406 8
Nylatron Guide 451 4
On/Off Switch 418 1
Pull Tab 449 1
Retainer (lid screw) 436 1
Rubber Feet (4) 407 1
Screw (base) 431 4
Screw (brush) 420 8
Screw (fan) 428 8
Screw (lid) 435 1
Socket (6-pin DIN) 442 1
Transformer 402 1
Power Cord 1
North America, Japan 685.0
Continental Europe 685.1
Switzerland 685.2
United Kingdom 685.3
Australia 685.4
Italy 685.5
MAINTENANCE PROCEDURES PARTS LIST
ENGLISH
ENGLISH
These steps are VERY important to the proper
performance of your machine. These procedures should
be performed every week.
At least four times a year remove the four (4) cleaning brushes. There are two (2)
screws which hold each brush in place. Wash in a gentle shampoo, rinse, comb wet
brush straight and let air dry. (DO NOT USE ELECTRIC HAIR DRYER, IT WILL
DAMAGE THE BRUSH.) When replacing the brushes, rotate brushes like the tires
on you car. You will notice the upper brushes have oversized mounting holes which
allow adjustment of the brush tension. Mount the lower brushes before installing
the upper brushes. The position of the upper brush should just “contact” the
lower brush.

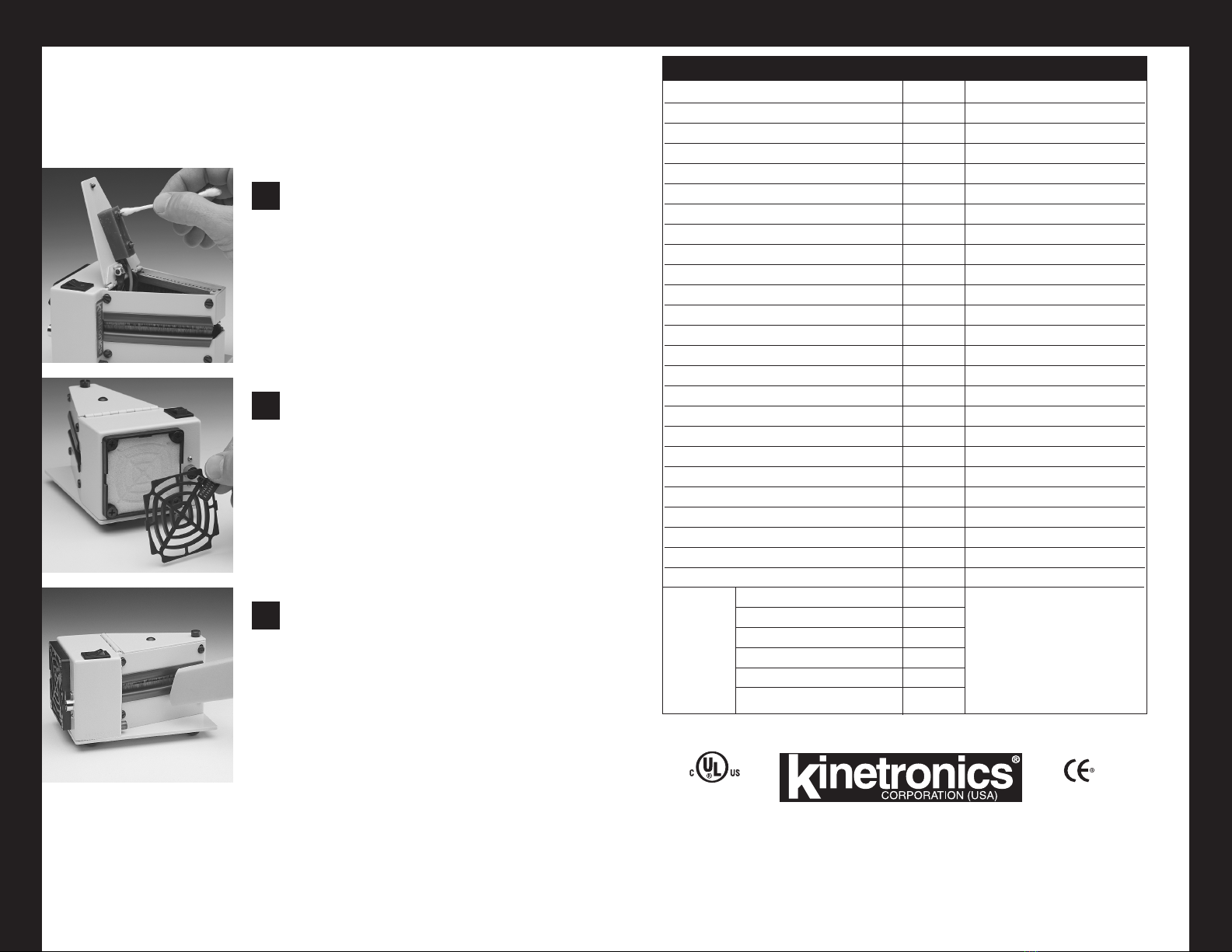

Wipe off the emitter pins located under the
lid. To do this TURN POWER OFF. Loosen screw
on lid and lift lid, use a cotton swab or soft cloth
to remove any dust or dirt that has accumulated
on both pins. Care should be taken as these pins
are very sharp.
Remove the filter retainer in the rear of the
machine by pulling the special tab. Remove the
white foam H.E.P.A. filter. Replace or wash the
filter in water. Place the filter retainer in the bottom
and “snap” the top into place.
Vacuum or blow out brushes to remove
debris and dirt trapped or lodged in the brushes.
TURN POWER OFF. Loosen screw on lid and lift.
Vacuum inside of machine carefully to remove any
loose materials.
1.
2.
3.
Your machine is covered by a two year warranty which covers all parts. Any part will be replaced at no
charge within the warranty period by furnishing the serial number and date of purchase.
THANK YOU FOR CHOOSING A STATICVAC FILM CLEANING MACHINE.
1-800-624-3204 or 1-941-951-2432
or FAX 1.941.955.5992
Should you have any questions call our Service Department at:
SV-4400U SV-4400U
DESCRIPTION PART NO. QTY. PER MACHINE
