King Pigeon T3 User manual

GSM 3G Senior Helper
Telecare&Telehealth
An Advanced
Programmable
Multifunctional
GSM 3G Telecare
GSM 3G Telehealth
In The Worldwide!
User Manual
Ver 1.2
Date Issued: 2015-06-25
All rights reserved.
King Pigeon Communication Co., Ltd.
T3

Page 2 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Table of contents
1.Product details --------------------------------------------------------------------------3
2.Safety Directions --------------------------------------------------------------------------4
3.Product Schematic ------------------------------------------------------------------------5
4.Setting by PC software---------------------------------------------------------------7
5.Setting/Operating by SMS commands -------------------------------------------14
6.Add wireless sensors -----------------------------------------------------15
7.Hot T3 works for elderly?----------------------------------------------------------------16
8.Warranty -------------------------------------------------------------------------------17
General SMS Command List
SMS COMMAND
Functions & Actions
AA
To arm the T3, in this mode, any detector triggered will alarm.
BB
To disarm the T3, in this mode, detector triggered will not alarm.
CC
To switch ON the Siren output.
DD
To switch OFF the Siren output
EE
Inquiry the T3 Status and GSM Module IMEI Code.
*The commands should plus Password, the format is Password + SMS Command.
i.e.: default operate password is 1234, then you can send 1234AA to arm, 1234BB to disarm.
* The command bodyAA, BB, CC, DD, EE, etc must be Caps Lock.
This handbook has been designed as a guide to the installation and operation of K3 Panel.
Statements contained in the handbook are general guidelines only and in no way are designed to supersede the
instructions contained with other products.
We recommend that the advice of a registered electrician be sought before any Installation work commences.
The manufacturer, its employees and distributors, accept no liability for any loss or damage including
consequential damage due to reliance on any material contained in this handbook.
The manufacturer, its employees and distributors, accept no liability for GSM Network upgrading or SIMCard
upgrading due to the technology specifications contained in this handbook.

Page 3 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
1. Product details
GSM 3G Senior Helper T3 is an innovation solution of telecare and telehealth that special for the senior,
elderly, aged people who live independently.
The GSM 3G Senior HelperT3 can be used as safety protection, temperature monitoring, action monitoring,
bedtime monitoring, fall alarm and emergency call system, away stay home monitoring and normal
telephone.
T3 equips 4 fast dial(speed dial) buttons, which can paste large photo on the buttons, these buttons can be
used as Police, Relatives, Taxi, Fire, Doctor, Neighbor or others for fast dial out. Just press then can dial out,
so easy!
The GSM 3G Senior Helper T3 can be used as a telecare system, it can report the elderly daily actions.
Includes elderly away/back home time, remind to take medicine, go to sleep and get up time, when not get up
in time at morning then T3 will generate alarm over GSM or GPRS or dial the preset numbers.
The GSM 3G Senior HelperT3 can be used as a telehealth unit, it inbuilt blood pressure meter or external
blood pressure meter, press one key then can measure the blood pressure and send out over GPRS or SMS
or 3G.
Moreover, T3 can be used as a Wireless Alarm System, supports wireless SOS button, wireless fall detectors,
wireless carbon monoxide detector, wireless gas leakage detector, wireless water leakage detector, wireless
smoke detector, wireless motion detectors and so on. Once the wireless detectors activated, it will generate
alarm over SMS/GPRS/3G or dial out immediately. All of these wireless detectors can provide the safety
protections to the senior, elderly, aged people who live independently.
The GSM 3G Senior Helper T3 also inbuilt one sensitive thermometer can measure the home temperature.

Page 4 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
1.1 Features:
Brevity, Fashion, Neat design;
Fashion hand free design, large keyboard;
Large LCD display current time, temperature, and alarm types;
GSM SMS/GPRS/3G Transmission, no distance limitation;
Bedtime monitoring, if not get up in time can generate alarm;
Away/Back home time monitoring;
Daily activities monitoring;
Supports variety wireless detectors, includes wireless fall detector, wireless CO detector, wireless smoke
detectors and so on;
4 fast dial numbers, and also can dial other numbers by keyboard if required;
3-Timer for alerting to take medicine.
Backup rechargeable battery.
Wireless transmit the information over GPRS/3G data network to server or apps.
Setting
PC Software programming or SMS commands, CMS remote programming over GPRS/3G Data.
1.2 Specifications
1.3. Standard Packing List
Main unit * 1
Wireless fall down detector *1
Cuff for measure blood pressure *1
AC/DC Power adaptor *1,
User Manual & PC Software CD x1
Packing size: 23.5*18*9.5 cm (9.3*7*3.7 inch)
Gross Weight: 1.10 kg (2.4 lb)
1.4 Applications
Residential: Home security alarm, elderly living monitoring.
Business: Aging care, telecare, healthcare, etc.
GSM Frequency
Quad-band 850/900/1800/1900 MHz
3G Band
900/2100 MHz default (T3W)
850/1900 MHz optional (T3C)
850/2100 MHz optional (T3T)
Wireless zones
32
Wireless Frequency
433.92 MHz
Wireless distance
Max.100m in open air
Siren Output
12VDC/1A
DC Power supply
9~24VDC/1A
Power consumption
12V input,Max. 50 mA/Average 25 mA
SIM Card
Supporting 3V SIM Card
Antenna
50 Ω SMA Antenna interface
Temperature range
-20~+60 °C
Humidity range
Relative humidity 90%
Backup battery
3.7V/900mAH
Exterior dimension
22*17*6 cm (8.7*6.7*2.4 inch)
Net Weight
710 g (1.5 lb)
Order Table:
T3: GSM 850/900/1800/1900 MHz
T3W: 2G: GSM900/1800 MHz,
3G WCDMA: 900/2100 MHz UMTS ;
T3C: 2G: GSM850/900/1800/1900 MHz,
3G: 850/1900 MHz UMTS.
T3T: 2G: GSM850/900/1800/1900 MHz,
3G: 850/2100 MHz UMTS.
Optional Accessories:
PIR Motion Sensor,
Glass Break Sensor,
Magnetic Window Sensor,
Temperature Sensor,
Infrared Beam Fence,
Vibration sensor, wireless siren..

Page 5 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
2.Safety Directions
Safe Startup
Do not use T3 when using GSM equipment is prohibited or might bring disturbance or danger.
Interference
All wireless equipment might interfere network signals of T3 and influence its performance.
Avoid Use at Gas Station
Do not use T3 at a gas station. Power off T3 when it near fuels or chemicals.
Power it off near Blasting Places
Please follow relevant restrictive regulations. Avoid using the device in blasting places.
Reasonable Use
Please install the product at suitable places as described in the product documentation. Avoid
signal shielded by covering the mainframe.
Use Qualified Maintenance Service
Maintenance can be carried out only by qualified maintainer.
3. Products schematic
Front view
Stay Arm
Up(Volume +)
Disarm
Down(Volume –)
Arm
Speaker
Answer: press to answer call in.
Blood pressure measure 1:press
to start, repress to cancel.
Blood pressure measure 2:press
to start, repress to cancel.
Call end: press it to end phone call
or cancel/exit.
SOS: Press 3 seconds then make
SOS alarm.
Fast dial numbers, one Push-to-Talk
Setting by software of SMS
Photo stick here
Microphone

Page 6 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
LCD Display
Back side
Temperature sensor
SIM Card slot &Power
switch cover
Microphone
Power in Siren output
Micro USB
for configuration
USB for external
device (reserve)

Page 7 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
4. Installation and Setting b y PC software:
1) Open the unit's back side cover and insert the SIM card.
2) Connect the unit's power supply, Cuff for measure blood pressure ,siren(if needed),and USB cable to PC.
3) Switch ON the main unit.
4) On computer’s desktop, right click "My Computer" >>> "Property" >>>"Hardware" >>"Device Manager".
5) Find "Ports (COM & LPT)",check the port number of "Silicon Labs CP210x USB to UART Bridge",
for example:COM3. (Click here to know how to find out the COM Port on your computer)
6) Run this configuration software, select the COM Port number, for example:COM3.click"Open Com Port",
Click " Enter Setup Mode ",default password is 000000. Fill the new password if you had changed before,
then click “OK”.
7) Click "Read Settings". Configure the parameters as per you need.
8) After finished configuration, Click "Save Settings", process finished.
Log in
Steps: Select the COM port>>>Open Com Port>>>Sync PC Time >>>Enter Setup Mode>>>Password verify>>>OK.
(Default password:000000)

Page 8 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Password
SIM Card & Alarm numbers
The password is for remote control the T3 unit.
Admin password is for configure theT3 unit.
Leave it blank if no PIN code on your SIM Card.
1. The T3’s SIM Card number is important.
2. If you can’t receive the alert SMS or correct time from T3, please change the country
code format, for example: use 0086 instead of +86 or 86. Refer to the Alarm number
settings.

Page 9 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System

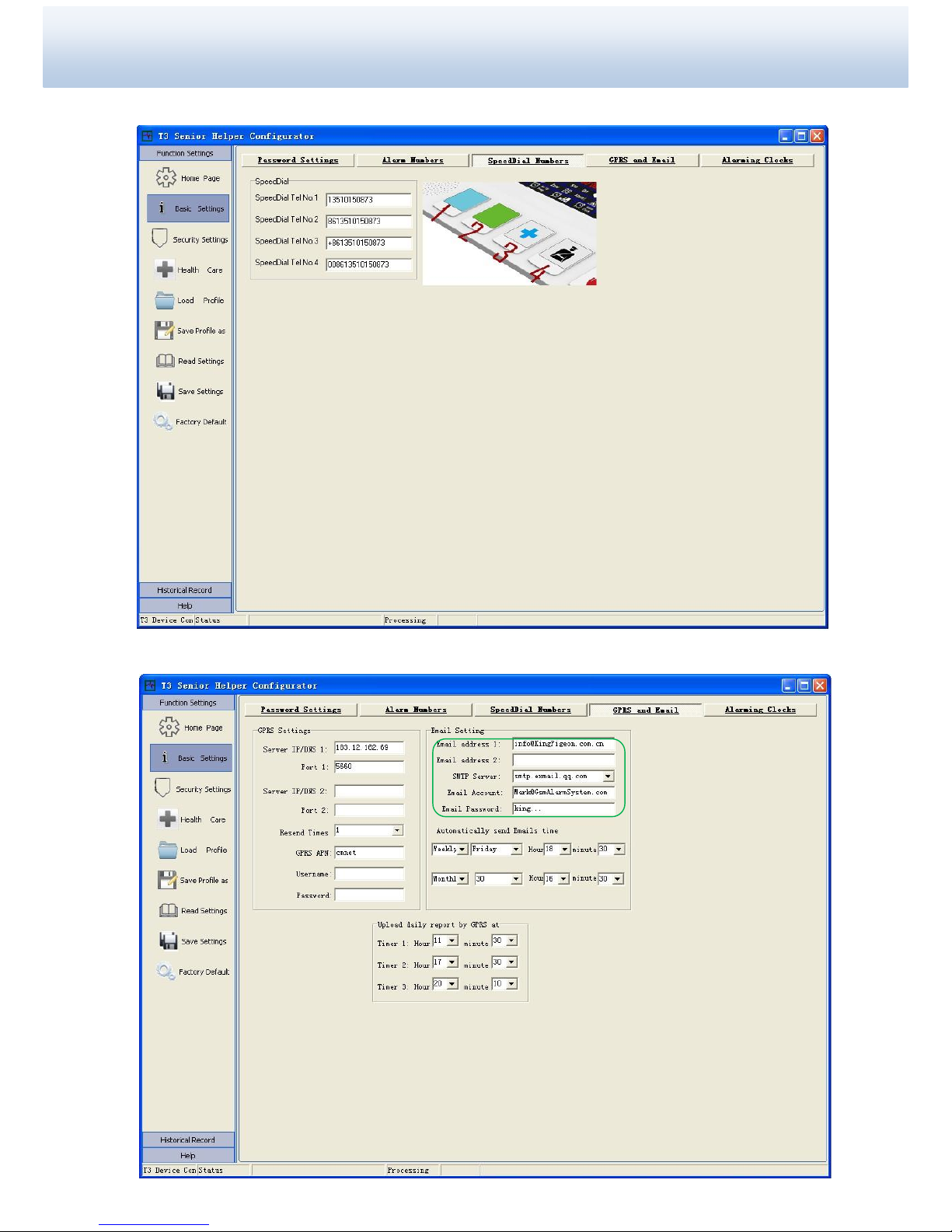

Fast dial numbers
GPRS data & E-mail
3. Server IP and Port for receive the data.
4. Call your mobile operator if you don’t know the APN and user name/password.
E-mail address for receiving data.
E-mail account for sending data.

Page 10 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Alarm Clocks
Alarm zones and attributes
Remote control: For remote key/fobs.
Entrance: Delay 30 seconds to enter into Armed mode, for leaving
the home or office. When come back the home or office, will delay 20
seconds to alarm so user can change it to Stay or Disarm
Inner: No alarm in Stay mode if sensor triggered; Alarm in Armed
mode.
Outer: In Armed or Stay mode, when triggered will cause alarm.
Door bell: triggered it to cause the buzzer to make sounds.
Onsite: in Stay mode if triggered only cause the siren to sound.
Neither dial out nor send SMS out; in Armed mode if triggered will
cause alarm.
24hours:emergency zone with sounds. In any mode if triggered will
cause alarm immediately.
Backhome: trigger the sensor in this zone will make T3 change to
Stay Mode.
Monitoring: Watchdog zone type, when sensor in this zone hasn’t
be triggered during the “start-end” time, will send alert SMS.

Page 11 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Health Care Alarm

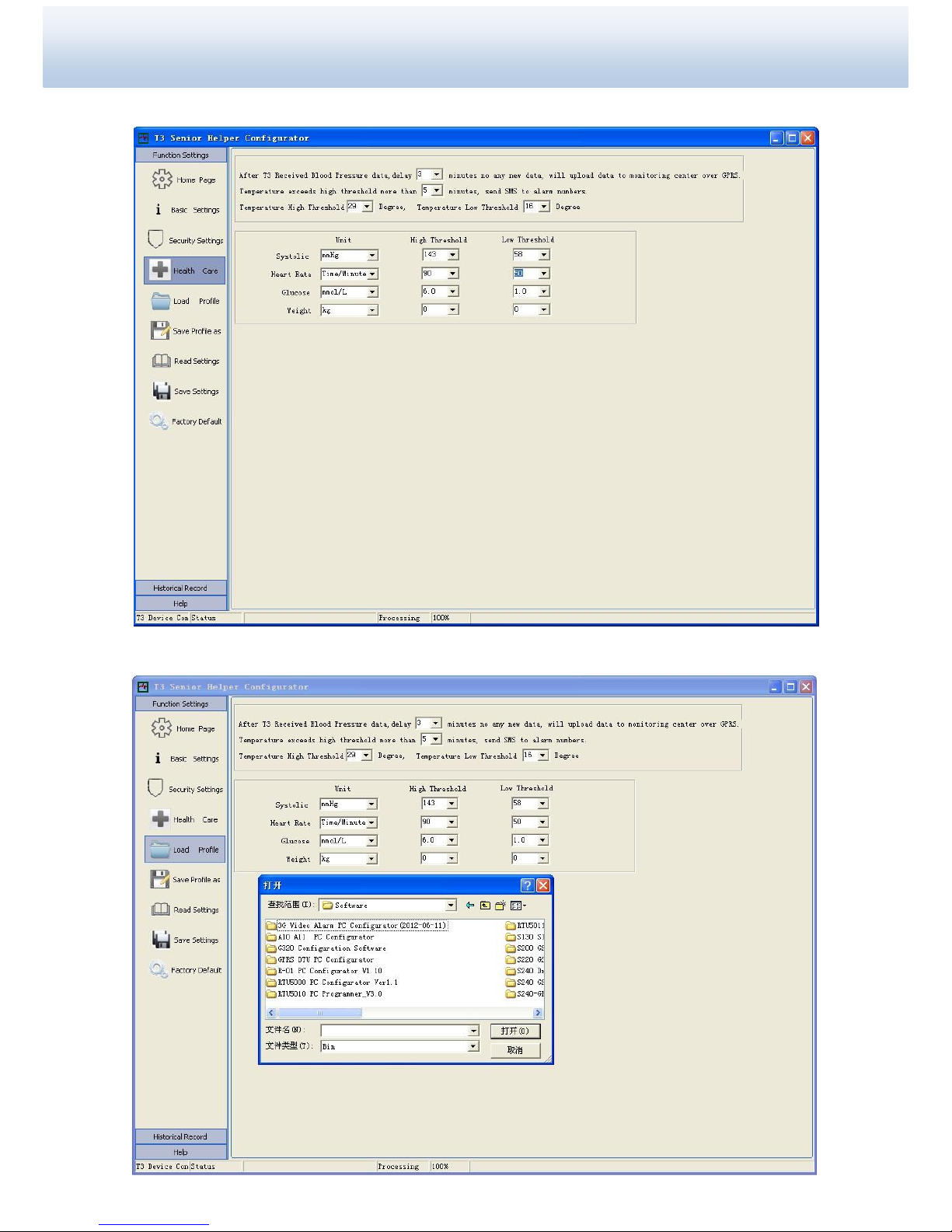

Load/Save profile
1. Setting the threshold value so relative person can get alert SMS.
2. Glucose and Weight function for reserve only.
Save the settings as .bin format, send the .bin profile to us if you need technical support for the configuration.
Load Profile: Import .bin profile, this is very useful for a number of T3 with similar settings.
Save Profile as: Export the parameter settings as .bin format to the PC.

Page 12 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Save Settings
RESET(Caution to click)
Save the settings to T3.
Caution: Click this will be RESET parameters as factory mode!
All of your settings will lost.

Page 13 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Historical Record
Alarm record: Read the alarm records from T3 to the PC software.
Arm record: Read the arm records from T3 to the PC software.
Incoming record: Read the incoming call records from T3 to the PC software.
Dial Out record: Read the dial out records from T3 to the PC software.
Inbox: Read the inbox SMS.
Outbox: Read the outbox SMS.
Dial Out record: Read the dial out records from T3 to the PC software.
Blood record: Read the Blood pressure records from T3 to the PC software.
Glucose record: Reserve function.
Weight record: Reserve function.
Load record: Read the historical data profile from PC folder to the software.
Export record: Export the historical data to the PC.
Read record: Read all of the historical data from T3 to the software.
Clear record: Click this button will delete/erase all of the historical data on the T3 unit (Caution to use!)

Page 14 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
5. Setting & Operation b y SMS commands:
Quick operation & Inquiry (1234--default password, change it to your new password if modified)
S.N.
Function Description
SMS Command Format
Example (Default Pwd: 1234)
1
Arm(Away)
1234AA
1234AA
2
Disarm
1234BB
1234BB
3
Stay
1234CC
1234CC
4
Inquiry current status, GSM Signal, IMEI
1234EE
1234EE
5-1
Inquiry the last alarm record
1234E1
1234E1
5-2
Inquiry the last arm record
1234E2
1234E2
5-3
Inquiry the last incoming call record
1234E3
1234E3
5-4
Inquiry the last dial out record
1234E4
1234E4
5-5
Inquiry the last SMS of inbox
1234E5
1234E5
5-6
Inquiry the last SMS of outbox
1234E6
1234E6
5-7
Inquiry the last blood pressure data
1234E7
1234E7
5-8
Inquiry the last Glucose data (reserve)
1234E8
1234E8
5-9
Inquiry the last Weight data (reserve)
1234E9
1234E9
Settings
6
Setup operator’s New Password
1234PUnew password#
1234PU6666
7
Setting current date & time
1234Tyymmddhhmm
1234T1504251945 (19:45,April 25,2015)
Fast dial number
8
Setting fast dial number
1234Aserial number T phone number
1234A1T00861351000 (The 1st speed number:
00861351000)
9
Inquiry fast dial number
1234A
1234A
10
Delete fast dial number
1234Aserial number
1234A1
Administration Settings(default password: 000000)
Alarm Clocks
11
Setting alarm clock
000000C serial number HHMM type(1:get
up/sleep;2: medcine;3:others)repeat time
interval time
000000C20930223
(The 2nd alarm clock at 09:30am,for medicine purpose,
make alarm twice every 3 seconds.)
12
Inquiry alarm clock setting
000000C
13
Delete alarm clock
000000Cserial number
00000C2
Alarm Numbers
14
SettingAlarm Numbers
000000B serial number T phone number
000000B8T008613510150873 (The 8th alarm
number: 008613510150873)
15
Inquiry Alarm Numbers
000000B
000000B
DeleteAlarm Number
000000B serial number
000000B2
Wireless alarm zone name
16
Modify alarm zone’s name
000000M Zone number Zone name
000000M3door alarm!
Administration Commands (For engineering only)
17
Setting new administration password
000000PAnew password
000000PA952700
18
Connect GPRS(make GPRS online)
000000GON
Auto disconnect GPRS if no data Tx/Rx in 10mins
19
Disconnect GPRS(make GPRS offline)
000000GOFF
20
Setting Server IP and port
000000IP IP address P port number
000000IP113.92.179.97P4006
21
Setting GPRS upload time (daily report)
000000D hh mm
000000D1730
22
Disable GPRS upload (daily report)
000000D

Page 15 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System

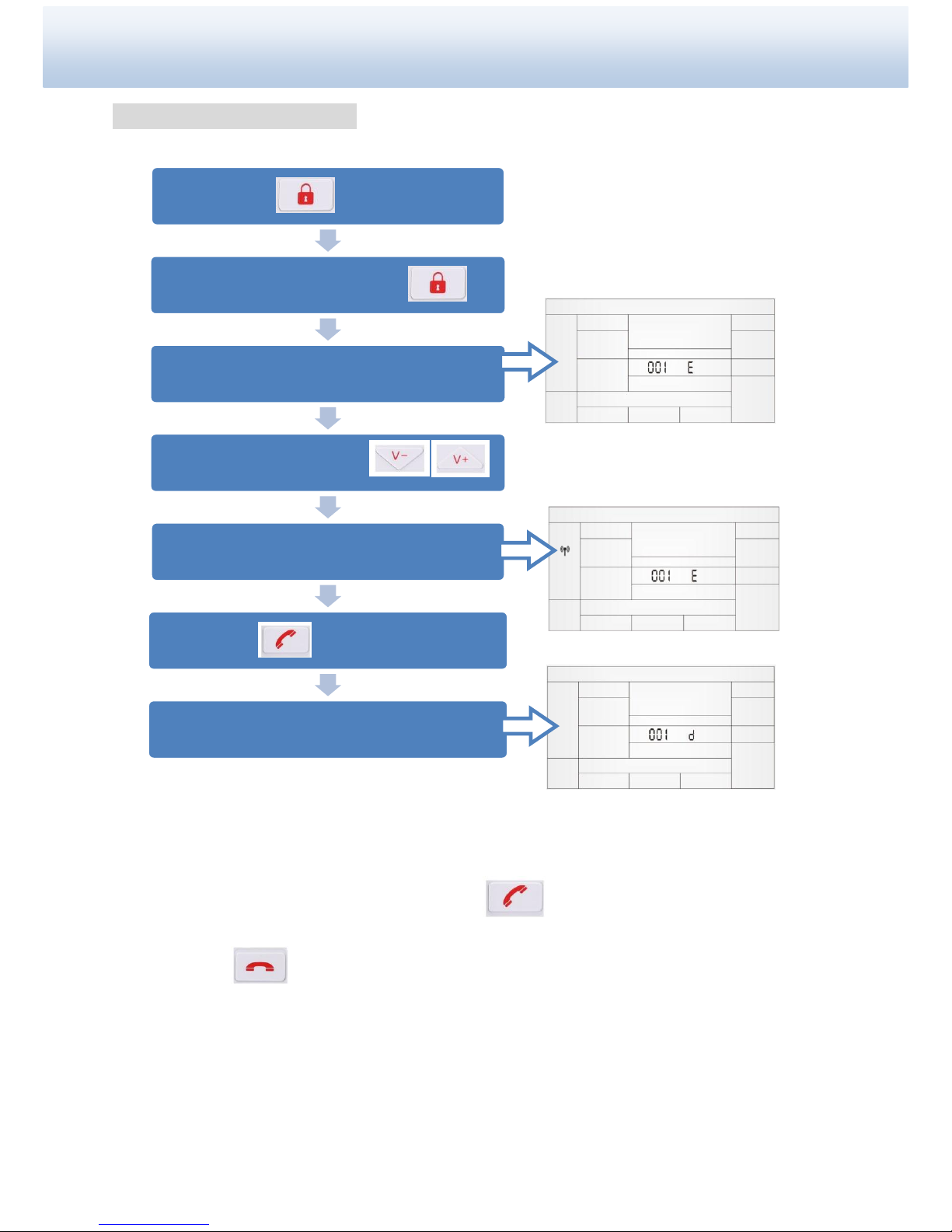

6.Add wireless sensors
Delete wireless sensor: After step ④, press more than 2 seconds.
Exit: press , or T3 will exit “add wireless sensors” mode automatically if no action more than 2
minutes.
①Press , don't release
②Switch ON T3, release
③LCD display: 001 E
④Select zone(01~32) :
⑤Trigger the sensor, LCD display
⑥Press within 3 seconds
⑦LCD display zone number and "d",done.
“E”—no sensor added on this zone
“d”—there have sensor on this zone already
(“d”—sensor added on this zone already)

Page 16 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System

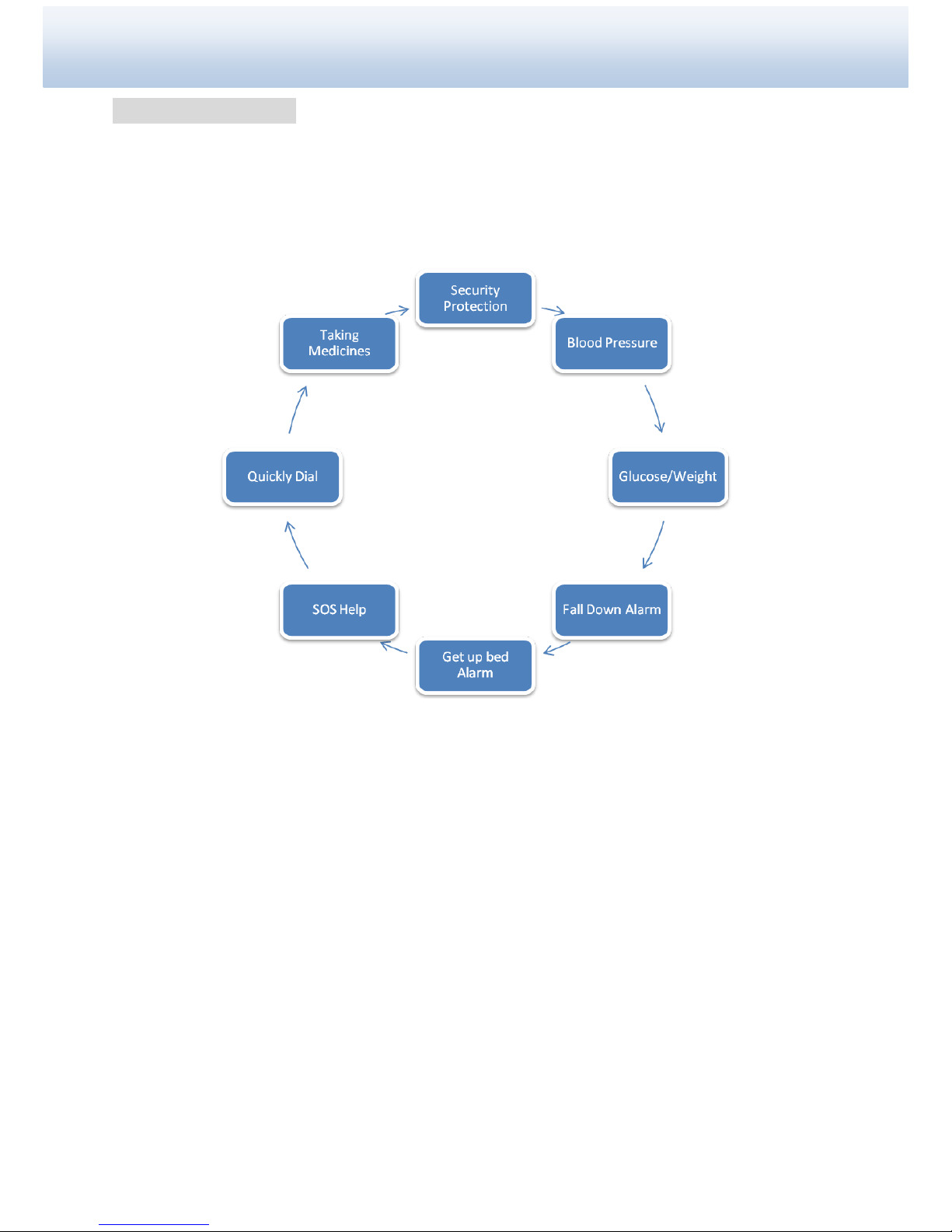

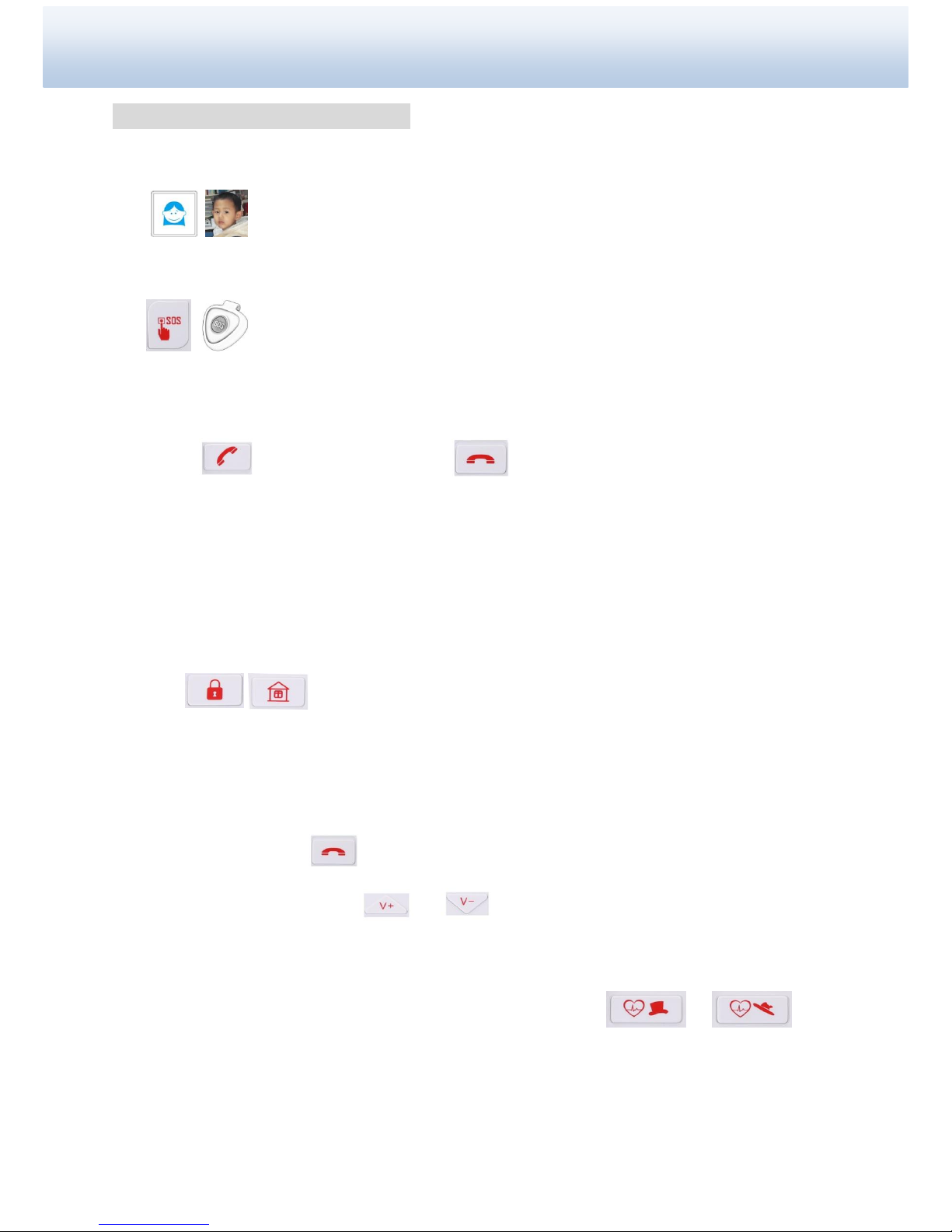

7. How T3 works for elderly?
Push-to-Talk
Stick a easy recognized photo on the buttons, just push these buttons then make a
phone call with families or ask for help.
SOS alarm when under emergency situation
Push the SOS button for 3 seconds,T3 will send SOS alert SMS text and make a
phone call to receivers for asking emergency help.
Other Wireless SOS button or fall detectors optional.
Answering phone call
Press for answer the call in, press for end calls.
24hours safety guard
When smoke, gas, CO or water flood detected,T3 will make audible alarm, send alert SMS text and call
to the receivers/CMS.
24hours house security alarm
On status,T3 make audible alarm and send alert SMS text & call when intrusion
sensor triggered.
Alarm clocks
T3 will make audible alarm and flash on LCD according to the timing setting.Alarm audio can be
stopped by end button .
Audio volume can be adjust by and . (the same volume for phone call, alarm too).

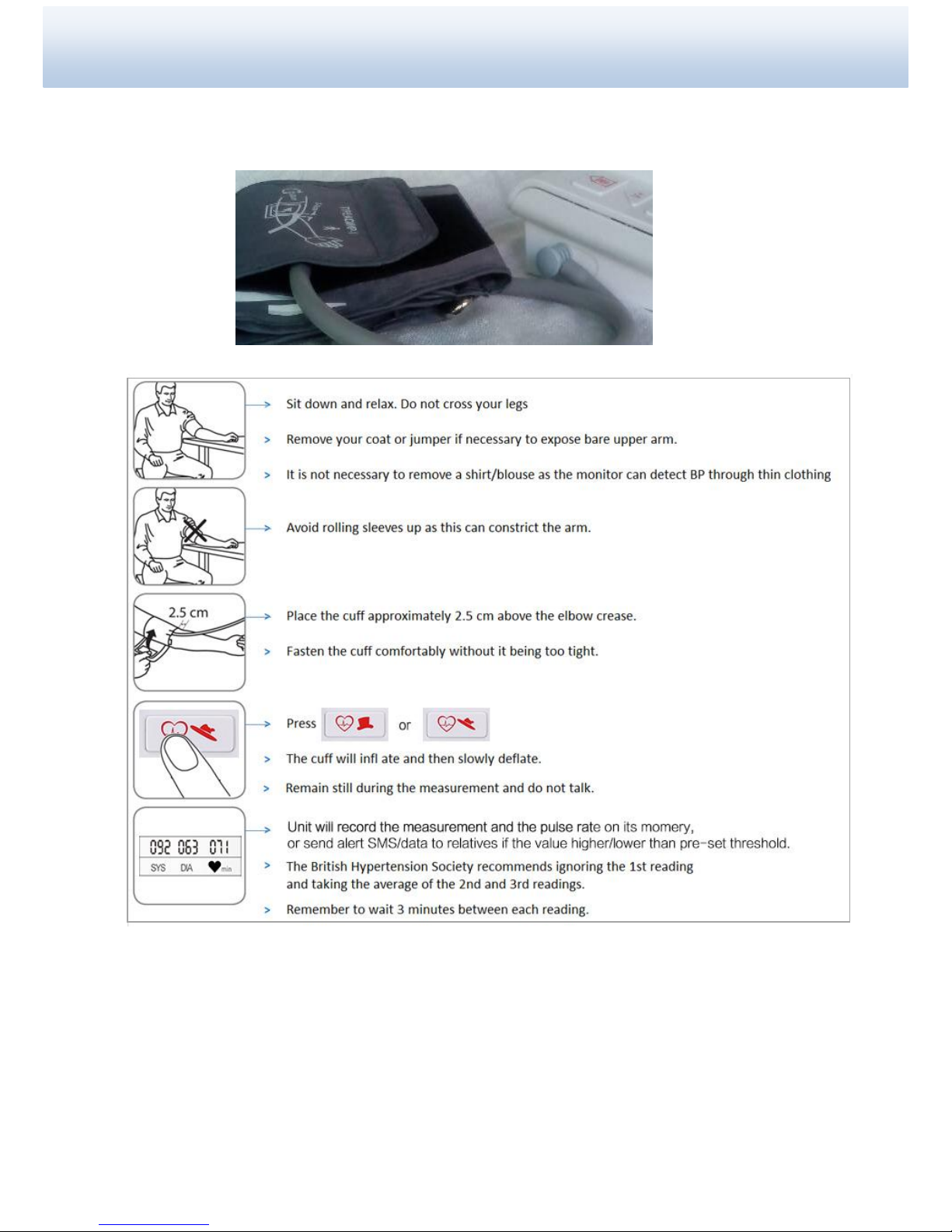

Heath care (Blood pressure measurement)
Wearing the cuff to measure the blood pressure and heart rate, press or ,
measurement records will save on the T3’s memory for download by PC software or upload to CMS or
other could server system, relatives can get alert SMS text when the measurement value higher/lower than
pre-set threshold too.

Page 17 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Connect the cuff to T3 unit, make the connection tightly:
If the measurement error, T3 unit make two di di sound, LCD will display E1 or S1 and the LED beneath the button
will keep red light, then please do it again.
Daily life care
T3 sends alert SMS text if no activities detected by sensors during the watchdog time period.
For example, install one door contact sensor on the main gate, setting time period at 16:00~18:00pm,if
the main gate not opened during that time,T3 sends alert SMS to receivers.

Page 18 of 18 Ver 1.2
T3 --- GSM 3G Senior Telecare
---GSM 3G Elderly Care Alarm System
Temperature monitoring
T3 sends alert SMS text to receivers when temperature higher/lower than threshold more than 10mins.
Other care
T3 will send alert SMS text whenAC/DC power lost and recovery immediately, back up battery low
power, wireless sensor’s battery low power(if have).
8. Warranty
1) This system is warranted to be free of defects in material and workmanship for one year.
2) This warranty does not extend to any defect, malfunction or failure caused by abuse or misuse by the
Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by
purchasers.
www.GsmAlarmSystem.com
