1. Brief introduction
The A10 GSM Elderly Guarder is a very innovative concept of GSM Panic Alarm, GSM Emergency Call
System and GSM Medical Alarm System. Only press the button to ask for help, and press the Familiarity
Number buttons to talk to the familiarities.
The GSM Elderly Guarder A10 is a very useful product. We’re based on the background of many elderly
people living alone to design it. This is the first product special for safeguard and medical and including
spiritual care for the elderly in the worldwide. It can be used for monitoring aid, elderly person and all the
emergency help through GSM Network with our innovative concepts.
The GSM Elderly Guarder with user friendly design idea, all operations and settings can be programmed by
PC Configurator or remotely by SMS commands!
The GSM Elderly Guarder will make you live safe, live free and enjoy life!
2.Safety Directions
Safe Startup
Do not use GSM Elderly Guarder when using GSM equipment is prohibited or might bring
disturbance or danger.
Interference
All wireless equipment might interfere network signals of GSM Elderly Guarder and influence its
performance.
Avoid Use at Gas Station
Do not use GSM Elderly Guarder at a gas station. Power off GSM Elderly Guarder when it near
fuels or chemicals.
Power it off near Blasting Places
Please follow relevant restrictive regulations. Avoid using the device in blasting places.
Reasonable Use
Please install the product at suitable places as described in the product documentation. Avoid
signal shielded by covering the Control Panel.
Use Qualified Maintenance Service
Maintenance can be carried out only by qualified maintainer.
3. Standard Packing List
Control Panel X 1
Necklace Type Waterproof Panic Button X1
USB Cable X1
AC to DC Adaptor X1 (9-12VDC/1A)
Page 4 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 4 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
CD x1 (Including User Manual X 1, PC Configurator)
Optional Accessories: (Wireless Accessories)
Wireless PIR Motion Detector, Wireless Smoke detector, Wireless Panic Button, Wireless Strobe Siren
(Optional function), etc.
4. Physical Layout
No.1 The 1st Familiarity Number Button, push it to call the 1st Familiarity Number directly.
No.2 The 2nd Familiarity Number Button, push it to call the 2nd Familiarity Number directly.
No.3 The 3rd Familiarity Number Button, push it to call the 3rd Familiarity Number directly.
SOS The SOS Button, push it to send out SMS to 3 SMS Alert Numbers and autodial the 5 Alarm Dial
Numbers directly.
Stop The Stop Button, push it to stop the current operations or push it to answer the incoming calls.
Power External Power Led. Will turn on once the external AC Power goes on.
Battery Internal backup battery LED. Will turn on once the external power goes off, to indicate that the
control panel powered on by the battery.
GSM GSM Module indicator, registering will quickly flick, registered successful will slowly flick and alert
by a long “Di”Buzzer sounds.
Page 5 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 5 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
GSM Antenna This place with very thin plastic, if need use external GSM Antenna then please poke and
make a hole, then fix the GSM Antenna connector.
ON~OFF The Switch to power on~off of the unit.
USB Port For downloading the settings from the PC configurator.
DC12V External Power input for the control panel, the range is DC 9~12V, 1~2A.
5. Features
Page 6 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 6 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
1) Quad-Band (850/900/1800/1900Mhz) ensure it can work in the worldwide;
2) Big Red Panic Button or Waterproof Worn Panic Button to Ask For Emergency Help;
When the aid, elderly, children and disabled need help, they can press the Big Red Button, or press Waterproof Worn Panic
Button or any other Wireless Panic Button, the GSM Elderly Guarder will automatic send SMS Alert to 3 Cell phone numbers
and dial 5 assigned numbers then automatically create two way voice communications.
3) 4 Wireless Watchdog Zones to Monitoring Activities of Daily Living;
The GSM Elderly Guarder with 4 wireless watchdog zones, it is very useful to monitoring the elderly or aid has pass through
special space in the pre-set time, because of normally a person should pass through these places. E.g.: Went out the
bedroom, went to the kitchen, went to the dining room, and went to the washing room.
4) 3 Wireless 24Hours Zones to Monitoring Living Environment;
The GSM Elderly Guarder supports 3 wireless 24Hours Zones, special for smoke detector, gas leakage detector and water
leakage detectors.
5) 4 Timers for Reminding Elderly to Take Medicine on Time;
The GSM Elderly Guarder accepts 4 timers, special for alerting the elderly to take the medicine on time or others.
6) Familiarity Numbers For Easy to Dial 3 Telephone Numbers;
Familiarity Number is also a very useful function for Two-way voice communication, once press any one of the Familiarity
Number button, the system will create two-way voice communication with the assigned number. So the elderly or disabled
can speak to her familiarity easily. Also, the familiarity can call in to create the two-way voice communication automatically.
7) Large Capacity Rechargeable Backup Battery;
The 900mAh large capacity rechargeable backup battery is useful to ensure it can work about 12hours after AC power is
failure. Also when the AC power goes off, it will send a SMS to the Cell phone number.
8) Self-checking Function;
The Self-checking function is very useful to ensure that the GSM Elderly Guarder is under good working condition.
9) User Friendly Configurations;
The GSM Elderly Guarder accepts configuration by simply SMS commands and user friendly PC Configurator via USB port.
10) Wireless strobe siren warning when Alarm occurrence. (Optional).
6. Settings
The GSM Elderly Guarder is for user-friendly design. The user can setup it by the PC Configurator through
USB cable and by SMS Commands.
Tips!
1) Please insert the SIMCard firstly, also, you can insert the SIMCard after you setup.
2) When the SIMCard Rigestered to the GSM Network successful, will alert a long “Di” sound, if failure, will alert 2 short “Di Di”
sounds. When the SIMCard obtained the GSM Network time successful, will alert 3 short “Di Di Di” sounds.
3) Please restart the unit after you programmed it by PC configurator;
4) Please power on to check the LEDs can work or not, then power off it before you program it by PC Configurator.
5) The default password is 1234, you can modify it by enter the new password in the PC Configurator or SMS command.
6) The Panic button in the standard package we have learned to the Control Panel already. Needn’t to learn it again.
7) Two way communication: While the incoming call from Familiarity N0. 1~3, SMS Alert No. 1~3, Alarm Dial No. 1~5, the
GSM Elderly Guarder will automatically answer the call, and then the two-way voice communication will be created. If you
want to test the two way voice communication, please make sure the other phone is away from the unit at least 500meters.
Otherwise, the near-cross will make lots of noise interference. When the incoming call from the other numbers, the incoming
Page 7 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 7 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
call will be rejected after 5tones if the user hasn’t press the Stop Button to answer it.
8) Please insert the SIMCard when it running. Because of the Control Panel must obtain the time information from the GSM
Network, otherwise, the Control panel without time information to handle watchdog zone, timers, and siren working time and
self-checking report time.
9) Zones’Attribute definition:
Zones’ Attribute Definition
Watchdog Between the starting time point and ending time point, the detectors with this type triggered will not alarm,
if the detector hasn’t been triggered, will make alarm. It is special for monitoring somebody must go to
somewhere in the preset time. Usually use the wireless PIR motion detector for it. E.g.: if the mother hasn’t
gone out the bedroom in 6:00~12:00AM, then maybe she is ill. Should send SMS to alert.
24-Hour Zone In any time, if the detectors with this type triggered will alarm. e.g.: smoke detector triggered, gas leakage
detector triggered, flood detector triggered, it should send SMS to alert.
Panic Button In any time, if the Panic Button with this type triggered will alarm. e.g.: Press Panic Button, it should send
SMS to alert. Some users prefer to define the different type of the detectors, so that we use two names for
them. It is for wireless Panic Buttons.
Red SOS Button In any time, if the Press this Button on the panel will alarm.
Alarm Action: when Alarm occurrence, the system will Automatically Send SMS to the Pre-set SMS Alert Numbers firstly, then
dial the Alarm Dial No.s one by one for 3 times if nobody answers the calling. If any Alarm Dial Number answered the calling,
the unit will create two way voice communications and not call the others any more.
6.1 Setup by PC Configurator The PC Configurator Interface
Page 8 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 8 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
Please following the below steps one by one to setup it, otherwise you can not setup it successfully.
Step1: Please Contact the unit to the PC, and then install the USB Driver to the computer from the CD firstly.
When successful, it can be found out at the device manager of the XP or Windows 7, please see the
below photo. And remember the COM port. Also, the driver can be downloaded from Silicon Laboratories,
Inc., the model is CP210x.
If the Com port is not Com1~Com5, then please right click the Device, then enter the Properties to
change it, see below photos, after you changed it, and please restart the computer.
Page 9 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 9 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
Step2: Please insert the SIMCard into the GSM Elderly Guarder carefully;
Step3: Please running the PC Configurator from the CD, and select the Com Port number according to the
device manager display, usually is Com3, see the above mentioned photos;
Step4: Please connect the GSM Elderly Guarder to the computer through USB cable, but please don’t switch
on the GSM Elderly Guarder, otherwise, the setup will be failure;
Step5: Please setup the GSM Elderly Guarder parameters in the PC Configurator or Load Profile;
Step6: After you finished the setup, then click “Save Settings” button, the color of the “Communications”
indicator will turn green from red and “Information” indicator will change slowly between red to green,
the indicators at the bottom bar. Then switches on the GSM Elderly Guarder, after 2Seconds, it will
alert “Download Success!” when the Setup successful.
Step 7: Power off the unit then remove the USB cable. Then power on the Unit to finish the setup.
If it hasn’t prompted the setup successful, then means the setup is failure, please check the Com port and USB
connection, then try to repeat the Step1~Step6 again.
If you want to use the Read Settings, Load profile, also note that you should click this Button then switch on the
unit.
ItemsDescription
Familiarity N0. 1 Pleaseaddthecountrycode,e.g.:+86or0086inChina.WhenpresstheNo.1Buttonon
thepanel,theunitwillcallthisnumberimmediately.
Familiarity N0. 2 Pleaseaddthecountrycode,e.g.:+86or0086inChina.WhenpresstheNo.2Buttonon
thepanel,theunitwillcallthisnumberimmediately.
Familiarity N0. 3 Pleaseaddthecountrycode,e.g.:+86or0086inChina.WhenpresstheNo.3Buttonon
thepanel,theunitwillcallthisnumberimmediately.
SMS Alert No. 1~3 Pleaseaddthecountrycode,e.g.:+86or0086inChina.Whenalarm,theunitwillsend
relatedSMSAlertContenttothesenumbersonebyonefirstly.
SIMCARD No. Pleaseaddthecountrycode,e.g.:+86or0086inChina.ThisistheSIMCardnumberthat
Page 10 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 10 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
insertintheGSMElderlyGuarder,whenpoweron,itwillregistertheGSMnetworkand
resetthedate/timefromtheGSMOperatorserver.
Alarm Dial No. 1~5
Pleaseaddthecountrycode,e.g.:+86or0086inChina.Whenalarm,theunitwilldial
thesenumbersonebyonefor3timesifnobodyanswersthecallingaftersentoutSMS.If
anyAlarmDialNumberansweredthecalling,theunitwillcreatetwowayvoice
communicationsandnotcalltheothersanymore.
Self-Checking Time
Gap
FillittosetuptheSelf‐CheckingReporttimegap,Range:0~240Hours.Theunitwill
automaticallysenditsstatustoSMSAlertNo.1accordingtothissetting.Whenthevalueis
0thenmeansdisablethisfunction.
Password ToverifytheSMScommandsfromtheauthorizedusersandmodifynewpassword.
Medicine Alert Timer
Fillittosetupthetimer;thebuiltinBuzzerwillsounduntilpresstheStopbutton.Itis
usefultoalerttheelderlytotakemedicineontime.Whenthetimeris00:00thenmeans
disablethisfunction.Theformartis24‐Hourtype,shouldbetwodigital.Eg.:01:05
Watchdog zone
Preset Time
Tosetupthewatchdogzonetime.Betweenthestarttimepointandendtimepoint,the
detectorwiththistypetriggeredwillnotalarm,ifthedetectorhasn’tbeentriggered,will
makealarm.Whenthetimeis00:00thenmeansdisablethisfunction.Theformartis
24‐Hourtype,shouldbetwodigital.Eg.:01:05
Com Port SelecttheComporttocommunicatebetweenGSMElderlyGuarderandComputer.
Save Settings SavethesettingsfromcomputertoGSMElderlyGuarder.
Read Settings ReadthesettingsfromGSMElderlyGuardertocomputer.
Save Profile Savethesettingsasfiletocomputer.
Load Profile LoadthesettingsfromtheSavedfilefromthecomputer.
Stop StopthecommunicationbetweenthecomputerandGSMElderlyGuarder.
Notice:
In some GSM operators they use different SMS protocols, if the unit can’t return the SMS confirmation is
normally. It is not product problem. Also, you can try to add the country code before the number, see the below
settings:
6.2 Setup by SMS Commands
For example:
In China, the country code is +86, or 0086.
The user cell phone number is 13500001111 and has been assigned as a SMS Alert number; the simcard number in the
panel is 13512345678.
Problem 1: Alarm but the user hasn’t received the SMS Alert.
Solution: Please plus the country code while you setup the 13570810254 as SMS Alert number, means setup
+8613500001111 to instead of the 13500001111.
Problem 2: The user number can receive the SMS Alert message from alarm panel, but the alarm panel can not receive the
commands from the user number.
Solution: Please add country code to the SIMCard number in the alarm panel. Means send sms commands to
+8613512345678 to instead of 13512345678.
Solution 3: When you use cell phone dial another one, what number it will be displayed then you can set the displayed
number as dial numbers; when you use cell phone send SMS to another cell phone, what number it will be displayed then
y
ou can set the dis
p
la
y
ed number as SMS Alert number
,
j
ust use the “+” to re
p
lace the “00”
,
also
,
y
ou can tr
y
the “00”.
Page 11 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 11 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
6.2.1 Setup the Familiarity Numbers, SMS Alert Numbers and Alarm Dial Numbers
SMS Command Format: Password+#+T+Serial Number+#+Telephone Number+#
The Serial Number please see the table:
Serial Number Telephone Number
1 SIMCARD No.
2 Familiarity No.1
3 Familiarity No.2
4 Familiarity No.3
5 SMS Alert No.1
6 SMS Alert No.2
7 SMS Alert No.3
8 Alarm Dial No.1
9 Alarm Dial No.2
10 Alarm Dial No.3
11 Alarm Dial No.4
12 Alarm Dial No.5
For example, the password is 1234, and the Familiarity No.1 is 13500001111, so the SMS Content of this
command to setup the Familiarity No.1 is:
6.2.2 Setup the SMS Contents by SMS Commands
SMS Command Format: Password+#+M+Serial Number+#+SMS Content+#
The Serial Number of the zones please see the table:
Notice:
The SMS Content accept Max.63 characters, please pay attention to it.
Serial Number Zone Name
1 1st Watchdog Zone
2 2nd Watchdog Zone
3 3rd Watchdog Zone
4 4th Watchdog Zone
5 1st 24-Hour Zone
6 2nd 24-Hour Zone
7 3rd 24-Hour Zone
8 1st Panic Button
9 2nd Panic Button
10 3rd Panic Button
11 When AC Power Goes off for 30minutes.
12 When AC Power Goes on(Goes off more than 30minutes then goes on)
13 Backup Battery Low Voltage Alert
14 Big Red SOS Button
15 Self-Checking Report
7. Add/Remove Wireless Accessories
The Control Panel adapts learning code technology. The user can add the additional wireless detectors
1234#T2#13500001111#
Page 12 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 12 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
and panic buttons to it easily following the below instructions.
Remove the SIMCard cover, see below figure, then press the Learn button, switch on the Control Panel,
after 3Seconds, the unit will alert long “Di” sound to indicate it being learning mode.
Notice:
1) The Control Panel cannot exit the learning mode automatically, must switch off the unit then switch on again to enter the
normally mode.
2) The Control Panel with fixed position for different wireless detectors, the positions please see below table.
3) The positions must be active to learning mode by switch the button from OFF to ON, and after learned the correct detector
into this position, please switch the button back to OFF, otherwise the position will in learning mode all the time.
4) When learning one detector to the control panel, the other switches must be in OFF position.
Zones’ Attribute Numbers on Switch Positions
Watchdog Switch1-4
24-Hour Zone Switch5-7
Panic Button Switch8-10
7.1 Add the Wireless PIR Motion Detector to Watchdog zones of the Control Panel.
When the Control Panel in the learning mode, then switch the Switch1 from OFF to ON, and trigger the PIR
Motion Detector by pass though it, the Control Panel will learn the code from the wireless PIR Motion Detector
automatically. When alert by long “Di----” sounds, means the wireless PIR Motion Detector was learned to the
A0 Position, please switch the switch back to OFF. If alert by “Di Di” two sounds, then means the operation
failure, please switch it back to OFF then retry again.
Switch the Switch2, Switch3, and Switch4 from OFF to ON one by one to learn the 2nd, and 3rd, 4th Wireless
PIR Motion Detectors to the Control Panel.
Notice:
When the wireless PIR Motion detection is PIR-100B, please remember setup the PIR-100B to Test Mode while learning to the
Control Panel, after learned to the Control Panel, then please setup to Normal Mode by change the Black PIN Jumpers in the
PCB, please see the PIR-100B user manual.
When the wireless PIR Motion Detector is PIR-100A, or CPIR-100A, or CPIR-100B, please refer to 7.2 Notice. The differences of
Page 13 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 13 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com

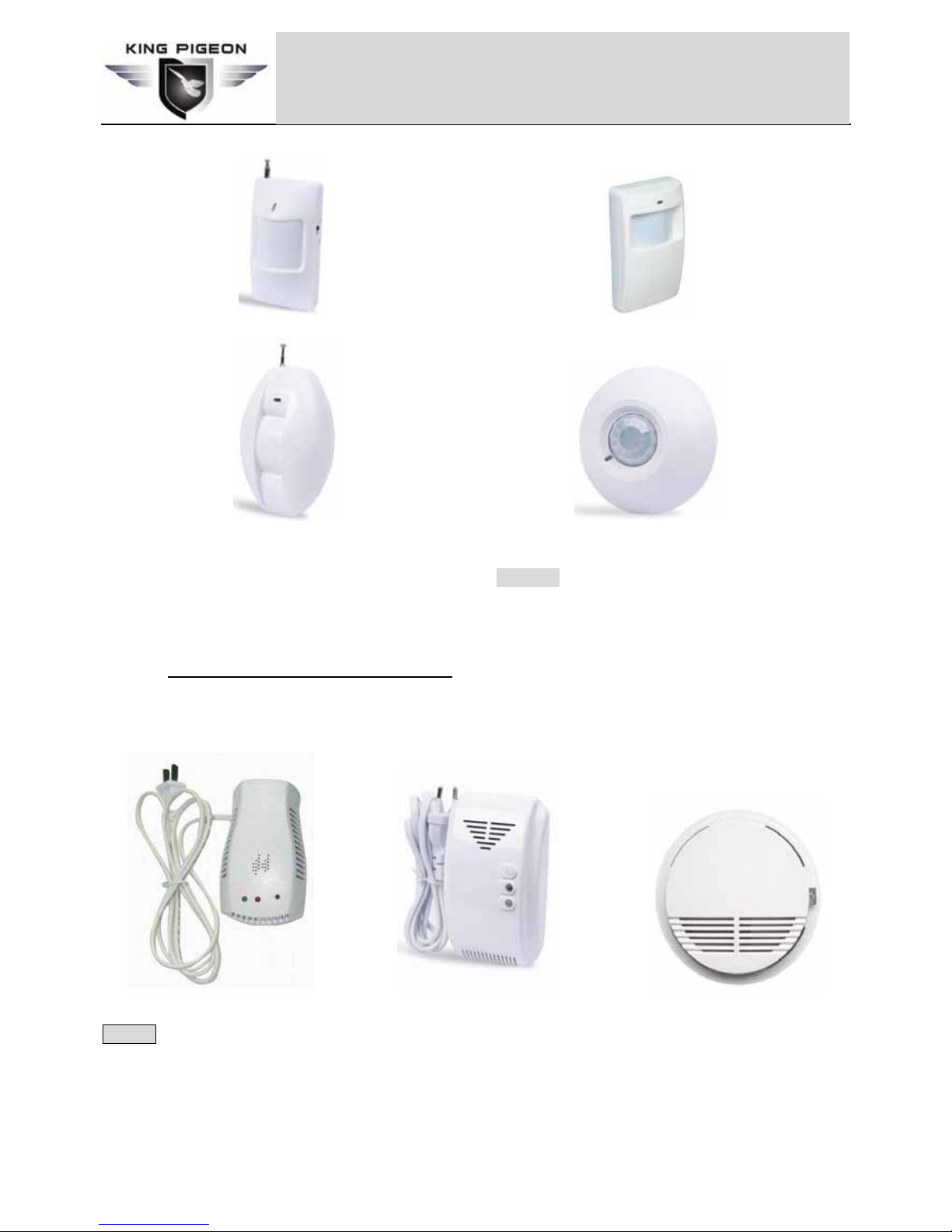

PIR Motion Curtain Motion and Ceiling motion detector are the detection areas.
WirelessPIRMotionDetectorPIR100AWirelessDualElementPIRMotionDetectorPIR100B
WirelessCurtainPIRMotionDetectorCPIR100AWirelessCeilingPIRMotionDetectorCPIR100B
7.2 Add the Wireless Detectors to 24-Hour zones of the Control Panel.
When the Control Panel in the learning mode, switch the Switch5 from OFF to ON, then trigger the Wireless
Detector(Usually wireless gas leakage detector and wireless smoke detector with Test button, press the Test
Button can activate the wireless detectors.), the Control Panel will learn the code from the wireless Detector
automatically. When alert by long “Di----” sounds, means the wireless Detector was learned to the Switch5
Position, please switch the switch back to OFF. If alert by “Di Di” two sounds, then means the operation
failure, please switch it back to OFF then retry again.
Switch the Switch6, Switch7 from OFF to ON one by one to learn the 2nd, 3rd Wireless Detectors to the Control
Panel.
WirelessGasLeakageDetectorGL100WirelessGas LeakageDetectorGL100AWirelessSmokeDetectorSM100
Notice:
The Wireless Gas Leakage Detectors and Wireless Smoke Detectors with PT2262 fixed IC code, please setup its wireless code
by use some Jumpers to configured it randomly is ok, see below:
1) Prepare the wireless gas leakage detector or smoke detector, removing the back cover carefully;
2) Locate the IC boards black jumpers, labeled A0-A7 and D0-D3, please see below figure.
3) Configured the A0~A7 and D0~D3 different from each wireless detectors. If configured the A0~A7 and D0~D3 are the same,
Page 14 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 14 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
the system will treat them as the same one sensor. So if you want to add more than one wireless smoke detector to Siwtch5
position or Switch6 Position please configured the jumpers as the same.
4) Also, please check the Resistors value is 3.3M Ohm, there’re 3 Jumpers, 1.5M, 3.3M, and 4.7M. if you select incorrect value,
the wireless distance usually very short or cannot learn to the Control Panel.
7.3 Add the Wireless Panic Buttons to Panic Button Zones of the Control Panel.
When the Control Panel in the learning mode, switch the Switch8 from OFF to ON, then trigger the Wireless
Panic Button by press the button, the Control Panel will learn the code from the Panic Button automatically.
When alert by long “Di----” sounds, means the Panic Button was learned to the A7 Position,please switch the
switch back to OFF. If alert by “Di Di” two sounds, then means the operation failure, please switch it back to
OFF then retry again.
Switch the switch9, Switch10 from OFF to ON one by one to learn the 2nd, 3rd Panic Buttons to the Control
Panel.
WirelessWaterproofPanicButtonEM60WirelessEmergencyButtonEM100WirelessEmergencyButtonEM100A
7.4 Add the Wireless Strobe Siren to the Control Panel. (Optional Function)
In the Control Panel, we equipped a wireless transmitter for wireless Strobe Siren, the wireless code was fixed
by our factory, no need to learn it any more, when alarm occurrence, the transmitter will transmit the signal to
active the wireless strobe siren to sound 4 minutes. (It must be setup as enable the wireless strobe siren in the
PC Configurator firstly.)
WirelessStrobeSirenSR60
Notice:
1) The Control Panel can support unlimited wireless strobe siren, because of the wireless strobe siren with the same
wireless code in the wireless receiver.
Page 15 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 15 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
2) When the AC power goes off, the transmitter of the wireless strobe siren will stop to transmit wireless signal to the
wireless strobe siren, so the wireless strobe siren will not work.
7.5 Remove wireless accessories.
After learned the wireless accessories to the Control Panel, it can be replaced by learning a new
wireless detector to its position to in stand of it. If you want to remove the wireless detector in specified
position, then please reset to remove all wireless detectors and re-learn the other wireless detectors
again.
8. Reset to Factory Default
The control panel can be reset to the factory default by following operation: Switch off the Control Panel, then
press the Reset Button (S1, nearby the SIMCard Socket), Switch on the Control Panel, about 3Seconds later,
the control panel will make “Di Di Di” 3 sounds, then loose the reset button, means the reset operation
successful.
After this operation, all the added wireless detectors and wireless panic buttons will be removed from the
control panel, and all of the settings will be reset to the factory default.
9. Installation
Before installing the Control Panel and detectors and sirens, please help to test the system firstly, including
power supply, gsm signal, etc.
9.1 Insert SIMcard into Control Panel
In the backside of the Control Panel, please install the GSM SIM card . The GSM ANT must be
Vertical installation to ensure it in good working condition if you use the external GSM ANT. the Control Panel
cannot support external GSM ANT and internal GSM ANT at the same, so according to your condition to
choose one. The external GSM ANT with big gain so that is better when the GSM Signal is not good. In the
cover, we remain the external hole for the user to use external GSM Antenna, please ask the engineer to
change it if you need it. The hole is at the corner and very easy to remove the shutter.
Page 16 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 16 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
9.2 Install the Control Panel
The Control Panel should be installed in the position that person can easily touch it, and there’re with a
power source as well as enough GSM signal coverage. But make sure it is far away the electricity
equipments, and 10meters away from the wireless strobe siren to avoid the interference.
9.3 Install the Wireless Accessories
1) The Wireless PIR Motion detectors are used for monitoring the person movement. We recommend
assigning them to Watchdog Zone. So please install them in the positions where the person must pass
through, like the door of the bedroom, dining room, cooking room, and washing room, etc. The effective
detection area is about 8-12meters front of the wireless PIR Motion Detector, more about it please read
the PIR Motion Detector user manual.
2) The Wireless Gas Leakage detector is for monitoring the gas leakage, LPG leakage. We recommend
assigning it to 24 Hours Zone. So please install it nearby the gas valve or gas bottle. More about it please
read its user manual.
3) The Wireless Smoke Detector is for monitoring the smoke, fire alarm. We recommend assigning it to 24
Hours Zone. So please install it in the place where easily to cause fire case. More about it please read its
user manual.
4) The wireless water leakage detector is for monitoring the water leakage and flood. We recommend
assigning it to 24 Hours Zone. More about it please read its user manual.
5) The Wireless Panic Button or worn waterproof is for emergency help. We recommend assigning them to
the Panic Button Zones.
6) The Wireless Strobe Siren is for warning when any alarm occurrence. We recommend installing it about
10meters away from the control panel. And nearby the windows, so that when the strobe siren alarming,
the outside people can see it easily. The Control panel can accept more than one wireless strobe siren.
10. Technical specifications
Parameter Item Reference Scope
DC Power supply Standard adapter: DC9V/1A
GSM Frequency Quad-band(850/900/1800/1900Mhz)
SIM Card Supporting 3V SIM Card
GSM Antenna 50 ΩSMA Antenna interface, internal.
Wireless Frequency 433.92Mhz
Worn Panic Button Transmission Dist. 60meters in open air.
Wireless Detectors Transmission Dist. 100meters in open air
Acceptable Max. Worn Panic Button 3Pcs(If not use 24-Hour zones then is 6Pcs)
Acceptable Max. Wireless Detectors 7Pcs(4 for watchdog zones, 3 for 24-Hour zones, if not use Worn Panic
Button and Wireless Panic Button then is 6Pcs for 24-Hour Zones )
Acceptable Max. Wireless Strobe Siren Unlimited (Optional Function)
Max. Distance of the Wireless Siren Transmitte
r
100meters in open air(Optional Function)
Backup Battery 3.7V 900mAh Rechargeable Lithium Battery
Temperature range -20-+60 °C
Humidity range Relative humidity 90% (condensation free)
Exterior dimension 80mm*90mm*20mm
Net Weight 300 g
Page 17 of 17 King Pigeon Hi-Tech. Co., Ltd. Page 17 of 17 Ver 1.1 File No.:KPA1010
A Professional GSM Alarm System designer and manufacturer!
GSM SMS Controller System &GSM House Alarm System&
GSM Elderly Guarder & GPRS Telemetry Data Logger.
Http://www.GSMalarmsystem.com
11. Warranty
1) This system is warranted to be free of defects in material and workmanship for one year from the date of
purchase.
2) This warranty does not extend to any defect, malfunction or failure caused by abuse or misuse by the
Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by
purchasers.
12.Trouble Shooting Guide
PROBLEM CAUSE POSSIBLE SOLUTION
GSM Module
initialization
failed
1) Backup battery with low voltage;
GSM Module connection
loose in transportation;
2) GSM Signal is too weak.
1) Please contact the AC Power;
2) Please help to take the panel to a mobile phone repairmen store, and
then ask the engineer to check the GSM Module socket and the
GSM Module connection;
3) Please change another position to install the alarm panel.
Automatically
Restart
1) Backup battery with low
voltage.
1) Please help to contact the AC Power.
False Alarm 1) PIR Motion sensor installation
incorrect;
1) Please see the PIR Motion sensor installation user manual carefully.
Alarm without
SMS /Dial/
No action after
send SMS
1) GSM Operator
communication protocol;
2) Haven’t setup SMS Alert/Auto
dial Numbers.
3) Caps Lock letters in the SMS.
1) Please setup the SMS Alert Numbers;
2) Please help to see the sample of setup the telephone numbers;
3) Please check the commands with CAPS LOCK and correct format.
4) Also, please help to change another GSM Operator SIMCard to test
it.
Cannot call the
control panel
1) Country code incorrect;
2) GSM Signal is too weak
1) Please check plus the country code, e.g.: 0086 or +86;
2) Please put the control panel in strong signal coverage area or ask the
engineer to change the long GSM ANT.
Big noise while
two way
communication
1) Near-Cross interference;
2) GSM Signal is too weak.
1) Please make sure the other phone is more than 500meters away
from the control panel;
2) Please put the control panel in strong signal coverage area or ask the
engineer to change the long GSM ANT.
The End!
Any questions please help to contact us feel free.
Http://www.GSMalarmsystem.com Http://www.KingPigeon.com.cn
Table of contents
Other King Pigeon Security System manuals
King Pigeon
King Pigeon S120 User manual
King Pigeon
King Pigeon RTU5023 User manual
King Pigeon
King Pigeon RTU5023 User manual
King Pigeon
King Pigeon S800 User manual
King Pigeon
King Pigeon S3526 User manual
King Pigeon
King Pigeon S3622 User manual
King Pigeon
King Pigeon K9 User manual
King Pigeon
King Pigeon K1 User manual
King Pigeon
King Pigeon S100Pro User manual
King Pigeon
King Pigeon GSM 3G M2M RTU User manual
