Kingdy WP-9L Series User manual

Waterproof Industrial Touch Panel
PC
WP-9L Series
User Manual

1
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Content
• Package Contents .…………………………………………………………………….....…………………. 02
• Safety Instructions ……………………………………………………………………………..……………. 03
• FCC & CE Statement ………………………………………………………………..…………………….. 04
• Introduction …………………………………………………………………………………………………… 05
• Features …………………………………………………………………………………………………...…. 06
• Motherboard Specification ……………………………………...………………………………………….. 07
• System Specification …………...…………………………………………………………………………… 08
• Connector Location …………………………………………………………………………………………. 09
• Mounting Installation ………………………………………………………………………………………… 10
• Bios setup ………………………………………………………………………………...……………….…. 11
• Driver Installation …………………………………………………………………..…………………….…. 25
• Contact Information ……………………………………………………………………..……………….…. 26

2
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Package Contents
Please make sure that the items shown below are included in the package. Should an item be missing, please contact
the local retailer from which you purchased this product.
• 1 x Industrial Touch Panel PC
• 1 x DC in Power adapter
• 1 x Power cord
•1xCD
• 4 x screws (M3 x 4) for 2.5” HDD or SSD (If customers order 2.5” HDD or SSD from our side, we don’t offer 4 screws)

3
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Safety Instructions
9. Servicing: Do not attempt to service this equipment
yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
10. Damage Requiring Service: Unplug this equipment
from the outlet and refer servicing to qualified
service personnel under the following conditions: a)
if the power cord or plug is damaged; b) if liquid has
penetrated into the equipment; c) if the equipment
has been exposed to moisture; d) if the equipment
does not work well, or you cannot get it to work
according to the user’s manual; e) if the equipment
has been dropped and damaged; f) if the equipment
has obvious signs of breakage.
11. Do not leave this equipment in an environment
where the storage temperature is below -10°C or
above 70°C. It may damage the equipment.
12. Do not open the sealed enclosure / case of
equipment. Once enclosure is disassembled without
approval, it will lead in abnormal operating of water
proof gel. For Guarantee of water proof function,
please make sure configuration / peripheral has
been confirmed to install before shipping.
1. Read Instructions: All the safety and operating
instructions should be read before the equipment is
operated.
2. Retain Instructions: The safety and operating
instructions should be retained for future reference.
3. Cleaning: Unplug this equipment from the outlet
before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
4. Water and Moisture: Do not use this equipment
near water.
5. Ventilation: The openings on the enclosure are
provided for ventilation to ensure reliable operation
of the equipment and to protect it from overheating.
These openings should never be blocked.
6. Power Sources: This equipment should be operated
only from the type of power source indicated on the
rating label. If you are not sure of the type of power
supply, consult your dealer or local power company.
7. Heed Warnings: All warnings on the equipment and
in the operating instructions should be adhered to.
8. Object and Liquid Entry: Never push objects of any
kind into this equipment through openings as they
may touch dangerous voltage points or shout-out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the equipment.

4
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Regulatory Compliance Statements
FCC
This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that may cause undesired operation.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE
marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE
compliance also requires proper cable and cabling techniques.

5
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Introduction
WP-9L series is a fanless AMD T40N 1.0Ghz fully IP65 Industrial stainless steel touch Panel PC. With
its fanless, robust, waterproof and stainless steel feature, it is an ideal solution for noise-free operating
environment. Size selection is from 15”, 17" to 19" for your choice.
Fully IP65 stainless steel touch panel PCs feature a variety of CPU, flexible memory, rich I/O ports
and wireless function, It can work with different operation systems for different application such as
industrial automation,foodand medical application, etc.
With high quality stainless steelchassis covered around, full IP65 Industrial Panel Computer is
completely water proof. Our system is made of industrial grade mother board, waterproof IP65
connectors, compact design chassis construction, industrial LCD display, user-friendly touch screen,
I/O connection for network support and VESA mounting support.

6
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Features
zAMD T40N 1.0Ghz
zCPU on board
zFully IP65 compliant 6 sides stainless steel chassis with hairy brush finish
zFanless solution and compact design
zLow power consumption
zAll IP65 waterproof stainless steel connectors including power switch with green LED indication
zUp to 2 x GLAN
zUp to 3 x RS232
zUp to 2 x USB
z1024 x 768 dpi (15”)
z1280 x 1024 dpi (17” and 19”)

7
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Motherboard Specification
OutputSystem reset,Programmable 1 ~255 sec/minWatchdog Timer
DC 12VinputPower
- 2 x USB 2.0/1.1 - 2 xRS-232/422/485 - 1 x LVDS
- 1 xLCD inverter -1 x8-bitdigital I/O connector - 1 x Audio
- 1 x SATA
Internal I/O
1 xMini PCIe, 1x connectorfor daughterboardexpansion (2 xPCIe x1,4 x USB2.0, 1xLPC)Expansion
1 xSATA3.0,1 x CFStorage
2 x Realtek® RTL8111DL 10/100/1000 MbpsEthernet
Realtek® ALC886 5.1-channel High Definition AudioAudio
Controller: AMD® Radeon™ HD 6290
Interface:1 xVGA, 1x 24-bitLVDS,1 x HDMI
Display
AMI 64 Mbit SPI BIOSBIOS
Operating temperature:0°C ~ 60°C
Storage temperature: -20°C ~ 85°C
Environment
- 1 x HDMI -1 xVGA -2 x RJ45 LAN
- 2 x USB 2.0/1.1 - 1 x12V DC-in
Rear Panel I/O Port
1 x 204-pin SODIMM socket supports DDR3 1066MHz up to 8GBMemory
AMDA50MChipset
AMDT40N1.0GHz,2 x512KBL2cacheCPU
KD951- DT40NModel Name

8
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
System Specification
No touch screen,Memory,Storagedevices, WIFI, OSOptional Items
Windows7 Pro,Embedded 7OS
0% - 95%non-condensingRelative Humidity
-10°C ~ 70°CStorageTemperature
0°C~45°COperationTemperature
14 kg12Kg8 kgWeight
450 x385 x67mm425 x361 x67mm379 x288 x67mmDimension (W x H x D)
VESA mounting100 x100mmInstallation
5-wire resistive5-wire resistive5-wire resistiveTouch Screen
50,000hrs50,000hrs50,000hrsMTBF
140/125140/125140/125Viewing Angle (H/V°)
1000:1800:1700:1Contrast Ratio
250300400Luminance (cd/m2)
16.7 M16.7M16.2MColors
1280 x10241280 x10241024 x768Resolution
(4:3) 19”(4:3) 17”(4:3) 15”Size/Type
Display
1 x CF card socket,1 xMini PCIe slotExpansion
BackBackBottomI/OPort’sLocation
2 x COM port, 1x GLAN,1 xUSB2.0,2 xSATA socket
Extra secondGLANoptional, Extra secondUSBoptional
I/OPorts
DC in 12Vexternal power adapter (Full IP65 external poweradapter optional)PowerSupply
1 x DDR III SODIMM up to 8 GBMemory
AMDA50MChipset
AMDT40N1.0GhzCPU
WP-9LR19TWP-9LR17TWP-9LR15TModel Name

9
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
Connector Location
123451
2
3
4
5RS232
Power Switch
DC-in
GLAN
USB
15” 17” or 19”
12345

10
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
VESA Mounting Installation
Mount Wall or Object
······ Sep 1: screw the VESA mounting plate to the Panel PC
······ Step2: screw the VESA mounting bracket to the front of a wall or the front / back of an object dependingly
······ Step3: slide the VESA mounting plate onto the VESA mounting bracket
VESA Mounting Bracket VESA Mounting Bracket
Screws
Screw Holes for VESA
Mounting Installation
Panel PC
(Back Side)

11
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
Main
The Main menu is the first screen that you will see when
you enter the BIOS Setup Utility.
System Date
The date format is <day>, <month>, <date>, <year>. Day
displays a day, from Sunday to Saturday. Month displays
the month, from January to December. Date displays the
date, from 1 to 31. Year displays the year, from 1980 to
2099.
System Time
The time format is <hour>, <minute>, <second>. The
time is based on the 24-hour military-time clock. For
example, 1 p.m. is 13:00:00. Hour displays hours from 00
to 23. Minute displays minutes from 00 to 59. Second
displays seconds from 00 to 59.
Advanced
The Advanced menu allows you to configure your system
for basic operation. Some entries are defaults required
by the system board, while others, if enabled, will
improve the performance of your system or let you set
some features according to your preference.
Important: Setting incorrect field values may cause
the system to malfunction.
Launch PXE OpROM
Enables or disables the boot option for legacy network
devices.
Launch Storage OpROM
Enables or disables the boot option for legacy mass
storage devices with option ROM.

12
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
PCI Subsystem Settings
This section is used toconfigure the PCI subsystem
settings.
ACPI Power Management Configuration
This section is used to configure the ACPI Power
Management.
ACPI Sleep State
Selects the highest ACPI sleep state the system will
enter when the Suspend button is pressed.
S1(POS) Enables the Power On Suspend function.
S3(STR) Enables the Suspend to RAM function.
Resume by PME
Enable this field to use the PME signal to wake up the
system.
Wake system with fixed time
Enable or disable system wake on alarm event. When
enabled, system will wake on the hr::min::sec specified.

13
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup

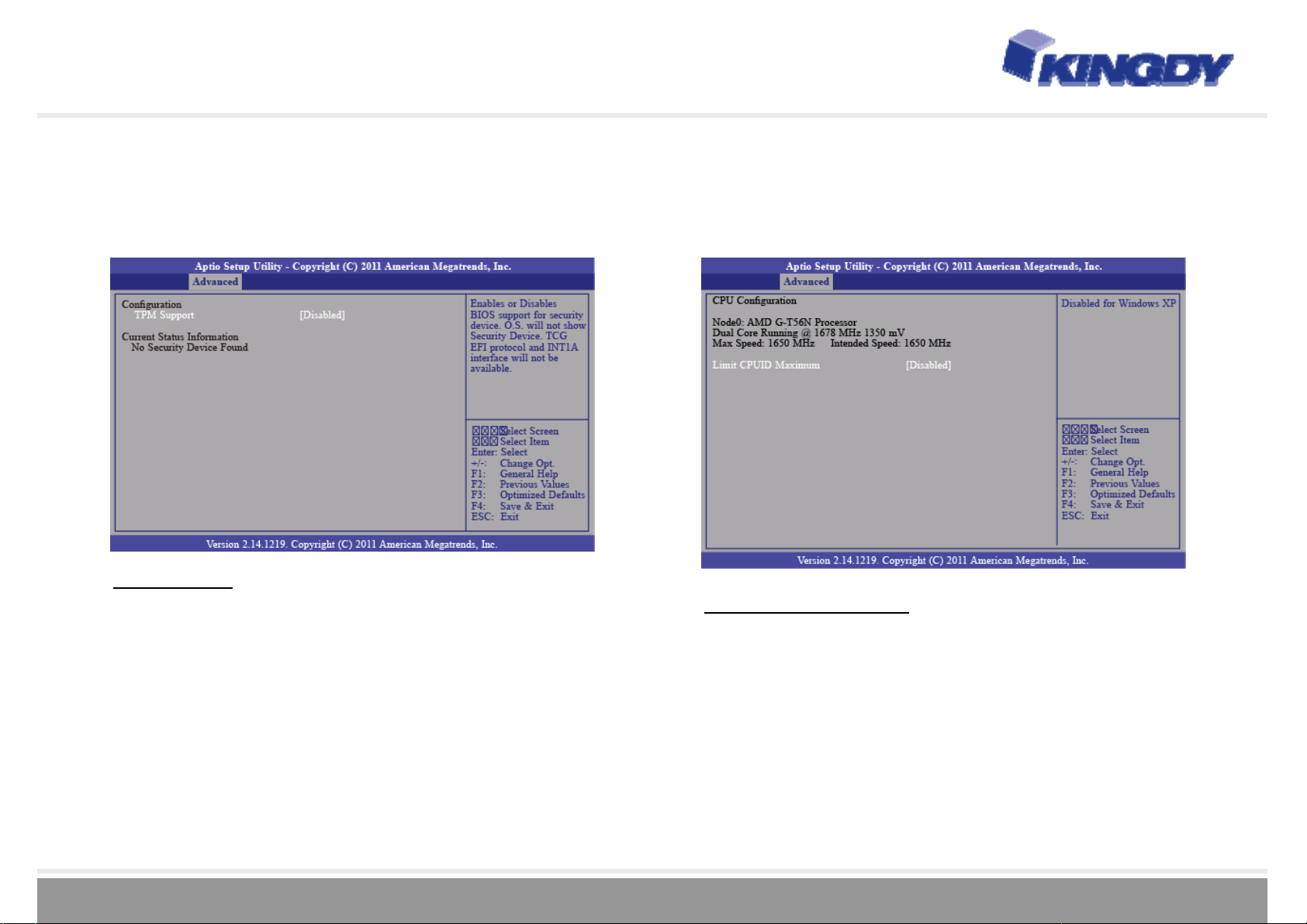

Trusted Computing (optional)
This section configures settings relevant to Trusted
Computing innovations.
TPM Support
Enables or Disables TPM. O.S. will not show TPM.
Resetting the platform is required.
CPU Configuration
This section is used to configure the CPU. It will also
display the detected CPU information.
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a
value greater than 3. The default is Disabled because
this problem does not exist in the Windows series
operating systems. If you are using an operating system
other than Windows, this problem may occur. To avoid
this problem, enable this field to limit the return value to 3
or less than 3.

14
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
IDE Configuration
This section is used to configure IDE functions.
OnChip SATA Type
This field is used to configure the SATA devices
supported by the AMD T56N/T40N.
Native IDE This option configures the Serial ATA drives
as Parallel ATA storage devices.
RAID This option allows you to create RAID on Serial
ATA devices.
AHCI This option allows the Serial ATA devices to use
AHCI (Advanced Host Controller Interface).
Legacy IDE This option configures the Serial ATA drives
as Legacy IDE storage devices.
USB Configuration
This section is used to configure USB.
Legacy USB Support
Enabled
Enables legacy USB.
Auto
Disables support for legacy when no USB devices are
connected.
Disabled
Keeps USB devices available only for EFI applications.
EHCI Hand-off
This is a workaround for OSes that does not support
EHCI hand-off. The EHCI ownership change should be
claimed by the EHCI driver.
Device reset time-out
Selects the USB mass storage device start unit
command timeout.

15
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
Super IO Configuration
This section is used to configure the serial port functions.
Case Open Beep
Set this field to Enabled to allow the system to alert you
of a chassis intrusion event.
Watchdog
This field is used to enable or disable the Watchdog
Timer function.
AC Power Loss
Turns Off
When power returns after an AC power failure, the
system’s power is off. You must press the Power button
to power-on the system.
Turns On
When power returns after an AC power failure, the
system will automatically power-on.
Former-Sts
When power returns after an AC power failure, the
system will return to the state where you left off before
power failure occurs. If the system’s power is off when
AC power failure occurs, it will remain off when power
returns. If the system’s power is on when AC power
failure occurs, the system will power-on when power
returns

16
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
Serial Port 0 Configuration to Serial Port 1
Configuration
Serial Port
Enables or disables the serial port.
Change Settings
Selects the IO/IRQ setting of the I/O device.
PC Health Status
This section displays the SIO hardware health monitor.

17
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
JMB36X ATA Controller Configuration Chipset
Configures relevant chipset functions.

18
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
North Bridge Configuration GFX Configuration
NB GPP Core Config
Selects the NB GPP Core configuration.

19
Copyright © 2013 Kingdy Technology Inc. AllRights Reserved. WP-9L Series
BIOS Setup
Memory Configuration Node 0 Information
