KingsBottle KB110 Series User manual

USER MANUAL
KB110 SERIES
KB152 SERIES
KB308 SERIES
KB405 SERIES
COMPRESSOR REFRIGERATORS
!
www.kingsbottle.com.au

Congratulations
!
Thank you for choosing KingsBottle
refrigerators.
!
Do not operate this appliance for a
minimum of 2 hours once the unit is
located in its final position.
!
We are sure you will find your new
appliance an absolute pleasure to use
and that it will bring you many years of
trouble-free operation.
!
Before installing and switching this unit
on please read through all of the relevant
sections of this manual to gain an
understanding of your refrigerators
functions, care, and maintenance
requirements.
!
To avoid the risks that are present when
using an electrical appliance, it is
important that this unit is installed
correctly. Please read the safety
instructions carefully to avoid any
possibility of misuse, and any unforeseen
hazards.
!
We recommend that you keep this
instruction booklet for future reference
and request that you pass it on to any
future owner.
!
After unpacking the appliance, check
thoroughly to ensure that the unit is not
damaged in any way. If in doubt, do not
use the appliance and make immediate
contact with your local customer care
centre.
!
!

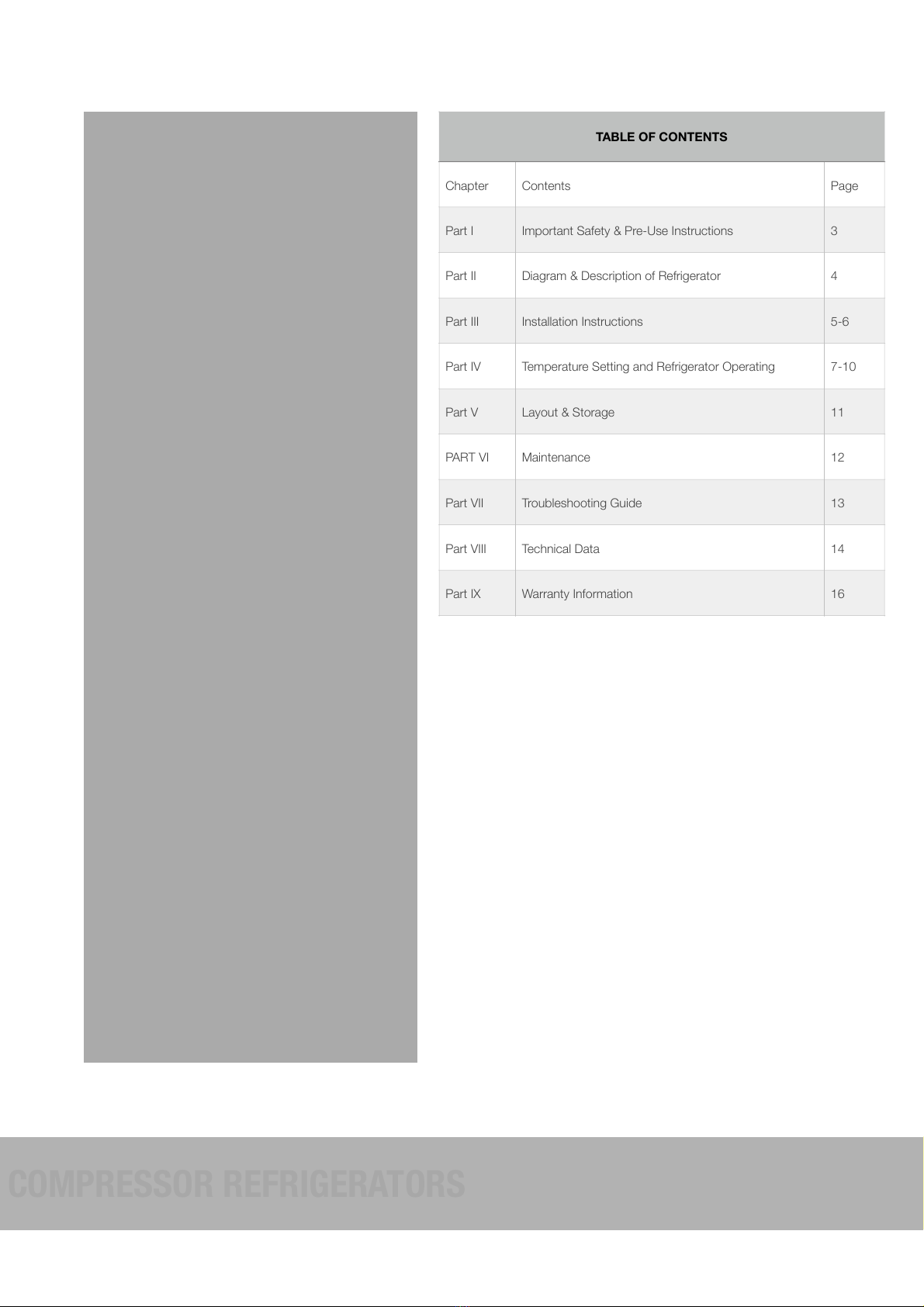

CONTENTS
TABLE OF CONTENTS
Chapter
Contents
Page
Part I
Important Safety & Pre-Use Instructions
3
Part II
Diagram & Description of Refrigerator
4
Part III
Installation Instructions!
5-6
Part IV
Temperature Setting and Refrigerator Operating
7-10
Part V
Layout & Storage
11
PART VI
Maintenance
12
Part VII
Troubleshooting Guide
13
Part VIII
Technical Data
14
Part IX
Warranty Information
16
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 2

PART I IMPORTANT SAFETY INSTRUCTIONS
Please read the user manual carefully and store in a handy
place for later reference . The symbols you will see in this
booklet have these meanings:
!
!
!
This symbol indicates information concerning your personal safety
!
!
!
This symbol indicates information on how to avoid damaging the
appliance !
!
!
This symbol indicates tips and information about use of the
appliance !
!
!
This symbol indicates tips and information about economical and
ecological use of the appliance
!
!
!
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY WHEN USING YOUR APPLIANCE, FOLLOW THESE
BASIC PRECAUTIONS:!
1. Read all instructions before using this refrigerator.
2. DANGER or WARNING: Risk of child entrapment. Child
entrapment and suffocation are not simply problems of the
past. Junked or abandoned appliances are still
dangerous… even if they “just sit in the garage for a few
days”.
3. Before you throw away your old refrigerator:
•Take off the door.
•Leave the shelves in place so that children do not climb
inside easily.
4. Never allow children to operate, play with, or crawl inside
the appliance.
5. Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
6. Do not store in the vicinity of any other appliance. Do not
store near gasoline or any other flammable vapors. The
fumes can create a fire hazard or explosion.
!
!
!!
!
!
1. The refrigerator must be plugged into its own dedicated
220/240v, electrical outlet.
2. The plug and switch must be accessible when the
refrigerator is in position.
3. It is essential that the power point is properly earthed to the
ground. Consult a qualified electrician if you are unsure.
4. Avoid the use of extension cords, adapter plugs, and
power boards (unless they are surge protected).
5. If the power cord is ever damaged, have it replaced by a
qualified service technician.
6. Unplug the unit before cleaning it, or changing the light bulb
to avoid the risk of electrical shock.
7. Never unplug the unit by pulling the electrical cord as this
may damage it. Grip the plug firmly at its widest point and
pull straight out.
8. Place your refrigerator in a dry place – avoid areas of high
moisture or humidity.
9. Avoid placing the unit in frosty or unprotected areas such
as a balcony or verandah. Covered alfresco areas are fine.
10.Keep the unit out of direct sunlight.
11.Do not locate the unit near stoves, fires or heaters.
12.When installed correctly, your refrigerator should:
•Have adequate space at the back and sides for air
circulation, and to prevent power cord damage.
•Be aligned with the surrounding cupboards.
•Be level. Adjust the feet accordingly. Use a spirit level if
unsure.
!
!
!
BEFORE USING YOUR REFRIGERATOR"!
1. Remove the exterior and interior packing.
2. Before turning the refrigerator on, please ensure that the
unit is in place and has been left to stand upright for a
minimum of 5 hours. This will reduce the possibility of a
malfunction in the cooling system from handling during the
transportation process.
3. Clean the interior surface with lukewarm water using a soft
cloth.

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;
SAFETY
!
www.kingsbottle.com.au! 3

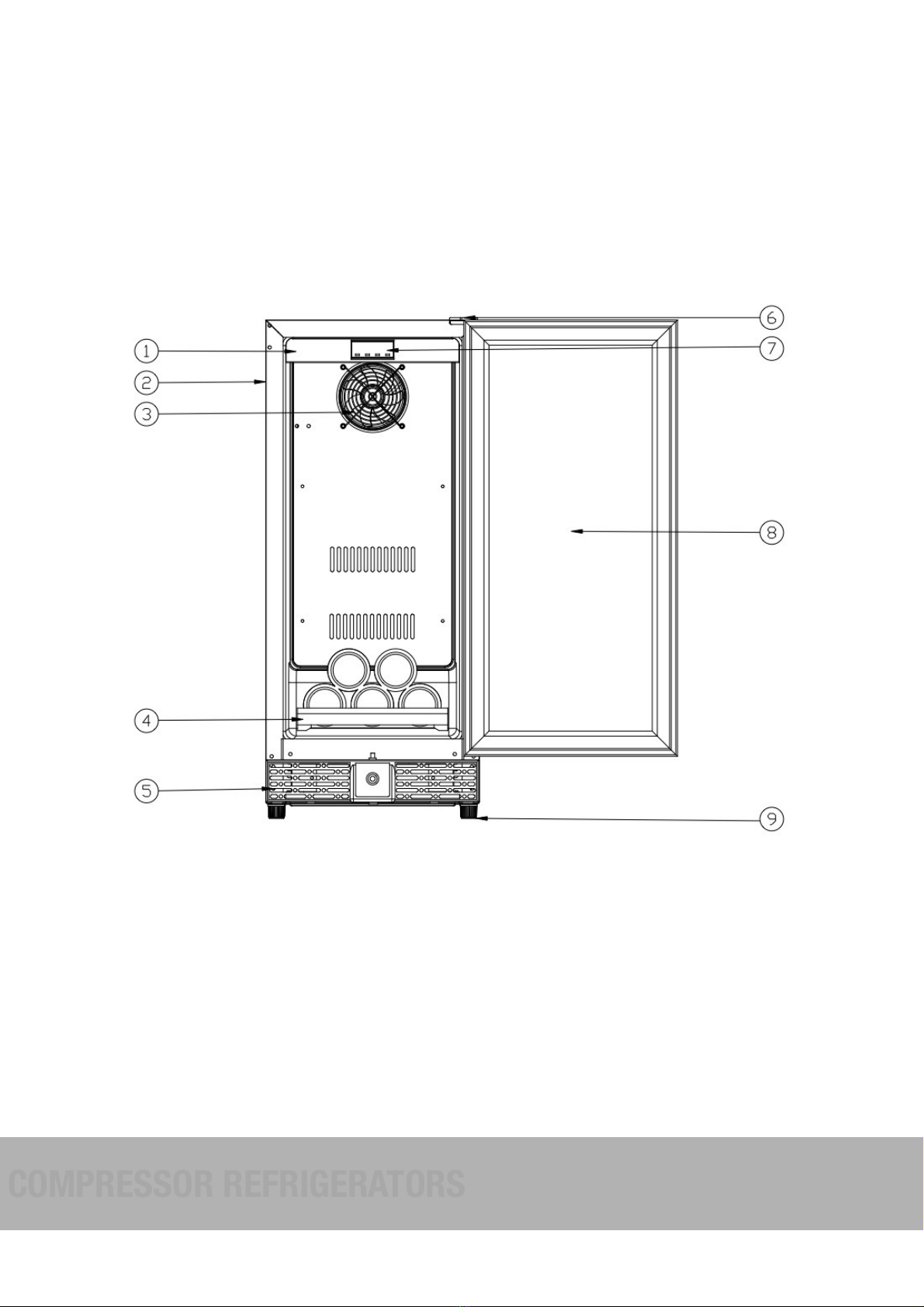

PART II!! DIAGRAM & DESCRIPTION OF REFRIGERATOR
FEATURES
1 Control board
2 Housing
3 Ventilation DC Fan
4 Shelf
5 Front grill
6 Door hinge
7 Controller
8 Door
9 Adjustable stand feet
YOUR REFRIGERATOR ALSO INCLUDES TWO KEYS TO OPERATE THE ROUNDED LOCKING!
MECHANISM WHICH IS SHOWN AT THE LOWER CENTRE POSITION OF THE DIAGRAM.!
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 4

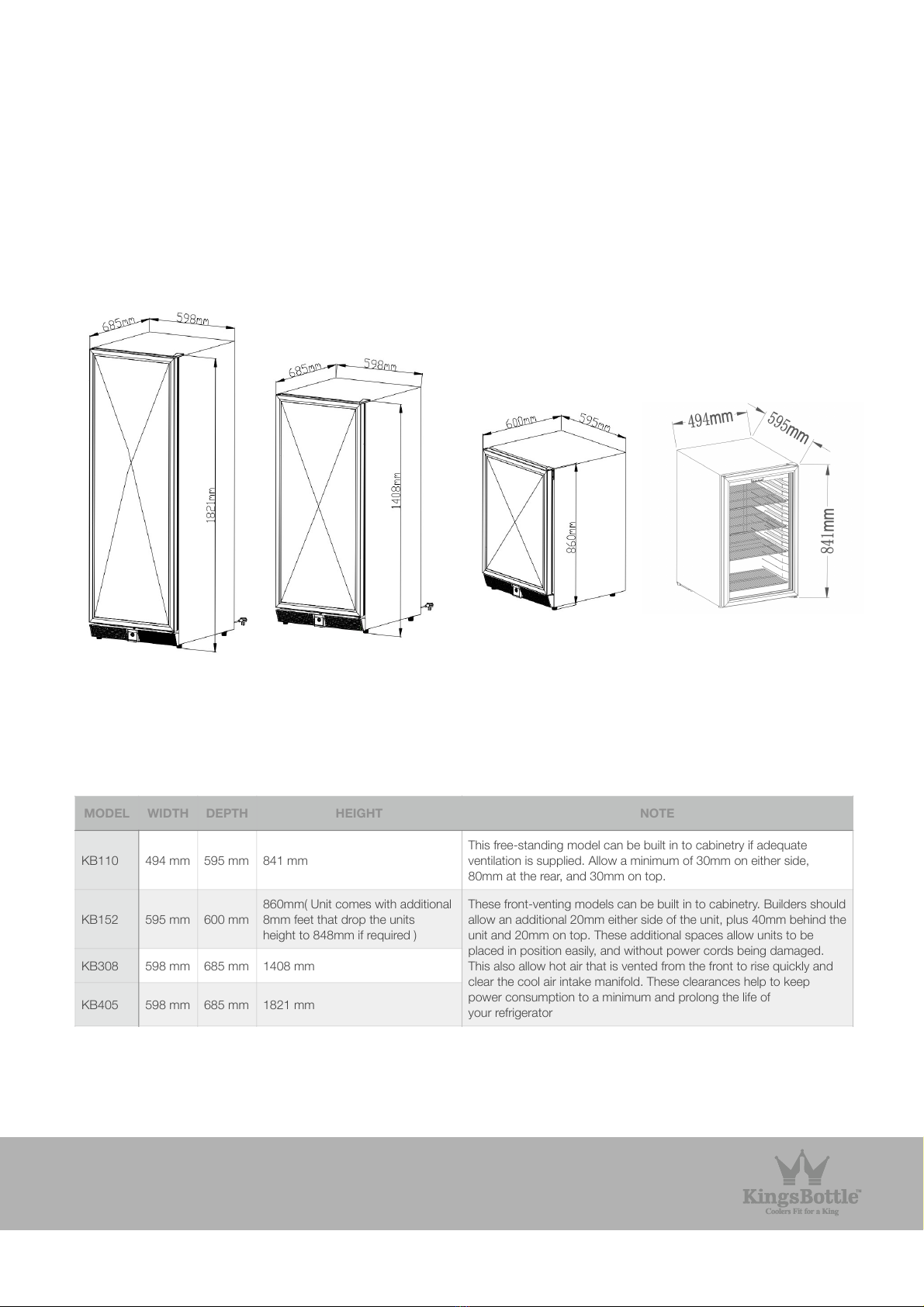

PART III!INSTALLATION INSTRUCTIONS
INSTALLATION
MODEL
WIDTH
DEPTH
HEIGHT
NOTE
KB110
494 mm
595 mm
841 mm
This"free-standing model can be built in to cabinetry if adequate
ventilation is"supplied. Allow a minimum of 30mm on either side,
80mm at the rear, and 30mm on top.
KB152
595 mm
600 mm
860mm( Unit comes with additional
8mm feet that drop the units
height"to 848mm if required )
These"front-venting models can be built in to cabinetry. Builders should
allow an"additional 20mm either side of the unit, plus 40mm behind the
unit and 20mm on"top. These additional spaces allow units to be
placed in position easily, and"without power"cords being damaged.
This also allow hot air that is vented from the"front to rise quickly and
clear the cool air intake manifold. These clearances"help to keep
power consumption to a minimum and prolong the life of
your"refrigerator
KB308
598 mm
685 mm
1408 mm
KB405
598 mm
685 mm
1821 mm
KB405
KB308
KB152
KB110
!
www.kingsbottle.com.au! 5

A. GENERAL INSTALLATION INSTRUCTIONS
1. These appliances can be used as a free standing or built-in unit. See the minimum clearances for built-in usage.
2. Place your refrigerator on a flat solid floor that is strong enough to support the unit when it is fully loaded. To level your refrigerator,
adjust the levelling screw-in feet at the bottom of the unit.
3. When moving or relocating your refrigerator do not incline the unit on more than a 45 degree angle.
4. Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight and heat sources
will increase electrical consumption and lower the life expectancy of your unit. Extreme cold ambient temperatures may also cause
the unit to misperform.
5. Avoid locating the unit in damp areas.
6. Plug the unit into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third
(ground) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified
electrician or authorized products service center.
PART III!INSTALLATION INSTRUCTIONS
INSTALLATION
B. INSTALLING YOUR REFRIGERATOR
!
1. Move the appliance into its final position .
2. Level the appliance by adjusting the feet.
3. Compare the alignment of the appliance to the surrounding cupboard . The
top of the appliance should be level from side to side (see diagram below) .
4. If the appliance now rocks from one corner to the opposite rear corner, this
means that the floor is uneven. You may need to put some packing under the
fridge to the rear of the appliance . You could use thin pieces of solid material
such as thin board, vinyl floor tiles or laminate .
5. You may now need to fine tune the installation by repeating steps 2, 3 and 4 .
6. Wipe off any dust that has accumulated during shipping and clean by
following the directions in Part VIII ( Care & Maintenance)
7. Plug the appliance into the power point. Do not use a double adaptor or
extension cord .
8. It is recommended that you let the appliance sit for an additional hour or two
before you put anything in it . This will confirm that it is operating correctly and
also to make any adjustments far easier.
!
Congratulations! You have successfully installed your cellar/refrigerator/freezer
!
DOOR LOCK
This unit comes with an optional key lock. The keys are located inside the plastic bag that contains the user manual. To unlock the door,
insert the key into the lock and turn counterclockwise. To lock the door, simply reverse the operation making sure the metal pin is
engaged completely. Then remove the key and place it is a secure place for safekeeping.
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 6

OPERATION
PART IV!OPERATING YOUR REFRIGERATOR
This KingsBottle Refrigerator series comes with the worlds best quality controller from CAREL in USA. Before using your Refrigerator, please
read these instructions carefully .
KEYBOARD :!
•UP/POWER: Increase the value / holding the button for at least 3 seconds, powers the unit ON or OFF.
•DOWN/LIGHT: decrease the value / holding the button for at lest half a seconds turns the interior light ON or OFF.
•SET/MUTE: Use SET after selecting values withe the up and down arrows / alarm mute button.
UP / POWER
DOWN / LIGHT
SET / MUTE
COMPRESSOR!
FAN!
DEFROST
ALARM
FIGURE
DISPLAY:
WIRING DIAGRAM:
LEDS AND ASSOCIATED FUNCTIONS:
!
www.kingsbottle.com.au! 7

ADJUST TEMPERATURE
1. Press the “SET / MUTE” button for more than 3
sec. ,the display shows the parameter code “ST/
VALUE/PS/0” , 0 is the PASSWORD.
2. Release the button when it shows ST/0.
3. Use the “UP” and “DOWN” buttons to adjust the
temperature.
4. Press SET / MUTE button, or if no button is
pressed for 5 seconds, the change of setting is
saved and the DISPLAY will show the actual
temperature.
MODIFYING THE PARAMETERS
!
The operating parameters are modifiable using the keypad.
Access to the parameters is protected by password (default = 22) to prevent accidental or unauthorised modifications.
!
Accessing the Parameters:
1. Press the “SET / MUTE” button for more than 5 sec. , the display shows the parameter code “PS/0”
2. Press the “SET / MUTE” button to access the password setting; the display shows the parameter starting value “0”; use the “UP” and
“DOWN” buttons to scroll the numbers until displaying “22” (default password);
3. Press the “SET / MUTE” button to confirm the password; the display shows the parameter code “PS” (password);
4. Repeat the following procedure for any parameter that needs to be modified :
4.1. Use the “UP” and “DOWN” buttons to scroll the parameters codes and choose the parameter that needs to be modified.
4.2. The Category of the parameter chose, determines the Initial letter of the code and the Icon that is turned on :!
4.3. Press “SET / MUTE” to display the value associated with the parameter code; increase or decrease the value using the “UP” or
”DOWN” button respectively;
4.4. Press “SET / MUTE” to temporarily save the new value and display the parameter code again;
!
WARNINGS:
If no button is pressed for 60 sec. or if the power is disconnected from the instrument before saving the settings : all of the changes
made to the parameters and temporarily saved in the RAM, will be cancelled and the previous settings will be restored.
5. Press “SET / MUTE” button for more than 3 sec. to permanently save the parameters and exit the parameter setting procedure.
!
SETTING THE DEFAULT VALUES
!
To reset the default parameters:
1. disconnect power from the instrument;
2. reconnect power while holding both the “SET / MUTE” and “DOWN / LIGHT” buttons;
3. the display will show the message “CF”;
4. after a few seconds the instrument starts operating with the default configuration. Any different parameter settings will need to be
updated.
!
WARNINGS:
running this procedure overwrites any custom parameter settings.
!!ON
Compressor
activation
request
!!OFF
OPERATION
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 8

CODE
DESCRIPTION
MIN
MAX
UOM
DEFAULT
PS
password
0
200
-
22
!
PROBE PARAMETERS
!
!
!
/2
probe measurement stability
1
15
-
10
/4
select probe/input displayed ( /4=1, display air probe; /4=2, display
evaporator probe; /4=3, display the status of LED figure ON or OFF)
1
3
-
1
/5
select °C/°F (0= °C; 1= °F )
0
1
-
0
/6
disable decimal point
0
1
-
1
/C1
probe 1 offset
-12,7
12,7
(°C/°F) / 10
0.9
/C2
probe 2 offset
-12,7
12,7
(°C/°F) / 10
0
!
CONTROL PARAMETERS
!
!
!
St
user set point
r1
r2
°C/°F
5
rd
STANDARD differential
0,0
19,0
°C/°F
2
r1
minimum set point allowed to the user
-50
r2
°C/°F
1
r2
maximum set point allowed
r1
150
°C/°F
18
!
COMPRESSOR PARAMETERS
!
!
!
c0
Start delay when COMPRESSOR ON is required by the Regulation
1
200
Min
6
c1
delay between 2 consecutive starts
0
100
Min
0
c2
minimum compressor OFF time
0
100
Min
6
c3
minimum compressor ON time
0
100
Min
0
c4
compressor ON time with duty setting
0
100
Min
0
!
DEFROST PARAMETERS
!
!
!
d0
Type of defrost
0
2
-
1
dI
Start defrost condition : interval time
0
199
Hours
6
ds
defrost interval time calculating:
ds=0, calculate time of compressor operating
ds=1, calculate time after power ON
0
1
-
1
dt
End defrost condition : evaporator temperature threshold
-50
127
°C/°F
15
dP
End defrost condition : max time defrost duration
1
199
Min
20
d4
if defrost when switching the instrument on ( 0=no ; 1=yes )
0
1
-
0
dH
defrost delay on power-up ( when d4=1)
0
199
Min
0
d6
temperature displayed “frozen” during defrost ( when d6=0 “dF” is
displayed);
Freeze regulation probe temperature before defrost start (when d6=1)
0
1
-
1
dd
dripping time ( stop compressor after defrost )
0
15
Min
0
d8
LOW temperature alarm bypass time after defrost
0
15
Hours
0
d9
defrost priority over compressor protectors ( if d9=1 c2, c3, c4 are
bypassed )
0
1
-
0
d/
Evaporator probe reading (read only)
-
-
°C/°F
-
d10
Start defrost condition : evaporator temperature threshold
-50
127
°C/°F
-22
d11
Enabling defrost condition : regulation probe threshold.
-50
127
°C/°F
30
d12
No-downward tendency defrost, Start condition : time with
Comp.continuously ON and Reg.Probe doesn’t decrease
A10
199
(200=disabled)
Min
180
!
ALARM PARAMETERS
!
!
!
A0
alarm temperature differential
-20
20
°C/°F
0
AL
absolute/relative temperature for low temperature alarm
-50
150
°C/°F
-1
AH
absolute/relative temperature for high temperature alarm
-50
150
°C/°F
28
Ad
temperature alarm delay
0
199
Min
120
A10
Open Door Alarm delay
0
10
Min
0
!
EVAPORATOR FAN PARAMETERS
!
!
!
F0
Start delay when FAN ON is required by the Regulation
1
100
sec
1
Fd0
Fan STANDARD Duty Cycle : ON time
1
100
Min
1
FdF
Fan STANDARD Duty Cycle : OFF time
1
100
Min
1
!
OTHER PARAMETERS
!
!
!
H0
supervisor serial address
0
207
-
1
H4
disable buzzer ( 1 = disable )
0
1
0
H5
ID code (read-only)
-199
199
-
-1
TABLE OF PARAMETERS
!
www.kingsbottle.com.au! 9

TEMPERATURE SETTINGS FOR WINE AND BEVERAGES
!
Different varietals of wine require different temperature settings. The recommended temperature ranges for long term storage of different varietals of
wine and beer are listed below. Please contact your wine or beverage supplier directly for their premium storage temperature recommendation.
•Red Wines: ( 13-16°C )
•White Wines: ( 10-13°C )
•Sparkling Wines: ( 7-10°C )
•Beer ( 1-5°C )
!
!
!!
!
!
CAUTION:
1. In the event of a power interruption, all previous temperature settings will be automatically saved and each compartment will return to the
previous temperature setting.
2. If the unit is unplugged, loses power, or is turned off, you must wait for over 6 minutes before restarting. Within this 6 minutes, the compressor
will protect itself and will not start even if the power is turned ON again.
3. When you use the refrigerator for the first time or restart the unit if it has been shut off for a long time, there will be a few degrees variance
between the temperature you select and the one indicated on the LED readout for the first few hours of operation. After these initial hours of
operation, the temperature will normalize to the displayed temperature.
OPERATION

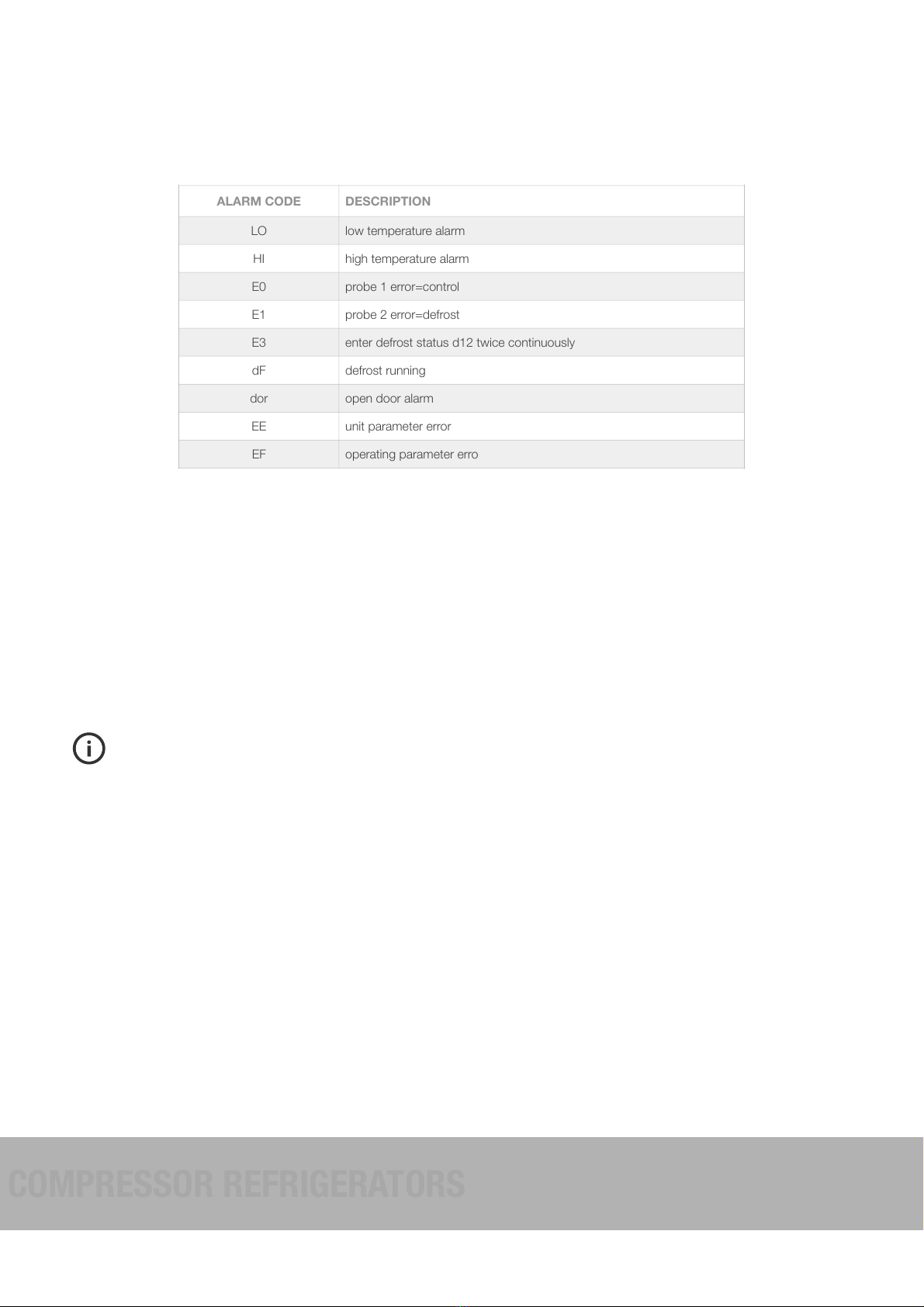

ALARM CODE
DESCRIPTION
LO
low temperature alarm
HI
high temperature alarm
E0
probe 1 error=control
E1
probe 2 error=defrost
E3
enter defrost status d12 twice continuously
dF
defrost running
dor
open door alarm
EE
unit parameter error
EF
operating parameter erro
TABLE OF ALARMS
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 10

YOUR CABINET WAS DESIGNED TO STORE A MAXIMUM NUMBER OF BOTTLES SECURELY. WE RECOMMEND THAT YOU
OBSERVE THE TIPS BELOW TO OPTIMIZE LOADING.!
1. Disperse your bottles evenly so as not to concentrate weight in any one area. Also, be careful that your bottles do not touch either the
back of the cabinet or the step at the bottom.
2. Ensure that the bottles are not all grouped together at the top or bottom of the cabinet.
3. Never try to pull out more than one shelf at a time.
4. The maximum capacity per shelf is 25 kilograms
5. Save power by filling empty spaces in your unit with bottles of water. Each time the door is opened the cool air rushes out and the
space that held this air has to be re-cooled. By placing bottles of water in these gaps, the fridge has less work to do long term, and will
save your running costs.
PART V!! LAYOUT AND STORAGE
STORAGE
!!
!
!
PLEASE NOTE
Before modifying your cabinet’s original configuration in any way, be sure to ask your dealer for advice.
!
www.kingsbottle.com.au! 11

CLEANING YOUR REFRIGERATOR
!
!
!
BEFORE CLEANING: Turn off the power, unplug the appliance, and remove all items including the shelves.
•Wash the inside surfaces with warm water and a baking soda solution. The solution should be about 2 tablespoons of baking soda with
250ml of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning areas around the controls, or any electrical parts.
•Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
•After installation, we recommend that owners apply a thin layer of Olive Oil with a clean rag, to all exposed Stainless Steel areas. This
should then be polished in and buffed off with another clean rag to a non-oily finish. This process will aid protection against dirt and other
corrosive contaminants, by providing a temporary food-safe shield. The Olive Oil layer also makes later polishing and removal of
fingerprints easier. This process should be repeated frequently every 3-4 months. ALL stainless steel can rust, it is a myth that stainless
steel doesn’t rust.
!
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of
times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your
contents.
!
FILTER CLEANING
PLEASE INSPECT & CLEAN THE FRONT GRILL FILTER EVERY MONTH
Failure to clean will void the warranty and increase the running costs. Be especially aware of pet hair clogging the grill.
!
VACATION TIME !
Short vacations: You may leave the refrigerator operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior
thoroughly. To prevent mold growth, leave the door open slightly by using a folded cloth near the hinge.
MOVING YOUR REFRIGERATOR
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable screw in feet up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a
blankets or similar items.
!
ENERGY SAVING TIPS
1. The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and away from direct sunlight.
Ventilation at the rear also helps a lot with energy usage, so create a positive air flow where possible, although most of this range is
designed to be fully built-in.
2. When you are not using fridge during weekdays etc. it is recommended to set the temp at a higher level during periods of non usage,
this will not only mean less run time, it also still keeps drinks at a temperature that won’t be spoiled. This practice also saves energy -
which is a growing concern for most households.
3. Keep the refrigerator stocked, an empty refrigerator will run longer (believe it or not).

0LEASE¬READ¬THE¬USER¬MANUAL¬CAREFULLY¬AND¬STORE¬IN¬A¬HANDY¬
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLAMLACPLGLEWMSPNCPQML?JQ?DCRW
CAUTION
6FGQQWK@MJGLBGA?RCQGLDMPK?RGMLMLFMURM?TMGBB?K?EGLERFC
?NNJG?LAC
TIPS & INFORMATION
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRSQCMDRFC?NNJG?LAC
ENVIRONMENTAL TIPS
6FGQQWK@MJGLBGA?RCQRGNQ?LBGLDMPK?RGML?@MSRCAMLMKGA?J?LB
CAMJMEGA?JSQCMDRFC?NNJG?LAC
Meanings of symbols used in this manual are shown below:
6FGQQWK@MJGLBGA?RCQLCTCPRMBMRFGQ
6FGQQWK@MJGLBGA?RCQ?JU?WQBMRFGQ
WARNING
s¬¬)F¬PRESSURISED¬AEROSOL¬CONTAINERS¬BEAR¬THE¬WORD¬
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
s¬¬7HEN¬YOU¬DISPOSE¬OF¬YOUR¬OLD¬REFRIGERATORS¬AND¬FREEZERS¬
remove any doors. Children can suffocate if they get
trapped inside.
s¬¬4HIS¬APPLIANCE¬CONTAINS¬INSULATION¬FORMED¬WITH¬mAMMABLE¬
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
4#4'(4+)'4#069#40+0)
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
s¬¬%NSURE¬THAT¬THE¬TUBING¬OF¬THE¬REFRIGERANT¬CIRCUIT¬IS¬NOT¬
damaged during transportation and installation.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M¬PER¬
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
s¬+EEP¬VENTILATION¬OPENINGS¬IN¬THE¬APPLIANCE¬ENCLOSURE¬OR¬
in the built-in structure, clear of obstruction.
s¬$O¬NOT¬USE¬MECHANICAL¬DEVICES¬OR¬OTHER¬MEANS¬TO¬
accelerate the defrosting process, other than those
recommended by the manufacturer.
s¬4HE¬ROOM¬FOR¬INSTALLING¬APPLIANCE¬MUST¬BE¬AT¬LEAST¬M3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
+/2146#065#('6;+05647%6+105
5#('6;
PART VI!CARE AND MAINTENANCE
MAINTENANCE
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 12

TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Solution
Refrigerator does
not operate
1. Not plugged in
2. The appliance is turned OFF at the control panel
3. The circuit breaker has tripped or a fuse has blown out
Press ON/OFF
Check and make sure the power plug is well connected
Ask an engineer for help
Refrigerator is not
cold enough; can
not cool down to
the preset temp.
Compressor does not start
ask an engineer for help / check the connection of the compressor
Compressor self-protected and has stopped operating
The ambient temperature is too high ( over 38C degree Celsius)
The air venting is not smooth, check that the air duct is not blocked
Fan operates slowly or is faulty and has stopped operating.
The door is not closed completely, or the door opened too long
The compressor, or its components are faulty
Fans stop working or operate at low speed
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and whether the voltage is normal. If the voltage is normal, then the
fan should be damaged
Evaporator ices up
Turn OFF the refrigerator for one hour and open the door. The ice on the
evaporator will melt. Check the door seal for any air gaps.
Door is not closed properly
Check the door lock, shelves, or other objects, make sure door is well
closed.
Check the rubber seal for any air gaps.
Check the door hinges, make sure they are not loose
Condenser is dusty
Wash and clean the condenser
Cooling system faulty (Gas leakage or blockage)
Ask an engineer for help
Compressor starts
and stops
frequently
The door gasket does not seal properly.
Use low heat on a hair dryer to make the door seal take shape.
The sensor connection is wrong.
Read the wiring diagram to make the correct connection of sensor
The sensor is faulty.
Replace with a new sensor
The door is opened too often.
Reduce the times / frequency of door openings.
The light does not
work.
Not plugged in, or the light button is “OFF”.
Light itself faulty.
Check and make sure the light button is ON, or ask an engineer for help.
The Refrigerator
seems to make too
much noise.
The stand feet is not leveling, vibrations lead to noise
Adjust the stand feet and ensure they are level.
Copper pipe hits other objects and makes noise
Gently adjust the position of the pipe.
When the compressor shuts down or starts, it is normal for
noise from the vibrations generated by the internal moving
parts due to inertia.
Take no action
A liquid plumbing noise may come from the flow of the
refrigerators gases, which is normal. As each cycle ends, you
may hear gurgling sounds
Take no action
The door will not
close properly.
Door is blocked by the door lock, shelves, or other objects.
Remove the barrier
Door sealing rubber is deformed
Repair or replace the rubber seal
Door hinges are not loose.
Adjust and fasten the hinges.
Ice up
Outlet / suction outlet blockage
Remove the barrier
Fans stop working or operate at low speed.
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and the voltage. If the voltage is normal, the fan may be damaged.
The door gasket does not seal properly;
or door is opened too often
Use low heat on a hair dryer to make the door seal take shape.
Gas leakage or cooling system blockage
Ask an engineer for help
External cabinet
seems too hot
Ambient temperature is too high, or direct sunshine
Operating conditions need to be improved
Front grill outlet / suction outlet blockage
Remove the barrier
Fans stop working or low speed operating
Ask engineer for help, power on the refrigerator, check the fan whether
the voltage is normal or not. If the voltage is normal, the fan should be
damage
Water drop on
glass door
Ambient humidity is high
Use a soft cloth to clean the water
Door is opened too often
Reduce the times / frequency of door opening.
The door gasket does not seal properly
Use low heat on a hair dryer to make the door seal take shape.
Condensation is forming on the outside of glass door
Have you turned the ‘Heated Door Function’ ON? located next to the
temperature controller. You shouldn’t have condensation on glass with
these models if this function is ON.
PART VII!TROUBLESHOOTING GUIDE
www.kingsbottle.com.au! 13

PART VIII! ! TECHNICAL DATA
TECHNICAL DATA
Model
KB110
KB152
KB308
KB405
Volume
110 Litre
152 Litre
308 Litre
405 Litre
Capacity
Aprroximately 120 cans
(or 28 bottles of wine)
Aprroximately 160 cans
(or 54 bottles of wine)
Aprroximately 300 cans
(or 106 bottles of wine)
Aprroximately 450 cans
(or 155 bottles of wine)
Installation
Free Standing / Rear
Venting
Built-in / Front Venting
Built-in / Front Venting
Built-in / Front Venting
Adjustable
Temperature Range
1 -18°Celsius
1 -18°Celsius
1 -18°Celsius
1 -18°Celsius
At Min/Max Room
Temperatures
Up to 32°CelSius
Up to 32°CelSius
Up to 32°CelSius
Up to 32°CelSius
Noise Level in
Decibels
<42dB
<41dB
<41dB
<40dB
Cooling System
compressor with air-
circulated fan cooling
compressor with air-
circulated fan cooling
compressor with air-
circulated fan cooling
compressor with air-
circulated fan cooling
Temperature Control
Digital Thermostatic
Control
Digital Thermostatic
Control
Digital Thermostatic
Control
Digital Thermostatic
Control
Circulating Fans
Low noise 12 volt
Low noise 12 volt
Low noise 12 volt
Low noise 12 volt
Rated Power Input
115 Watts
130 Watts
200 Watts
200 Watts
Energy Consumption
0.78Kw*h/24h
0.83Kw*h/24h
1.23Kw*h/24h
1.33 Kw*h/24h
Unit Size (mm)
494Wx 595D x841H
595W x 600D x 860H
598Wx 685D x 1408H
598W x685D x1821H
Additional minimum
space requirements
for built-in
applications
20mm either side, 30mm
on top , 60mm at the
rear
20mm either side, 10mm
on top, 20mm at the rear
20mm either side, 10mm
on top, 20mm at the rear
20mm at both sides,
10mm on top, and
20mm at the rear
Net Weight
41kgs
51 kgs
90 kgs
130 kgs
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au! 14

NOTE
!
www.kingsbottle.com.au! 15

Please speak to your Retailer before calling BTO AUSTRALIA PTY LTD if you did not purchase your refrigerator directly from!
BTO AUSTRALIA PTY LTD!
!
Limited warranty – If your refrigerator is not operating KingsBottle reserves the right to repair or replace the refrigerator. KingsBottle may
request the consumer to contact a local refrigeration company to service the refrigerator. All cost for labor and materials is covered for 1
year from the date of receipt. If KingsBottle deems the unit not repairable, KingsBottle will use the value of your original order toward a
replacement. For customer service, please contact BTO AUSTRALIA PTY LTD by e-mail ( [email protected]) .!
!
The limited warranty does not cover: Damage due to such things as accident, misuse, abuse, mishandling, neglect, unauthorized
repair or any other cause beyond the control of the seller whether similar or dissimilar to the foregoing. The purchaser understands and
acknowledges that the goods sold here are refrigerators and that the purchaser assumes all the risk of using these units, including the
risk of spoilage, humidity variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar perils that may
occur.!
!
SPECIAL NOTE: Warranty is only honored for the unit which is purchased and used in Australia. And, if your product was purchased at
any 3rd party retailer and not directly from BTO Australia (also known as KingsBottle), we do not offer an extended warranty policy. You
MUST contact the retailer of purchase directly. In the event your retailer does not offer an extended warranty plan, we recommend you
contact a third party warranty provider. However, regardless of point of purchase, all KingsBottle coolers are backed by a ONE YEAR
manufacturer's warranty from date of sale.!
PART IX!WARRANTY INFORMATION
WARRANTY
COMPRESSOR REFRIGERATORCOMPRESSOR REFRIGERATOR
!
www.kingsbottle.com.au! 16
