KingsBottle KBU-50DX User manual
www.kingsbottle.com
USER MANUAL
KBU-50DX / 100DX / 170DX DUAL ZONE WINE REFRIGERATORS
COMPRESSOR WINE COOLERS
!
PLEASE NOTE: !
•Every time the unit is powered ON, there will be a 6-minute delay for the compressor to start.
•For optimal use of this product, the temperature of the LOWER cooling zone should be set to at least 4°F
above the temperature of the UPPER cooling zone.

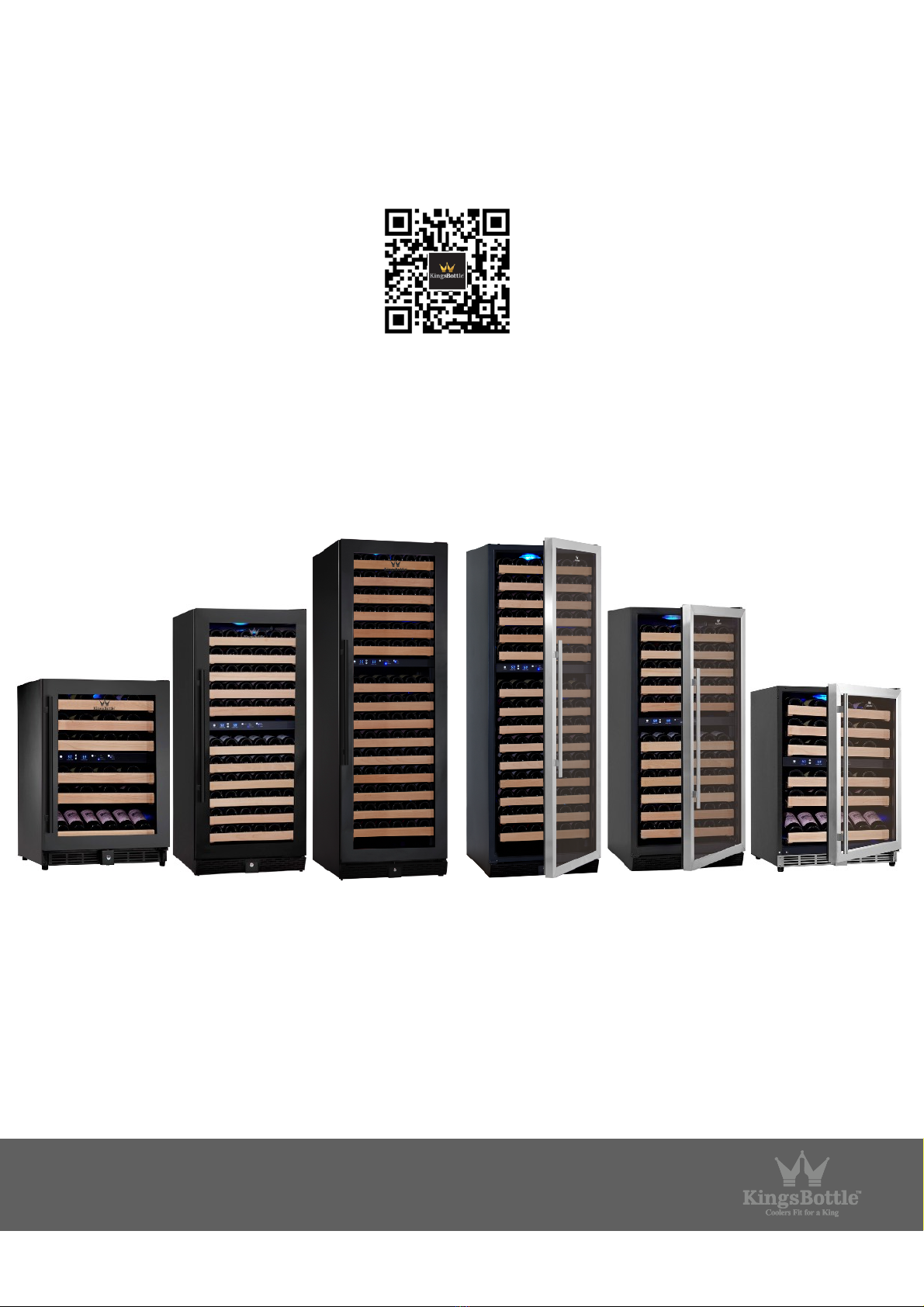

BORDERLESS BLACK GLASS DOOR SERIES
GLASS DOOR WITH STAINLESS TRIM SERIES
KBU50DX-FG
KBU100DX-FG
KBU170DX-FG
KBU170DX
KBU100DX
KBU50DX
www.kingsbottle.com 2
Congratulations
Congratulations and thank you for
choosing our KingsBottle wine
coolers. We are sure you will find
your new appliance a pleasure to
use. Before installing and operating
the wine cooler, we recommend that
you read through this manual which
provides a description of your wine
cooler and its functions.!
To avoid the risks that are always
present when you use an electric
appliance, it is important that the
appliance is installed correctly and
that you read the safety instructions
carefully to avoid misuse and
hazards.!
We recommend that you keep this
instruction booklet for future
reference and pass it on to any
future owners.!
After unpacking the appliance,
please inspect it to verify it is not
damaged. If in doubt, do not use
the appliance but contact us or your
local customer care center.!
CONTENTS
TABLE OF CONTENTS
Chapter
Contents
Page
Part I
Important Safety & Pre-Use Instructions
3
Part II
Diagram & Description of Refrigerator
4
Part III

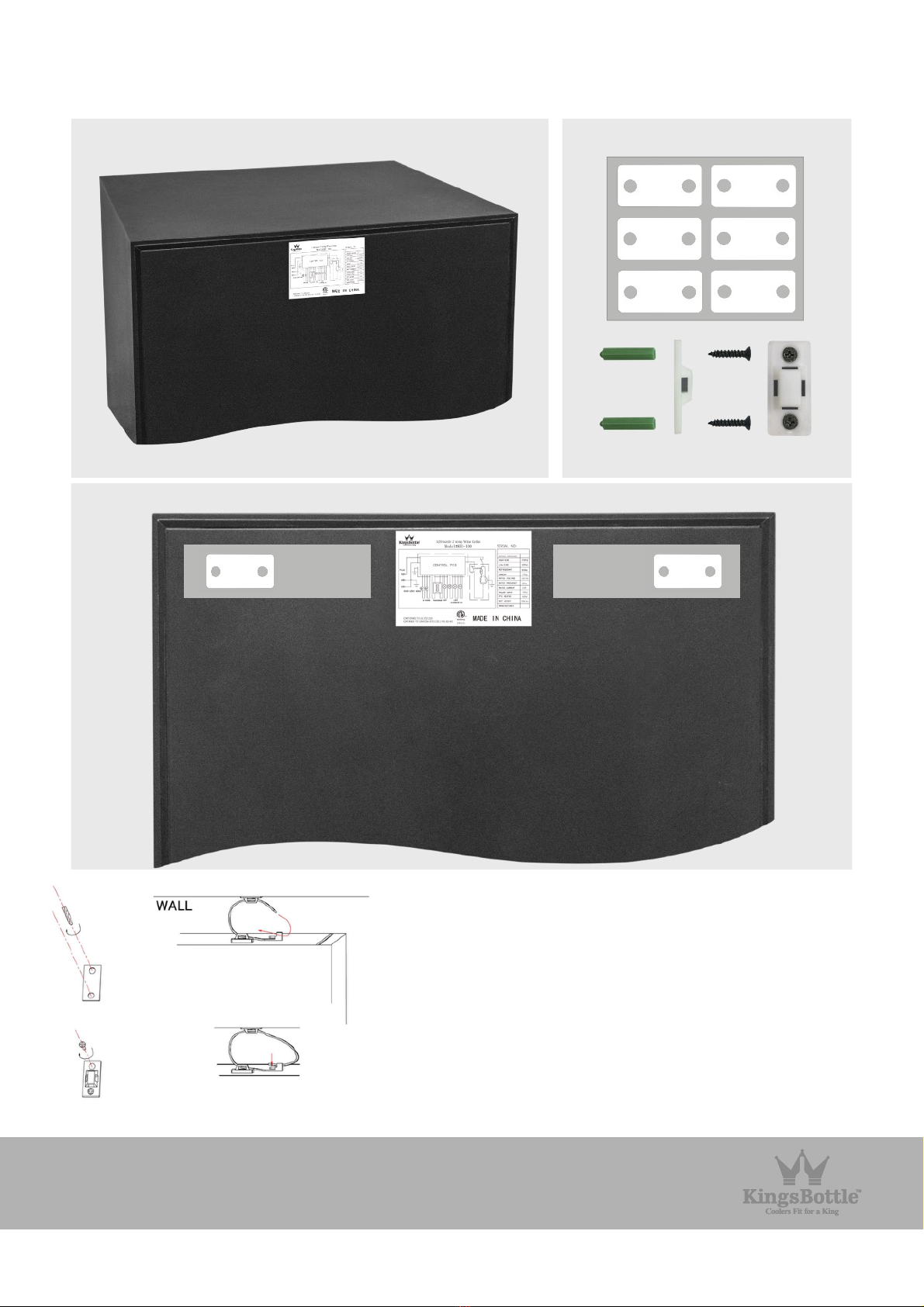

Installation Instructions!
5-7
Part IV

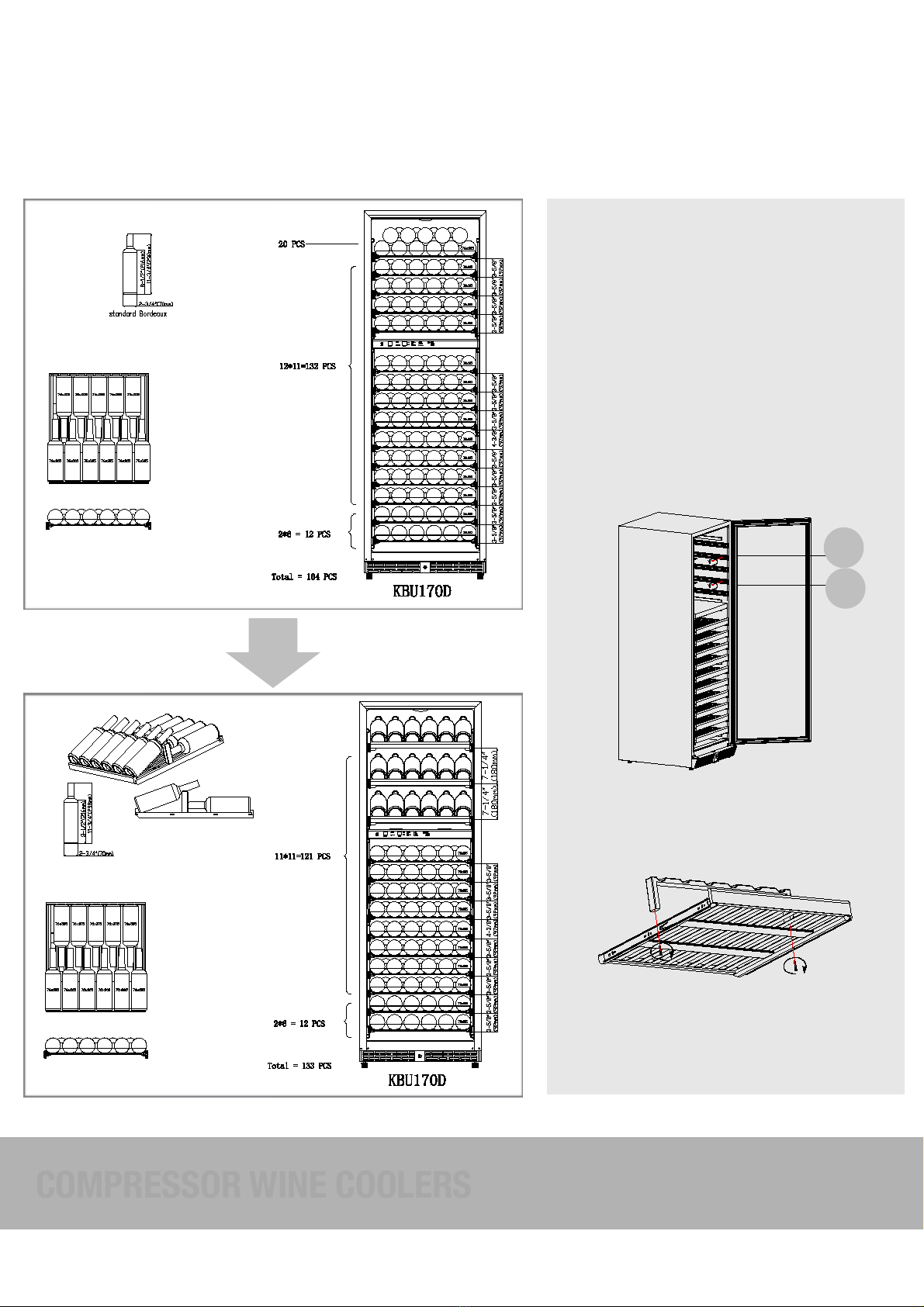

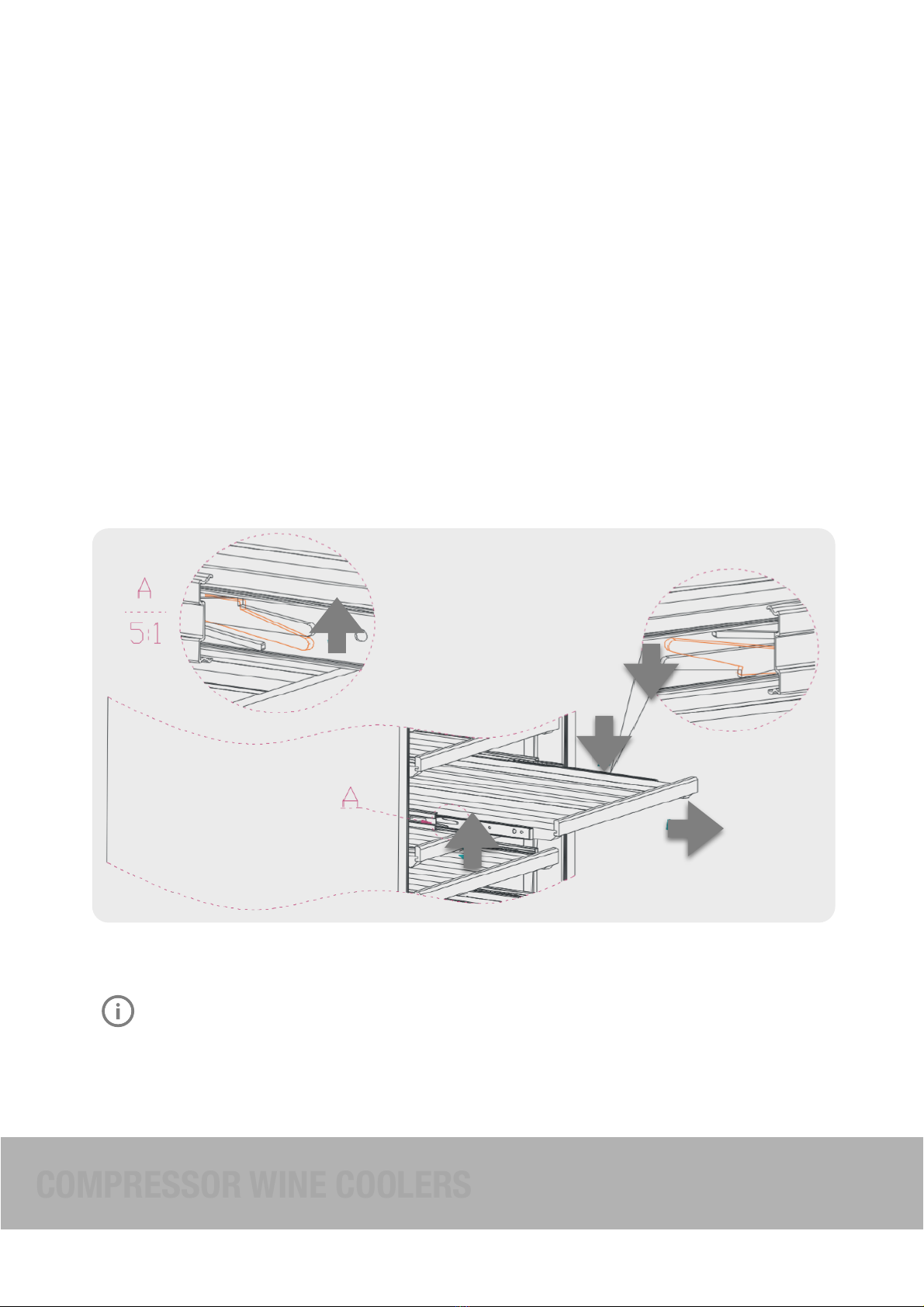

Layout & Storage
8-10
Part V

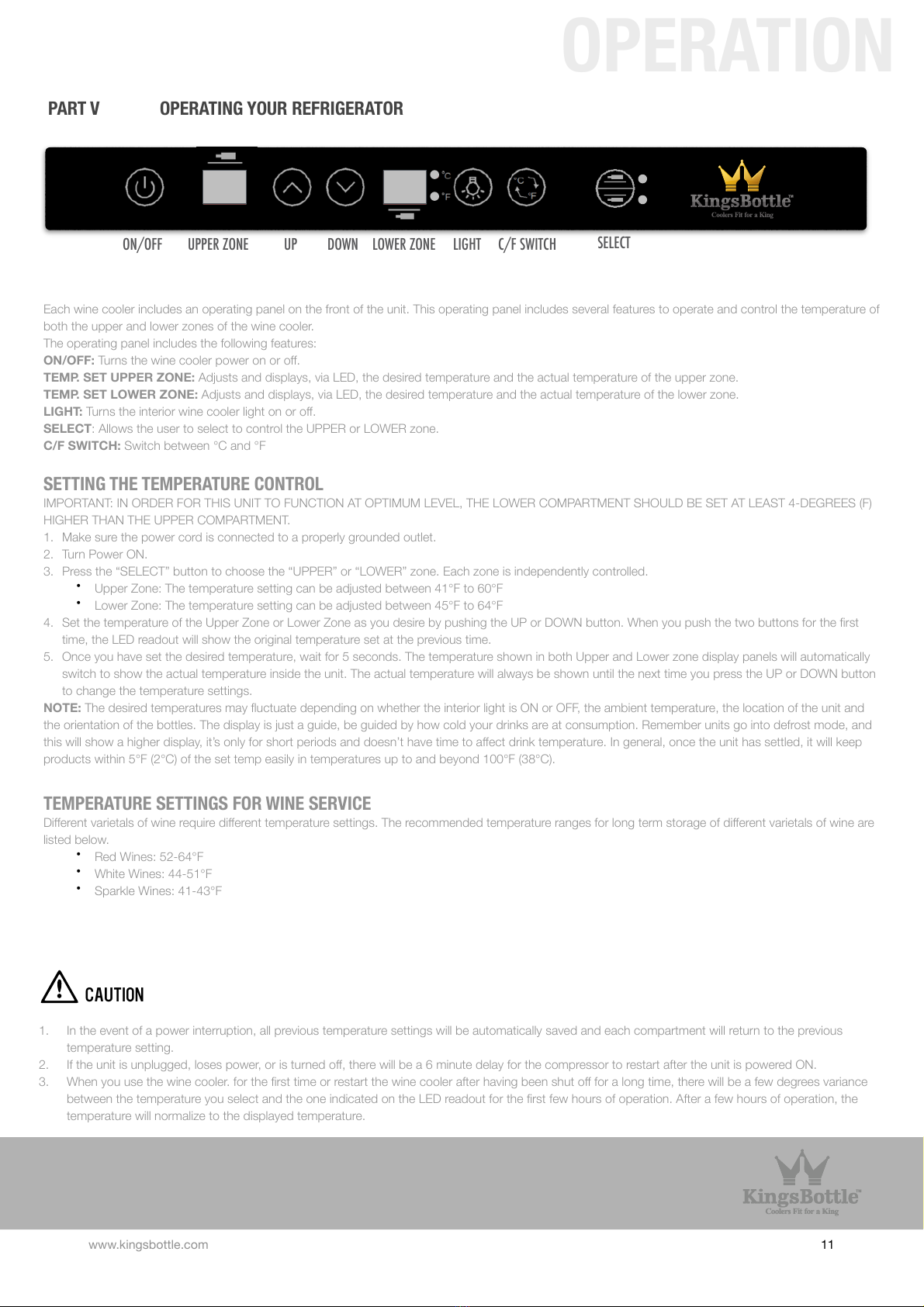

Temperature Setting and Operating the Refrigerator
11-12
PART VI
Maintenance Guide
13
Part VII
Troubleshooting Guide
14
Part VIII
Technical Data
16
Part IX
Warranty Information
16
COMPRESSOR WINE COOLERS
www.kingsbottle.com 3
!
PART I IMPORTANT SAFETY INSTRUCTIONS
Please read this user manual carefully and store in a handy
place for later reference. The symbols you will see in this
booklet have these meanings:!
This symbol indicates information concerning your personal safety
This symbol indicates information on how to avoid damaging the
appliance
This symbol indicates tips and information about the use of the
appliance
This symbol indicates tips and information about economical and
ecological use of the appliance
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY WHEN USING YOUR APPLIANCE, FOLLOW
THESE BASIC PRECAUTIONS:
1. Read all instructions before using the wine cooler.
2. DANGER or WARNING: Risk of child entrapment. Child
entrapment and suffocation pose a serious problem and
children should not be let near the appliance unsupervised.
Junked or abandoned appliances are still dangerous…
even if they will “just sit in the garage for a few days."
3. Before you throw away your old wine cooler:
•Take off the door.
•Dismantle the Shelves into pieces so that children may
not climb inside easily.
4. Never allow children to operate, play with, or crawl inside
the appliance.
1.The wine cooler must be plugged into its
dedicated 110-115V, 50/60Hz AC electrical outlet.
2. The plug must be accessible when the cooler is in position.
3. It is essential that the power point is properly grounded.
Consult a qualified electrician if you are unsure.
4. Don’t use extension cords or adapter plugs with this cooler.
5. If the power cord is damaged, have it replaced by a
qualified service technician.
6. Unplug the cooler before cleaning it, or changing the light
bulb to avoid electric shock.
7. Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
8. Never unplug the cooler by pulling the electrical cord as this
may damage it. Grip the plug firmly and pull straight out.
9. Choose a location for your cooler that isn’t too cold. The
ambient room temperature should be above 50° F.
10. Stand your cooler in a dry place – avoid areas of high
moisture or humidity.
11. Don’t put the cooler in frosty or unprotected areas like a
garage or on the verandah.
12. Keep the cooler out of direct sunlight.
13. Don’t locate the cooler near stoves, fires or heaters.
14. Do not store in the vicinity of any other appliance. Do not
store near gasoline or any other flammable vapors. The
fumes can create an explosion or lead to a fire hazard.
15. When installed correctly, your cooler should:
16. Have adequate space at the back and sides for air
circulation. (See Page 5)
17. Be aligned to the surrounding cupboards.
18. Have doors that will self-close from a partially open position
19. Please inspect and clean the filter in front venting grill every
month. Failure to clean will void the warranty and increase
the running costs.
BEFORE USING YOUR WINE COOLER
•Remove the exterior and interior packing.
•Before connecting the wine cooler to the power source, let it
stand upright for approximately 24 hours. This will reduce the
possibility of a malfunction in the cooling system from handling
during transportation.
•Clean the interior surface with lukewarm water using a soft
cloth.
DISCLAIMER
The manufacturer accepts no liability for any spoilage to the
content of the refrigerator, not even when the device is within the
warranty period. Similarly, the manufacturer accepts no liability
for personal injury due to incorrectly stored goods, which are for
personal consumption or resale.
SAFETY
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
www.kingsbottle.com 4
PART II"" DIAGRAM & DESCRIPTION OF REFRIGERATOR
FEATURES
COMPRESSOR WINE COOLERS
YOUR WINE COOLER ALSO INCLUDES THE FOLLOWING:
•Instruction manual
•Two keys
•Top and bottom hinges , also screws for changing the door hinge
1 Interior Top LED Light!
2 Housing!
3 Ventilation DC Fan!
4 PCB Control Board!
5 Interior Side LED Light!
6 Front grill!
7 Door hinge!
8 Display and Control Panel!
9 Glass Door!
10 Sliding shelf!
11 Adjustable stand feet
TEMP.SET TEMP.SET
UPPER LOWER
ON/OFF
LOCK
RED
WHITE
SPARKLE
LIGHT SELECT UPPER
LOWER
UPPER ZONE
LOWER ZONE
www.kingsbottle.com 5
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
MODEL
WIDTH
DEPTH
HEIGHT
INCLUDED STAND HEIGHT
NOTE
KBU-50
23.42”
595mm
23.62”
600mm
33.86”
860mm
0.79”
20mm
These front-venting models can be built into cabinetry.
Should it be built into cabinetry, there should be an
additional 0.5” on either side, behind and on top of the unit.
These extra spaces enable units to be placed in the position
efficiently, accommodate the door when opened, and
without the power cords being damaged.
KBU-100
23.54”
598mm
26.97”
685mm
55.43”
1408mm
0.98”
25mm
KBU-170
23.54”
598mm
26.97”
685mm
71.69”
1821mm
0.98”
25mm
KBU-170 SERIES
23.54”W x 26.97”D x 71.69”H
(598W x 685D x 1821H mm)
Included stand height 0.98”(25mm)
KBU-100 SERIES
23.54”W x 26.97”D x 55.43”H
(598W x 685D x 1408H mm)
Included stand height 0.98”(25mm)
KBU-50 SERIES
23.42”W x 23.62”D x 33.86”H !
( 595W x 600D x 860H mm )!
Included stand height 0.79” (20mm)
CUTOUT DIMENSION ILLUSTRATED
71.69” (1821 mm)
55.43” (1408 mm)
33.86” (860 mm)
26.97”
23.54”
23.54”
26.97”
23.62”
23.42”
!
www.kingsbottle.com" 6
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
COMPRESSOR WINE COOLERS
INSTALLING YOUR WINE COOLER
1. Move the unit into its final position. (CAUTION: for safety purpose, for the KBU100 and KBU170 models, it is necessary to anchor
the appliances to the wall, please refer to the instruction on the next page.)
2. If the unit is not tilting back, minor adjustments can be made to the leveling legs.
3. Compare the alignment of the appliance to the surrounding cupboard. The top of the appliance should be level side to side (see
diagram below).
4. If the unit now rocks from one corner to the opposite rear corner, this means that the floor is uneven. You may need to put some
packing under the ridge to the rear of the appliance. You could use thin pieces of a solid material such as a thin board, vinyl floor tiles
or laminate.
5. You may now need to fine tune the installation by repeating steps 2, 3 and 4.
6. Wipe off any dust that has accumulated during shipping and clean following the directions in Part VI ( Care & Maintenance)
7. Plug the appliance into the power point. Don’t use a double adaptor or extension cord.
8. It is recommended that you allow the unit to rest an hour or two before you put any wine bottles in it. This will confirm that it is
operating correctly and make the conditions appropriate for wine storage.
Congratulations! You have successfully installed your wine cooler.
DOOR LOCK
This unit comes with an optional key lock. The keys are located inside the plastic bag that contains the user manual. To lock the door,
simply insert the key into the lock and turn clockwise making sure the metal pin is engaged completely. Then remove the key and place it
in a secure place for safekeeping. To unlock the door, insert the key into the lock and turn counterclockwise.
www.kingsbottle.com" 7
Rear of the refrigerator
parts included
B
B
A
1. Area “A” is around 7”W x 2”H ( 180Wx50H mm ). $
This area is located 1.2 inch (30mm) from the edge of the appliance on
top, left or right side (see above image).!
2. “B” refers to the position where the holes for brackets should be drilled.$
Note: “B” should always be inside the area “A”!
3. Position the brackets on the desired location, mark and drill pilot holes for
the screws about 0.32” (8mm) into the appliance. Then use a screwdriver
to tighten the screws all the way into the appliance
A
APPLIANCE
Position the appliance in the desired location. Locate wall studs behind the appliance and
mark the location where the bracket lines up with a stud on the back of the appliance. Move
the appliance away from the wall and position bracket on the mark. Mark and drill pilot holes
into the center of the stud with a 3/32” drill bit. Attach a bracket to the stud with the long
screws provided.
Move the appliance into its final position, taking care to line up the wall bracket close enough
to the bracket on the back of the appliance to strap them together. Thread a strap through the
brackets as shown in the illustration. Tighten the straps until snug. Do not over tighten.
CAUTION: These instructions are not intended to be a substitute for proper supervision. The
manufacturer assumes no liability for improper installation or excessive loads placed on
screws, brackets, or straps.
Straps should be periodically adjusted, tested and replaced.
Instructions to Anchor The Appliance to The Wall
B
INSTALLATION
!
www.kingsbottle.com" 8
PART IV""LAYOUT AND STORAGE
STORAGE
COMPRESSOR WINE COOLERS
As an additional option, you might like the idea of
having some display shelves to show your bottle
label. You could refer to the instruction on how to
remove the 2nd, 4th shelves in the upper zone (use
the screws to fill the holes on the wall after the
shelves are removed), and then change the 1st, 3rd,
5th shelves to display shelves.
Note:
This changes will reduce the total storage capacity.
2
4
remove the 2nd, 4th shelves
change the 1st, 3rd, 5th standard
shelves to display shelves
display shelves options
( for KBU170DX Models)
www.kingsbottle.com" 9
PART IV""LAYOUT AND STORAGE
STORAGE
As an additional option, you might like the idea of having
some display shelves to show your bottle label. You could
refer to the instruction on how to remove the 1st, 3rd
shelves in the upper zone (use the screws to fill the holes
on the wall after the shelves are removed), and then
change the 2nd, 4th shelves to display shelves.
Note:
This changes will reduce the total storage capacity.
remove the 1st, 3rd shelves
change the 2nd, 4th standard
shelves to display shelves
display shelves options
( for KBU100DX Models)
!
www.kingsbottle.com" 10
PART IV""LAYOUT AND STORAGE
STORAGE
YOUR CABINET WAS DESIGNED TO STORE A MAXIMUM NUMBER OF BOTTLES SECURELY. WE RECOMMEND THAT YOU
OBSERVE THE TIPS BELOW TO OPTIMIZE LOADING.
1. Disperse your bottles evenly so as not to concentrate the weight in any one area. Also, be careful that your bottles do not touch either
the back of the cabinet or the step at the bottom.
2. Also, make sure that bottles are not all grouped together either at the top or bottom of the cabinet.
3. A cooler that is full and has a nice allowance for air movement will work more efficiently.
4. Never try to adjust shelf with bottles still on it.
TO REMOVE A ROLLING SHELF:
1. Remove all bottles
2. Pull the shelf out as far as possible
3. Push the LEFT side lever downward but the RIGHT side lever upward (as illustrated below)
4. Remove the shelf
PLEASE NOTE
Before modifying your cabinet’s original configuration in any way, be sure to ask your dealer for advice.
COMPRESSOR WINE COOLERS
www.kingsbottle.com" 11
OPERATION
PART V"" OPERATING YOUR REFRIGERATOR
Each wine cooler includes an operating panel on the front of the unit. This operating panel includes several features to operate and control the temperature of
both the upper and lower zones of the wine cooler.
The operating panel includes the following features:
ON/OFF: Turns the wine cooler power on or off.
TEMP. SET UPPER ZONE: Adjusts and displays, via LED, the desired temperature and the actual temperature of the upper zone.
TEMP. SET LOWER ZONE: Adjusts and displays, via LED, the desired temperature and the actual temperature of the lower zone.
LIGHT: Turns the interior wine cooler light on or off.
SELECT: Allows the user to select to control the UPPER or LOWER zone.
C/F SWITCH: Switch between °C and °F
SETTING THE TEMPERATURE CONTROL
IMPORTANT: IN ORDER FOR THIS UNIT TO FUNCTION AT OPTIMUM LEVEL, THE LOWER COMPARTMENT SHOULD BE SET AT LEAST 4-DEGREES (F)
HIGHER THAN THE UPPER COMPARTMENT.
1. Make sure the power cord is connected to a properly grounded outlet.
2. Turn Power ON.
3. Press the “SELECT” button to choose the “UPPER” or “LOWER” zone. Each zone is independently controlled.
•Upper Zone: The temperature setting can be adjusted between 41°F to 60°F
•Lower Zone: The temperature setting can be adjusted between 45°F to 64°F
4. Set the temperature of the Upper Zone or Lower Zone as you desire by pushing the UP or DOWN button. When you push the two buttons for the first
time, the LED readout will show the original temperature set at the previous time.
5. Once you have set the desired temperature, wait for 5 seconds. The temperature shown in both Upper and Lower zone display panels will automatically
switch to show the actual temperature inside the unit. The actual temperature will always be shown until the next time you press the UP or DOWN button
to change the temperature settings.
NOTE: The desired temperatures may fluctuate depending on whether the interior light is ON or OFF, the ambient temperature, the location of the unit and
the orientation of the bottles. The display is just a guide, be guided by how cold your drinks are at consumption. Remember units go into defrost mode, and
this will show a higher display, it’s only for short periods and doesn’t have time to affect drink temperature. In general, once the unit has settled, it will keep
products within 5°F (2°C) of the set temp easily in temperatures up to and beyond 100°F (38°C).
TEMPERATURE SETTINGS FOR WINE SERVICE
Different varietals of wine require different temperature settings. The recommended temperature ranges for long term storage of different varietals of wine are
listed below.
•Red Wines: 52-64°F
•White Wines: 44-51°F
•Sparkle Wines: 41-43°F
1. In the event of a power interruption, all previous temperature settings will be automatically saved and each compartment will return to the previous
temperature setting.
2. If the unit is unplugged, loses power, or is turned off, there will be a 6 minute delay for the compressor to restart after the unit is powered ON.
3. When you use the wine cooler. for the first time or restart the wine cooler after having been shut off for a long time, there will be a few degrees variance
between the temperature you select and the one indicated on the LED readout for the first few hours of operation. After a few hours of operation, the
temperature will normalize to the displayed temperature.
CAUTION
!
ON/OFF
UPPER ZONE
UP
DOWN
LOWER ZONE
LIGHT
C/F SWITCH
SELECT
www.kingsbottle.com 12
OPERATION
Code
Description
Solution
E1
When the temp. In the UPPER zone is 4°F (2°C ) higher than the LOWER zone, E1
displays on the panel.
With the temp. changes, and temp. in the UPPER zone is
lower than the LOWER zone, E1 will disappear
automatically. So, just wait for about one hour and check
again.
F1
When the evaporator temperature is lower than 0°F (-18°C ) F1 displays on the
panel
F1 meaning the cooler is at defrosting mode.
During DEFROSTING period, evaporator fan is operating, but the compressor
stopped.
After evaporator temp. is higher than 39°F (4°C), F1 will disappear
It’s normal; nothing needs to be done. Wait for 3 hours
and check again. Or, turn OFF the power, open the door
and wait for 3 hours, then check again.
F2
If the compressor keeps operating continuously for over 8 hours, the cooler will
automatically enter DEFROSTING mode and F2 displays on the panel
F2 meaning the cooler is at defrosting mode.
During DEFROSTING period, evaporator fan is operating, but the compressor
stopped.
F2 will disappear after 20 minutes.
It’s normal; nothing needs to be done. Wait for 30 minutes
and check again.
C1
C1 displaying on the panel means the sensor in the UPPER zone is open-circuit.
Compressor stop operating and no cooling
Need an engineer to check
Socket/plug with UP mark in PCB is badly connected.
The sensor is damaged, need to replace it
Repair or replace the PCB
C2
C2 displaying on the panel means the sensor in the LOWER zone is open-circuit.
Compressor stop operating and no cooling
* This does not apply to SINGLE zone models
Need an engineer to check
Socket/plug with DOWN mark in PCB is badly connected
The sensor is damaged, need to replace it
Repair or replace the PCB
C3
C3 displaying on the panel means evaporator sensor is open-circuit. Compressor
stops operating and no cooling.
Need an engineer to check
Socket/plug with PTC mark in PCB is badly connected
The sensor is damaged, need to replace it
Repair or replace the PCB
U1
U1 displaying on the panel means a sensor which is in the UPPER zone is short-
circuited. Compressor stops operating and no cooling.
Need an engineer to check
The sensor is damaged, need to replace the sensor which
is connected to UP socket/plugin PCB
Repair or replace the PCB
U2
U2 displaying on the panel means a sensor which is in the LOWER zone is short-
circuited. Compressor stop operating and no cooling
* This does not apply to SINGLE zone models
Need an engineer to check
The sensor is damaged, need to replace the sensor which
is connected to DOWN socket/plugin PCB
Repair or replace the PCB
U3
U3 displaying on the panel means evaporator sensor is short-circuited.
Compressor stops operating and no cooling.
Need an engineer to check
The sensor is damaged, need to replace the sensor which
is connected to PTC socket/plugin PCB
Repair or replace the PCB
No Code
After the temp. is lower than 32°F (0°C) or higher than 69°F (20°C), the buzzer will
alarm and remind the user needs to pay attention.
Normal, nothing needs to be done.
ERROR CODE AND ALARM
COMPRESSOR WINE COOLERS
www.kingsbottle.com" 13
MAINTENANCE
CLEANING YOUR WINE COOLER
BEFORE CLEANING: Turn off the power, unplug the appliance, and remove all items including all the shelves.
•Wash the inside surfaces with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda
with a quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
•Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth.
•After installation, we recommend that owners apply a thin layer of Olive Oil with a clean rag, to all exposed Stainless Steel areas.
This should then be polished in and buffed off with another clean rag to a non-oily finish. This process will aid protection against
dirt and other corrosive contaminants, by providing a temporary food-safe shield. The Olive Oil layer also makes later polishing
and removal of fingerprints easier. This process should be repeated frequently every 3-4 months. ALL stainless steel can rust; it is
a myth that stainless steel doesn’t rust.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of
times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your
contents.
VACATION TIME
Short vacations: You may leave the wine cooler operating during vacations of less than three weeks.!
Long vacations: If the appliance will not be used for several months, remove all items and turn offthe appliance. Clean and dry the
interior thoroughly. To prevent mold growth, leave the door open slightly, blocking it open if necessary.!
MOVING YOUR WINE COOLER
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable leg up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect the outside of the appliance with a
blanket or similar item.
ENERGY SAVING TIPS
•The wine cooler should be located in the coolest area of the room, away from heat-producing appliances, and away from direct
sunlight. Ventilation at the rear also helps a lot with energy usage, to create a positive air flow where possible, although with this
range they are designed to be fully built in.
•When you are not using cooler during weekdays etc. it is recommended to set the temp at a higher level, so set at 64°F (18°C )
during periods of non-usage, this will not only mean less run time, it will also keep drinks at a temp that won’t get them spoiled. It
saves energy also which these days are a growing concern for most households.
•Keep the cooler stocked; an empty cooler will run longer, believe it or not.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
PART VI"CARE AND MAINTENANCE
!
www.kingsbottle.com" 14
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Solution
Refrigerator does
not operate
Not plugged in
The appliance is turned OFF at the control panel
The circuit breaker has tripped, or a fuse has blown out
Press ON/OFF
Check and make sure the power plug is well connected Ask an engineer
for help
Refrigerator is not
cold enough; can
not cool down to
the preset temp.
The compressor does not start
ask an engineer for help / check the connection of the compressor
Compressor self-protected and has stopped operating
The ambient temperature is too high (over 100°F)
The air venting is not smooth, check that the air duct is not blocked Fan
operates slowly or is faulty and has stopped functioning.
The door is not closed completely, or the door opened too long The
compressor, or its components are faulty.
Fans stop working or operate at low speed
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and whether the voltage is normal. If the voltage is normal, then the
fan could be damaged.
Evaporator ices up
Turn OFF the refrigerator for one hour and open the door. The ice on the
evaporator will melt. Check the door seal for any air gaps.
The door is not closed properly
Check the door lock, shelves, or other objects; make sure the door is well
closed.
Check the rubber seal for any air gaps.
Check the door hinges; make sure they are not loose.
Condenser is dusty
Wash and clean the condenser
Cooling system faulty (Gas leakage or blockage)
Ask an engineer for help
Compressor starts
and stops
frequently
The door gasket does not seal properly.
Use low heat on a hair dryer to make the door seal take shape.
The sensor connection is wrong.
Read the wiring diagram to make the correct connection of the sensor.
The sensor is faulty.
Replace with a new sensor
The door is opened too often.
Reduce the times/frequency of door openings.
The light does not
work.
Not plugged in, or the light button is "OFF." The light itself is
faulty.
Check and make sure the light button is ON, or ask an engineer for help.
The Refrigerator
seems to make too
much noise.
The stand feet is not leveling; vibrations lead to noise
Adjust the stand feet and ensure they are leveled.
Copper pipe hits other objects and makes noise
Gently adjust the position of the pipe.
When the compressor shuts down or starts, it is normal for
noise due to vibrations to be generated by the internal
moving parts due to inertia.
Take no action
A liquid plumbing noise may come from the flow of the
refrigerators gases, which is normal. As each cycle ends, you
may hear gurgling sounds.
Take no action
The door will not
close properly.
The door is blocked by the door lock, shelves, or other
objects.
Remove the barrier
Door sealing rubber is deformed
Repair or replace the rubber seal
Door hinges are loose.
Adjust and fasten the hinges.
Ice up
Outlet/suction outlet blockage
Remove the barrier
Fans stop working or operate at low speed.
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and the voltage. If the voltage is normal, the fan may be damaged.
The door gasket does not seal properly, or door is opened
too often
Use low heat on a hair dryer to make the door seal take shape.
Gas leakage or cooling system blockage
Ask an engineer for help
External cabinet
seems too hot
Ambient temperature is too high, or direct sunshine
Operating conditions need to be improved
Front grill outlet/suction outlet blockage
Remove the barrier
Fans stop working or low speed operating
Ask an engineer for help, power on the refrigerator, check the fan whether
the voltage is normal or not. If the voltage is normal, the fan could be
damaged.
Water drop on
glass door
Ambient humidity is high
Use a soft cloth to clean the water
The door is opened too often
Reduce the times/frequency of door opening.
The door gasket does not seal properly
Use low heat on a hair dryer to make the door seal take shape.
PART VII"TROUBLESHOOTING GUIDE
www.kingsbottle.com" 15
TECHNICAL DATA
PART X"" TECHNICAL DATA
MODEL NO.
KBU170DX
KBU100DX
KBU50DX
VOLUME
14.30 CF ( 405 Liter )
10.88 CF ( 308 Liter)
5.37 CF ( 152 Liter )
TYPE OF COOLING
compressor with air-circulated fan
cooling
compressor with air-circulated fan
cooling
compressor with air-circulated fan
cooling
CLIMATE TYPE
N
N
N
ELECTRICITY PROTECTION
GRADE
I
I
I
NOMINAL VOLTAGE/
FREQUENCY
110-115V/50-60HZ
110-115V/50-60HZ
110-115V/50-60HZ
RATED CURRENT
1.1 A
1.1 A
0.9 A
RATED POWER(W)
80W
80W
72W
REFRIGERANT
R600a
R600a
R600a
AMBIENT TEMPERATURE
32 - 100 °F ( 0 -38°C)
32 - 100 °F ( 0 -38°C)
32 - 100 °F ( 0 -38°C)
TEMPERATURE RANGE
Upper Zone: 41-60 °F ( 5 - 15°C);
Lower Zone: 45-64 °F ( 7 - 18°C)
Upper Zone: 41-60 °F ( 5 - 15°C);
Lower Zone: 45-64 °F ( 7 - 18°C)
Upper Zone: 41-60 °F ( 5 - 15°C);
Lower Zone: 45-64 °F ( 7 - 18°C)
NET WEIGHT
286.60 lbs (130 KGS)
198.41 lbs (90 KGS)
112.43 lbs (51 KGS)
GROSS WEIGHT
(INC. PALLET)
310 lbs (141 KGS)
239 lbs (108 KGS)
159 lbs (72 KGS)
DIMENSION
23.54”W x 26.97”D x 71.69”H
( 598W x 685D x 1821H mm )
Included stand height 0.98” (25mm)
23.54”W x 26.97”D x 55.43”H
( 598W x 685D x 1408H mm )
Included stand height 0.98” (25mm)
23.42”W x 23.62”D x 33.86”H;
( 595W x 600D x 860H mm )
Included stand height 0.79” (20mm)
PART IX"WARRANTY INFORMATION
COMPRESSOR WINE REFRIGERATOR
!
Registering online is quick and easy!
https://kingsbottle.com/apps/product-registration
Please speak to your retailer before calling us if you did not purchase your refrigerator directly from KingsBottle.
WHO IS COVERED: This warranty is extended only to the original end-user purchaser or the person receiving the product as a gift, and shall not be extended
to any other person or transferee.
LIMITED WARRANTY – If your refrigerator is not operating properly, KingsBottle reserves the right to repair or replace the refrigerator. KingsBottle may
request the consumer to contact a local refrigeration company to service the refrigerator. All cost for labor and materials is covered for 2-year from the date of
receipt. If KingsBottle deems the unit not repairable, KingsBottle will use the value of your original order toward a replacement (Any replacement unit will follow
the warranty terms of the initial purchase). For customer service, please e-mail us via [email protected].
THE LIMITED WARRANTY DOES NOT COVER: Damage due to such things as an accident, misuse, abuse, mishandling, neglect, unauthorized repair or
any other cause beyond the control of the seller whether similar or dissimilar to the foregoing. Purchaser understands and acknowledges that the goods sold
here are WINE & BEVERAGE COOLERS, which house beer and other wines. Purchaser assumes all the risk of using these units, including the risk of spoilage,
humidity variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar perils that may occur.
SPECIAL NOTE: Warranty is only honored for the unit which is used in the countries where the unit was initially purchased. And, if your product was
purchased at any 3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase
directly. In the event your retailer does not offer an extended warranty plan, we recommend you contact a third party warranty provider. However, regardless of
point of purchase, all KingsBottle coolers are backed by a TWO YEAR manufacturer's warranty from date of sale.
This manual suits for next models
6
Other KingsBottle Refrigerator manuals
KingsBottle
KingsBottle KBU-100 User manual
KingsBottle
KingsBottle KBU55M User manual
KingsBottle
KingsBottle KBU-50W User manual
KingsBottle
KingsBottle KBU-50B-SS User manual
KingsBottle
KingsBottle KBU50WX-FG User manual
KingsBottle
KingsBottle KBU5L316 User manual
KingsBottle
KingsBottle KBU50SA User manual
KingsBottle
KingsBottle KB28LRX User manual
KingsBottle
KingsBottle KB110 Series User manual
KingsBottle
KingsBottle KB100DX-FG User manual
