KingsBottle KB152 Series User manual
www.kingsbottle.com.au
USER MANUAL
KB152 / 308 / 405 SINGLE ZONE REFRIGERATORS
-— CAREL CONTROLLER —-
COMPRESSOR REFRIGERATORS
!
PLEASE NOTE: !
EVERY TIME THE UNIT IS POWERED ON, THERE WILL BE A 6 MINUTE DELAY FOR THE COMPRESSOR TO START.!
KB405W
KB308W
KB152W
KB405B
KB308B
KB152B
www.kingsbottle.com.au 2
Congratulations
Congratulations and thank you for
choosing our KingsBottle refrigerators .
We are sure you will find your new
appliance a pleasure to use . Before
installing and operating the refrigerator,
we recommend that you read through
this manual which provides a
description of your refrigerator and its
functions .!
To avoid the risks that are always
present when you use an electric
appliance, it is important that the
appliance is installed correctly and that
you read the safety instructions carefully
to avoid misuse and hazards .!
We recommend that you keep this
instruction booklet for future reference
and pass it on to any future owners .!
After unpacking the appliance, please
inspect it to verify it is not damaged. If
in doubt, do not use the appliance but
contact us or your local customer care
centre!
CONTENTS
COMPRESSOR REFRIGERATORS
TABLE OF CONTENTS
Chapter
Contents
Page
Part I
Important Safety & Pre-Use Instructions
3
Part II
Diagram & Description of Refrigerator
4
Part III
Installation Instructions!
5-7
Part IV
Layout & Storage
8-10
Part V
Temperature Setting and Refrigerator Operating
11-12
PART VI
Maintenance
13
Part VII
Troubleshooting Guide
14
Part VIII
Technical Data
16
Part IX
Warranty Information
16
www.kingsbottle.com.au 3
SAFETY
!
PART I IMPORTANT SAFETY INSTRUCTIONS
Please read this user manual carefully and store in a handy
place for later reference . The symbols you will see in this
booklet have these meanings:!
This symbol indicates information concerning your personal safety
This symbol indicates information on how to avoid damaging the
appliance
This symbol indicates tips and information about use of the
appliance
This symbol indicates tips and information about economical and
ecological use of the appliance
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK,
OR INJURY WHEN USING YOUR APPLIANCE, FOLLOW
THESE BASIC PRECAUTIONS:
1. Read all instructions before using the refrigerator.
2. DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not only problems of the
past. Junked or abandoned appliances are still dangerous…
even if they will “just sit in the garage for a few days”.
3. Before you throw away your old refrigerator:
•Take off the door.
•Leave the Shelves in pieces so that children may not
climb inside easily.
4. Never allow children to operate, play with, or crawl inside
the appliance.
1. The refrigerator must be plugged into its own dedicated
220-240V, 50/60Hz AC electrical outlet .
2. The plug must be accessible when the refrigerator is in
position.
3. It is essential the power point is properly grounded .
Consult a qualified electrician if you are unsure .
4. Don’t use extension cords or adapter plugs with this
refrigerator .
5. If the power cord is damaged, have it replaced by a
qualified service technician .
6. Unplug the refrigerator before cleaning it, or changing the
light bulb to avoid electric shock .
7. Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
8. Never unplug the refrigerator by pulling the electrical cord
as this may damage it. Grip the plug firmly and pull
straight out .
9. Choose a location for your refrigerator that isn’t too cold .
The ambient room temperature should be better above
10°C .
10. Stand your refrigerator in a dry place – avoid areas of high
moisture or humidity .
11. Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah .
12. Keep the refrigerator out of direct sunlight .
13. Don’t locate the refrigerator near stoves, fires or heaters .
14. Do not store in the vicinity of any other appliance. Do not
store near gasoline or any other flammable vapors. The
fumes can create a fire hazard or explosion.
15. When installed correctly, your refrigerator should:
•Have adequate space at the back and sides for air
circulation. (See Page 5)

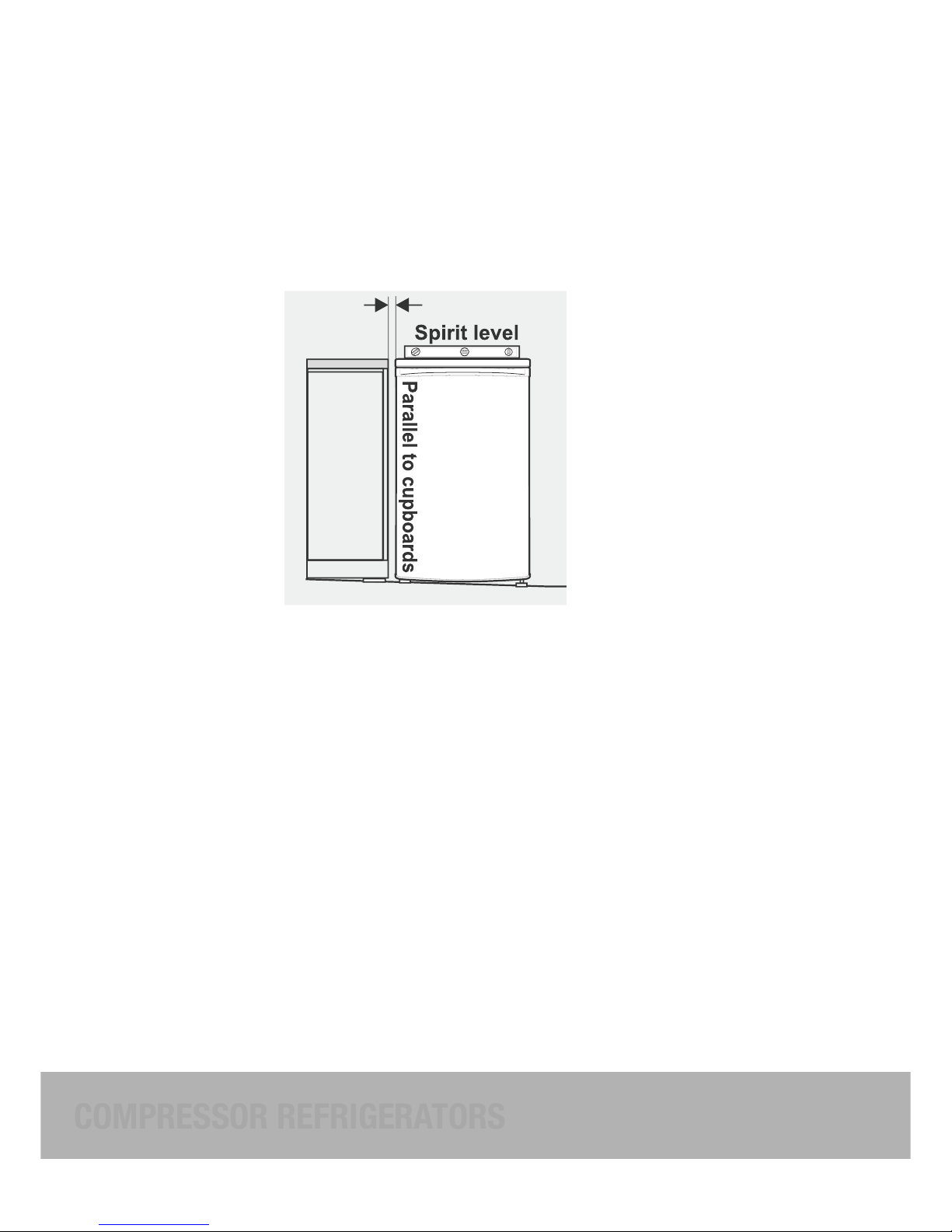

•Be aligned to the surrounding cupboards .
•Have doors that will self-close from a partially open
position
16. Please inspect and clean the filter in front venting grill
every month. Failure to clean will void the warranty and
increase the running costs.
BEFORE USING YOUR REFRIGERATOR
1. Remove the exterior and interior packing.
2. Before connecting the refrigerator to the power source,
let it stand upright for approximately 24 hours. This will
reduce the possibility of a malfunction in the cooling
system from handling during transportation.
3. Clean the interior surface with lukewarm water using a
soft cloth.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
www.kingsbottle.com.au 4

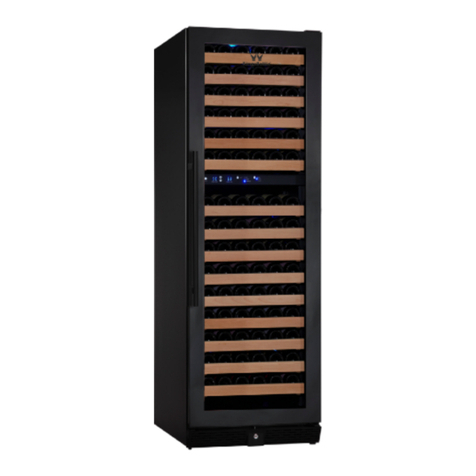

PART II"" DIAGRAM & DESCRIPTION OF REFRIGERATOR
FEATURES
1 Control board
2 Housing
3 Ventilation DC Fan
4 Shelf
5 Front grill
6 Door hinge
7 Controller
8 Door
9 Adjustable stand feet
YOUR REFRIGERATOR ALSO INCLUDES TWO KEYS TO OPERATE THE ROUNDED LOCKING!
MECHANISM WHICH IS SHOWN AT THE LOWER CENTRE POSITION OF THE DIAGRAM.!
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au 5
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
!
CUTOUT DIMENSION ILLUSTRATED
KB405
KB308
KB152
MODEL
WIDTH
DEPTH
HEIGHT
NOTE
KB152
595 mm
600 mm
860mm( Unit comes with additional
8mm feet that drop the units
height"to 848mm if required )
These"front-venting models can be built into cabinetry. Builders should
allow an"additional 20mm either side, behind and on"top of the unit.
These extra spaces enable units to be placed in the position efficiently,
accommodate the door when open, and"without power"cords being
damaged.
KB308
598 mm
685 mm
1408 mm
KB405
598 mm
685 mm
1821 mm
www.kingsbottle.com.au 6
PART III"INSTALLATION INSTRUCTIONS
INSTALLATION
COMPRESSOR REFRIGERATORS
INSTALLING YOUR REFRIGERATOR
1. Move the unit into its final position .
2. If the unit is not tilting back, minor adjustments can be made to the leveling legs.
3. Compare the alignment of the appliance to the surrounding cupboard . The top of the appliance should be level from side to side
(see diagram below) .
4. If the unit now rocks from one corner to the opposite rear corner, this means that the floor is uneven. You may need to put some
packing under the ridge to the rear of the appliance . You could use thin pieces of solid material such as thin board, vinyl floor tiles or
laminate .
5. You may now need to fine tune the installation by repeating steps 2, 3 and 4 .
6. Wipe off any dust that has accumulated during shipping and clean following the directions in Part VI ( Care & Maintenance)
7. Plug the appliance into the power point. Don’t use a double adaptor or extension cord .
8. It is recommended that you let the unit for rest an hour or two before you put any wine bottles in it . This will confirm that it is
operating correctly and make the conditions appropriate for wine storage .
Congratulations! You have successfully installed your refrigerator.
DOOR LOCK
This unit comes with an optional key lock. The keys are located inside the plastic bag that contains the user manual. To lock the door,
simply reverse the operation making sure the metal pin is engaged completely. Then remove the key and place it in a secure place for
safekeeping. To unlock the door, insert the key into the lock and turn counterclockwise.
Before you move your appliance into the place where it
will operate, check that it will have adequate clearance.
Clearance is required for air circulation and too little
clearance may affect the performance of your appliance.
We recommend minimum clearances of:
NOTE:
Doors are designed to sit proud of cabinetry (not flush).
The clearances shown above are the recommended
minimum clearances. The clearance at the rear must not
exceed 75mm.
The appliance should arrive with the front levelling feet
wound up. The appliance may need to be tilted backward
at the top by about 10-15mm from vertical (see diagram
below). This will allow the door to gravitate to the closed
position. The complete closure of the door seal is reliant on
manually pushing the door closed to provide a consistent
door seal.
CAUTION
The rollers are designed for forward or backward movement
only.They are not castors. Moving the refrigerator sideways
may damage your floor and the rollers.
1. Move the appliance into its final position.
2. If the appliance is not tilting back as described earlier,
minor adjustments can be made to the two front
levelling legs by turning the feet in an anticlockwise
direction (below). This will increase the height of
the feet. If you have difficulty turning the foot, have
someone tilt the appliance back to gain better access.
If it is not tilted back enough and the levelling legs are
fully extended, additional packing might be required
(see note 4 for appropriate materials).
3. Compare the alignment of the appliance to the
surrounding cupboard. The top of the appliance should
be level from side to side (see diagram below). If
you need to adjust the level, use the levelling feet as
detailed in step 2.
4. If the appliance now rocks from one corner to the
opposite rear corner, this means that the floor is uneven.
You may need to put some packing under the ridge to
the rear of the appliance. You could use thin pieces of
solid material such as thin board, vinyl floor tiles
or laminate.
5. You may now need to fine tune the installation by
repeating steps 2, 3 and 4.
6. Wipe off any dust that has accumulated during shipping
and clean following the directions on page 17.
double adaptor or extension cord.
8. It is recommended that you let the appliance for an hour
or two (three hours for a freezer) before you put any
food in it. This will confirm that it is operating correctly
and make the conditions appropriate for food storage.
Congratulations! You have successfully installed your
refrigerator/freezer.
10 –15mm
Height adjustable
front rollers
50mm (75mm max)
30mm
30mm
Recommended
airspace
CABINET
DOOR
www.kingsbottle.com.au 7
Rear of the refrigerator
parts included
B
B
A
1. Area “A” is around 180Wx50H mm. "
This area is located 30mm from the edge of the appliance on top, left or
right side (see above image).!
2. “B” refers to the position where the holes for brackets should be drilled."
Note: “B” should always be inside the area “A”!
3. Position the brackets on the desired location, mark and drill pilot holes for
the screws about 8mm into the appliance. Then use a screwdriver to
tighten the screws all the way into the appliance
A
APPLIANCE
Position the appliance in the desired location. Locate wall studs behind the appliance
and mark the location where the bracket on the back of the appliance lines up with a
stud. Move the appliance away from the wall and position bracket on the mark. Mark
and drill pilot holes into the center of the stud with a 2.5mm drill bit. Attach a bracket
to the stud with the long screws provided.
Move the appliance into its final position, taking care to line up the wall bracket close
enough to the bracket on the back of the appliance to strap them together. Thread a
strap through the brackets as shown in the illustration. Tighten the straps until snug.
Do not over tighten.
CAUTION: This product is not intended to be a substitute for proper supervision.
Manufacturer assumes no liability for improper installation or excessive loads placed
on screws, brackets, or straps.
Straps should be periodically adjusted, tested and replaced.
Instructions to Anchor The Appliance to The Wall - (only Wine Fridges KB308W and KB405W Required)
B
INSTALLATION
!
www.kingsbottle.com.au 8
COMPRESSOR REFRIGERATORS
PART IV" " LAYOUT AND STORAGE
STORAGE
display shelves options
( for KB405W Model)
As an additional option, you might like the idea to have
some display shelves to show your bottle label. You
could refer to the instruction to remove the 2nd, 4th
shelves at the top (use the screws to fill the holes on the
wall after shelves removed), and then change the 1st,
3rd, 5th shelves to display shelves.
Note:
This changes will reduce the total storage capacity.
remove the 2nd, 4th shelves
change the 1st, 3rd, 5th standard
shelves to display shelves
www.kingsbottle.com.au 9
PART IV" " LAYOUT AND STORAGE
STORAGE
display shelves options
( for KB308W Model)
As an additional option, you might like the idea to
have some display shelves to show your bottle label.
You could refer to the instruction to remove the 2nd
shelf at the top (use the screws to fill the holes on the
wall after shelves removed), and then change the 1st,
3rd shelves to display shelves.
Note:
This changes will reduce the total storage capacity.
remove the 2nd shelf
change the 1st, 3rd standard
shelves to display shelves
KB308W
KB308W
!
www.kingsbottle.com.au 10
PART IV" " LAYOUT AND STORAGE
STORAGE
YOUR CABINET WAS DESIGNED TO STORE A MAXIMUM NUMBER OF BOTTLES SECURELY. WE RECOMMEND THAT YOU
OBSERVE THE TIPS BELOW TO OPTIMIZE LOADING.
1. Disperse your bottles even so as not to concentrate weight in any one area. Also, be careful that your bottles do not touch either the
back of the cabinet or the step at the bottom.
2. Also make sure that bottles are not all grouped together either at the top or bottom of the cabinet.
3. A refrigerator that is full and has nice allowance for air movement will work more efficiently.
4. Never try to adjust shelf with bottles still on it.
TO REMOVE A ROLLING SHELF:
1. Remove all bottles
2. Pull the shelf out as far as possible
3. Push the LEFT side lever downward but RIGHT side lever upward (as illustrated below)
4. Remove the shelf
PLEASE NOTE
Before modifying your cabinet’s original configuration in any way, be sure to ask your dealer for advice.
Important safety instructions . . . . . . . . . . . . . 3
Bar refrigerator with ice box features . . . . . . . . . 4
Bar refrigerator without ice box features . . . . . . . 5
Single door all refrigerator features . . . . . . . . . 6
Bar freezer features . . . . . . . . . . . . . . . . 7
Single door all freezer features . . . . . . . . . . . 8
Installing your new appliance . . . . . . . . . . . . 9
Ventilation around your appliance. . . . . . . . . 9
Installing your refrigerator . . . . . . . . . . . 9-10
Initial start-up . . . . . . . . . . . . . . . . . . . 10
Manual controls . . . . . . . . . . . . . . . . . . 10
Controlling the temperature. . . . . . . . . . . . 10
Using your appliance – Ice box models . . . . . . . . 11
Making ice . . . . . . . . . . . . . . . . . . 11
De-icing the ice box . . . . . . . . . . . . . . . 11
Freezer operation . . . . . . . . . . . . . . . . . 12
Reversing the ice box door opening direction . . . . . 13
Reversing the door opening direction WIM1000 &
WFM0700 . . . . . . . . . . . . . . . . . . . . 14
Reversing the door opening direction WIM1200,
WRM1300, WRM2400, WFM0900 & WFM1800 .15
Care and maintenance . . . . . . . . . . . . . . . .
Changing the light bulb . . . . . . . . . . . . . 16
General information . . . . . . . . . . . . . . . . 17
Cleaning the appliance . . . . . . . . . . . . . 17
Safety . . . . . . . . . . . . . . . . . . . . . 17
Switching off your appliance . . . . . . . . . . . 17
Troubleshooting . . . . . . . . . . . . . . . . . . 18
Warranty . . . . . . . . . . . . . . . . . . . . . 19
Congratulations and thank you for choosing our
refrigerator/freezer. We are sure you will find your new
appliance a pleasure to use. Before you use the appliance,
we recommend that you read through the relevant sections
of this manual, which provides a description of your
appliance and its functions.
To avoid the risks that are always present when you use
an electric appliance, it is important that the appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but contact
your local customer care centre.
TIPS & INFORMATION
If you find
the refrigerator is damaged or marked, you must report it
within 7 days if you wish to claim for damage/marks
under the manufacturers warranty. This does not affect
your statutory rights.
ENVIRONMENTAL TIPS
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
your local authorities and ask for the correct method
of disposal.
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au 11
OPERATION
PART V"OPERATING YOUR REFRIGERATOR
This KingsBottle Refrigerator series comes with the worlds best quality controller from CAREL. Before using your Refrigerator, please read these
instructions carefully .
1. COMPRESSOR
2. FAN
3. DEFROST
4. ALARM
5. FIGURE
DISPLAY:
1. Increase the value;
2. Holding the button for at least 3
seconds, powers the unit ON or OFF.
1.Decrease the value;
2. Holding the button for half a second
turns the interior light ON or OFF.
1. Use SET after selecting values with the
up and down arrows
2. alarm mute button.
UP/POWER
DOWN/LIGHT
SET/MUTE
KEYBOARD:
ADJUST TEMPERATURE
1. Press the “SET / MUTE” button for more than 3
seconds until the display shows the code ST ( st )
2. Use the “UP” and “DOWN” buttons to adjust the
temperature.
3. Press SET / MUTE button to save the setting. If no button is
pressed for 5 seconds, the changes of setting will be saved
automatically and the DISPLAY will show the actual
temperature..
!
www.kingsbottle.com.au 12
OPERATION

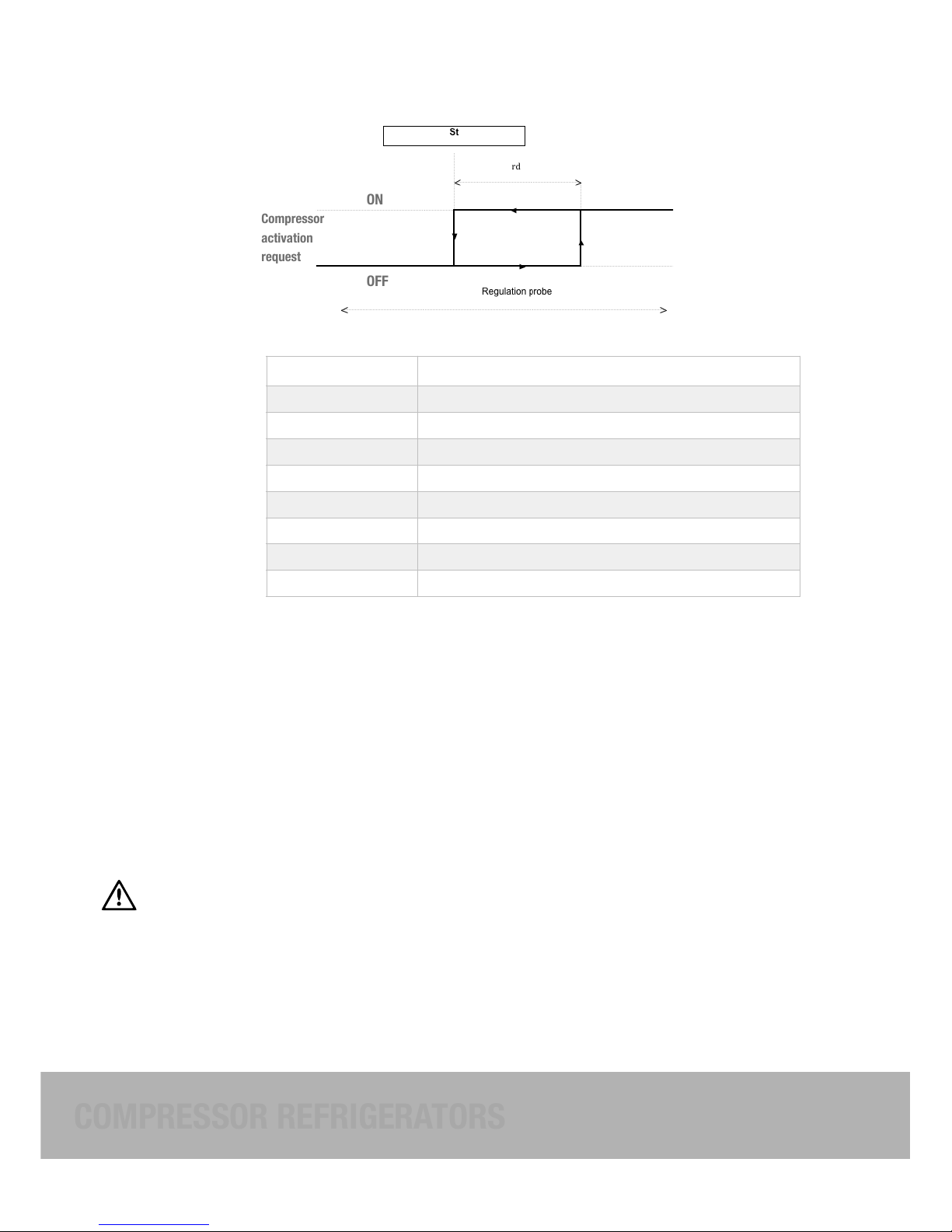

""ON
Compressor
activation
request
""OFF
ALARM CODE
DESCRIPTION
LO
low temperature alarm
HI
high temperature alarm
E0
probe 1 error=control
E1
probe 2 error=defrost
E3
enter defrost status d12 twice continuously
dF
defrost running
EE
unit parameter error
EF
operating parameter erro
TABLE OF ALARMS
1. In the event of a power interruption, all previous temperature settings will be automatically saved and each compartment will return to the
previous temperature setting.
2. If the unit is unplugged, loses power, or is turned off, you must wait over 6 minutes before restarting. Within this 6 minutes, compressor protect
itself and will not start even power ON again
3. When you use the refrigerator. for the first time or restart the refrigerator after having been shut off for a long time, there will be a few degrees
variance between the temperature you select and the one indicated on the LED readout for the first few hours of operation. After a few hours of
operation, the temperature will normalize to the displayed temperature.
NOTE: The desired temperatures may fluctuate depending on whether the interior light is ON or OFF, the ambient temperature, the location of
unit and the orientation of the bottles. The display is just a guide, be guided by how cold your drinks are at consumption. Remember units go
into defrost mode and this will show a higher display, it’s only for short periods and doesn’t have time to effect drink temperature. In general
once unit has settled it will keep products within 2°C of the set temp easily in temperatures up to and beyond 38°C. !
TEMPERATURE SETTINGS FOR WINE AND BEVERAGES
Different varietals of wine require different temperature settings. The recommended temperature ranges for long term storage of different varietals of
wine and beer are listed below. Please contact your wine or beverage supplier directly for their premium storage temperature recommendation.
•Rich and full-bodied reds: 15-18°C"
•Light reds: 12-14°C
•Whites and rose: 7-14°C
•Sparkling wines: 6-9°C
•Beer: 1-5°C
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
COMPRESSOR REFRIGERATORS
www.kingsbottle.com.au 13
MAINTENANCE
CLEANING YOUR REFRIGERATOR
BEFORE CLEANING: Turn off the power, unplug the appliance, and remove all items including all shelves.
•Wash the inside surfaces with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda with a
quart of water.
•Wash the shelves with a mild detergent solution.
•Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
•Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
•After installation, we recommend that owners apply a thin layer of Olive Oil with a clean rag, to all exposed Stainless Steel
areas. This should then be polished in and buffed off with another clean rag to a non-oily finish. This process will aid protection against
dirt and other corrosive contaminants, by providing a temporary food-safe shield. The Olive Oil layer also makes later polishing and
removal of fingerprints easier. This process should be repeated frequently every 3-4 months. ALL stainless steel can rust, it is a myth that
stainless steel doesn’t rust.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of
times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your
contents.
VACATION TIME
Short vacations: You may leave the refrigerator operating during vacations of less than three weeks.
Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior
thoroughly. To prevent mold growth, leave the door open slightly, blocking it open if necessary.
MOVING YOUR REFRIGERATOR
1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable leg up to the base to avoid damage.
4. Tape the door shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also protect the outside of the appliance with a
blanket or similar item.
ENERGY SAVING TIPS
1. The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and away from direct sunlight.
Ventilation at rear also helps a lot with energy usage, so create a positive air flow where possible, although with this range they are
designed to be fully built in.
2. When you are not using fridge during weekdays etc. it is recommended to set the temp at a higher level, so set at 18°C during periods
of non usage, this will not only mean less run time, it also still keeps drinks at a temp that won’t be spoiled. It saves energy also which
these days is a growing concern for most households.
3. Keep the refrigerator stocked, an empty refrigerator will run longer, believe it or not.
place for later reference.
The symbols you will see in this booklet have these meanings:
WARNING
CAUTION
TIPS & INFORMATION
ENVIRONMENTAL TIPS
Meanings of symbols used in this manual are shown below:
WARNING
‘flammable’ and/or a small flame symbol,
do not store them inside any refrigerator or
freezer. If you do so you may cause an explosion.
remove any doors. Children can suffocate if they get
trapped inside.
blowing gases. Avoid safety hazards by carefully
disposing of this appliance.
WARNING
The refrigerator must be plugged into its own
dedicated 220-240V, 50Hz AC electrical outlet.
The plug must be accessible when the refrigerator is
in position.
It is essential the power point is properly earthed to
ground.Consult a qualified electrician if you are unsure.
Don’t use extension cords or adapter plugs with this
refrigerator.
If the power cord is damaged, have it replaced by a
qualified service technician.
Unplug the refrigerator before cleaning it, or changing
the light bulb to avoid electric shock.
Never unplug the refrigerator by pulling the electrical
cord as this may damage it. Grip the plug firmly and
pull straight out.
Choose a location for your refrigerator that isn’t too cold.
The ambient room temperature should be above 10°C.
Stand your refrigerator in a dry place – avoid areas
of high moisture or humidity.
Don’t put the refrigerator in frosty or unprotected areas
like a garage or on the verandah.
Keep the refrigerator out of direct sunlight.
Don’t locate the refrigerator near stoves, fires or heaters.
When installed correctly, your refrigerator should:
– Have adequate space at the back and sides
for air circulation (refer to page 9).
– Be aligned to the surrounding cupboards.
– Have doors that will self-close from a partially
open position.
WARNING
This appliance may contain a small quantity of environmentally
friendly, but flammable, non-synthetic R600a refrigerant:
damaged during transportation and installation.
8g of refrigerant. The amount of refrigerant charged in the
appliance can be found on the rating plate on the appliance.
in the built-in structure, clear of obstruction.
accelerate the defrosting process, other than those
recommended by the manufacturer.
3
per 8g of refrigerant. The amount of refrigerant charged
in the appliance can be found on the rating plate on
the appliance.
PART VI"CARE AND MAINTENANCE
!
www.kingsbottle.com.au 14
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
Solution
Refrigerator does
not operate
1. Not plugged in
2. The appliance is turned OFF at the control panel
3. The circuit breaker has tripped or a fuse has blown out
Press ON/OFF
Check and make sure the power plug is well connected
Ask an engineer for help
Refrigerator is not
cold enough; can
not cool down to
the preset temp.
Compressor does not start
ask an engineer for help / check the connection of the compressor
Compressor self-protected and has stopped operating
The ambient temperature is too high (over 38°C degree)
The air venting is not smooth, check that the air duct is not blocked
Fan operates slowly or is faulty and has stopped operating.
The door is not closed completely, or the door opened too long
The compressor, or its components are faulty
Fans stop working or operate at low speed
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and whether the voltage is normal. If the voltage is normal, then the
fan should be damaged
Evaporator ices up
Turn OFF the refrigerator for one hour and open the door. The ice on the
evaporator will melt. Check the door seal for any air gaps.
Door is not closed properly
Check the door lock, shelves, or other objects, make sure door is well
closed.
Check the rubber seal for any air gaps.
Check the door hinges, make sure they are not loose
Condenser is dusty
Wash and clean the condenser
Cooling system faulty (Gas leakage or blockage)
Ask an engineer for help
Compressor starts
and stops
frequently
The door gasket does not seal properly.
Use low heat on a hair dryer to make the door seal take shape.
The sensor connection is wrong.
Read the wiring diagram to make the correct connection of sensor
The sensor is faulty.
Replace with a new sensor
The door is opened too often.
Reduce the times / frequency of door openings.
The light does not
work.
Not plugged in, or the light button is “OFF”.
Light itself faulty.
Check and make sure the light button is ON, or ask an engineer for help.
The Refrigerator
seems to make too
much noise.
The stand feet is not leveling, vibrations lead to noise
Adjust the stand feet and ensure they are level.
Copper pipe hits other objects and makes noise
Gently adjust the position of the pipe.
When the compressor shuts down or starts, it is normal for
noise from the vibrations generated by the internal moving
parts due to inertia.
Take no action
A liquid plumbing noise may come from the flow of the
refrigerators gases, which is normal. As each cycle ends, you
may hear gurgling sounds
Take no action
The door will not
close properly.
Door is blocked by the door lock, shelves, or other objects.
Remove the barrier
Door sealing rubber is deformed
Repair or replace the rubber seal
Door hinges are not loose.
Adjust and fasten the hinges.
Ice up
Outlet / suction outlet blockage
Remove the barrier
Fans stop working or operate at low speed.
Ask an engineer for help. Power the refrigerator ON and OFF. Check the
fan and the voltage. If the voltage is normal, the fan may be damaged.
The door gasket does not seal properly;
or door is opened too often
Use low heat on a hair dryer to make the door seal take shape.
Gas leakage or cooling system blockage
Ask an engineer for help
External cabinet
seems too hot
Ambient temperature is too high, or direct sunshine
Operating conditions need to be improved
Front grill outlet / suction outlet blockage
Remove the barrier
Fans stop working or low speed operating
Ask engineer for help, power on the refrigerator, check the fan whether
the voltage is normal or not. If the voltage is normal, the fan should be
damage
Water drop on
glass door
Ambient humidity is high
Use a soft cloth to clean the water
Door is opened too often
Reduce the times / frequency of door opening.
The door gasket does not seal properly
Use low heat on a hair dryer to make the door seal take shape.
PART VII"TROUBLESHOOTING GUIDE
www.kingsbottle.com.au 15
www.kingsbottle.com.au 16
TECHNICAL DATA
PART X"" TECHNICAL DATA
COMPRESSOR WINE REFRIGERATOR
!
PART IX"WARRANTY INFORMATION
Please speak to your retailer before calling us if you did not purchase your refrigerator directly from KingsBottle Australia.
Who is covered: This warranty is extended only to the original end-user purchaser or the person receiving the product as a gift, and shall not be extended to
any other person or transferee.
Limited warranty – If your refrigerator is not operating properly, KingsBottle reserves the right to repair or replace the refrigerator. KingsBottle may request
the consumer to contact a local refrigeration company to service the refrigerator. All cost for labor and materials is covered for 2-year from the date of receipt.
If KingsBottle deems the unit not repairable, KingsBottle will use the value of your original order toward a replacement. For customer service, please e-mail us
The limited warranty does not cover: Damage due to such things as accident, misuse, abuse, mishandling, neglect, unauthorized repair or any other
cause beyond the control of the seller whether similar or dissimilar to the foregoing. Purchaser understands and acknowledges that the goods sold here are
WINE & BEVERAGE REFRIGERATORS, which house beer and other wines. Purchaser assumes all the risk of using these units, including risk of spoilage,
humidity variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar perils that may occur.
SPECIAL NOTE: Warranty is only honored for the unit which is purchased and used in United States of America. And, if your product was purchased at any
3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase directly. In the
event your retailer does not offer an extended warranty plan, we recommend you contact a third party warranty provider. However, regardless of point of
purchase, all KingsBottle refrigerators are backed by a TWO YEAR manufacturer's warranty from date of sale.
Registering online is quick and easy!
https://kingsbottle.com.au/apps/product-registration
MODEL NO.
KB405W / KB405B
KB308W / KB308B
KB152W / KB152B
VOLUME
405 Litres
308 Litres
152 Litres
TYPE OF COOLING
compressor with air-circulated fan
cooling
compressor with air-circulated fan
cooling
compressor with air-circulated fan
cooling
CLIMATE TYPE
N
N
N
ELECTRICITY PROTECTION
GRADE
I
I
I
RATED POWER(W)
200 Watts
190 Watts
140 Watts
AMBIENT TEMPERATURE
0 - 38 °C
0 - 38 °C
0 - 38 °C
TEMPERATURE RANGE
1-18°C
1-18°C
1-18°C
NET WEIGHT
130 KGS
90 KGS
51 KGS
GROSS WEIGHT
141 KGS
102 KGS
55 KGS
DIMENSION
598W x 685D x 1821H mm
Included stand height 25mm
598W x 685D x 1408H mm
Included stand height 25mm
595W x 600D x 860H mm
Included stand height 20mm
This manual suits for next models
8
