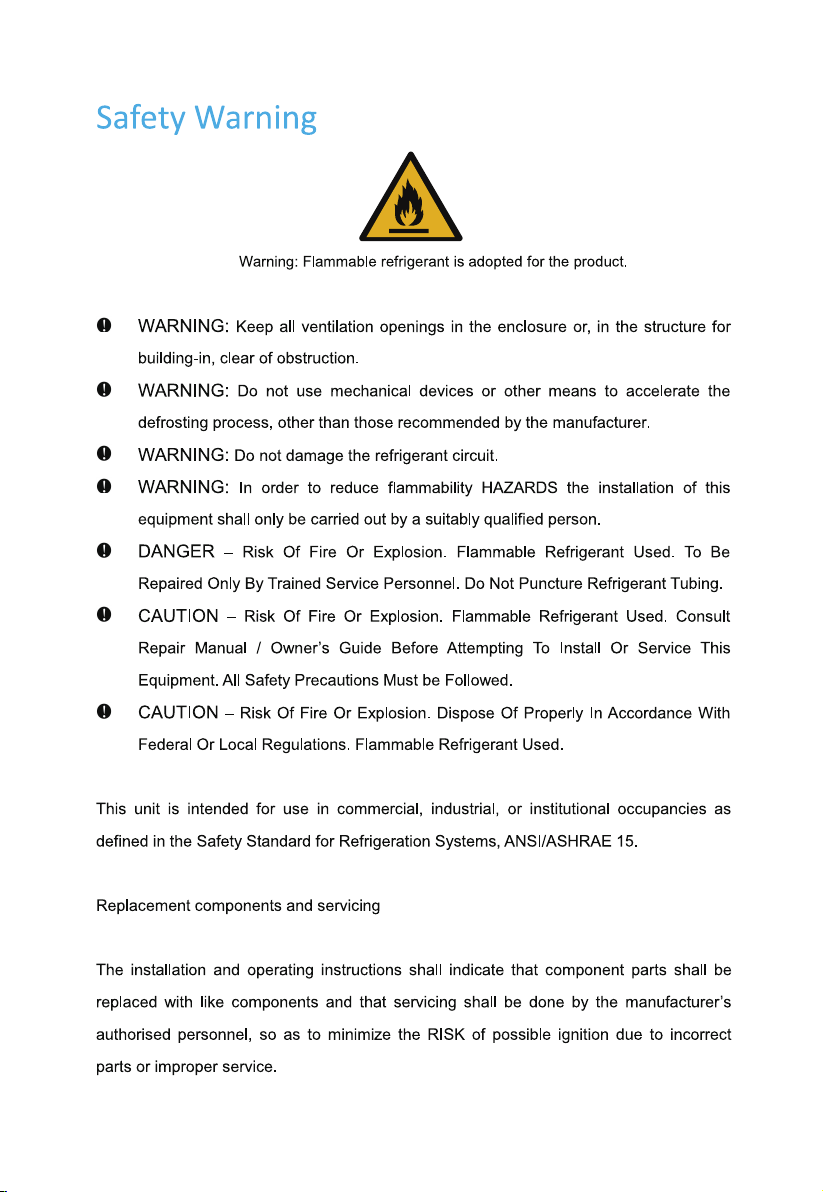

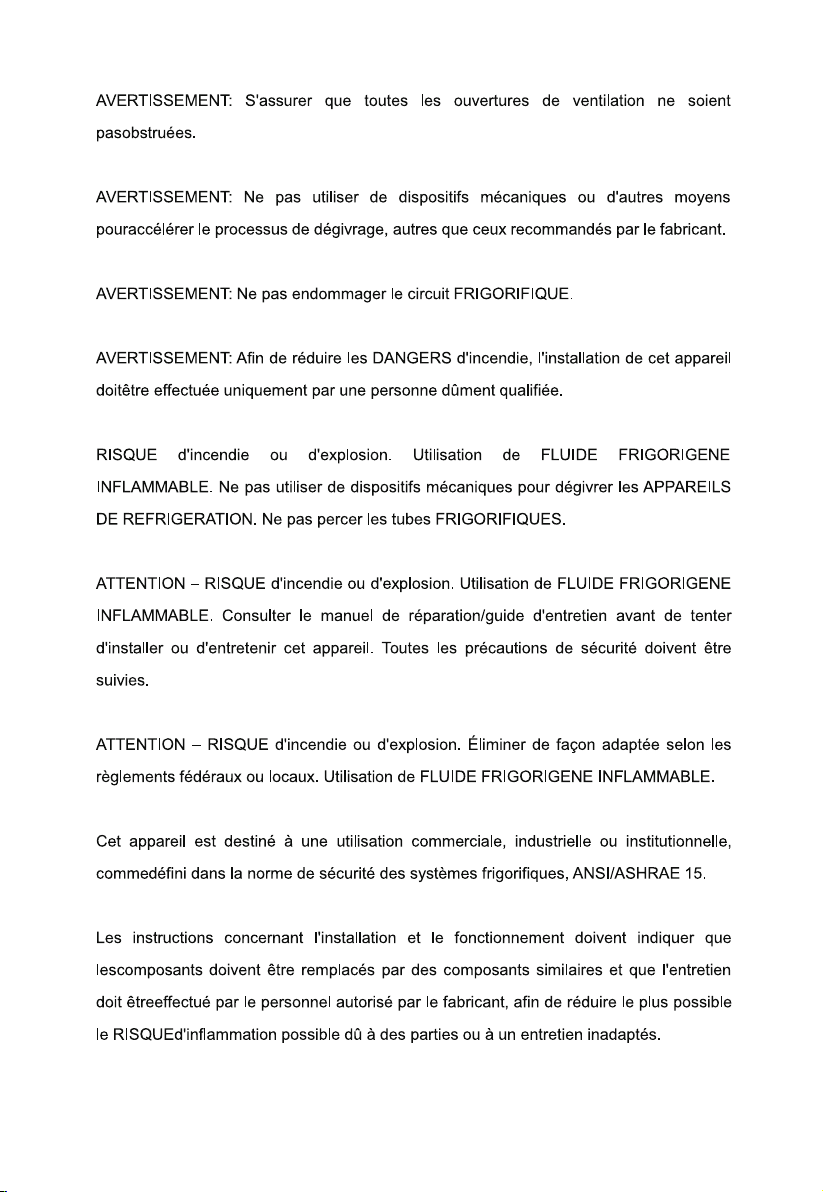

Warning:
USER MANUAL
Pharmacy Refrigerator
[MODEL]
KBU5L316
KBU5L416
KBU5L756
KBU5L1006
Before using this product,please read this manual carefully and keep it for
future reference.The design and specifications are subject to change
without prior notice for product improvement. Consult with your dealer or
manufacturer for details.

Contents
Product features ................................................................. 3
Safety warnings ................................................................. 1
Precautions and safety measures ...................................... 4
Precautions for use............................................................. 9
Product installation ............................................................. 10
Product composition and overview ..................................... 15
Operating instructions......................................................... 16
Alarms ................................................................................ 25

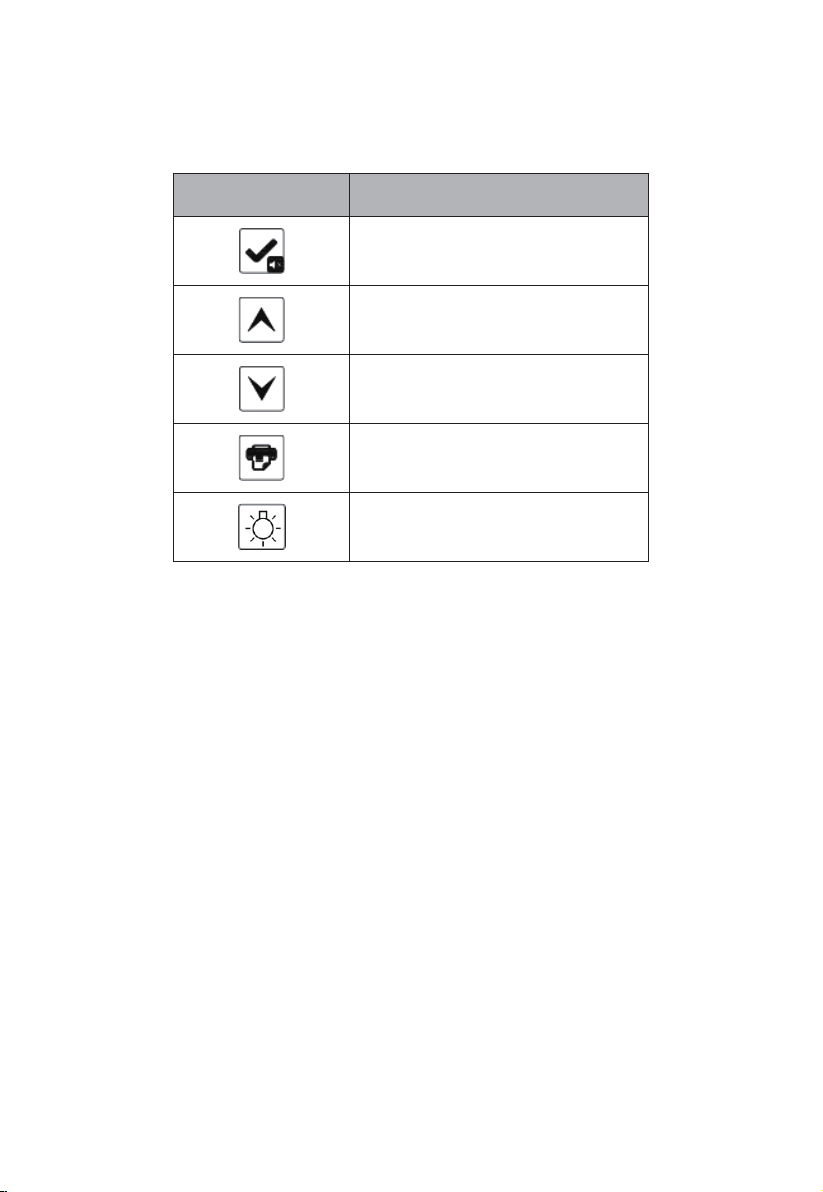

Key functions .....................................................................17
Maintenance and care ........................................................ 28
Troubleshooting and maintenance services ....................... 30
Specifications .....................................................................31
Packing list .........................................................................32
Electrical schematic diagram .............................................. 33
Warranty Information .......................................................... 34

1

2

Product features
This product can be used to store medicines, vaccines, reagents and materials
that need to be stored at 2 8
~°C.
Product function
Accurate temperature control & traceable data
• Microcomputer temperature control displays accuracy of 0.1°C
• Temperature can be set between 2°C to 8°C, and in the box, it fluctuates
• With USB interface, the temperature data can be traced and stored at any
time
Efficient refrigeration & energy saving mute
• Kings bottle is a world-renowned compressor brand that focuses on energy
saving, environmental protection, high efficiency and noise suppression.
• High efficiency condenser fan of famous brand and evaporator fan with
vortex effect refrigeration are adopted, with stable and lasting performance
and low noise
• Ensure that the temperature in the box is more uniform and stable, and the
cooling speed is more efficient
• Unique technologies of embedded air duct and air curtain of the industry
are adopted
Multiple alarms & safe and stable
• With perfect sound and light alarms, it can realize high and low
temperature alarms, power failure alarm, sensor failure alarm and other
functions. Alarm temperature value is set based on demand.
• The design of safety door lock ensures the safety of samples in the box.
User-friendly design
•
use of space
• The inner LED lights, bright and energy-saving, make the stuff in the box
clear at a glance
• 97 ~ 127V wide voltage design ensures stable operation of the device.
3

Precautions and safety measures
Dear users of Kings bottle:
Hi! Thank you for using Kings bottle p harmacy refrigerator.
For your convenience to understand this manual, use the
product,and prevent personal injuries and goods damages,
please read the following instructions thoroughly.
Warning Failure in complying matters
highlighted in warning
signs may cause serious
casualties.
Actions or
operations
that must be
prohibited
Note Failure in complying matters
highlighted in warning
signs may cause serious
casualties, or damages to
the pharmacy refrigerator and
related property losses.
Behavior or
operation
that must be
observed
Product with the symbol
that reads "prevent
fire, stay away from fire
sources".
Warning ------------------------------------------------------------------
t neverp o t eriw dnuorg a h tiw t ekcos rewop a esu esaelP
electric shock.
If the power socket is not grounded, the grounding wire
must be installed by professional technicians.
Be sure to place the pharmacy refrigerator firmly on a solid and
flat ground. If the ground is not stable or the place is not
suitable, the pharmacy refrigerator might be overturned or people
will be injured.
4

If the power cord needs to be lengthened, the sectional
area of the lengthened cord shall not be less than 2.5mm . At
the same time, the length is not longer than 3 m. Otherwise,
it may cause a fire or electric shock.
In case of flammable gas leakage, it is necessary to
close the gas leakage valve and open doors/windows,
for ventilation. Do not open any electrical switch, and do
not plug in or pull out the power plug of the pharmacy refrigerator,
otherwise it may cause explosions and fires.
Only professional technicians or after-sales maintenance
personnel can disassemble the pharmacy refrigerator, otherwise
it may cause fires or electric shock.
Please use the special power supply indicated on the
nameplate of the pharmacy refrigerator, otherwise it may cause
fire or electric shock.
If the voltage is lower than 97 V or higher than 127 V,
it is necessary to install more than 4000 W automatic
voltage regulator suitable for motor load.
The power cord of this pharmacy refrigerator is equipped with
a three-wire (grounded) plug, which meets the standard
three-wire (grounded) socket of 10 A.
Under no circumstances should the grounding pin of the
power cord be removed. Make sure that the power plug
and socket are plugged firmly and reliably, otherwise it
may lead to fires.
When unplugging from the power socket, hold the power
plug firmly and remove it. Do not pull the wires of the
power plug directly. If you pull the wire by hand, it may
cause electric shock or fires due to short circuit.
2
5

If the pharmacy refrigerator is not working properly, please
unplug the power plug. It may cause electric shock or fires
if it continues to operate under abnormal conditions.
Before any repair or maintenance of the pharmacy refrigerator,
always disconnect the power supply of the pharmacy
rfrirator to rnt tri o or rona inri
Make sure that the medicine or suspended particles inside
and around the pharmacy refrigerator will not be inhaled during
maintenance, otherwise it may be harmful to health.
When storing toxic, harmful, or radioactive materials,
please use a pharmacy refrigerator in a safe area. Improper use
may cause harm to human health or the environment.
When the pharmacy refrigerator is not used for a long time,
unplug the power plug to prevent electric shock, leakage
or fires caused by the aging power cord.
If the pharmacy refrigerator is idle for a long time in an
unsupervised area, make sure that the child does
not approach the pharmacy refrigerator and that the disposal
of the pharmacy refrigerator is to be carried out by the
appropriate personnel. The door should be removed to
prevent accidents such as suffocation.
No flammable, explosive, dangerous or volatile stuff
should be stored in pharmacy refrigerator. Do not use
combustible sprays near the pharmacy refrigerator,
otherwise it may cause explosions or fires.
Do not store corrosive stuff such as acids and alkalis in
the pharmacy refrigerator. Otherwise, the internal components
or electrical parts of the pharmacy refrigerator may be damaged.
Packaging plastic bags should not be placed where
children can reach them, because plastic bags may
cause suffocation.
6

Do not climb on the pharmacy refrigerator or put the stuff
on the pharmacy refrigerator, otherwise will fall over and
a rona inri or ama to t armay rfrirator.
Don't use the pharmacy refrigerator in the open air. When the
pharmacy refrigerator is wet by rain, it may cause electric
leakage or electric shock.
Pharmacy refrigerator should not be placed in damp places or
places vulnerable to splashing water. Otherwise, electric
leakage or electric shock will be caused due to insulation
reduction.
Do not pour water directly on the pharmacy refrigerator,
otherwise it may cause electric shock or short circuit.
Users are not allowed to disassemble, repair or modify
the pharmacy refrigerator by themselves. Otherwise, it may
a fir or rona inri  to imror oration
Do not ground the pharmacy refrigerator through gas pipe,
power supply pipe, telephone line or lightning rod. The above
grounding may cause electric shock or other hazards.
Do not touch any electrical parts such as power plug or
any switch with wet hands, otherwise electric shock may
be caused.
o not t ontainr or ay ot ontainin atr
on the pharmacy refrigerator If t ot fa it may a
personal inri, and the outflow of water will reduce the
insulation and cause leakage or electric shock.
o not inrt mta ot  a nai or ir into
any openings and gaps of the pharmacy refrigerator or into
any vent used for internal air circulation, otherwise electric
o or inry may  a y t ao ot
contacting with moving parts.
7

Note ---------------------------------------------------------------------
There should be no obstruction around the pharmacy
refrigerator and the ventilation should be smooth. It is
necessary to check the pharmacy refrigerator setting when
restarting the pharmacy refrigerator after power failure or power off.
Changes in settings may damage stored items.
Once the power of the pharmacy refrigerator is cut off, it will
take more than five minutes to turn it on again to avoid
damages to the compressor or system.
Gloves should be worn during maintenance to avoid
toin t ar  or ornr an inri to
personnel.
Hold the handle to close the door so that the door will
not catch your fingers.

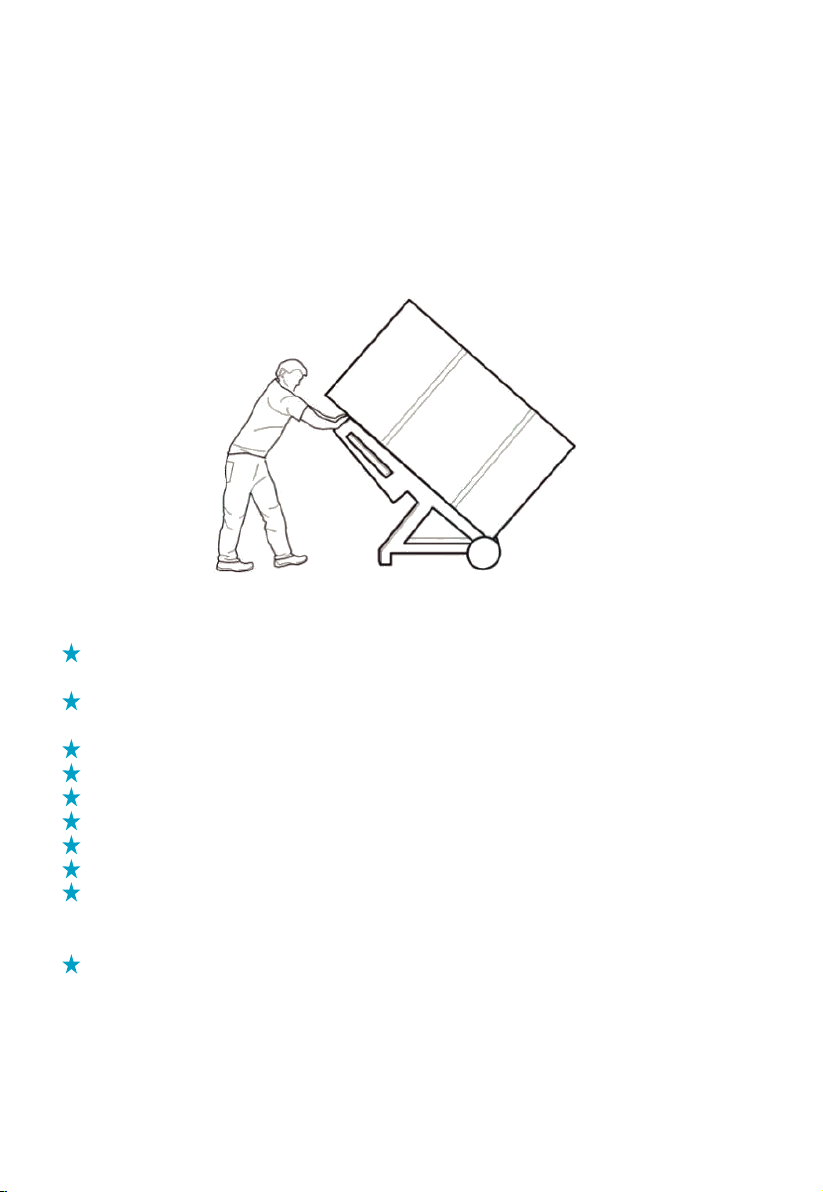

When moving pharmacy refrigerators, the inclination
angle should not be more than 45 degrees.
When transporting the pharmacy refrigerator, be careful not
to trip over pharmacy refrigerator to prevent damages to
armay rfrirator or rona inri
Please do not use the door handle to lift or carry
the device, in case of damages to the pharmacy
rfrirator or rona inri
The refrigeration circuit must not be damaged.
Do not use electrical appliances in the storage room
of pharmacy refrigerators except for those recommended
by the manufacturer.
8

Precautions for use
erutar
epme t e h t t a h t e r u s e k am e s a e l p , e c i v e d e h t o t n i f f u t s g n i t t u p e r o f e B
in the storage room has reached the set temperature, and then put the stuff
into the pharmacy refrigerator in batches.. The volume of the articles in the
box should not exceed 1/4 of its volume at a time to prevent the temperature
from rising too much.
t a er
utarep m et eht wohs ot si ec ived eht fo eulav yalpsid erutarep m et ehT
the temperature sensor in the storage room. There is a certain difference
between the displayed temperature and the actual temperature at the center
of the device when the device ust starts. As the device enters a stable state,
the displayed temperature will gradually reach the actual temperature.
t uo dael ot sa os eloh noi tceted a ht iw dedivorp si ydob xob ecived ehT
the test line in the box during the test. After the test line is led out, it is
necessary to plug the test hole with insulating material again, otherwise
the temperature in the box may not reach the set temperature value, and
condensation will appear around the outside of the through hole.
,seh
su r b esu t on oD . ec i ved eh t nae l c o t r enae l c l a r t uen de t u l i d esu esae l P
acid, gasoline, soap powder, polishing agent or hot water to clean the
device, otherwise the painted surface and plastic rubber parts may be
damaged. Attention: Do not use volatile solvents such as gasoline to clean
plastic and rubber parts.
dna yl
ppus r ewop eh t f f o t uc , emi t gno l a r o f esu n i t on s i ec i ved eh t nehW
turn off the battery.
eh t
nepo o t emi t eh t ecude r o t y r t esae l p , sme t i eh t ssec ca uoy emi t hcaE
door to avoid large fluctuations in temperature and humidity inside the box.
ni y l
prahs es i r l l iw xob eht edi sn i erutarepmet eht ,denepo s i rood eht ret fA
a short time. This is normal, and the situation will be restored within 1 hour
after the door is closed.
yam
rood s sa l g , t nemno r i vne y t i d imuh hg i h dna e r u t a r epme t hg i h r ednU
condense, which is normal phenomenon and does not affect the storage
temperature in the box. If condensation occurs, please change door heating
mode to mode 4 (default setting is mode 2). Please improve ventilation
conditions as soon as possible to lower the ambient temperature.
9

Product installation
Installation environment ------------------------------------------
pharmacy refrigerator is only for indoor use, with second pollution level and
ehT
Product handling
1.
2.
3.
Protect the pharmacy refrigerator in moving it, same as shown as below photo,
please move it by handcart with cushion.
Remove all packing materials and bottom cushion, then move into house for
placement.
After moving it to appropriate location, wait for 2 hours before power on.
second type of over-voltage
si erutarepmet dednemmocer dna ,C°23-C°61 niht iw si erutarepmet tneibma
within 18°C-25°C. If necessary, air conditioning system should be used.
.hR%08 naht rewol :yt idim uh latne m nor ivnE
.tsud yvaeh diovA
.noi tarbi v ro yaws lac inahce m diovA
.
The altitude of working position of
refrigerator is lower than 2000m
Input voltage: between 97v~127v
no i t ce t o r p s se r gn I : IPX0.
e pharmacy refrigerator is sensitive to ambient temperature. When installed in other
hT
environments than the one aforesaid, the pharmacy refrigerator can't operate .
normally. Please improve the environment before use.
. pharmacy refrigerator in an open environment. eht l latsni ot det ibihorp si t I
When the pharmacy refrigerator is wet by rain, it may cause electric leakage
---------------------------------------------------
or electric shock.
10

Installation site ------------------------------------------------------
Do not install the device in a narrow and confined space and install it in a
place that can ensure its normal access, to avoid damage to storage goods
by maintenance difficulties and delayed repair in case of device failure.
The installation floor must be solid, flat, non-combustible and able to bear
the weight of the device during operation.
Provide good ventilation and avoid direct sunlight.
Each device needs a separate power outlet, please ensure that the power
ott o ittan a rrnt of  A. The plug and socket are firmly
connected.
Check the working voltage before use. In areas with unstable voltage, a
voltage stabilizer suitable for device load should be considered for voltage
stabilization, and the power of the voltage stabilizer should be greater than
4000 W to ensure that the input voltage requirements in the installation
environment can be met.
Device shall be reliably grounded. If the power cord socket is equipped
with grounding wire, check whether the grounding is good before use. If the
socket is not grounded, it must be installed by professional engineers and
technicians.
Warning Do not ground the refrigerator through gas pipe, water
supply pipe, telephone line or lightning rod, which may
cause electric shock.
After installation, the power plug must be accessible, so
that the power cord can be unplugged in time in case
of emergency. Nothing should cover the vent of the
refrigerator.
Note
As the ambient temperature has a great impact on the
device, if the above environmental requirements cannot
be met, the device may not be able to operate normally.
Please improve the environment before using the device;
the device is an intermittent operation working system.
Ambient storage and transportation temperature:
-40°C~+60°C, relative humidity: 10%~90%.
11

Preparation before use -------------------------------------------
1. Remove the outer packaging of all products (including the protective foam
in the packing box).
2. Check the accessories; please check the contents in the box according to
the packing list. If there is any discrepancy, please contact the after-sales
service in time.
3. Placement conditions: a gap of
at least 10 cm should be left around
the pharmacy refrigerator to facilitate
ventilation and heat dissipation.
4. o t front atr an at t ata ft otiona
a rotat t ata ft ockwise to extend it downward and
make it firmly stand on floor, to ensure the pharmacy refrigerator stands
steady in daily use.
5. t t ayr a to inta helves according to the actual needs.
6. Install door handle (optional)
Warning e m oc
nerdl ihc erehw ecalp eht ni sgab c i t sa l p eht tup t ' noD
into contact, so as to prevent suffocation accidents.
.
12

Operation after power failure -----------------------------------
The device has the memory function for the set value. When the power is
restored after the power failure, the device will continue the operation before
the power failure.
Warning Once the power of the refrigerator is cut off, it will take
more than five minutes to turn it on again to avoid damages
to the compressor or system.
When the refrigerator is not used for a long time, unplug
the power plug and turn off the battery switch (applicable
to battery items) to prevent electric shock, leakage or fire
caused by aging of the power cord.
If the refrigerator is left idle for a long time in an
unsupervised area, please ensure that children do
not approach the refrigerator and the door cannot be
completely closed.
Initial start-up ------------------------------------------------------
13
Please observe the following rules when conducting initial start-up:
1.Under no-load condition, please connect the power plug to right plugboard,
and the plugboard should not be shared with other appliances.
2.After turning on the power supply, turn on the battery switch of the device,
check if the inner LED light works properly.
3.Set recorder time, data recording interval time, etc according to actual need,
please refer to the operation instructions below for details.
4.Set parameter of cabinet temperature, high(low) temperature alarm deviation,
etc according to actual need. Default setting temperature is 5°C, high
temperature alarm is 8°C and the low temperature alarm is 2°C, please refer
to the operation instructions below for details.
5.“H1” alarm occurs at the initial operation stage, indicates the temperature
in cabinet is high. The alarm will stop when the temperature in cabinet drops to
the set temperature.
6.“LoF” alarm occurs at the initial operation stage, indicates the data
recorder is not started. Please start the data recorder refer to the operation
instructions below.
7.“BL” alarm occurs at the initial operation stage, indicates the low battery power
alarm, and alarm will be automatically relieved after 2-6 hours of power on.
8.Observe equipment operation for more than 3 hours, ensure equipment
runs stably, store items in cabinet in batches.
13

• A special person shall be responsible for the operation of this
product, and check and record it every day. If the temperature in
the cabinet is too high or too low, the goods shall be transferred to
other pharmacy refrigerator, and the goods shall not be stored again
until the fault is eliminated.
• This product is a pharmacy refrigerator, and the temperature in the
pharmacy refrigerator ranges from 2°C to 8°C. Please make sure that the
stored items are consistent with the environment in the pharmacy
refrigerator, so as to avoid damage to the items and economic losses.
•
Due to the refrigeration inertia, the display temperature and
humidity of this product are different from the actual temperature
and humidity in the box, which is a normal phenomenon.
• Please don’t place items in the space between the bottom of the
inner tank of the pharmacy refrigerator and the bottom shelf, so as not to
block the air duct.
•
All pharmacy refrigerators are for preservation. Hence, it is strictly forbidden
to put too many relatively hot items at one time, which will cause
the compressor not to stop for a long time, the temperature drops
slowly and affects the service life of the compressor. Stuff must be
put in batches, and the temperature should be lowered step by step
until it falls to the required temperature!
• The refrigeration circuit shall not be damaged.
• Unlicensed electrical appliances are not allowed to use inside the
pharmacy refrigerator.
14

Product composition and overview
Control panel
USB panel
LED light
Steel wire shelf
Universal wheel
Glass door
Refrigeration fan
Refrigeration air duct
Glass door lock
Door light switch
Schematic diagram (eg:KBU5L316 , KBU5L416)
Control panel
USB panel
LED light
Steel wire shelf
Universal wheel
Glass door
Lower outlet housing
Refrigeration fan
Refrigeration air duct
Glass door lock
Door light switch
Schematic diagram (eg: KBU5L756 , KBU5L1006)
Due to the improvement of products and different models, the actual products
may be different from the schematic drawings. Please refer to the real objects!
The sketch is only used for the description of the functional parts.
15

Operating instructions
Operation and display panel
Digital tube display instructions
The right digital tube only displays humidity and keeps humidity display
unchanged, while the left digital tube displays temperature, alarm codes,
menu, parameters and other information.
The “digital tube” mentioned in “key operation” below refers to the left digital
tube.
Indicators
Indicator status Alarms
Alarm light off Temperature in the box
is normal.
Alarm light on Temperature in the box
is abnormal.
Door light off The door is closed.
Door light on The door is open.
PRINT LIGHT
SET /MUTE
Temperature Humidity
ALARM DOOR
16

Key functions
Key names
Key symbols Key names
Set/Mute key
Up key
Down key
Print key
Light switch
Key operation
Key lock function
a) When the key is unlocked, the key will be locked if there is no key
operation for 60s or Up key and Down key are pressed for 3s at the same
time.
b) When the key is locked, only ambient temperature can be checked and
Mute key and Light switch key can be operated, and other keys are locked.
c) Key unlocks operation steps:
1.Under locked conditions, press both Up key and Down key for 3 seconds,
and display shows “000”.
2.Set Up key and Down key to change password(initial password is 005).
3.Press Set/Mute key to confirm unlocked, and return to normal display,
key lock light closed.
17

18
