1
USER MANUAL
KBU-50 / 180SA STEAK AGER FRIDGE
(The model number in Australia is KB instead of KBU)
KBU50SA
KBU120SA
KBU180SA

WARNING
THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO MODIFICATION WITHOUT ANY PRIOR NOTICE.
SOME MODELS ARE AVAILABLE IN DEDICATED COUNTRIES ONLY.
No guarantee is provided if the Aged Steak is used for anything other than it was specifically
designed. We are not responsible for any errors in this manual. We are not responsible for any
spoilage or damage to steak or any other potentially damaged meat or any other contents. The
warranty applies only to Steak Ager and does not apply to the content in the Steak Ager."
This appliance can be used by children aged from 8 years and above, and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Children shall not make cleaning
and user maintenance without supervision."
THIS APPLIANCE IS ONLY SUITABLE FOR THE COOLING OF MEAT OR FOOD IN COMMERCIAL
ENVIRONMENT OR SIMILAR.
All other types of use are not permitted. Any misuse of the appliance may result in damage to the
stored goods or spoilage. Furthermore, the appliance is not suitable for use in hazardous areas."
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance."
NOTICES IN OPERATING
Climate Pattern
Climate pattern is the room temperature in which you can operate the device to maximum the
cooling function."
Lower or higher room temperature may influence the device performance resulting in temperature
fluctuation and failure to reach the desired temperature."
32ºC±2ºC (90°F±4°F) on appliances of climatic class 0,1,2,3,4, 6 or 8;"
43ºC±2ºC (109°F±4°F) on appliances of climatic class 5 or 7"
Please operate the product only in the specified room temperature.
DANGER:!RISK!OF!CHILD!ENTRAPMENT.!BEFORE!YOU!THROW!AWAY!YOUR!OLD!
STEAK AGER:
•Take$off$the$doors."
•Leave$the$hanging rod and shelf$in$place$so$that$children$may$not$easily$climb$inside."
•When disposing of the appliance, do so only at an authorized waste disposal center."
2

•Children$aged$from$3$to$8$years$are$allowed$to$load$and$unload$refrigerating$appliances."
•Opening$the$door$for$long$periods$can$cause$a$significant$increase$of$the$temperature$in$the$co
mpartments$of$the$appliance."
•Clean$regularly$surfaces$that$can$keep$the$water$tank$system$and$food$in$contact$with$contami
nation."
•If$the$product$is$used$before$power$on,$clean$the$water$tank;$it$is$recommended$to$clean$the$wa
ter$tank$every$5$days."
•This$product$is$not$suitable$for$storing$frozen$food."
•If$the$refrigerating$appliance$is$left$empty$for$long$periods,$switch$off,$defrost,$clean,$dry,$and$le
ave$the$door$open$to$prevent$mould$developing$within$the$appliance."
•If$there$are$two$or$more$different$kinds$of$meat,$before$putting$the$food$in$the$refrigerator,$you$n
eed$to$pack$it$in$a$bag$to$avoid$contamination$caused$by$the$two$kinds$of$meat.$This$product$is
$only$suitable$for$pork$and$beef,$other$meats$are$not$allowed."
•If$there$is$liquid$flowing$out$of$the$meat,$it$needs$to$be$packed$in$a$bag$to$avoid$the$problem$tha
t$the$product$design$structure$is$not$easy$to$clean.
R600a WARNINGS
For your safety observe the following recommendations."
•This appliance contains a small quantity of R600a refrigerant which is environmentally
friendly, but flammable.$It does not damage the ozone layer, nor does it increase the
greenhouse effect."
•During transportation and installation, ensure that the tubing of the refrigerant circuit is not
damaged. "
•Avoid using or manipulating sharp objects near by the appliances."
•Leaking refrigerant can ignite and may damage the eyes."
•In the event any damage does occur, avoid exposure to open fires and any device which
creates a spark.$Disconnect the appliance from the mains power. "
•Thoroughly ventilate the room in which the appliance is located for several minutes.$"
•Notify Customer Service for necessary action and advice."
•The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant.$The refrigerant quantity contained in this appliance is listed above in grams; it is
also noted on the Rating Plate of the appliance."
•WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions."
•The symbol$is a warning and indicates the refrigerant and insulation blowing gas are
flammable."
•Warning: Risk of fire / flammable materials"
3

IT IS HAZARDOUS FOR ANYONE OTHER THAN AN AUTHORISED SERVICE PERSON TO CARRY OUT
SERVICING OR REPAIRS TO THIS APPLIANCE.
WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure
clear of obstruction."
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer."
WARNING: Do not damage the refrigerant circuit."
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance."
WARNING: This$appliance$is$not$intended$for$use$by$persons$(including$children)"
with$reduced Physical,$sensory$or$mental$capabilities,$or$lack$of$experience$and
knowledge,$unless$they have been$given$supervision$or$instruction$concerning$use
of$the$appliance$by$a$person responsible for$their$safety;"
WARNING: Children$should$be$supervised$to$ensure$that$they$do$not play with the appliance;"
WARNING: Do$not$use$extension$cords$or$ungrounded$(two$prong)$adapters;"
WARNING: If$the$supply$cord$is$damaged,$it$must$be$replaced$by$the$manufacturer,"
Its service$agent or similar$qualified$person$in$order$to$avoid$hazard."
Attention:
When the Steak Ager is at “OFF” condition: "
- Please take out all of goods from Steak Ager; "
- Please keep Steak Ager clean"
Allow 24 hours before switching on the Steak Ager. During this time we recommend that you
leave the door open to clear any residual odors."
BEFORE LOADING & PLUGGING IN THE STEAK AGER
Important: All models without front venting (air opening) are strictly for free standing only. (See
technical chart)"
RECOMMENDATIONS:
The location you have selected for your Steak Ager should:"
- be unencumbered and well ventilated;"
- be well away from any heat source and direct sunlight;"
- not be too damp (laundry, pantry, bathroom etc.);"
- have a flat floor;"
- have a standard and reliable electricity supply (standard socket to country standards, linked
to the ground), it is NOT recommended to use a multi-socket or extension lead;"
- have a surge protector fitted to the electrical outlet;"
4

- Away from the microwave oven. Certain microwave ovens do not have wave interference
shield. When placed within 1 meter vicinity of the Steak Ager, they may affect the operation of the
Steak Ager. "
NOTES:
- KB50SA/KBU50SA models are built-in ONLY"
- KB120SA/KBU120SA, KB180SA/KBU180SA models are Both built-in and free-standing type as
per the drawings thereafter."
Steak Ager should be install at suitable ambient temperature (please refer the end of User
Manual). If the temperature is higher or lower the ambient temperature range, it will affect
temperature fluctuation and can’t reach cooling performance. "
GROUNDING INSTRUCTIONS:
The Steak Ager must be grounded in case of wire leakage. Grounding reduces the risk of
electrical shock. The Steak Ager is equipped with a power cord having a grounding wire and
plug. The Steak Ager plug must be plugged into a properly affixed and grounded electrical outlet."
Note: In locations where there is frequent lightning, it is advisable to use surge protectors."
Improper use of the grounding plug can result in the risk of electric shock. Consult a qualified
electrician or service person if the grounding instructions are not completely understood."
If the supply cord is damaged, it must be replaced by a qualified person in order to avoid
electrical hazard."
INSTALLING YOUR STEAK AGER
Unpack and remove all of the protection and adhesive strips from the packaging around and
inside the Steak Ager."
The Steak Ager must be positioned such that the plug is accessible. Release the power cord.
Move your Steak Ager to its final location. The Steak Ager should be installed in a suitable place
where the compressor will not be subject to physical contact."
LEVELING YOUR STEAK AGER:
Steak Ager must be leveled BEFORE loading your Steak Ager."
Your Steak Ager is equipped with 4 adjustable feet to facilitate easy leveling. recommends that
you tighten the back feet to the maximum and adjust the front feet to level the Steak Ager."
5

INSTALLATION INSTRUCTIONS
FOR BUILT IN STEAK AGER:
FRONT VENTING STEAK AGER ONLY."
1. “Built in” Steak Ager are front venting but are not designed to be fully integrated behind a
joinery door."
2. Please follow the installation diagram when installing built-in Steak Ager. No less than the
minimum installation dimension."
3. Built-in Steak Ager draw air from right of ventilation frame and expel through left of ventilation
frame under the front door."
4. “Built-in” Steak Ager have a power switch located on the control panel so power point
location is not critical."
5. The Steak Ager requires a standard 240 volt/10 amp power point. (Or according to different
countries specifications)."
6. The power cord is 2.0m in length and is fixed on the right side at the back when looking from
front of cabinet."
7. As with most appliances of today, the Steak Ager has sensitive electronic components which
are susceptible to damage through lightning and electricity supply faults. It is therefore advised to
use a power surge protector to avoid problems of this nature. "
8.Air vent on door must be provided for built-in Steak Ager when a wood door installed."
In Hot climate zone, an air vent or grid, with a minimum ventilation size of 200mm x 40mm MUST
be cut out at the rear top of the back partitioning or at the top of either side of the partitioning,
allowing cool fresh air full access to flow into the 30mm gap located at the rear of the cabinet. "
This air vent or grid must not be opened on the same side as other appliances such as ovens or
an area that is sealed and without access to fresh cool air. Failing to comply with the above
specifications could result in WARRANTY void."
6

INSTALLATION DRAWINGS
FOR BUILT IN STEAK AGER:
UNDER BENCH FRONT VENTING STEAK AGER ONLY."
Note: The appliance must be positioned so that the plug is accessible after installed."

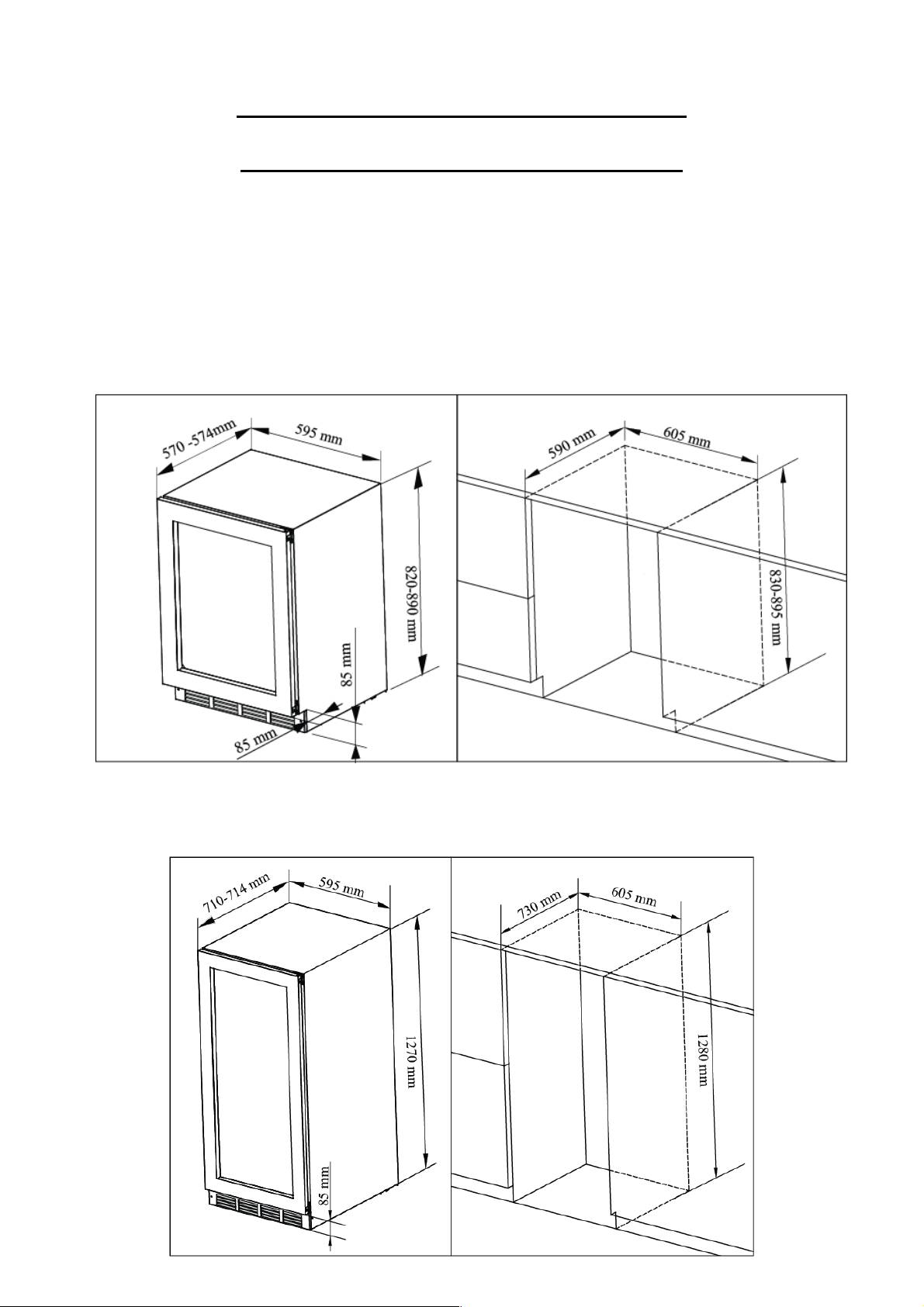

DIMENSIONAL DRAWINGS:
KB50SA/KBU50SA
KB120SA/KBU120SA
7

KB180SA/KBU180SA
8

OPEN ANGLE SIZE DRAWINGS:
KB50SA/KBU50SA
KB120SA/KBU120SA / KB180SA/KBU180SA
9

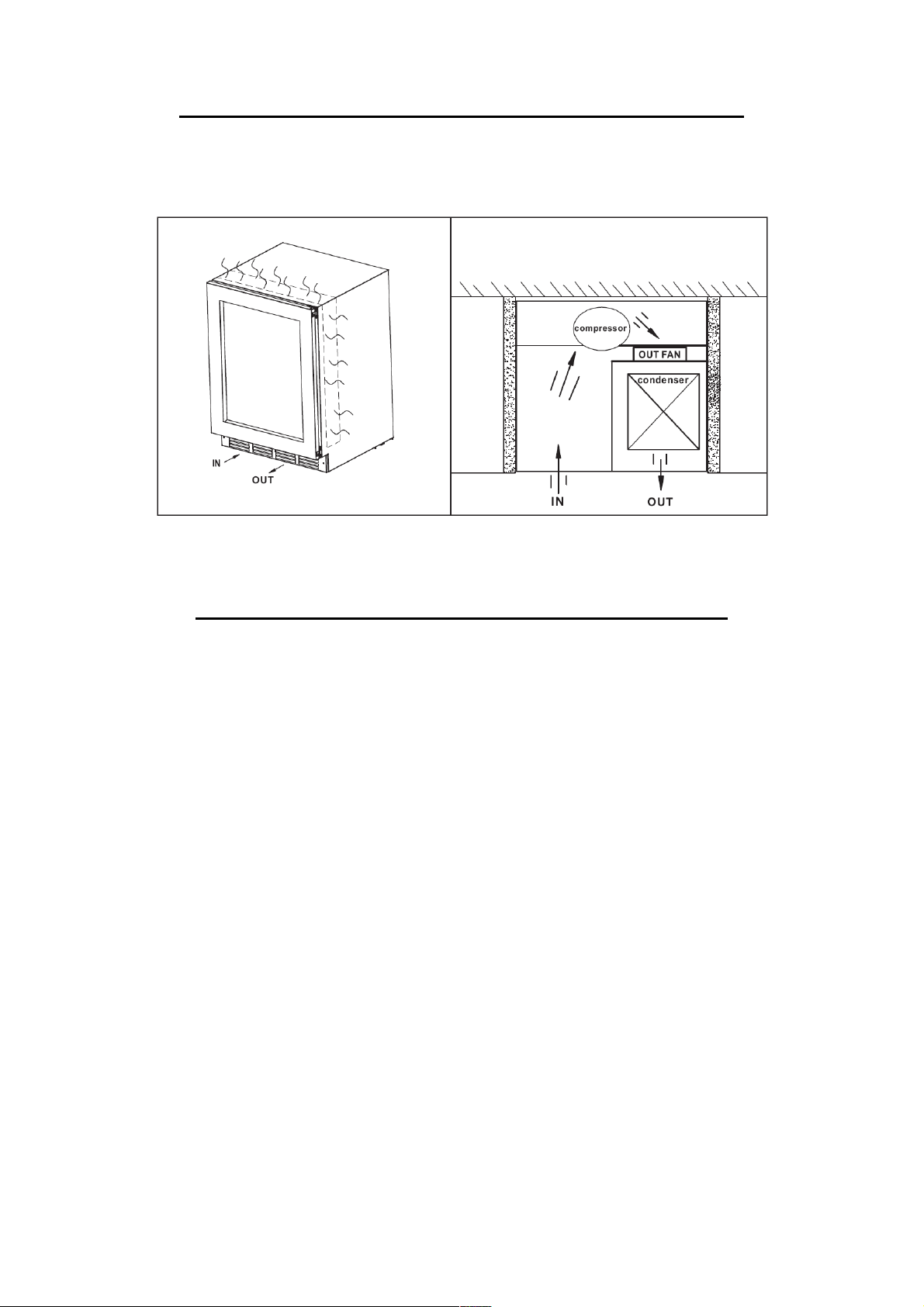

RADIATOR SYSTEM DESCRIPTION
KB50SA/KBU50SA/KB120SA/KBU120SA/KB180SA/KBU180SA Models use side anti-dew tube
and Independent cooling system."
TURNING ON YOUR STEAK AGER
Plug in and switch on the cellar by pressing on the power button for a few seconds."
When you use the Steak Ager for the first time (or restart the Steak Ager after having it shut offfor
a long time), there will be a few degrees variance between the temperature you have selected and
the one indicated on the LED readout. This is normal and it is due to the length of the activation
time. Once the Steak Ager is running for a few hours everything will stabilize."
Important: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes before
restarting the unit. The Steak Ager will not start if you attempt to restart before this time
delay.
OPERATING NOISES
To reach the desired temperature settings, Our Steak Ager, like all Steak Ager operating with
compressors and fans, may produce the following types of noises. These noises are normal and
may occur as follows:"
- Gurgling sound - caused by the refrigerant flowing through the appliance’s coils."
- Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas
to produce cold."
- Fan operating sound - to circulate the air within the Steak Ager."
- Pa Pa sound – Solenoid valve start sound"
An individual’s perception of noise is directly linked to the environment in which the Steak Ager is
located, as well the specific type of models. Our Steak Ager are in line with international
10

standards for such appliance. We will always do its utmost to satisfy its customers but will not
retake possession of the goods due to complaints based on normal operating noise occurrences."
STARTER -TIPS
1. Clean the inside of the Steak Ager with disinfectant, which shouldn’t be aggressive. "
2. If ordered: unpack the salt blocks and remove the foil. Put the salt blocks in the stainless steel
tray and place the tray at the bottom of the cabinet. Please check every 2-3 days if there is any
remaining water on the salt blocks, if so, please remove the water."
3. The temperature and humidity are already setted on 1℃(34°F) and 85% humidity which are
the perfect setting for dry aging beef & pork."
4. The meat for the dry aging must be fresh, perfect would be max.5 days after slaughtering.
Even vacuum matured meat can be used, but for a maximum of 14 days (please remove foil)"
5. Our recommendation for the best dry aged beef: use meat from a young cow with an ordinary
fat cover plus good marbling."
6. Hang the complete back on the hangers of your Steak Ager or put the individual cuts on the
shelves."
7. Load capacity: max.2x half strip loins on the bone with a length of 0.5m, therefore you will
need 2 hangers."
8. Load capacity with shelves: max.20kg individual pieces or cuts will fit on our shelves."
9. When maturing individual cuts on the shelves, pay attention on a protective fat layer which
prevents too much wastage and if possible let it mature on the bone. Ideal size aprox.2-4 kg /
cut."
10. Please wear protective gloves at each contact with the meat, DON’T touch the meat without
gloves!"
11. The perfect maturing time is between 25-28 days, but more than 4 weeks is also possible."
TEMPERATURE SETTINGS
IMPORTANT: THE LED DISPLAYS BY DEFAULT THE ACTUAL INTERNAL AIR TEMPERATURE.
The temperature settings are pre-set at the factory as follows. In the event of a power
interruption, all previous temperature settings are automatically erased and it will revert to the
preset temperature settings."
The electrical board of all models comes with memory function."
It is important to understand that there is a difference between the temperature inside the Steak
Ager and the temperature shows on display panel: You will need to wait approximately 12 hours
before noticing the effects of temperature adjustment if the steak ager with full loading."
Once the temperature is set, please don’t adjust it frequently. The thermostat will maintain the
temperature inside the Steak Ager within a +/- 2.5°C (4.5ºF) (range. But the thermal inertia of the
11

Steak Ager and the glass is such that within this temperature range, the actual temperature of the
Steak Ager$will only fluctuate 0.5ºC to 1ºC (1°F to 2°F). "
TEMPERATURE DISPLAY BOARD
OPERATING INSTRUCTION:
INSTRUCTIONS FOR LED PANEL OPERATION
"
➢①Function switch button: "
Press one time ,the window ④and window ⑤to switch temperature and humidity function, and
press the button ⑥or ⑦to increase or decrease temperature and humidity. "
"
➢②ON/OFF the power button: "
Press the button 3 seconds to power off. Remark: The other functions will turn offexcept light
switch when the power turns off. Press again (without delay), the power turns on. "
➢③UV$system$control$instruction"
1. Automatic control:$The machine is power on. If the UV light doesn’t be turned on by human,
the UV light will turn on for every 24 hours.The times will be 1 hour.It means every 24 hours, the
UV light will be on 1 hour."
2.$Manual control:$The machine is power on.Please press light button 3 seconds, the UV light will
be always on.Please press light button 3 seconds again, and then the UV light will turn off."
3. When$the$UV$light$turn$on$,the$UV$light$will$be$closed$when$door$is$open$,and$it$will$"
be$on$when$door$is$closed."
Note:!The$life$of$the$UV$lamp$is$12$months.$Exceeding$the$service$life$will$greatly$reduce$the$anti-
virus$effect$of$the$UV$lamp."
➢④Display Window: "
Display actual temperature,"
12

➢⑤Display Window: "
Display actual humidity "
"
➢⑥Temperature setting up button : "
Press one time, Temperature /Humidity will increase 1 degree Celsius / 1%RH."
"
➢⑦Temperature setting down button :"
Press one time, Temperature /Humidity will decrease 1 degree Celsius / 1%RH."
➢⑧C/F display conversion function keys: "
Set the conversion degrees Celsius / Fahrenheit display, each press this button, the display
window will be into degrees Celsius or Fahrenheit. "
LCD DISPLAYER OPERATION GUIDE
①Power Switch ②Function Keys ③Lamp/Fahrenheit/Celsius change Keys "
④Temperature/Humidity setting down ⑤Temperature/Humidity setting up "
⑥UVC Lamp ⑦Humidifying ⑧Dehumidification ⑨Alarm Icon "
⑩Setting temperature display Actual temperature display Humidity display"
"
①Power Switch："
Power-on State: Continue to press power switch and the window will count down 3-2-1, and
power off, the whole machine turns off. "
Standby State: Press 3 seconds continuously and power on, the machine turns on. "
②Function Key/Switch button："
Press the window and to switch, Press ④and ⑤to set upper a lower temperature and
humidity. "
13

③Light/Fahrenheit/Celsius Switch button："
Press the light each time, the light will be ON or OFF. Press 3 seconds and display screen will be
converted to Celsius or Fahrenheit degrees. "
④Setting down button："
Temperature or humidity will decrease by 1°C or 1% per press."
⑤Setting up button："
Temperature or humidity will increase by 1°C or 1% per press."
⑥UV$system$control$instruction"
1. Automatic control:$The machine is power on. If the UV light doesn’t be turned on by human,
the UV light will turn on for every 24 hours. The times will be 1 hour.It means every 24 hours, the
UV light will be on 1 hour."
2.$Manual control:$The machine is power on.Please press light button 3 seconds, the UV light will
be always on.Please press light button 3 seconds again, and then the UV light will turn off."
3. When$the$UV$light$turn$on$,the$UV$light$will$be$closed$when$door$is$open$,and$it$will$"
be$on$when$door$is$closed."
Note:$The$life$of$the$UV$lamp$is$12$months.$Exceeding$the$service$life$will$greatly$reduce$the$anti-
virus$effect$of$the$UV$lamp."
⑦Humidification System："
Indicates the humidification function is started."
"
⑧：Dehumidification System:"
Indicates the dehumidification function is started."
⑨The Fault System："
Indicates that the fault alarm function is started."
⑩Setting Temperature Display: Display setting temperature"
Actual Temperature display: Display actual indoor temperature "
HuHumidity Display: Display setting humidity and actual humidity."
DEFROSTING/CONDENSATION/ HYGROMETRY/
VENTILATION
Your Steak Ager is designed with “Auto-cycle” defrost system. During “Off-cycle” the refrigerated
surfaces of the Steak Ager defrost automatically. Defrost water from the Steak Ager storage
compartment drains automatically and part of it goes into a drainage container, which is located
14

at the back of the Steak Ager, at the bottom of the compressor. The heat is transferred from the
compressor and evaporates any condensation that has collected in the pan. Part of the remaining
water is collected within the Steak Ager for humidity purposes."
This system enables the creation of the correct humidity level inside your Steak Ager required by
the natural cork to maintain a long lasting seal."
Notes: The water collected by condensation, is therefore recycled. Under extremely dry
environmental conditions, you may have to add some water into the water container provided
with your Steak Ager."
All units are equipped with a double layers Low-E glass door that has a third internal acrylic layer
to minimize condensation on the glass door."
The Steak Ager is not totally sealed; fresh air admission is permitted through the drainpipe. "
Notes: During the refrigerating cycle, heat is given offand disperses through the external
surfaces of the Steak Ager. Avoid touching the surfaces during those cycles.
REMOVING SHELF

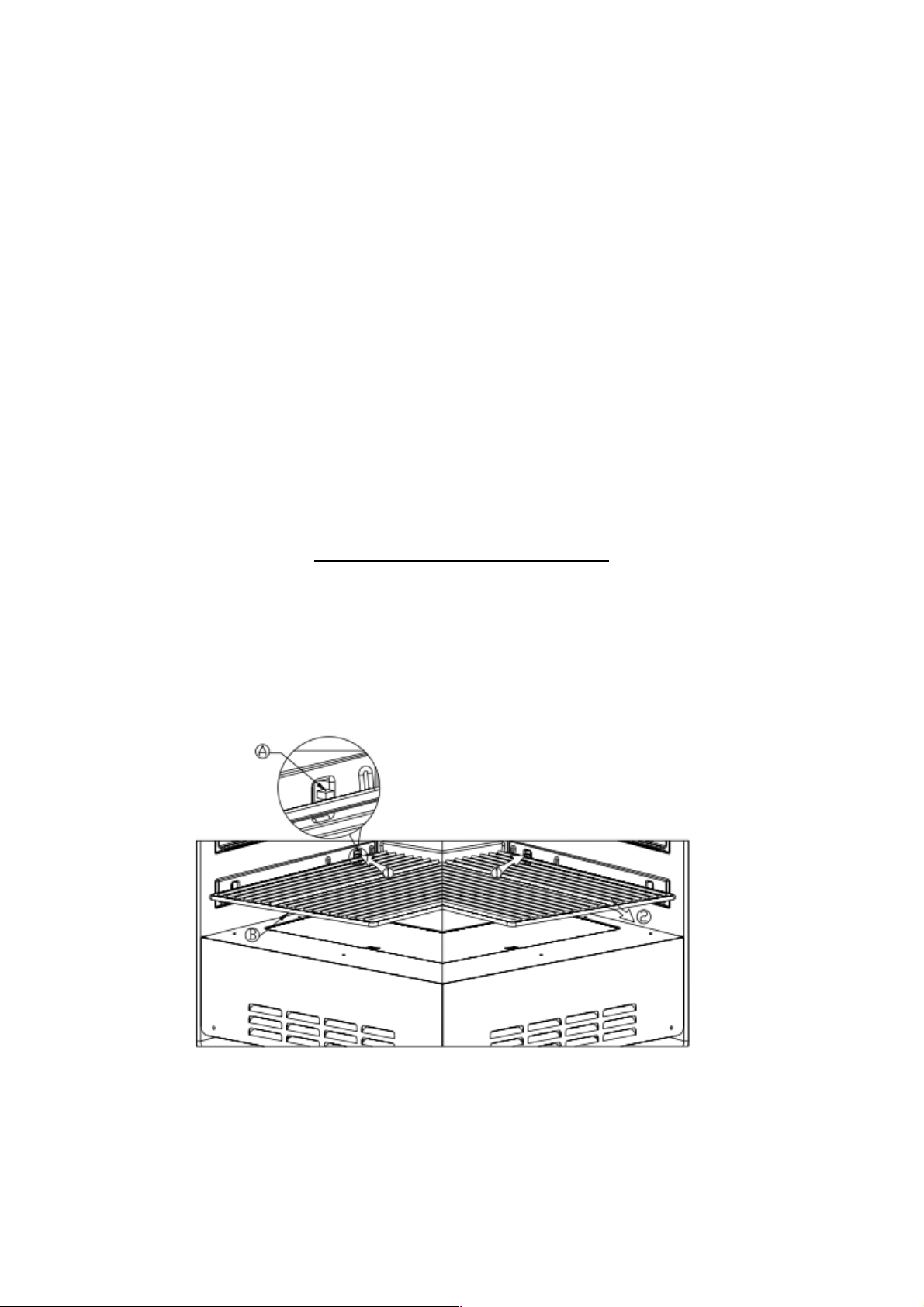

Shelf taking: According to below instruction drawing to press one side of shelf limit pin①, extract
and remove the shelf from the other side of support bracket②, then take offthe shelf following
the arrow mark ③. "
Shelf installation will be opposite with shelf taking. "
1. ”A” is shelf limit pin"
2. ”B” is shelf
15

HUMIDIFICATION SYSTEM DESCRIPTION:
This product has automatic humidification function. The humidification system is inside the fan
cover. If there is no maintenance requirement, it is forbidden to open and pull out! This product
has a watering reminder function. When the water tank is short of water, there will be a buzzer
prompt, and the display window will display “ E5” indicates a water shortage fault, and the light
will flash when this fault occurs;"

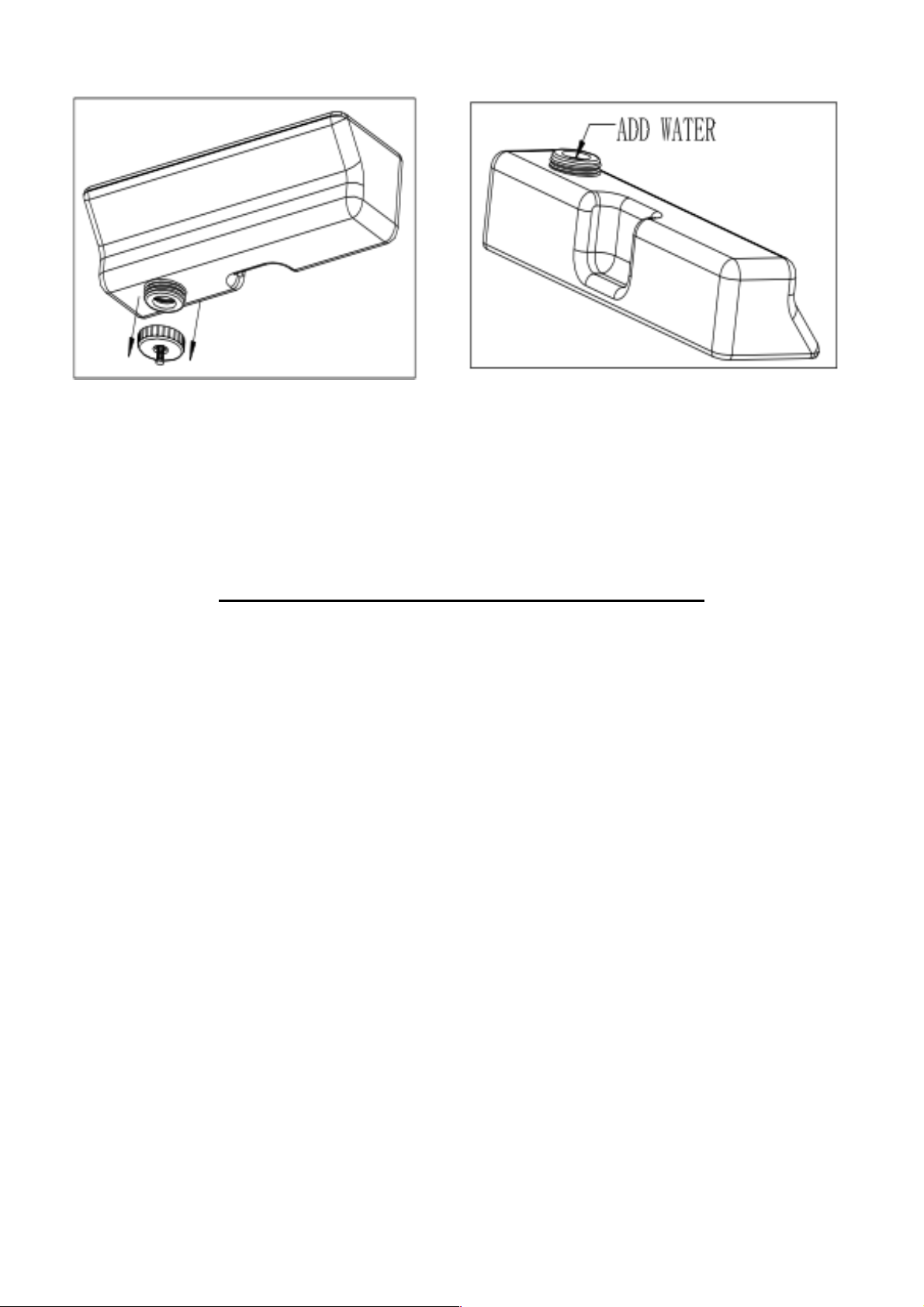

The following is a schematic diagram of the addition of water:"
1.First, press the arrow to open the water tank cover A;
2. After opening the water tank cover, you can see the water tank, take out the water tank
according to the arrow direction;"
3. Then rotate the water tank cover at the bottom of the water tank. After opening, you can add
water. After adding water, put it back into the product, cover the water tank cover, and complete
the water adding operation.
16

REVERSIBILITY OF THE DOOR
Warning: To avoid accidents during the process of changing the door, we recommend that you
get assistance. The glass door is heavy and may cause injury if dropped."
- Depending on to the model and the type of handle your Steak Ager is equipped with, you may
have to reverse the door through 180 degrees."
- Depending on the type of handle your Steak Ager is equipped with, the door may not be
reversible or may require that a left or right opening door be ordered to change the opening side."

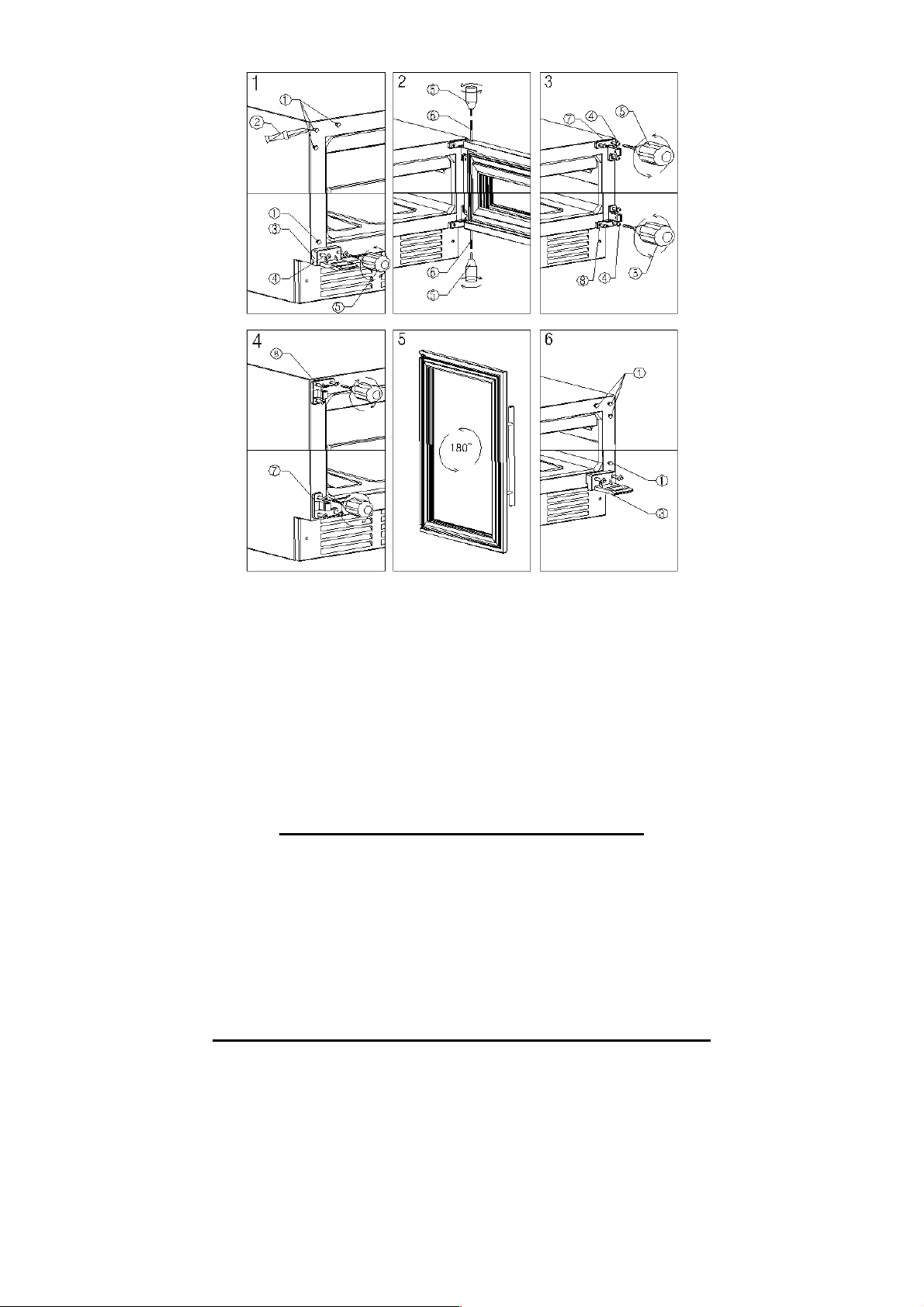

1. To put the cabinet on open operation place, the door opened to the maximum angle"
2. Use small knife(2) to take offthe decorative nail (1) on opposite side (Drawing 1);"
3. Use the inner six angle screwdriver (Tool 5) to disassemble the screws(4) of drop-proof device
(3), then remove the drop-proof device .(Drawing 1)"
4. Hold the door, use six angle screwdriver (Tool 5) to screw out the door shaft core(6) from the
two ends of the top of the door. Take out the door and set aside. (Drawing 2)"
5. Discharge the upper and lower door hinge(7)(8) by M5 inner six angle screwdriver (Tool 5) , then
to assemble the door hinge on the opposite side. (Drawing 3 and 4 ) "
6. Reverse the door 180 degrees, then Install the door on the opposite side of the cabinet.
(Drawing 5) "
7. Finally, install the decorative nail and drop-proof device at the opposite side. (Drawing 6)"
17

Door timeout alarm:
If the door is open more than 5 minutes, the door alarm system will be on, the LED lights is
flickering, prompt to close the door. The alarm lights are cleared automatically after closing the
door."
Handle Installation Method
1. Take out handle from cabinet, then take out 4pcs 4 * 35 screws from accessory bag"
2. Pull open door seal from the side of door, then insert screws into the 2 handle holes on side of
door, then put the screws alignment the hole of handle , tighten the screws by Phillips
screwdriver，then compress the door seal."
1. Decorative nail
2. Knife
3. Drop-proof device
4. M5 six angle
5. M5 six angle screwdriver
6. Door spindle core
7. Upper door hinge
8. Lower door hinge
18

If$the$screws$holes$of$the$handle$don't$match$perfectly$with$the$holes$of$the$door$,please$use$
the$electric$drill$to$drill$the$holes$of$the$door$a$bit$big ( in surface side) ,
in$order$to$install$the$handle$perfectly"
MEAT QUALITY RECOMMENDATION
The best meat recognized for Dry aging is rib-eye on the bone. It is always best to purchase from
a dealer who sources their meat from a good quality abattoir."
The younger the animal the better the result. It is always recommended to buy a piece of meat
that has a good fat content and a high rate of internal marbling. It is advisable to mature the
meat on the bone either hanging or in the largest possible joints. The reason for this is to
minimize the pure meat exposed to the air, reducing weight loss."
The Dry Aging period is recommended for at least 21 days, only the flavor becomes more
intense. Please note: A maturing period of up to 6 weeks is possible. The hygienic handing of
food should always be addressed for best results . When the process is complete, the thin crust
is trimmed offready to be de-boned or cut into steaks."
19

OPERATION ANOMALIES
Ensure that there is power to the electrical supply plug by connecting another electrical appliance
to it. Check fuse, if any. Make sure that the door is closed properly."
If your Steak Ager appears to be malfunctioning, unplug it and contact your after sales service.
Any intervention on the cold circuit should be performed by a refrigeration technician who should
carry out an inspection of the circuit sealing system. Similarly, any intervention on the electrical
circuit should be performed by a qualified electrician."
Notes: Any intervention performed by a non- authorized technician We will lead to the warranty
being considered as null and void.
POWER FAILURES
In the event of a power interruption, all previous temperature settings are automatically
preservation and it will revert to a preset temperature setting. (See preset chart)"
Most power failures are corrected within a short period of time. An hour or two’s loss of power
will not affect Steak Ager’s temperatures. To avoid sudden change of temperature while the
power is off, you should avoid opening the door. For longer period of power failure, do take steps
to protect your meat or food."
IRRESPECTIVE OF THE CAUSE, IF YOU NOTICE EITHER ABNORMAL TEMPERATURE OR HUMIDITY
LEVELS INSIDE YOUR STEAK AGER, BE REASSURED THAT ONLY LONG AND FREQUENT
EXPOSURE TO THESE ABNORMAL CONDITIONS CAN CAUSE A DETRIMENTAL EFFECT ON YOUR
MEAT OR FOOD.
Before disposal of the appliance
1. Disconnect the main plug from the main socket."
2. Cut offthe main cable and discard it."
20
