Kingsman Fireplaces ZCV34NE User manual

- Installation Instructions -
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Leave the building immediately.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the fire department
-Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home,
where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
Model Numbers:
ZCV34N, ZCV34NE, ZCV34NE2, ZCV34LP,
ZCV34LPE, ZCV34LPE2
ZCV34NH, ZCV34NHE, ZCV34NHE2,
ZCV34LPH, ZCV34LPHE, ZCV34LPHE2
Certified to:
CSA/ANSI Z21.88:19 • CSA 2.33:19
and CSA2.17-2017
A Division of R-Co. Inc. 2340 Logan Ave.
Winnipeg, Manitoba Canada R2R 2V3 Ph.: [phone]
Printed in Canada June 7, 2023 Part# 34ZCV-MAN19
NOT FOR USE WITH SOLID FUEL
BENTLEY
⚠WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
⚠WARNING: do not operate this appliance without decorative glass embers on burner and media tray.

IT IS THE RESPONSIBILITY OF THE
HOME OWNER TO ENSURE THAT NO
ONE TOUCHES A HOT APPLIANCE.
•If the barrier becomes
damaged, the barrier shall be
replaced with the
manufacturer’s barrier for this
appliance.
•Any safety screen, guard, or
barrier removed for servicing the
appliance, must be replaced
prior to operating the appliance.
•Children and adults should be
alerted to the hazards of the
high surface temperatures of
this appliance and should stay
away to avoid burns or ignition
of clothing.
•Do not clean when the glass is
hot.
•Young children should be
carefully supervised when they
are in the same room as the
appliance. Toddlers, young
children and others may be susceptible to accidental contact burns.
•A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a fireplace or
stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room
and away from hot surfaces.
•Do not leave the fireplace remote control where it is accessible to children.
WARNING:
A HORIZONTAL VENT CERTIFIED GUARD (SAFETY CAGE) IS AVAILABLE
WHEN REQUIRED BY LOCAL CODES.
SAFETY CAGES ARE AVAILABLE FOR ALL HORIZONTAL VENT TERMINATIONS.
CHECK WITH YOUR DEALER.
•TERMINATION CAP IS HOT! Do not place flammable materials on or within 24 inches of termination caps.
•It is imperative that the vent termination be located observing the minimum clearances as shown in manual.
•There must not be any obstruction such as bushes, garden sheds, fences, decks or utility buildings within 24" from the
front of the termination plate.
•Do not locate termination where excessive snow or ice build-up may occur. Be sure to check vent termination area after
snow falls and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not
directed towards vent termination area.
•Venting terminal shall not be recessed into a wall or siding.
2

ZCV34 Table of Contents
Hot Glass & Vent Termination Warnings………………………………………………………………………….....................
2
Table of Contents.............................................................................................................................................................
3-4
Warnings, Installations and Operations - Installation Regulations……………………………………………………………
5
Installation Requirements for the Commonwealth of Massachusetts…………………………………………....................
6
Carbon Monoxide (CO) Detector…………………………………………………………………………………………………
6
Pre-installation Questions and Answers / Operations and Maintenance Instructions………………………………………
7
Fireplace Installations in Covered Outdoor Locations………………………………………………………………………….
8
Mobile Home/Manufactured Housing Installation……………………………………………………………………………….
9
Installation & Framing
Framing Your Gas Fireplace.............................................................................................................................................
10

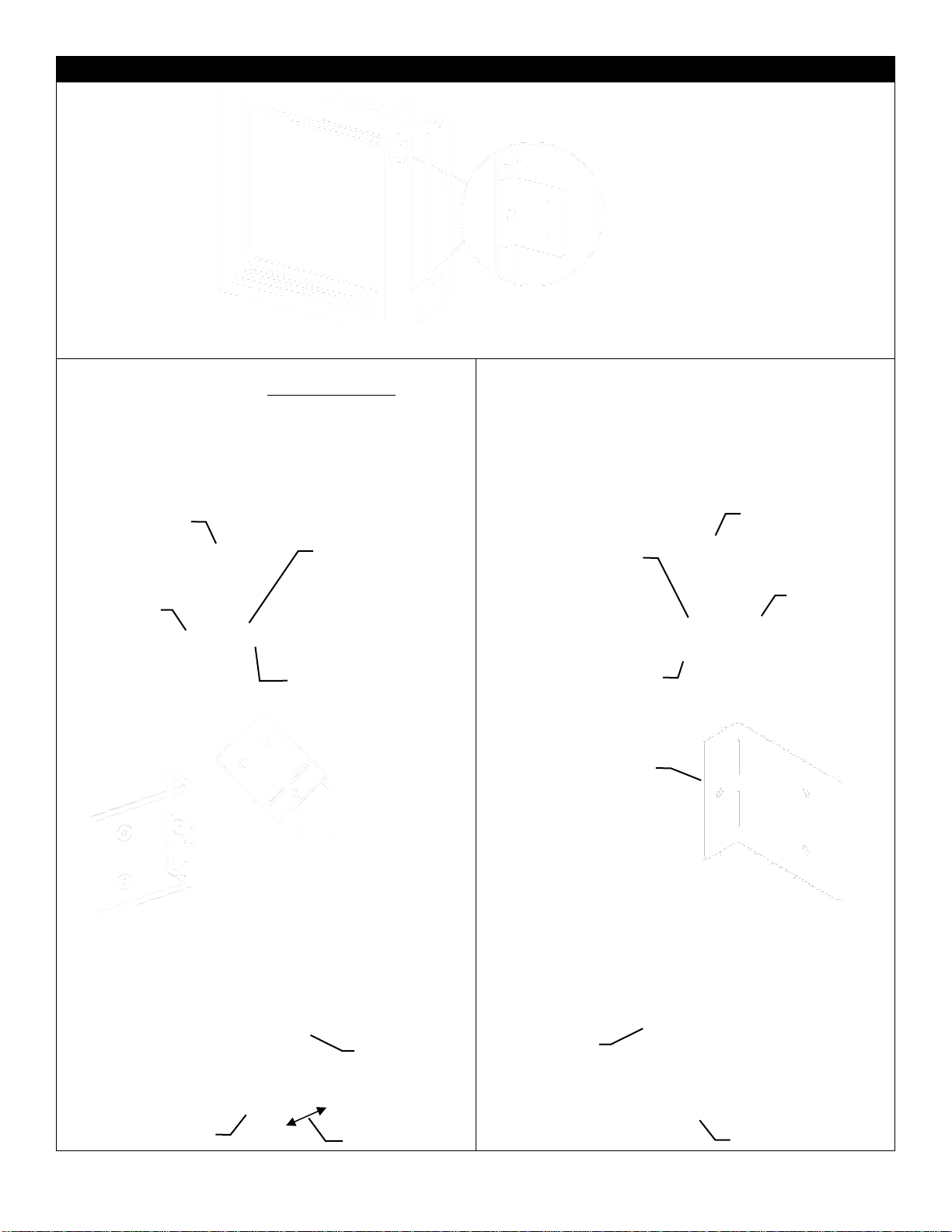

Stand-off and Nailing Tab Locations……………………………………………………………………………………………...
10
Nailing Tab Guide…………………………………………………………………………………………………………………..
11

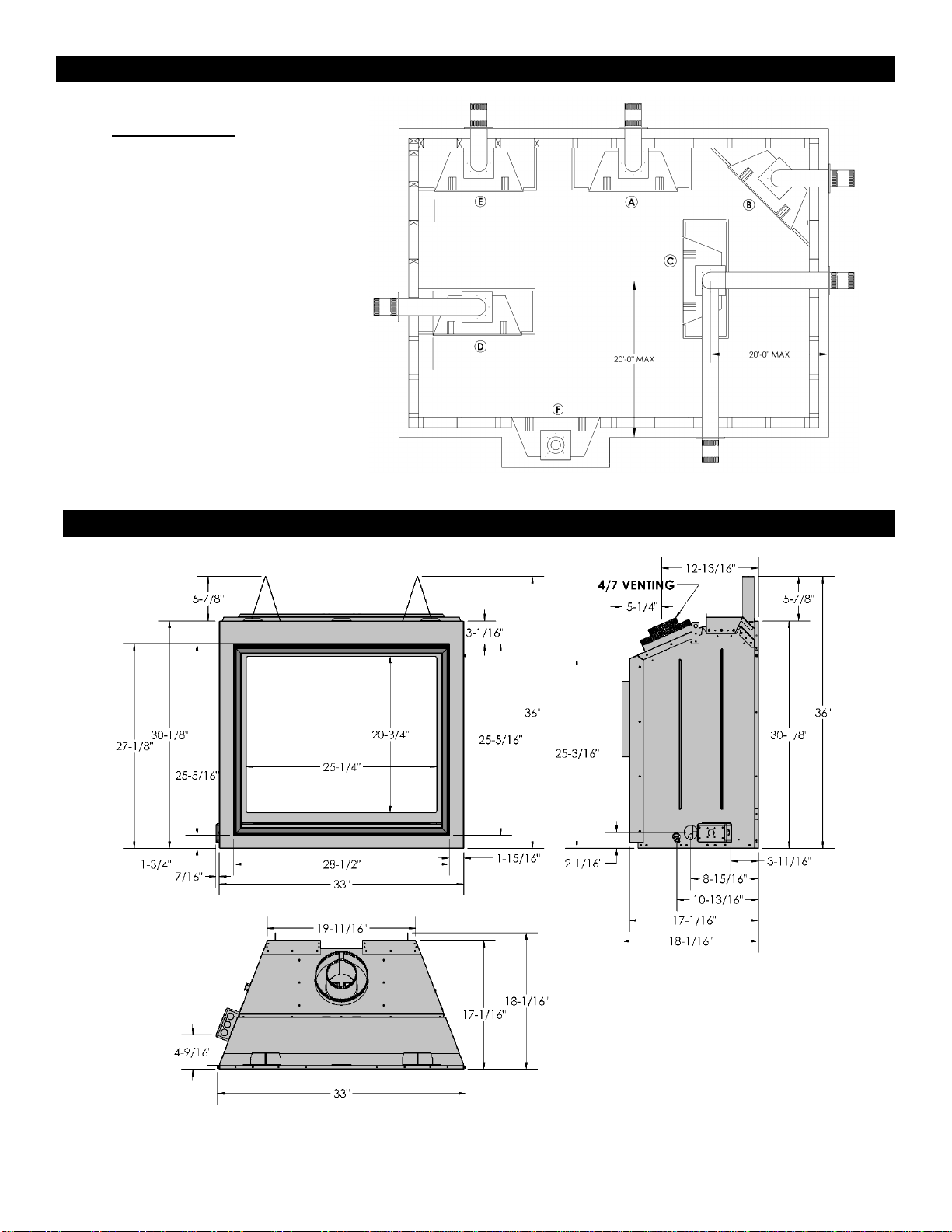

Locating Your Appliance…………………………………………………………………………………………........................
12
Fireplace Dimensions……………………………………………………………………………………………….....................
12
Non-Vented Chase VS Vented Chase - Choose Your Installation
Chase Options: Non-Vented / Vented / Vented with Recessed Front………………………………………………………...
13
Non-Vented Chase VS Vented Chase - Choose Your Installation……………………………………………………………
14

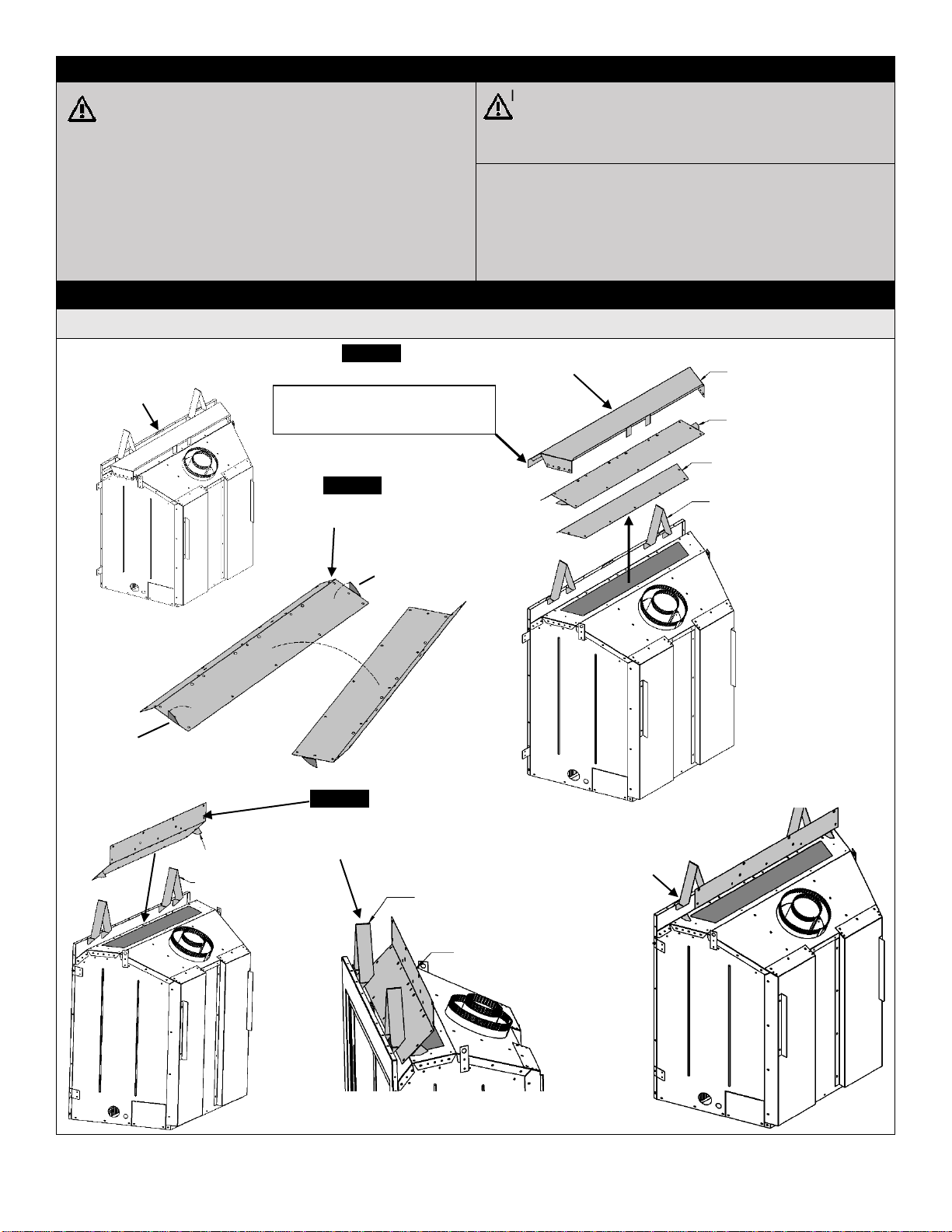

Vented Chase- Removal of Vent Covers……………………………………………….……………………………………...
14
Framing: Non-Vented Chase

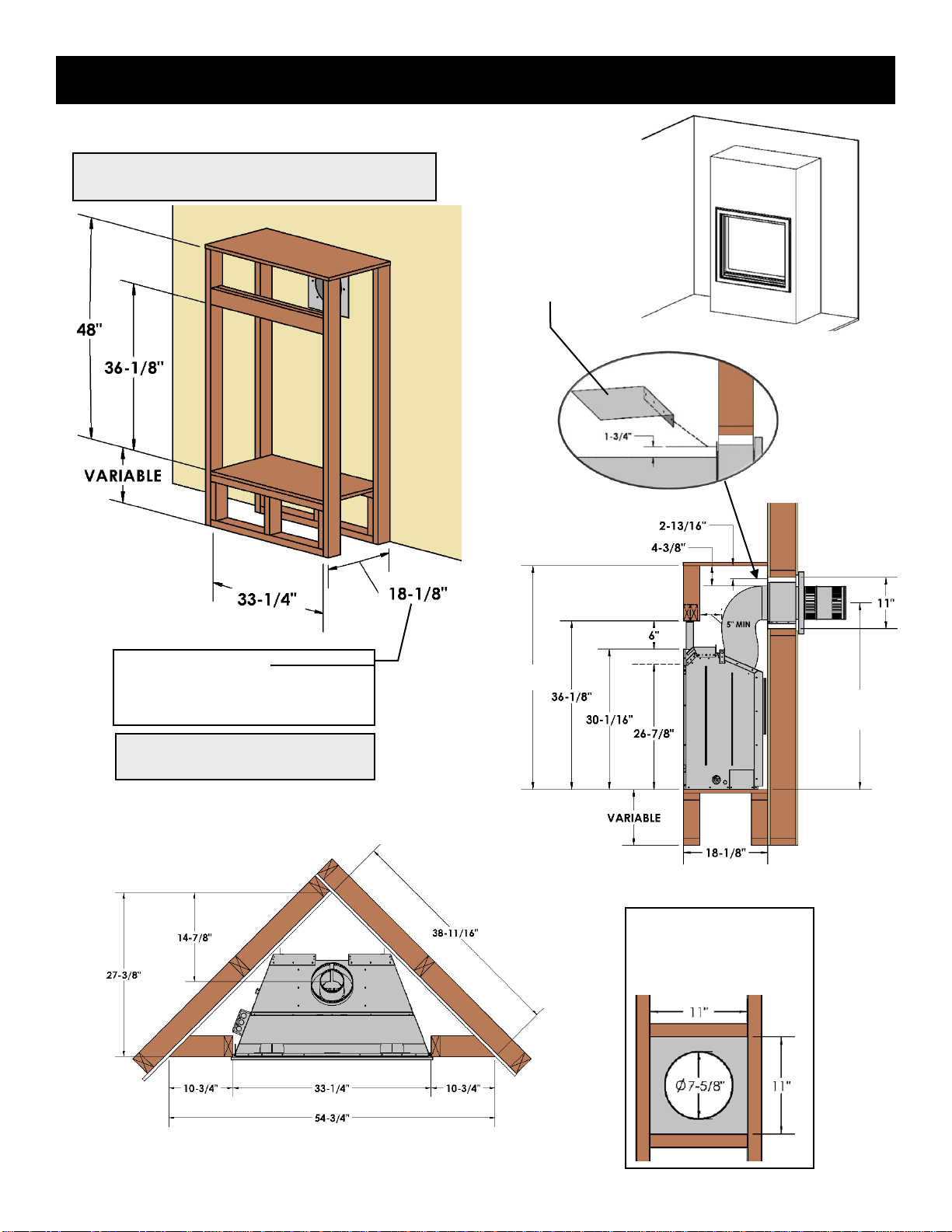

Framing Dimensions for Non-Vented Chase…………………………………………………………………………………….
15
Framing Dimensions for Non-Vented Chase Built Outside of Room (Doghouse)…………………………………………...
16

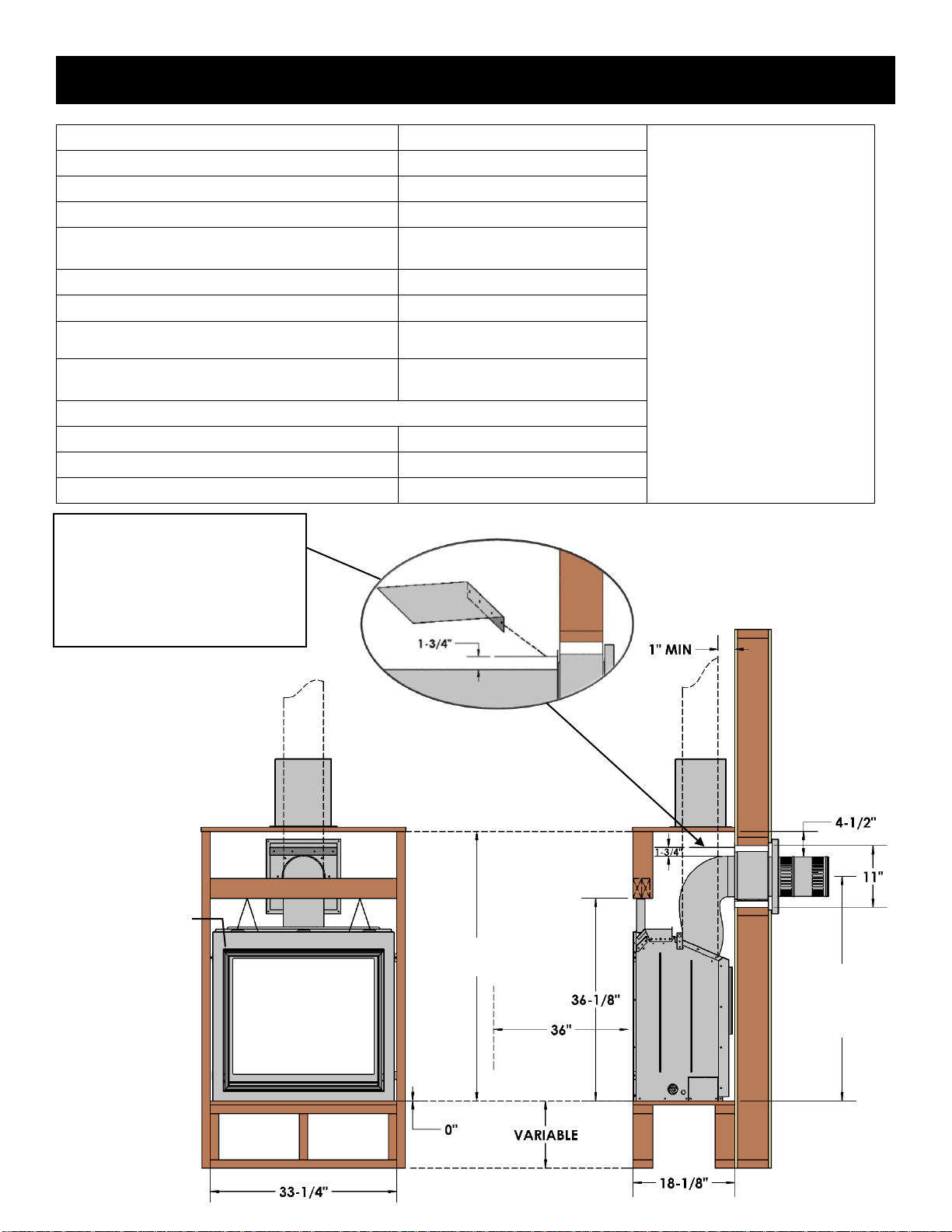

Mantel Clearances for Non-Vented Chase………………………………………………………………………………………
17
Clearance to Combustibles for Non-Vented Chase…………………………………………………………………………….
18
Facing Requirements- for Non-Vented Chase…………………………………………………………………………………..
19
Framing: Vented Chase

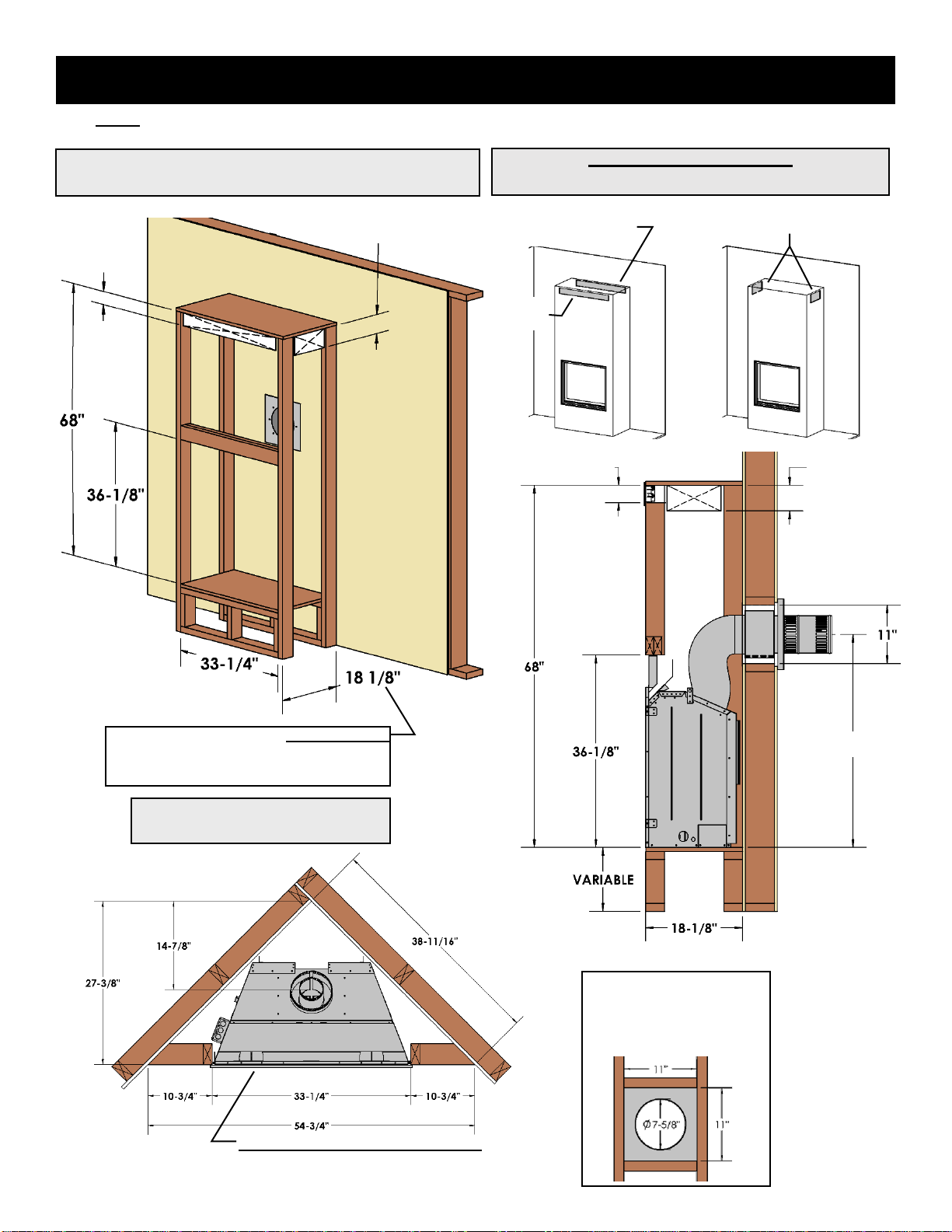

Framing Dimensions for Vented Chase with V34EG -OR- V34EGS Grills…………………………………………………..
20
Framing Dimensions for Vented Chase for Vented Chase Built Outside of Room (Doghouse)…………………………...
21
Framing Dimensions for Vented Chase with Open Top………………………………………………………………………..
22
Framing Dimensions - Recessed Vented Chase - V34EG / V34EGS Grills…………………………………………………
23
Framing Dimensions - Recessed Vented Chase with Open Top……………………………………………………………..
24
Mantel Clearances- for Vented Chase…………………………………………………………………………….....................
25
Clearance to Combustibles for Vented Chase…………………………………………………………………………………..
26
Facing Requirements for Vented Chase…………………………………………………………………………………………
27
V34EG Grill Installation for ZCV34 Vented Chase……………………………………………………………………………..
28
V34EGS Side Grill Installation for ZCV34 Vented Chase……………………………………………………………………..
29
General Information
Door Installation and Removal…………………………………………………………………………………………………….
30
Door and Glass Information……………………………………………………………………………………………………….
31
Safety Screen Installation………………………………………………………………………………………………………….
32
IPI Component Locations………………………………………………………………………………………………………….
33
Accessories and Options
34ZCV-TLK Tile Lip Kit……………………………………………………………………………………..................................
34
ZCV34S1 / ZCV34S1PF / ZCV34S2PF Surrounds……………………………………………………………………………..
35
Z46FK Fan Kit Installation…………………………………………………………………………………………………………
36
Fan Speed Control Outside of Fireplace………………………………………………………………………….....................
37
ZCV34 Proflame 2 Units - ULK5-2 Halogen Lights - Factory Installed……………………………………………………….
38-39
ZCV34PL Porcelain Liner Installation………………………………………………………………………………………….....
40
ZCV34RL Refractory Liner Installation…………………………………………………………………………………………...
41
Media Options
Crushed Glass and Media Options - MQ Dealers Only………………………………………………………………………...
42
MQROCK2, MQROCK3…………………………………………………………………………………………….....................
43
MQ STONE Decorative Stone Set……………………………………………………………………………………………….
43
MQ EMBER…………………………………………………………………………………………………………………………
43
RBCB1 Cannonballs……………………………………………………………………………………………………………….
44
3

LOGC44 Oak Log Set……………………………………………………………………………………………………………...
45-46
MQLOGF453 Driftwood Log Set………………………………………………………………………………………………….
47
MQRBD3 Driftwood Log Set………………………………………………………………………………………………………
48
MQRBRW Birch Log Set…………………………………………………………………………………………………………..
49
MQLOGF34BW Log Set…………………………………………………………………………………………………………..
50
MQLOGF34OAK Oak Log Set……………………………………………………………………………………………………
51
MQLOGF34BW & MQLOGF34OAK Setup Instructions………………………………………………………………………..
52
Gas Line Installation, Use, and Maintenance
Gas Line Installation / Gas Specifications Chart...............................................................................................................
53
Annual Inspection List......................................................................................................................................................
54
Troubleshooting the Gas Control System........................................................................................................................
55
Burner System Maintenance............................................................................................................................................
56
Gas Conversion Part A.....................................................................................................................................................
57
Gas Conversion Part B - for Top Convertible SIT Pilot.………………………………………………………………………..
58
Gas Conversion Part C - for SIT Modulator......................................................................................................................
59
Burner System Removal and Installation.........................................................................................................................
60
Lighting Instructions- Millivolt……………………………………………………………………………………………………...
61
Lighting Instructions for Millivolt Valve with 7 Day Timer……………………………………………………………………….
62
Lighting Instructions- IPI……………………………………………………………………………………………………………
63
Proflame 1 System
Proflame 1 System Overview……………………………………………………………………………………………………..
64
Remote Control Operation………………………………………………………………………………………….....................
65
Parts List…………………………………………………………………………………………………………………………….
66
Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities……………………………………………………
67
Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities………………………………………………………….
68
Operating the Receiver Without Batteries for GT / EGT / GTM / EGTM Remote Controls…………………………………
69
Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities……………………………………………………
70
Proflame 2 IPI System
Parts List……………………………………………………………………………………………………………………………..
71
IFC Module and Proflame 2 Remote Control……………………………………………………………………………………
72
Cold Climates –CPI Setting - Proflame 2 Remote Control…………………………………………………………………….
73
Proflame 2 Remote Control………………………………………………………………………………………………………..
74-75
Proflame 2 Schematic……………………………………………………………………………………………………………...
76
Venting
Vent Terminal Clearances................................................................................................................................................
77
General Vent Installation………………………………………………………………………………………….......................
78
Installation of Side Wall Venting………………………………………………………………………………...........................
79
Venting Routes and Components………………………………………………………………………………........................
80
Horizontal Venting Table…………………………………………………………………………………………………………..
80
Flue Restrictors……………………………………………………………………………………………………………………..
81
Horizontal Snorkel Terminations Z47ST24 / Z47ST36…………………………………………………………………………
82
Venting Straight Up Through Roof………………………………………………………………………………………………..
83-84
Venting - Cathedral Ceiling………………………………………………………………………………………………………..
85
Co Linear Flex Kits………………………………………………………………………………………………………………….
86
Approved for Power Vent ...........…………………………………………………………………………………………………
87
Parts Lists
PVH58 Parts List……………………………………………………………………………………………………......................
88
ZCV34 Parts List………………………………………………………………........................................................................
89-90
Warranty
Limited Lifetime Warranty………………………………………………………………………………………………………….
91
4

Warnings, Installations and Operations - Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the
current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the
United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes,
with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be
removed.
6. Do not strike or abuse glass. Take care to avoid
breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than
factory supplied components.
9. This appliance gives off high temperatures and should
be located out of heavy traffic areas and away from
furniture and draperies.
10. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room
and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood,
paper) be used in this appliance.
13. Under no circumstances should this appliance be
modified. Any parts that have to be removed for
servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance.
15. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean. Make
sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
16. Clothing or other flammable material should not be
placed on or near the appliance. This appliance
should not be used as a drying rack for clothing nor
should Christmas stockings or decorations be hung
from it.
17. Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
18. Do not operate appliance unless completely installed
as per installation instructions.
19. Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
20. WARNING: Do not operate appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
22. The front of the fireplace gives off high temperatures
that could ignite combustible material which is kept
close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before
servicing.
24. Do not operate this Fireplace without the glass front or
with a broken glass.
25. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency, or the gas
supplier.
26. Operation of this appliance when not connected to a
properly installed and maintained venting system or
tampering with the blocked vent shutoff system can
result in carbon monoxide (CO) poisoning and
possible death.
27. This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
28. NOT INTENDED FOR USE AS A PRIMARY HEAT
SOURCE. This appliance is tested and approved as
either supplemental room heat or as a decorative
appliance. It should not be factored as primary heat in
residential heating calculations.
29. This appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
5

Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of
the vent terminal and the air intake is installed below four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
 Be powered by the same electrical circuit as the appliance or equipment such that only one service switch
services both the appliance and the carbon monoxide detector;
 Have battery back-up power;
 Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
 Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527
CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be
used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation
instructions shall remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above
the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet
away, and read “Gas Vent Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of
the vent terminal and the air intake is installed above four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall:
 Be located in the room that houses the appliance or equipment;
 Be either hard-wired or battery powered or both; and
 Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-
off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts
state code CMR238.
Carbon Monoxide (CO) Detector
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In USA see local codes.
6

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a fireplace glass cleaner.
 Babies, small children, pregnant women and pets should leave the area during the cure phase.
 Ventilate well, open doors and windows.
 Do not touch during curing.
Why does my fireplace or stove give off odor?
It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and
any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.
marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odors).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan
is present) after the curing of the paint has been completed. These odors can last upward to 40 hours of burn time; keep
burning at a minimum of four hours per use until odors dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down
the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air
circulated into the room by the fan.
Note to the Installer:
Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained
to and understood by the customer.
Operations and Maintenance Instructions
For safe installation and operation note the following:
 Be sure to read and understand all the instructions in this manual before operation of appliance.
 Ensure all wiring is correct and properly enclosed to prevent possible shock.
 Check for gas leaks.
 Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
 Make sure venting and termination cap are installed and unobstructed.
 If brick or porcelain liners are used, ensure they are installed.
 Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
 If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
 Venting systems should be periodically examined by a qualified agency.
 The flow of combustion and ventilation air must not be obstructed.
 The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
 Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner
areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.
 Never use your gas fireplace as a cooking device.
 Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
 Areas in and around the Chase Vent Openings should be cleaned annually.
7

Fireplace Installations in Covered Outdoor Locations
– FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS-
Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected
from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing,
Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.
 All wiring connections to line power shall be in accordance with outdoor requirements of; -NECA NFPA 70 in the USA
-Canadian Electrical Code, CSA C22.1 for Canada.
 The Fireplace is not to be operated in temperatures below freezing (0°C / 32°F).
 ⚠ NOTE: TEMPERED GLASS WARNING: Tempered glass is vulnerable to rapid and/or extreme changes in
temperature (thermal shock). Take care to prevent water from contacting the fireplace, especially if it is hot.
 See-Through Units are suitable for an outdoor location, but not on the outside wall of a house or other structure, as
air flows through both sides of the fireplace.
 A Minimum sheltering cover (overhang) of 1/2 the distance from the base of the fireplace to the ceiling (base of
roofline) is required.
EXAMPLE: The bottom of the fireplace is 84” from the ceiling.
Therefore, 42” of sheltering cover is required above fireplace.
CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI
Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The
Intertek safety certification will not apply to this installation method. This installation method must be deemed
acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.
OUTDOOR
AREA
Glass
Door
Glass
Door
Glass
Door
Outside Wall
of House
8

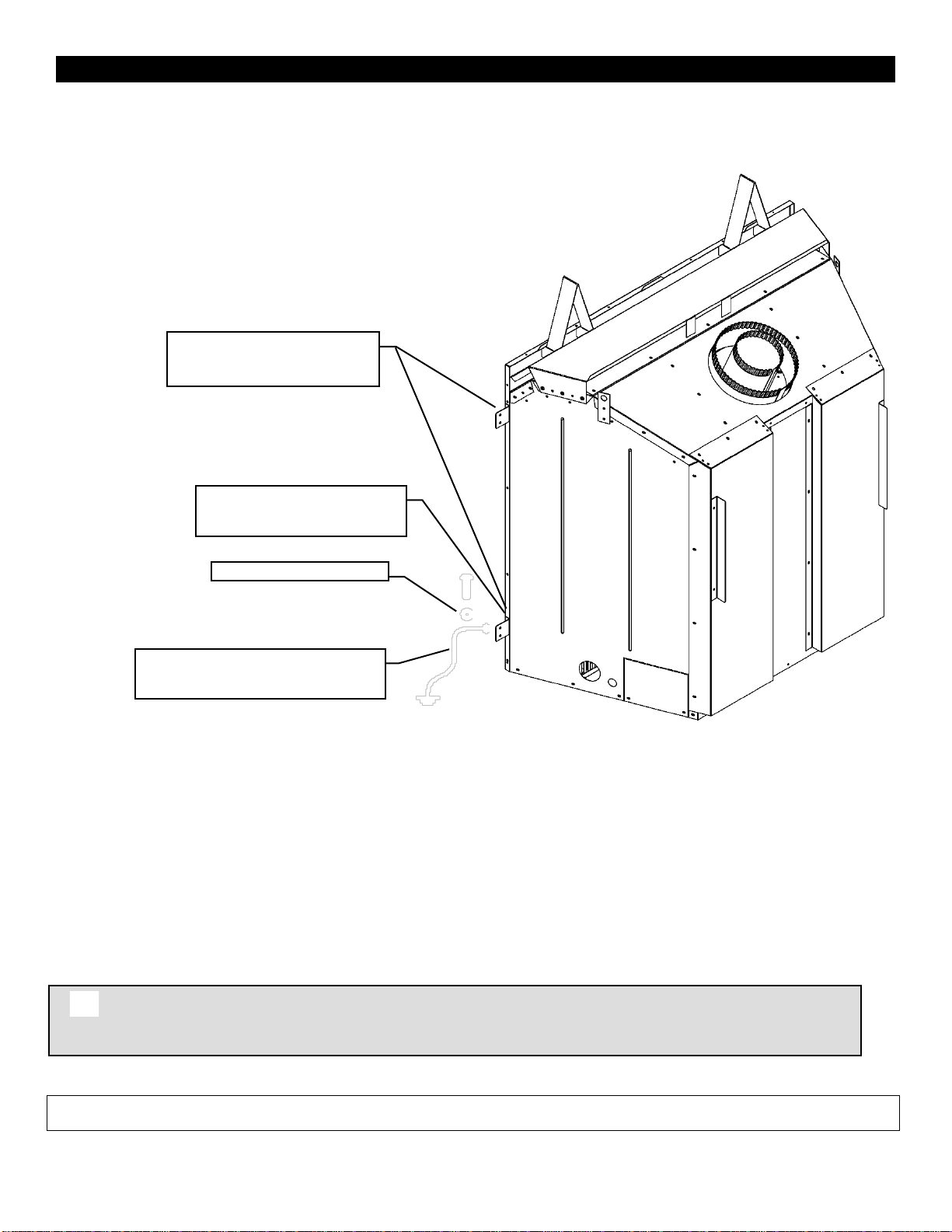

Mobile Home/Manufactured Housing Installation
This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE VENTED GAS FIREPLACE HEATERS IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER
FIRST SALE IN THE USA.
THE VENTED GAS FIREPLACE HEATERS IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES IN
CANADA.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National
Electrical Code in Canada.
An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to
penetrate paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat. In USA see local
codes.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor
or ceiling, during installation of appliance or venting.
Appliance Must Be Secured To
Structure Using Supplied Nailing
Tabs And Or Fastened To Floor.
Use Existing Hole Or Remove
Existing Screw To Mount Ground
Wire (Nailing Tab Screw).
Serrated Or Star Washer
Ground Wire From Appliance To Steel
Chassis Of Mobile Home. USE 8GA
COPPER WIRE.
9

ZCV34 Framing Your Gas Fireplace
This section is intended for qualified installers only. Before beginning, make note of where the gas and electrical accesses are
located on the unit. This will streamline the construction process. Furthermore, familiarize yourself with the venting and
clearance requirements (see Venting section) for this appliance. Failure to comply with those requirements can seriously
compromise the safety and operation of the fireplace.
Specifications
1. Cold climate installation recommendation: When installing this fireplace against non insulated exterior wall or chase,
it is recommended that the outer walls be insulated to conform to applicable insulation codes. Drywall & vapor barrier
must be installed over insulation to prevent contact of insulation and unit.
2. Choose fireplace location and frame in accordance with the fireplace framing dimensions specified (view diagrams).
3. Drywall or other combustible material can extend up to the Drywall Stops located on the sides of the unit, and up to
the bottom and top.
4. A Hearth is not required for this unit.
Certified for installation in a bedroom or bedsitting room. In Canada must be installed with
listed millivolt thermostat (In USA see local codes).

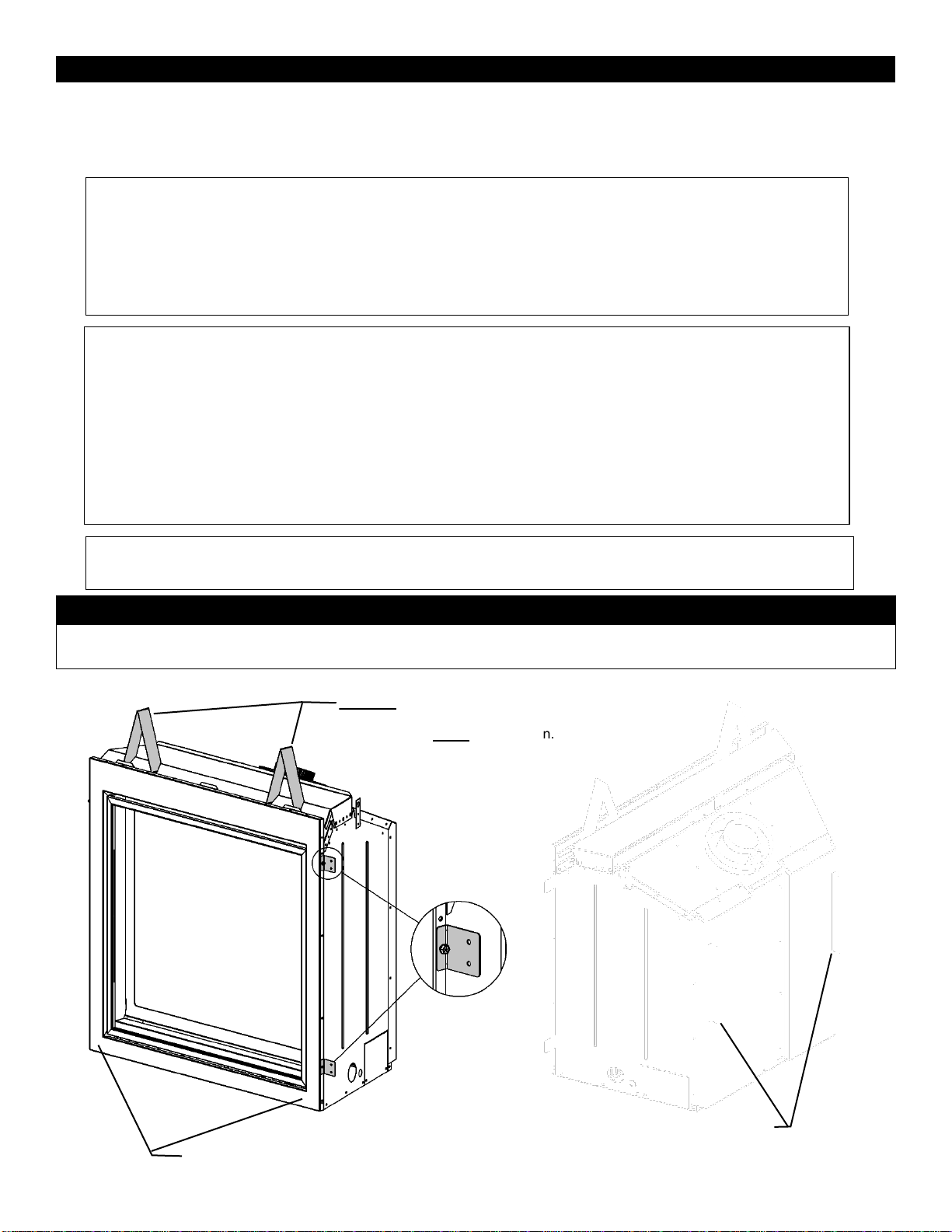

ZCV34 Stand-off and Nailing Tab Locations
Make note of where the stand-off locations are. These stand-offs are provided as indicators to illustrate the boundaries
for framing. Therefore, no framing material is permitted to extend beyond these stand-offs.
Vertical Venting in Cold Climates
In cold climate conditions where temperatures go below -10 degrees Celsius or 14 degrees Fahrenheit, we recommend
that the chase be insulated and where the vent pipe enters into the attic space that the pipe be wrapped with an insulated
Mylar sleeve. This will increase the temperature of the vent and help the appliance to vent properly in cold weather
conditions.
It is also important in vertical vented direct vent appliances that the appliance be operated daily during the winter months
as this will help stop the termination from freezing up. We recommend using a thermostat set at room temperature to
allow the unit to cycle.
For IPI models it may be necessary to set the appliance to Standing Pilot mode to maintain heat in the cavity. The
purpose of this procedure is to prevent cold air from penetrating the chimney and then onto the living space. Therefore,
when the internal temperature is slightly elevated the fireplace is able to freely exhaust its combustion and hence making
it easier to startup.
Nailing Tabs
Holes are provided in bottom
of unit to secure appliance to
floor after installation.
Caution: Standoffs on top of the
unit must be folded into position &
screwed down Prior to installation.
Back Standoffs
10

ZCV34 Framing- Nailing Tab Guide
These Nailing Tabs can be used in two ways:
Framing Flush with Face of Fireplace
Fireplace to be covered with Non-Combustibles (e.g.,
Concrete Board) for Flat Wall appearance.
1/2” Drywall Flush with Face of Fireplace
Fireplace and Combustible Wall to be covered with a
surround or Non-Combustible Materials (e.g. Stone
around Fireplace).
[Qty]2 Nailing Tabs are
located on each side of the
front frame.
Nailing Tabs
Must Be
Rotated 180°
And Folded
Back Onto
Framing Stud.
Drywall
Framing Stud
Non-Combustible Material
(eg. Concrete Board)
Nailing Tab
Framing Stud
Drywall
Nailing Tab
Non-Combustible Material
(eg. Stone)
Framing Stud
Nailing Tab
Flush Surface
Nailing Tab
Nailing Tab
Framing Stud
11

ZCV34 Locating Your Appliance
LOCATION KEY:
A. Flat on Wall
B. Across the Corner
C. As an Island
D. As a Room Divider
E. Flat on Wall Corner
F. Exterior Wall
See Mantel Leg Clearances Instruction for
the proper placement of fireplace.
Island installation with a top vent is
possible as long as the horizontal portion
of the vent system does not exceed 20
feet (6.1 m).
ZCV34 Fireplace Dimensions
LEFT SIDE
FRONT
TOP
12

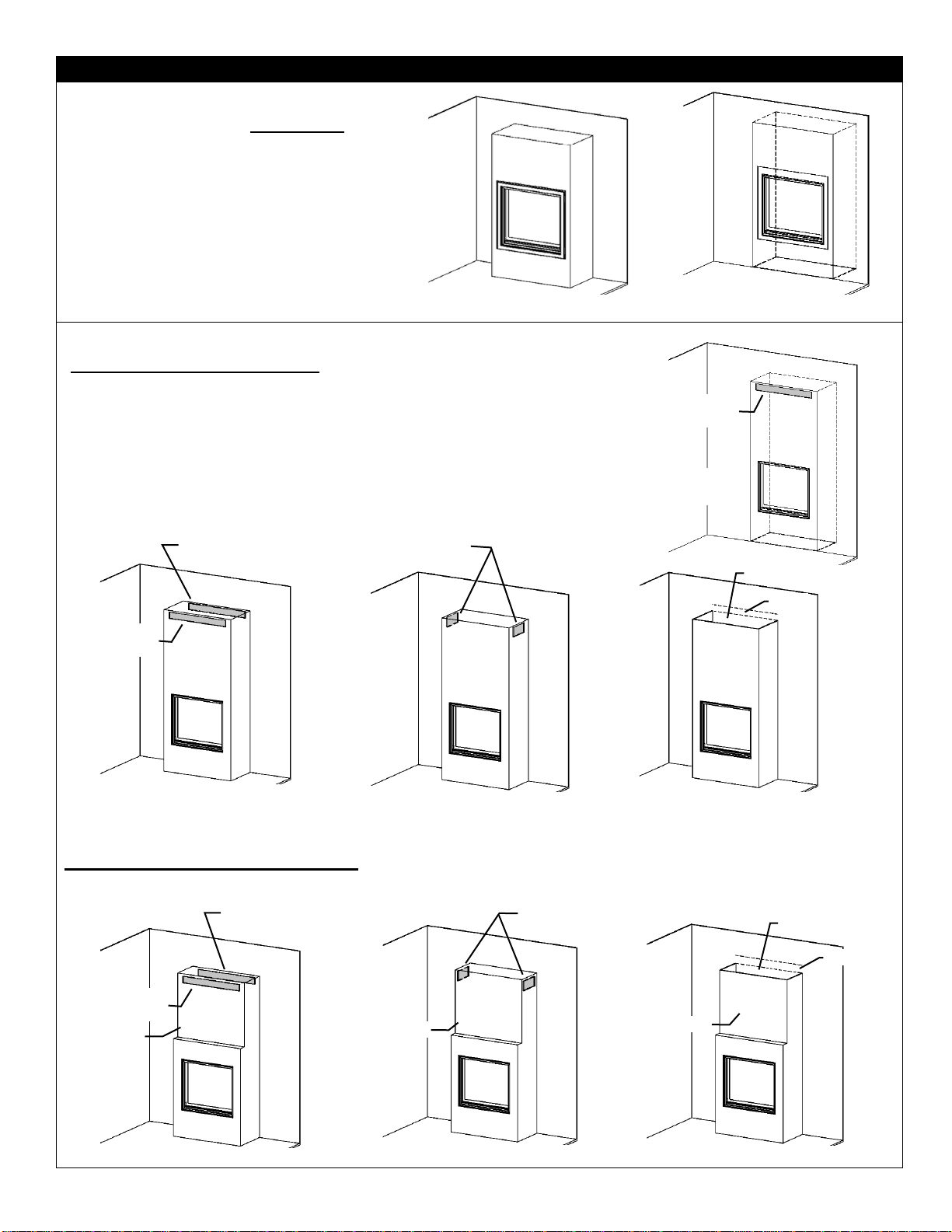

ZCV34 Chase Options: Non-Vented / Vented / Vented with Recessed Front
FRAMED AS NON-VENTED CHASE:
(Fireplace is installed As Shipped, with
Ventilation Plates in place.)
This is a traditional fireplace installation where the
fireplace is built into a non-vented chase.
•Only non-combustible materials may cover the
face of the fireplace.
•Chase wall surface temperature will be warmer.
•Mantel height is higher than Vented Chase.
FRAMED AS VENTED CHASE:
(Ventilation Plates are removed from fireplace before
it is installed into a Vented Chase.)
•Combustible materials may cover the face of the fireplace.
•Chase walls will be cool to the touch.
•Mantel height is lower than Non-Vented Chase.
•Chase must be vented at the top with a specified grill or
opening size.
Vented Chase- Recessed Option: (Ventilation Plates must be remove before installation into a Vented
Chase.)
Open Chase
2” MIN
2” MIN
Open Chase
Side Grills- Both
Sides of Chase
must be vented
Front Grill
Required
Optional Additional Rear Grill-
Must be in the same Pressure
Zone (Room / Area)
Recessed Front
Optional Additional Rear Grill-
Must be in the same Pressure
Zone (Room / Area)
Side Grills- Both
Sides of Chase
must be vented
Recessed Front
Recessed Front
Front Grill
Required
Chase built into room
Front Grill
Required
Chase built into room
Chase built outside of
room (Doghouse)
Chase built outside of
room (Doghouse)
(Doghouse)
13

ZCV34 –Non-Vented Chase VS Vented Chase - Choose Your Installation
HEAT CANNOT BE DISCHARGED INTO THE
WALLS, FLOOR, OR CEILING.
•Heat must exit through the required vented chase
opening near the ceiling.
•The top of the enclosure must be sealed.
•Grill openings must be flush with the enclosure top.
•An open chase must have a minimum 2” opening
on 3 sides of the enclosure.
If using insulation in vented chase (i.e. for outside
wall), wall board / drywall is required to support all
insulation. Vented chase must be clean and free of all
debris (i.e. loose insulation, pieces of wood, etc.)
ELECTRICAL WIRES IN CHASE MUST BE PROPERLY
ATTACHED TO INSIDE WALL OF CHASE. DO NOT
RUN WIRES ABOVE APPLIANCE. Please follow the
current CSA C22.1 Canadian Electrical Code or the
National Electrical Code; ANSI/NFPA 70 when installed in
the United States.
ZCV34 -Vented Chase- Removal of Vent Covers- See Vented Chase Framing
⚠CAUTION: IF VENTILATION PLATES ARE REMOVED, YOU MUST VENT THE CHASE!
STEP 2: Bend Side Tabs
Up 90° on Vent Outer
Cover and flip part over
Header Standoff
Outer Half Shield - Discard
Vent Inner Cover - Discard
Vent Outer Cover
Side Tab
Header Standoff
Vent Outer Cover
Header Standoff
Vent Outer Cover
STEP 3: Install Vent
Outer Cover in new
position and set
Standoffs in place.
Side Tab
STEP 1: Using a 1/4” Hex Driver,
remove the following components:
Fireplace before
conversion
Fireplace after
conversion
NOTE: Use a sharp utility knife to
cut any silicone adhering the Outer
Half Shield to the appliance.
14

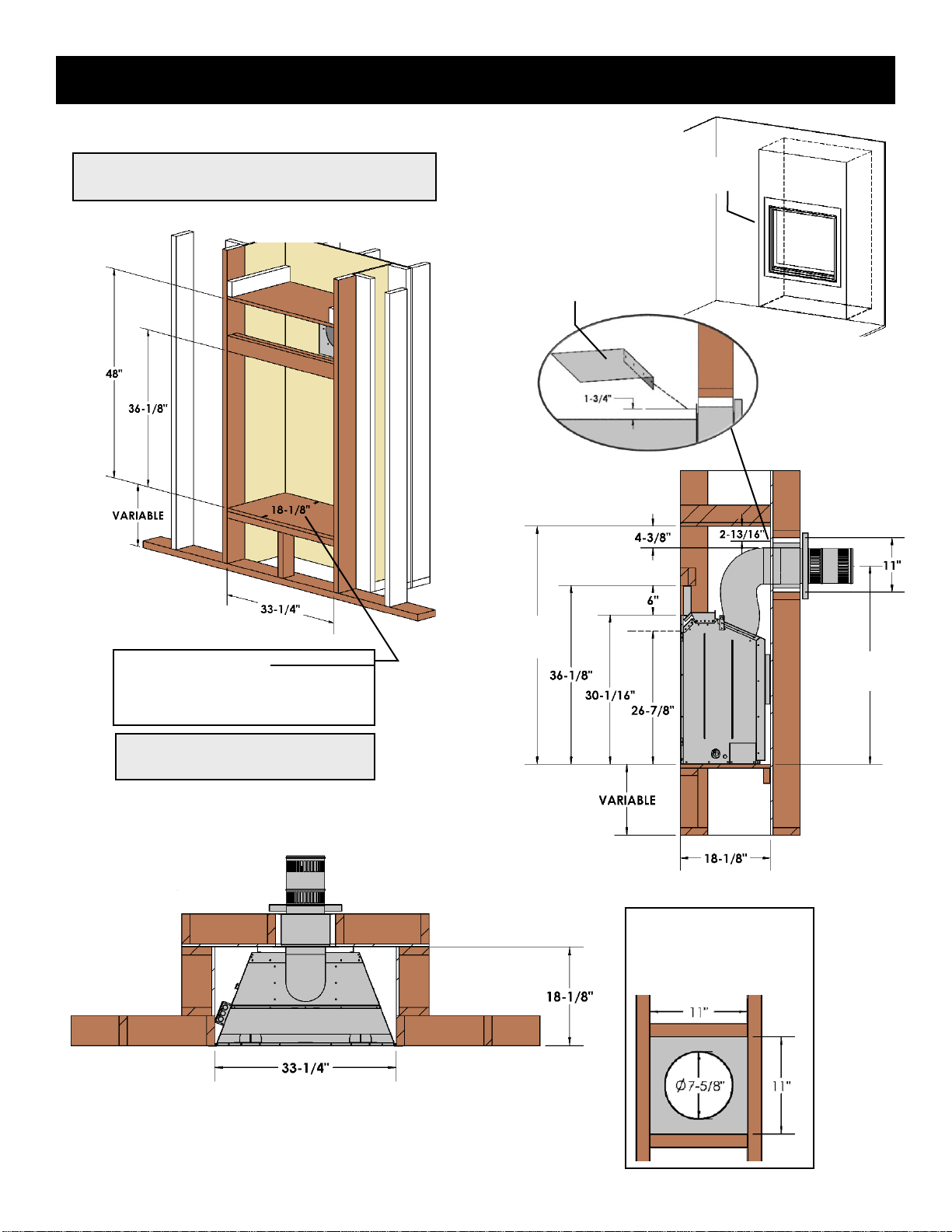

ZCV34 Framing Dimensions for Non-Vented Chase
Fireplace is installed As Shipped, with Ventilation Plates in place.
Determine whether face of fireplace will be flush with framing or finished wall.
Refer to Nailing Tab Guide also. NOTE: These structures are not load bearing.
Fig.1
Framing for Horizontal Vent
Termination
(See Installation of Side
Wall Venting Section)
Vertical Venting MUST maintain 1”
clearance to combustibles.
Framing Depth:
18-1/8” for Framing flush with face of unit.
17-5/8” for 1/2” Non-Combustible facing
flush with face of unit.
No loose Combustibles (wood, wiring, etc.)
are allowed inside the Chase area.
RIGHT SIDE VIEW
Z58WTS Wall
Thimble Shield
Must be used in
Non-Vented
Chases with
Horizontal Venting.
40” MIN FOR NG
52” MIN FOR
PROPANE
48” MIN FOR NG
60” MIN FOR PROPANE
CORNER FRAMING
15

ZCV34 Framing Dimensions for Non-Vented Chase Built Outside of Room
Fireplace is installed As Shipped, with Ventilation Plates in place.
Determine whether face of fireplace will be flush with framing or finished wall.
Refer to Nailing Tab Guide also. NOTE: These structures are not load bearing.
Fig.1
Framing for Horizontal Vent
Termination
(See Installation of Side
Wall Venting Section)
Vertical Venting MUST maintain 1”
clearance to combustibles.
Framing Depth:
18-1/8” for Framing flush with face of unit.
17-5/8” for 1/2” Non-Combustible facing
flush with face of unit.
No loose Combustibles (wood, wiring, etc.)
are allowed inside the Chase area.
RIGHT SIDE VIEW
40” MIN FOR NG
52” MIN FOR
PROPANE
48” MIN FOR NG
60” MIN FOR
PROPANE
Chase built outside of
room (Doghouse)
TOP VIEW
Z58WTS Wall
Thimble Shield
Must be used in
Non-Vented
Chases with
Horizontal Venting.
Chase built outside
of room (Doghouse)
16

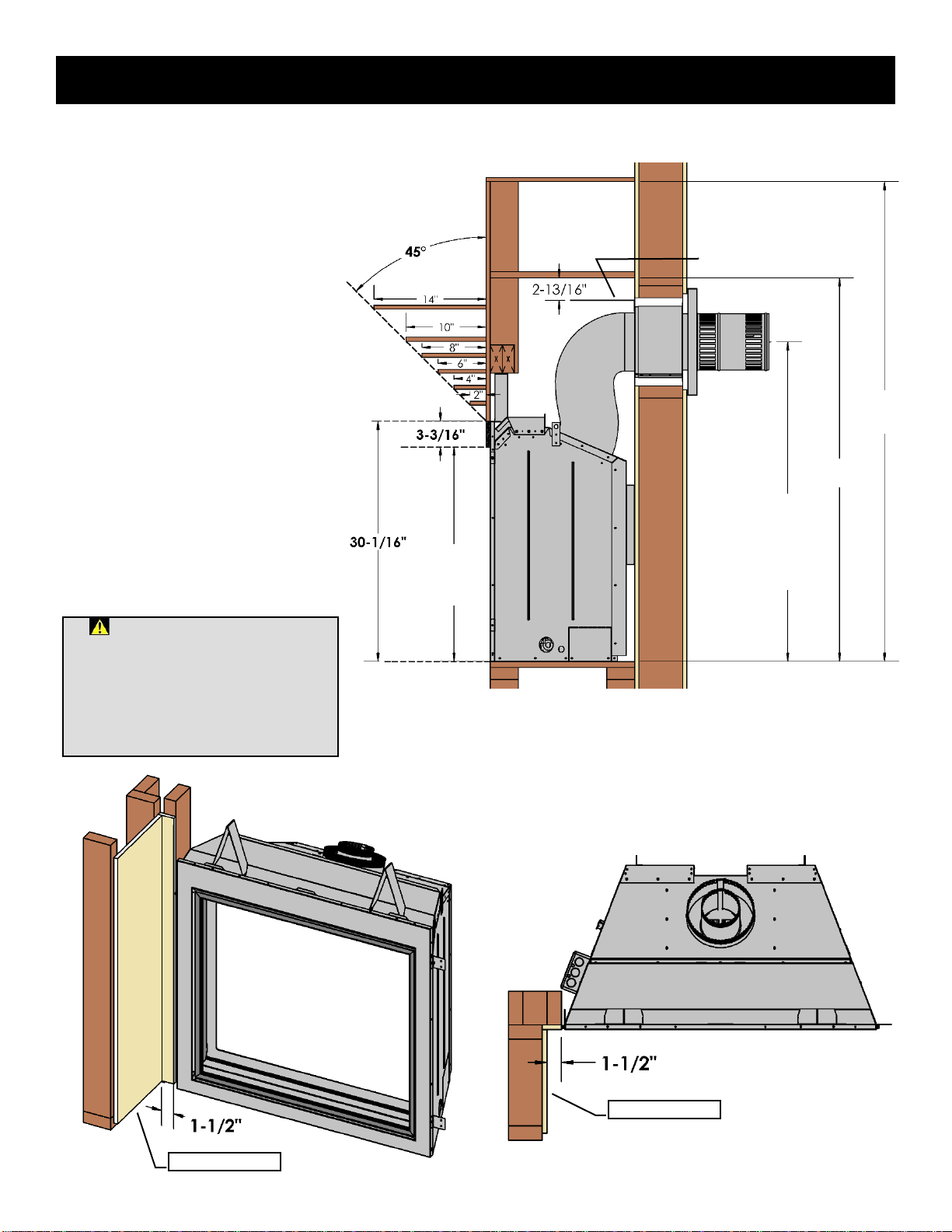

ZCV34 -Mantel Clearances- for Non-Vented Chase
Fireplace is installed As Shipped, with Ventilation Plates in place.
Before installing any mantels it is
important to determine the
combustibility of its material(s). There
are two types of mantels to consider:
Combustible and Non-Combustible.
A Combustible Mantel is one that
consists of material(s) that may
discolor, combust, or lose its integrity
in the presence of heat. These types
of mantels must strictly conform to the
dimensional requirements shown.
Conversely, a Non-Combustible
Mantel is one that is constructed with
material(s) that will not combust.
Check your local codes and
regulations to determine whether your
mantel is Combustible or Non-
Combustible.
The advantage to Non-Combustible
Mantels is that it may extend right up
to the tile lip of the fireplace.
Combustible mantels must adhere to
the dimensional restrictions shown.
Mantel Dimensions are from front face
or Non-Combustible Facing Materials
covering fireplace.
-Combustible Objects on Non-
Combustible Mantel Warning-
Combustible objects must not be placed on
a Non-combustible Mantel unless the
mantel meets the dimensional requirements
for a Combustible Mantel. Determine
whether your mantel conforms to the
requirements of a Combustible Mantel.
Adjacent Wall
Adjacent Wall
Right Side View
26-7/8”
Top of
Fireplace
Opening
40” MIN
FOR NG
52” MIN
FOR
PROPANE
48” MIN
FOR NG
60” MIN
FOR
PROPANE
E
Z58WTS Wall
Thimble Shield Must
be used in Non-
Vented Chases with
Horizontal Venting.
17

ZCV34 Clearance to Combustibles for Non-Vented Chase
Fireplace is installed As Shipped, with Ventilation Plates in place.
Front
36” [92cm]
*Note: If appliance is installed
directly on carpeting or other
combustible material other
than wood flooring, a metal or
wood panel extending the full
width and depth of the
appliance must be used.
Carpet may extend 1 inch
above the floor of the
appliance.
Back (from Stand-offs)
0” [0cm]
Side (from Stand-offs)
0” [0cm]
Floor* (See Note)
0” [0cm]
Minimum Ceiling / Enclosure Height (from bottom
of fireplace)
48” [122cm] Natural Gas
60” [152cm] Propane
Top (from Stand-offs)
0” [0cm]
Adjacent Wall
1-1/2” [3.8cm]
Top of 90° Bend in minimum Enclosure
4-1/2” [11.5cm] With Z58WTS Wall
Thimble Shield installed
Top of 90° Bend inside Enclosures above
minimum height
4-1/2” [11.5cm] With Z58WTS Wall
Thimble Shield installed
VENTING SYSTEMS
Top of Horizontal Pipe
1/1/2” [3.8cm]
Side & Bottom of Horizontal Pipe
1” [2.5cm] All Vent Systems
Vertical Vent Pipe
1” [2.5cm] All Vent Systems
The Wall Thimble Shield Z58WTS is
required in non-vented enclosures
with horizontal venting.
Place Wall Thimble Shield Z58WTS
against the Wall Thimble 1-3/4” above
the Vent. Install the Wall Thimble
Shield using [4] DT Screws.
Materials covering
face of appliance
must be Non-
combustible
40” MIN
FOR NG
52” MIN
FOR
PROPANE
48” MIN FOR NG
60” MIN FOR PROPANE
18

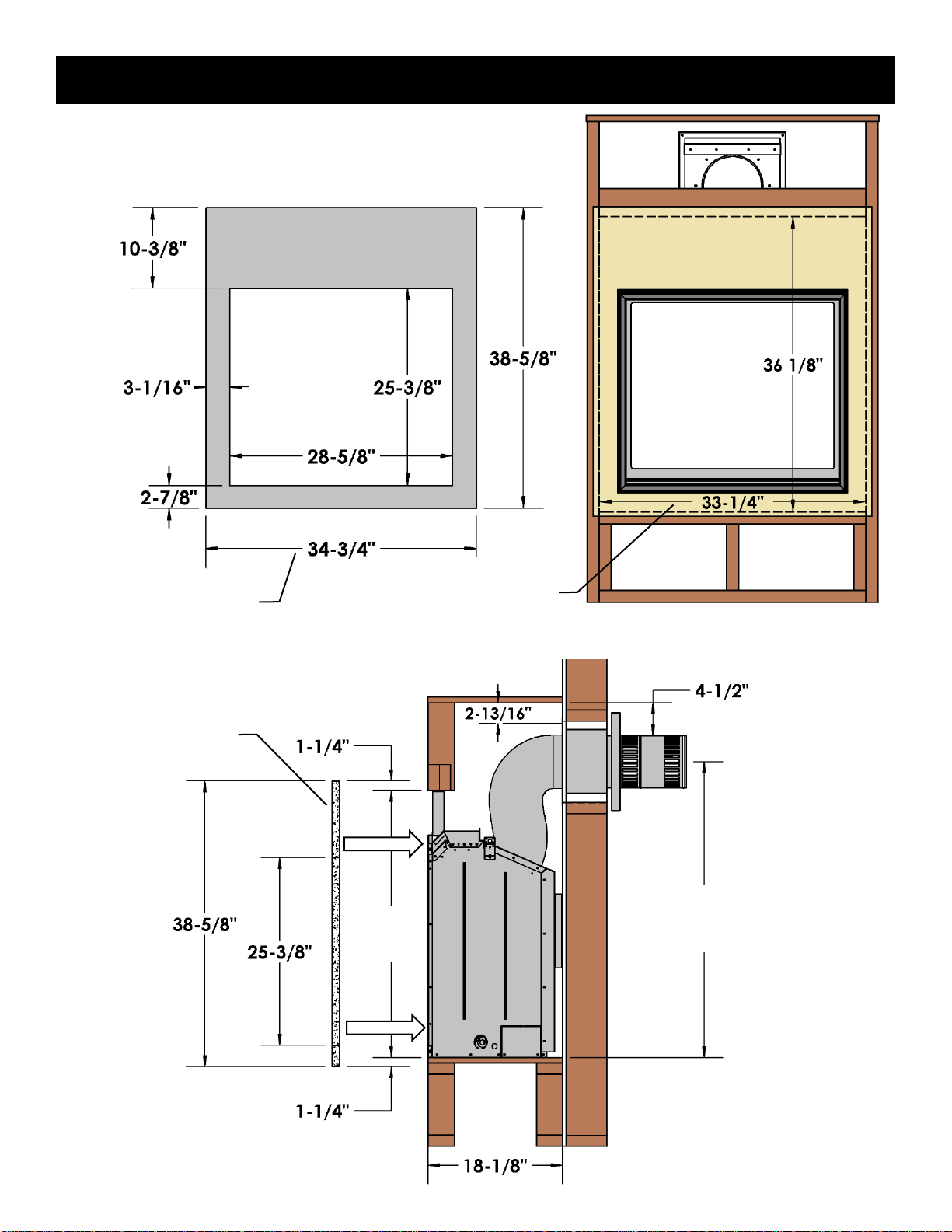

ZCV34 Facing Requirements- for Non-Vented Chase
Fireplace is installed As Shipped, with Ventilation Plates in place.
ANY MATERIALS COVERING THE FACE OF THE FIREPLACE MUST
BE NON-COMBUSTIBLE (i.e. brick, stone, tile, concrete board).
36-1/8”
Framed
Opening
Non-Combustible Material
34-3/4” x 38-5/8”
Framed Opening
33-1/4” x 36-1/8”
Non-Combustible
Material Attached to
Framing
40” MIN
FOR NG
52” MIN
FOR
PROPANE
19

ZCV34 Framing Dimensions for Vented Chase with V34EG -OR- V34EGS Grills
Ventilation Plates must be removed before installation into a Vented Chase
Grills MUST be located at top of chase. Determine whether face of fireplace will be flush with framing or finished wall.
Refer to Nailing Tab Guide also. NOTE: These structures are not load bearing.
Fig.1
Framing for Horizontal Vent
Termination
(See Installation of Side
Wall Venting Section)
Vertical Venting MUST maintain 1”
clearance to combustibles.
Framing Depth:
17-5/8” for 1/2” Drywall flush with face of unit.
18-1/8” for Framing flush with face of unit.
No loose Combustibles (wood, wiring, etc.) are
allowed inside the Chase area.
CORNER FRAMING
40” MIN FOR NG
52” MIN FOR PROPANE
Front Grill Opening
3-1/4” x 31-3/8”
Side Grill Openings
4-13/16” x 10-1/4”
Front Grill Opening
3-1/4” x 31-3/8”
Side Grill Openings
4-13/16” x 10-1/4”
V34EG FRONT GRILL OPTION ONLY
NO SIDE GRILL OPTION FOR CORNER
FRAMING
Unit and Framing
can be covered
with a combustible
i.e., drywall.
-Remove Ventilation Plates-
See Removal of Vent Covers on Page 14.
SIDE VIEW
Front Grill
Required
Optional Additional Rear
Grill- Must be in the same
Pressure Zone (Room / Area)
Side Grills- Both Sides of
Chase must be vented
20
