Kingsman Fireplaces HBZDV3624 User manual

Installation Instructions
HBZDV3624, HBZDV3628
Models: HBZDV3624N, HBZDV3624NE, HBZDV3624NE2, HBZDV3624LP, HBZDV3624LPE, HBZDV3624LPE2 are
Certified to: ANSI Z21.88-2017 • CSA 2.33:2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
Models: HBZDV3628N, HBZDV3628NE, HBZDV3628NE2, HBZDV3628LP, HBZDV3628LPE, HBZDV3628LPE2 are
Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
For Propane Horizontal installations the
venting must be a minimum of one foot
vertical off the flue before going horizontal.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: [phone]
Printed in Canada August 28, 2019
Part # 36HB-MAN17
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for future
reference.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local
codes.
This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.

Table of Contents
Cover......................................................................................................................................................................
1
Table of Contents....................................................................................................................................................
2-3
Pre-installation Questions and Answers / Operations and Maintenance Instructions.............................................
4
Safety Screen Installation.......................................................................................................................................
5
Warnings, Installations and Operations - Installation Regulations..........................................................................
6
Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector..............
7

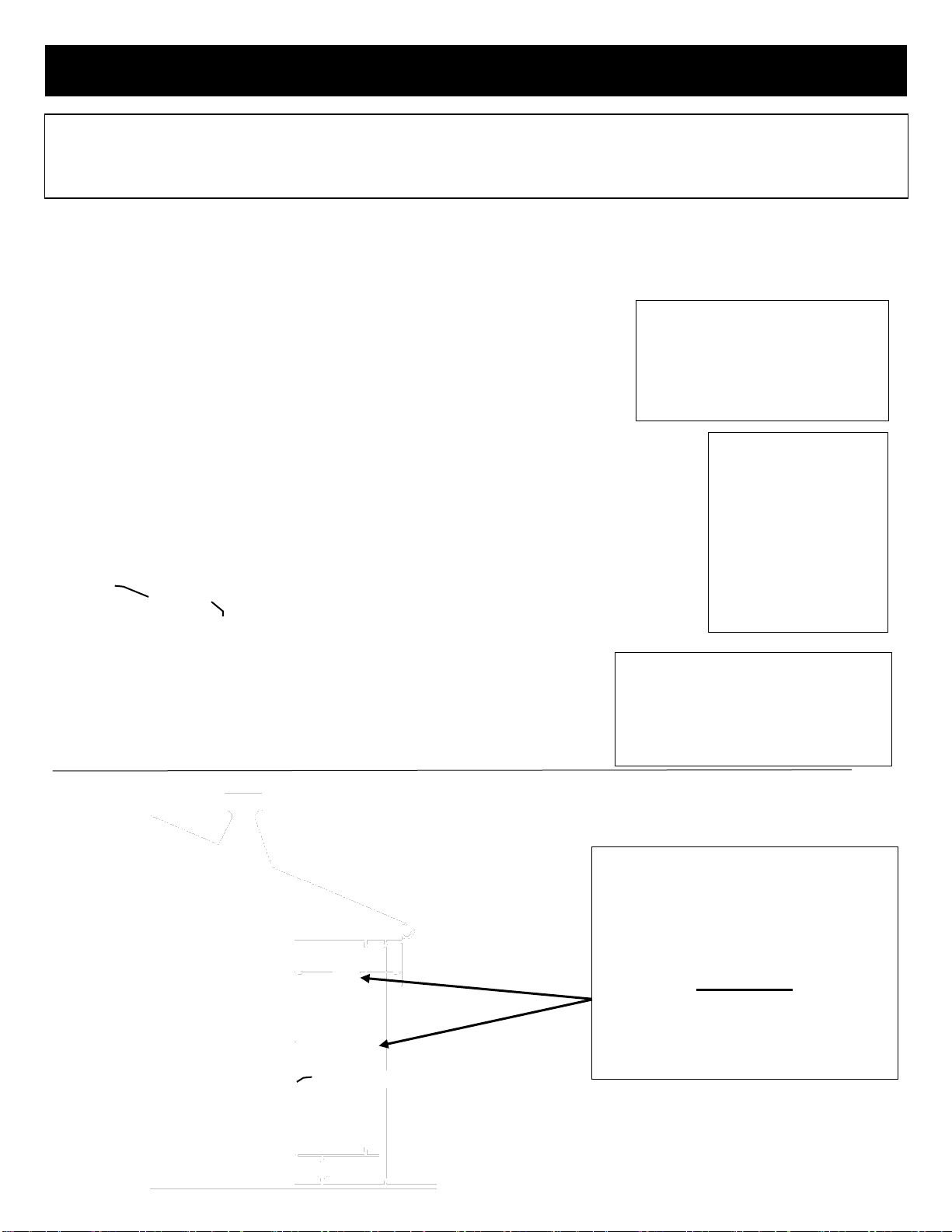

Mobile Home/Manufactured Housing Installation...................................................................................................
8
Installation & Framing
Fireplace Installations in Covered Outdoor Locations............................................................................................
9

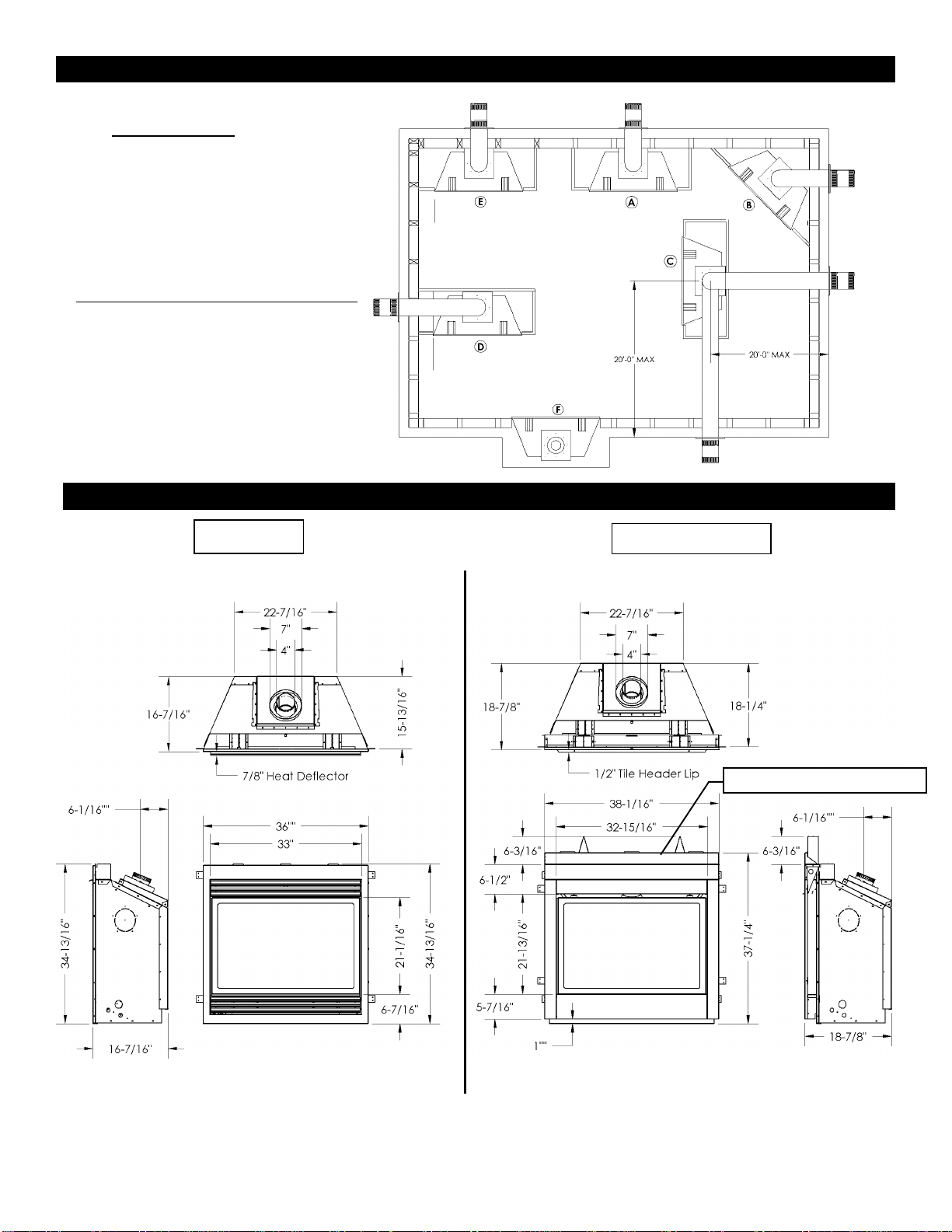

Locating your Appliance / Unit Dimensions............................................................................................................
10
Framing for your Gas Fireplace..............................................................................................................................
11
HBZDV36 - Framing and Facing Requirements.....................................................................................................
12

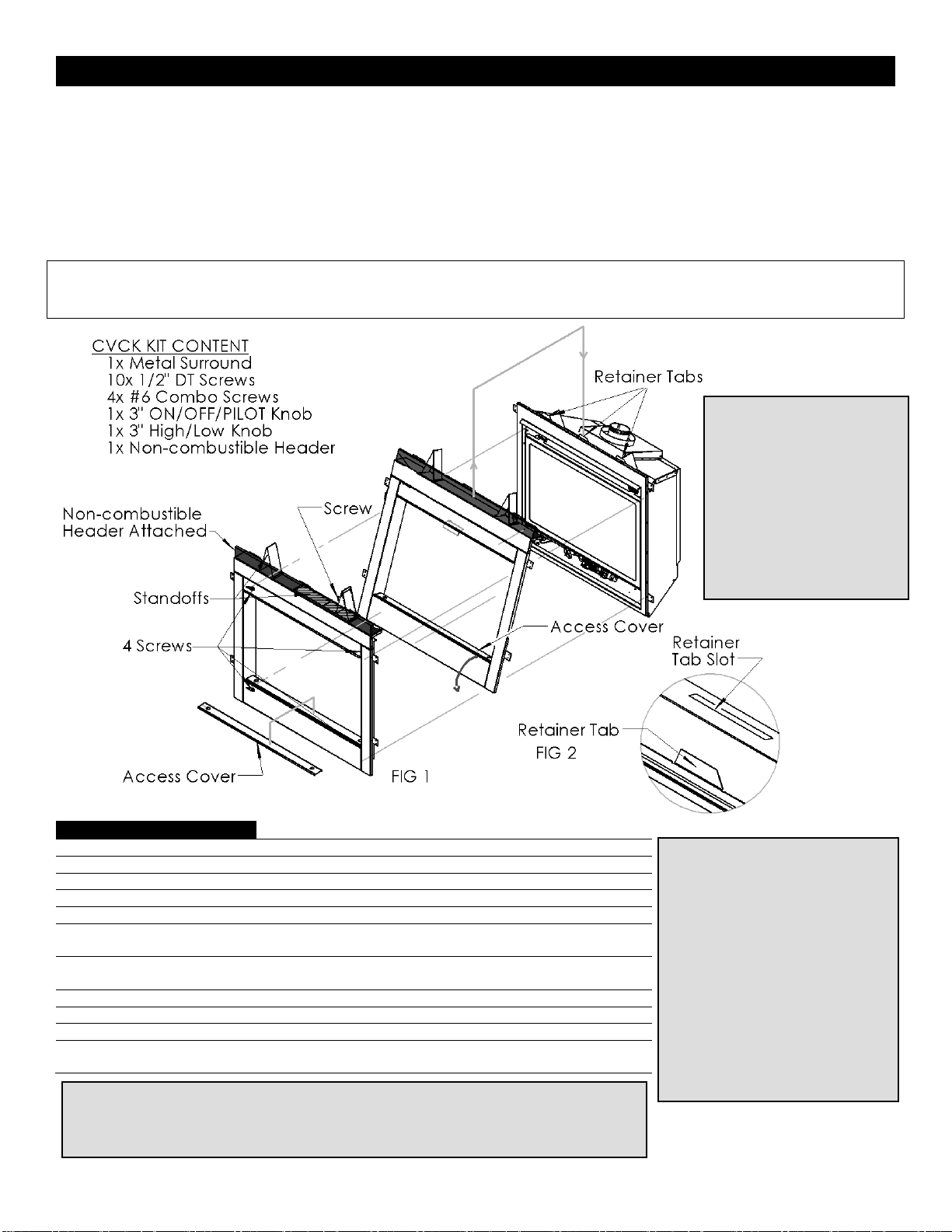

How to Install Clean View Kit (Cvck).......................................................................................................................
13
HB36SBL & HB42SBL Surrounds..........................................................................................................................
14
Clearances – HB36 / HB42 / HB47 – Mantels........................................................................................................
15
Mantel Leg Clearances...........................................................................................................................................
16
Accessories and Options
Fan Kit Installation..................................................................................................................................................
17
Split Receptacle- Fan Speed Control Outside of Fireplace....................................................................................
18
Brick Installation......................................................................................................................................................
19
Installation of HB Porcelain Liners - HB36PL.........................................................................................................
20
Door and Glass Information / Appliance/Log Reference Chart/Log Placement......................................................
21
LOGC42 - LOG C43 LOG Placement.....................................................................................................................
22-23
LOGC44 Placement................................................................................................................................................
24-26
MQLOGC45 Oak Logset Placement.......................................................................................................................
27-28
MQRSP3 with Pilot Shield......................................................................................................................................
29
Installing MQRSP3.................................................................................................................................................
30
Pilot Shield RSP1 / RSP2.......................................................................................................................................
31
MQROCK1/MQRSP3..............................................................................................................................................
32-33
Burner System
Gas Line Installation...............................................................................................................................................
34
Millivolt System, Lighting, and Burner Control........................................................................................................
35
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace.........................................
36
Removing Burner System.......................................................................................................................................
37
Burner System Maintenance / Conversion Kit Instructions – PART A....................................................................
38
Conversion Kit Instructions – PART A....................................................................................................................
39
Gas Conversion for Top Convertible Pilot – Part B (series 0190XYZ)....................................................................
40
Gas Conversion for Modulator – PART C...............................................................................................................
41
Proflame 1
Overview / Components..........................................................................................................................................
42
Remote Control Operation......................................................................................................................................
43
Proflame 1 Parts List – Standard System...............................................................................................................
44
Configuration #1: Basic Manual HI/LO and Manual ON/OFF Capabilities..............................................................
45
Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities......................................................................
46
Operating the Receiver Without Batteries- Millivolt and Proflame 1.................................................................................
47
Configuration #3: Remote ON/OFF, variable HI/LO, and Fan Capabilities.............................................................
48
Electronic Ignition Lighting Instructions...................................................................................................................
49
Proflame 2
Proflame 2 Parts List / Basic System / Configuration GTMFL................................................................................
50
Proflame 2 Module and Remote Control.................................................................................................................
51
Cold Climates – CPI Setting - Proflame 2 Remote Control.....................................................................................
52
Proflame 2 Remote Control....................................................................................................................................
53-54
2

Proflame 2 Label Diagram................................................................................................................................................
55
Venting
Vent Terminal Clearances......................................................................................................................................
56
General Vent Installation / Installation Of Side Wall Venting..................................................................................
57
Venting Routes And Components / Horizontal Venting Table From Bottom of Fireplace......................................
58
Venting Straight Up Through Roof………………………………………………………………………………………...
59-60
Fireplace Installations Using Co Linear Flex Kits....................................................................................................
61
Glass Safety / Termination Cap Safety...................................................................................................................
62
Approved for Power Vent PVH58………………………………………………………………………………………….
63
Parts Lists
PVH58 Parts List…………………………………………………………………………………………………………….
64
Parts List.................................................................................................................................................................
65-66
Troubleshooting
Troubleshooting the Gas Control System...............................................................................................................
67
Warranty
Limited Lifetime Warranty………………………………………………………………………………………………......
68
3

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a fireplace glass cleaner.
 Babies, small children, pregnant women and pets should leave the area during the cure phase.
 Ventilate well, open doors and windows.
 Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and
any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.
marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan
is present) after the curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep
burning at a minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down
the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air
circulated into the room by the fan.
Note to the Installer:
Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained
to and understood by the customer.
Operations and Maintenance Instructions
For safe installation and operation note the following:
 Be sure to read and understand all the instructions in this manual before operation of appliance.
 Ensure all wiring is correct and properly enclosed to prevent possible shock.
 Check for gas leaks.
 Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
 Make sure venting and termination cap are installed and unobstructed.
 If brick or porcelain liners are used, ensure they are installed.
 Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
 If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
 Venting systems should be periodically examined by a qualified agency.
 The flow of combustion and ventilation air must not be obstructed.
 The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
 Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner
areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.
 Never use your gas fireplace as a cooking device.
 Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
 Areas in and around the Chase Vent Openings should be cleaned annually.
4

Safety Screen Installation Z Series
Screen with Side & Horizontal Angles
Hook Lower Clip onto glass door frame.
Press down and push upper clip under top glass door frame.
Contents of Kit:
[1] Safety Screen
[2] Side Angles
[2] Horizontal Angles
[12-16] DT Screws (Depending on screen size)
Assembly: Attach components with supplied
screws as shown.
⚠WARNING:
Wait until unit is COMPLETELY
cool before touching glass or
attempting to install or remove
Child Safety Screens.
To install screens
hook bottom clip
onto glass door
frame, then press
down and push
upper clip under
top glass door
frame, then
release. Clip will
hook onto frame.
To remove
Safety
Screens
WAIT UNTIL
FIREPLACE IS
COMPLETELY
COOL.
Press down on
upper clips and
remove screen
from fireplace
glass door.
TOP VIEW
Upper Clip
Lower Clip
Upper Clip
NOTE: Screens are symmetrical from top to bottom.
CLIPS
Upper Clip
SIDE VIEW
Fireplace with
Screen
5

Warnings, Installations and Operations - Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the
current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the
United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes,
with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be
removed.
6. Do not strike or abuse glass. Take care to avoid
breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than
factory supplied components.
9. This appliance gives off high temperatures and should
be located out of heavy traffic areas and away from
furniture and draperies.
10. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room
and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood,
paper) be used in this appliance.
13. Under no circumstances should this appliance be
modified. Any parts that have to be removed for
servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance.
15. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean. Make
sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
16. Clothing or other flammable material should not be
placed on or near the appliance. This appliance
should not be used as a drying rack for clothing nor
should Christmas stockings or decorations be hung
from it.
17. Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
18. Do not operate appliance unless completely installed
as per installation instructions.
19. Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
20. WARNING: Do not operate appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
22. The front of the fireplace gives off high temperatures
that could ignite combustible material which is kept
close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before
servicing.
24. Do not operate this Fireplace without the glass front or
with a broken glass.
25. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency, or the gas
supplier.
26. Operation of this appliance when not connected to a
properly installed and maintained venting system or
tampering with the blocked vent shutoff system can
result in carbon monoxide (CO) poisoning and
possible death.
27. This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
28. Gas fired appliances may be used only for
supplemental heat and/or decorative purposes and
under no circumstances shall they provide a primary
heat source.
29. This appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
6

Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of
the vent terminal and the air intake is installed below four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
 Be powered by the same electrical circuit as the appliance or equipment such that only one service switch
services both the appliance and the carbon monoxide detector;
 Have battery back-up power;
 Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
 Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527
CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be
used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation
instructions shall remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above
the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet
away, and read “Gas Vent Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of
the vent terminal and the air intake is installed above four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall:
 Be located in the room that houses the appliance or equipment;
 Be either hard-wired or battery powered or both; and
 Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-
off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts
state code CMR238.
Carbon Monoxide (CO) Detector
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room.
7

Mobile Home/Manufactured Housing Installation
This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE HBZDV3628N/NE/NE2 & HBZDV3628LP/LPE/LPE2 MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES AFTER FIRST SALE IN THE USA. IN CANADA THE HBZDV3628N/NE/NE2 & HBZDV3628LP/LPE/LPE2 MAY
BE INSTALLED IN MANUFACTURED (MOBILE) HOMES.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National
Electrical Code in Canada.
An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer
to penetrate paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor
or ceiling, during installation of appliance or venting.
8

Fireplace Installations in Covered Outdoor Locations
– FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS-
Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected
from direct water impingement.
However, all installation clearances in the appliance manual must be observed. Framing, Clearances to
Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.
CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI
Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The
Intertek safety certification will not apply to this installation method. This installation method must be deemed
acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.
A Minimum sheltering cover
(overhang) of
1/2 the distance from the base
of the fireplace to the ceiling
(base of roofline) is required.
EXAMPLE:
The bottom of the fireplace is 84”
from the ceiling.
Therefore, 42” of sheltering cover
is required above fireplace.
All wiring connections to line
power shall be in accordance
with outdoor requirements of;
-NECA NFPA 70 in the USA
-Canadian Electrical Code, CSA
C22.1 for Canada.
Outdoor Area
(Deck)
Indoor Area
(Living Room)
⚠ NOTE: TEMPERED
GLASS WARNING:
Tempered glass is
vulnerable to rapid
and/or extreme changes
in temperature (thermal
shock). Take care to
prevent water from
contacting the fireplace,
especially if it is hot.
NOTE: See-Through Units are
suitable for an outdoor location,
but not on the outside wall of a
house or other structure, as air
flows through both sides of the
fireplace.
Outdoor
Area
42”
84”
96”
12”
Outdoor
Area
42”
84”
96”
12”
Glass
Door
Glass
Door
The Fireplace is not to be operated in
temperatures below freezing (0°C / 32°F).
Glass
Door
9

Locating Your Appliance
LOCATION KEY:
A. Flat on Wall
B. Across the Corner
C. As an Island
D. As a Room Divider
E. Flat on Wall Corner
F. Exterior Wall
See Mantel Leg Clearances Instruction for
the proper placement of fireplace.
Island installation with a top vent is
possible as long as the horizontal portion
of the vent system does not exceed 20
feet (6.1 m).
Fireplace Dimensions
HBZDV36
HBZDV36-CVCK
Non-Combustible Header Attached
10

Framing for your Gas Fireplace
Framing Specifications
1. Cold climate installation recommendation:When installing this fire-
place against non insulated exterior wall or chase, it is recom-
mended that the outer walls be insulated to conform to applicable
insulation codes.Drywall must be installed over insulation to prevent
contact of insulation and unit.
2. Choose fireplace location and frame in accordance with the fireplace
framing dimensions specified (See Framing Diagrams).Bend nailing
tabs forward on left and right of unit and place fireplace into framed
enclosure.This allows for 1/2” in front of framing tabs for finishing
materials.
3. Drywall or other material can extend flush with the appliance on the
bottom, sides and top of fireplace.(louvered models only)
HBZDV36 Louvered HBZDV36 WITH CVCK (CLEAN VIEW CIRCULATING KIT)
4. When installing horizontal with a 90 degree bend maintain a minimum
of two and a half (2.5”) inches above the bend in enclosures.
5. Hearth is not mandatory but is recommended for aesthetic purposes.
For HBZDV with louvers combustible floor can raise 1” above
the bottom of the fireplace.For HBZDV with CVCK (Clean
view Circulating Kit) floor or hearth can raise 7” above the
bottom of the fireplace with portions being combustible and
non combustible.See drawing below.
6. When installing MQHB36SW surround, the fireplace must be
raised a minimum of 3 1/2” above the finished floors, to
accommodate the wall surround.The fireplace may be raised
higher but the 60” clearance measured from the bottom of the
fireplace to the ceiling must be maintained at all times.(i.e.
For an 8ft ceiling, the unit can be raised only 36 inches.)
8
21
⁄ 32 " DIA. 11"
11"
TOP VIEW
For Propane Horizontal Installations the venting must be a minimum of one foot vertical off the flue before the elbow on any
horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.
11

HBZDV36 WITH HB36CVCK (CLEAN VIEW CIRCULATING KIT)
HBZDV36 - Framing and Facing Requirements
Non Combustible Header
Attached
AA
Non Combustible Header
Attached
AA
AA
AA
AA
12

HB36 - How to Install Clean View Kit (CVCK)
.or CAUTION: When using CVCK DO NOT INSTALL a Louver assembly.
1. Install optional fan kit (see Fan Instruction).
2. Fold two standoffs up into position and mount with supplied screws. (FIG 1)
3. Hang CVCK on top of fireplace retainer tabs and rotate down into position. (FIG 2)
4. If not factory pre-installed, use the screws provided to fasten the non-combustible header onto the top of the CVCK assembly.
5. Using four supplied #6 screws, fasten CVCK kit to the inside frame of unit.
6. Kit is supplied with 2 valve extension knobs. Align the notches and slide the extensions onto valve knobs.
7. DO NOT brick or tile beyond the inside area of the CVCK kit to allow for removal of door.
NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION- When CVCK is
installed in framing, remove 2 screws from the right and left side of the bottom panel. Once screws are removed, bottom
panel can be rotated forward for access to gas valve and fan system.
Clearance to Combustibles
Back (from Standoffs) 0 inches/0 mm
Side (from standoffs) 0 inches/0 mm
Floor 0 inches/0 mm
Ceiling (from bottom of fireplace) 60 inches/150 cm
Top (from standoffs) 0 inches/0 mm
Top of 90 degree bend in Minimum
Enclosure of 42 to 43 inches 3 1/2 inches/89 mm / All Vent Systems
Top of 90 degree bend in
Enclosure over 43 inches 2 1/2 inches/64 mm / All Vent Systems
Top of Horizontal Pipe 1 1/2 inches/38 mm / All Vent Systems
Side & Bottom of Horizontal Pipe 1 inch/25.5mm / All Vent Systems
Vertical Vent Pipe 1 inch/25.5mm / Kingsman Vent Systems
Vertical Vent Pipe 1 1/4 inch/32mm / Simpson/AmeriVent/Selkirk
Direct Temp Systems
⚠ WARNING: Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this appliance may result in
property damage or personal injury.
NOTE: When using the
Clean View Kit (CVCK) and
installing optional electrical
components (i.e. Remote
Controls, variable speed
control, and or fan
modules) locate them in the
Clean View access area,
unless other shielding
devices like our IPI
Component box is used.
(NOTE -Floor) if installing the
appliance directly on carpeting
or other combustible materials
other than wood flooring, the
appliance shall be installed on a
metal or wood panel, the full
width and depth of the
appliance. Carpet may extend 1
inch above the floor of
appliance.
For units with CVCK (Clean
View Circulating Kit) see framing
with CVCK to establish floor
heights
13

HB36SBL & HB42SBL Surrounds
Supplied with [Qty 4] 6-32 Black Self Tapping Screws.
1. Remove Top and Lower
Grills.
4. Position top trim onto left and
right sides by sliding the top trim
and bracket together.
2. Place Lower Trim onto
fireplace.
5. Push bottom side of trop trim
toward fireplace. The lip on the
bottom side of top trim must be
inserted into fireplace.
3. Attach left and right sides
to fireplace with [2 ea.] 6-
32 screws.
Right Side
Left Side
Lower Trim
Top Trim
Lower Grill
Top Grill
Top Trim Lip
Back View
Bracket
HB36SBL
HB42SBL
14

Clearances – HB36 / HB42 / HB47 – Mantels
Warning: Combustible objects must not be placed on a non-combustible mantel unless the non-
combustible mantel meets the minimum height and width requirements for a combustible mantel.
15

Mantel Leg Clearances
Mantels
Depending on the depth of the fireplace mantel, it may be installed higher or lower from the top of the fireplace opening.
See drawings for proper installation height of your combustible mantel.Non-combustible mantels may be installed at any
height above the fireplace opening except when using MQHBSW.
Non combustible materials such as brick, tile, etc.can extend up to or over the front face of the fireplace (NO PORTION OF
GRILL AREA OR DOOR AREAS CAN BE COVERED) except where designer clean view kit is used.
Combustible material can extend flush to unit up to the top, bottom and sides of fireplace to stand-offs.
For COMBUSTIBLE materials extending in front of fireplace consult (Mantel and Mantel Leg Drawings).
Surrounds
If installing wide or slim line surrounds, the finish materials must be flush with the front facing of the fireplace.
Note: When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant (250˚F) to
prevent discoloration.
16

Fan Installation for HBZDV 36/42/47
17

Fan Speed Control Outside of Fireplace
If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source
of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures
below.
WARNING WARNING WARNING
A qualified electrician must connect
electrical wiring to junction outlet for
built-in installation.
Follow all codes.
Electrical Grounding Instructions –
This appliance is equipped with a
three – pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into a
properly grounded three-prong
receptacle.
Label all wires prior to disconnection
when servicing controls. Wiring errors
can cause improper and dangerous
operation. Verify proper operation and
servicing.
Caution: Electrical installation to be done by a qualified installer. All wires must be connected and grounded in accordance with
CSA Standard C22.1- Canadian Electrical Code part 1 or with the National Electrical Code, ANSI /NFPA 70 (latest edition) and /or in
accordance with local codes.
Switch Controlled Split Receptacle With Switch At START Of Cable Run
Switch Controlled Split Receptacle With Switch At END Of Cable Run
18

Brick Liner Installation – HBZDV3624 & HBZDV3628
INSTALLING BRICK PANELS FOR MODEL HBZDV3624 AND HBZDV3628
1. Place rear brick panel against rear of fireplace.
2. Loosen screws holding brick clips in position. Rotate clips up out of the way.
3. Place bottom of side brick over front lip of fireplace and rotate panel into position.
4. Rotate brick clips down and tighten screws.
19

Installation of HB Porcelain Liners - HB36PL
1. Remove Door from the fireplace by unlatching the 2 latches on top of unit.
2. Remove back Log Holder by removing 3 screws from face of Log Holder. The Log Holder will have to be re-
installed after the placement of the Back Panel. For HB4736, remove Brick Filler Panel (See Ref. 1).
3. Place Back Panel up against rear of firebox by tilting top of Back Panel towards you and sliding bottom of Back
Panel over burner system. For HB47PL, use supplied screw to attach Back Panel to firebox (See Ref. 2).
4. Loosen screws holding Brick Clip in place. Rotate Brick Clip out of the way and slide Side Panel up
against Back Panel. Side Panel tabs should engage top and bottom of Back Panel (See Ref. 3). Rotate
Brick Clip down over Side Panel and tighten screw.
5. Re-install Log Holder (and Brick Filler Panel if applicable) removed in step 2.Install Log Set as per
instruction and re-install Door.
20
