Kingsman Fireplaces HBZDV4232 User manual

Installation Instructions
Model Number HBZDV4224, HBZDV4228, HBZDV4232
Stock #’s: HBZDV4224N, HBZDV4224LP are
Certified to: ANSI Z21.50-2014 • CSA 2.22-2014
ZERO CLEARANCE VENTED GAS FIREPLACE
Stock #’s: HBZDV4228N, HBZDV4228LP, HBZDV4232N and HBZDV4232LP are
Certified to: ANSI Z21.88-2014 • CSA 2.33-2014
ZERO CLEARANCE VENTED GAS FIREPLACE HEATER
For Propane Horizontal installations the
venting must be a minimum of one foot
vertical off the flue before going
horizontal.
A Division of R-Co. Inc.
2340 Logan Avenue
Winnipeg, Manitoba, Canada R2R 2V3
Ph: [phone]
Printed in Canada March 31, 2017
Part # 42HB-MAN14
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a commercial fireplace glass cleaner.
•Babies, small children, pregnant women and pets should leave the area during the cure phase.
•Ventilate well, open doors and windows.
•Do not touch during curing.
Why does my fireplace or stove give off odour?
It is normal for your fireplace to give off some odour. This is due to the curing of the paint, adhesives, silicones and any
undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g. marble,
tile and the adhesives used to adhere this product to the walls can react with heat and cause odours).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off after the
curing of the paint has been completed. These odours can last upward to 40 hours of burn time; keep burning at a
minimum of four hours per use until odours dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
Operating Instructions
1. Be sure to read and understand all the instructions in this manual before operation of appliance.
2. Ensure all wiring is correct and properly enclosed to prevent possible shock.
3. Check for gas leaks.
4. Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
5. Make sure venting and termination cap are installed and unobstructed.
6. If brick or porcelain liners are used, ensure they are installed.
7. Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
8. If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
2

Table of Contents
Pre-installation Questions and Answers…………………………………..............
2
Operating Instructions……………………………………………………….............
2
Table of Contents…………………………………………………………….............
3
Safety Screen Installation…………………………………………………...............
4
Mobile Home/Manufactured Housing Installation……………………..................
5
Warnings, Installations, and Operations…………………………………..............
6-7
Installation Requirements for the Commonwealth of Massachusetts….............
7
Locating your Appliance.....................................................................................
8
Fireplace Dimensions.........................................................................................
8
Framing for your Gas Fireplace..........................................................................
9
HBZDV42CVCK .................................................................................................
10-11
MQSW Wall Mount Surrounds...........................................................................
12
Clearances – HBZDV42 Mantels & Surrounds...................................................
13
Mantel Leg Clearances......................................................................................
14
Fan Installation...................................................................................................
15
Removing Burner System / Access Cover..........................................................
16
Brick Installation………………………………………………………………...........
17
Installation of HB Porcelain Liners – HB42PL……………………………............
18
Door and Glass Information…………………………………………………...........
19
Appliance/Log Reference Chart/Log Placement…………………………............
19
LOG C42 – LOG C44 for HBZDV4224/HBZDV4228..........................................
20-21
LOG C44 for HBZDV4224/HBZDV4228.............................................................
22-24
MQLOGC45 for HBZDV3624 / 3628 / 4224 / 4228............................................
25-26
MQRSP3 with Pilot Shield…………………………………………………..............
27
MQRSP3 Rock Platform Assembly....................................................................
28
Pilot Shield RSP1 / RSP2……………………………………………………...........
29
MQROCK1/MQRSP3 for HBZDV4224/28..........................................................
30-31
Installing Log Set C-60.......................................................................................
32
Gas Line Installation and Gas Specifications.....................................................
33
Millivolt System, Lighting, & Burner Control........................................................
34
Burner System Maintenance..............................................................................
35
Conversion Kit Instructions – PART A................................................................
36
Gas Conversion Kit For Top Convertible Pilot PART B......................................
37
Gas Conversion for Modulator – PART C...........................................................
38
IPI Electronic Ignition System.............................................................................
39-43
IPI Lighting Instructions......................................................................................
45
Vent Termination................................................................................................
45
General Vent Installation Information.................................................................
46
Installation Of Side Wall Venting........................................................................
46
Venting Table......................................................................................................
47
Vertical Venting...................................................................................................
48
Glass Safety / Termination Cap Safety –All Units………………………..............
49
Approved for Power Vent PVH58…………………………………………..............
50
PVH58 Power Vent Parts List………………………………………………............
51
Parts List…………………………….....................................................................
52-53
Parts List- Kingsman Fireplace Venting..............................................................
53
Trouble Shooting The Gas Control System........................................................
54
Limited Lifetime Warranty...................................................................................
55
3

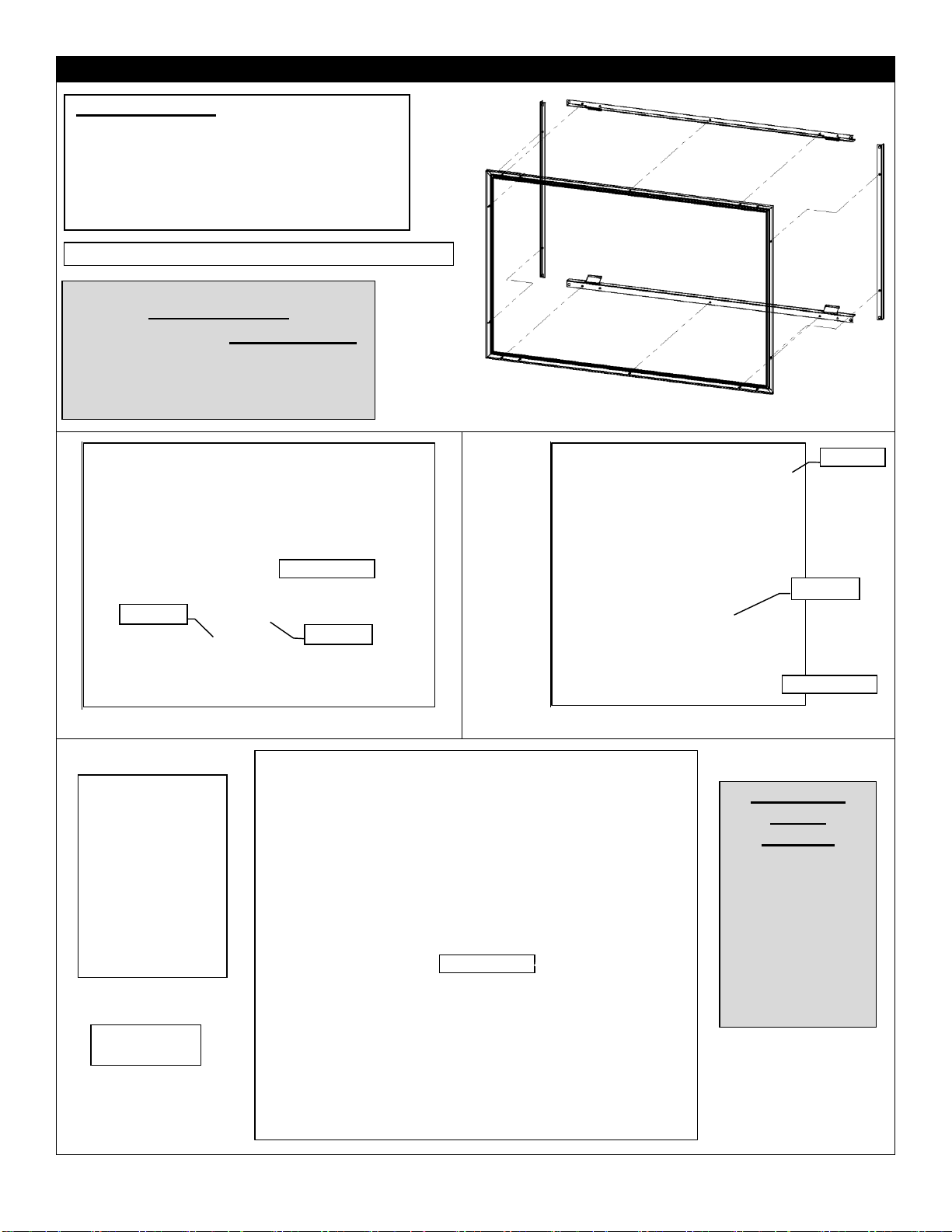

Safety Screen Installation Z Series
Screen with Side & Horizontal Angles
Hook Lower Clip onto glass door frame.
Press down and push upper clip under top glass door frame.
Contents of Kit:
[1] Safety Screen
[2] Side Angles
[2] Horizontal Angles
[12-16] DT Screws (Depending on screen size)
Assembly: Attach components with supplied
screws as shown.
⚠WARNING:
Wait until unit is COMPLETELY
cool before touching glass or
attempting to install or remove
Child Safety Screens.
To install screens
hook bottom clip
onto glass door
frame, then press
down and push
upper clip under
top glass door
frame, then
release. Clip will
hook onto frame.
To remove
Safety
Screens
WAIT UNTIL
FIREPLACE IS
COMPLETELY
COOL.
Press down on
upper clips and
remove screen
from fireplace
glass door.
TOP VIEW
Upper Clip
Lower Clip
Upper Clip
NOTE: Screens are symmetrical from top to bottom.
CLIPS
Upper Clip
SIDE VIEW
Fireplace with
Screen
4

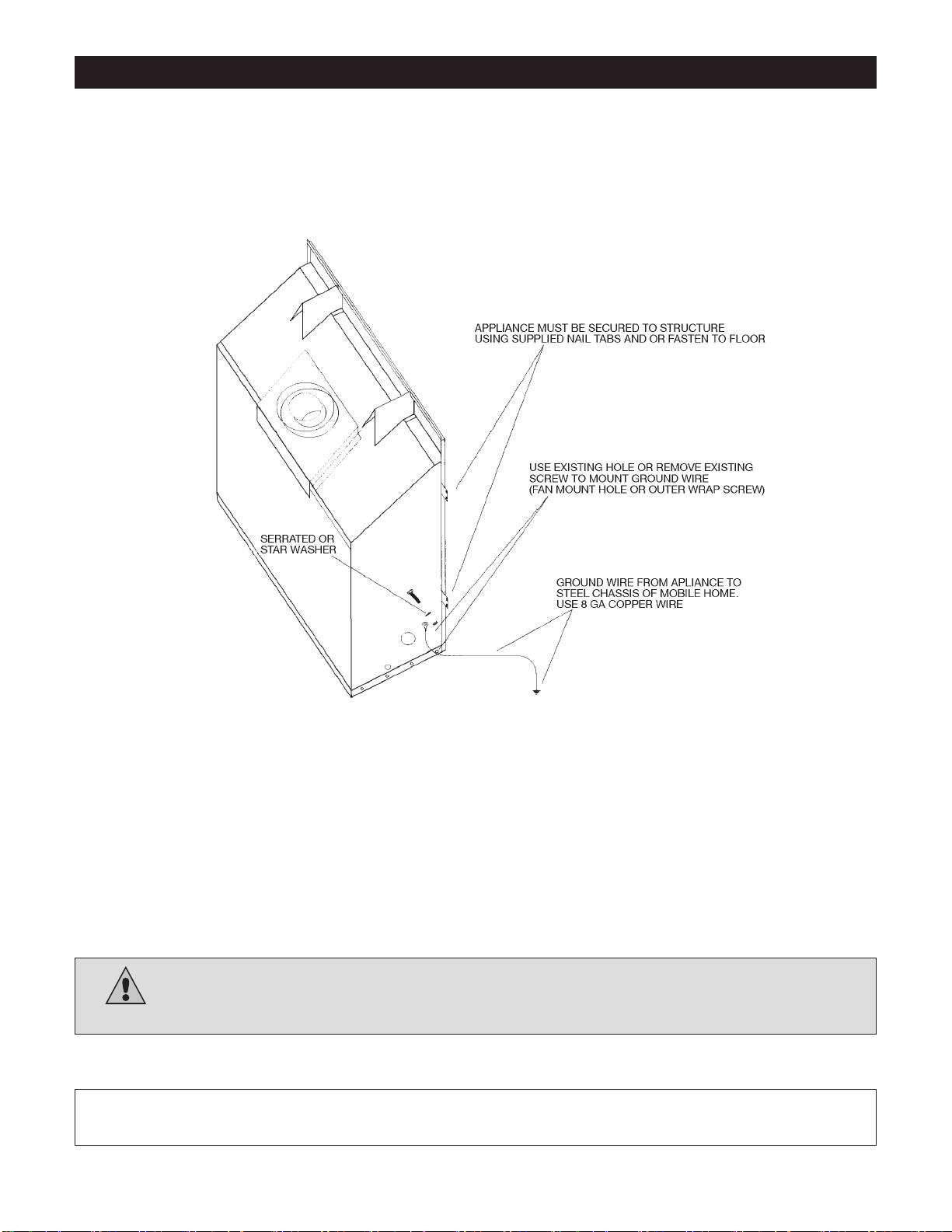

Mobile Home/Manufactured Housing Installation
This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE HBZDV4228N, HBZDV4228LP, HBZDV4232N and HBZDV4232LP MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES AFTER FIRST SALE IN THE USA. IN CANADA THE HBZDV4228N, HBZDV4228LP, HBZDV4232N AND HBZDV4232LP
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National Electrical Code in
Canada.
An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to penetrate
paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed milli volt thermostat. In USA see
local codes.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor or ceiling, during
installation of appliance or venting.
5

Warnings, Installations and Operations
Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the current
CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes, with the
current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
In the U.S.A. Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative).
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be removed.
6. Do not strike or abuse glass. Take care to avoid breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than factory
supplied components.
9. This appliance gives off high temperatures and should be
located out of heavy traffic areas and away from furniture and
draperies.
10. Children and adults should be alerted to the hazards of the high
surface temperatures of this appliance and should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children
and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and
other at risk individuals out of the room and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood, paper) be used in this appliance.
13. Under no circumstances should this appliance be modified. Any parts that have to be removed for servicing should be
replaced prior to operating this appliance.
14. Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to operating the appliance.
15. Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at
least annually by a professional service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, et cetera. It is imperative that control compartments, burners and circulating air passageways
of the appliance be kept clean. Make sure that the gas valve and pilot light are turned off before you attempt to clean this
unit.
16. Clothing or other flammable material should not be placed on or near the appliance. This appliance should not be used as a
drying rack for clothing nor should Christmas stockings or decorations be hung from it.
17. Do not use this heater if any part has been under water. Immediately call a qualified service technician to inspect the heater
and to replace any part of the control system and any gas control which has been under water.
18. Do not operate appliance unless completely installed as per installation instructions.
19. Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
20. WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualified service person.
21. The appliance area must be kept clear and free from combustible materials, gasoline, and other flammable vapors and
liquids.
22. The front of the fireplace gives off high temperatures that could ignite combustible material which is kept close to the front of
the unit.
23. Ensure that power to the Fireplace is turned off before servicing.
24. Do not operate this Fireplace without the glass front or with a broken glass.
25. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For assistance or additional information consult a qualified
installer, service agency, or the gas supplier.
26. Operation of this appliance when not connected to a properly installed and maintained venting system or tampering with the
blocked vent shutoff system can result in carbon monoxide (CO) poisoning and possible death.
27. This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
6

Gas fired appliances may be used only for supplemental heat and/or decorative purposes and under no circumstances shall they
provide a primary heat source.
This appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of your home.
Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In the U.S.A. Thermostats are not permitted for Vented Gas Fireplaces (ANSI Z21.50b-Decorative).
In USA see local codes.
Operations and Maintenance Instructions
For safe installation and operation note the following:
•Venting systems should be periodically examined by a qualified agency.
•The flow of combustion and ventilation air must not be obstructed.
•The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
•Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner areas. See Log
Placement page to remove logs. Vacuum burner parts and replace logs.
•Never use your gas fireplace as a cooking device.
•Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify
proper operation after servicing.
Installation Requirements for the Commonwealth of
Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO detector per the
requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent
terminal and the air intake is installed below four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
Be powered by the same electrical circuit as the appliance or equipment such that only one service switch services
both the appliance and the carbon monoxide detector;
Have battery back-up power;
Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527 CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above the location of
vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet away, and read “Gas Vent
Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of the vent
terminal and the air intake is installed above four feet above grade the following requirements must be satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide detector and alarm
shall be placed in the living area outside the bedroom(s). The carbon monoxide detector shall comply with NFPA 720.
B. A carbon monoxide detector shall:
Be located in the room that houses the appliance or equipment;
Be either hard-wired or battery powered or both; and
Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used. Installation shall be in
strict compliance with the manufacturer instructions. A copy of the installation instructions shall remain with the appliance or equipment
at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-off valve must be listed and
approved by the state of Massachusetts. This is in reference to the state of Massachusetts state code CMR238.
7

Locating Your Appliance
LOCATION KEY:
A. Flat on Wall
B. Across the Corner
C. As an Island
D. As a Room Divider
E. Flat on Wall Corner
F. Exterior Wall
See Mantel Leg Clearances Instruction for
the proper placement of fireplace.
Island installation with a top vent is
possible as long as the horizontal portion
of the vent system does not exceed 20
feet (6.1 m).
Fireplace Dimensions
HBZDV42
HBZDV42-CVCK
Non-Combustible
Header Attached
8

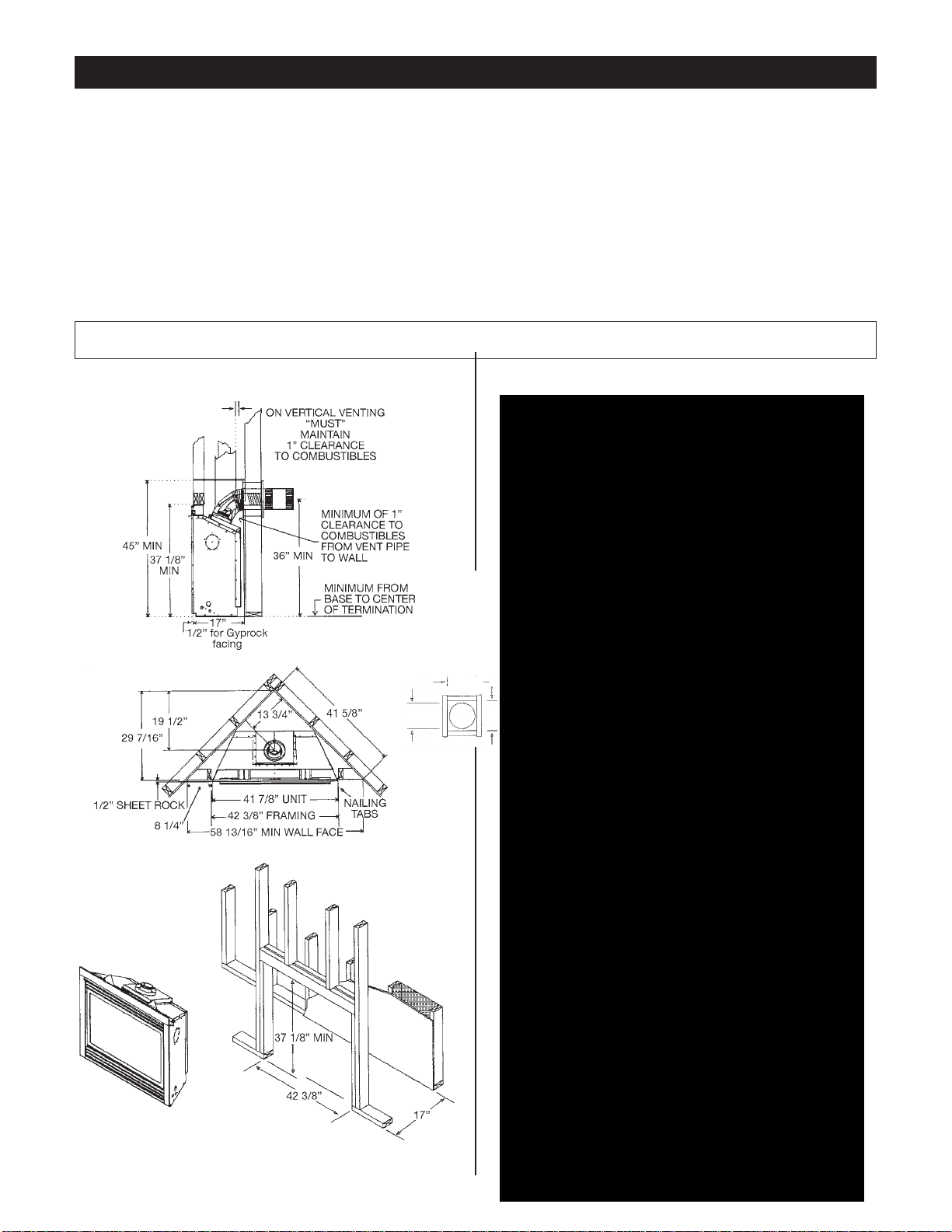

Framing for your Gas Fireplace
Framing Specifications
1. Cold climate installation recommendation: When installing this fire-
place against non insulated exterior wall or chase, it is recom -
mended that the outer walls be insulated to conform to applicable
insulation codes. Drywall must be installed over insulation to prevent
contact of insulation and unit.
2. Choose fireplace location and frame in accordance with the fireplace
framing dimensions specified (See Framing Diagrams). Bend nailing
tabs forward on left and right of unit and place fireplace into framed
enclosure. This allows for 1/2” in front of framing tabs for finishing
materials.
3. Drywall or other material can extend flush with the appliance on the
bottom, sides and top of fireplace. (louvered models only)
HBZDV42 louvered HBZDV42 WITH CVCK (CLEAN VIEW CIRCULATING KIT)
4. When installing horizontal with a 90 degree bend maintain a minimum
of two and a half (2.5”) inches above the bend in enclosures.
5. For HBZDV with louvers combustible floor can raise 1” above the bot-
tom of the fireplace. For HBZDV with CVCK (Clean view Circulating
Kit) floor or hearth can raise 7” above the bottom of the fireplace
with portions being combustible and non combustible. See drawing
Below.
6. When installing MQHB42SW surround,the fireplace must be raised a
minimum of 3 1/2” above the finished floors, to accommodate the
wall surround. The fireplace may be raised higher but the 60” clear-
ance measured from the bottom of the fireplace to the ceiling must
be maintained at all times. (i.e. For an 8 ft. ceiling the unit can be
raised only 36 inches.)
For Propane Horizontal Installations the venting must be a minim um of one foot vertical off the flue bef ore the elbow on any
horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.
TOP VIEW
11"
11"
8
21
⁄ 32 " DIA.
9

HBZDV42 WITH HB42CVCK (CLEAN VIEW CIRCULATING KIT)
HB42CVCK WITH MQHB42SW SURROUND
*Note: A HBCVCK must be used when installing a MQHBSW Wall Surr ound.
HB42 - Framing and Facing Requirements
Non Combustible
Header Attached
Non Combustible Header
Attached
10

HB42 - HOW TO INSTALL CLEAN VIEW KIT (CVCK)
CAUTION: When using CVCK DO NOT INSTALL a Louver assembly.

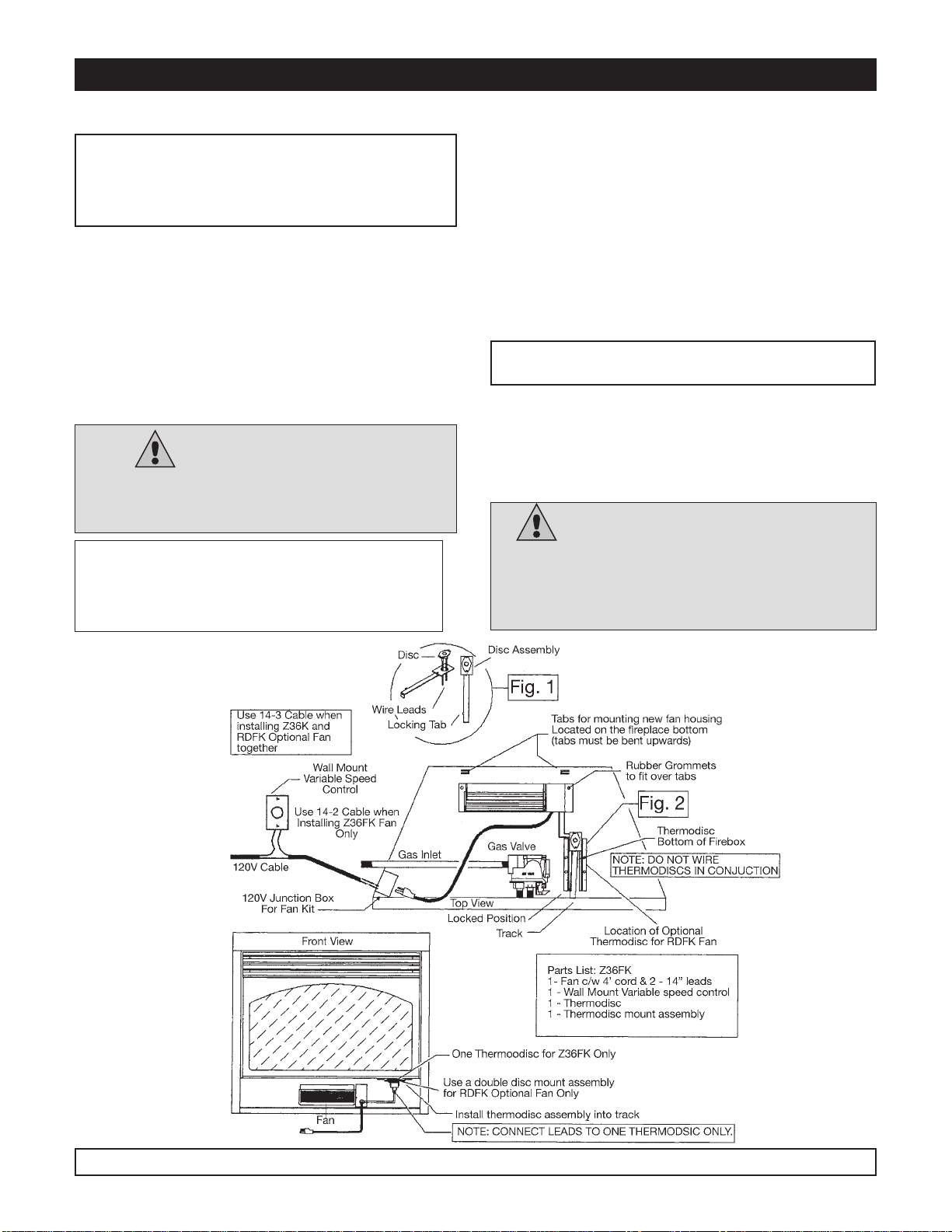

1. Install optional fan kit (see Fan Instruction).
2. Fold two standoffs up into position and mount with supplied screws. (FIG 1)
3. Hang CVCK on top of fireplace retainer tabs and rotate down into position. (FIG 2)
4. Using the screws provided, fasten the non-combustible header onto the top of the CVCK assembly.
5. Using four supplied #6 screws, fasten CVCK kit to the inside frame of unit.
6. Kit is supplied with 2 valve extension knobs. Align the notches and slide the extensions onto valve knobs.
7. DO NOT brick or tile beyond the inside area of the CVCK kit to allow for removal of door.
8. Install optional pull screen system: First slide curtain onto rods and slide round end of rod into side post (REF A). Using 1/2” DT
screws, mount the flattened end of rod to bottom side of rod hanger bracket (REF B). Repeat this step for opposite side.
NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION! When CVCK is
installed in framing, remove 2 screws from the right and left side of the bottom panel (REF C). Once screws are removed,
bottom panel can be rotated forward for access to gas valve and fan system.
Clearance to Combustibles
Clearance to Combustibles
Back (from Standoffs) 0 inches/0 mm
Side (from standoffs) 0 inches/0 mm
Floor 0 inches/0 mm
Ceiling (from bottom of fireplace) 60 inches/150 cm
Top (from standoffs) 0 inches/0 mm
Top of 90 degree bend in Minimum
Enclosure of 45 to 46 inches 5 inches/128 mm/ All Vent Systems
Top of 90 degree bend in
Enclosure over 46 inches 2 1/2 inches/64 mm / All Vent Systems
Top of Horizontal Pipe 1 1/2 inches/38 mm / All Vent Systems
Side & Bottom of Horizontal Pipe 1 inch/25.5mm / All Vent Systems
Vertical Vent Pipe 1 inch/25.5mm / Kingsman Vent Systems
Vertical Vent Pipe 1 1/4 inch/32mm / Simpson/AmeriVent/Selkirk
Direct Temp Systems
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only parts
specifically approved with this
appliance may result in property
damage or personal injury.
NOTE: When using the Clean View
Kit (CVCK) and installing optional
electrical components (i.e. Remote
Controls, variable speed control, and
or fan modules) locate them in the
Clean View access area, unless other
shielding devices like our IPI
Component box is used.
(NOTE -Floor) if installing the
appliance directly on
carpeting or other combustible
materials other than wood
flooring, the appliance shall be
installed on a metal or wood
panel, the full width and depth
of the appliance. Carpet may
extend 1 inch above the floor
of appliance.
For units with CVCK (Clean
View Circulating Kit) see
framing with CVCK to
establish floor heights
11

MQSW Wall Mount Surround Dimensions
Installation of MQ Wall Mount Surrounds
Remove the old CAP
(Control Access Panel), and
the Lower CVCK panel by
unscrewing the two support
screws and drilling out the
two rivets.
Remove the two upper
CVCK mounting screws
located at H2 as shown in
the figure below. IMPOR-
TANT: KEEP ALL FOUR (4)
SCREWS TO REMOUNT
THE MODERN SURROUND
ASSEMBLY.
Slightly tilt the Modern Surround assembly so that
the upper tab will clear the CVCK door opening.
Slide the Modern Surround into the CVCK and
align the holes H1 and H2. Please note that the
ledge of the Modern Surround should rest on the
CVCK Kicker Ledge.
Using the previously removed screws, secure the
upper tab of the Modern Surround in to the CVCK
frame.
Swing lower portion of the Modern Surround into the CVCK
and align the mounting holes on the Lower Tab with the
holes on the CVCK Side Frame.
Using the previously removed screws in Step 1, secure the
Lower Tab to the CVCK side frame.
Replace the old CAP with the new CAP that accompanied
the Modern Surround kit.
Check Installation to make sure the Surround and CVCK is
secure.
Concave A B C D E F G H I J L
HB36 40 1
/
249 1
/
232 1
/
221 5
/
89 1
/
29 1
/
28 1
/
221
/
25 1
/
232 7
/
16
HB42 42 3 /
455 7
/
16 36 7
/
16 23 3
/
49 1
/
29 1
/
29 1
/
221
/
25 1
/
236 7
/
16
HB47 48 3 /
461 7
/
16 42 7
/
16 29 3
/
49 1
/
29 1
/
29 1
/
2316
1
/
242 7
/
16
Convex A B C D E F G H I J L
HB36 41 40 1
/
232 7
/
16 21 5
/
89 1
/
29 1
/
241
3
/
16 2 13/ 16 6 1
/
832 7
/
16
HB42 42 15/
16 44 5
/
16 36 7
/
16 23 3
/
49 1
/
29 1
/
241
3
/
16 31
/
86 7
/
16 36 7
/
16
HB47 48 50 7 /
16 42 7
/
16 29 3
/
49 1
/
28 3
/
441
3
/
16 3 3
/
47 1
/
842 7
/
16
12

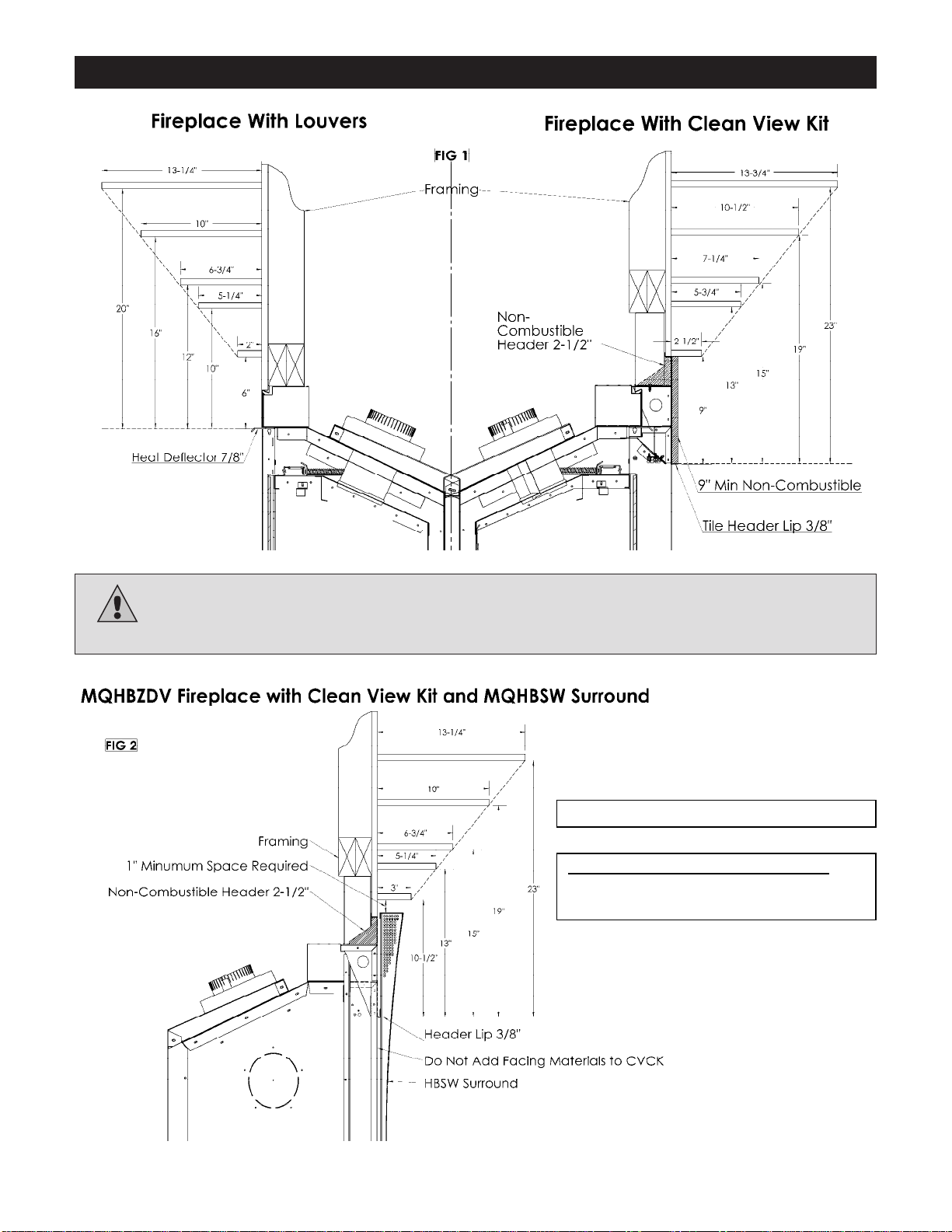

CLEARANCES - HBZDV42 - Mantels & Surrounds
Warning: Combustible objects must not be placed on a non-combustible mantel unless the non-combustible
mantel meets the minimum height and width require ments for a combustible mantel.
*Caution: The CVCK must be flush with the wall.*
Note For the installation of the MQHBSW.
Maintain Minimum 1” Clearance to Top & Sides of
the surround.
13

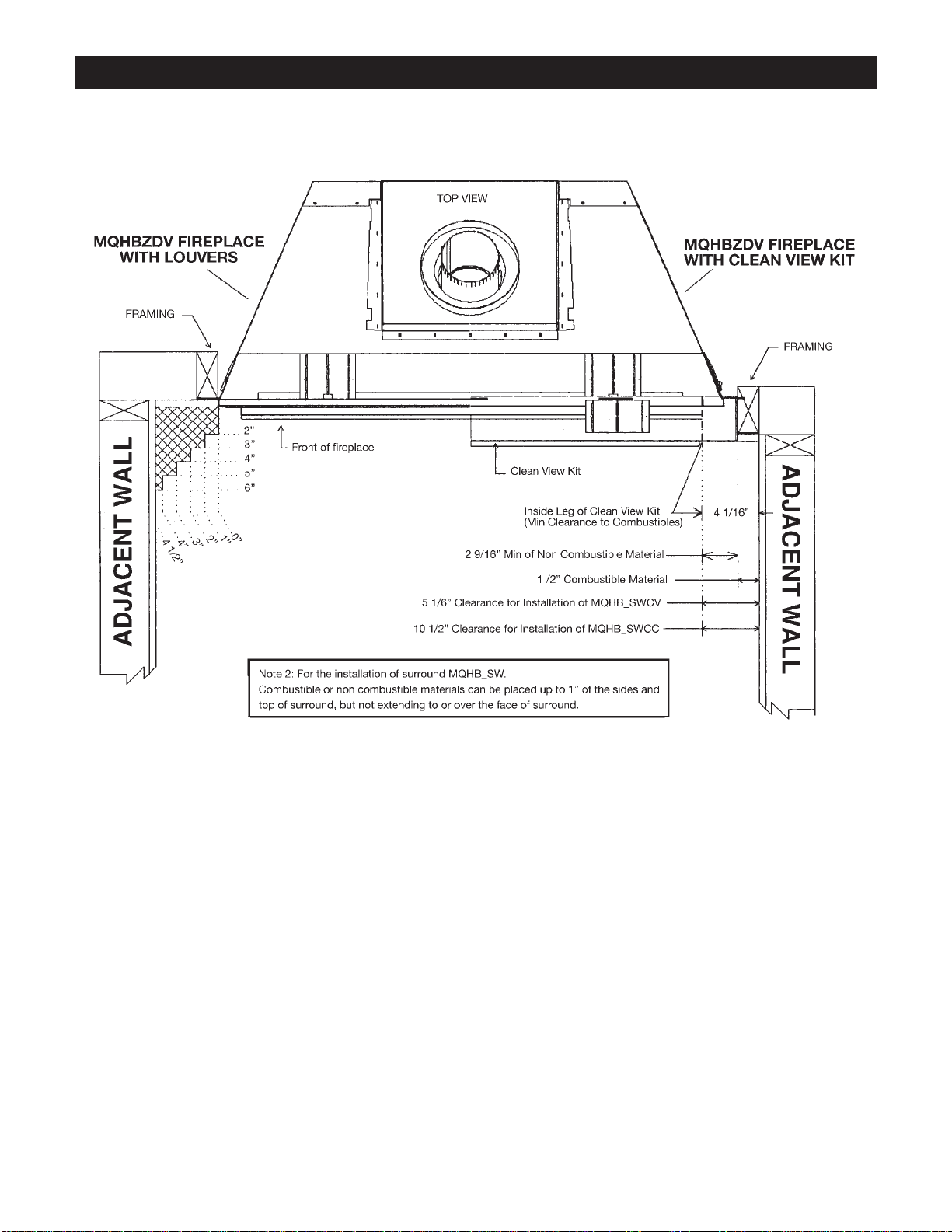

Mantel Leg Clearances
Mantels
Depending on the depth of the fireplace mantel, it may be installed higher or lower from the top of the fireplace opening.
See drawings for proper installation height of your combustible mantel. Non-combustible mantels may be installed at any
height above the fireplace opening except when using MQHBSW.
Non combustible materials such as brick, tile, etc. can extend up to or over the front face of the fireplace (NO PORTION OF
GRILL AREA OR DOOR AREAS CAN BE COVERED) except where designer clean view kit is used.
Combustible material can extend flush to unit up to the top, bottom and sides of fireplace to stand-offs.
For COMBUSTIBLE materials extending in front of fireplace consult (Mantel and Mantel Leg Drawings).
Surrounds
If installing wide or slim line surrounds, the finish materials must be flush with the front facing of the fireplace.
Note: When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant (250˚F) to
prevent discoloration.
14

Fan Installation for HBZDV 36/42/47
Fan Installation instructions for HBZDV36/42/47
with or without CVCK (Clean View Circulating Kit)
1. Slide fan housing into unit and place over 2 Fan Retainer tabs.
Tabs are pre punched and bent up. Rubber grommets at the base
of the fan should fit snugly over the tabs. *Note: When installing fan,
lay the fan on its back and slide into the Fireplace lengthwise. Once
inside the fan can be stood upright and slid behind the valve for
placement.
2. Note: For Fan Disc installation HBZDV units have been installed
with a sliding track system. Install the Thermodisc provided with the
Fan Kit. Place thermodisc into sliding assembly, Fig 1, and attach 2
leads exiting right side of fan housing into thermodisc. Now slide
disc assembly into thermodisc track, Fig 2. Place swivel handle of
disc assembly on track to lock into position. To service disc simply
pull swivel handle slide towards you while rotating handle to access
disc.
3. Wire Junction Box to 120v and wall mounted variable speed con-
trol. Install a duplex outlet to junction box and plug fan into outlet.
4. Turn the wall switch on (clockwise). Turn fireplace on. Once the
sensor in unit reaches operating temperature (approximately 10 to
15 minutes) the fan will turn on. The fan can be switched off if
desired by turning the wall switch fully counter clockwise.
5. To set the minimum fan speed. Remove the variable switch from
the wall mount. Turn the variable speed wall controller to its mini-
mum setting (fully counter clockwise). Use the set screw on the
side of variable speed controller to increase or decrease the mini-
mum fan speed (lowering minimum fan speed will decrease sound
level created by fan)
Reinstall switch into wall mount and cover with face plate.
Parts List:
1 ea. fan comes with 4 ft cord. Two 14’ leads (female ends)
1 ea variable speed control (wall mount type)
1 ea thermodisc
1 thermodisc mount assembly
Electrical Services
All optional fan kits are equipped with a 120V, 60Hz, .4amp blower.
Note: All electric connections are to be made in accordance with
CSA Standard C22.1 - Canadian Electrical Code part I or with the
National Electrical Code, ANSI/NFPA 70 (latest edition) and/or in
accordance with local codes.
Note: INSTALL FAN KIT BEFORE INSTALLING OPTIONAL
CVCK (Clean View Circulating Kit).
If CVCK has been installed into Framing additional access is
provided by removing screws from bottom panel of CVCK.
See INSTALLING CLEAN VIEW KIT (CVCK). Page 9 - 10
CAUTION – DO NOT ATTACH 120V FAN ASSEMBLY TO MILLIVOLT GAS VALVE SYSTEM
Note: To service fan with CVCK kit installed see Removing Burner
System in manual.
WARNING: Label all wires prior to
disconnection when servicing controls. Wiring errors
can cause improper and dangerous operation.
Verify proper operation after servicing.
WARNING: Electrical Grounding Instructions.
This appliance is equipped with a three-pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove
the grounding prong from this plug.
15

Removing Burner System / Access Cover
If Fireplace has been installed with optional CVCK (Clean View
Circulating Kit) to service fan system or burner system controls,
the access cover and burner system will have to be removed
Access cover removal
1. Remove door, logs, brick panels, false bottom, burner grate
and burner from firebox.
2. Lift false bottom up (on applicable units only) from alignment
pins and remove. Burner grate (on applicable units only) is
fastened by 2 screws one right and left of grate, remove
screws and take out grate. Remove burner by loosening burn-
er retainer tab screws and slide burner left off orifice. Access
cover is now exposed for removal.
3. Remove 10 screws holding access cover in place. Push down
on one corner of access cover to break seal of cover, once
loose cover can be slid under firebox bottom to expose gas
connection.
Removing Burner System
1. Disconnect gas line connection at burner system through
access cover opening.
2. Remove extension knobs and wiring from face of gas valve.
3. Undo screws holding back log holder (on applicable units
only) and remove. Remove screws from perimeter of burner
system pan, lift pan at one back corner and rotate pan up
from back of firebox. Make sure when tilting up and removing
burner system, that all fan and valve control wiring is discon-
nected. To re-install access cover / burner system remove old
Mil Pac sealant and apply new sealant. After new sealant is
applied reverse removal procedure to re-install parts.
* Caution high temperature sealant has been applied to access
cover and burner system pan. New sealant will have to be
applied when re-installing access cover and burner stem to
maintain the integrity of sealed combustion chamber. Mil Pac
part #840099 or Kingsman part # 1000-150MP sealant can
be purchased from your Kingsman retailer or distributor.
Warning: Before starting removal of parts turn off
gas supply, disconnect 110 volts to fan system and
disconnect 110 volts to electronic ignition burner system
if applicable.
Warning: All work should be performed by a
qualified and certified technician.
Warning: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
16

1. PLACE REAR BRICK PANEL AGAINST
REAR OF FIREPLACE.
2. LOOSEN SCREWS HOLDING BRICK
CLIPS IN POSITION. ROTATE CLIPS
UP OUT OF THE WAY. PLACE BOT-
TOM OF SIDE BRICK OVER FRONT
LIP OF FIREPLACE AND ROTATE
PANEL INTO POSITION. ROTATE
BRICK CLIPS DOWN AND TIGHTEN
SCREWS.
1. REMOVE GLASS DOOR FROM THE
UNIT BY UNLATCHING THE 2 LATCH-
ES ON TOP OF THE UNIT.
2. PLACE REAR BRICK PANEL UP
AGAINST THE REAR OF THE FIRE-
BOX.
3. LOOSEN SCREWS HOLDING BRICK
CLIPS IN POSITION, MOVE CLIPS UP
OUT OF THE WAY AND PLACE SIDE
BRICKS UP TO REAR BRICK AND
FLUSH AGAINST SIDE WALL OF
FIREBOX. POSITION CLIPS OVER
BRICK AND TIGHTEN SCREWS.
4. REPLACE FALSE BOTTOM
5. INSTALL LOGSET AS PER INSTRUC-
TIONS.
6. REATTACH DOOR.
Brick Installation
INSTALLING BRICK PANELS FOR
MODEL HBZDV4224 AND HBZDV4228
INSTALLING BRICK PANELS FOR MODEL HBZDV4232
17

Installation of HB Porcelain Liners - HB42PL
1. Remove Door from the fireplace by unlatching the 2 latches on top of unit.
2. Remove back Log Holder by removing 3 screws from face of Log Holder. The Log Holder will have to be re-
installed after the placement of the Back Panel. For HB4736, remove Brick Filler Panel (See Ref. 1).
3. Place Back Panel up against rear of firebox by tilting top of Back Panel towards you and sliding bottom of Back
Panel over burner system. For HB47PL, use supplied screw to attach Back Panel to firebox (See Ref. 2).
4. Loosen screws holding Brick Clip in place. Rotate Brick Clip out of the way and slide Side Panel up
against Back Panel. Side Panel tabs should engage top and bottom of Back Panel (See Ref. 3). Rotate
Brick Clip down over Side Panel and tighten screw.
5. Re-install Log Holder (and Brick Filler Panel if applicable) removed in step 2.Install Log Set as per
instruction and re-install Door.
18

Appliance/Log Reference Chart/Log Placement
The following is a list of models and appropriate log sets that can be used with each model. It is important that the appropriate
log set is used with the correct model in order for the appliance to work properly.
MQRSP3
Appliance LOGC42 LOGC43 LOGC44 LOGC60 MQROCK1
HBZDV4224N or LP ✔✔✔ ✔
HBZDV4228N or LP ✔✔✔ ✔
HBZDV4232N or LP ✔
Door and Glass Information
Glass Cleaning
It will be necessary to clean the glass periodically. During start-
up, condensation, which is normal, forms on the inside of the
glass and causes dust, lint etc. to cling to the glass surface.
Also, initial paint curing can deposit a slight film on the glass. It
is therefore recommended that initially the glass be cleaned two
or three times with non-abrasive common household glass
cleansers and warm water. After that, the glass should be
cleaned two or three times a season depending on the circum-
stances.
Glass Replacement
REPLACEMENT GLASS FOR BOTH
DIRECT VENT UNITS
Model Series HBZDV4224N and
HBZDV4224LP can use either tempered
glass or Robax ceramic or coated
Neaoceram glass. Must be 5mm thick.
Only Robax ceramic or coated Neaoceram
glass may be used for replacement for
model HBZDV4228N,HBZDV4228LP,
HBZDV4232N and HBZDV4232LP. Must be
minimum 5mm thick.
To replace glass, clean all materials from
door frame. Scrape off old silicone down to
metal. Using a high heat silicone tempera-
ture-resistant to 500°F (260°C) apply a con-
tinuous bead of approximately 1/32” to all
four sides of frame and insert glass with
new gasket. Frame should be on flat sur-
face, with a small amount of weight pressing
glass into silicone. Let dry approximately 15
to 20 minutes. The door can be re-installed
by reversing Steps 1 & 2. Use caution when
removing broken glass, wear gloves.

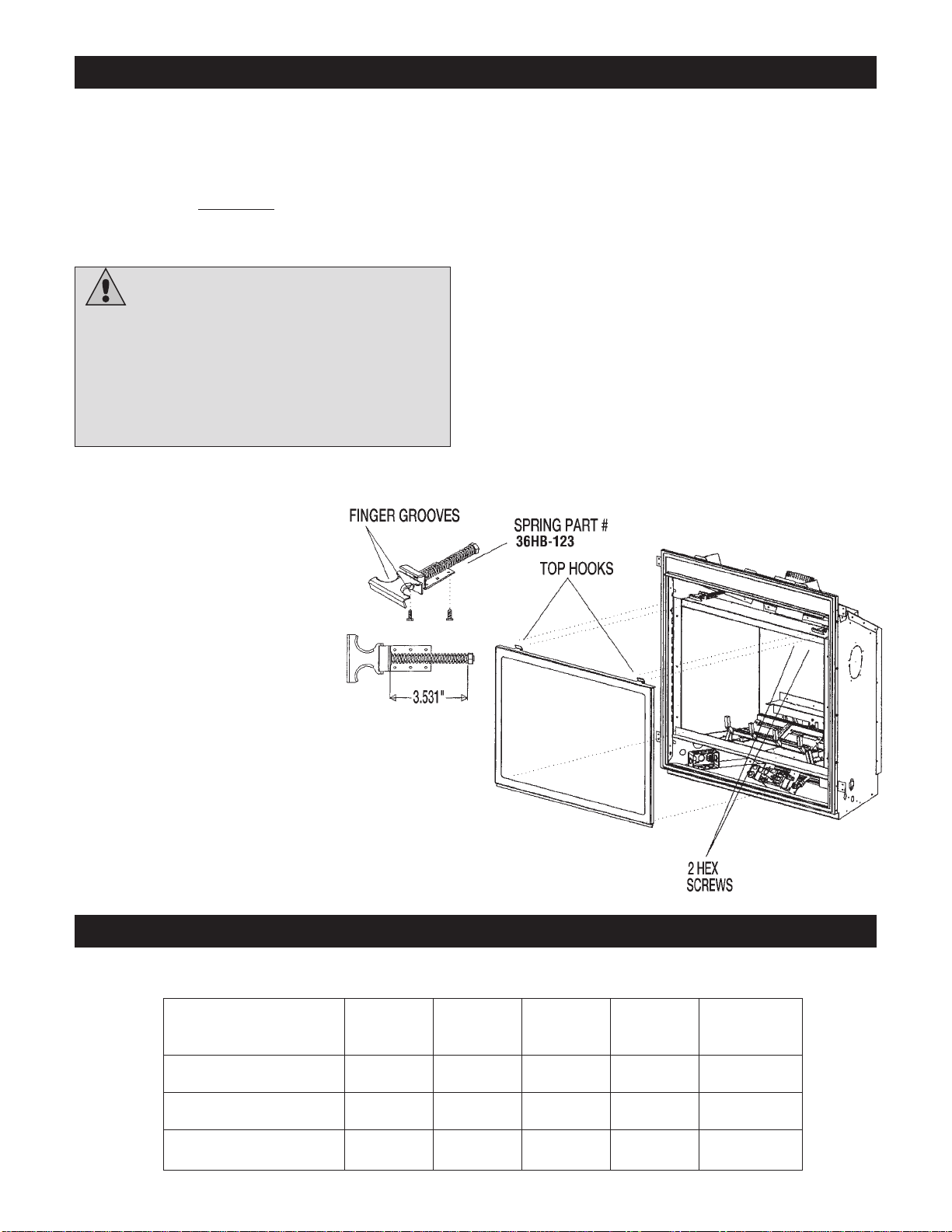

Removal of the Glass Door
1. Remove the door by unlatching the 2 top latches. Simply
place 2 fingers in the grooves, pull towards you and lift
upwards slightly.
2. Once the top of the door is unlatched, simply pull outwards
and lift upwards to unlatch the bottom.
3. When re-installing the door place the bottom of the door in
first and secure with Top Latch assembly to the door.
Spring Replacement:
*Over time, spring may need to be replaced if tension is lost.
1. To remove the top latch, remove the 2 hex screws that secure
it in place. They are located in the firebox.
2. Once all the screws are removed the latches will slide out of
place.
3. There is 1 lock nut per latch. When replacing a spring, tighten
the lock nut until 2 threads are beyond the locknut. This is crit-
ical for proper tension.
Warning and Cautions.
• Do not clean when the glass is hot.
• Do not use abrasive cleaners.
• Using a substitute glass will void all product
warranties.
• Do not strike or abuse glass. Care must be
taken to avoid breakage of the glass.
• Do not operate this fireplace without the glass
front or with a broken glass.
19

FIGURE A - Log set Ember kit and Crushed rock
FIGURE B - Rear log holder. Step (1) Units are equipped with screws or latches. To remove glass door, either remove screws or unfasten latches and lift door off bottom door retainer. Step (2) Remove logs from carton and inspect each log. Step (3) Verify to see that the ember plates (2 pcs) are between front and back burner.
Step (4) Break glowing embers into thumbnail size. Place glow- ing embers on to the surface of the front burner, to the surface of the ember plates and over crossover to the same height as ember plates. Height on front burner 1/2” to 3/4”. Height on ember plates 3/4” to 1”. Do not cover back air openings on ember plates.
Step (5
) Place front log over burner, against decorative
grate. Be sure that front log is tight up against the decorative grate.
Ember plate
Air Opening
Log Assembly for HBZDV4224/HBZDV4228
LOGC42 - LOG C43 LOG PLACEMENT GUIDELINES
(4-PIECE LOG SET)
WARNING:
Failure to position
the parts in
accordance with
these diagrams or
failure to use only
parts specifically
approved with this
appliance may
result in property
damage or
personal injury.
20
