Kingsman fireplaces Solace User manual

SOLACE/SKYLINE Installation Instructions

MQHBZDV3636, MQHBZDV4236, MQRB4236T, HBZDV4736

Models:MQHBZDV3636N, MQHBZDV3636NE, MQHBZDV3636NE2, MQHBZDV3636LP, MQHBZDV3636LPE,

MQHBZDV3636LPE2

Models: MQHBZDV4236N, MQHBZDV4236NE, MQHBZDV4236NE2, MQHBZDV4236LP, MQHBZDV4236LPE,

MQHBZDV4236LPE2

Models:MQRB4236NT, MQRB4236NTE, MQRB4236NTE2, MQRB4236LPT, MQRB4236LPTE, MQRB4236LPTE2

Models: HBZDV4736N, HBZDV4736NE, HBZDV4736NE2, HBZDV4736LP, HBZDV4736LPE, HBZDV4736LPE2

Certified to: ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017

A Division of R-Co. Inc.

2340 Logan Avenue

Winnipeg, Manitoba, Canada R2R 2V3

Ph: (204) 632-1962

Printed in Canada February 9, 2021

Part # 36MQ-MAN17

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

For Propane Horizontal installations the venting

must be a minimum of one foot vertical off the

flue before going horizontal.

This appliance may be installed in an aftermarket,

permanently located, manufactured home (USA

only) or mobile home, where not prohibited by

local codes.

This appliance is only for use with the type of

gas indicated on the rating plate. This appliance

is not convertible for use with other gases,

unless a certified kit is used.

VENTED GAS FIREPLACE HEATER:

NOT FOR USE WITH SOLID FUEL.

Table of Contents

Table of Contents……………………………………………………………..................................

2-3

Pre-installation Questions and Answers…………………………………...................................

Operating Instructions………………………………………………………..................................

Safety Screen Installation……………………………………………………………………………

Mobile Home/Manufactured Housing Installation…………………….......................................

Warnings, Installations, and Operations…………………………………...................................

7-8

Installation Requirements for the Commonwealth of Massachusetts…..................................

Fireplace Installations in Covered Outdoor Locations.............................................................

MQHBZDV3636

Locating your Appliance.............................................................................

Fireplace Dimensions.................................................................................

Framing for your Gas Fireplace..................................................................

Framing and Facing Requirements.............................................................

Installing Clean View Kit (CVCK)................................................................

Clearance to Combustibles.........................................................................

Parts List.....................................................................................................

14-15

Kingsman Fireplace Venting Parts..............................................................

MQHBZDV4236/MQRB4236T

Locating your Appliance.............................................................................

Fireplace Dimensions.................................................................................

Framing for your Gas Fireplace..................................................................

Framing and Facing Requirements.............................................................

Installing Clean View Kit (CVCK)................................................................

Clearance to Combustibles.........................................................................

Parts List.....................................................................................................

20-21

Kingsman Fireplace Venting Parts.............................................................

HBZDV4736

Locating your Appliance.............................................................................

Fireplace Dimensions.................................................................................

Framing for your Gas Fireplace..................................................................

Framing and Facing Requirements.............................................................

Installing Clean View Kit (CVCK)................................................................

Clearance to Combustibles.........................................................................

Parts List.....................................................................................................

26-27

Kingsman Fireplace Venting Parts..............................................................

COMMON SECTION

Clearances - Mantels...............................................................................................................

Mantel Leg Clearances………………………………………………………………………………

Fan Installation........................................................................................................................

Split Receptacle- Fan Speed Control Outside of Fireplace.....................................................

Installing MQRB4236T Liner Panels........................................................................................

Brick Installation………………………………………………………………………………………

Installation of HB Porcelain Liners - HB36PL/HB42PL/HB47PL.............................................

Gas Line Installation................................................................................................................

Millivolt System, Lighting, and Burner Control.........................................................................

Troubleshooting The Gas Control System..............................................................................

Burner System Removal for MQHB36/42/47...........................................................................

Burner System Maintenance...................................................................................................

Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace.........

Conversion Kit Instructions – PART A ...................................................................................

41-42

Gas Conversion for Top Convertible Pilot (Series 019065X) – PART B.................................

Gas Conversion for Modulator – PART C................................................................................

Door and Glass Information / Appliance/Log Reference Chart/Log Placement.......................

Log Placement - LOGF36........................................................................................................

Pilot Shield RSP1 / RSP2……………………………………………………………………………

MQROCK1/MQRSP2 Setup for Models MQHBZDV3636/MQHBZDV4236............................

48-49

MQROCK1/MQRSP1 Setup for Models HBZDV4736............................................................

50-51

Accessories Available for Skyline & ZDVRB3622 Ribbon Burner Units..................................

52-53

ULK2 Universal Light Kit (Optional Accent Lighting Kit)..........................................................

54-55

PROFLAME 1

Overview and Components.....................................................................................................

Remote Control Operation.......................................................................................................

IPI Electronic Ignition Parts List – Standard System...............................................................

Configuration #1: Basic manual HI/LO and manual ON/OFF capabilities...............................

Configuration 2- Remote ON/OFF...........................................................................................

Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls....

Configuration 3- Remote ON/OFF, Variable Hi/Lo, and Fan...................................................

IPI Lighting Instructions...........................................................................................................

PROFLAME 2

Parts List, GTMFL System.......................................................................................................

IFC Module and Remote Control.............................................................................................

Cold Climates – CPI Setting....................................................................................................

Flame Control, Room Thermostat...........................................................................................

Smart Thermostat, Fan Speed Control, Light Control.............................................................

Label Schematic......................................................................................................................

VENTING SECTION

Vent Terminal Clearances.......................................................................................................

General Vent Installation Information......................................................................................

Installation of Side Wall Venting.............................................................................................

Venting Routes and Components / Venting Table………………………………………………..

Horizontal Snorkel Terminations Z47ST24 / Z47ST36…………………………………………..

Vertical Venting........................................................................................................................

75-76

Glass Safety / Termination Cap Safety- All Units....................................................................

Approved for Power Vent PVH58…………………………………………………………………..

PVH58 Power Vent Parts List……………………………………………………………………….

79-80

WARRANTY

Limited Lifetime Warranty........................................................................................................

Pre-installation Questions and Answers

About curing of the paint

Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20

minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure

when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the

paint fully hard and durable.

Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware

during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important

to remove this white deposit from the glass doors using a fireplace glass cleaner.

 Babies, small children, pregnant women and pets should leave the area during the cure phase.

 Ventilate well, open doors and windows.

 Do not touch during curing.

Why does my fireplace or stove give off odor?

It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and

any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.

marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odors).

It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan

is present) after the curing of the paint has been completed. These odors can last upward to 40 hours of burn time; keep

burning at a minimum of four hours per use until odors dissipate.

Noise coming from the fireplace?

Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and

is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of

your fireplace.

It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down

the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air

circulated into the room by the fan.

Note to the Installer:

Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained

to and understood by the customer.

Operations and Maintenance Instructions

For safe installation and operation note the following:

 Be sure to read and understand all the instructions in this manual before operation of appliance.

 Ensure all wiring is correct and properly enclosed to prevent possible shock.

 Check for gas leaks.

 Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door

removed.

 Make sure venting and termination cap are installed and unobstructed.

 If brick or porcelain liners are used, ensure they are installed.

 Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.

 If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.

 Venting systems should be periodically examined by a qualified agency.

 The flow of combustion and ventilation air must not be obstructed.

 The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.

 Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner

areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.

 Never use your gas fireplace as a cooking device.

 Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing.

 Areas in and around the Chase Vent Openings should be cleaned annually.

Safety Screen Installation Z Series

Screen with Side & Horizontal Angles

Hook Lower Clip onto glass door frame.

Press down and push upper clip under top glass door frame.

Contents of Kit:

[1] Safety Screen

[2] Side Angles

[2] Horizontal Angles

[12-16] DT Screws (Depending on screen size)

Assembly: Attach components with supplied

screws as shown.

⚠WARNING:

Wait until unit is COMPLETELY

cool before touching glass or

attempting to install or remove

Child Safety Screens.

To install screens

hook bottom clip

onto glass door

frame, then press

down and push

upper clip under

top glass door

frame, then

release. Clip will

hook onto frame.

To remove

Safety

Screens

WAIT UNTIL

FIREPLACE IS

COMPLETELY

COOL.

Press down on

upper clips and

remove screen

from fireplace

glass door.

TOP VIEW

Upper Clip

Lower Clip

Upper Clip

NOTE: Screens are symmetrical from top to bottom.

CLIPS

Upper Clip

SIDE VIEW

Fireplace with

Screen

Mobile Home/Manufactured Housing Installation

This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the

Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for

Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in

Canada.

THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)

HOMES AFTER FIRST SALE IN THE USA.

THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)

HOMES IN CANADA.

Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National

Electrical Code in Canada.

An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to

penetrate paint or protective coating to insure grounding.

Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.

For required venting components see venting installation in appropriate section of this manual.

Certified for installation in a bedroom or bed/sitting room.

Warning: Do not compromise the structural integrity of the manufactured home wall, floor or

ceiling, during installation of appliance or venting.

Warnings, Installations and Operations - Installation Regulations

This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the

current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the

United States.

This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes,

with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.

WARNING

FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:

1. Do not clean when the glass is hot.

2. Do not use abrasive cleaners.

3. Using a substitute glass will void all product

warranties.

4. For safe operation, glass doors must be closed.

5. When purging the gas line, the glass front must be

removed.

6. Do not strike or abuse glass. Take care to avoid

breakage.

7. Do not alter gas orifice.

8. No substitute materials may be used other than

factory supplied components.

9. This appliance gives off high temperatures and should

be located out of heavy traffic areas and away from

furniture and draperies.

10. Children and adults should be alerted to the hazards

of the high surface temperatures of this appliance and

should stay away to avoid burns or ignition of clothing.

11. Young children should be carefully supervised when

they are in the same room as the appliance. Toddlers,

young children and others may be susceptible to

accidental contact burns. A physical barrier is

recommended if there are at risk individuals in the

house. To restrict access to a fireplace or stove, install

an adjustable safety gate to keep toddlers, young

children and other at risk individuals out of the room

and away from hot surfaces.

12. Under no circumstances should any solid fuels (wood,

paper) be used in this appliance.

13. Under no circumstances should this appliance be

modified. Any parts that have to be removed for

servicing should be replaced prior to operating this

appliance.

14. Any safety screen, guard, or barrier removed for

servicing an appliance must be replaced prior to

operating the appliance.

15. Installation and repair should be done by a qualified

service person. The appliance should be inspected

before use and at least annually by a professional

service person. More frequent cleaning may be

required due to excessive lint from carpeting, bedding

material, et cetera. It is imperative that control

compartments, burners and circulating air

passageways of the appliance be kept clean. Make

sure that the gas valve and pilot light are turned off

before you attempt to clean this unit.

16. Clothing or other flammable material should not be

placed on or near the appliance. This appliance

should not be used as a drying rack for clothing nor

should Christmas stockings or decorations be hung

from it.

17. Do not use this heater if any part has been under

water. Immediately call a qualified service technician

to inspect the heater and to replace any part of the

control system and any gas control which has been

under water.

18. Do not operate appliance unless completely installed

as per installation instructions.

19. Failure to position the parts in accordance with these

diagrams or failure to use only parts specifically

approved with this appliance may result in property

damage or personal injury.

20. WARNING: Do not operate appliance with the

glass front removed, cracked or broken.

Replacement of the glass should be done by a

licensed or qualified service person.

21. The appliance area must be kept clear and free from

combustible materials, gasoline, and other flammable

vapors and liquids.

22. The front of the fireplace gives off high temperatures

that could ignite combustible material which is kept

close to the front of the unit.

23. Ensure that power to the Fireplace is turned off before

servicing.

24. Do not operate this Fireplace without the glass front or

with a broken glass.

25. Improper installation, adjustment, alteration, service or

maintenance can cause injury or property damage.

Refer to the owner’s information manual provided with

this appliance. For assistance or additional information

consult a qualified installer, service agency, or the gas

supplier.

26. Operation of this appliance when not connected to a

properly installed and maintained venting system or

tampering with the blocked vent shutoff system can

result in carbon monoxide (CO) poisoning and

possible death.

27. This appliance is equipped with a three-prong

(grounding) plug for your protection against shock

hazard and should be plugged directly into a properly

grounded three-prong receptacle. Do not cut or

remove the grounding prong from this plug.

28. NOT INTENDED FOR USE AS A PRIMARY HEAT

SOURCE. This appliance is tested and approved as

either supplemental room heat or as a decorative

appliance. It should not be factored as primary heat in

residential heating calculations.

29. This appliance must not be connected to a chimney

flue serving a separate solid-fuel burning appliance.

Installation Requirements for the Commonwealth of Massachusetts

In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the

Commonwealth.

When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO

detector per the requirements listed below.

1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of

the vent terminal and the air intake is installed below four feet above grade the following requirements must be

satisfied:

A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide

detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector

shall comply with NFPA 720.

B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:

 Be powered by the same electrical circuit as the appliance or equipment such that only one service switch

services both the appliance and the carbon monoxide detector;

 Have battery back-up power;

 Meet ANSI./UL 2034 Standards and comply with NFPA 720; and

 Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527

CMR.

C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be

used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation

instructions shall remain with the appliance or equipment at the completion of the installation.

D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above

the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet

away, and read “Gas Vent Directly Below”.

2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of

the vent terminal and the air intake is installed above four feet above grade the following requirements must be

satisfied:

A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide

detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector

shall comply with NFPA 720.

B. A carbon monoxide detector shall:

 Be located in the room that houses the appliance or equipment;

 Be either hard-wired or battery powered or both; and

 Shall comply with NFPA 720.

A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.

Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall

remain with the appliance or equipment at the completion of the installation.

For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-

off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts

state code CMR238.

Carbon Monoxide (CO) Detector

NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of

your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.

Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.

In USA see local codes.

Fireplace Installations in Covered Outdoor Locations

– FOR BASIC MILLIVOLT UNITS ONLY- NO FAN – NO LIGHTS-

Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected

from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing,

Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.

 All wiring connections to line power shall be in accordance with outdoor requirements of; -NECA NFPA 70 in the USA

-Canadian Electrical Code, CSA C22.1 for Canada.

 The Fireplace is not to be operated in temperatures below freezing (0°C / 32°F).

 ⚠ NOTE: TEMPERED GLASS WARNING: Tempered glass is vulnerable to rapid and/or extreme changes in

temperature (thermal shock). Take care to prevent water from contacting the fireplace, especially if it is hot.

 See-Through Units are suitable for an outdoor location, but not on the outside wall of a house or other structure, as

air flows through both sides of the fireplace.

 A Minimum sheltering cover (overhang) of 1/2 the distance from the base of the fireplace to the ceiling (base of

roofline) is required.

EXAMPLE: The bottom of the fireplace is 84” from the ceiling.

Therefore, 42” of sheltering cover is required above fireplace.

CAUTION – Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI

Z21.88 – CSA 2.22 or ANSI Z21.50 – CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The

Intertek safety certification will not apply to this installation method. This installation method must be deemed

acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.

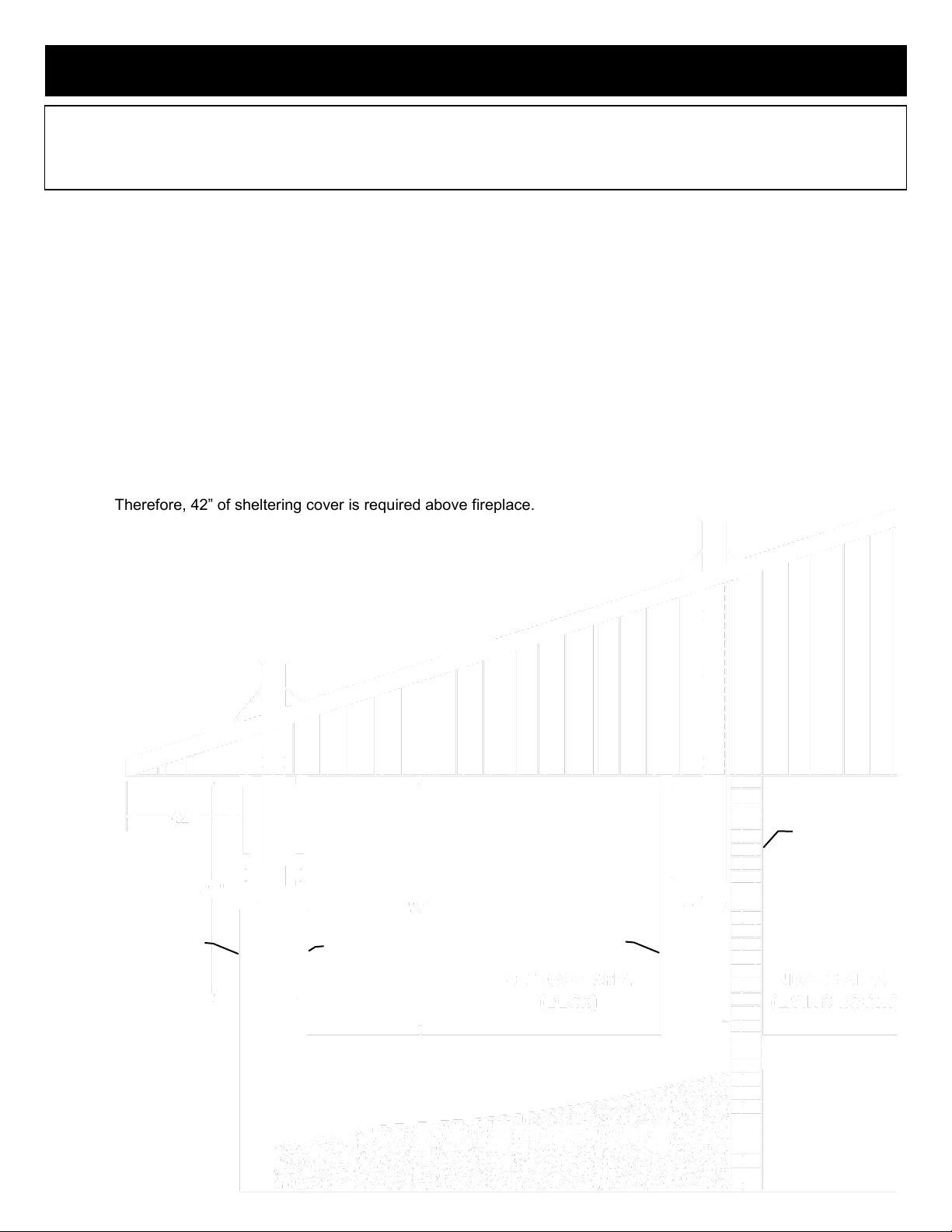

OUTDOOR

AREA

Glass

Door

Glass

Door

Glass

Door

Outside Wall

of House

Locating Your Appliance

LOCATION KEY:

A. Flat on Wall

B. Across the Corner

C. As an Island

D. As a Room Divider

E. Flat on Wall Corner

F. Exterior Wall

See Mantel Leg Clearances Instruction for

the proper placement of fireplace.

Island installation with a top vent is

possible as long as the horizontal portion

of the vent system does not exceed 20

feet (6.1 m).

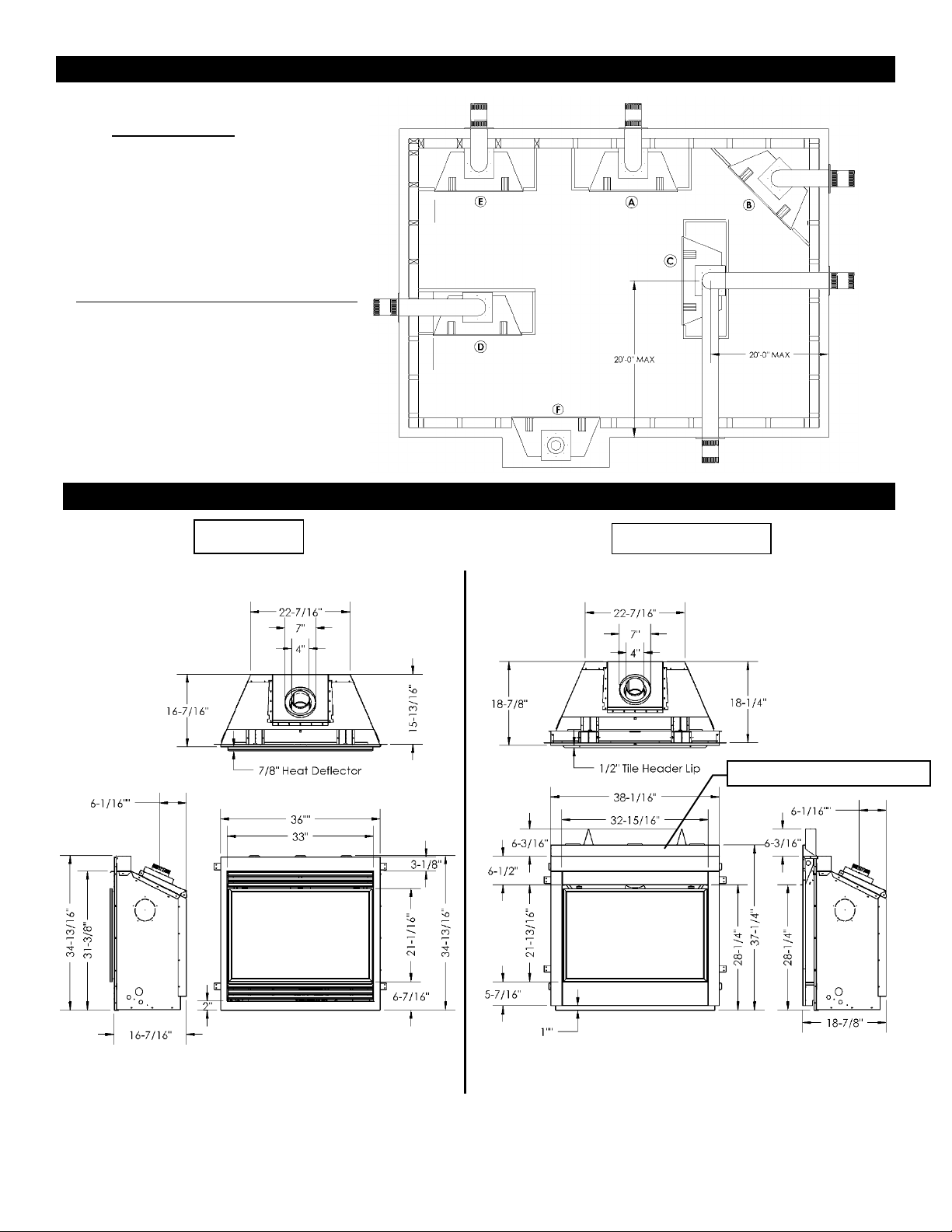

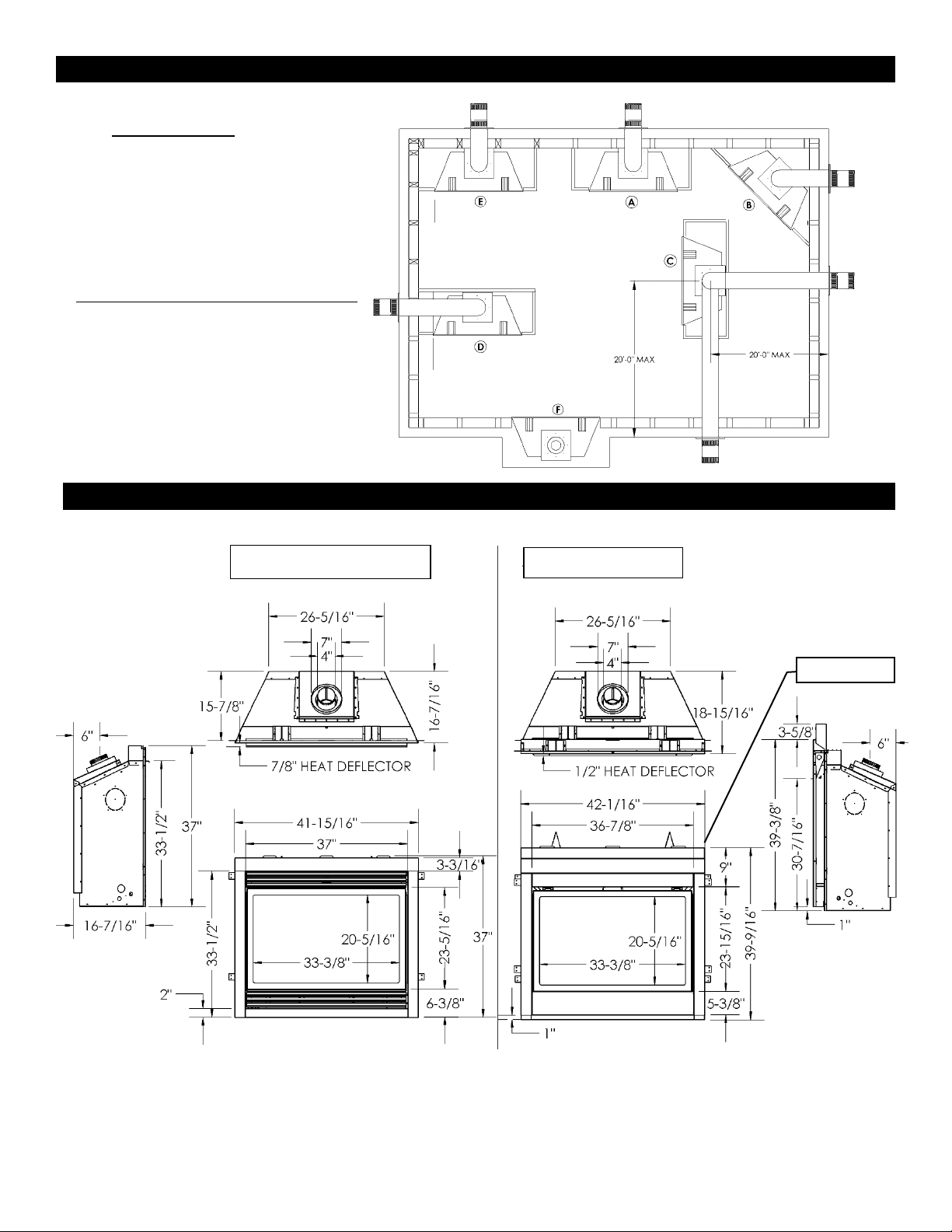

Fireplace Dimensions

HBZDV36

HBZDV36-CVCK

Non-Combustible Header Attached

Framing Specifications

1. Cold climate installation recommendation: When installing this fire-

place against non insulated exterior wall or chase, it is recom -

mended that the outer walls be insulated to conform to applicable

insulation codes. Drywall must be installed over insulation to prevent

contact of insulation and unit.

2. Choose fireplace location and frame in accordance with the fireplace

framing dimensions specified (See Framing Diagrams). Bend nailing

tabs forward on left and right of unit and place fireplace into framed

enclosure. This allows for 1/2” in front of framing tabs for finishing

materials.

3. Drywall or other material can extend flush with the appliance on the

bottom, sides and top of fireplace. (louvered models only)

For Propane Horizontal Installations the venting must be a minimum of one foot vertical off the flue before the elbow on any

horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.

MQHBZDV3636 - Framing for your Gas Fireplace

MQHBZDV36 Louvered MQHBZDV36 WITH HB36CVCK

(CLEAN VIEW CIRCULATING KIT)

4. When installing horizontal with a 90 degree bend maintain a mini-

mum of two and a half (2.5”) inches above the bend in enclo-

sures.

5. For a fireplace with louvers combustible floor can raise 1” above

the bottom of the fireplace. For a fireplace with HB36CVCK

(Clean view Circulating Kit) floor or hearth can raise 7” above the

bottom of the fireplace with portions being combustible and non

combustible. See drawing on following page.

6. When installing MQHB36SW surround,the fireplace must be

raised a minimum of 3 1/2” above the finished floors, to accom-

modate the wall surround. The fireplace may be raised higher but

the 60” clearance measured from the bottom of the fireplace to

the ceiling must be maintained at all times. (i.e. For an 8 ft. ceiling

the unit can be raised only 36 inches.)

HBZDV36 WITH HB36CVCK

(CLEAN

VIEW

CIRCULATING

KIT)

HBZDV36

Framing and Facing Requirements

Non Combustible Header

Attached

Non Combustible Header

Attached

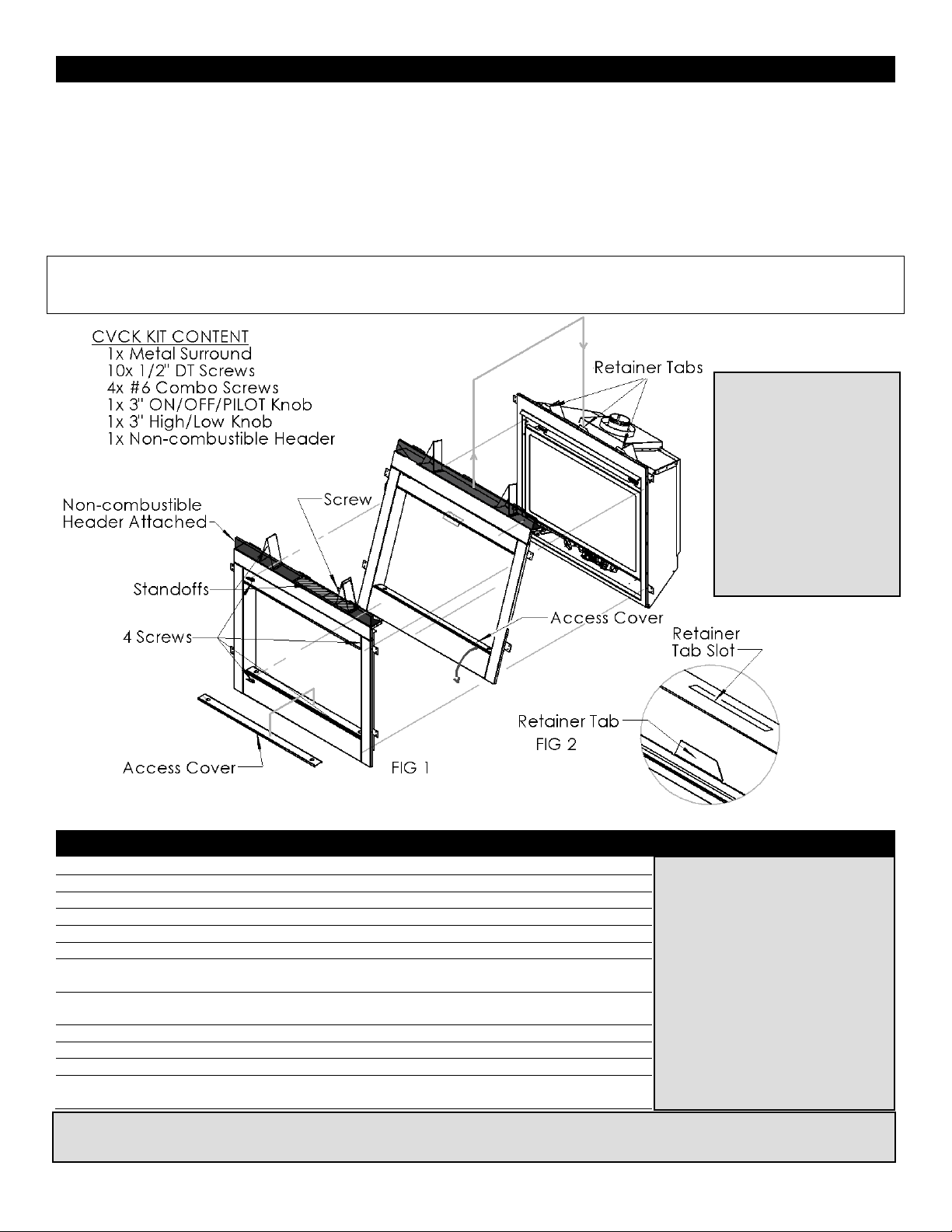

MQHBZDV3636 - HOW TO INSTALL CLEAN VIEW KIT (CVCK)

CAUTION: When using CVCK DO NOT INSTALL a Louver assembly.

1. Install optional fan kit (see Fan Instruction).

2. Fold two standoffs up into position and mount with supplied screws. (FIG 1)

3. Hang CVCK on top of fireplace retainer tabs and rotate down into position. (FIG 2)

4. Using the screws provided, fasten the non-combustible header onto the top of the CVCK assembly.

5. Using four supplied #6 screws, fasten CVCK kit to the inside frame of unit.

6. Kit is supplied with 2 valve extension knobs. Align the notches and slide the extensions onto valve knobs.

7. DO NOT brick or tile beyond the inside area of the CVCK kit to allow for removal of door.

NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION- When CVCK is

installed in framing, remove 2 screws from the right and left side of the bottom panel. Once screws are removed, bottom

panel can be rotated forward for access to gas valve and fan system.

Clearance to Combustibles

Back (from Standoffs) 0 inches/0 mm

Side (from standoffs) 0 inches/0 mm

Floor 0 inches/0 mm

Ceiling (from bottom of fireplace) 60 inches/150 cm

Top (from standoffs) 0 inches/0 mm

Top of 90 degree bend in Minimum

Enclosure of 42 to 43 inches 3 1/2 inches/89 mm / All Vent Systems

Top of 90 degree bend in

Enclosure over 43 inches 2 1/2 inches/64 mm / All Vent Systems

Top of Horizontal Pipe 1 1/2 inches/38 mm / All Vent Systems

Side & Bottom of Horizontal Pipe 1 inch/25.5mm / All Vent Systems

Vertical Vent Pipe 1 inch/25.5mm / Kingsman Vent Systems

Vertical Vent Pipe 1 1/4 inch/32mm / Simpson/AmeriVent/Selkirk

Direct Temp Systems

⚠ WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically

approved with this appliance may result in property damage or personal injury.

NOTE: When using the

Clean View Kit (CVCK)

and installing optional

electrical components (i.e.

Remote Controls, variable

speed control, and or fan

modules) locate them in

the Clean View access

area, unless other

shielding devices like our

IPI Component box is

used.

(NOTE -Floor) if installing the

appliance directly on carpeting

or other combustible materials

other than wood flooring, the

appliance shall be installed on a

metal or wood panel, the full

width and depth of the

appliance. Carpet may extend 1

inch above the floor of

appliance.

For units with CVCK (Clean

View Circulating Kit) see framing

with CVCK to establish floor

heights.

MQHBZDV3636 Parts List

Fireplace Part Numbers

MQHBZDV3636N

(Millivolt)

MQHBZDV3636NE

(IPI)

MQHBZDV3636NE2 (IPI)

(c/w Remote Control )

Fireplace Heater Rated

NG, Ceramic

Glass, 30,500 BTU

75%

efficient.

Approved

for

bedroom

and mobile

home.

MQHBZDV3636LP (Millivolt)

MQHBZDV3636LPE

(IPI)

MQHBZDV3636LPE2

(IPI)

(c/w Remote Control )

Fireplace Heater

Rated LP, Ceramic

Glass, 29,200 BTU

75%

efficient.

Approved

for

bedroom

and mobile

home.

Fireplace Requirements

Grills - OR - CVCK(clean view circulating

kit) Requir

ed for each

unit

HB36CVCK

CVCK(clean view circulating kit) no grill required

HB36GBL

Grill Kit - Black

LOG SETS/ROCK KITS: (Required for each unit)

LOGF36

Log Set - 7 pc. - /Fibre Split Oak

MQROCK1

Rock Set Tan (HBZDV/MQRB)

MQROCK2

Rock Set Natural (HBZDV/MQRB)

MQROCK3

Rock Set Multi-Color (HBZDV/MQRB)

MQRSP2

Rock Platform, Support, and 4 Screws

(MQHBZDV3636, 4236)

Fireplace Surrounds - Optional

HB36SBL

Surround – Black

(Coverage 35 1/2” H x 41 1/8”W)

Refractory Liners

HB36PL

Porcelain Reflective Liner

HB36RLC

Refractory Liner Classic

HB36RLT

Refractory Liner Traditional

HB36RLH

Refractory Liner Herring Bone

Safety Screens

HB36CSS

Safety Screen Replacement

Optional Fan Kit / Blower

Z36FK

Fan Kit w/Variable Speed Wall Mount Control

(Temperature Sensing)

Replacement Burner Assembly

3636MQ-BNGSI

Burner Assembly - Natural Gas c/w Valve

System (HBZDV3636N)

3636MQ-BLPSI

Burner Assembly - Natural Gas c/w Valve

System (HBZDV3636LP)

Conversion Kit (Sit Valve Only)

3632HB-CKLP

LP Conversion Kit for HBZDV3632/3636

(Millivolt)

3632HB-CKNG

NG Conversion Kit for HBZDV3632/3636

(Millivolt)

3632HB-CKLPI

LP Conversion Kit for HBZDV3632/3636

(Proflame 1 IPI)

3632HB-CKNGI

NG Conversion Kit for HBZDV3632/3636

(Proflame 1 IPI)

3632HB –CKLP2

LP Conversion Kit for HBZDV3632/3636

(Proflame 2 IPI)

3632HB –CKNG2

NG Conversion Kit for HBZDV3632/3636

(Proflame 2 IPI)

Valve System Parts - Top convertible SIT (Millivolt)

1000-P136WR

Generator / Thermopile

1001-P069SI

Electrode Sparker 915.069 TC SIT

1001-P216SI

Thermocouple 290.216 TC SIT

1001-P165SI

Orifice Pilot NG 977.165 TC SIT

1001-P167SI

Orifice Pilot LP 977.167 TC SIT

1001-P633SI

Valve Nova LP Hi/Lo 0820651

1001-P634SI

Valve Nova NG Hi/Lo 0820652

1001-P713SI

Pilot Burner LP 199.713 TC SIT

1001-P714SI

Pilot Burner NG 199.714 TC SIT

Optional Thermostats and Remote Controls

Z2MT

Thermostat Digital ‐ Vertical Wall Mount ‐ MV/PF1

Z80PT

Thermostat Programmable Digital ‐ Wall Mount ‐

MV/PF1

GFRC

Remote Control Millivolt / IPI – On/Off

GTRC

Remote Control Millivolt - Thermostat

GTMRCN

Remote Control Millivolt – Thermostat/Modulating -

GTMRCP

Remote Control Millivolt – Thermostat/Modulating -

GTFRCN

Remote Control Millivolt –

Thermostat/Modulating/Fan - NG

GTFRCP

Remote Control Millivolt –

Thermostat/Modulating/Fan - LP

EGTRC

Remote Control IPI PF1‐ Thermostat

EGTMRCN

Remote Control IPI PF1‐ Thermostat/Modulating ‐

EGTMRCP

Remote Control IPI PF1‐ Thermostat/Modulating ‐ LP

EGTFRCN

Remote Control IPI PF1‐ Thermostat/Modulating/Fan

‐ NG

EGTFRCP

Remote Control IPI PF1 ‐

Thermostat/Modulating/Fan ‐ LP

Electronic Ignition Replacement Parts IPI

1006-P002si

Valve IPI (NG; Hi/Lo)

1006-P003si

Valve IPI (LP; Hi/Lo)

1002-P047si

Pilot Assembly (LP)

1002-P033si

Pilot Assembly (NG)

1002-P089si

Spark Electrode (Long)

1002-P113si

Electrode Flame Sensor (Long)

1002-P302si

IPI Ignition Board

1002-P850si

AC Wall Adapter

1002-P12BH

Battery Pack

1002-P912si

Wiring Harness

1001-P166si

Orifice Pilot (NG)

1001-P168si

Orifice Pilot (LP)

1002-P013si

Stepper Motor (NG)

1002-P012si

Stepper Motor (LP)

1002-P016si

Hi/Lo Regulator (NG)

1002-P014si

Hi/Lo Regulator (LP)

Miscellaneous Parts

1000-150GE

Silicone GE Red IS806 #736

1000-150MP

Hi-Temp Millpac Sealant 840099

1000-214

Piezo-Igniter 1244-17 MARK 21

1000-215

Pal Nut (18MMXI.5MM)BLK (1364.03)

1000-218

Switch Ivory (1451/001)

1000-227

Cover Ivory (86001/001)

1000-255

Orifice Brass - (State Size)

2000-080

Thermodisc 2450 (For Blower)

1000-306

Thermalcord - Adhesive Back for Door Frame

1000-085

Control Variable Speed KBWC-13BV

FP15GC

Stainless Steel Gas Connector

VLBIT4

Log Bits - Large Four Piece Kit

VLBIT6

Log Bits - Small Six Piece Kit

1000-EMBER

Moon Rock

2000-081

Blower Motor QLN65/2400

36HB-310

Ceramic Glass - For All HBZDV3600

36HB-123

Upper Door Spring

Parts List - Continued

Kingsman Fireplace Venting

Catalog Number

Description

ZDVHSK

Horizontal Vent Starter Kit - 3 FT Length

Horizontal Vent Termination, Wall Thimble,

36” Flex Pipe, Mill Pac, screws/washers,

springs.

ZDVHSK5

Horizontal Vent Starter Kit - 5 FT Length

Horizontal Vent Termination, Wall Thimble,

60” Flex Pipe, Mill Pac, screws/washers,

springs.

FDVVT40

Vertical Vent Termination converts from

15’-40’ to under 15’

FDVHT

Horizontal Vent Termination

FDVHSQ

Horizontal Square Termination

Z47ST24

Horizontal Snorkel Termination – 24”

Z47ST36

Horizontal Snorkel Termination – 36”

FDVHSCU

Safety Cage for Horizontal Termination

ZDVAIS

Attic Insulation Shield

ZDVVOS

Offset Support

ZDVFS

Firestop Spacer

ZDVRS

Roof Support

ZDVWT

Wall Thimble (Horizontal Venting)

ZDVSSLR

Siding Shield - Large Return

Z47GP36

Galvanized Pipe 7” Dia. x 36”

(Vertical Installations)

ZDVAAF

Flashing 7” c/w Storm Collar (1/12 to 7/12)

ZDVAF2

Flashing 7” c/w Storm Collar (8/12 to 12/12)

ZDVAF3

Flashing 7” c/w Storm Collar Flat

ZDV7SC

Storm Collar 7”

ZDVFK5

Flex Kit (4” & 7” Dia.) x 2.5’ (Unexpanded) 5’

Expanded

ZDVFK8

Flex Kit (4” & 7” Dia.) x 4’ (Unexpanded) 8’

Expanded

ZDVFK20

Flex Kit (4” & 7” Dia.) x 10’ (Unexpanded) 20’

Expanded

*Kits are complete with spring stand-offs,

silicone.

ZDV4FC

Flex Connector 4” Diameter

ZDV7FC

Flex Connector 7” Diameter

ZDV4SS

Spring 4” Standoff Spacer

ZDVDFA

Simpson Dura-Vent Fireplace Adapter (for

ZDV33/36/42/47, ZDV6000, MDV31 & HB

models)

ZDVHSKSQ

Horizontal Square Termination Vent

Starter Kit - 3 FT Length

Horizontal Vent Termination, Wall Thimble,

Wall Thimble, 36” Flex Pipe, Mill Pac

ZDVHSKSQ5

Horizontal Square Termination Vent

Starter Kit - 5 FT Length

Horizontal Vent Termination, Wall Thimble,

Wall Thimble, 60” Flex Pipe, Mill Pac

FDVHSQ

Horizontal Square Vent Termination

Locating Your Appliance

LOCATION KEY:

A. Flat on Wall

B. Across the Corner

C. As an Island

D. As a Room Divider

E. Flat on Wall Corner

F. Exterior Wall

See Mantel Leg Clearances Instruction for

the proper placement of fireplace.

Island installation with a top vent is

possible as long as the horizontal portion

of the vent system does not exceed 20

feet (6.1 m).

Fireplace Dimensions

HBZDV42

HBZDV42-CVCK

Non-Combustible

Header Attached

MQHBZDV4236/MQRB4236 - Framing for your Gas Fireplace

Framing Specifications

1. Cold climate installation recommendation: When installing this fire-

place against non insulated exterior wall or chase, it is recom mended

that the outer walls be insulated to conform to applicable insulation

codes. Drywall must be installed over insulation to prevent contact of

insulation and unit.

2. Choose fireplace location and frame in accordance with the fireplace

framing dimensions specified (See Framing Diagrams). Bend nailing

tabs forward on left and right of unit and place fireplace into framed

enclosure. This allows for 1/2” in front of framing tabs for finishing

materials.

3. Drywall or other material can extend flush with the appliance on the

bottom, sides and top of fireplace. (louvered models only)

MQHBZDV42/MQRB4236 louvered

4. When installing horizontal with a 90 degree bend maintain a minimum

of two and a half (2.5”) inches above the bend in enclosures.

For a fireplace with louvers combustible floor can raise 1” above

the bottom of the fireplace. For a fireplace with HB42CVCK

(Clean view Circulating Kit) floor or hearth can raise 7” above

the bottom of the fireplace with portions being combustible and

non combustible. See drawing on following page.

6. When installing MQHB42SW surround,the fireplace must be

raised a minimum of 3 1/2” above the finished floors, to accom-

modate the wall surround. The fireplace may be raised higher

but the 60” clearance measured from the bottom of the fire-

place to the ceiling must be maintained at all times. (i.e. For an

8 ft. ceiling the unit can be raised only 36 inches.)

It is recommended for Propane Horizontal Installations that the venting should be a minimum of one foot vertical off the flue

before the elbow on any horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning

and cleaning of glass. (Does not apply to Back Flue Models).

MQHBZDV42/MQRB4236 WITH HB42CVCK

(CLEAN VIEW CIRCULATING KIT)

HBZDV42 WITH HB42CVCK

(CLEAN

VIEW

CIRCULATING

KIT)

HB42

Framing and Facing Requirements

Non Combustible

Header Attached

Non Combustible Header

Attached

MQHBZDV4236/MQRB4236 - HOW TO INSTALL CLEAN VIEW KIT (CVCK)
