Kingsman Fireplaces Marquis Infinite Series User manual

Infinite Series
Model Numbers:
MQRB4436N, MQRB4436NE, MQRB4436NE2, MQRB4436LP, MQRB4436LPE, MQRB4436LPE2
MQRB5143N, MQRB5143NE, MQRB5143NE2, MQRB5143LP, MQRB5143LPE, MQRB5143LPE2
MQRB6961N, MQRB6961NE, MQRB6961NE2, MQRB6961LP, MQRB6961LPE, MQRB6961LPE2
Certified to:
ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
ZERO CLEARANCE VENTED GAS FIREPLACE
Installation Instructions
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: [phone]
Printed in Canada September 6, 2019
Part# 51MQ-MAN17
⚠ WARNING: If the information in
these instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or loss of life.
VENTED GAS FIREPLACE HEATER:
NOT FOR USE WITH SOLID FUEL.

Table of Contents
Table of Contents.........................................................................................................................................................................
2-3
Child Safety Screen –Installation........................……………………………………………………………………………………......
4
Child Safety Screen – Removal.....…………………………………………………………………………………………………….....
5
Recommendations for Finishing of Clean View Linear Products.................................................................................................
6
Pre-installation Questions and Answers / Operating Instructions................................................................................................
7
Warnings, Installations and Operations.......................................................................................................................................
8
Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector...................................
9
Fireplace Installations in Covered Outdoor Locations.................................................................................................................
10

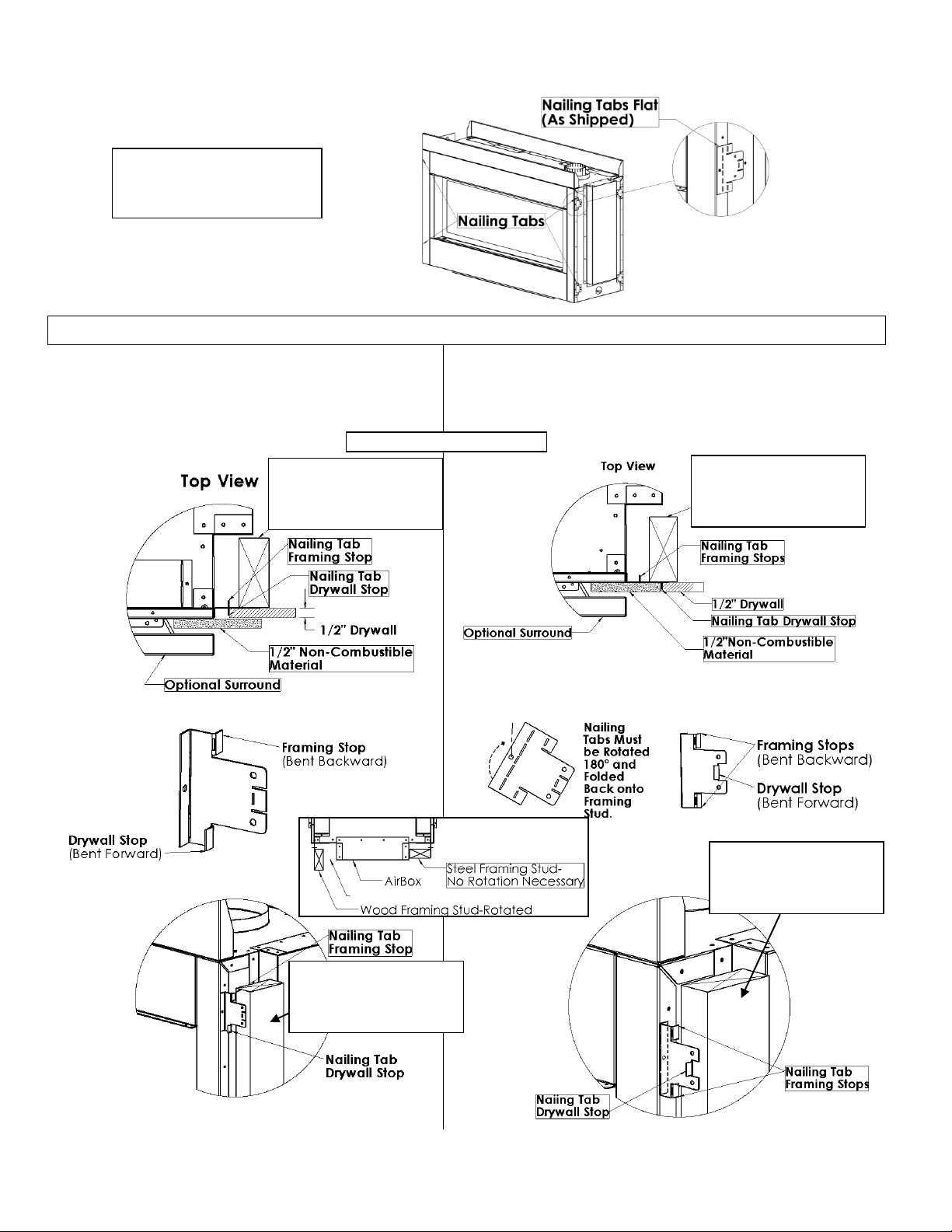

Nailing Tab Guide for all Units...................................................................................................................................................
11
MQRB4436

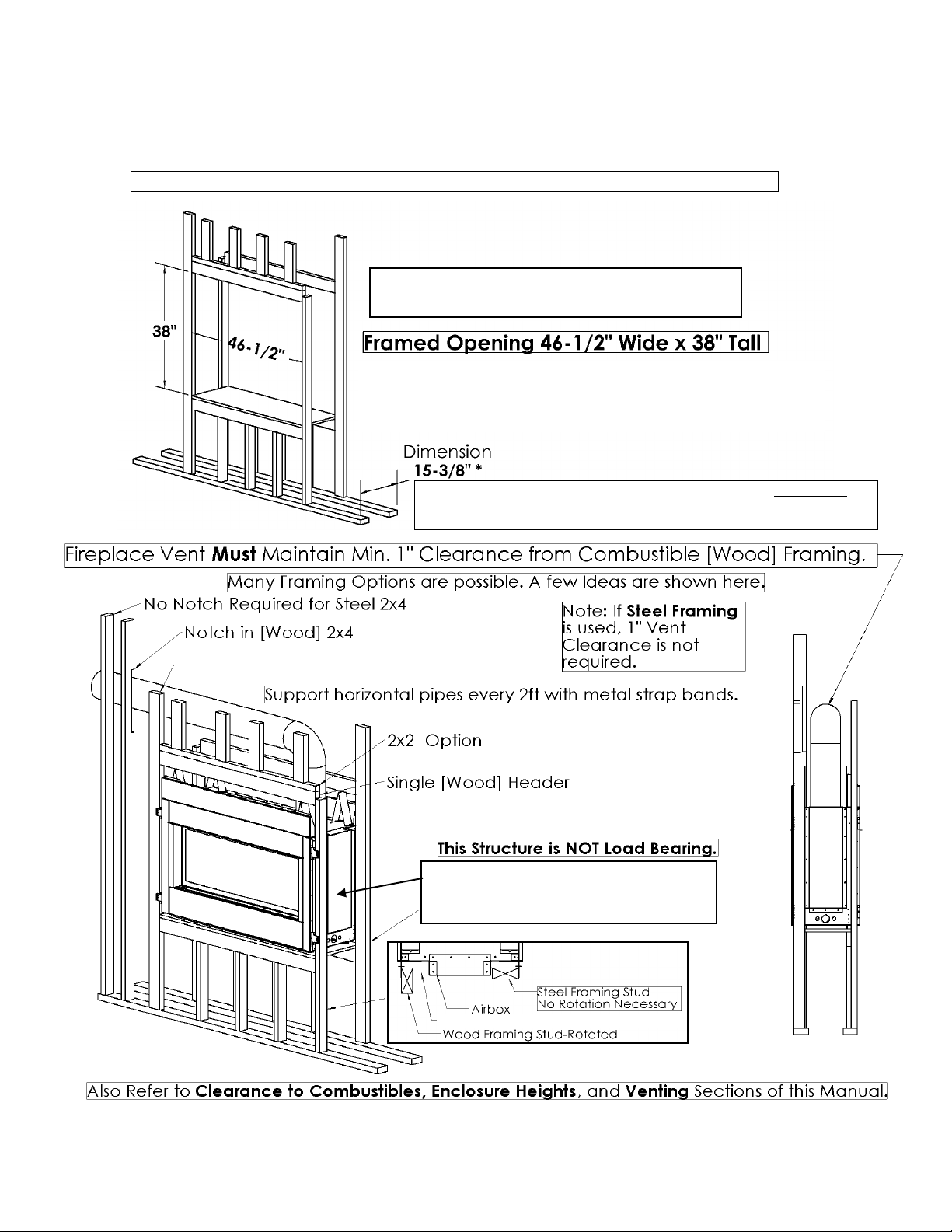

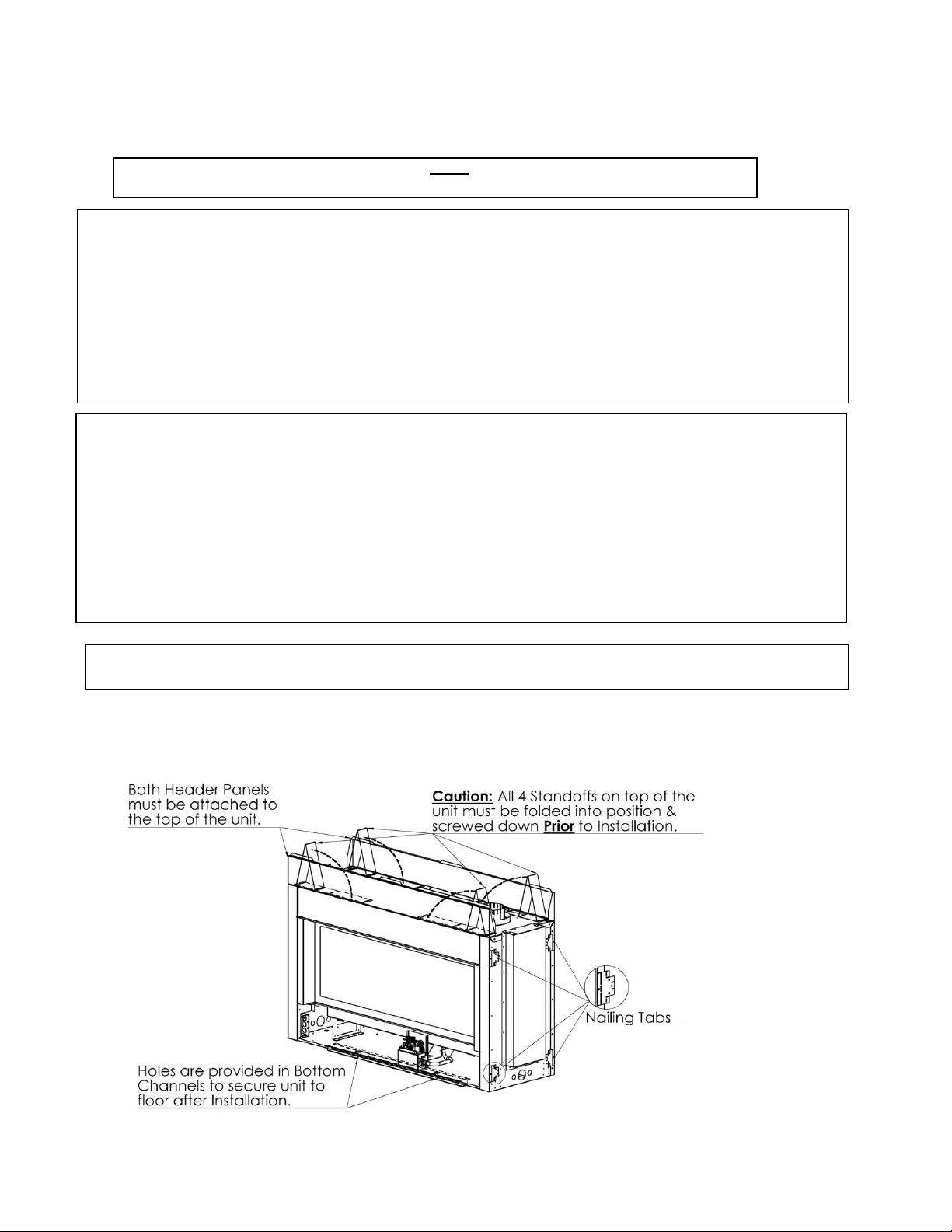

MQRB4436: Framing Your Gas Fireplace...................................................................................................................................
12
MQRB4436 Locating Your Appliance / Fireplace Dimensions.....................................................................................................
13
MQRB4436 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace………………………………………………….....
14

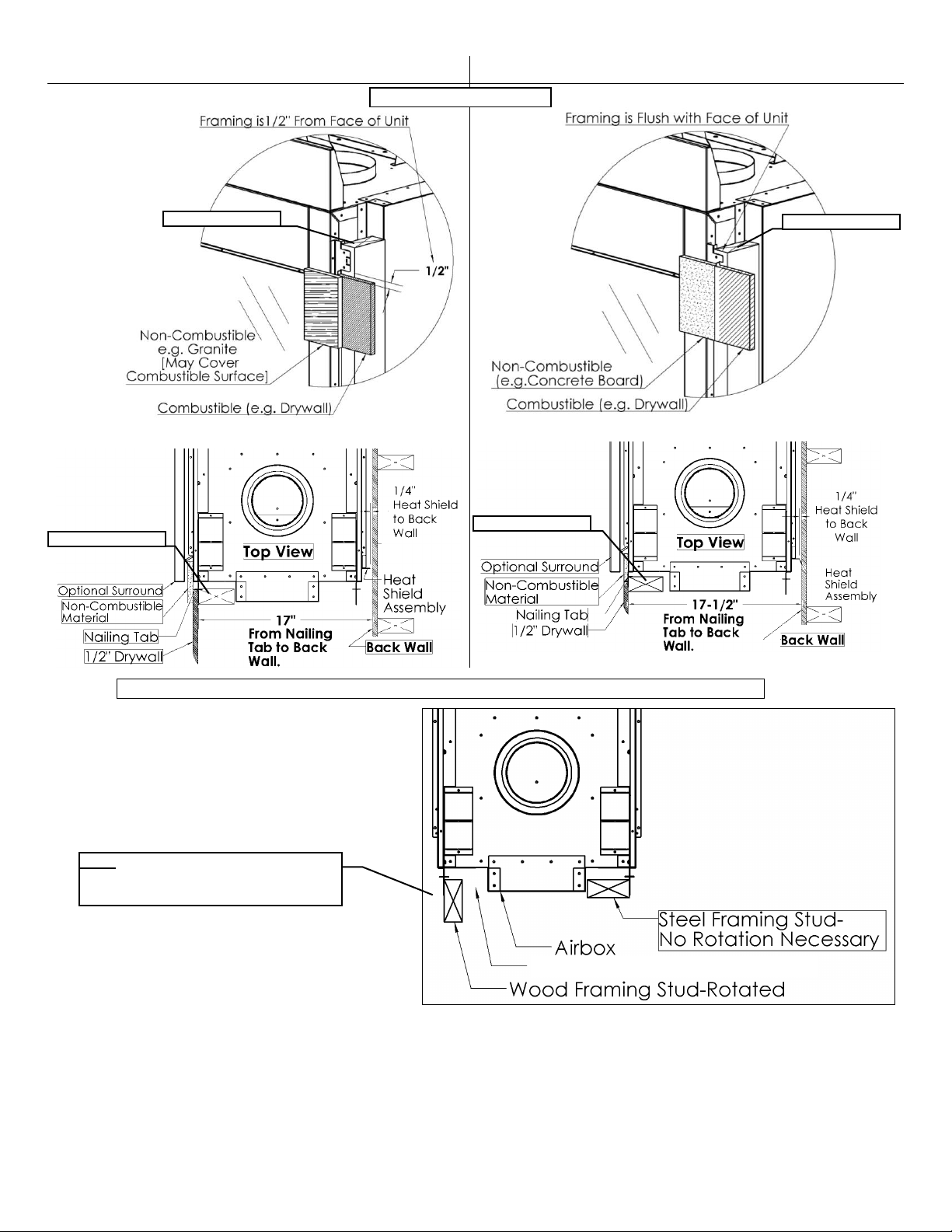

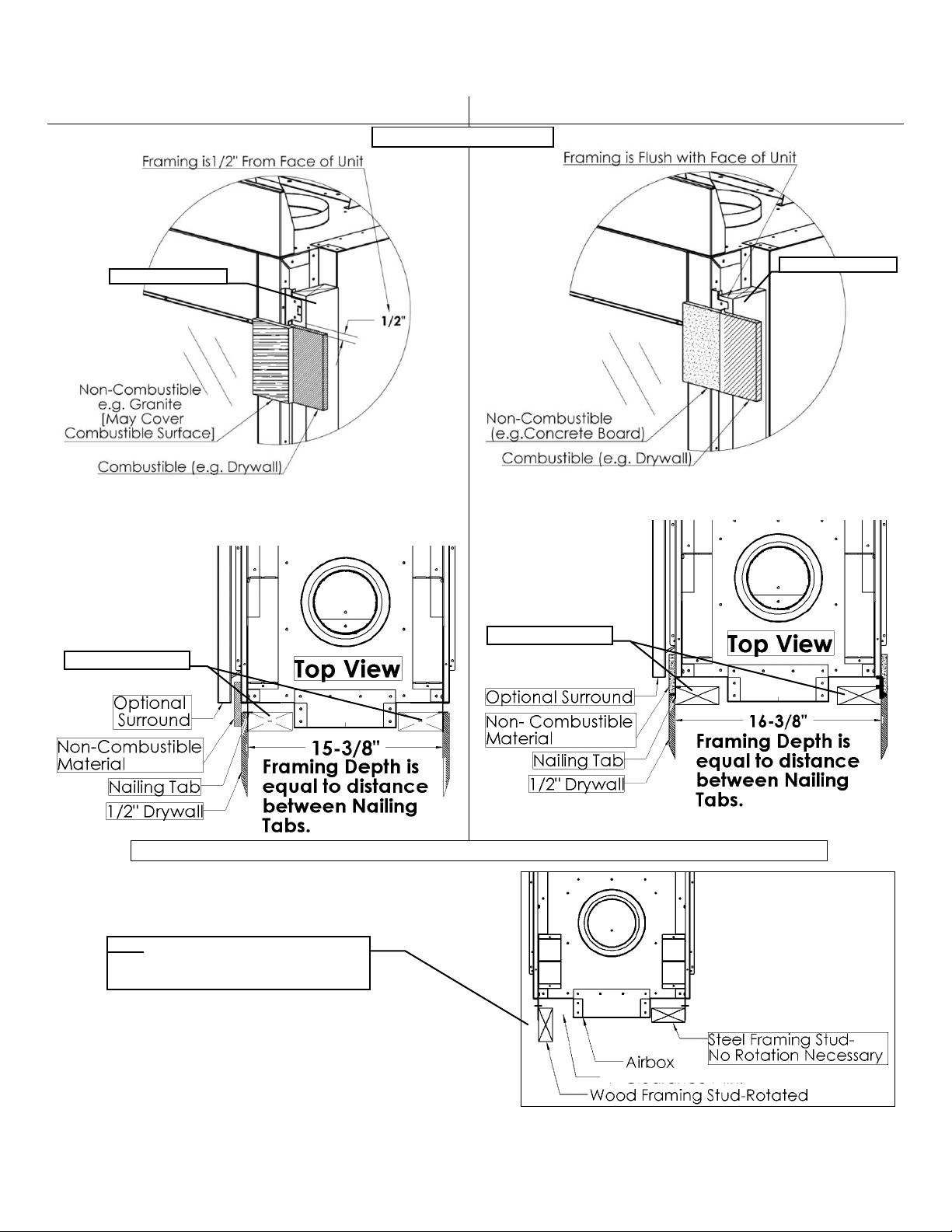

MQRB4436 -See Thru Framing...................................................................................................................................................
15-16
MQRB4436 Single Sided Framing...............................................................................................................................................
17-18

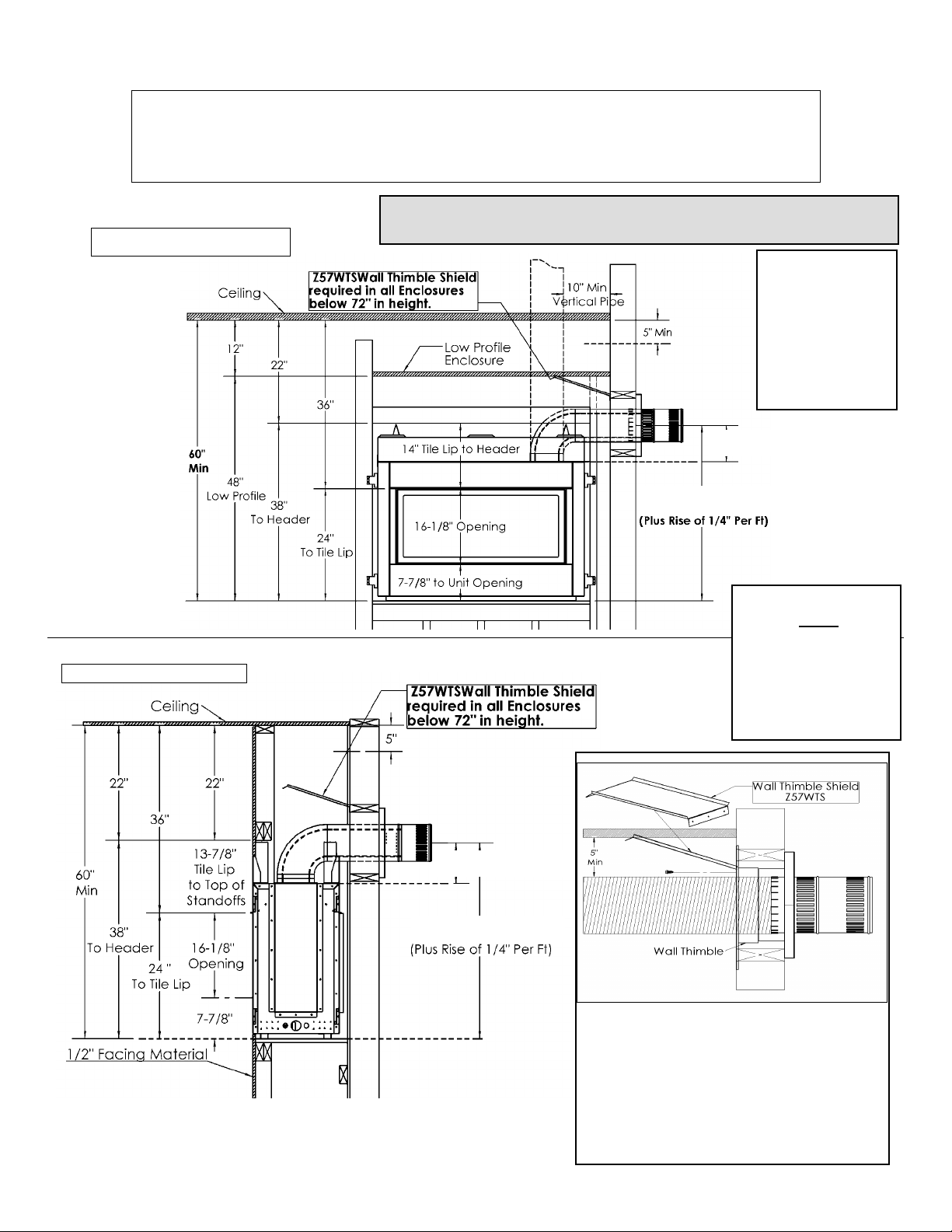

MQRB4436 Combustible Enclosure Heights...............................................................................................................................
19

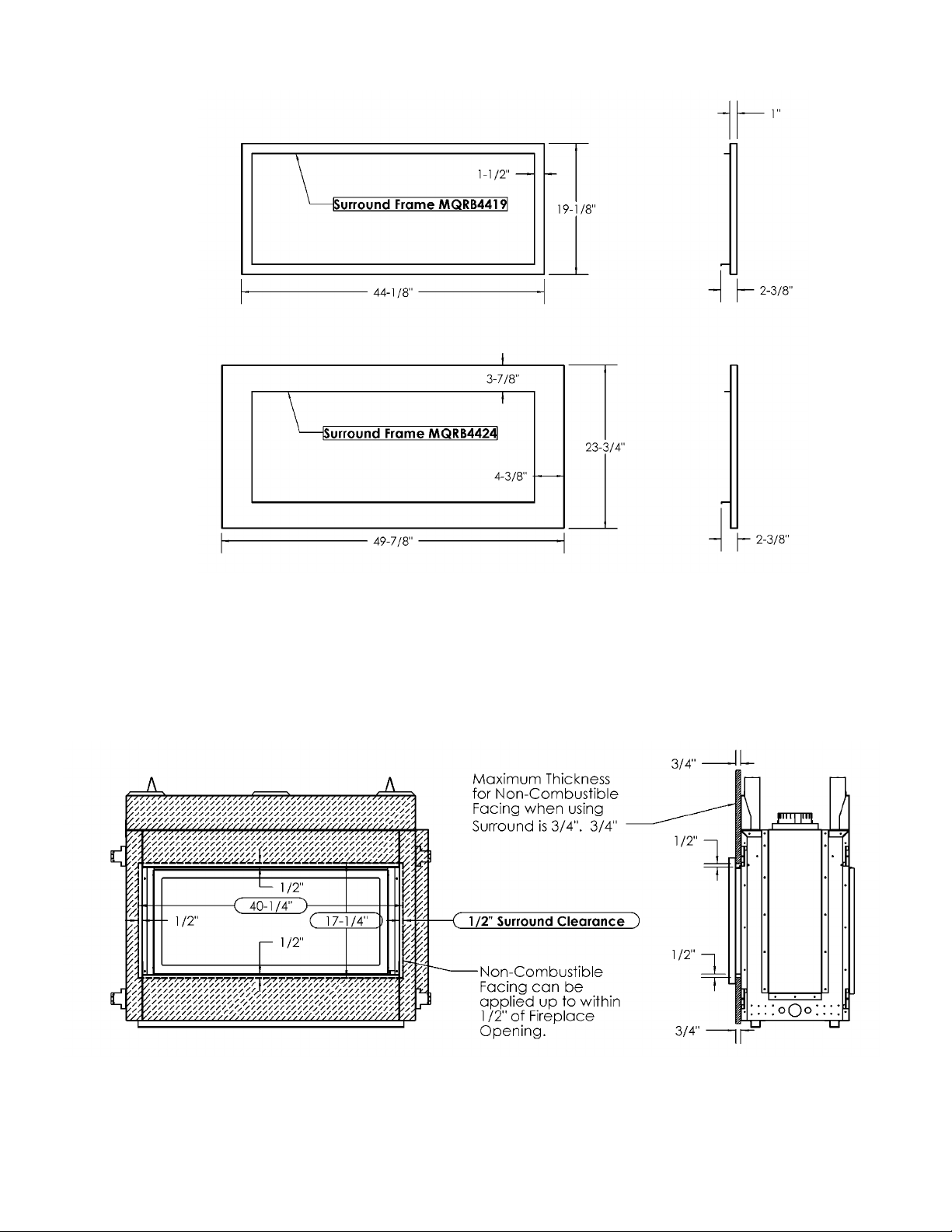

MQRB4436 Surround Dimensions / Surround Clearances..........................................................................................................
20
MQRB4436 Facing Material Requirements.................................................................................................................................
21
MQRB4436 Mantel Clearances / Clearance to Combustibles.....................................................................................................
22
MQRB5143
MQRB5143: Framing Your Gas Fireplace...................................................................................................................................
23
MQRB5143 Locating Your Appliance / Fireplace Dimensions………………………………………………………………………...
24
MQRB5143 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace…………………………………………………....
25
MQRB5143 -See Thru Framing..................................................................................................................................................
26-27
MQRB5143 Single Sided Framing..............................................................................................................................................
28-29
MQRB5143 Combustible Enclosure Heights..............................................................................................................................
30
MQRB5143 Surround Dimensions / Surround Clearances........................................................................................................
31
MQRB5143 Facing Material Requirements................................................................................................................................
32
MQRB5143 Mantel Clearances / Clearance to Combustibles....................................................................................................
33
MQRB6961
MQRB6961: Framing Your Gas Fireplace...................................................................................................................................
34
MQRB6961 Locating Your Appliance / Fireplace Dimensions.....................................................................................................
35
MQRB6961 - Pre-existing Enclosures vs Framing Enclosure Around Fireplace………………………………………………….....
36
MQRB6961 -See Thru Framing...................................................................................................................................................
37-38
MQRB6961 Single Sided Framing...............................................................................................................................................
39-40
MQRB6961 Combustible Enclosure Heights...............................................................................................................................
41
MQRB6961 Surround Dimensions / Surround Clearances..........................................................................................................
42
MQRB6961 Facing Material Requirements.................................................................................................................................
43
MQRB6961 Mantel Clearances / Clearance to Combustibles.....................................................................................................
44
Kits and Accessories
BK Kit Installation MQRB4436BK / MQRB5143BK / MQRB6961BK–Single View......................................................................
45-46
BK Liner Installation.....................................................................................................................................................................
47
SK Kit Installation MQRB4436 / MQRB5143SK / MQRB6961SK -See Thru...............................................................................
48
SK Liner Installation.....................................................................................................................................................................
49
MQRB44RLF / MQRB51RLF / MQRB69RLF Fluted Liners........................................................................................................
50
MQRB4436, MQRB5143 & MQRB6961 Finishing Options.........................................................................................................
51
MQRB4436 / MQRB5143 / MQRB6961 Surround Installation.....................................................................................................
52
Fan Installation MQRB4436 / MQRB5143 / MQRB6961.............................................................................................................
53
Fan Speed Control Outside of Fireplace......................................................................................................................................
54
Optional Glass Ember Installation................................................................................................................................................
55
Optional Driftwood & Rock Installation.........................................................................................................................................
56
MQ46D Driftwood / RBCB1 Cannonballs....................................................................................................................................
57
MQRBD3 Driftwood Log Set (5pcs)……………………………………………………………………………………………………....
58
General Installation, Use, and Maintenance
Door and Glass Information….....................................................................................................................................................
59
Door Latch Tool…........................................................................................................................................................................
60
2

Valve Access Cover Removal / Removable Lower Face Panel…...............................................................................................
61
Gas Line Installation / Gas Specifications…................................................................................................................................
62
Millivolt System, Lighting, and Burner Control…..........................................................................................................................
63
Troubleshooting the Millivolt Gas Control System…....................................................................................................................
64
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace..............................................................
65
Burner System Maintenance…....................................................................................................................................................
66
Gas Conversion for Top Convertible Pilot…................................................................................................................................
67
820 Nova mV Modulating Conversion Kit….................................................................................................................................
68
MQRB4436 Burner Section: Gas Conversion….........................................................................................................................
69
MQRB5143 Burner Section: Gas Conversion…..........................................................................................................................
70
MQRB4436 / MQRB5143 Burner Tube Removal / Burner System Removal/Installation Guide…..............................................
71
MQRB4436 / 5143 / 6961 Moving Valve to Other Side of Fireplace…........................................................................................
72
MQRB6961 Burner Section: Gas Conversion…..........................................................................................................................
73
MQRB6961 Burner Tube Removal / Burner System Removal/Installation Guide…....................................................................
74
LK2 Halogen Lamp Kit.................................................................................................................................................................
75
LK3 Halogen Lamp Kit.................................................................................................................................................................
76
Remote Receiver Location...........................................................................................................................................................
77
UHS Box / Component Locations………………………………………………………………………………………………………....
78
Proflame 1 IPI Section
IPI Electronic Ignition System......................................................................................................................................................
79
Remote Control Operation...........................................................................................................................................................
80
IPI Electronic Ignition Parts List – Standard System……………..................................................................................................
81
IPI Schematic Drawing #1: Basic Manual Hi / Lo – Manual On / Off...........................................................................................
82
Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities............................................................................................
83
Operating the Receiver Without Batteries For GT / EGT / GTM / EGTM Remote Controls........................................................
84
Configuration #3: Remote ON/OFF, variable HI/LO, and fan capabilities...................................................................................
85
Electronic Ignition Lighting Instructions........................................................................................................................................
86
Proflame 2 IPI System
Proflame 2 IPI System Parts List.................................................................................................................................................
87
Proflame 2 IFC Module and Remote Control...............................................................................................................................
88
Cold Climates – CPI Setting - Proflame 2 Remote Control..........................................................................................................
89
Proflame 2 Remote Control.........................................................................................................................................................
90-91
Proflame 2 Label Diagram...........................................................................................................................................................
92
Venting
Vent Terminal Clearances...........................................................................................................................................................
93
General Vent Installation Information..........................................................................................................................................
94-95
Horizontal Vent Table..................................................................................................................................................................
96
Venting Examples / Wall Thimble and Roof Support...................................................................................................................
97
Installation of Side Wall Venting..................................................................................................................................................
98
Z57ST24 / Z57ST36 Horizontal Snorkel Terminations MQRB4436 / MQRB5143.......................................................................
99
Venting Straight Up Through Roof...............................................................................................................................................
100-101
Flue Restrictor Adjustment MQRB4436 & MQRB5143................................................................................................................
102
Approved for PVH58 / PVH58FM Power Vent………………………………………………………………………………………......
103
Power Vent Control Module Installation.......................................................................................................................................
104
Parts Lists
PVH58 / PVH58FM Parts List......................................................................................................................................................
105-106
MQRB4436 -Parts List.................................................................................................................................................................
107-108
MQRB5143 -Parts List.................................................................................................................................................................
109-110
MQRB6961 -Parts List.................................................................................................................................................................
111-112
Common Parts for MQRB4436, MQRB5143 and MQRB6961....................................................................................................
113-114
Glass Safety / Termination Cap Safety –All Units-………………………………………………………………………………….......
115
Limited Lifetime Warranty............................................................................................................................................................
116
3

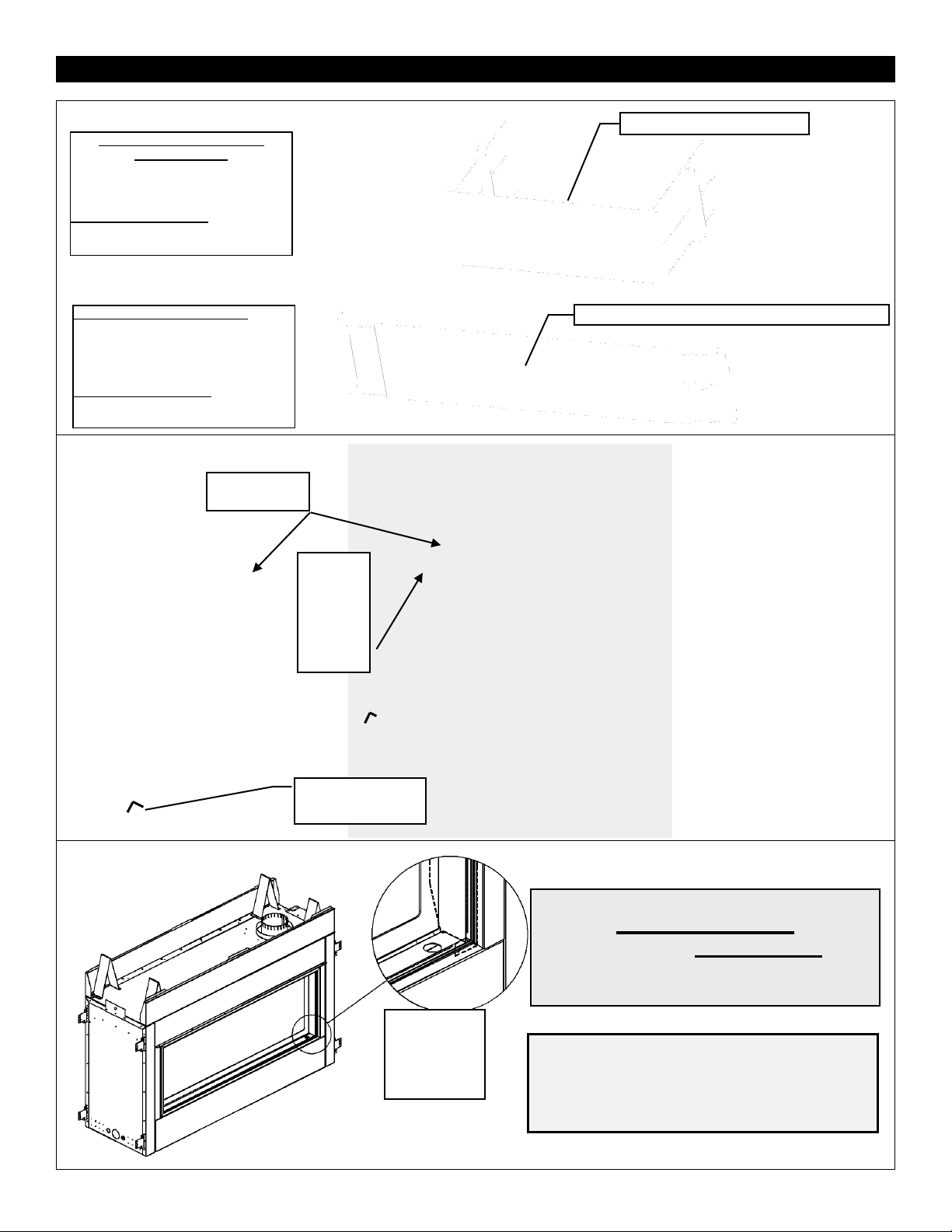

Infinite Series Child Safety Screen 4436 / 5143 / 6961
⚠ WARNING:
Wait until unit is COMPLETELY cool
before touching glass or attempting to
install or remove Child Safety Screen.
MQRB69CSS Contents of Kit:
[1] Child Safety Screen
[1] Bottom Angle
[2] Screen Mount Brackets
[11] 3/8” x 1/2” Screws
Assembly Instructions:
Fasten Screen Mount Brackets to Child
Safety Screen with supplied screws.
Notch in Mount
Bracket
Insert top
of Screen
into
fireplace
opening
and push
bottom in.
Drop Screen
into place.
Mount Brackets
will lock screen
in place.
To remove Safety Screen, WAIT UNTIL
FIREPLACE IS COMPLETELY COOL.
Push up Screen Frame and pull bottom
away from fireplace.
MQRB69CSS Bottom Angle on Bottom of Screen.
Bottom Angle on
Bottom of Screen.
MQRB44CSS / MQRB51CSS
MQRB44CSS / MQRB51CSS
Contents of Kit:
[1] Child Safety Screen
[2] Screen Mount Brackets
[6] 3/8” x 1/2” Screws
Assembly Instructions:
Fasten Screen Mount Brackets to Child
Safety Screen with supplied screws.
4

Infinite Series CSS -Removal of Safety Screen- 4436 / 5143 / 6961
To remove Safety Screen, WAIT UNTIL FIREPLACE IS COMPLETELY COOL.

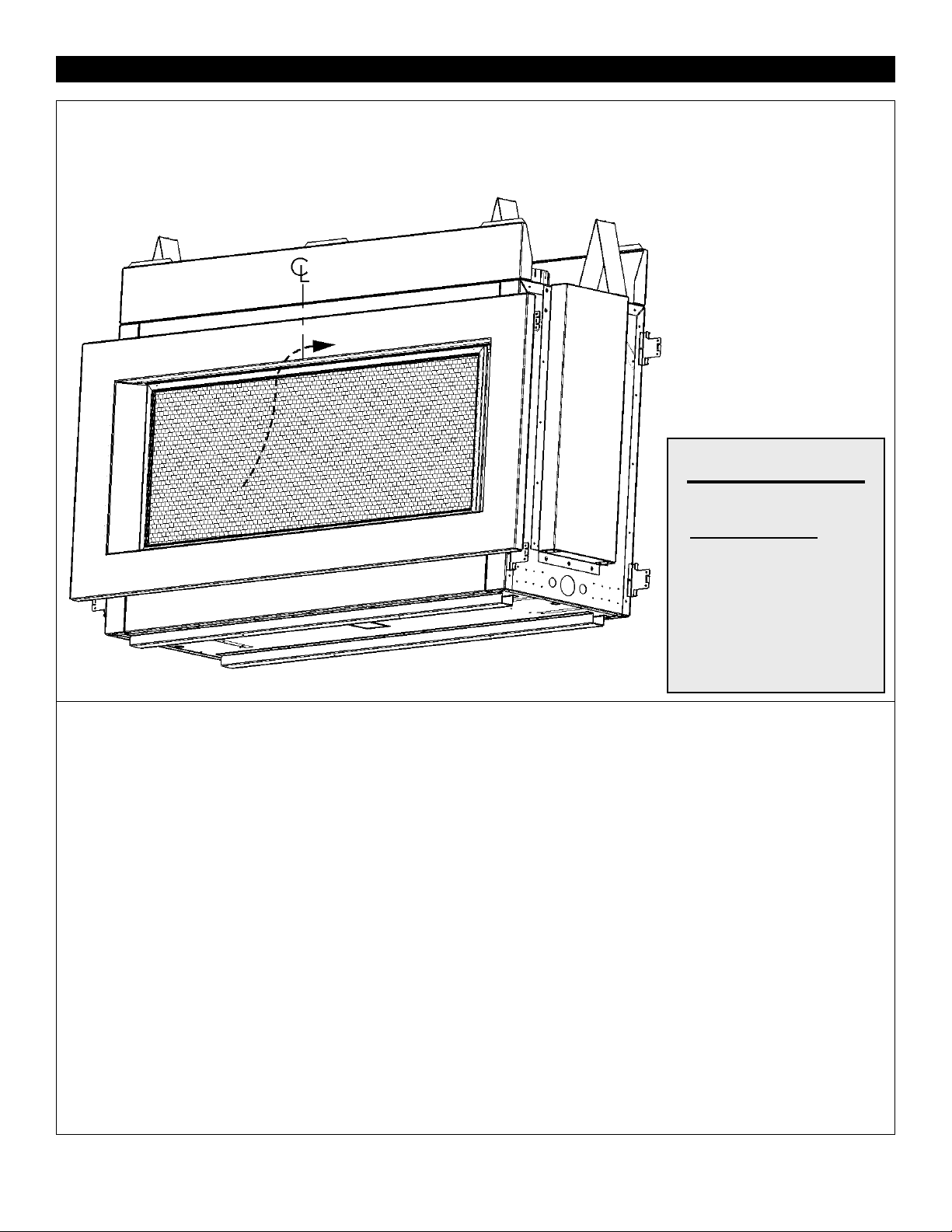

Locate approximate top center of screen. Push upward and inward in a rapid motion.
Bottom of screen will push out.
Locate approximate top center of screen. Push upward and inward in a rapid motion.
⚠ WARNING:
Wait until unit is
COMPLETELY cool
before touching glass
or attempting to install
or remove Child Safety
Screen.
