Kingsman Fireplaces Marquis MQZDV3318 User manual

Solara Installation Instructions
Model
Numbers:
MQZDV3318N, MQZDV3318NE, MQZDV3318NE2, MQZDV3318LP, MQZDV3318LPE,
MQZDV3318LPE2
Certified to:
ANSI Z21.88-2017 • CSA 2.33-2017 Vented Gas Fireplace Heaters, CSA 2.17-2017
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
A Division of R-Co. Inc.
2340 Logan Ave.
Winnipeg, Manitoba Canada
R2R 2V3 Ph.: [phone]
Printed in Canada December 14, 2021
Part# 3318MQ-MAN17
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
MQZDV3318

Table of Contents
Cover......................................................................................................................................................................
1
Table of Contents....................................................................................................................................................
2-3
Pre-installation Questions and Answers / Operations and Maintenance Instructions.............................................
4
Safety Screen Installation.......................................................................................................................................
5
Warnings, Installations and Operations - Installation Regulations..........................................................................
6
Installation Requirements for the Commonwealth of Massachusetts / Carbon Monoxide (CO) Detector..............
7
Mobile Home/Manufactured Housing Installation...................................................................................................
8
Recommendations for Finishing of Clean View Linear Products………………………………………………………
9

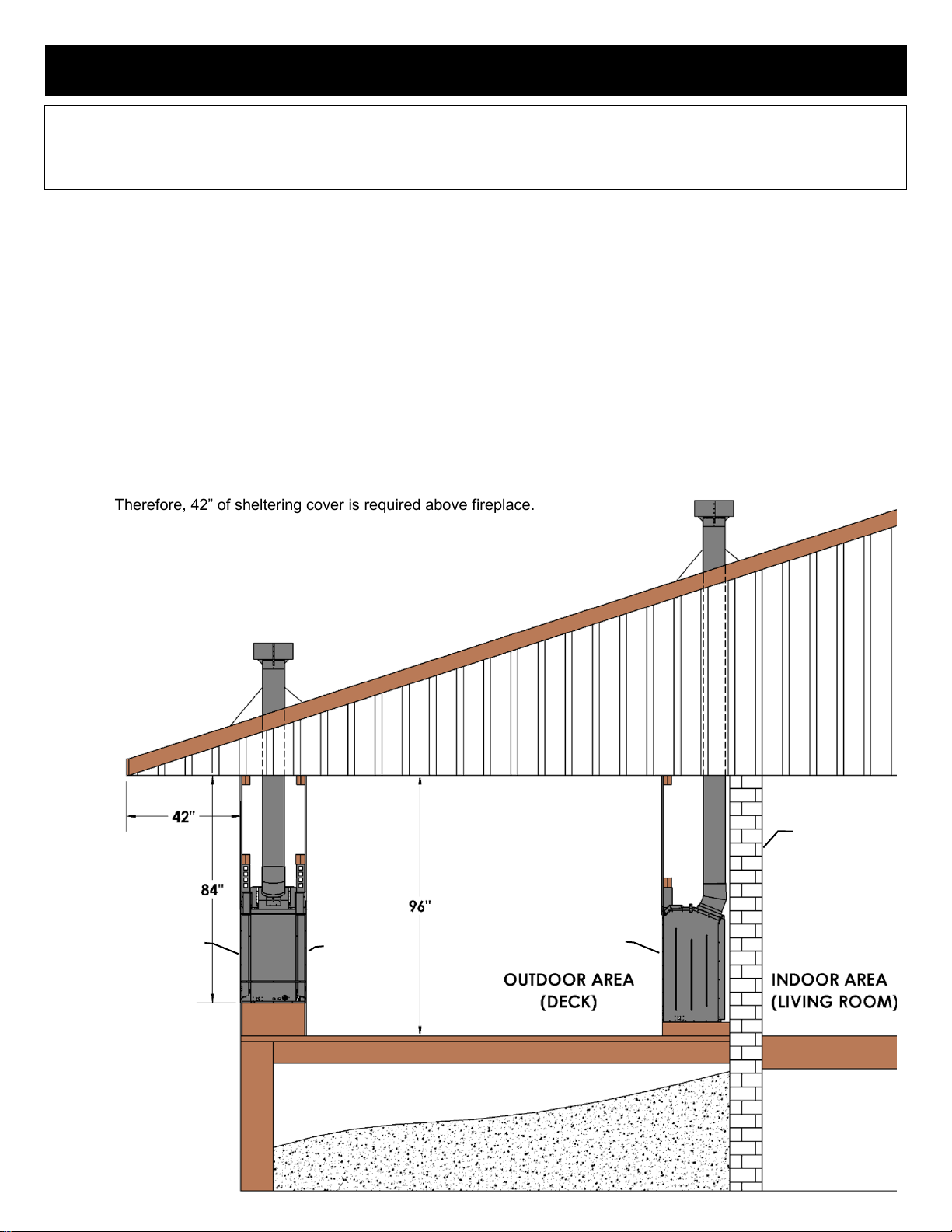

Fireplace Installations in Covered Outdoor Locations............................................................................................
10
Installation & Framing - ZDV3318MQ
Locating your Appliance / Fireplace Dimensions....................................................................................................
11

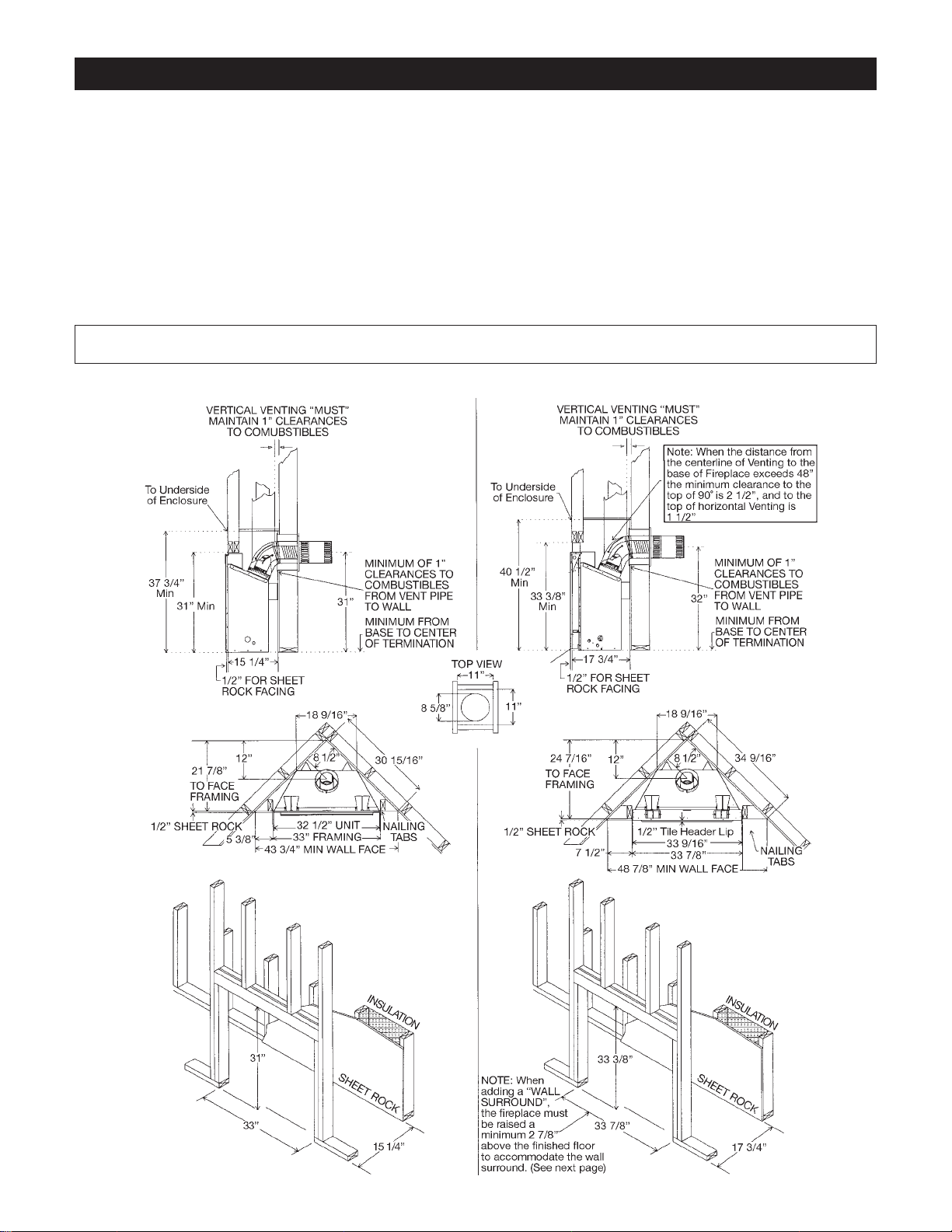

Framing your Gas Fireplace...................................................................................................................................
12

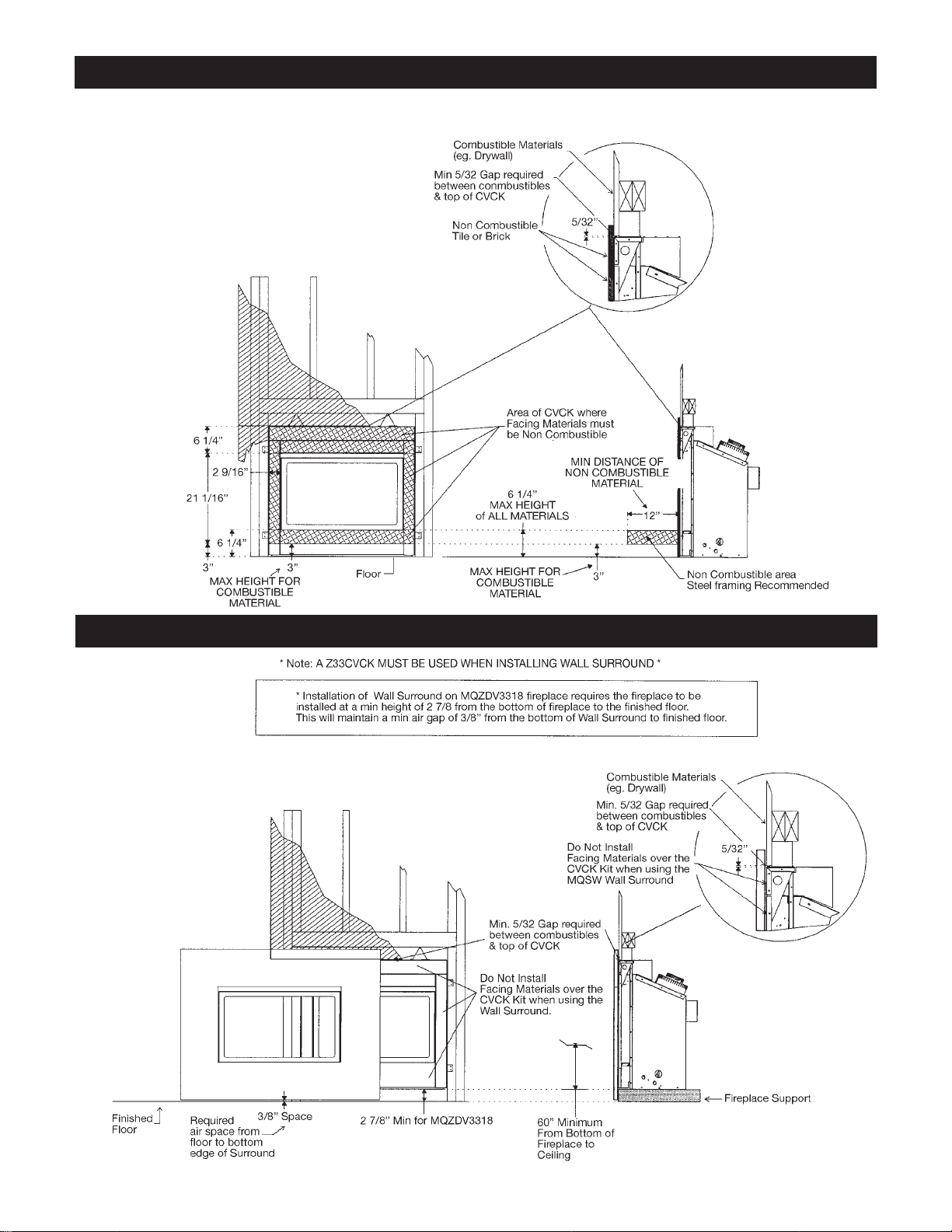

Z33CVCK - Framing and Facing Requirements.....................................................................................................
13
Installation
How To Install Clean View Kit (CVCK)...................................................................................................................
14
Clearances - Mantels & Surrounds.........................................................................................................................
15
Mantel Leg Clearances...........................................................................................................................................
16
Clearance to Combustibles.....................................................................................................................................
17
Accessories and Options
MQSW Surround Installation..................................................................................................................................
18
Fan Kit Installation..................................................................................................................................................
19
Split Receptacle- Fan Speed Control Outside of Fireplace....................................................................................
20
Z3318 / Z3622PRL & Z3318ML / Z3622ML Installation Guide...............................................................................
21
MQLOGC22 for MQZDV3318/3622........................................................................................................................
22-23
MQLOGC23 - 4 Piece Driftwood Log Set…………………………………………………………………………………
24
MQRSP5 for MQZDV3318/3622.............................................................................................................................
25-26
3318 / 3622 Door and Glass Information................................................................................................................
27
Burner System
Gas Line Installation...............................................................................................................................................
28
Burner System Removal.........................................................................................................................................
29
Millivolt System, Lighting, and Burner Control........................................................................................................
30
Annual Inspection List for Determining Safe Operation of a Direct Vent Gas Fireplace.........................................
31
Burner System Maintenance...................................................................................................................................
32
Conversion Kit Instructions –PART A....................................................................................................................
33
Gas Conversion for Top Convertible Pilot –Part B (series 0190XYZ)....................................................................
34
Gas Conversion for Modulator –PART C...............................................................................................................
35
Proflame 1
Overview / Components..........................................................................................................................................
36
Remote Control Operation......................................................................................................................................
37
Proflame 1 Parts List –Standard System...............................................................................................................
38
Configuration #1: Basic Manual HI/LO and Manual ON/OFF Capabilities..............................................................
39
Configuration #2: Remote ON/OFF and Manual HI/LO Capabilities......................................................................
40
Operating the Receiver Without Batteries- Millivolt and Proflame 1.................................................................................
41
Configuration #3: Remote ON/OFF, variable HI/LO, and Fan Capabilities.............................................................
42
Electronic Ignition Lighting Instructions...................................................................................................................
43
Proflame 2
Proflame 2 Parts List / Basic System / Configuration GTMFL................................................................................
44
Proflame 2 Module and Remote Control.................................................................................................................
45
Cold Climates –CPI Setting - Proflame 2 Remote Control.....................................................................................
46
Proflame 2 Remote Control....................................................................................................................................
47-48
Proflame 2 Label Diagram................................................................................................................................................
49
2

Venting
Vent Terminal Clearances......................................................................................................................................
50
General Vent Installation ........................................................................................................................................
51
Installation Of Side Wall Venting…………………………………………………………………………………………..
52
Venting Routes and Components / Horizontal Venting Table From Bottom of Fireplace......................................
53
Z47ST24 / Z47ST36 Horizontal Snorkel Terminations...........................................................................................
54
Venting Straight Up Through Roof………………………………………………………………………………………...
55-56
Vertical Venting over 15 Feet..................................................................................................................................
57
Glass Safety / Termination Cap Safety...................................................................................................................
58
Approved for Power Vent PVH58 / PVH58FM........................................................................................................
59
Parts Lists
PVH58 Parts List…………………………………………………………………………………………………………….
60
MQZDV3318 Parts List...........................................................................................................................................
61-62
Troubleshooting
Troubleshooting the Gas Control System...............................................................................................................
63
Warranty
Limited Lifetime Warranty………………………………………………………………………………………………......
64
3

Pre-installation Questions and Answers
About curing of the paint
Your stove or fireplace has been painted with the highest quality silicone stove paint. This paint dries quickly in 15-20
minutes when first applied at the factory. However, due to the high temperature silicone components, the paint will cure
when heat is applied to the appliance as it is first used. The following information applies to the curing process to get the
paint fully hard and durable.
Fire the appliance four successive times for 10 minutes each firing and a 5 minute cool down between each. Be aware
during log and firebox paint curing that a white deposit may be developing on the inside of the glass doors. It is important
to remove this white deposit from the glass doors using a fireplace glass cleaner.
Babies, small children, pregnant women and pets should leave the area during the cure phase.
Ventilate well, open doors and windows.
Do not touch during curing.
Why does my fireplace or stove give off odor?
It is normal for your fireplace to give off some odor at first. This is due to the curing of the paint, adhesives, silicones and
any undetected oil from the manufacturing process as well as the finishing materials used with the installations (e.g.
marble, tile and the adhesives used to adhere this product to the walls can react with heat and cause odors).
It is recommended that you burn your gas fireplace or stove for a minimum of four hours at a time with the fan off (if a fan
is present) after the curing of the paint has been completed. These odors can last upward to 40 hours of burn time; keep
burning at a minimum of four hours per use until odors dissipate.
Noise coming from the fireplace?
Noise is caused by the expansion and contraction of metal as the appliance heats up and cools down. This is normal and
is similar to the sounds produced by a furnace or heating duct. This noise does not affect the operation or longevity of
your fireplace.
It is also normal for the fan to make some noise when it comes on. This noise can be reduced somewhat by turning down
the speed of the fan with the variable speed control. Be aware, however, that this will reduce the volume of heated air
circulated into the room by the fan.
Note to the Installer:
Be sure appliance is working properly and its operation (including remote control operation, if included) is fully explained
to and understood by the customer.
Operations and Maintenance Instructions
For safe installation and operation note the following:
Be sure to read and understand all the instructions in this manual before operation of appliance.
Ensure all wiring is correct and properly enclosed to prevent possible shock.
Check for gas leaks.
Make sure the glass door is properly installed before operation. Never operate the appliance with the glass door
removed.
Make sure venting and termination cap are installed and unobstructed.
If brick or porcelain liners are used, ensure they are installed.
Verify that the pilot can be seen when lighting the appliance. If not, the log or rock placement is incorrect.
If the unit is turned off, you must wait a minimum of 60 seconds before re-lighting it.
Venting systems should be periodically examined by a qualified agency.
The flow of combustion and ventilation air must not be obstructed.
The Burner/Log Assembly has been engineered and permanently adjusted for proper flame control.
Periodically remove the logs from the grate assembly and vacuum any loose particles from the grate and burner
areas. See Log Placement page to remove logs. Vacuum burner parts and replace logs.
Never use your gas fireplace as a cooking device.
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
Areas in and around the Chase Vent Openings should be cleaned annually.
4

Safety Screen Installation Z Series
Screen with Side & Horizontal Angles
Hook Lower Clip onto glass door frame.
Press down and push upper clip under top glass door frame.
Contents of Kit:
[1] Safety Screen
[2] Side Angles
[2] Horizontal Angles
[12-16] DT Screws (Depending on screen size)
Assembly: Attach components with supplied
screws as shown.
⚠WARNING:
Wait until unit is COMPLETELY
cool before touching glass or
attempting to install or remove
Child Safety Screens.
To install screens
hook bottom clip
onto glass door
frame, then press
down and push
upper clip under
top glass door
frame, then
release. Clip will
hook onto frame.
To remove
Safety
Screens
WAIT UNTIL
FIREPLACE IS
COMPLETELY
COOL.
Press down on
upper clips and
remove screen
from fireplace
glass door.
TOP VIEW
Upper Clip
Lower Clip
Upper Clip
NOTE: Screens are symmetrical from top to bottom.
CLIPS
Upper Clip
SIDE VIEW
Fireplace with
Screen
5

Warnings, Installations and Operations - Installation Regulations
This gas appliance must be installed by a qualified installer in accordance with local building codes, or in the absence of local codes, with the
current CAN/CSA-B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code Z223.1- NFPA 54 when installed in the
United States.
This appliance, when installed, must be electrically connected and grounded in accordance with local codes, or in the absence of local codes,
with the current CSA C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70 when installed in the United States.
WARNING
FOR SAFE INSTALLATION AND OPERATION OF YOUR GAS FIREPLACE PLEASE NOTE THE FOLLOWING:
1. Do not clean when the glass is hot.
2. Do not use abrasive cleaners.
3. Using a substitute glass will void all product
warranties.
4. For safe operation, glass doors must be closed.
5. When purging the gas line, the glass front must be
removed.
6. Do not strike or abuse glass. Take care to avoid
breakage.
7. Do not alter gas orifice.
8. No substitute materials may be used other than
factory supplied components.
9. This appliance gives off high temperatures and should
be located out of heavy traffic areas and away from
furniture and draperies.
10. Children and adults should be alerted to the hazards
of the high surface temperatures of this appliance and
should stay away to avoid burns or ignition of clothing.
11. Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to
accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the
house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room
and away from hot surfaces.
12. Under no circumstances should any solid fuels (wood,
paper) be used in this appliance.
13. Under no circumstances should this appliance be
modified. Any parts that have to be removed for
servicing should be replaced prior to operating this
appliance.
14. Any safety screen, guard, or barrier removed for
servicing an appliance must be replaced prior to
operating the appliance.
15. Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional
service person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, et cetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean. Make
sure that the gas valve and pilot light are turned off
before you attempt to clean this unit.
16. Clothing or other flammable material should not be
placed on or near the appliance. This appliance
should not be used as a drying rack for clothing nor
should Christmas stockings or decorations be hung
from it.
17. Do not use this heater if any part has been under
water. Immediately call a qualified service technician
to inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
18. Do not operate appliance unless completely installed
as per installation instructions.
19. Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
20. WARNING: Do not operate appliance with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person.
21. The appliance area must be kept clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
22. The front of the fireplace gives off high temperatures
that could ignite combustible material which is kept
close to the front of the unit.
23. Ensure that power to the Fireplace is turned off before
servicing.
24. Do not operate this Fireplace without the glass front or
with a broken glass.
25. Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Refer to the owner’s information manual provided with
this appliance. For assistance or additional information
consult a qualified installer, service agency, or the gas
supplier.
26. Operation of this appliance when not connected to a
properly installed and maintained venting system or
tampering with the blocked vent shutoff system can
result in carbon monoxide (CO) poisoning and
possible death.
27. This appliance is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or
remove the grounding prong from this plug.
28. NOT INTENDED FOR USE AS A PRIMARY HEAT
SOURCE. This appliance is tested and approved as
either supplemental room heat or as a decorative
appliance. It should not be factored as primary heat in
residential heating calculations.
29. This appliance must not be connected to a chimney
flue serving a separate solid-fuel burning appliance.
6

Installation Requirements for the Commonwealth of Massachusetts
In the Commonwealth of Massachusetts, the installer or service agent shall be a plumber or gas fitter licensed by the
Commonwealth.
When installed in the Commonwealth of Massachusetts or where applicable codes; the unit shall be installed with a CO
detector per the requirements listed below.
1. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of
the vent terminal and the air intake is installed below four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall be located in the room that houses the appliance or equipment and shall:
 Be powered by the same electrical circuit as the appliance or equipment such that only one service switch
services both the appliance and the carbon monoxide detector;
 Have battery back-up power;
 Meet ANSI./UL 2034 Standards and comply with NFPA 720; and
 Have been approved and listed by a Nationally Recognized Testing Laboratory as recognized under 527
CMR.
C. A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be
used. Installation shall be in strict compliance with the manufacturer’s instructions. A copy of the installation
instructions shall remain with the appliance or equipment at the completion of the installation.
D. A metal or plastic identification plate shall be mounted at the exterior of the building, four feet directly above
the location of vent terminal. The plate shall be of sufficient size to be easily read from a distance of eight feet
away, and read “Gas Vent Directly Below”.
2. For direct-vent appliances, mechanical-vent heating appliances or domestic hot water equipment where the bottom of
the vent terminal and the air intake is installed above four feet above grade the following requirements must be
satisfied:
A. If there is not one already present, on each floor level where there are bedroom(s), a carbon monoxide
detector and alarm shall be placed in the living area outside the bedroom(s). The carbon monoxide detector
shall comply with NFPA 720.
B. A carbon monoxide detector shall:
 Be located in the room that houses the appliance or equipment;
 Be either hard-wired or battery powered or both; and
 Shall comply with NFPA 720.
A Product-approved vent terminal must be used, and if applicable, a Product-approved air intake must be used.
Installation shall be in strict compliance with the manufacturer instructions. A copy of the installation instructions shall
remain with the appliance or equipment at the completion of the installation.
For the state of Massachusetts a T-handle gas shut-off valve must be used on a gas appliance. This T-handle gas shut-
off valve must be listed and approved by the state of Massachusetts. This is in reference to the state of Massachusetts
state code CMR238.
Carbon Monoxide (CO) Detector
NOTE: It is recommended that a Carbon Monoxide (CO) Detector be installed in or near bedrooms and on all levels of
your home. Place a detector about 15ft [4.5m] outside the room that houses your gas appliance.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat.
In USA see local codes.
7

Mobile Home/Manufactured Housing Installation
This Direct Vent System Appliance must be installed in accordance with the manufacturer’s installation instructions and the
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard for Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in
Canada.
THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES AFTER FIRST SALE IN THE USA.
THE VENTED GAS FIREPLACE HEATERS (ANSI Z21.88) IN THIS MANUAL MAY BE INSTALLED IN MANUFACTURED (MOBILE)
HOMES IN CANADA.
Please follow the current ANSI/NFPA 70 National Electrical Code in the USA and CAN/CSA C22.1 Canadian National
Electrical Code in Canada.
An appliance must be grounded to the steel chassis of the home with 8 ga. copper wire using a serrated or star washer to
penetrate paint or protective coating to insure grounding.
Use carriage bolt at the attachment point (see diagram above) to secure the appliance to the floor.
For required venting components see venting installation in appropriate section of this manual.
Certified for installation in a bedroom or bed/sitting room. In Canada must be installed with listed millivolt thermostat. In USA see local
codes.
Warning: Do not compromise the structural integrity of the manufactured home wall, floor
or ceiling, during installation of appliance or venting.
Appliance Must Be Secured To
Structure Using Supplied Nailing
Tabs And Or Fastened To Floor.
Use Existing Hole Or Remove
Existing Screw To Mount Ground
Wire (Nailing Tab Screw).
Serrated Or Star Washer
Ground Wire From Appliance To Steel
Chassis Of Mobile Home. USE 8GA
COPPER WIRE.
8

Recommendations for Finishing of Clean View Linear Products
When finishing the wall around the fireplace, it is critical that the wall covering be fastened properly. It is acceptable to
pre-drill holes and use self-tapping screws which may be used to fasten a backer for tile, marble, etc. Screws being
installed through non-combustible board should be self-tapping type with a maximum length of 2 inches. Wall covering
fasteners, such as screws or nails, are not permitted in some locations. Do not drill or install longer screws which may
penetrate into the lower cover panel area as this may damage internal components.
•Only non-combustible materials may be used over the face of the appliance.
•We recommend that CONCRETE BOARD (non-combustible material) be tied in to the entire perimeter of the fireplace for
durability.
Finishing Recommendations (Obtained from professional construction contractors and finishers):
•Frame unit with metal studs (minimum 20 gauge).Wooden studs may be used, but may cause drywall screws to pop
or pull due to wood studs drying out.
•Minimum of 1/2” CONCRETE BOARD cement board (this non-combustible panel is ULC listed as a wall shield/floor
protector) and fasten to the entire perimeter framing.
•Use fiberglass (mesh) tape for all joints in area of the fireplace.
•Use Yellow joint mud (contains high amounts of glue) –two coats, finishing with one coat of green topping mud, sand
and prep for painting.
•If not using a surround, a metal “L” Trim may be used to finish perimeter of CONCRETE BOARD.
•Refer to the following website for more information on using CONCRETE BOARD Cement Board: www.cgcinc.com
OTHER NOTES:
-A full single sheet of non-combustible board (no joints) above the unit is recommended if possible.
-It is preferred to attach the non-combustible board to framing only and not directly to the unit to allow for expansion and
contraction during normal operation.
-Lighter colored painted surfaces may discolor due to heat exposure.
Notice: Granite, tile, or other
facing materials are not
covered by the fireplace
warranty. Natural stone, tile,
and other facing materials may
crack or discolor (i.e., yellowing
of lighter colored materials).
Televisions are not covered
by fireplace warranty.
9

Fireplace Installations in Covered Outdoor Locations
–FOR BASIC MILLIVOLT UNITS ONLY- NO FAN –NO LIGHTS-
Kingsman and Marquis Direct Vent fireplaces may be installed into outdoor locations provided they are suitably protected
from direct water impingement. However, all installation clearances in the appliance manual must be observed. Framing,
Clearances to Combustibles, Mantel Heights, Facing Requirements, Venting Installation, etc. Use supplied Safety Screen.
All wiring connections to line power shall be in accordance with outdoor requirements of; -NECA NFPA 70 in the USA
-Canadian Electrical Code, CSA C22.1 for Canada.
The Fireplace is not to be operated in temperatures below freezing (0°C / 32°F).
⚠NOTE: TEMPERED GLASS WARNING: Tempered glass is vulnerable to rapid and/or extreme changes in
temperature (thermal shock). Take care to prevent water from contacting the fireplace, especially if it is hot.
See-Through Units are suitable for an outdoor location, but not on the outside wall of a house or other structure, as
air flows through both sides of the fireplace.
A Minimum sheltering cover (overhang) of 1/2 the distance from the base of the fireplace to the ceiling (base of
roofline) is required.
EXAMPLE: The bottom of the fireplace is 84” from the ceiling.
Therefore, 42” of sheltering cover is required above fireplace.
CAUTION –Installation of an indoor gas fireplace with an outdoor exposure is not covered under the (ANSI
Z21.88 –CSA 2.22 or ANSI Z21.50 –CSA 2.33) standard(s) used to certify the indoor gas-fired fireplace. The
Intertek safety certification will not apply to this installation method. This installation method must be deemed
acceptable by the Authority Having Jurisdiction (AHJ) prior to the indoor gas fireplace being installed.
OUTDOOR
AREA
Glass
Door
Glass
Door
Glass
Door
Outside Wall
of House
10

MQZDV3318 - Locating your Appliance
MQZDV3318 Fireplace Dimensions
Installing with Top Vent
Island installation with a top vent is possible as long as the horizon-
tal portion of the vent system does not exceed 20 feet (6.1 m).
A - Flat on a wall D - As a room divider
B - Across the corner E - Flat on wall corner
C - As an island F - Exterior wall
MQZDV3318 -CVCK (Clean View Circulating Kit)
MQZDV3318 louvered
11

For Propane Horizontal Installations the venting must be a minimum of one foot vertical off the flue before the elbow on any
horizontal runs of one foot or greater. This allows for cleaner combustion and greatly reduces carboning and cleaning of glass.
MQZDV3318 - Framing for your Gas Fireplace
MQZDV3318 Louvered MQZDV3318 WITH CVCK (CLEAN VIEW CIRCULATING KIT)
4. When installing horizontal with a 90 degree bend maintain a
minimum of two and a half (2.5”) inches above the bend in
enclosures.
5. For a fireplace with louvers combustible floor can raise 1”
above the bottom of the fireplace. For a fireplace with
33CVCK (Clean view Circulating Kit) floor or hearth can raise
7” above the bottom of the fireplace with portions being com-
bustible and non combustible. See drawing on following page.
6. When installing MQSWF surround, the fireplace must be
raised a minimum of 2 7/8” above the finished floors, to
accommodate the wall surround. The fireplace may be raised
higher but the 60” clearance measured from the bottom of the
fireplace to the ceiling must be maintained at all times. (i.e.
For an 8 ft. ceiling the unit can be raised only 36 inches.)
Framing Specifications
1. Cold climate installation recommendation: When installing this fire-
place against non insulated exterior wall or chase, it is recom -
mended that the outer walls be insulated to conform to applicable
insulation codes. Drywall must be installed over insulation to prevent
contact of insulation and unit.
2. Choose fireplace location and frame in accordance with the fireplace
framing dimensions specified (See Framing Diagrams). Bend nailing
tabs forward on left and right of unit and place fireplace into framed
enclosure. This allows for 1/2” in front of framing tabs for finishing
materials.
3. Drywall or other material can extend flush with the appliance on the
bottom, sides and top of fireplace. (louvered models only)
12

Z33CVCK - Framing and Facing Requirements
MQZDV3318 WITH Z33CVCK (CLEAN VIEW CIRCULATING KIT)
Z33CVCK - with Wall Surround
13

How To Install Clean View Kit (CVCK)
For ZDV3318 / ZDV3622 / ZDVRB3622 / ZDV6000 / ZDV3320 / MQRB3328 / MQZDV3318 / MQZDV3622
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts
specifically approved with this appliance may result in property damage or personal injury.
NOTE: When using the Clean View Kit (CVCK) and installing optional electrical components (i.e. Remote
Controls, variable speed control, and or fan modules) locate them in the Clean View access area, unless
other shielding devices like our IPI Component box is used.
For ZDV6000
/
ZDV3320
/
MQRB3328
,
the 33-MDVHS Heat Shield must be used.
CAUTION: When using CVCK DO NOT INSTALL a Louver assembly.
1. Install optional fan kit (see Fan Instruction).
2. Fold two standoffs up into position and mount with supplied screws. (FIG 1) For ZDV6000/ ZDV3320/ MQRB3328
models use the larger (8”) standoffs. On the ZDV3318 unit, remove the large 8” standoffs.
3. Hang CVCK on top of fireplace retainer tabs and rotate down into position. (FIG 2)
4. Using the screws provided, fasten the non-combustible header onto the top of the CVCK assembly.
5. Using four [4] supplied #6 screws, fasten CVCK kit to the inside frame of unit.
6. Using ten [10] supplied screws, install the top shield into the CVCK.
7. Kit is supplied with 2 valve extension knobs. Align the notches and slide the extensions onto valve knobs.
8. DO NOT brick or tile beyond the inside area of the CVCK kit to allow for removal of door.
NOTE: ADDITIONAL ACCESS FOR GASLINE INSTALLATION AND FAN ELECTRICAL INSTALLATION! When CVCK is installed
in framing, remove the four [4] screws from the bottom panel. Once screws are removed, bottom panel can be removed to access
gas valve and fan system.
Non-Combustible Header
for ZDV6000 / ZDV3320 /
MQRB3328
(*Not used on 3318 or 3622
Models)
14

CLEARANCES - MQZDV3318/3622 - Mantels & Surrounds
Warning: Combustible objects must not be placed on a non-combustible mantel unless the non-combustible mantel meets
the minimum height and width require ments for a combustible mantel.
15

Mantel Leg Clearances
Mantels
Depending on the depth of the fireplace mantel, it may be installed higher or lower from the top of the fireplace opening. See drawings
for proper installation height of your combustible mantel. Non-combustible mantels may be installed at any height above the fireplace
opening except when using MQHBSW.
Non combustible materials such as brick, tile, etc. can extend up to or over the front face of the fireplace (NO PORTION OF GRILL
AREA OR DOOR AREAS CAN BE COVERED) except where designer clean view kit is used.
Combustible material can extend flush to unit up to the top, bottom and sides of fireplace to stand-offs.
For COMBUSTIBLE materials extending in front of fireplace consult (Mantel and Mantel Leg Drawings).
Surrounds
If installing wide or slim line surrounds, the finish materials must be flush with the front facing of the fireplace.
Note: When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant (250˚F) to prevent
discoloration.
16

ZDV3318 / MQZDV3318 - Clearance to Combustibles
Clearance to Combustibles
Back (from Standoffs) 0 inches/0 mm
Side (from standoffs) 0 inches/0 mm
Floor 0 inches/0 mm
Ceiling (from bottom of fireplace) 60 inches/152 cm
Top (from standoffs) 0 inches/0 mm
Louvered Unit
Top of 90 degree bend inMinimum Enclosure of:
37 3/4 to 40 inches 3 1/4 inches/8.3 cm / All Vent Systems
Enclosure over 40 inches 2 1/2 inches/6.4 mm/All Vent Systems
CVCK Unit (non- louvered)
Top of 90 degree bend inMinimum Enclosure of:
40.5inches to 43 inches 5 inches/12.7 cm / All Vent Systems
Enclosure over 43inches 2 1/2 inches/6.4 cm All Vent Systems
Systems
Top of Horizontal Pipe 1 1/2 inches/3.8 cm / All Vent Systems
Side & Bottom of Horizontal Pipe 1 inch/25.5mm / All Vent Systems
Vertical Vent Pipe 1 inch/25.5mm / Kingsman Vent Systems
Vertical Vent Pipe 1 1/4 inch/32mm / All Hard Pipe Systems
(NOTE -Floor) if installing the
appliance directly on
carpeting or other combustible
materials other than wood
flooring, the appliance shall be
installed on a metal or wood
panel, thefull width anddepth
of the appliance. Carpet may
extend 1 inch above thefloor
of appliance.
For units with CVCK (Clear
View Circulating Kit)see
framing with CVCK to
establish floor heights
17

MQSW Wall Mount Surround Dimensions
MQ33SWF
A
35-5/16”
B
45-13/16”
C
28-3/8”
D
17-13/16”
E
8-3/4”
F
8-3/4”
G
8-3/4”
H
1”
I
1-3/16”
Installation of MQSW Wall Mount Surround
1. Set Surround Lip on CVCK Ledge and ensure that it is securely in place.
2. Swing the upper portion of the Surround so that the Surround Ledge is resting on top of the
CVCK Deflector Lip.
3. Align the Mounting Screw Holes and fasten the Surround in place with the supplied screws.
(Note: It may be necessary to loosen or remove screws from the Heat Shield/Tile Lip of the CVCK to
align screw holes on the MQSW Surround. Be sure to replace and tighten these screws after
installation is complete.)
4. Attach optional decorative bands as desire.
5. To remove, simply reverse these steps.
18

Fan Kit Installation
Fan installation Instructions for ZDV6000/3320/3318/3318MQ
with or without CVCK (Clean View Circulating Kit).
Note: Install Fan Kit Before Installing optional CVCK (Clean
View Circulating Kit).
If CVCK has been installed into framing additional access is
provided by removing screws from bottom panel of CVCK. See
Installing Clean View Kit (CVCK).
1. Slide fan housing into unit and place over 2 Fan Retainer Tabs. Tabs
are pre punched and bent up (*Note: on 6000/3320 units, these
Tabs are located on the right side of the unit). Rubber grommets
at the base of the fan should fit snugly over the tabs.
2. For Fan Disc Installation these units have been installed with a sliding
track system. Install the Thermodisc provided with the Fan Kit. Place
Thermodisc into sliding assembly (Fig.1), and attach 2 leads exiting
right side of the fan housing into thermodisc. Now slide disc assembly
into thermodisc track (Fig.2). Place swivel handle of disc assembly
on track to lock into position. To service disc simply pull swivel handle
slide towards you while rotating handle to access disc.
Caution: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation.
Verify proper operation after servicing.
Parts List:
1ea. Fan comes with 4ft cord. Two 14” leads (female ends)
1ea. Variable speed control (wall mount type)
1ea. Thermodisc
1 Thermodisc mount assembly
3. Wire Junction Box and wall mounted variable speed control to
120v. Install a duplex outlet to junction box and plug fan into
outlet.
4. Turn the wall switch on (clockwise). Turn fireplace on. Once the
sensor in the unit reaches operating temperature (approximately
10 to 15 minutes) the fan will turn on. The fan can be switched
off if desired by turning the wall switch fully counter clockwise.
5. To set the minimum fan speed, remove the variable switch from
the wall mount. Turn the variable speed wall controller to its
minimum setting (fully counterclockwise). Use the set screw on
the side of the variable speed controller to increase or decrease
the minimum fan speed (lowering the minimum fan speed will
decrease sound level created by fan).
Reinstall switch into wall mount and cover with face plate.
Note: To service fan with CVCK Kit installed see Removing
Burner System in manual. If CVCK is finished with a MQSW
Wall Surround the MQSW may be removed by removing the
4 attachment screws and removing the MQSW
allowing access into the bottom of the fireplace to service
blower.
Electrical Services
All optional Fan Kits are equipped with a 120V, 60Hz, .4amp blower.
Note: All electric connections are to be made in accordance with
CSA Standard C22.1 – Canadian Electrical Code part I or with the
National Electrical Code, ANSI/NFPA 70 (latest edition) and /or in
accordance with local codes.
Warning: Electrical Grounding Instructions. This
appliance is equipped with a three-pronged (grounding)
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the
grounding prong from this plug.
CAUTION: DO NOT ATTACH 120V FAN ASSEMBLY TO MILLIVOLT GAS VALVE SYSTEM
WARNING: Electrical Grounding Instructions.
This appliance is equipped with a three-pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove
the grounding prong from this plug.
19

Split Receptacle- Fan Speed Control Outside of Fireplace
If you plan to locate the variable speed control switch for the fan outside of the fireplace and you require a constant source
of AC power inside the unit for another accessory such as lights or an IPI valve system, follow one of the procedures
below.
WARNING WARNING WARNING
A qualified electrician must connect
electrical wiring to junction outlet for
built-in installation.
Follow all codes.
Electrical Grounding Instructions –
This appliance is equipped with a
three – pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into a
properly grounded three-prong
receptacle.
Label all wires prior to disconnection
when servicing controls. Wiring errors
can cause improper and dangerous
operation. Verify proper operation and
servicing.
Caution: Electrical installation to be done by a qualified installer. All wires must be connected and grounded in accordance with
CSA Standard C22.1- Canadian Electrical Code part 1 or with the National Electrical Code, ANSI /NFPA 70 (latest edition) and /or in
accordance with local codes.
Switch Controlled Split Receptacle With Switch At START Of Cable Run
Switch Controlled Split Receptacle With Switch At END Of Cable Run
20
