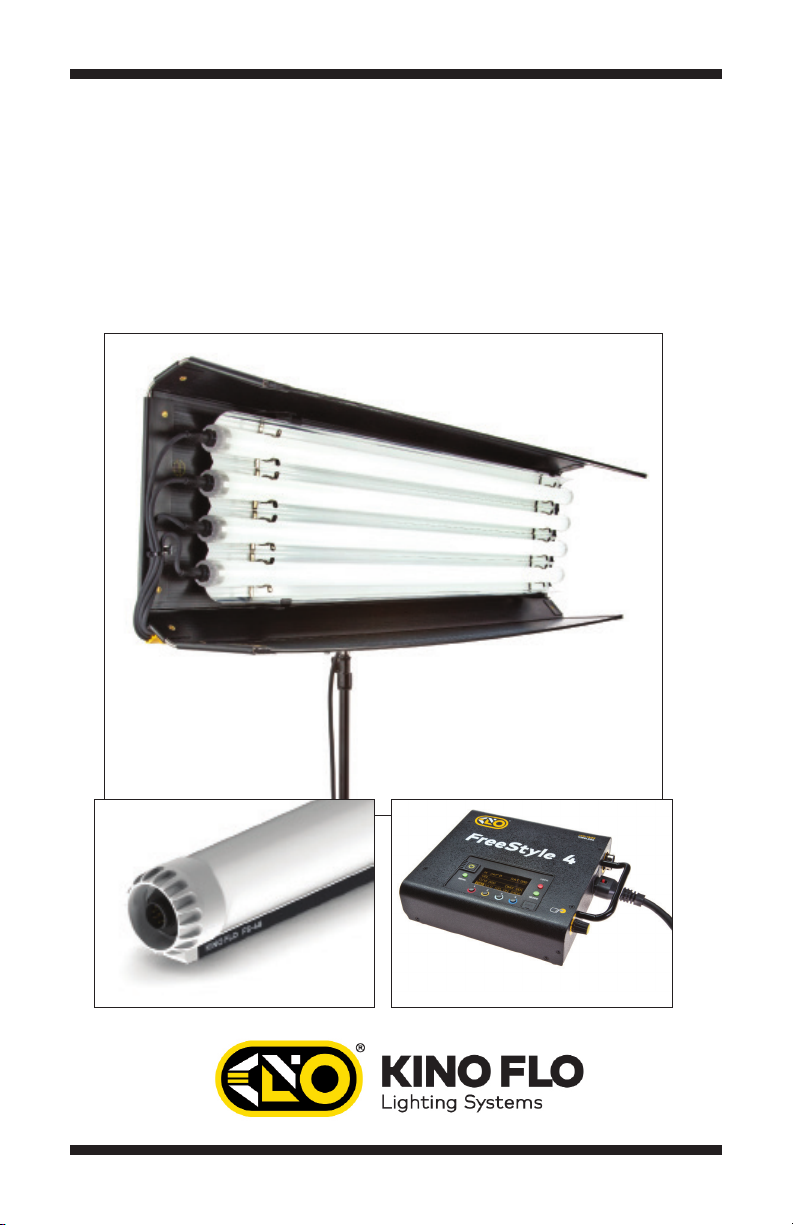

Kino Flo FreeStyle T44 User manual

Operation Manual
FreeStyle T44/T24 LED
Part No. 3100118 Rev D 02-26-2021
LED-140X
CFX-F484
FS-48
FS-24
(True Match Firmware 4.0)
(Camera)
®

2
FreeStyle T44/T24 System Components
LED-140X-120U
FreeStyle 140 LED DMX Controller, Univ 120U
LED-140X-230U
FreeStyle 140 LED DMX Controller, Univ 230U
CFX-F484 FreeStyle T44 Fixture
CFX-F244 FreeStyle T24 Fixture
MTP-KG41 KinoGrip 41K Mount w/ 3/8” Pin
(10mm)
X12-F425 FreeStyle/4 Extension, 25ft
FreeStyle T44/T24 Systems
SYS-FT44U
FreeStyle T44 LED DMX System, Univ
SYS-FT24U
FreeStyle T24 LED DMX System, Univ
FreeStyle T44/T24 LED System consists of:
1 FreeStyle T44/T24 Fixture
1 Mounting Plate
1 FreeStyle/4 Extension Cable
1 LED Controller
4 FreeStyle 4ft (or 2ft) LED Tubes
FS-48 FreeStyle 4ft LED Tube
FS-24 FreeStyle 2ft LED Tube

3

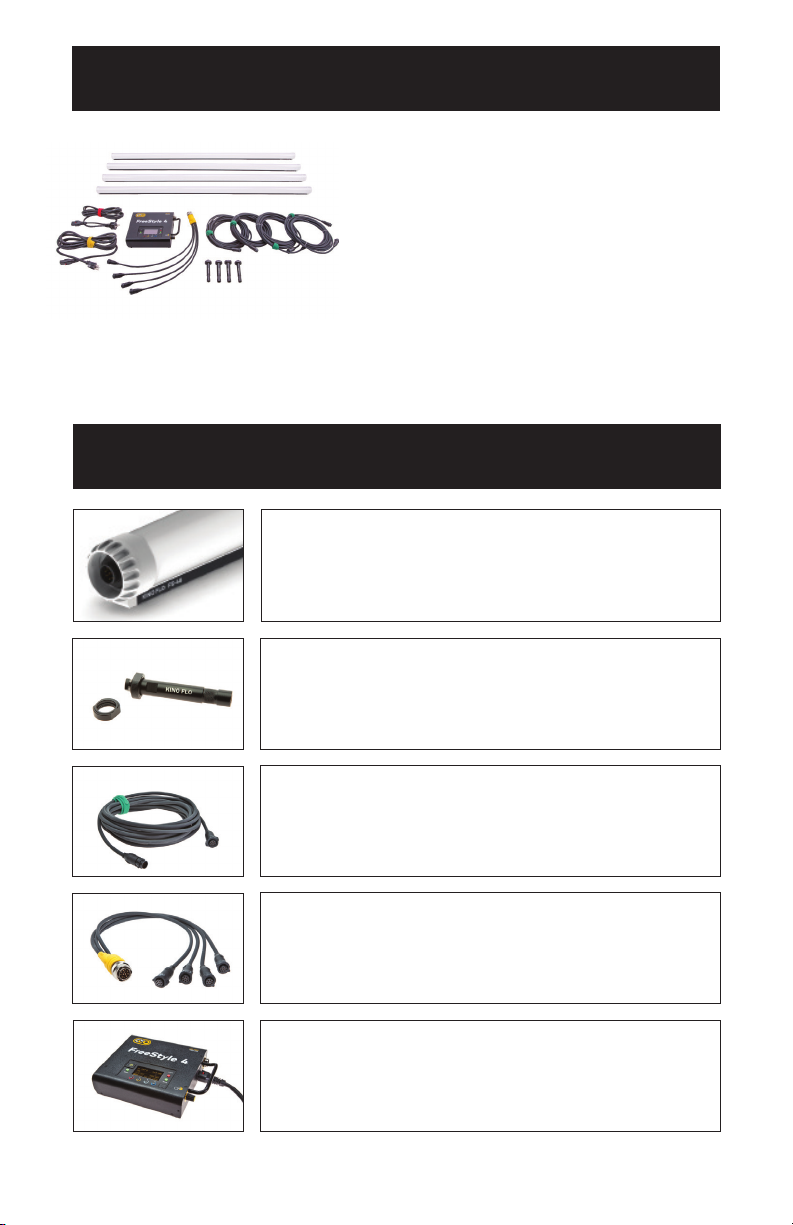

FreeStyle 4-Tube System Components
LED-140X-120U
FreeStyle 140 LED DMX Controller, Univ 120U
LED-140X-230U
FreeStyle 140 LED DMX Controller, Univ 230U
MTP-F101 FreeStyle Tube Mount - Baby Pin
(16mm)
X08-F125 FreeStyle/1 Extension, 25ft
X12-A4 FreeStyle/4 to FreeStyle/1 Splitter
FreeStyle 4-Tube Systems
SYS-FTS4004
FreeStyle 4ft LED DMX System (4-Tube), Univ
SYS-FTS2004
FreeStyle 2ft LED DMX System (4-Tube), Univ
FreeStyle 4ft/2ft LED System (4-Tube) consists
of:
1 LED Controller
1 Splitter
4 Extension Cable
4 Baby Pin (16mm)
4 FreeStyle 4ft (or 2ft) LED Tubes
FS-48 FreeStyle 4ft LED Tube
FS-24 FreeStyle 2ft LED Tube

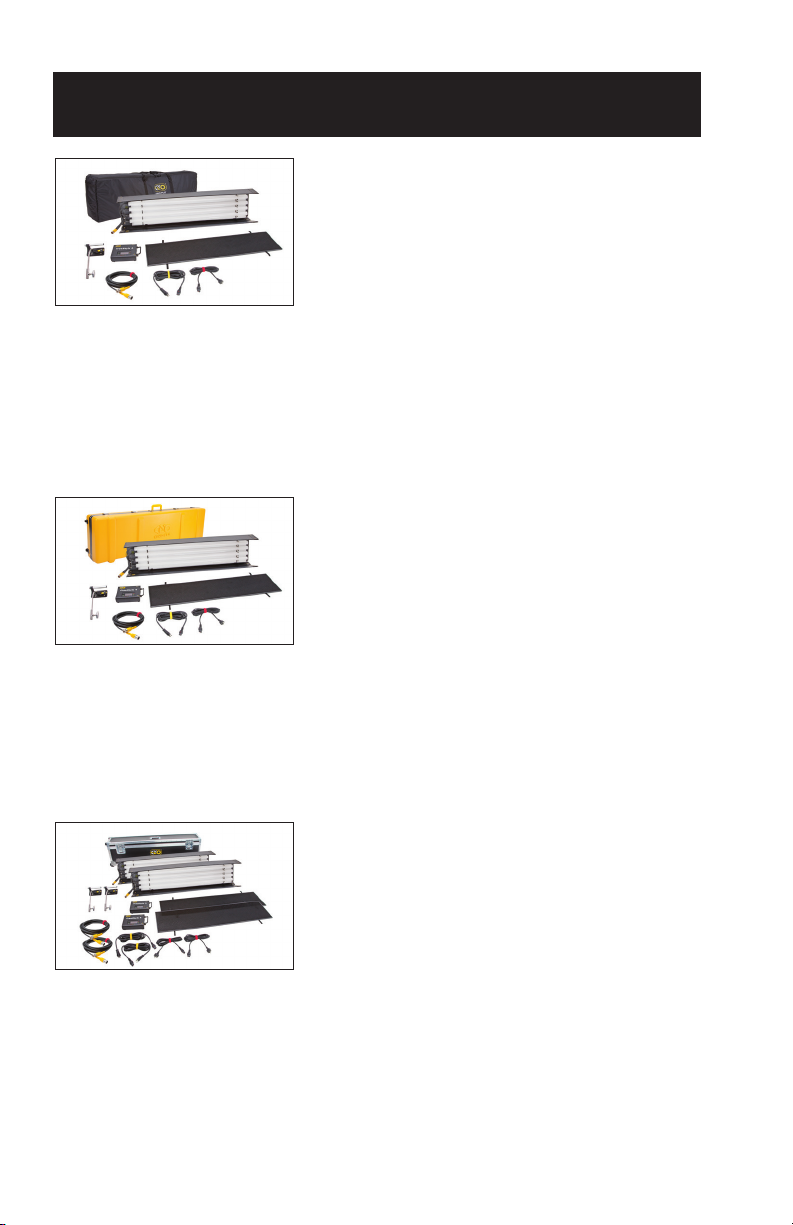

FreeStyle T44 LED DMX Kits
KIT-FT44BU
FreeStyle T44 LED DMX Kit w/ Soft Case, Univ
Kit Contents:
1 FreeStyle T44 LED Fixture
4 FreeStyle 4ft LED Tube
1 FreeStyle 140 LED DMX Controller
1 MTP-BG41 Mount w/ Baby Receiver (16mm)
1 FreeStyle/4 Extension, 25ft
1 Soft Case
Dimensions: Weight:
55 x 8 x 19.5” 25 lb
(140 x 20.5 x 49.5cm) (11kg)
KIT-FT44U
FreeStyle T44 LED DMX Kit w/ Travel Case, Univ
Kit Contents:
1 FreeStyle T44 LED Fixture
4 FreeStyle 4ft LED Tube
1 FreeStyle 140 LED DMX Controller
1 MTP-BG41 Mount w/ Baby Receiver (16mm)
1 FreeStyle/4 Extension, 25ft
1 Travel Case
Dimensions: Weight:
54.5 x 9 x 21” 44.5 lb
(138 x 23 x 53cm) (20kg)
KIT-FT44GU
FreeStyle T44 Gaffer LED DMX Kit, Univ (2-Unit)
Kit Contents:
2 FreeStyle T44 LED Fixture
8 FreeStyle 4ft LED Tube
2 FreeStyle 140 LED DMX Controller
2 MTP-BG41 Mount w/ Baby Receiver (16mm)
2 FreeStyle/4 Extension, 25ft
1 Ship Case
Dimensions: Weight:
56.5 x 13 x 16.5” 70.5 lb
(143.5 x 33 x 42cm) (32kg)
FreeStyle T44 LED DMX Kit
w/ Soft Case
FreeStyle T44 LED DMX Kit
w/ Travel Case
FreeStyle T44 Gaffer LED
DMX Kit (2-Unit)
4

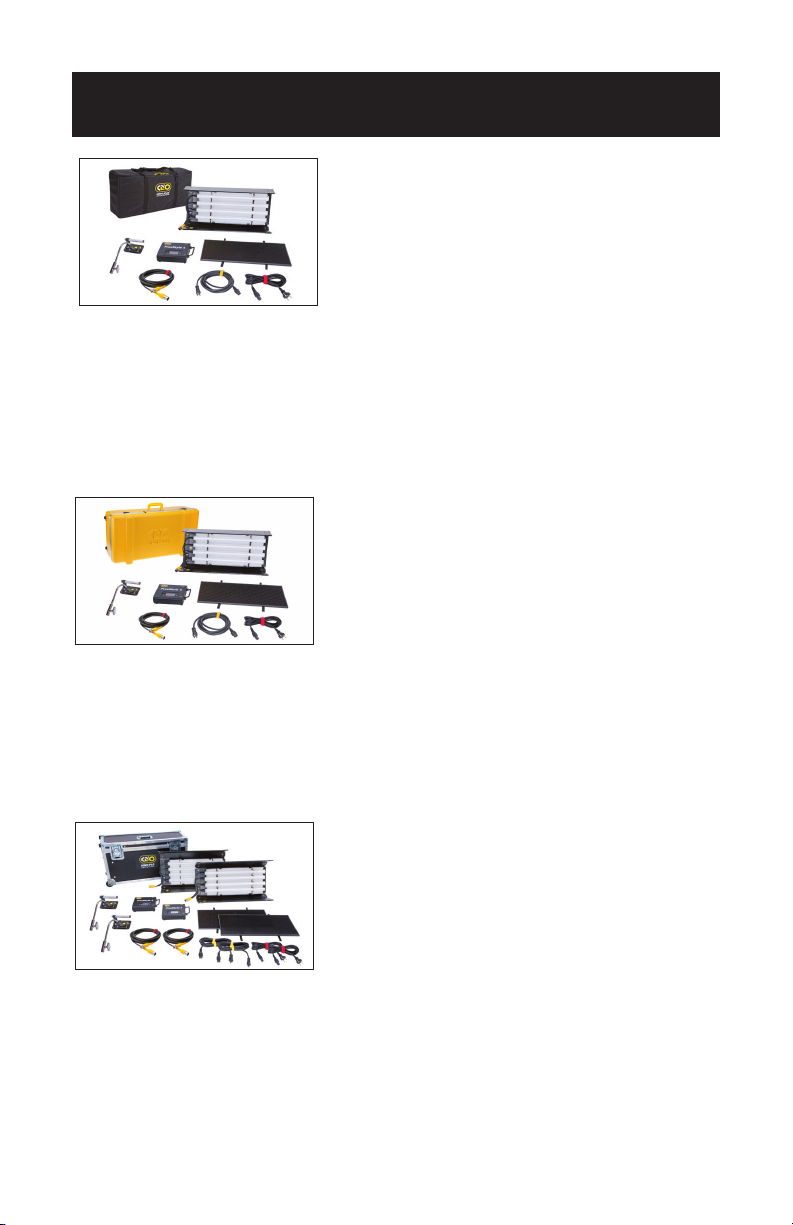

FreeStyle T24 LED DMX Kits
KIT-FT24BU
FreeStyle T24 LED DMX Kit w/ Soft Case, Univ
Kit Contents:
1 FreeStyle T24 LED Fixture
4 FreeStyle 2ft LED Tube
1 FreeStyle 140 LED DMX Controller
1 MTP-BG41 Mount w/ Baby Receiver (16mm)
1 FreeStyle/4 Extension, 25ft
1 Soft Case
Dimensions: Weight:
31 x 7.5 x 18” 21 lb
(79 x 19 x 46cm) (9.5kg)
KIT-FT24U
FreeStyle T24 LED DMX Kit w/ Travel Case, Univ
Kit Contents:
1 FreeStyle T24 LED Fixture
4 FreeStyle 2ft LED Tube
1 FreeStyle 140 LED DMX Controller
1 MTP-BG41 Mount w/ Baby Receiver (16mm)
1 FreeStyle/4 Extension, 25ft
1 Travel Case
Dimensions: Weight:
32 x 11 x 18.5” 33 lb
(81 x 28 x 47cm) (15kg)
KIT-FT24NU
FreeStyle T24 Interview LED DMX Kit, Univ (2-Unit)
Kit Contents:
2 FreeStyle T24 LED Fixture
8 FreeStyle 2ft LED Tube
2 FreeStyle 140 LED DMX Controller
2 MTP-BG41 Mount w/ Baby Receiver (16mm)
2 FreeStyle/4 Extension, 25ft
1 Ship Case
Dimensions: Weight:
36 x 13 x 16.5” 59.5 lb
(91.5 x 33 x 27cm) (27kg)
FreeStyle T24 LED DMX Kit
w/ Soft Case
FreeStyle T24 LED DMX Kit
w/ Travel Case
FreeStyle T24 Interview LED
DMX Kit (2-Unit)
5

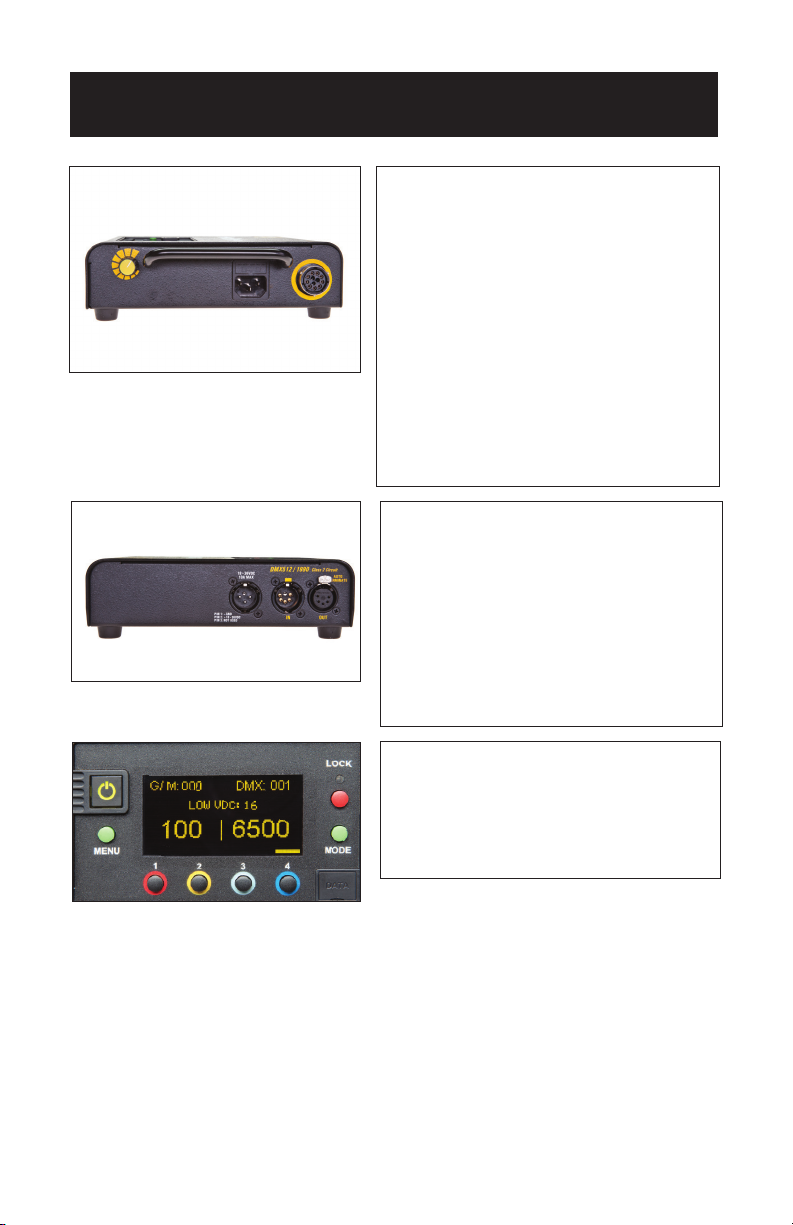

Power
DC Input
The FreeStyle 140 LED DMX can also
be operated on 24VDC (input range
18-36VDC) through a 3-Pin XLR.
The pin polarity is:
Pin # 1 – Ground
Pin # 2 + 18-36VDC
Pin # 3 not used
AC Input
The FreeStyle 140 LED DMX
Controller is powered AC and includes
an IEC connection. It also includes a
12ft power cord with a locking IEC
connector.
The FreeStyle 140 LED DMX has a
built-in power supply with universal
input from 100-240VAC.
Ambient Operating Temperature
The FreeStyle 140 LED DMX is designed
to operate at temperatures from
14°F to 104°F (-10°C to 40°C).
Note:
A low voltage warning will display
if input DC voltage is under 18VDC.
Photo example: LOW VDC: 16
6

7
FreeStyle Fixture Assembly
FreeStyle Tube Assembly
The FreeStyle T44/T24 ixture
is comprised of a Louver,
Relector and Tube Harness.
The Louver and Relector
are held in place with Velcro
fasteners. The Tube Harness
is secured by means of a
¼ turn fastener.
The FreeStyle Relector has a unique
design to accommodate the aluminum
channel on the back of the FreeStyle
tube. It provides even light distribution
and maximizes light output. In addi-
tion, it acts as a heatsink and allows
the FreeStyle Tubes to run cooler.
The FreeStyle Tubes can operate outside
the ixture with just the harness. FreeStyle
Tube systems are available in 4ft and 2ft.
MTP-F101

8

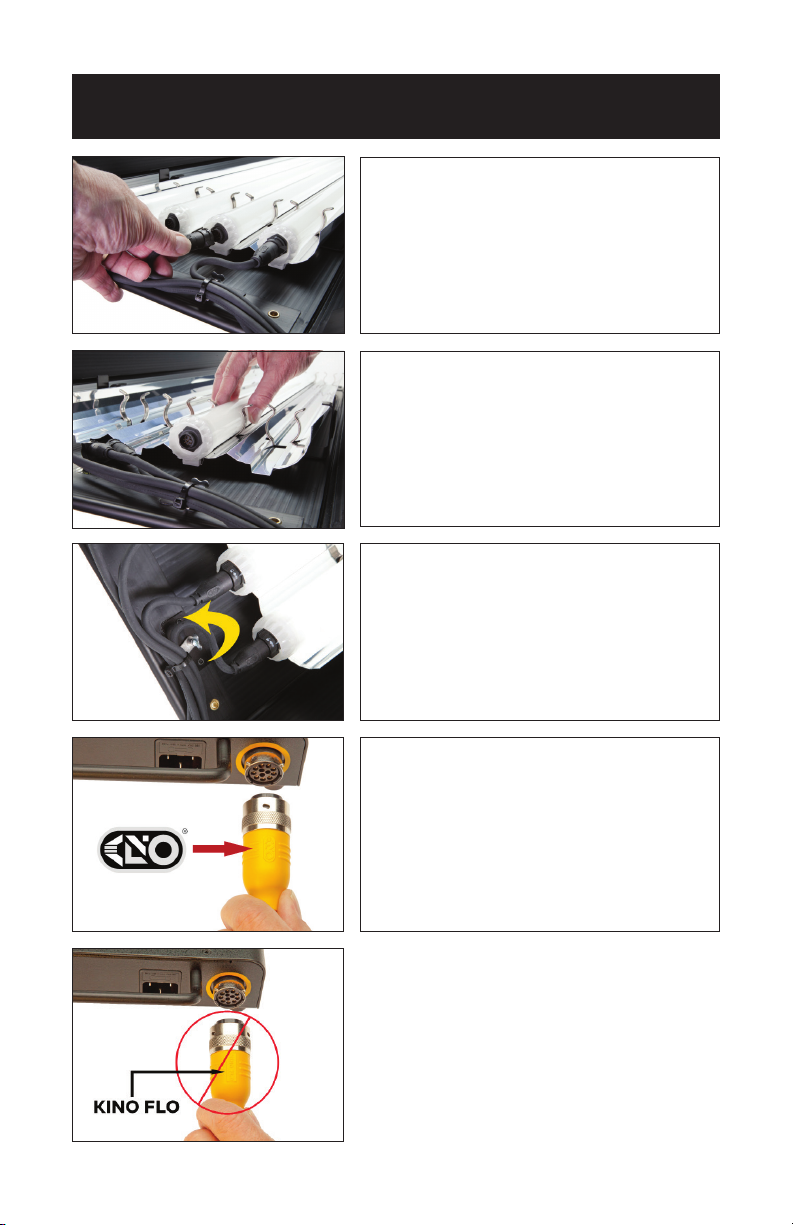

FreeStyle Harness
FreeStyle Harness:
Align arrows on harness connector with
tube. Push and click into place. To remove
harness connector, turn locking ring to the
left and pull.
Push tubes into the ixture’s tube holder
clips. The tubes can operate independent
of the ixture allowing them to be built
into sets or custom soft boxes or hand-
held as a single tube for an eye-light.
To Release the Tube Harness
Rotate the ¼ turn fastener clockwise to
release harness.
The harness connects directly to the
controller. Connect the harness to the
controller. Align the key ways on the
harness connector with the oval Logo at
the top with the circular receptacle on the
ballast. Rotate the silver locking ring until
it clicks into the lock position.

9

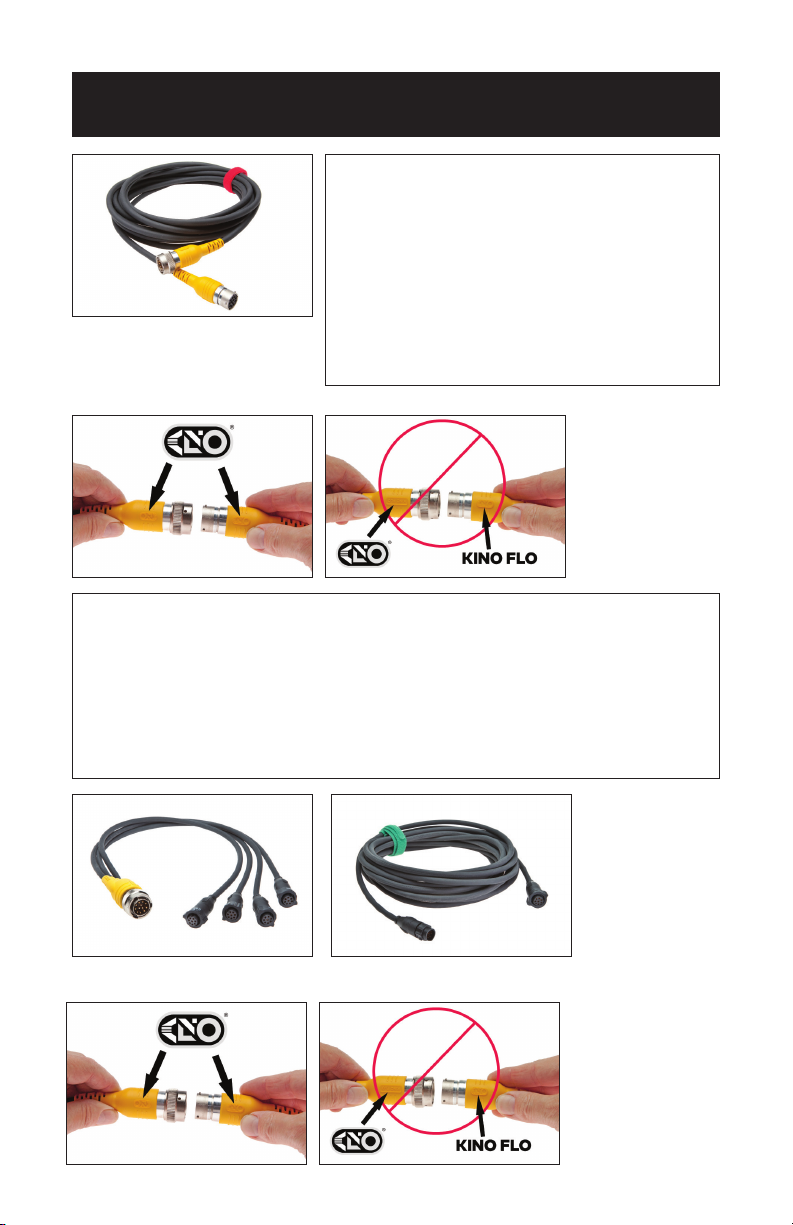

The FreeStyle LED ixture can operate
remotely from the controller with the
extension cable up to 50ft (2 x 25ft).
Remote operation of the controller provides
more rigging options.
To connect Harness to Extension Cable,
align oval Logos on the Harness and Exten-
sion. Rotate the silver locking ring until
it clicks into the locked position.
The FreeStyle Tubes can operate outside the ixture with just the harness.
For further versatility, a splitter (X12-A4) and FreeStyle Single extension cables
(X08-F125) (x4) (both sold separately) can be used to operate the tubes
remotely. FreeStyle Tube systems are available in 4ft and 2ft.
To connect Harness to Adapter Cable, align oval Logos on the Harness and
Adapter Cable. Rotate the silver locking ring until it clicks into the locked
position.
Extension Cable
X12-F425
X12-A4 X08-F125

10
Mounting Controller
The Controller can be mounted to a
stand with a ballast mount accessory,
MTP-BAL1 and mafer clamp.
MTP-BAL1

11
Mounting the Fixture
The standard mount (MTP-KG41) comes with a
3/8” Lollipop that clamps into a grip head. The ball
and socket mount allows the xture to be oriented in
a broad range of angles.
Align the center pin of the mounting plate to the
center hole on the mating plate.
Rotate plate clockwise until the four shoulder rivets
drop into the receptacle. A locking pin will snap into
place when the plate is properly seated.
The yellow wire loops provide attachment points for
a safety chain.
To remove the plate, pull up on the locking pin and
reverse the mounting procedure.
Lollipops are interchangeable.
MTP-L Kino 41 Lollipop w/ 3/8” Pin (10mm)
MTP-LBC Kino 41 Lollipop w/ Baby Rcvr Curve
(16mm)
MTP-LBS Kino 41 Lollipop w/ Baby Rcvr Short
(16mm)
Turn the knob to loosen or tighten the mount.

12

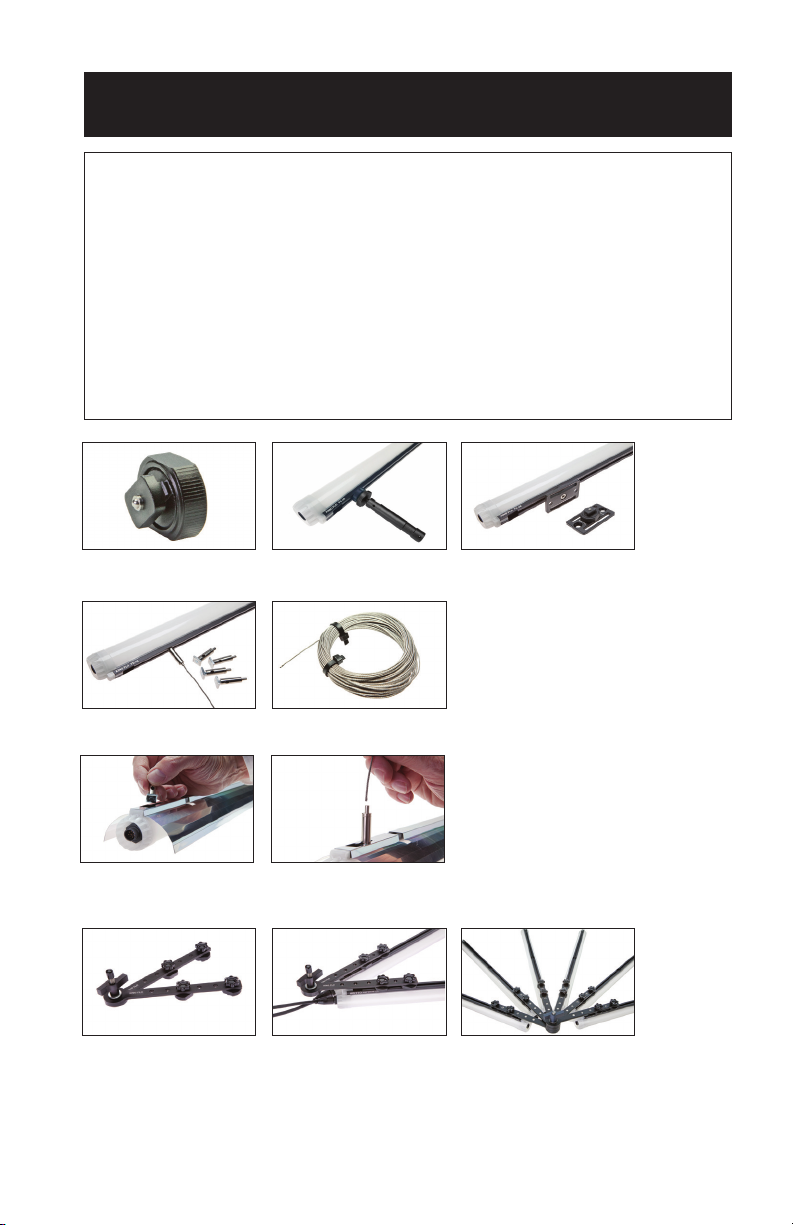

Mounting LED Tubes
FreeStyle LED Tubes can operate inside the ixture or independently with only
the wiring harness. The LED Tubes have an aluminum rail that can be used as
an access point for mounting accessories:
MTP-F100 FreeStyle Tube Mount – Anchor
MTP-F101 FreeStyle Tube Mount – Baby Pin
MTP-F102 FreeStyle Tube Mount – Wall Plate
MTP-F103 FreeStyle Tube Mount – Hanging Kit 4pk (Wire not included)
MTP-F103W FreeStyle Tube Mount – Hanging Wire, 50ft
MTP-F105 FreeStyle Tube Mount – Combiner
MTP-F200 FreeStyle Tube -Ball Mount
MTP-F201 FreeStyle Tube - Floor Stand
Insert into T-slot. Insert wire all the way down. Pull up wire until it latches.
Press down pin to release wire.
The FreeStyle Tube Mount Combiner (MTP-F105) can mount two LED tubes.
Insert into T-slot and tighten thumbscrew. Several Combiners can be combined
for custom rigging applications.
MTP-F100
MTP-F103
MTP-F105
MTP-F103W
MTP-F101 MTP-F102

13

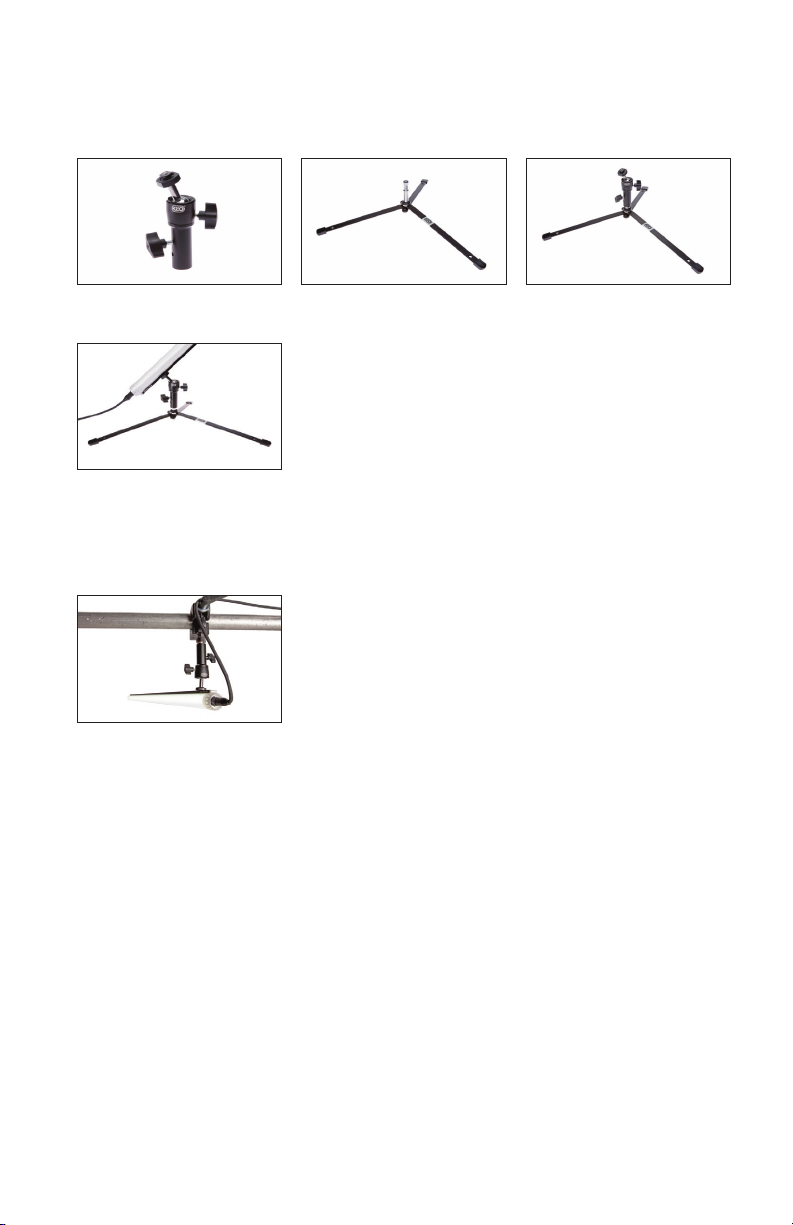

The FreeStyle Tube Ball Mount (MTP-F200) can also be used in conjunction with a
baby pipe clamp.
The FreeStyle Tube Ball Mount (MTP-F200) includes a baby receiver and
works together with the FreeStyle Tube Floor Stand (MTP-F201) which includes
a baby pin.
MTP-F200 MTP-F201

Applying Louver
Applying Flozier
The Louver is fastened to the ixture with 4 Velcro straps.
Remove Louver. Stretch two elastic cords
around ixture. Take up slack on both
elastic cords.
Expand the barndoors to Smooth out the
face of the Flozier and eliminate wrinkles.
14

15

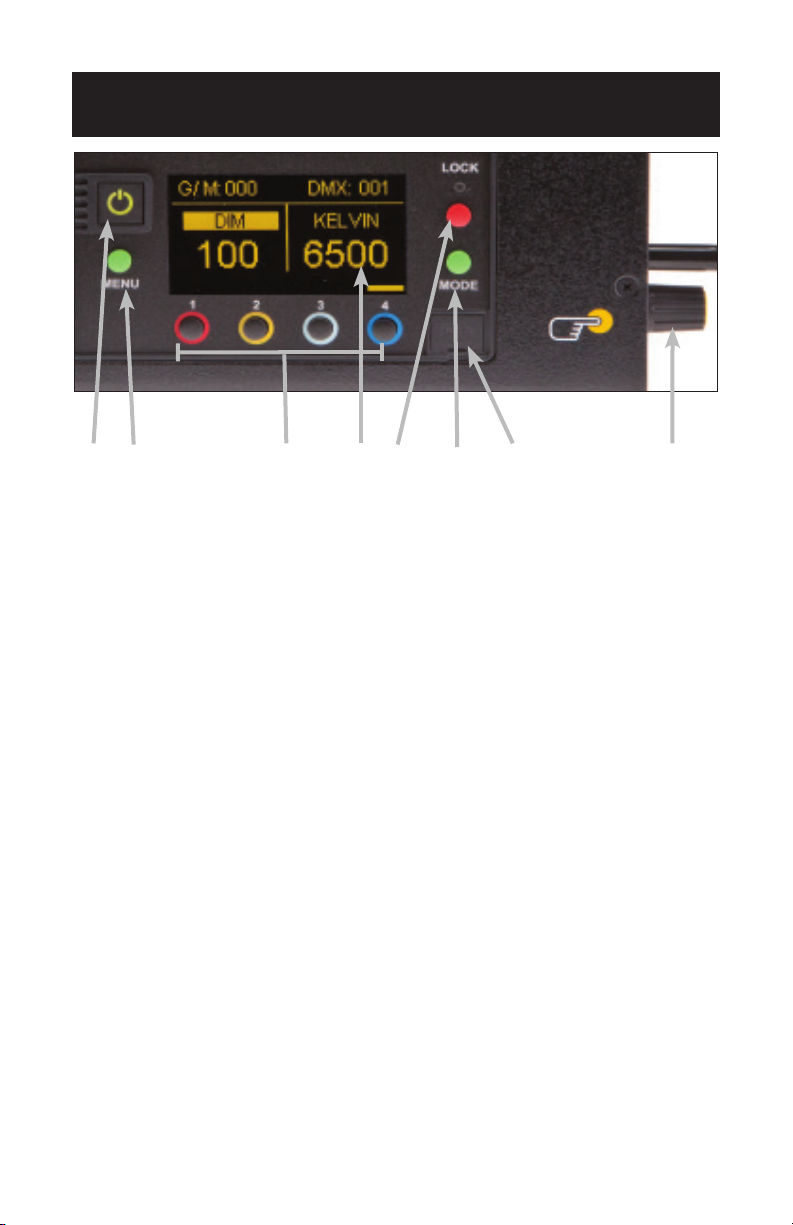

A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls
the light source.
B) Menu: Provides access to menu options such as General settings, Reset,
DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
C) Preset Buttons: Factory defaults left to right are: 2700K, 3200K, 5000K and
6500K. G/M default value is 000. User can also use these preset buttons to
store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and Control knob.
Press for 3 seconds to restore displayed presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
G) Data Port: Mini B USB for irmware updates.
H) Control Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the Control knob to toggle between Fine and Coarse increments or
when selecting options within menus.
DMX Note: The LED-140X has an “AUTO TERMINATE” feature.
The last ixture that does not have an XLR cable attached to the DMX “Out” port
will automatically terminate.
Control Panel - White Mode
ABCEFGH

16

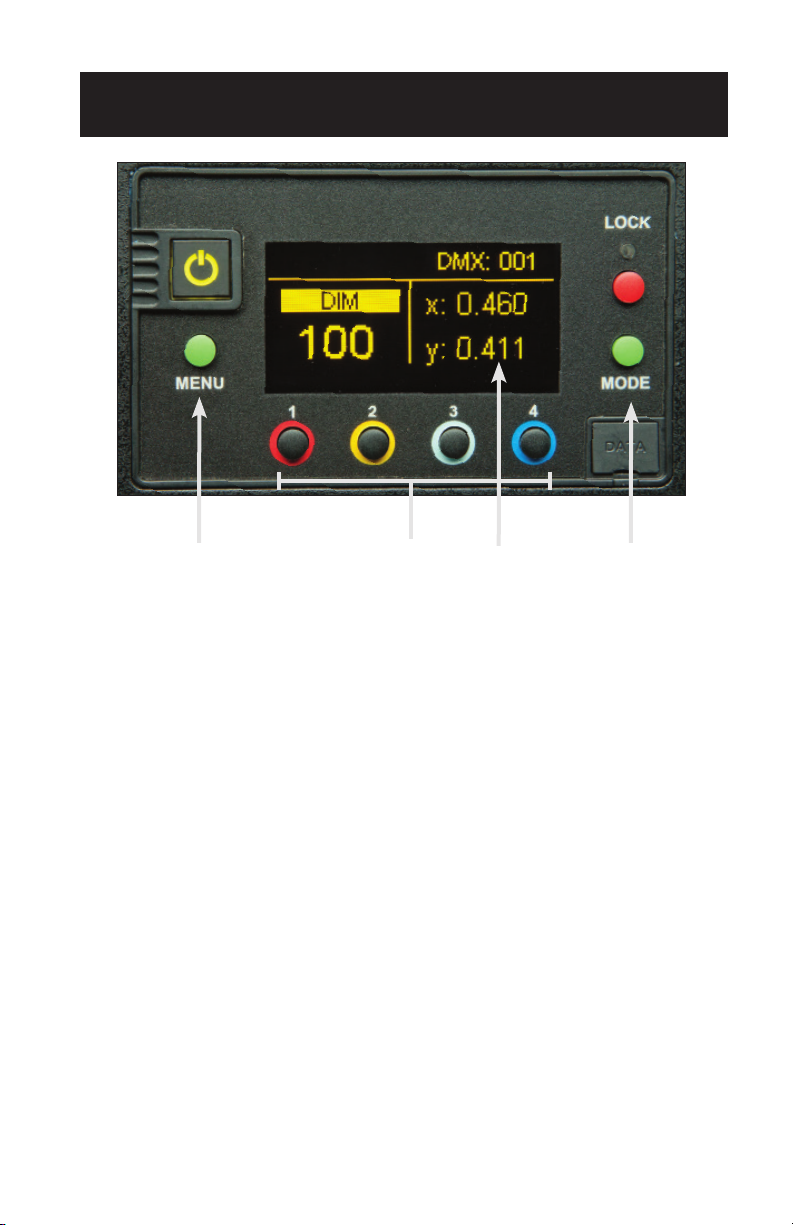

Control Panel - Gels/Hue Mode
A DCB
A) Menu:
Provides access to menu options such as General settings (Gels/Hue Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to store
custom Kelvin between 2500K and 9900K and custom G/M, Gel, Hue and
Saturation settings.
C) Display:
Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and
DMX channel. Factory reset will show: Dim = 10%, Kelvin = 2700K,
G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation settings.
When on the Gel function, pushing the Control knob in/out will apply the gel or
remove the gel. When in sub-menus, pressing Mode always returns you to
main display. When DMX is applied, use Mode to access DMX channel on
main display. Shortcut Tip: Long press will bring you back one step.
Gels/Hue Mode

17
A DCB
Control Panel - RGB Mode
A) Menu:
Provides access to menu options such as General settings (RGB Mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold for 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
G/M default value is 000. User can also use these preset buttons to
store custom Kelvin between 2500K and 9900K and custom G/M, and
RGB settings.
C) Display:
Provides access to Dim, Kelvin, G/M, RGB and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
D) Mode:
Press to navigate from Dim to Kelvin, G/M, RGB settings.
When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Shortcut: Long press will bring you back one step.
RGB Mode

18
CIE xy Mode
Control Panel - CIE xy
A) Menu:
Provides access to menu options such as General settings (CIE xy mode),
Reset, DMX, DMX Wireless, Camera LUT and Color Space.
Shortcut: While on control screen, press and hold or 3 seconds to switch
through menus (White, Gels & Hue, RGB, CIE xy and FX).
B) Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K.
User can also use these preset buttons to store custom xy settings.
C) Display:
Provides access to Dim, CIE xy coordinates and DMX Channel.
Factory reset will show: Dim = 10%, x = 0.460 , y = 0.411, G/M = 000,
DMX = 001.
D) Mode:
Press to navigate from Dim to xy settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied,
use Mode to access DMX channel on main display. Shortcut: Long press
will bring you back one step.
DA C
B

19
FX (Effects) Mode

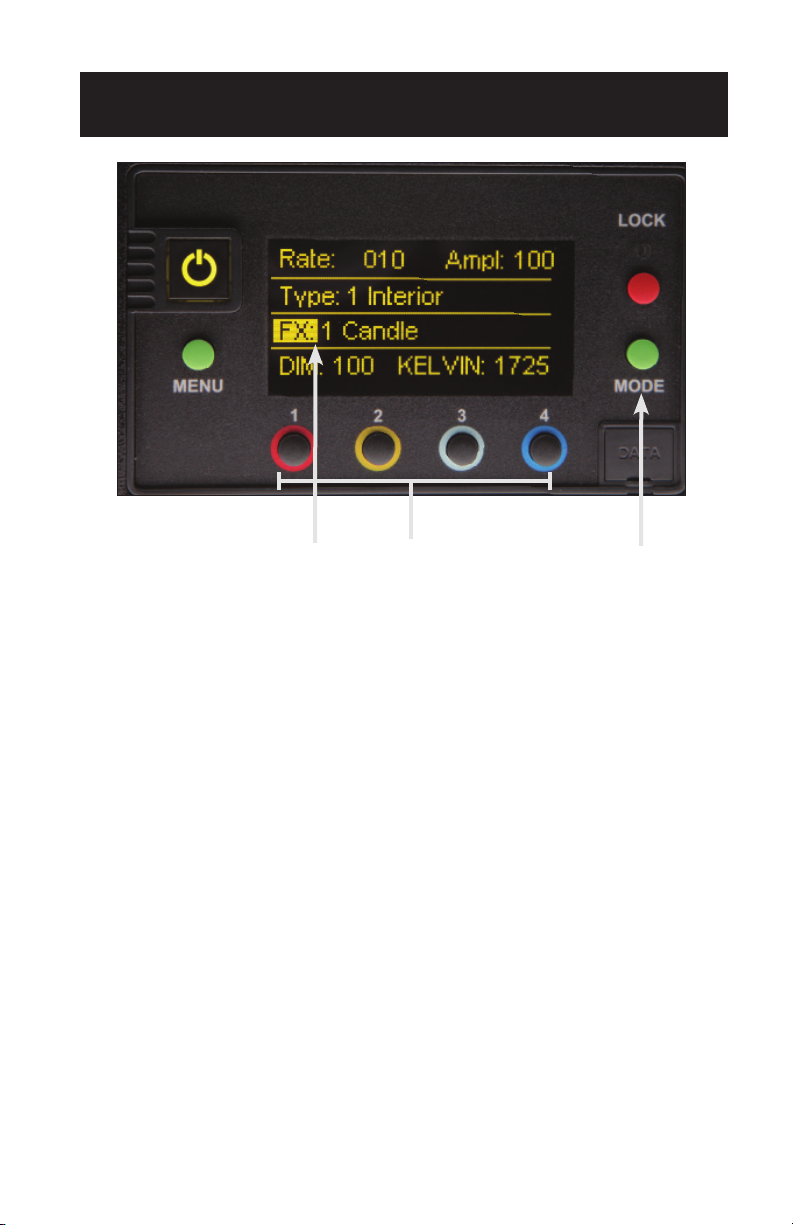

Control Panel - FX (Effects)
FX mode provides access to effects including Candle, Fire, TV, Police, Lightning,
Paparazzi, Pulse and Scroll. Candle mode used as an example:
A) FX Option:
Choose the desired FX Mode by rotating the control knob. When on the
desired effect, there will be several pre-programmed effects as well as control
parameters that can be altered.
B) Preset Buttons:
In FX Mode, Kelvin custom settings and any control functions displayed such
as Rate and Amplitude (Ampl) can be saved as a preset. Chosen values can
be assigned to any preset button by holding down the desired button for
3 seconds. The Kelvin display will lash once the setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets. This method will reset all buttons in all Modes.
Shortcut: If only want to clear presets for Candle Mode, hold Lock button
for 3 seconds while Candle mode is displayed.
C) Mode:
Press to navigate from Dim to Kelvin and FX settings.
Shortcut: Long press will bring you back one step.
A C
B

20
The Camera LUT (Look-up Tables) feature harmonizes the Kino Flo light
sources to the camera. Depending on the camera and the Kelvin setting,
some differences are very subtle, while others can be more dramatic.
The corrections are applied as a CIE xy correction at each CCT (Kelvin) setting.
The default setting is targeting the CIE xyz response (human eye).
Press the green menu button to the left of the display screen and scroll down to
Camera LUT, then press the control knob. Menu with camera selection will be
displayed. Turn the control knob and press to select camera setting:
C1 Arri Alexa
C2 Sony Venice
C3 Panavision DXL
C4 Panasonic Varicam
The camera code (C1 for Arri Alexa), for example, will appear on the main menu
between DIM and CCT to designate that a camera setting is active.
Note: When the controller is reset, the camera settings will go to Kino Flo
Default mode.
Camera LUT
