Kirsch Basics Cellular Shades User manual

BasicsCellular Shades
Clutch Control System Installation Instructions
GETTING STARTED
Tools You Will Need ...................................................................................................................................................... 2
Parts................................................................................................................................................................................ 2
INSTALLATION
STEP 1: Mounting the Brackets.................................................................................................................................. 2
Inside Mount .............................................................................................................................................................. 3
Outside Mount........................................................................................................................................................... 3
STEP 2: Installing the Shade ....................................................................................................................................... 4
Mounting the Headrail.............................................................................................................................................. 4
Mount and Attach the Cord Tensioner ................................................................................................................... 4
STEP 3: Attach Hold-Down Brackets (Optional)....................................................................................................... 4
Adjusting the Shade...................................................................................................................................................... 4
OPERATION
STEP 4: Operating the Clutch Control Shade ........................................................................................................... 5
Troubleshooting ............................................................................................................................................................ 5
CARE
Removing the Shade, If Necessary .............................................................................................................................. 6
Cleaning Procedures ..................................................................................................................................................... 6
CHILD SAFETY WARNING......................................................................................................................................... 7
WARRANTY.................................................................................................................................................................... 8
Rev. A 8/3/20

2
GETTING STARTED
Thank you for purchasing the Kirsch®Basics Cellular Shade Collection. This shade has been custom built for you from the highest
quality materials. To avoid errors and save valuable time, please read these instructions before installing your new shade.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
Tools You Will Need
■ Pencil or Marker ■ Measuring Tape
■ Phillips Screwdriver ■ Carpenter's Level
■ Power Drill ■ Mounting Fasteners
Parts
All the required installation components are wrapped and packaged with these instructions. Check that the parts you have
correspond to the parts shown below.
NOTE: Some parts may vary depending upon your chosen shade system or mounting option.
■ Installation Brackets
■ Spacer Blocks (optional)
■ Extension Bracket (optional)
■ Cord Tensioner Bracket & Instruction Pack (shades only)
■ Hold Down Brackets (optional)
■ Screws
STEP 1: Mounting the Brackets
The installation brackets may be for INSIDE or OUTSIDE mounts.
■ Mounting the brackets level is essential for proper operation of the shade. Shim the brackets if necessary to achieve a level
alignment.
■ The bracket requirements and placements are the same for inside and outside mounts. Refer to the following spacing diagram
and bracket requirement chart.
INSTALLATION
Shade Width Brackets
Required
18" to 38" 2
38-
1
⁄ 8 " to 72" 3
72-
1
⁄ 8 " to 106" 4
106-
1
⁄ 8 " to 140" 5
140-
1
⁄ 8 " to 174" 6

3
INSTALLATION
INSTALLATION
Inside Mounts
For inside mounts the installation brackets will be screwed in place through the top two holes of each bracket. Refer to the
mounting depth chart below.
NOTE: Prior to mounting the brackets, add any clearance depth required to avoid obstructions such as window cranks or
handles.
■ Attach the brackets.
➤ Screw installation brackets through top two holes to desired window sill location.
➤ Ensure all brackets are level and aligned.
Outside Mounts
For outside mounts the standard installation brackets will be screwed in place through the two back holes of each bracket. Refer to
the minimum surface height chart below.
Standard Brackets
■ Screw standard brackets through two back holes to desired location.
■ Ensure all brackets are level and aligned.
Extension Brackets (Optional)
■ Position the extension brackets to the desired wall location.
■ The bracket tops must be aligned and level to one another.
■ Mount the extension brackets through the back holes with two screws.
■ Attach installation brackets to extension brackets with included screws & nuts.
NOTE: Use the same holes for all brackets to ensure even projection from the surface.
Side Mount with Extension Brackets (Optional)
■ Measure from window sill up to desiredmounting position on each side of thewindow
frame.
■ Mark position.
■ MountExtension Brackets on each side ofwindow frame, as shown.
■ Make sureto confirm that the headrail will sit perfectly level.
■ Once the ExtensionBrackets are installed and properlypositioned, attach the mounting
bracketsusing the nuts and bolts provided.
Minimum Depth Fully Recessed
3
⁄ 4 " 2-
1
⁄ 8 "
Minimum Height
1-
1
⁄ 2 "

4
INSTALLATION
INSTALLATION

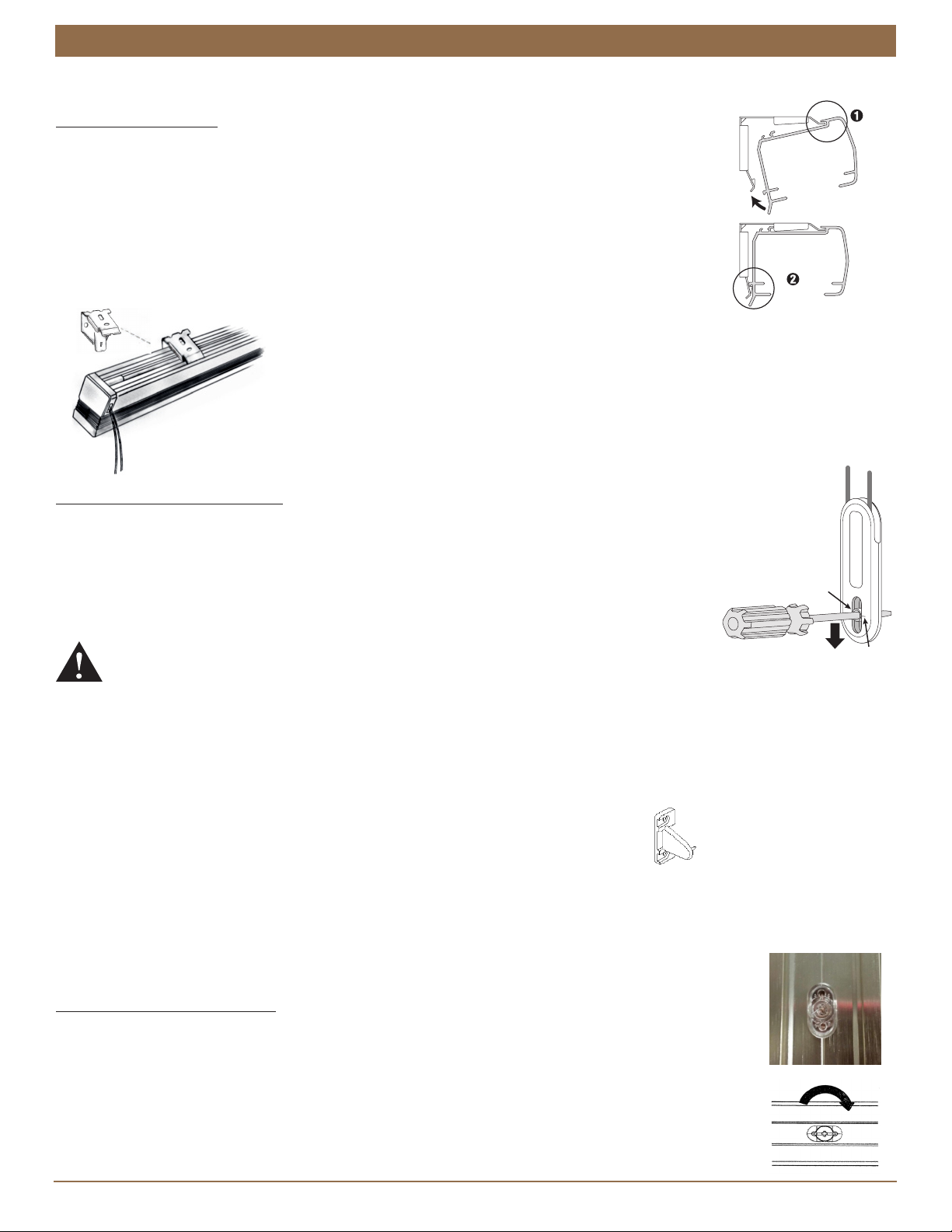

Step 2: Installing the Shade
Mounting the Headrail
■ Fit the front channel on top of the headrail onto the front lip of the installation brackets.
■ Push the headrail up and back until it snaps into place.
■ Check to ensure the headrail is securely in the brackets.
➤ Check that the bottom of the headrail is snapped into the base of each bracket.
➤ Check that the front lip of each bracket is in the front channel of the headrail.
■ If any brackets are not installed correctly, release the shade and reinstall. See “Removing the Shade,
If Necessary” on page 6.
For Clutch Contol Shades (Only)
Mount and Attach the Cord Tensioner
Before doing anything, you must first slide the cord tensioner to the bottom of the cord loop.
■ Insert a small screwdriver, punch, or awl through the screw hole at the bottom of the cord
tensioner.
■ Move the screw hole down to the indicator line to release the safety mechanism.
WARNING: It is mandatory that the cord tensioner(s) be properly secured to the wall or
window frame to reduce children’s access to the cord loop. Young children can wrap cords
around their necks and strangle.
CAUTION: The shade will not operate properly unless the cord tensioner is secured. A cord tensioner installation kit has been
included with your shade. Follow the instructions in the kit to correctly secure the cord tensioner.
IMPORTANT: Locate the tensioner as close to the window as possible to minimize accessibility by children and pets. Ensure
that the tensioner is not placed in the path of the shade material.
Step 3: Attach Hold-Down Brackets (Optional)
■ Lower the shade and place the hold down pins into the bottom rail end caps.
■ Mark the hold down bracket locations on the mounting surface.
■ With the brackets level, attach hold-down brackets to mounting surface using two screws.
Adjusting the Shade
■ Raise and lower the shade several times.
■ If the length is incorrect or the bottom rail is not level, use the following steps to correct.
Bottom Rail Shade Adjustment
■ Lift bottom rail on the side to be adjusted. This will take the weight off the cord.
■ Use a screwdriver or dime to adjust the bottom rail until it becomes level and reaches the correct length.
➤ Turn screw clockwise to lift that side of the shade.
➤ Turn screw counter clockwise to lower that side of the shade.
➤ Half a revolution is
1
⁄ 4 " adjustment (maximum adjustment is
1
⁄ 2 ").
NOTE: if adjusting height of a level bottom rail, repeat this process on the opposite side of bottom rail to
maintain level.
Screw
Hole
Indicator
Line
The back
of the headrail
snaps into the bracket.
The front of the bracket
fits under the groove.
Headrail
Bracket
Snap
in Place

5
INSTALLATION
INSTALLATION

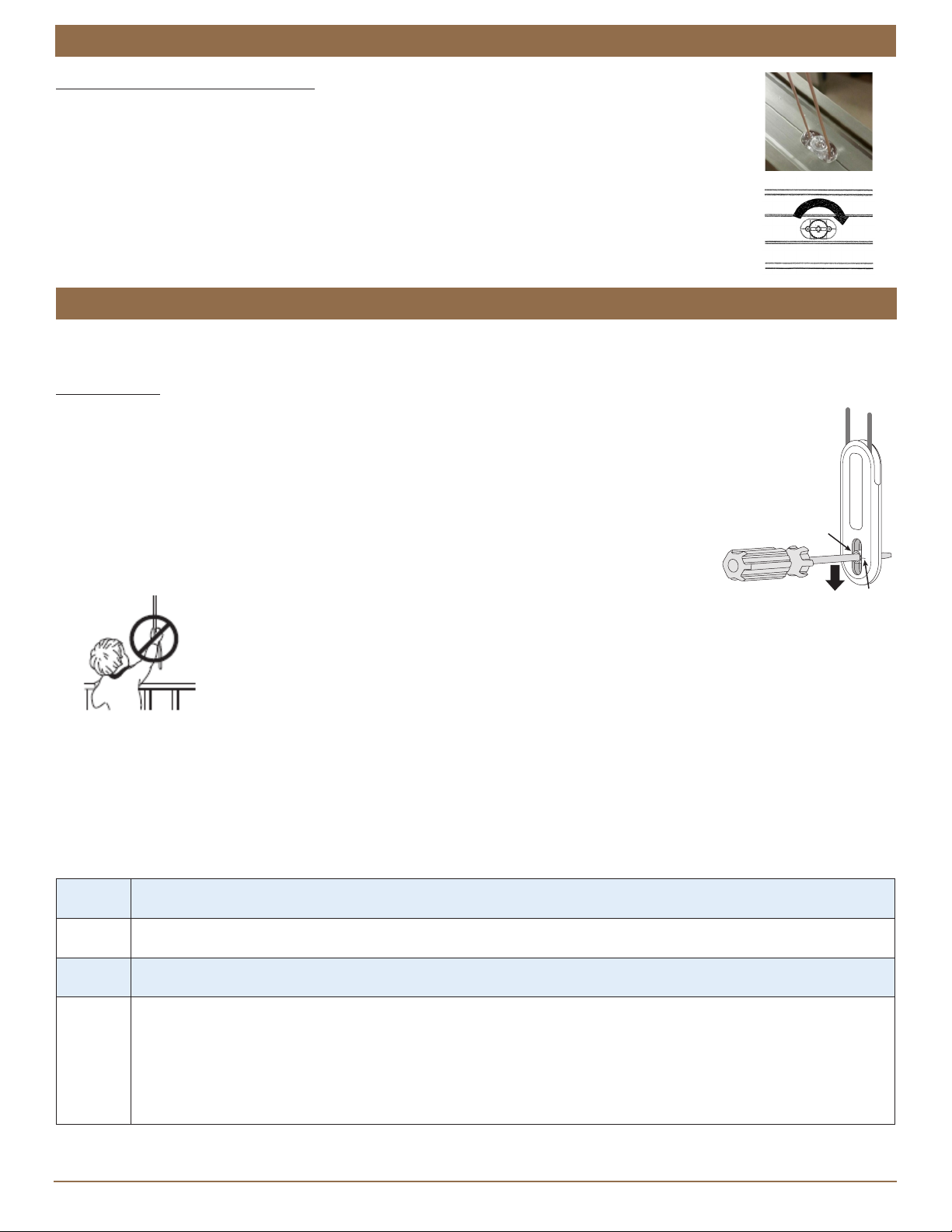

Intermediate Rail Shade Adjustment
■ Lift intermediate rail on side to be adjusted. This will take the weight off the cord.
■ Use a screwdriver or dime.
➤ Turn screw clockwise to lift that side of the rail.
➤ Turn screw counter clockwise to lower that side of the rail.
➤ Half a revolution is
1
⁄ 4 " adjustment (maximum adjustment is
1
⁄ 2 ").
NOTE: if adjusting height of a level bottom rail, repeat this process on the opposite side of bottom rail
to maintain level.
Step 4: Operating the Clutch Control Shade
Clutch Control
To Raise and Lower the Shade
■ Pull down on the cord loop to raise and lower.
■ One side of the loop will raise the shade and one side will lower it.
■ If the same cord is continuously pulled after lowering, the shade will begin to rise.
NOTE: Do not raise shade any higher than it was intended to go. If shade doesn’t raise evenly, in
most cases lowering it completely will allow cords to re-align on the spool.
CAUTION: The shade will not operate properly unless the cord tensioner is secured. A cord
tensioner installation kit has been included with your shade.
Troubleshooting
If your shade is not operating correctly:
■ First review the guide that came with your control device.
■ Refer to the following troubleshooting procedures for specific solutions for your shade.
If questions remain, please contact Kirsch®at 844-KIRSCH2 (844-547-7242).
Problem The shade will not snap into the installation brackets.
Solution Check that the installation brackets are aligned and level.
Problem The shade is hard to raise or lower, or will not raise or lower.
Solution Shades cannot be forced into tight inside mount window openings. If an inside mount, check that the shade is
installed correctly. Make sure there is clearance between the ends of the shade and the window casement.
Check that the installation brackets are level. Shim to level, if necessary.
If hold-down brackets are used, make sure they have been released.
Make sure the fabric is not caught.
Screw
Hole
Indicator
Line
OPERATION

6
INSTALLATION
OPERATION
Problem The shade raises or lowers unevenly or the bottom rail is uneven.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim to level, if necessary.
Adjust the cords under the bottom rail (see "Adjusting the Shade" on page 4).
Problem The cord tensioner grabs onto the cord upon operation.
Solution Check that the cord tensioner is mounted properly. Reinstall, if necessary. Refer to the Universal Cord Tensioner
Installation Instructions included with your cord loop shade.
Problem Important information regarding cordless shade operation.
Solution Daily operation of shade will ensure that it performs at its optimal level.
If the shade is in the lowered position for an extended period of time, extra care needs to be taken when raising the
shade. The fabric will relax and may resist liing. This is a natural occurrence with all fabric shades. When liing, you
may notice the billowing (falling out) toward you. This is temporary and can be corrected by slowly raising the shade
completely and then operating several times. This allows the fabric to go back to its pleated state, and the shade will
operate as designed.
If shade has been in the fully raised position for an extended period of time, it may have a tendency to “spring back”
above the desired length of the shade. This is temporary and can be corrected by completely raising the shade and
operating several times.
Operating the shade with the handle(s) provided is recommended so that the shade is balanced when raising and
lowering.
Removing the Shade, If Necessary
■ Lower the shade approximately 4".
■ While holding the headrail, push back on the bottom tab of the installation
bracket with a flat head screwdriver to release the bottom of the headrail.
■ Then roll the back of the headrail down and out from the bracket.
Cleaning Procedures
Kirsch®Basics Cellular Shades are made of anti-static, dust-resistant fabric which repels dirt and dust. For most cellular fabrics, the
following cleaning options are available.
Dusting
■ Regular light dusting with a feather duster is all the cleaning that is needed in most circumstances.
Vacuuming
■ Use a hand-held vacuum with low suction for more thorough dust removal.
Spot-Cleaning
Use the following steps for spot cleaning:
■ Prepare a solution of warm water and mild dishwashing detergent.
■ Dampen a clean cloth in the solution and wring it out.
■ Dab the spot with the dampened cloth until it is removed. Do not rub the fabric.
■ Allow the shade to dry in the completely lowered (or closed) position.
CAUTION: Avoid creasing Opaque fabrics during cleaning.
Headrail
Bracket
Back
of
Shade Remove
Bottom
Tab
CARE

7
INSTALLATION
CHILD SAFETY

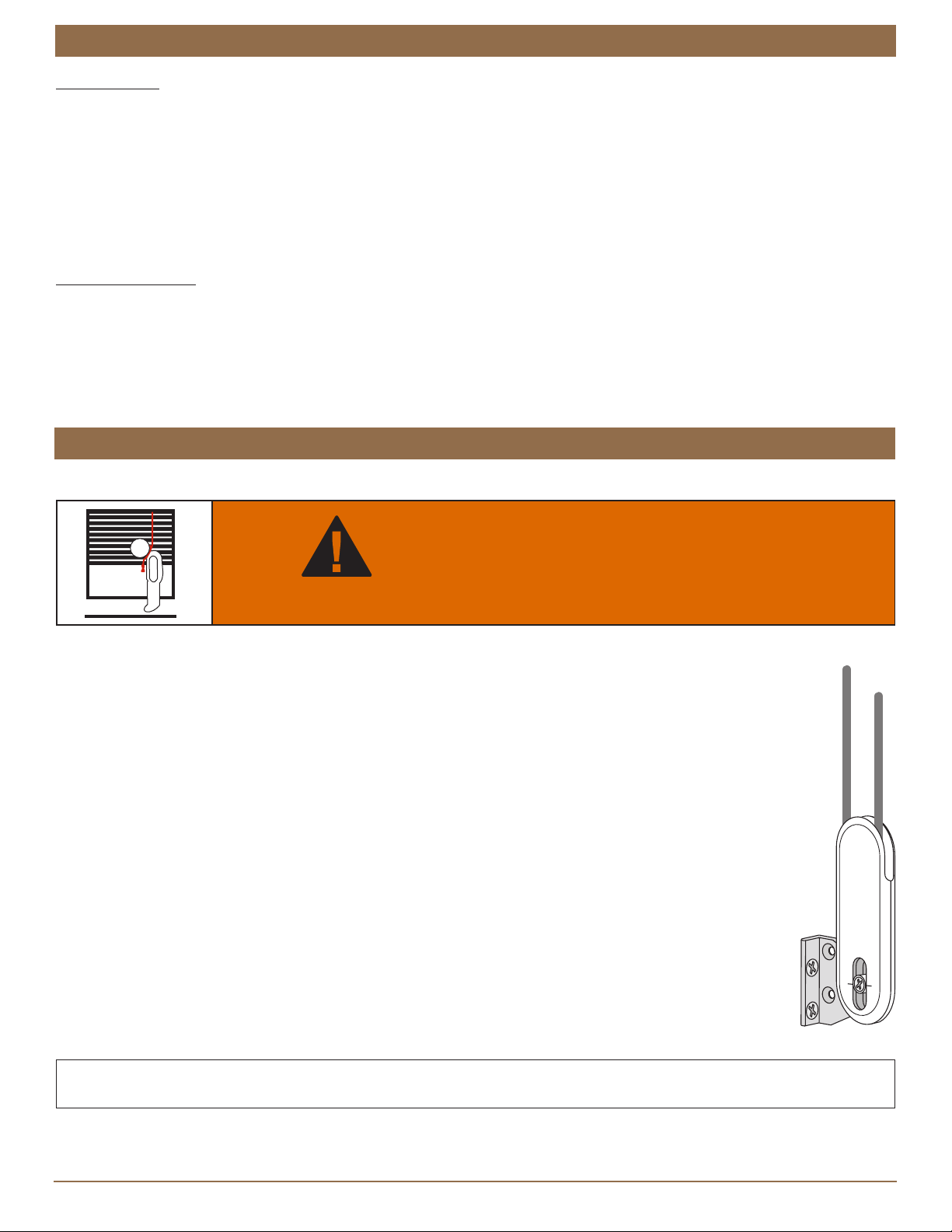

Deep Cleaning
Use the following steps for deep cleaning:
■ Immerse the shade in a basin or bathtub filled with warm water and a mild detergent.
■ Rinse with clean water.
■ Before removing from the basin or bathtub, fully raise the shade and tilt it to allow excess water to drain off.
■ Reinstall damp shade, lower it, and let it dry completely.
CAUTION: Do not immerse Opaque fabrics.
CAUTION: Do not immerse the headrail or any fabric-wrapped rail.
Ultrasonic Cleaning
Standard shades, except those made with Opaque Lining, can be ultrasonically cleaned by a professional.
■ Specify that a mild detergent be used.
CAUTION: Never immerse the headrail or any fabric-wrapped rail in the solution.
■ Dry the shade completely in the lowered position.
CAUTION: Do not ultrasonically clean Opaque fabrics.
■ Window Blind Cord Can STRANGLE Your Child.
■ Children can climb furniture to reach cords. Move crib and furniture away.
■ Keep all cords out of children’s reach.
Cord Loop Shades
■ Attach the cord tensioner on the cord loop to the wall or window casement. See “Mount and Attach
the Cord Tensioner” on page 4. This can prevent children from pulling cord loops around their
necks.
■ Kirsch®provides a cord tensioner installation kit with instructions for attaching the cord tensioner.
For the shade to operate properly, the cord tensioner must be correctly mounted and secured.
■ Fasteners provided in this kit may not be appropriate for all mounting surfaces. Use appropriate
anchors for the mounting surface conditions.
■ Only Kirsch supplied cord tensioners and hardware should be used. Replacement parts may be
obtained by contacting Kirsch Consumer Support at 844-KIRSCH2 (844-547-7242).
WARNING
For more safety information, call 844-547-7242.
NOTE: The warning labels on the bottom rails of corded window coverings contain important safety information. In
accordance with industry safety standards, the warning labels are designed to be permanent and must not be removed.
CHILD SAFETY

8
WARRANTY
Warranty
© 2020 Kirsch Custom Window Coverings. All rights reserved. All trademarks used herein are the property of Kirsch or their respective owners. 07/20
Kirsch® is pr
oud to extend a 10-year limited warranty on all Kirsch Custom Window Covering products. This is part
of our commitment to providing the highe
st quality products, which has been our continued tradition since 1907.
COVERED
by a 10-Year
Limited Warranty
•
Kirsch Custom Window Covering products are
covered for defects in materials, workmanship
or failure to operate for 10 years from the
date of purchase (unless a shorter period is
provided below), provided that the original retail
purchaser continues to own the product.
•
All internal mechanisms.
•
Fabric delamination.
•
Components, brackets and operational cords.
•
Repairs and/or replacements will be made with
like or similar parts or products. Fabric style, color
or components may vary depending on original
purchase date.
•
Kirsch automation components are covered for
5 years from the date of purchase.
NOT COVERED
by a 10-Year
Limited Warranty
• Any conditions caused by normal wear and tear.
• Abuse, accidents, misuse or alterations to the
product.
• Exposure to the elements (sun damage, wind,
water/moisture, salt air) and discoloration or
fading over time.
• Normal maintenance associated with motors
and related accessories including, but not limited
to, recharging and replacement of batteries.
• Failure to follow our instructions with respect
to measurement, proper installation, cleaning
or maintenance.
• Shipping charges, cost of removal and
reinstallation.
Kirsch (o
r its licensed fabricator/distributor) will repair or replace the product or components found to be defective.
TO
OBTAIN WARRANTY SERVICE:
•
Contact your original dealer (place of purchase) for warranty assistance.
•
Contact Kirsch at 844-KIRSCH2 (844-547-7242) for technical support, certain parts free of charge, for
assistance in obtaining warranty service or for further explanation of our warranty.
NO
TE: In no event shall Kirsch or its licensed fabricator/distributor be liable or responsible for incidental or
consequential damages or
for any other indirect damage, loss, cost or expense. Some states do not allow the
ex
clusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to
yo
u. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
10-
Year Limited Warranty
