Kirsch Woven Wood Automation III User manual

Woven Wood Collection
Automation III Installation Instructions
Rev. D 5/3/22

2
CONTENTS
GETTING STARTED................................................................................................................................................... 3
Product View – Bottom-Up ............................................................................................................................................... 3
Tools and Fasteners Needed............................................................................................................................................. 4
Installation Overview ........................................................................................................................................................ 4
INSTALLATION.......................................................................................................................................................... 5
STEP 1 — Install the Brackets ........................................................................................................................................... 5
Mount the Shade Installation Brackets — Inside Mount............................................................................................... 6
Mount the Shade Installation Brackets — Outside Mount............................................................................................ 8
Mount the Brackets — Optional Cornice Valance .......................................................................................................... 9
STEP 2 — Mount the Battery Wand (If Applicable) ..................................................................................................... 11
STEP 3 — Install the Shade ............................................................................................................................................. 12
STEP 4 — Connect the Power Source............................................................................................................................ 14
18V DC Power Supply...................................................................................................................................................... 16
Testing the Shade ............................................................................................................................................................ 17
OPERATION ............................................................................................................................................................. 18
Operating the Automation App and Automation III Remote ..................................................................................... 18
Resetting the Shade (If Necessary)................................................................................................................................ 19
TROUBLESHOOTING ............................................................................................................................................. 21
CARE.......................................................................................................................................................................... 25
Removing the Shade (If Necessary) ............................................................................................................................... 25
Cleaning Procedures ........................................................................................................................................................ 25
DECLARATIONS ...................................................................................................................................................... 26
CHILD SAFETY......................................................................................................................................................... 27
WARRANTY ............................................................................................................................................................. 28

3
GETTING STARTED
Product View – Bottom-Up
NOTE: Top-Down/Bottom-Up shades are not shown (not available in CA).
UltraGlide® Shade
Installation
Brackets
Not shown: Top-Down/Bottom-Up shades

4
GETTING STARTED
Thank you for purchasing Kirsch®Woven Wood Shades with Automation III. With proper installation, operation, and care, your new
shades will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
Tools and Fasteners Needed
■ Flat blade and Phillips screwdrivers
■ Measuring tape and pencil
■ Level (laser level is recommended)
■ Power drill,
3
⁄ 32 " drill bit, and ¼" hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 x
3
⁄ 4 " Hex Head Screws (Provided).
3
⁄ 4 " screws are provided to mount the L-bracket to the valance headboard.
■ #6 x 1½" Hex Head Screws (Provided). 1½" screws are provided for shade installation brackets and to attach the L-brackets to
the mounting surface for optional Cornice Valance.
■ Speed Nuts and Screws (Provided). If ordered, extension brackets come with speed nuts and screws.
■ #6 x 2" Hex Head Screws (Provided). If using spacer blocks, two 2" screws are provided per installation bracket.
Installation Overview
To install your shade, you will need to perform the following four steps:
STEP 1: Install the Brackets
STEP 2: Mount the Battery Wand (If Applicable)
STEP 3: Install the Shade
STEP 4: Connect the Power Source
Speed Nut
and Screw
#6 x 1½"
Hex Head Screw
#6 x 2"
Hex Head Screws
#6 x ¾"
Hex Head Screw

5
INSTALLATION
INSTALLATION
STEP 1 — Install the Brackets
■ The number of shade installation brackets required varies with headrail width, as shown in the table.
IMPORTANT: A
5
⁄ 8 " spacer block (provided) is required for outside mount shades using the battery wand clip. A 1" (provided)
spacer block is required for outside mount shades using the rechargeable battery wand.
Mounting Types and Window Terminology
If the shade installation brackets are mounted correctly, the rest of the installation process follows easily. To prepare for this
important first step, review the mounting types and basic window terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside Mount — page 6
➤ Outside Mount — page 8
➤ Outside Mount with Optional Cornice Valance — page 9
Installation
Bracket
Outside Mount
Spacer
Block
Inside Mount
Spacer
Block
Shade/Valance
Width
Brackets
Required
15" – 36" 2
36
1
⁄ 8 " – 72" 3
72
1
⁄ 8 " – 108" 4
108
1
⁄ 8 " – 120" 5
120
1
⁄ 8 " – 144" 6
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb

6
INSTALLATION
INSTALLATION
Mount the Shade Installation Brackets — Inside Mount
■ Mark 2" in from each jamb.
➤ With shades using one or two battery wands, there must be 16" between the edges of the two brackets on the motor end. If
there are more than 3 brackets, space remaining brackets evenly.
➤ For 18V DC Power Supply and Satellite Battery Pack(s). If more than two shade installation brackets came with your order,
space additional bracket(s) evenly between the two end brackets and mark their location. Mount into wood whenever
possible.
■ Center the brackets on your marks, then mark each of the screw holes.
➤ For fully recessed and minimum mounting depth based on your order options, see the illustration on the
next page.
➤ For shades with attached battery wand, leave at least
5
⁄ 8 " clearance for the battery wand and 1" clearance
for the rechargeable battery wand behind each installation bracket to allow for the extra space needed
for these components.
IMPORTANT: The front edges of the shade installation brackets must be level and aligned.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
■ Place a spacer block on top of the bracket. Attach the shade installation brackets using the screws provided.
➤ Check that the mounting surface is level and the brackets are aligned. If mounting to a heavily textured
surface, shim the brackets, if needed.
Proceed to “STEP 2 — Mount the Battery Wand (If Applicable)” on page 11.
Jamb
Motor
End
Jamb
Space Evenly
2" 2"
For 18V DC and Satellite
Space Evenly
16" for one or two attached
battery wands on the motor end.
Power Supply
Inside (IB) Mount
Minimum Mounting
Depth
Minimum Mounting Depth:
Flush Mount Modern Headrail
Minimum Mounting Depth:
Flush Mount IOL Headrail
Battery Wand 1
1
⁄ 2 " 3
1
⁄ 2 " 3
5
⁄ 8 "
Satellite Battery Pack or
18V DC Power Supply
7
⁄ 8 " 2
7
⁄ 8 " 3"
Headrail-Mounted
Rechargeable Battery Wand 1
7
⁄ 8 " 3
7
⁄ 8 " 4"
Spacer Block

7
INSTALLATION
INSTALLATION
Bracket
Battery Wand
Spacer Block Spacer Block
Bracket
1
1
⁄ 2 " Minimum Inside Mount 3
5
⁄ 8 " Fully Recessed Mount
Bracket
Battery Wand
Wall
3" Fully Recessed Mount
Bracket
W
ith Attached Battery Wand — 5⁄8" Needed for Rear Clearance
Satellite Battery Pack or 18V DC Power Supply (Optional)
7
⁄ 8 " Min Inside Mount
5
⁄
8
"
35⁄8"
3"
5
⁄
8
"

8
INSTALLATION
INSTALLATION
Mount the Shade Installation Brackets — Outside Mount
The standard shade has an attached battery wand requiring spacer blocks to be used with the shade installation brackets. If using
an 18V DC Power Supply or satellite battery pack, spacer blocks are not required.
■ Center the headrail over the window opening at the desired height. Use a pencil to lightly mark each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that width to mark the headrail end points over the window opening.
■ Mark 2" in from each end of the headrail.
➤ With shades using one or two battery wands, there must be 16" between the edges of the two brackets on the motor end. If
there are more than 3 brackets, space remaining brackets evenly.
➤ For 18V DC Power Supply and Satellite Battery Pack(s). If more than two shade installation brackets came with your order,
space additional bracket(s) evenly between the two end brackets and mark their location. Mount into wood whenever
possible.
■ Center the brackets on your marks and mark the screw holes.
➤ A minimum of 1¾" flat vertical surface is required to mount the brackets.
➤ The top of the shade installation brackets should be at the desired shade height.
IMPORTANT: The brackets should be level and aligned.
■ For shades with attached battery wand clip. Place a spacer block behind each installation bracket to allow for the extra space
needed for these components. Center a spacer block and bracket on your marks.
■ Extension brackets provide up to 1½" of clearance. If used, center the brackets on your marks and
mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with
concrete anchors. Drywall anchors are not recommended.
■ Attach the installation/extension brackets or spacer block with installation bracket using the screws
provided.
CAUTION: The rear of the installation/extension brackets or spacer block must be flush against a flat
mounting surface. Do not mount shade installation brackets oncurved molding.
■ When using extension brackets, attach the shade installation brackets using the screws and
speed nuts provided.
IMPORTANT: For shades with attached battery wand, leave at least
5
⁄ 8 " clearance for the battery wand
and 1" clearance for the rechargeable battery wand behind each installation bracket to allow for the
extra space needed for these components.
Proceed to “STEP 2 — Mount the Battery Wand (If Applicable)” on page 11.
Headrail End Marks
Window Opening
2" 2"
Space Evenly
For 18V DC and Satellite
Space Evenly
16" for one or two
attached battery wands
on the motor end.
2"
Installation
Bracket
Headrail
End Mark
Extension
Bracket
2"
Installation
Bracket
Spacer
Block
Headrail
End Mark
5⁄8"
Minimum Required
for Attached
Battery Wand

9
INSTALLATION
INSTALLATION

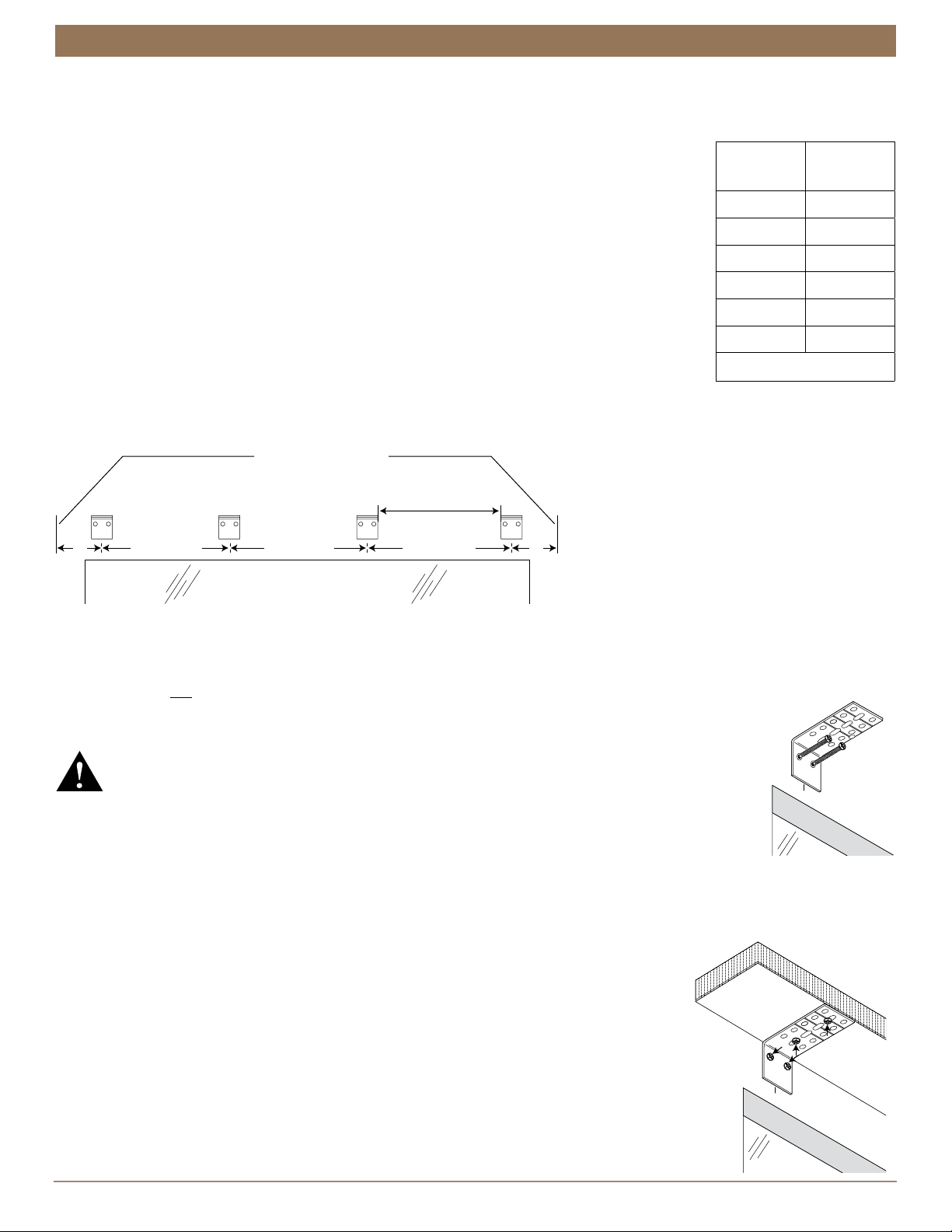

Mount the Brackets — Optional Cornice Valance
With the optional cornice valance, first the valance headboard is mounted and then the shade installation brackets are mounted to
the wall under the headboard.
■ Center the headboard above the window opening at the height to allow enough room for the
shade to be mounted below. Mark where the top and ends of the valance headboard will be
located.
➤ Alternatively, measure the width of the valance headboard and use this measurement to
determine where the ends of the headboard will be located.
➤ Mark L-bracket locations 1½" in from the end of the valance headboard. With shades using
one or two battery wands, place 20" between the edges of the two L-brackets on the motor
end. If there are more than 3 brackets, space remaining brackets evenly.
➤ For 18V DC Power Supply and Satellite Battery Pack(s). If more than two shade installation
brackets came with your order, space additional bracket(s) evenly between the two end
brackets and mark their location. Mount into wood whenever possible.
➤ With two-piece headboards (valances over 96" wide), the two equal-width sections abut in the
center.
IMPORTANT: Be sure to place a bracket on each side of the center split.
■ Center the L-brackets on your marks and mark the screw holes.
➤ The top of the L-brackets should be 1" below the height where you want the top of the valance to be located.
➤ The rear of the L-brackets must be flush against a flat mounting
surface. Do not mount L-brackets on curved molding.
IMPORTANT: The tops of the L-brackets must level and aligned.
■ Drill the screw holes for the L-bracket using a
3
⁄ 32 " drill bit.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete anchors.
Drywall anchors are not recommended.
■ Attach the L-brackets using the 1½" hex head screws provided.
■ Mark screw locations for attaching the valance headboard. Position the valance headboard on top of the
L-brackets with its ends aligned with the end marks and the back against the wall.
➤ The hook-and-loop material faces front.
➤ Mark the bottom of the headboard through the front and rear slotted holes on the center of the L-brackets.
■ Drill the screw holes using a
3
⁄ 32 " drill bit for the valance headboard screws. Remove the headboard and drill the holes. Be
careful not to drill through the top of the valance headboard.
■ Aligned the headboard with the end of the board mark previously made. Attach the headboard
to the L-brackets. Use the ¾" hex head screws. (Longer screws will pierce the top of the
headboard.)
Valance
Width
Valance
Brackets
Required
Up to – 36" 2
36
1
⁄ 8 " – 72" 3
72
1
⁄ 8 " – 90" 4
90
1
⁄ 8 " – 96" 5
96
1
⁄ 8 " – 108" 6
108
1
⁄ 8 " – 150" 8
Valances over 96" wide will have two-
piece headboards.
Window Opening
1½" 1½"
Valance Board End Mark
Space Evenly
Space Evenly
20" for one or two
attached battery wands
on the motor end.
For 18V DC and Satellite
Space Evenly
Valance
L-Bracket
3"
Valance
Headboard
End Mark
1½" Hex Head
Screws

10
INSTALLATION
INSTALLATION
■ Mark the screw holes for the shade installation brackets on the wall underneath the valance headboard.
➤ The top of the shade installation brackets must be ¼" below the bottom of the
valance headboard.
➤ Mount the end shade installation brackets on the inside of the valance L-brackets.
➤ With one or two attached battery wands. Place 16" between the edges of the
two shade installation brackets on the motor end. If there are more than 3
brackets, place remaining brackets next to L-brackets.
➤ For 18V DC Power Supply and Satellite Battery Pack(s). Place remaining brackets
next to L-brackets.
➤ Do not install the shade installation brackets directly into the valance headboard.
➤ Do not use extension brackets with the shade installation brackets.
■ Drill the screw holes for the L-bracket using a
3
⁄ 32 " drill bit.
WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete anchors. Drywall anchors
are not recommended.
■ Attach the shade installation brackets using the 1½" hex head screws provided. For shades with attached battery wand, use the
2" hex head screws and spacer blocks provided.
Proceed to “STEP 2 — Mount the Battery Wand (If Applicable)” on page 11.
Top of Bracket
¼" Below Valance
Headboard
Spacer Block
Required for Attached
Battery Wand
Window Opening
Valance Board End Mark
16" for one or two
attached battery wands
on the motor end.

11
INSTALLATION
INSTALLATION
STEP 2 — Mount the Battery Wand (If Applicable)
For the headrail-mounted battery wand, battery wand clips and battery wand mount are installed before the shade is installed. Any
other power options, the power source will be connected aer the shade is installed.
Battery Wand Clips
Install the Battery Wand Clips
■ Attach the battery wand clip to the headrail.
IMPORTANT: Position the clip so that the battery wand will be between shade installation brackets.
➤ For two attached battery wands. Attach the battery wand clip approximately 10" from the motor
side. Attach the second battery clip about 20" from the first clip.
■ Hook the battery wand clip onto the back channel ofthe headrail.
■ Rotate the clip down until it snaps into place.
CAUTION: Be sure the power cable does not become pinched by the brackets or
headrail during installation; damage or overheating of components couldresult.
CAUTION: Do not connect the battery wand to the power cable prior to installing
the shade.
Headrail-Mounted Rechargeable Battery Wand
■ Position first clip at 63⁄4"from the shade end with the motor cable.
■ Hold the battery mount up to the first headrail clip. Mount second clip based on the slots in battery mount.
■ Attach the battery wand clip to the headrail.
■ Hook the battery wand clip onto the back channel of the headrail.
IMPORTANT: Position the clip so that the battery wand will be between installation brackets.
■ Rotate the clip down until it snaps into place.
Battery Wand Clip
Battery
W
and Clip Headrail
6¾"
Place the Second
Clip Aligned with
the Battery Mount

12
INSTALLATION
INSTALLATION
Install the Battery Mount into the Clips
■ From the back of the shade headrail, connect the power cable from the motor side into the socket on the rechargeable battery
mount.
■ Align the slots in the battery mount with the battery wand clips.
■ Push the battery mount onto the battery wand clips until it snaps into place. Check to make sure
the battery mount is secure.
■ Install the shade into the brackets previously mounted.
CAUTION: Be sure the cable does not become pinched by the battery wand clips during
installation. Damage or overheating of components could result.
STEP 3 — Install the Shade
Mount the Headrail
■ With the headrail slightly tilted, insert the front lip of the headrail onto the
front lip of the installation bracket.
■ Push the headrail back and up until its bottom lip snaps into bottom tab on
the installation bracket.
Install the Shade Returns — Outside Mount Shades Only
■ Remove the adhesive backing from the double-sided tape on the inside of the returns.
■ Align the returns so they are flush with the shade fabric or valance.
■ Place the tabs on the top of the end cap and press the returns to secure.
Socket
Insert Front
Lip of Headrail
onto Bracket
Bottom
Tab
Push Up
and Back
Adhesive
Backing

13
INSTALLATION
INSTALLATION
Cornice Valance (If Applicable)
■ With the bottom of the valance angled away from the valance headboard, align the top of the valance with the top of the
valance headboard and press into place.
■ Spread the returns.
■ Rotate the valance into place.
■ Release returns.
■ Press the returns and the valance against the valance headboard to secure them.
Valance
Headboard
Valance Fabric
Spread Returns
then Rotate into Place
on Hook and Loop

14
INSTALLATION
INSTALLATION
STEP 4 — Connect the Power Source
NOTE: When power is applied to the shade, a blue LED inside the control button housing will flash several times to indicate the
shade is ready.
■ Refer to the appropriate page based on your order.
➤ For a battery pack or satellite battery pack see below.
➤ For an optional satellite battery pack, see page 14.
➤ For an optional headrail-mounted rechargeable battery wand, see page 15.
➤ For an optional satellite-mounted rechargeable battery wand, see page 15.
➤ For an optional DC power supply, see page 16.
➤ For two battery wands and Y adapter, see page 17.
➤ For an optional DC power supply with daisy-chain connections, see page 17.
Mount the Battery Wand into theBatteryWandClip
■ Align the battery wand with its socket toward the motor side end cap.
■ Push the battery wand straight up into the battery wand clip until it snaps into place. Check to make sure the battery wand is
secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clip during installation. Damage or overheating of
components could result.
Plug the Power Cable into the Battery Wand
■ On the back of the headrail, connect the power cable (coming from the shade)
into the socket on the battery wand.
NOTE: When power is applied to the shade, a blue LED inside the control button
housing will flash several times to indicate the shade is ready.Satellite Battery Pack
(If Applicable)
Mount the Satellite Battery Pack
■ Decide where you want to attach the wall mount bracket. A satellite battery pack may be mounted in any orientation.
■ Mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
■ Remove the backing from the double-sided tape. Press the bracket into place.
■ Attach the bracket using the screws provided.
■ Position the battery wand so the power cable is easily connected to the socket.
■ Snap the battery wand into the bracket.
■ Install the battery wand cover with the slot aligned to the socket in the battery wand.
Back of Shade
Plug into Socket
Wall Mount Bracket
Socket
Battery Wand Cover
Slot
Socket

15
INSTALLATION
INSTALLATION
■ Plug the power cable from the shade into the extension cable.
■ Plug the other end of the extension cableinto the socket in the battery wand.
■ Secure the power supply cable using wire retainers (not supplied). If hiding the cable behind the shade, make sure it does not
impede the operation of theshade.
Proceed to “Testing the Shade” on page 17.
Headrail-Mounted Rechargeable Battery Wand
Insert the Rechargeable Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of
the package.
■ Match the direction of the arrow on the underside of the battery wand with the arrow on the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery mount.
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an injury risk and potentially damaging
the wand. Additionally, when mounting on a door, closing the door with excess force may cause battery wand to dislodge from the
mount, also posing an injury risk and possibly damaging the wand.
Proceed to “Testing the Shade” on page 17.
Satellite-Mounted Rechargeable Battery Wand
Install the Rechargeable Battery Mount
■ Decide where you want to install the rechargeable battery mount. This may be mounted behind the headrail, or in any desired
location near the window covering. A satellite battery mount may be installed in any orientation.
➤ Make sure the provided cable is long enough to connect the satellite battery mount and the shade.
CAUTION: The rear of the battery mount must be flush against a flat mounting surface. Do not install brackets on curved molding.
■ Mark the screw holes.
■ Drill the screw holes using a
3
⁄ 32 " drill bit.
■ Attach the battery mount using the screws provided.
CAUTION: Only use the screws provided with the battery mount, designed so that the screws will install flush with the mount.
Protrusion of the screws could result in either the battery wand not attaching properly causing a failure to connect, or the
wand falling out of the mount. Do not over-tighten.
Battery Wand Cover
Extension
Cable
Power Cable
from Shade
2"
Power
Socket
End
Allow 2" at power socket end for the extension cable jack.
Minimum flat mounting area = 15" x 1"
13"
15" Minimum Mounting Length
1"

16
INSTALLATION
INSTALLATION
■ Connect the power cable from the motor side into the power socket on the rechargeable battery mount.
NOTE: With longer extension cables, wire retainers (not supplied) are recommended to secure the cable.
Insert the Battery Wand into the Battery Mount
NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of
the package.
■ Match the direction of the arrow on the underside of the battery wand with the arrow on the battery mount.
■ Insert the nose of the battery wand into the cavity of the battery mount.
■ Push the battery wand flush into the mount until the battery snaps into place.
CAUTION: Failing to insert wand properly may cause it to fall out of the mount, posing an injury risk and potentially damaging
the wand. Additionally, when mounting on a door, closing the door with excess force may cause battery wand to dislodge from the
mount, also posing an injury risk and possibly damaging the wand.
Proceed to “Testing the Shade” on page 17.
18V DC Power Supply
NOTE: When power is connected to the motor, a blue LED inside the control button
housing will flash to indicate the shade is ready for operation.
■ Plug the power cable from the shade motor into the extension cable.
■ Plug the other end of the extension cable into the 18V DC power supply.
■ Plug the 18V DC power supply into a power source.
Proceed to “Testing the Shade” on page 17.
Battery Mount
Extension
Cable
(If Needed)
Power Cable
from Shade
Power cable
from shade motor
Extension
cable
18V DC
Power
Supply

17
INSTALLATION
INSTALLATION
Double Connector Power Cable (If Applicable)
NOTE: Refer to this section only if you have a double connector power cable.
Mount the Battery Wand or Satellite Battery Pack
■ Refer to “Mount the Battery Wand into theBatteryWandClip” on page 14.
■ Refer to “Mount the Satellite Battery Pack” on page 14.
Connect the Double Connector Power Cable
■ The double connector power cable is used to adapt two battery wands to one large shade.
■ Route the power cable from the shade to the double connector and connect the short cable to
the first battery wand.
■ Connect the longer cable on the double connector to the second battery wand.
18V DC Power Supply with Daisy-Chain Connections
NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer to this section if you have an 18V
Power Supply with daisy-chain connections.
The daisy-chain feature allows up to three Automation III automated shades to be powered by a single 18V DC Power Supply.
However, each shade can operate independently.
■ Route the power cables from each shade to the Y Adapter using extension cables (if necessary).
■ Plug an extension cable into the Y Adapter and the 18V DC Power Supply. A two-shade configuration is shown below.
■ Plug the 18V DC Power Supply into a standard outlet.
■ An additional Y Adapter and two additional extension cables are used for three shades.
Testing the Shade
Testing the shade with the control button will allow you to ensure that the motor and power source are working correctly.
CAUTION: When raising the shade for the first time, observe how the fabric stacks. It should stack evenly. Immediately stop the
shade if the bottom rail is not level or the shade starts to rub against either window jamb. See “Troubleshooting” on page 21.
■ Press and release the control button on the bottom of the end cap behind the fabric to test operation.
If the shade does not operate, see “Troubleshooting” on page 21.
➤ For bottom up shades: Press and release the button to alternately lower, stop, and raise the shade.
NOTE: With Top-Down/Bottom-Up shades, the control button will alternately lower the bottom rail,
lower the middle rail, raise the middle rail, and raise the bottom rail.
■ The control button can also be used in combination with the Automation App for control of advanced
shade functions and home access. Open the App, then press and hold the control button to see a list
of available functions. See “Operating the Automation App and Automation III Remote” on page 18
for more information.
Power
Cable
from
Shade
Y adapter
Battery
Battery
Power Cable
from Shade
Extension
Cable
Power Cable
from Shade
Y Adapter
Push
In
Side View of
the Shade
Valance
Control
Button
Return

18
INSTALLATION
OPERATION
Operating the Automation App and Automation III Remote
Syncing and Programming Your Remote
■ Activate the remote by pulling both plastic tabs from the back battery compartment.
■ Download the Automation App for your smartphone or tablet at getshadeapp.com.
■ Open the Automation App and follow the steps to set up your new shades and remote.
■ Use the Automation App to program and manage your Automation III remote(s) as accessories.
■ For more details, refer to the digital Automation III Remote Control Guide.
Basic Operation
■ Wake up the remote by picking it up or pressing ■STOP.
■ Press group number(s) 1, 2, 3, 4, 5, and/or 6 to select one or more groups. Selected group numbers light up white on the
remote.
■ Press selected group number(s) 1, 2, 3, 4, 5 and/or 6 a second time to deselect one or more groups. Deselected group numbers
are not lit.
OPEN
LEFT ARROW RIGHT ARROW
STOP
- Stops motion
GROUP NUMBERS
Each number represents
a different group
CLOSE
ALL
- Press to select
all groups
FAVORITE
- Press once to send
louver section(s) to the
first Favorite position*
- Quickly press twice to
send louver section(s)
to the second Favorite
position**
- Raise shade(s)
- No function - No function
*The default first Favorite position is the shade at 50% open.
**Both Favorite positions can be updated in the Automation App > Shade Settings.
- Lower shade(s)

19
INSTALLATION
OPERATION
Top-Down/Bottom-Up and Operation
Further Operation and Programming Information
Automation App
The Automation App is required to program Automation III shades, remotes, and gateways. The App is compatible with Apple® and
Android™ smartphones and tablets. For more information regarding setup and operation using the Automation App, refer to
https://www.kirsch.com/window-coverings-product-manuals.
Automation III Gateway
The Automation III Gateway is used to control shades in larger projects as well as integrate Automation III shades with third-
party integration systems. For information regarding programming of Automation III Gateways, refer to the digital Automation III
Gateway Guide.
Automation III Remote
For more information regarding operation and programming of the Automation III Remote, refer to the digital Automation III
Remote Control Guide.
OPEN
LEFT ARROW RIGHT ARROW
STOP
- Stops motion
FAVORITE
- Press once to send
shade(s) to your first
Favorite position*
GROUP NUMBERS
Each number represents
a different group
- Press once to raise the
bottom and middle rails
and open the shade(s)
from the bottom-up
- Quickly press twice to
raise the bottom rail***
CLOSE
- Press once to lower
the bottom rail and
raise the middle rail,
closing the shades
- Quickly press twice to
lower the bottom rail***
- Press once to lower the
bottom and middle rails,
opening the shade(s)
from the top-down
- Quickly press twice to
lower the middle rail****
- Press once to raise
the middle rail and
close the shade(s)
- Quickly press twice to
raise the middle rail****
- Quickly press twice to
send shade(s) to your
second Favorite position**
*The default first Favorite position is the shade(s) at 50% open.
**Both Favorite positions can be updated in the Automation App > Shade Settings.
***The middle rail will stay in its current position.
****The bottom rail will stay in its current position.
ALL
- Press to select
all groups

20
INSTALLATION
OPERATION
Resetting the Shade (If Necessary)
Calibration Reset
The calibration reset is used to recalibrate the shade’s travel limits. This action is performed in the Automation App.
■ Select Calibrate Shade in the Advanced Options section of the Shade Settings menu in the Automation App.
Bottom Up and Top-Down/Bottom-Up Shades
■ The shade will raise to the top, then finish in the closed position. When the shade stops moving, calibration is complete.
Resetting Shade Programming
The Automation App may be used to modify or reset any shade programming to Automation III Remotes, and Gateways. Shades
may be added to or removed from Rooms in the App at any time. If necessary, shades may also be deleted from the Automation
App in the Advanced Options section of the Shade Settings menu.
Electronic Limit Adjustments
Electronic limits are set at the factory and normally do not require readjustment. For window treatments that may need additional
adjustment or to set custom limit positions, go to Shade Settings in the Automation App to adjust limits.
