Kit-lock Kl1000 User manual

KL1000 - 2017 Programming and Operating Instructions

Codes - The Basics

• The KitLock has four code levels available:

i﴿ Master Code

ii﴿ Sub‐Master Code

iii﴿ User Code

iv﴿ Technician Code

• The KitLock is supplied with two factory set codes:

Master Code: 11335577

User Code: 2244

• When fitted, immediately change

the Master Code and User Code.

• All Master Codes and Sub‐Master Codes are 8 digits long.

• All User Codes are 4 digits long.

• All Technician Codes are 6 digits long.

• The lock ‘open’ time is set at 4 seconds.

Functions

Before programming, select the most appropriate function for the application: A﴿ or B﴿ ‐ See special Master Code set up commands.

A﴿ PRIVATE USE Important Note: This is the default function and is already pre‐programmed in new locks.

This is the most common function and is used where the same code will be repeatedly used.

B﴿ PUBLIC USE

The user enters their own personal four‐digit code.

This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user.

This function is used for short term, multi occupancy applications, e.g. a locker in a leisure centre.

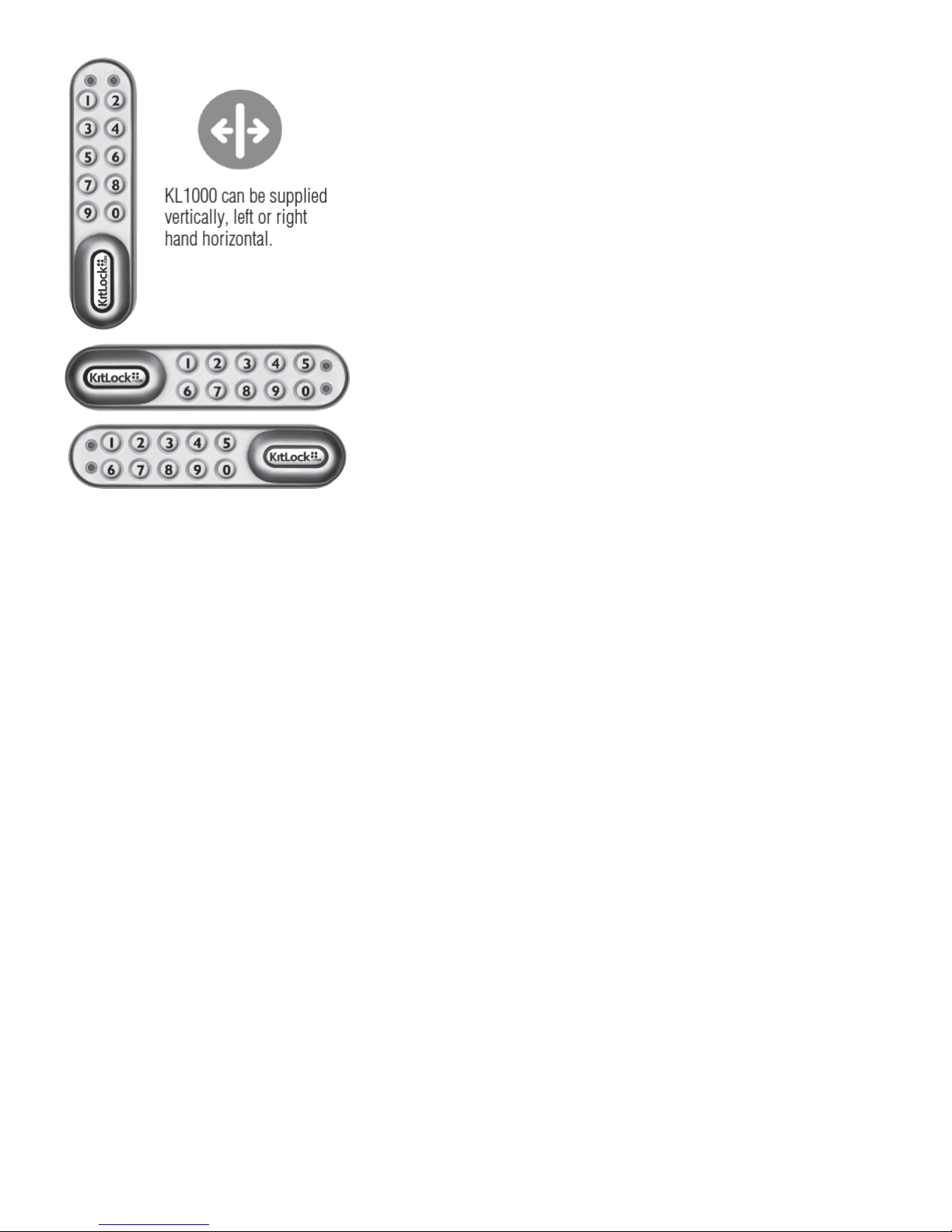

Operating Instructions

Note: The KitLock has a 10 button keypad and a # button.

The # button is hidden beneath the handle when in the locked position.

MASTER CODE

The Master Code can:

Open the lock

Change the Master Code

Set / Change / Delete the Sub‐Masterand User Code

Select between Private andPublic Functions

Activate/deactivate Technician Code

SUB‐MASTER CODE

The Sub‐Master Code can:

Open the lock

Change the Sub‐Master

Set / Change / Delete / the User Code

USER CODE

The User Code can:

Open the lock

Change the User Code

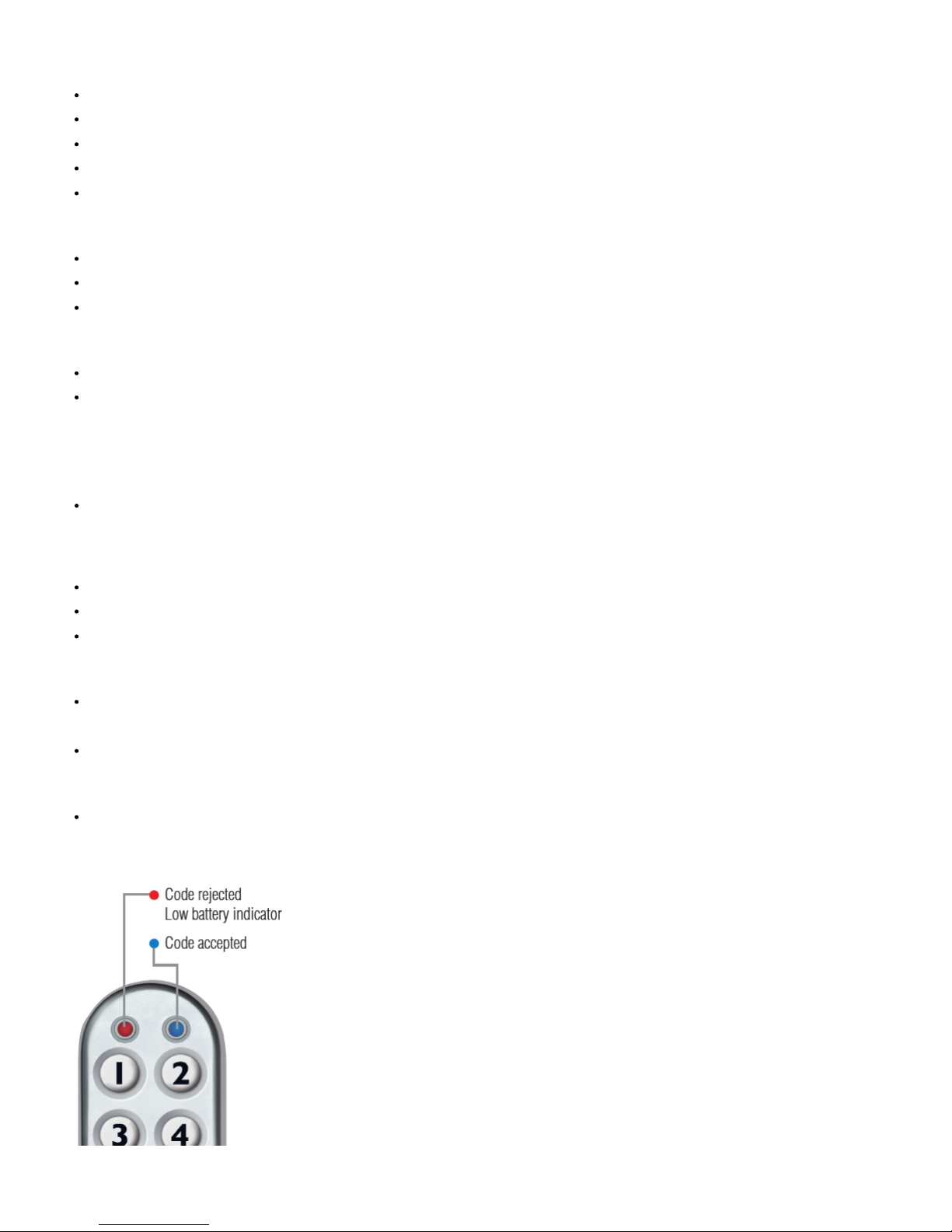

•Blue LED = Code accepted

•Red LED = Code rejected

TECHNICIAN CODE

The Technician Code can:

Open the lock

A code cannot be programmed into morethan one level.

LOST CODE PROCEDURE

Note:The procedure requires the door tobe open

Remove the rear‐fixing bolt andswing the lock over the edge of thedoor to reveal the batterycompartment.

Remove one battery.

Press and hold the 1 button, replacethe battery, the Blue LED will flashtwice, release the 1 button. Withinthree seconds press the 1 buttonthree times. The

Blue LED will flashtwice and the lock will have revertedto the factory Master Code 11335577and all other stored settings will beerased.

PENALTY TIME

Entering three incorrect codes willcause the lock to shutdown for 10seconds.

BATTERY POWER

The KitLock should provide well inexcess of 15,000 openings, of 4seconds each, from 2 x AAA 1.5v cells.

LOW BATTERY

When the battery power is low the•Red LED will flash 3 times beforethe•Blue LED lights, accepting thecode. Fit new batteries as soon as thishappens.

The lock will operate for 100times with low battery.



BATTERY FAILURE OVERRIDE

The KitLock has been designed so anexternal PP3 battery can be placed againstthe contact points surrounding the Blueand Red LED’s so the lock can be

openedto replace the batteries should they fail.

The procedure is as follows:

Place the contact points of the PP3battery against the contact pointssurrounding the Blue and Red LED’s.

The positive + PP3 terminal against theRed LED contact point and the negative– PP3 terminal against the Blue LED.

Enter the Master Code.

The motor will withdraw the locking pinallowing the lock to be opened.

Fit new batteries by removing theupper fixing bolt and swinging the lockdown over the edge of the door. Refitthe lock.



Programming

To program – the lock must be in theopen position with the#button visible.Every program command must commenceby pressing the # button, followed

byeither the Master Code, Sub‐Master Codeor User Code.



MASTER CODE COMMANDS

CHANGE THE MASTER CODE

#Master Code•01•New Master Code•New Master Code••

Example: #11335577•01•12345678•12345678••

Result: Master Code has been changed to 12345678.

SET OR CHANGE THE USER CODE

#Master Code•02•User Code••

Example:#11335577•02•9999••

Result: New User Code 9999 now operative.

DELETE USER CODE

#Master Code•03••

Example:#11335577•03••

Result: User Code deleted.

SET OR CHANGE THE SUB‐MASTER CODE

#Master Code•04•Sub‐Master Code•Sub‐Master Code••

Example:#11335577•04•87654321•87654321••

Result: Sub‐Master Code 87654321 now operative.

DELETE THE SUB‐MASTER CODE

#Master Code•05• 05••

Example:#11335577•05•05••

Result: Sub‐Master Code deleted.

SUB-MASTER CODE COMMANDS

CHANGE THE SUB‐MASTER CODE

#Sub‐Master Code•06•New Sub‐Master Code•New Sub‐Master Code••

Example:#87654321•06•10101010•10101010••

Result: Sub‐Master Code has been changed to 10101010.

SET OR CHANGE THE USER CODE

#Sub‐Master Code•07•User Code••

Example:#87654321•07• 6666••

Result: New User Code 6666 now operative.

DELETE USER CODE

#Sub‐Master Code•08••

Example:#87654321•08••

Result: User Code deleted.

USER COMMAND

CHANGE THE USER CODE

#User Code•New User Code•New User Code••

Example:#2244•6688•6688••

Result: User Code now 6688.

SPECIAL MASTER CODE COMMANDS

SET A﴿ PRIVATE USE

#Master Code•26••

Example:#11335577•26••

Result: The lock will revert back to default A﴿ Private Use Function.

Factory set User Code 2244 will now work repeatedly until reprogrammed.

SET B﴿ PUBLIC USE – SINGLE CODE ENTRY ﴾DEFAULT﴿

#Master Code•24••

Example:#11335577•24••

Result: The lock will now remain open until the next user enters their own personal code into the lock as follows:

Step 1 – Enter 4 digit code•Close the locker which will now be locked.

Step 2 – Enter the same 4 digit code••the lock will now open and remain open until next 4 digit code is entered.

SET B﴿ PUBLIC USE – DOUBLE CODE ENTRY

#Master Code• 22••

Example:#11335577•22••

Result: The lock will now remain open until the next user enters their own personal code into the lock as follows:

Step 1 – Enter 4 digit code•Repeat 4 digit code••

Close the locker which will now be locked.

Step 2 – Enter the same 4 digit code••the lock will now open and remain open until next 4 digit code is entered as Step 1.

Note: When locked in this mode•LED will flash every 5 seconds to indicate the locker is locked.

SET TECHNICIAN CODE

#Master Code•99•Technician Code• Technician Code••

Example:#11335577•99•555555•555555••

Result: The lock is automatically set into B﴿ Public Use Function and allows the programmed Technician Code to open the lock WITHOUT the entered single User

Code being erased.

Note: If lock is opened with a Master Code the User Code will be erased.

POI‐KL1000‐v5:1017

Keywords: Lock Locks Kit Kitlock Kitlocker Locker Program Programming Instruction Instruct Help Support Troubleshoot Troubleshooting Sequence

Sequences Install Installation Parameters Settings Setting KL KL1000 1000 2017

KL1000 - 2017 Installation Instructions

Special Notes

Please read carefully:

• Before installing the lock, load the batteries and familiarise yourself with the operation and programming.

• The handle will not turn until you enter the factory default Master Code 11335577 or the User Code 2244.

• Please see programming guide to set your own codes.

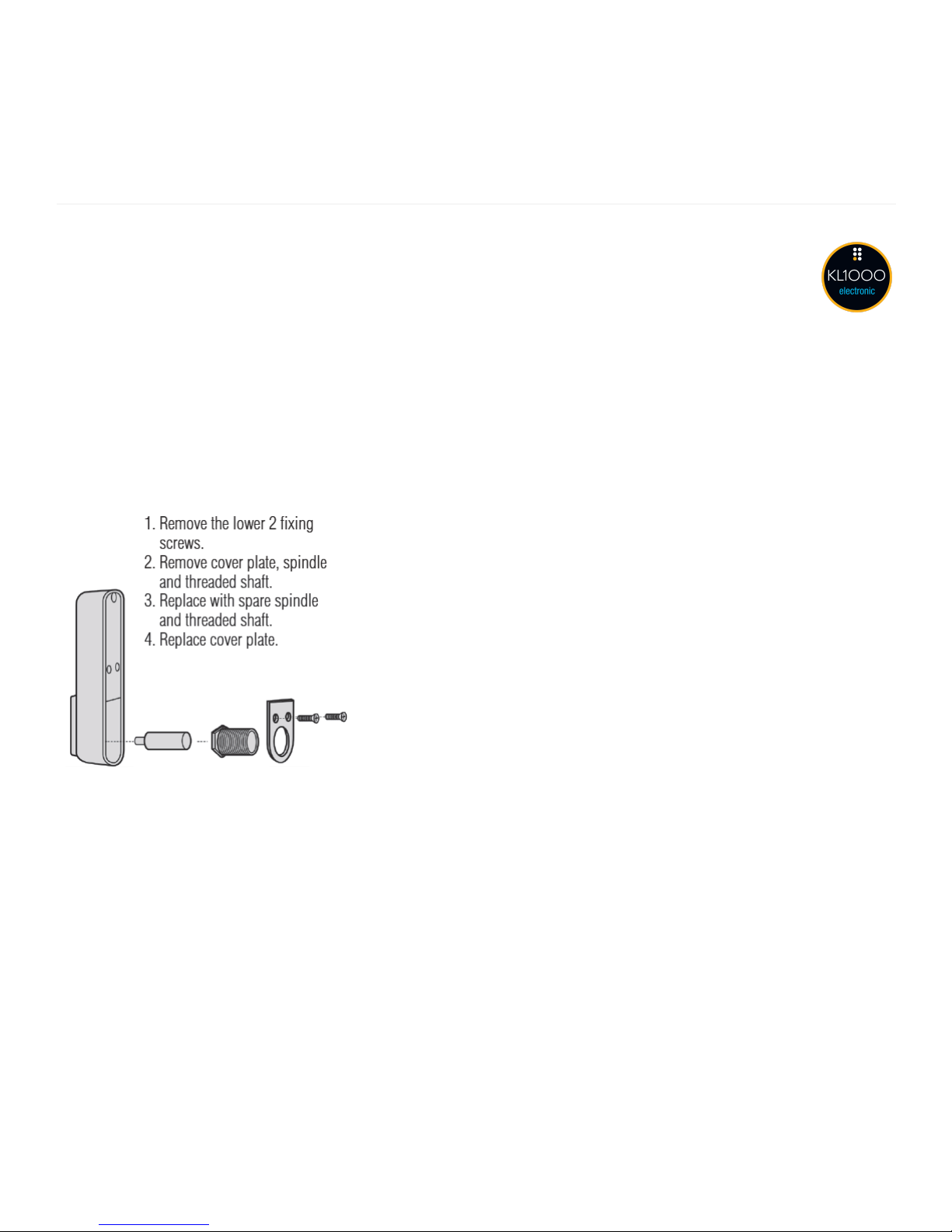

• Your KitLock is supplied ready to fit to doors up to 19mm ﴾3∕4”﴿ thick. For doors between 19mm ﴾3∕4”﴿ and 25mm ﴾1”﴿ thick, you will need to install the 28.5mm ﴾1

1∕8”﴿ spare spindle ﴾see below﴿. A 9mm ﴾3∕8”﴿ spindle is also included for sheet metal doors ﴾see below﴿.

The KitLock can be fitted to:

A Cabinets, cupboards and lockers etc as a direct replacement for existing cam locks.

B It can also be fitted easily to cupboards and cabinets that do not have an existing locking device.



Installation Guide

A Replace existing cam lock with KitLock

Step 1 Remove existing cam lock.

Step 2 Place the 16mm ﴾5∕8"﴿ template hole over the hole left by the cam lock and mark the upper fixing hole.

Step 3 Drill the 6mm ﴾1∕4"﴿ upper fixing hole.

Step 4 Fit the KitLock to the door by passing the spindle through the 16mm ﴾5∕8"﴿ hole.

Step 5 If required, from the inside of the door, pass either of the packing pieces over the spindle to centralise the lock.

Step 6 Now secure the lock by threading the large nut onto the spindle.

Step 7 Fit one of the upper fixing bolts to suit your door thickness.

Step 8 Select and fit cam using the fixing nut and locking washer. Lock nut in place by folding over washer tabs.

Step 9 Now check the operation of the lock using the factory User Code 2244.

Step 10 If the lock is functioning correctly, CHANGE THE DEFAULT MASTER CODE 11335577 and DEFAULT USER CODE 2244 and program the lock using the

programming and operating instructions enclosed.



B New Installation

Step 1 Place template on door and mark upper 6mm ﴾1∕4"﴿ hole and lower 16mm ﴾5∕8"﴿ hole.

IMPORTANT NOTE: Before drilling fixing holes, please ensure the position of the KitLock when fitted will allow enough clearance for selected cam to work.

Step 2 Drill both fixing holes.

Step 3 Continue installation from step 4 to 10, above.



II‐KL1000‐v7:1017


