IMMERSION BLENDER SAFETY
IMMERSION BLENDER SAFETY
IMMERSION BLENDER INSTRUCTIONS
TABLE OF CONTENTS

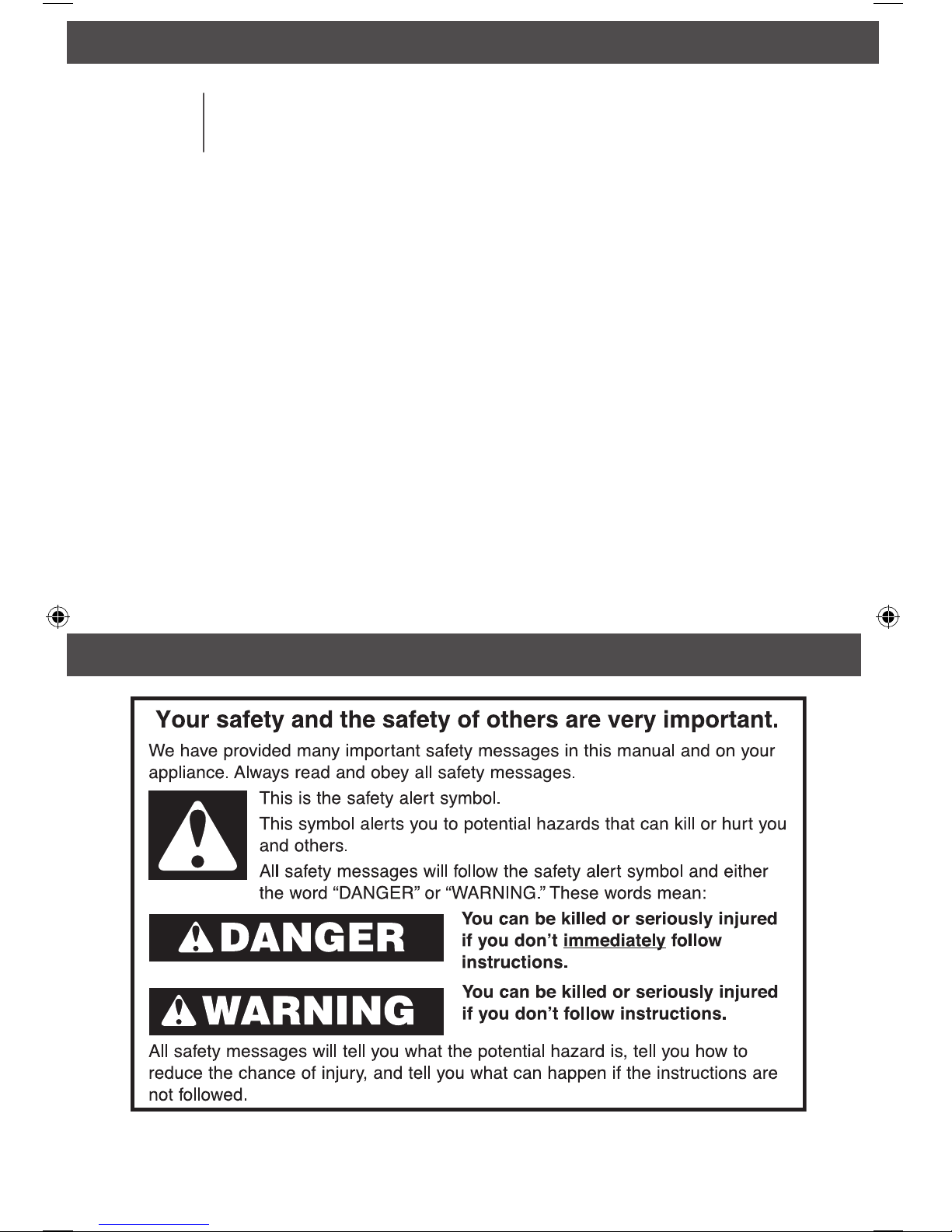

IMMERSION BLENDER SAFETY
Important safeguards���������������������������������������������������������������������������������� 3
Electrical requirements �������������������������������������������������������������������������������4
PARTS AND FEATURES GUIDE
Parts and accessories�����������������������������������������������������������������������������������5
Optional accessories������������������������������������������������������������������������������������5
Features�������������������������������������������������������������������������������������������������������6
OPERATING THE IMMERSION BLENDER
 Beforerstuse ��������������������������������������������������������������������������������������������6
Intended use������������������������������������������������������������������������������������������������6
Using the stainless steel blending arm ���������������������������������������������������������7
Immersion Blender processing guide ����������������������������������������������������������8
TIPS FOR GREAT RESULTS ��������������������������������������������������������������������������9
CARE AND CLEANING����������������������������������������������������������������������������������9
TROUBLESHOOTING ����������������������������������������������������������������������������������10
TECHNICAL SPECIFICATIONS
Technical data ��������������������������������������������������������������������������������������������10
EC - Declaration of conformity �����������������������������������������������������������������11
W10737292C_Final.indd 2 2/3/15 10:49 AM

3
IMMERSION BLENDER SAFETY
IMMERSION BLENDER SAFETY
IMMERSION BLENDER INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance may result
in personal injury.
2. To protect against risk of electrical shock do not put
motor body, cord, or electrical plug of this Immersion
Blender in water or other liquid.
3. Children should be supervised to ensure they do not
play with the appliance. The appliance is not to be
used by children. The appliance and cord should be
out of reach of children. Children shall not clean or
perform user maintenance on the appliance without
supervision.
4. This appliance is not intended for use by persons with
reduced physical sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instructions concerning use
of the appliance in a safe way and understand the
hazards involved.
5. Unplug from outlet when not in use, before putting on
or taking off parts, and before cleaning.
6. Avoid contact with moving parts.
7. Do not let cord hang over edge of table or counter.
8. Do not let cord contact hot surfaces, including the
stove.
9. Do not operate any appliance with a damaged cord or
plug or after the appliance malfunctions, or is dropped
or damaged in any manner. Return appliance to the
nearest Authorized Service Facility for examination,
repair or electrical or mechanical adjustment.
10. The use of attachments not recommended or
sold by the manufacturer may cause re, electric
shock, or injury.
11. Do not use outdoors.
12. When mixing liquids, especially hot liquids, use a tall
container or make small quantities at a time to reduce
spillage and possibility of injury.
W10737292C_Final.indd 3 2/3/15 10:49 AM

4
IMMERSION BLENDER SAFETY
13. Keep hands, hair, clothing, and utensils away from
beaters during operation to prevent the possibility
of severe injury to persons and/or damage to the
Immersion Blender.
14. Blades are sharp. Care should be taken when
handling the sharp cutting blades, emptying the
bowl and during cleaning.
15. Do not operate Immersion Blender when not in
contact with ingredients being blended.
16. Remove attachments from Immersion Blender
before washing.
17. This product is designed for commercial and
household use and similar applications, such as:
- staff kitchen areas in shops, ofces or other
working environments;
- farm houses;
- by clients in hotels, motels, and other residential
type environments;
- bed and breakfast type environments.
SAVE THESE INSTRUCTIONS

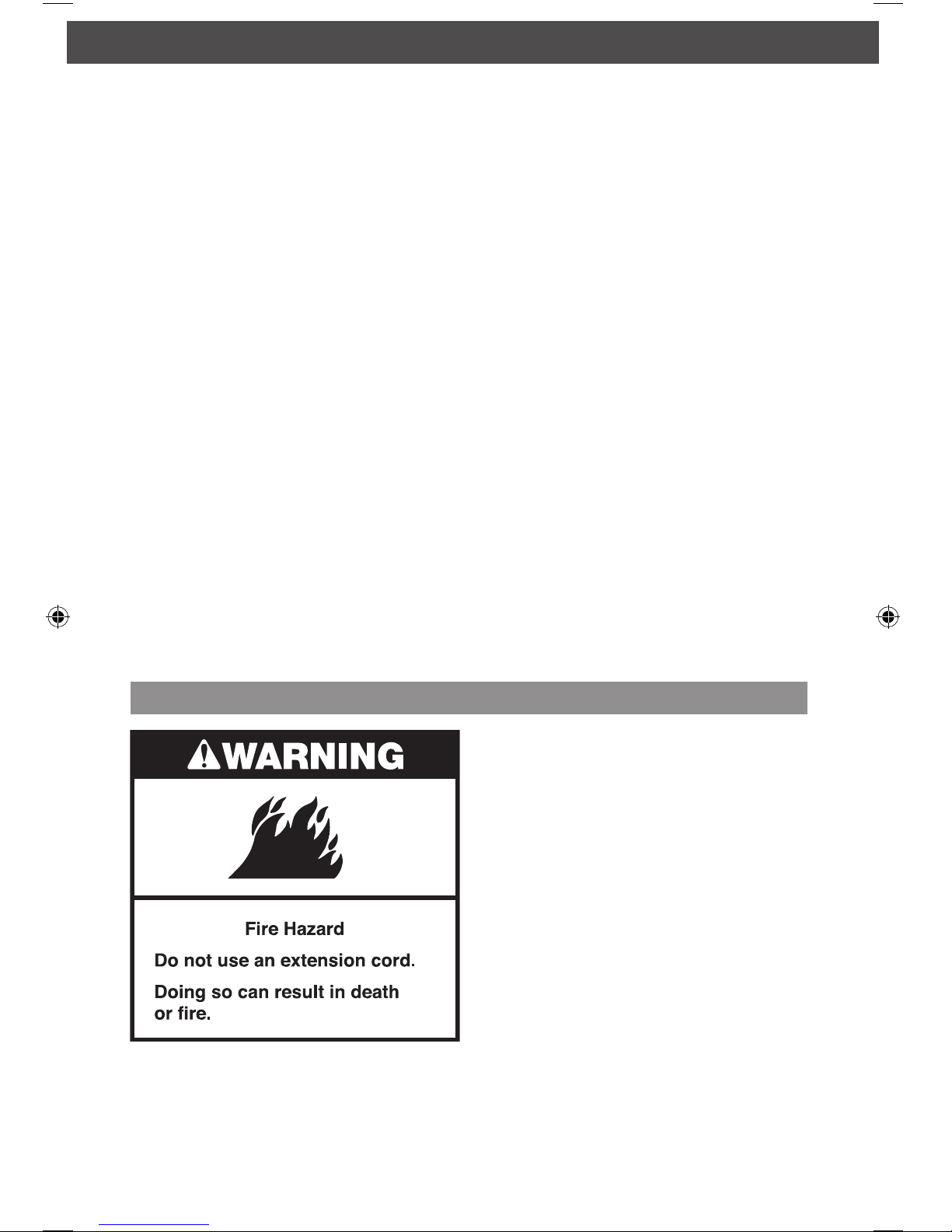

Volts: 220-240 VAC
Hertz: 50-60 Hz
NOTE: If the power cord is damaged, it
must be replaced by the manufacturer or
its service agent in order to avoid a hazard�
Do not use an extension cord� If the power
supply cord is too short, have a qualified
electrician or serviceman install an outlet
near the appliance�
Electrical requirements
PARTS AND FEATURES GUIDE
W10737292C_Final.indd 4 2/3/15 10:49 AM

5
IMMERSION BLENDER SAFETY
PARTS AND FEATURES GUIDE
Parts and accessories
Power Cord
Stainless Steel
Blending Arm
(5KHBC212AER
shown)
Motor Body
Power Button
Speed Control Buttons
Lock Switch
Stainless Steel Wall Mount
5KHBC212AER (305 mm)
MODEL COMPARISON
5KHBC210AER (254 mm)
5KHBC208AER (203 mm)
Optional accessories
Accessory Model # Style Size (mm)
Whisk
Attachment
5KHBC10WER 254 mm
Multi-Purpose
S-Blade
5KHBC08MER 203 mm
5KHBC10MER 254 mm
5KHBC12MER 305 mm
W10737292C_Final.indd 5 2/3/15 10:49 AM

6
PARTS AND FEATURES GUIDE
Speed Control
Provides easy adjustment of speed�
Power Button
Located on the front of the motor body
and activated by pressing and holding
during blending� To stop blending, simply
release the power button�
Lock Switch
Press to unlock in order for Power button
to function; press to lock when Immersion
Blender is not in use�
Motor Body
Designed for a comfortable, non-slip grip�
Features
Powerful DC Motor (not shown)
Provides powerful blending action and
is designed for quiet, long-life operation�
Stainless Steel Blending Arm
Simply seats onto the motor body and
is rotated to lock together� The sharp
stainless steel blade is covered to help
prevent splashing while blending�
Power Cord
Long enough to take the Immersion Blender
to the cooktop or work area and rounded
with no grooves for easy cleanup�
OPERATING THE IMMERSION BLENDER
OPERATING THE IMMERSION BLENDER
Before using the KitchenAid®Immersion
Blenderforthersttime,wipethemotor
body with a clean, damp cloth to remove
any dirt or dust�
Before rst use
Intended use
This KitchenAid Immersion Blender is intended for use in restaurants, professional kitchens,
and other food service locations� The Immersion Blender can be used directly in a pot or
bowl to mix a variety of ingredients�
Multi-purpose s-blade uses
• Soups
• Vegetable purées
• Mousses
• Compotes
• Sauces
• Bisques
• Cooked meats
• Beef gravy
• Liquify fruits
• Minces
Whisk uses
• Pancake batter
• Mayonnaise
• Egg whites
• Pudding
• Whipped cream
Wash all the attachments and accessories
by hand or in the dishwasher� Mild dish
soap may be used, but do not use abrasive
cleansers� Dry thoroughly with a soft cloth�
IMPORTANT: Do not immerse the
motor body in water�
IMPORTANT: Always be sure to
unplug the power cord from the wall
socket before attaching or removing
attachments�
W10737292C_Final.indd 6 2/3/15 10:49 AM

7
PARTS AND FEATURES GUIDE
OPERATING THE IMMERSION BLENDER
OPERATING THE IMMERSION BLENDER
1. Insert blending arm attachment into
motor body with the alignment mark
facing the back of the unit, and twist
to lock� The alignment mark on the
attachment should line up with the
mark on the body�
Using the Stainless Steel Blending Arm
2. Plug the electrical cord into an
electrical wall socket�
3. Set Immersion Blender to Low
or High speed�
4. Insert the Immersion Blender into
the mixture�
NOTE: Immersion Blender should only
be immersed in liquids the length of the
attachment� Do not submerge beyond
the seam of the blending attachment�
Do not immerse the motor body into
liquids or other mixtures� To avoid
damaging blades or mixing container,
do not touch the blade to the bottom of
the mixing container or use in a mixing
container that has protruding parts that
can go under the metal guard�
5. Press the Lock Switch to unlock the
Immersion Blender�
6. Press the Power button to activate
the Immersion Blender�
7. When blending is complete, release
the Power button before removing
Immersion Blender from the mixture�
8. Unplug immediately after use, before
removing or changing attachments�
For best results, insert Immersion Blender
with blending arm attached into the pot
or bowl containing ingredients at an angle�
Use your free hand to hold the pot or bowl
and hold the Immersion Blender near the
base of the motor unit for better stability�
Remember to stop the Immersion Blender
before removing it from the pot or bowl to
avoid splashing�
Blending
Rest the Immersion Blender on the bottom
of the pot or bowl momentarily, then hold at
an angle and slowly draw it upwards against
the side of the pot or bowl� As the Immersion
Blender is drawn up, you will notice the
ingredients from the bottom of the pot or
bowl being drawn up� When the ingredients
are no longer being drawn up from the bottom,
return the Immersion Blender to the bottom
of the pot or bowl and repeat the process until
the ingredients are at the desired consistency�
NOTE: If the ingredients are not drawing
up, there may not be a sufficient amount
of ingredients in your pot or bowl� Either
increase the amount of ingredients, or use
a smaller container�
Drawing up
W10737292C_Final.indd 7 2/3/15 10:49 AM

8
OPERATING THE IMMERSION BLENDER
TIPS FOR GREAT RESULTS
NOTE: If a piece of food becomes
lodged in the guard surrounding
the blade, follow the instructions
noted below:
Wrist
movement
1. Release the Power button and unplug the
Immersion Blender from the electrical
outlet�
2. Once power has been disconnected, use
a spatula to remove the food lodged in
themetalguard.Donotuseyourngers
to remove lodged food�
3. After lodged food has been removed,
plug the Immersion Blender back into the
electrical outlet and resume operation�
Using a light circular motion from your
wrist, draw the Immersion Blender
up slightly and let it fall again into the
ingredients� Allow your wrist motion
and the weight of the Immersion Blender
to do the work�
Immersion Blender processing guide
Food Quantity Preparation Speed Time
Pureed Soup 2 litres Cooked and simmered ingredients High 3 min�
Mayonnaise 1 litre Combine ingredients while gradually
blending in oil
High 2 min�
Salad Dressing 1 litre Combine ingredients while gradually
blending in oil
High 2 min�
Pureed
Vegetables
1�5 kg Cooked 12 mm cubed vegetables with
½ litre cooking liquid for processing�
High 3 min�
Gravy 2 litres Boiled stock and vegetables
with added thickening agent
Low 3 min�
Pancake Batter 2 litres Combine all ingredients in deep
container
30 pulses
Low
1 min�
CARE AND CLEANING
W10737292C_Final.indd 8 2/3/15 10:49 AM

9
OPERATING THE IMMERSION BLENDER
TIPS FOR GREAT RESULTS
• Cut solid foods into small pieces for
easier blending or chopping�
• The Immersion Blender is equipped
with thermal protection from high
operating temperatures� Should the
Immersion Blender suddenly stop during
use, unplug it and allow 10 minutes to
automatically reset�
• To avoid splashing, insert the Immersion
Blender into the mixture before pressing
the Power button, and release the Power
button before pulling the Immersion
Blender out of the mixture�
• When blending in a saucepan on
a cooktop, remove the pan from
the heating element to protect the
Immersion Blender from overheating�
• For best blending, hold the Immersion
Blender at an angle and gently move up
and down within the container� Do not
pound down on the mixture with the
Immersion Blender�
• Topreventoverow,allowroominthe
container for the mixture to rise when
using the Immersion Blender�
• Be sure the cord of the Immersion
Blender is not extending over a hot
heating element�
• Do not let the Immersion Blender sit in
a hot pan on the cooktop while not in use�
• Remove hard items, such as fruit pits
or bones, from the mixture before
blending or chopping to help prevent
damage to the blades�
CARE AND CLEANING
Always clean the appliance and its
attachments after use and before storing�
1. Unplug Immersion Blender before
cleaning�
2. Remove the attachments by twisting (see
"Operating Your Immersion Blender"
section)�
3. Wipe the motor body with a damp cloth�
Mild dish soap may be used, but do not
use abrasive cleansers�
4. Wipe power cord with warm, sudsy
cloth; then wipe clean with damp cloth�
Dry with soft cloth�
NOTE: Do not immerse the motor
body in washing solution, rinse water
or sanitizing solution�
Immersion Blender Attachments
Wash blending attachments in hot, soapy
water, or in the dishwasher� Dry thoroughly�
W10737292C_Final.indd 9 2/3/15 10:49 AM

10
TROUBLESHOOTING
Unit has been unplugged
Unknown
• Release the Power button
• Check the power supply
• Restart the Immersion Blender as
instructed in "Operating the Immersion
Blender"
• Release the Power button
• Unplug the unit
• Wait 10 minutes for the motor to cool
down and the thermal safety mechanism
to reset
• Restart the Immersion Blender as
instructed in "Operating the Immersion
Blender"
Machine has overheated
• Release the Power button
• Unplug the unit
• Check the following:
- electrical plug for damage
- power cord for cuts or other damage
- blades for freedom of movement
(food may be lodged between blades
and metal guard)
- drive shaft for freedom of rotation
(check by removing the attachment
arm and rotating the shaft manually)
If the Immersion Blender has stopped working, check for the following:
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS

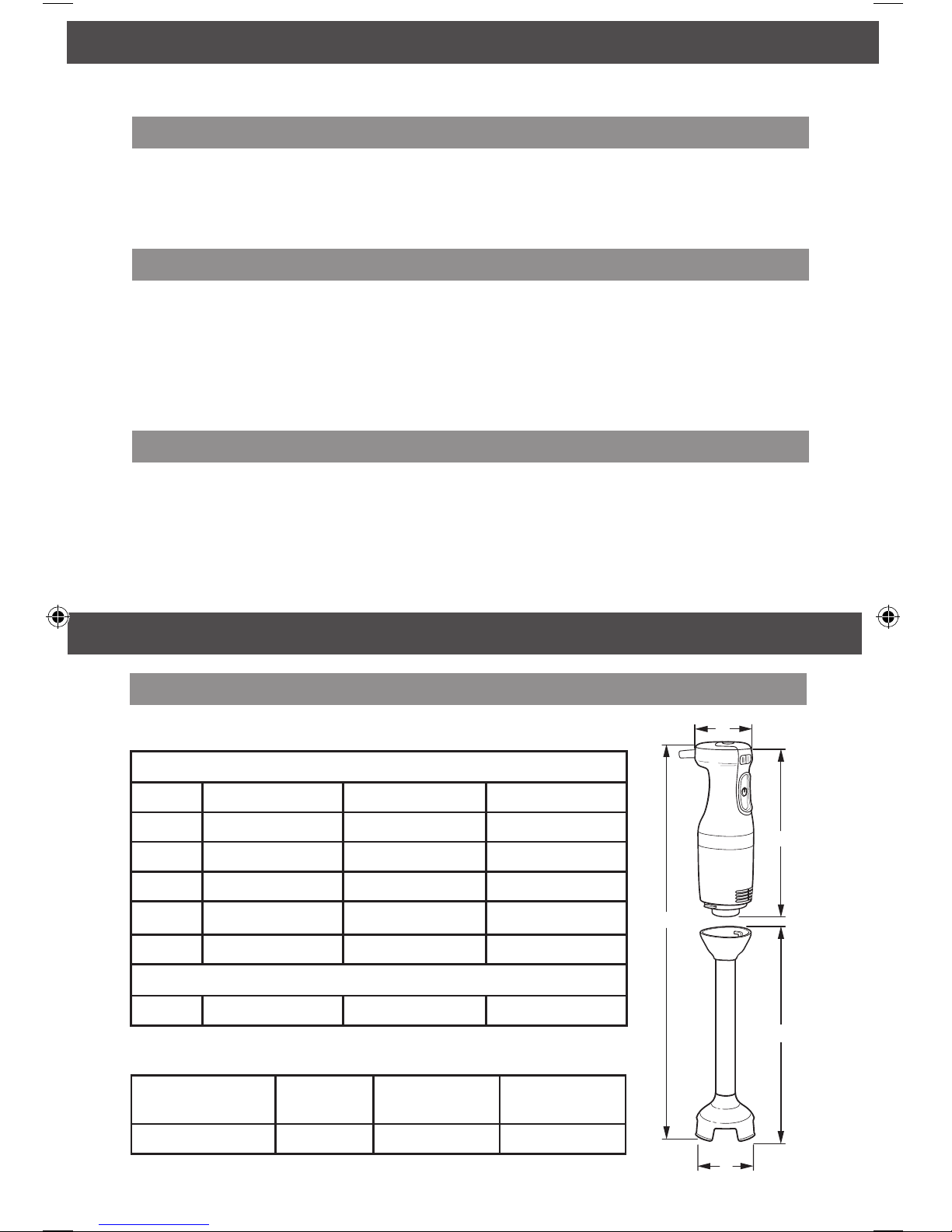

Dimensions
5KHBC212AER 5KHBC210AER 5KHBC208AER
A87�8 mm 87�8 mm 87�8 mm
B270�4 mm 270�4 mm 270�4 mm
C565�2 mm 514�4 mm 463�6 mm
D305 mm 254 mm 203 mm
E87�5 mm 87�5 mm 87�5 mm
Weight
1�57 kg 1�54 kg 1�52 kg
Electrical data
Physical data
Technical data
A
C
E
B
D
Motor
Intensity
(Amp.)
Mixer Speed
Low (rpm)
Mixer Speed
High (rpm)
230 V/50 Hz 350 W 11,000 18,000
W10737292C_Final.indd 10 2/3/15 10:49 AM

11
TROUBLESHOOTING
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Noise/Vibration Data
Measured values determined according to EN12853�
Total vibration values (vector sum of three axes) determined according to EN12853�
EC - Declaration of conformity
Blending arm assembly with
multi purpose s-blade
Blending arm
assembly with whisk
Operating sound
pressure levels
<80 dB(A) <80 dB(A)
Operating vibration levels ≤2.54cm/sec ≤1.27cm/sec
We declare under our sole responsibility that the product described under “Technical data”
fulllsalltherelevantregulationsandthedirectives2011/65/EU,2004/108/EC,2006/42/EC,
2009/125/ECandthefollowingharmonizedstandardshavebeenused:
EuropeanCommissionRegulation1275/2008
EN12853: 2001+A1:2010
EN55014-1:2006+A1:2009+A2:2011
EN55014-2:1997+A1:2001+A2:2008
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2013
30 October 2014
MarkDahmer/EngineeringDirector
Authorized to compile technical file
KitchenAid Portable Appliances Division
Saint Joseph, MI USA
W10737292C_Final.indd 11 2/3/15 10:49 AM

W10737292C
02/15
©2015.Allrightsreserved.Specicationssubjecttochangewithoutnotice.
W10737292C_Final.indd 12 2/3/15 10:49 AM
