FOOD PROCESSOR INSTRUCTIONS
W10529664B_01_ENv07.indd 4 8/8/14 1:56 PM

English
5
FOOD PROCESSOR INSTRUCTIONS
FOOD PROCESSOR SAFETY
Important safeguards............................................................................................. 6
Electrical requirements ......................................................................................... 8
Electrical equipment waste disposal...................................................................... 8
PARTS AND FEATURES
Parts and accessories............................................................................................. 9
Selecting the right tools....................................................................................... 11
USING YOUR FOOD PROCESSOR
Attaching the work bowl..................................................................................... 13
Attaching the lid and safety lock.......................................................................... 14
Using the 3-in-1 feed tube................................................................................... 14
Using the speed controls..................................................................................... 15
Removing processed foods.................................................................................. 16
USING YOUR ACCESSORIES
 Preparingthedicingkitforrstuse..................................................................... 17
Installing/using the dicing kit ................................................................................ 18
Installing/removing the multipurpose blade......................................................... 20
Installing/removing the prep bowl....................................................................... 21
Installing/removing the shredding, french fry, and parmesan discs...................... 22
Installing/removing the slicing disc....................................................................... 23
Adjusting the slicing thickness.............................................................................. 23
Installing/removing the mini-bowl and mini-blade............................................... 24
Installing/removing the citrus press ..................................................................... 25
Installing/removing the egg whip or dough blade................................................ 26
CARE AND CLEANING.......................................................................................... 26
TIPS FOR GREAT RESULTS
Using the multipurpose blade.............................................................................. 28
Using a slicing or shredding disc.......................................................................... 29
Using the dough blade......................................................................................... 29
Helpful hints ........................................................................................................ 30
TROUBLESHOOTING............................................................................................ 31
WARRANTY AND SERVICE.................................................................................. 32
TABLE OF CONTENTS
W10529664B_01_ENv07.indd 5 8/8/14 1:56 PM

6

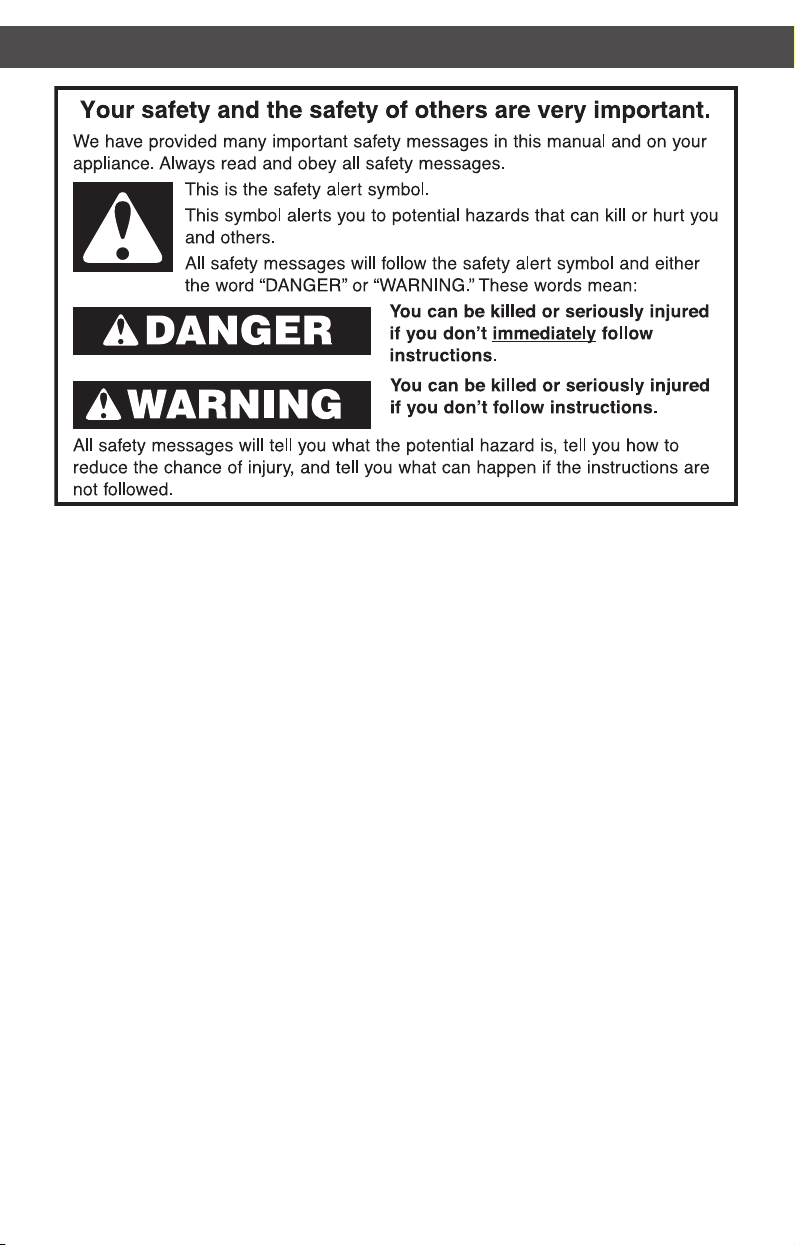

FOOD PROCESSOR SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety
precautions should always be followed, including
the following:
1. Read all instructions. Misuse of appliance may
result in personal injury.
2. To protect against risk of electrical shock, do not
put Food Processor in water or other liquid.
3. The use of attachments not recommended or sold by
KitchenAid may cause re, electric shock, or injury.
4. Unplug from the outlet when not in use, before putting
on or taking off parts, and before cleaning.
5. Do not let cord hang over edge of table or counter.
6. Be certain cover is securely locked in place before
operating appliance.
7. Never feed food by hand. Always use the food pusher.
FOOD PROCESSOR SAFETY
W10529664B_01_ENv07.indd 6 8/8/14 1:56 PM

English
7
FOOD PROCESSOR SAFETY FOOD PROCESSOR SAFETY
8. Do not attempt to defeat the cover interlock
mechanism.
9. This appliance is not intended for use by persons
with reduced physical sensory or mental capabilities,
or lack of experience and knowledge, unless they
have been given supervision or instructions
concerning use of the appliance in a safe way and
understand the hazards involved.
10. Children should be supervised to insure they do
not play with the appliance. The appliance is not
to be used by children. The appliance and cord
should be out of reach of children. Children shall
not clean or perform user maintenance on the
appliance without supervision.
11. Avoid contacting moving parts.
12. Do not operate any appliance with a damaged
cord or plug, or after the appliance malfunctions,
or is dropped or damaged in any manner. Return
appliance to the nearest Authorized Service Facility
for examination, repair, or electrical or mechanical
adjustment.
13. Do not use outdoors.
14. Keep hands and utensils away from moving blades
or discs while processing food to reduce the risk
of severe injury to persons or damage to the Food
Processor. A scraper may be used but must be used
only when the Food Processor is not running.
15. Blades are sharp. Care should be taken when
handling the sharp cutting blades, emptying the
bowl and during cleaning.
16. To reduce the risk of injury, never place cutting blade
or discs on base without rst putting bowl properly
in place.
W10529664B_01_ENv07.indd 7 8/8/14 1:56 PM

8
FOOD PROCESSOR SAFETY
Voltage: 220-240 Volts
Frequency: 50/60 Hertz
Wattage: 650 Watts
NOTE: If the plug does not fit in the outlet,
contact a qualified electrician. Do not modify
the plug in any way. Do not use an adapter.
Electrical requirements
SAVE THESE INSTRUCTIONS
17. This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, ofces or other
working environments.
- farm houses.
- by clients in hotels, motels and other residential
type environments.
- bed and breakfast type environments.
18. Be careful if hot liquid is poured into the Food
Processor as it can be ejected out of the appliance
due to a sudden steaming.
PARTS AND FEATURES
Electrical equipment waste disposal
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol .
The various parts of the packing must
therefore be disposed of responsibly
and in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2012/19/EU, Waste
Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
- The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection center for the recycling of
electrical and electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product,pleasecontactyourlocalcityofce,
your household waste disposal service or the
shop where you purchased the product.
W10529664B_01_ENv07.indd 8 8/8/14 1:56 PM

English
9

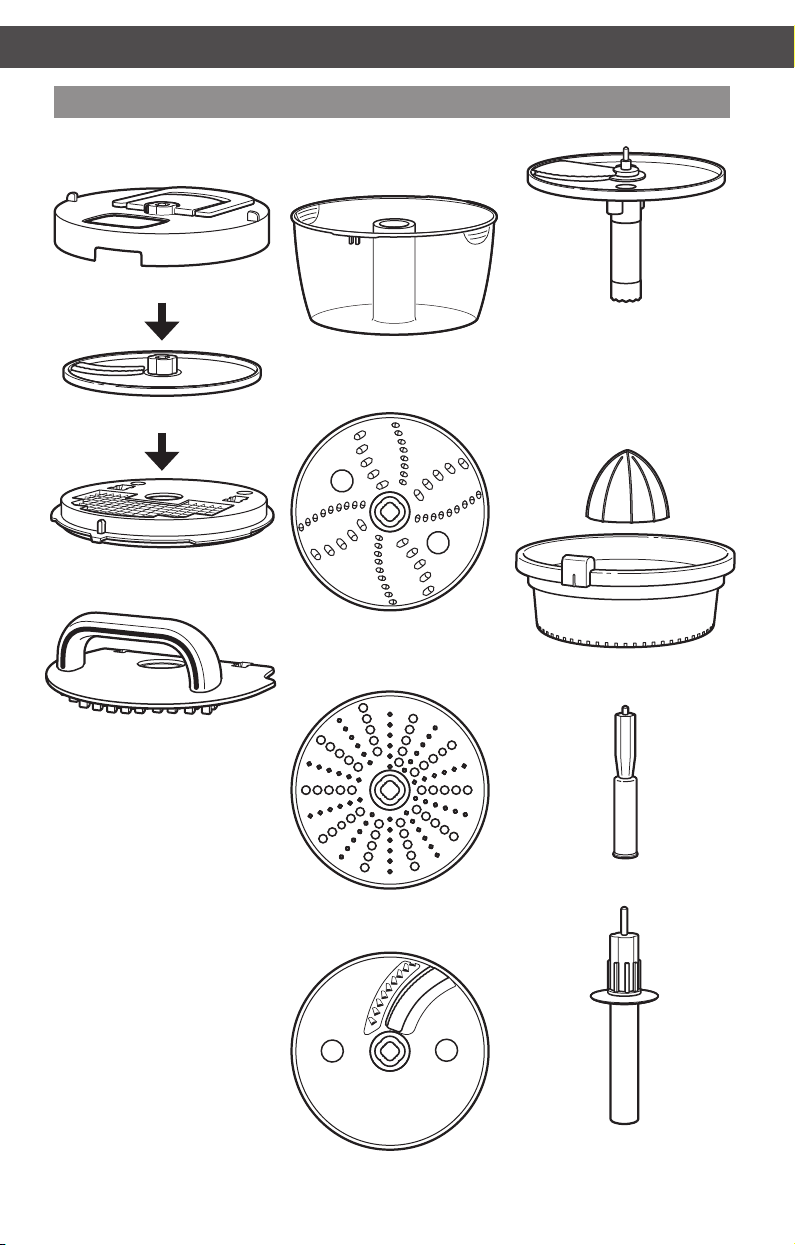

FOOD PROCESSOR SAFETY PARTS AND FEATURES
Stainless steel
multipurpose blade
Dough blade
Egg whip
1 L Mini-bowl
and mini-blade
Die-cast
base
4 L Work
bowl
Lid
with 3-in-1
feed tube
3-piece food
pusher
Accessory case
Externally
adjustable
blade
control
Parts and accessories
Spatula
Ultratight
Seal
W10529664B_01_ENv07.indd 9 8/8/14 1:56 PM

10
PARTS AND FEATURES
2.4 L Prep bowl
Reversible (2 mm and 4 mm)
shredding disc
Externally adjustable
slicing disc (thin to thick)
Parmesan/Ice shaving disc
Disc
adapter
Citrus press
Parts and accessories
French fry cutting disc
➃Dicing kit lid
➂8 mm Dicing kit blade
➁Dicing kit grid
Citrus press adapter
➄8 mm Grid cleanout tool
DICING KIT
PARTS AND FEATURES
W10529664B_01_ENv07.indd 10 8/8/14 1:56 PM

English
11
PARTS AND FEATURES PARTS AND FEATURES
Action Setting Food Accessory
ChopMince
Vegetables
Fruit
Fresh herbs
Nuts
Meat Multipurpose stainless steel blade
OR
Mini-bowl and mini multipurpose
stainless steel blade
Puree
Mix
Pesto
Sauces
Cake batter
Pie dough
Cream
Knead
Yeast dough Plastic dough blade
Slice
thick
Slice
thin
Fruit (soft)
Potatoes
Tomatoes
Vegetables
(soft) Adjustable slicing disc
Cheese
Chocolate
Fruit (hard)
Vegetables
(hard)
Shred
medium Shred ne
Vegetables
Cheese
(freeze
30 min. prior)
Chocolate
Fruit (hard)
Reversible shredding disc
Selecting the right tools
2
2
2
2
2
2
2
1
1
1
1
1
1
1
W10529664B_01_ENv07.indd 11 8/8/14 1:56 PM

12
PARTS AND FEATURES
Action Setting Food Accessory
Grate Shave
Hard cheese
Ice
Chocolate
Grate/shave disc
Fries
Sticks
Potatoes
Firm vegetables French fry disc
Dice
Potatoes
Tomatoes
Onions
Cucumbers
Fruit
Vegetables
8 mm dicing kit
Whip
Eggs Egg whip
Juice
Citrus fruit Citrus press
Selecting the right tools
2
2
1
1
2
1
2
2
1
1
USING YOUR FOOD PROCESSOR
W10529664B_01_ENv07.indd 12 8/8/14 1:56 PM

English
13
PARTS AND FEATURES
Action Setting Food Accessory
Grate Shave
Hard cheese
Ice
Chocolate
Grate/shave disc
Fries
Sticks
Potatoes
Firm vegetables French fry disc
Dice
Potatoes
Tomatoes
Onions
Cucumbers
Fruit
Vegetables
8 mm dicing kit
Whip
Eggs Egg whip
Juice
Citrus fruit Citrus press
USING YOUR FOOD PROCESSOR
Before First Use
Before using your Food Processor for the first time, wash the bowls and accessories as
described in the “Care and Cleaning”section.

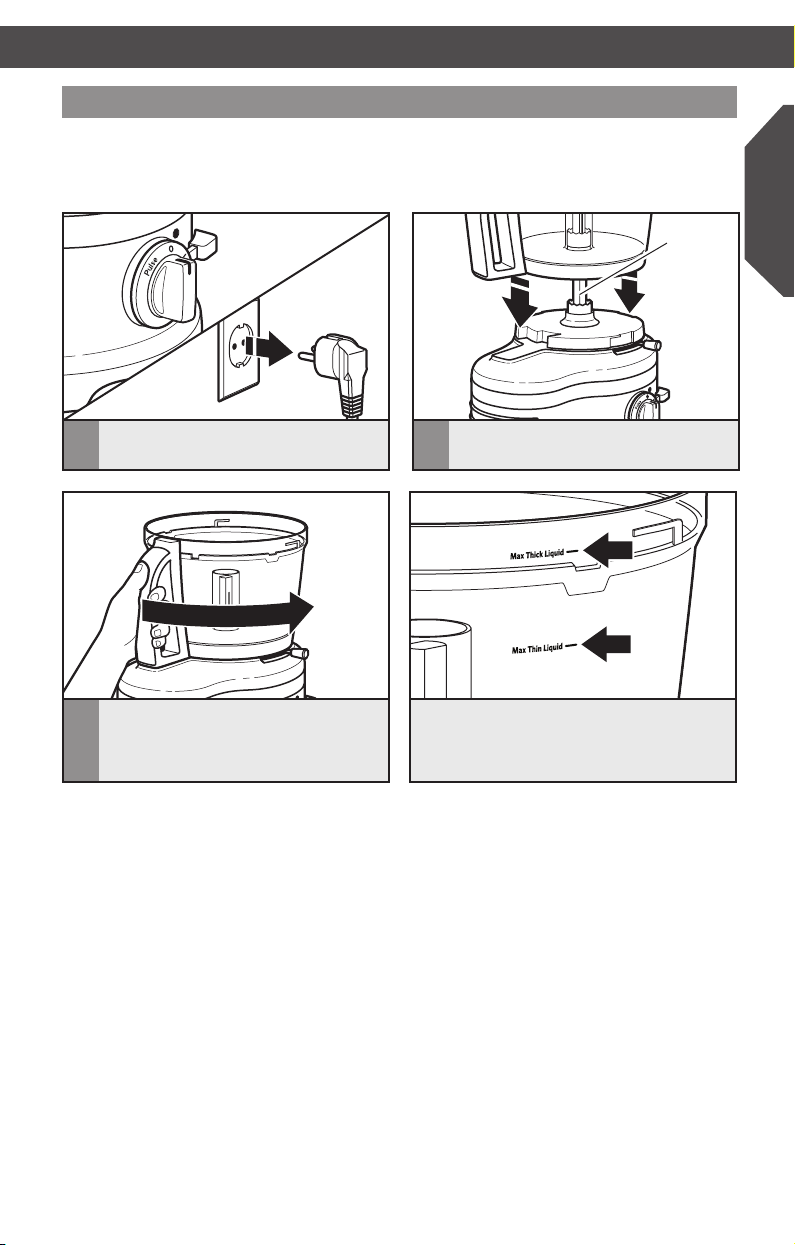

Attaching the work bowl
Power
shaft
3Turn work bowl to lock it on the base.
2Place the work bowl on the base
as shown.
1Be sure the Food Processor is turned off,
unplugged, and placed on a level surface.
Liquid level graphics on the side of the
bowl indicate the maximum recommended
levels for thick and thin liquids in the
Food Processor.
W10529664B_01_ENv07.indd 13 8/8/14 1:56 PM

14
USING YOUR FOOD PROCESSOR

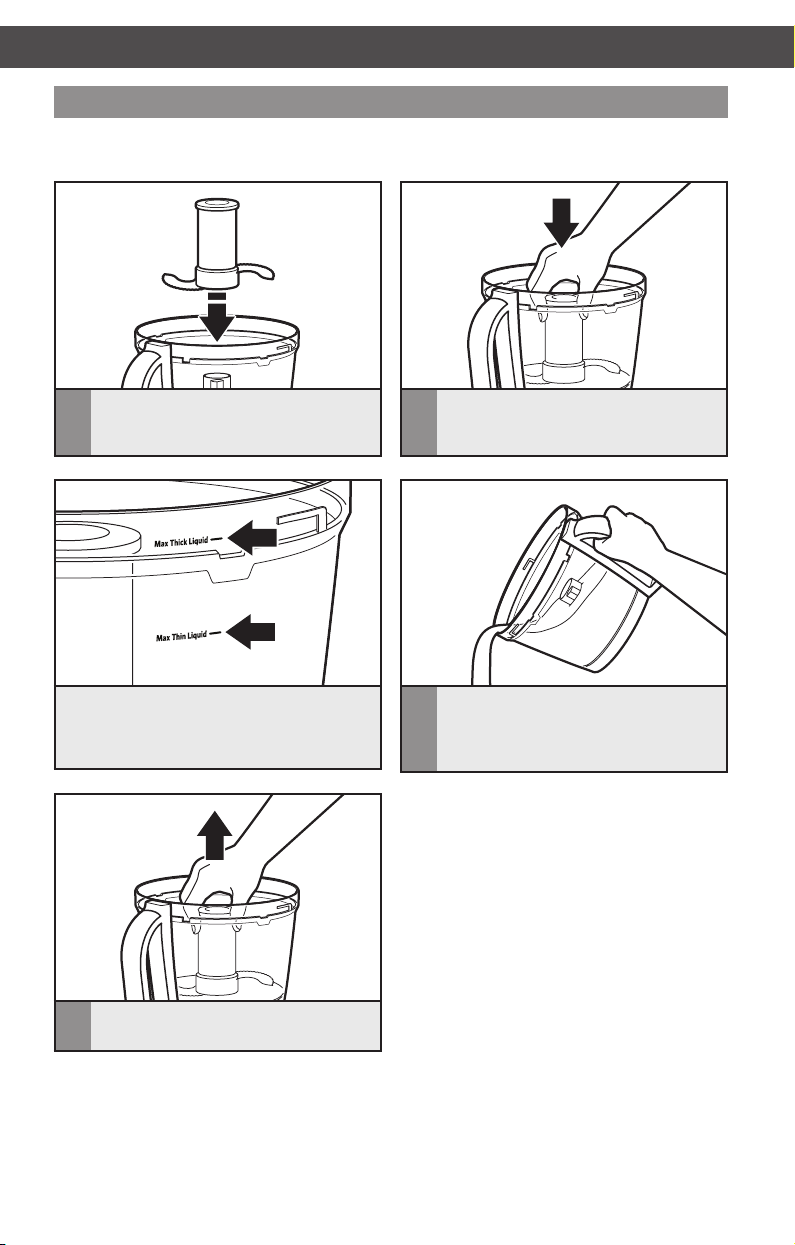

Using the 3-in-1 feed tube
Before Use
Before operating the Food Processor,
be sure the work bowl, blades, and lid
are properly assembled on the Food
Processor base.
Max Fill
line on
feed tube
Large food
pusher
1Use the entire feed tube and the large
food pusher to process large items.
Attaching the lid and safety lock
1Install the lid, aligning the tabs and
locking it into place. The Ultratight
seal is spill resistant.
2The largest section of the 3-part food
pusher must be inserted for the Food
Processor to run.
USING YOUR FOOD PROCESSOR
W10529664B_01_ENv07.indd 14 8/8/14 1:56 PM

English
15
USING YOUR FOOD PROCESSOR USING YOUR FOOD PROCESSOR
Small
food
pusher
Medium
food
pusher
2Use the medium food pusher in the
feed tube to process smaller items. 3Use the small food pusher to slice or
shred the smallest, thinnest items.
Small food
pusher
Drizzle
hole
4Use the drizzle hole in the small food
pusher to slowly drizzle oil or other
liquid ingredients into the work bowl.
NOTE: If the Food Processor fails to operate, make sure the work bowl and lid
are properly locked on the base.
Using the speed controls
1Toturnon,ipthespeedleverto“2”
(high) or “1” (low), then turn the dial
to “I” (ON).
2To stop, turn the dial to “O” (OFF).
2
1
2
1
W10529664B_01_ENv07.indd 15 8/8/14 1:56 PM

16
USING YOUR FOOD PROCESSOR
3Topulse,ipthespeedleverto“2”
(high), then turn the dial to PULSE
to start processing; the dial will
automatically go back to “O” (OFF)
position to stop. The pulse control
allows precise control of the duration
and frequency of processing.
Removing processed foods
1Be sure the Food Processor is off and
unplugged before disassembling.
2
1
3Or turn the lid to unlock, as shown, and
lift the lid to remove, continuing next
steps with bowl still attached to Food
Processor.
USING YOUR FOOD PROCESSOR
Finger gripFinger grip
4If using a disc, remove it. Hold the disc
by the 2 finger grips, lift it straight up.
USING YOUR ACCESSORIES
2Turn the work bowl and lift to remove,
and then turn and lift the lid.
W10529664B_01_ENv07.indd 16 8/8/14 1:56 PM

English
17
USING YOUR FOOD PROCESSOR USING YOUR FOOD PROCESSOR

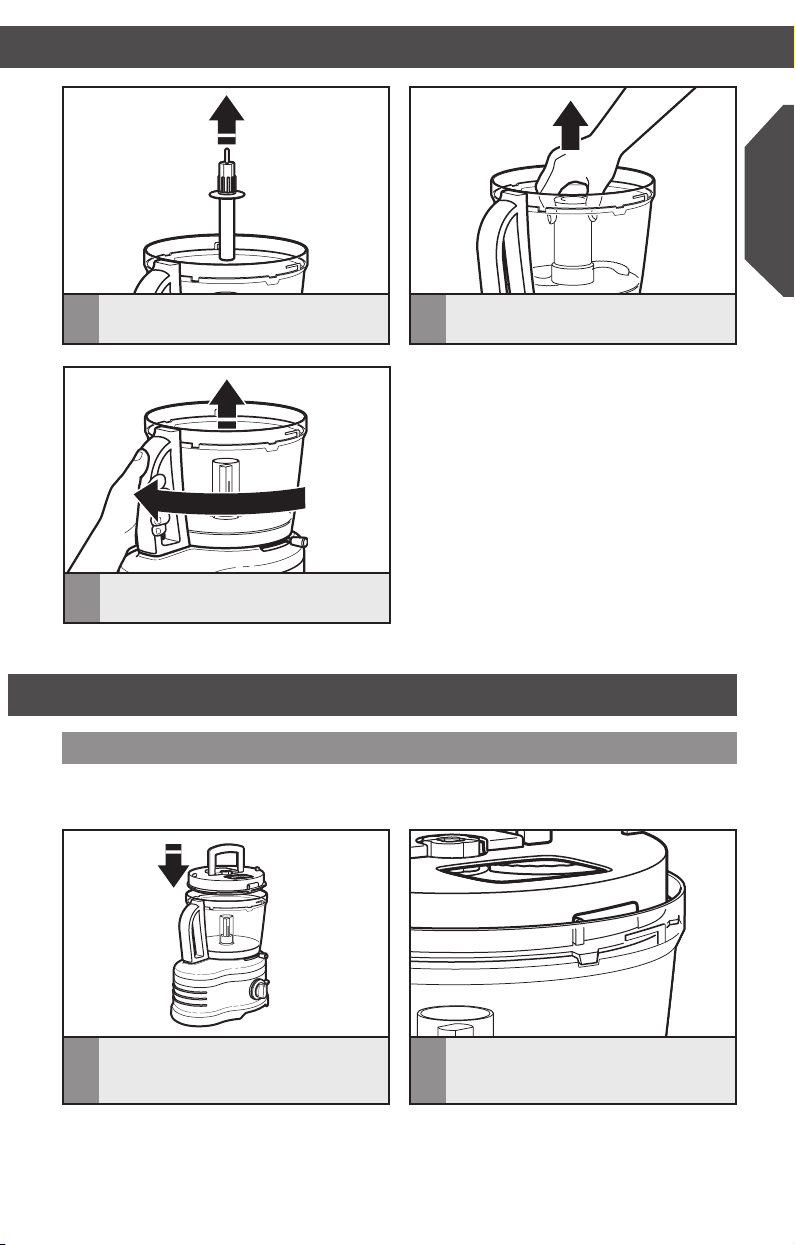

5If using a disc, remove the adapter.
7Turn the work bowl as shown.
Lift to remove.
6If using a blade, remove by grasping and
pulling straight up.
Preparing the dicing kit for rst use
1Using the handle, place the assembled
dicing kit into the work bowl. 2When placing the dicing kit in the work bowl, line up the dicing kit’s tab with
the groove in the work bowl.
IMPORTANT: Follow these directions in order to properly wash all parts of the dicing kit
before using it for the first time.
USING YOUR ACCESSORIES
W10529664B_01_ENv07.indd 17 8/8/14 1:56 PM

18
USING YOUR ACCESSORIES
3Rotate the dicing kit lid, using the finger
tabs until it unlocks.
5Clean each part of the dicing kit with
a soft cloth and warm water.
Installing/using the dicing kit
1Place the disc adapter onto the
power shaft. 2Place the ➁dicing kit grid, with the grid facing front, and line up the kit’s tab
with the groove in the work bowl.
USING YOUR ACCESSORIES
4Using the handle, remove the dicing kit
lid from the dicing kit.
W10529664B_01_ENv07.indd 18 8/8/14 1:56 PM

English
19
USING YOUR ACCESSORIES USING YOUR ACCESSORIES
4Place the ➃dicing kid lid onto the
assembled kit with the hole facing
front, and lock into place.
3Place the ➂dicing kit blade, making sure
it is securely seated.
5Place the lid on the Food Processor
and use the medium feed tube to dice
the desired items.
6After dicing, remove the ➃dicing kid lid
and the ➂dicing kit blade, and place the
➄dicing kit cleanout tool in the notches
on the dicing kit grid, then fold the
cleanout tool over into the dicing grid.
This will push remaining food out
of the grid, enabling you to wash the
dicing kit more efficiently.
“CLICK”
W10529664B_01_ENv07.indd 19 8/8/14 1:56 PM

20
USING YOUR ACCESSORIES
IMPORTANT: Accessory blades can only be used with the work bowl.
Installing/removing the multipurpose blade
2Press down firmly on the blade. You will
hear a click when the accessory locks
into place.
1Place the blade on the power shaft.
4Remove the blade by grasping and
pulling it straight up.
3The multipurpose blade has a leak
resistant seal, so you may leave the
blade in the bowl while pouring out
the ingredients.
NOTE: The multipurpose blade has a spill resistant seal and can be left in work bowl,
or removed before the contents are emptied.
Liquid level graphics on the side of the
bowl indicate the maximum recommended
levels for thick and thin liquids in the Food
Processor.
USING YOUR ACCESSORIES
W10529664B_01_ENv07.indd 20 8/8/14 1:56 PM
