KitchenAid KFP1317 User manual

Food Processor
KFP1317
KFP1318
KFP1319
KFP1320

2
PARTS AND FEATURES
1Heavy-Duty Base
2Power Cord and Cord Storage
(not shown)
3Drive Pin
413-Cup (3.1 L) Work Bowl
5Handle Hinge
6Lid Hinge
7Slicing Knob
8Work Bowl Cover with 3-in-1 Feed
Tube
9Lid Latch
10 3-in-1 Food Pusher
11 Refrigerator Lid
12 Externally Adjustable Slicing Disc
(thin to thick)
13 Reversible Fine/Medium Shredding
Disc
14 Multipurpose Stainless Steel Blade
15 Dough Blade
16 Drive Adapter (Upper)
17 Drive Adapter (Lower)
18 Medium Shredding Disc
1
4
7
3
10
9
6
5
8
2
11
12
13
14
15
16
17
24
18

ENGLISH
3
PARTS AND FEATURES
19 Dicing Kit Cover
20 Dicing Blade
21 Dicing Kit Base
22 Dicing Kit Clean Out Tool
23 Storage Caddy
24 French Fry Disc
19
21
20
12
23
17
16
22
15
13
14
ACCESSORY GUIDE
Accessory Included with Model
KFP1319 KFP1318 KFP1317 KFP1320
External Adjustable Slice
• • • •
Storage Caddy
• • • •
Wide Mouth Opening • • • •
3-in-1 Feed Tube • • • •
Multipurpose Blade • • • •
Dough Blade • • •
Fine and Medium Shred • • •
Medium Shred •
Storage Lid • •
Dicing Kit • •
French Fry Disc •
24
18

4

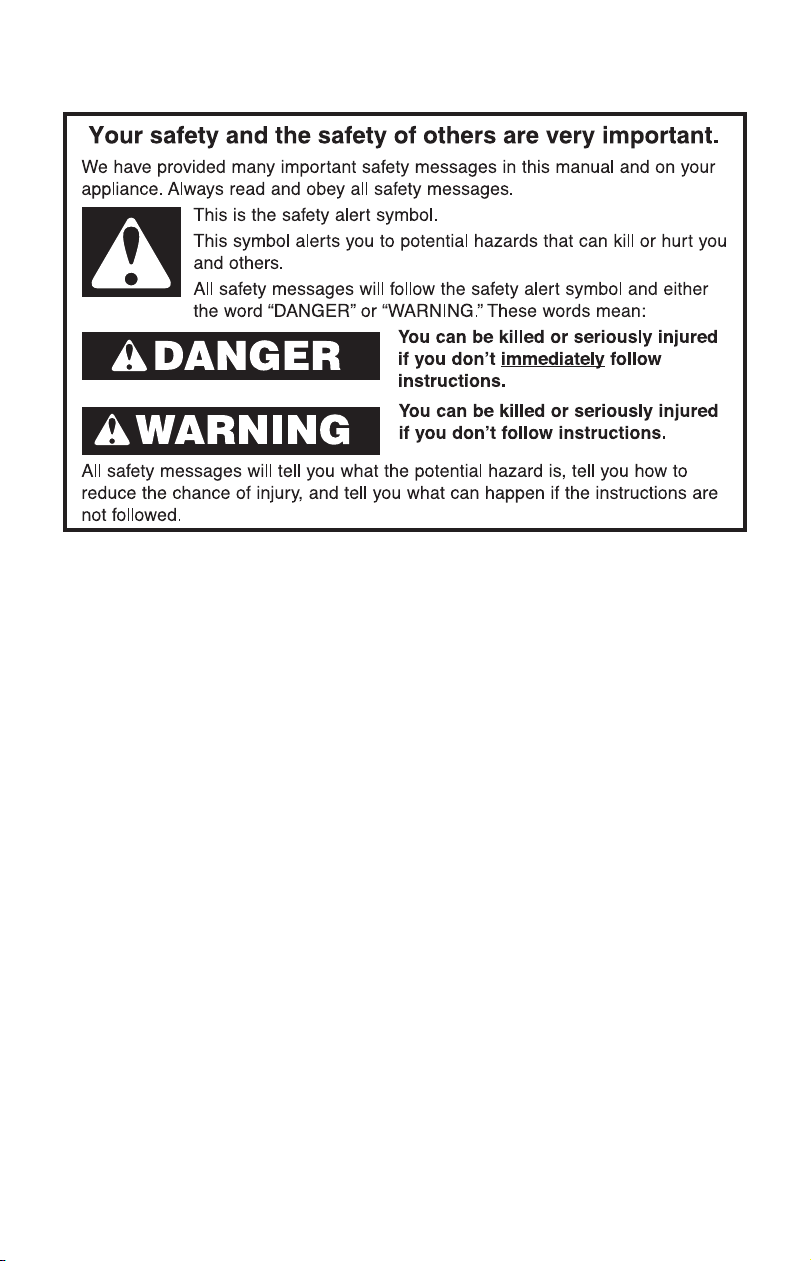

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put Food Processor in water
or other liquid.
3. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are closely supervised and instructed concerning use
of the appliance by a person responsible for their safety. Close supervision is
necessary when any appliance is used by or near children. Children should be
supervised to ensure that they do not play with appliance.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before
assembling or disassembling parts and before cleaning. To unplug, grasp the
plug and pull from the outlet. Never pull from the Power Cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest Authorized Service Facility for examination, repair, or
electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by KitchenAid may cause
re, electric shock, or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter.
10. Keep hands and utensils away from moving Blades or discs while processing
food to reduce the risk of severe injury to persons or damage to the Food
Processor. A scraper may be used but must be used only when the Food
Processor is not running.
PRODUCT SAFETY

ENGLISH
5
11. Blades are sharp. Handle carefully.
12. To reduce the risk of injury, never place cutting Blade or discs on Base without
rst putting Bowl properly in place.
13. Be certain Cover is securely locked in place before operating appliance.
14. Never feed food by hand. Always use Food Pusher.
15. Do not attempt to defeat the Cover interlock mechanism.
16. Do not ll the Bowl above the marked maximum ll line (or rated capacity) to
avoid risk of injury due to damage to the Cover or Bowl.
SAVE THESE INSTRUCTIONS
PRODUCT SAFETY
ELECTRICAL REQUIREMENTS
This product is designed for household use only.
Voltage: 120 VAC
Frequency: 60 Hz
NOTE: This Food Processor is equipped with a polarized plug (one Blade is wider than
the other). To reduce the risk of electrical shock, this plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. Do not modify the plug in any way.

6
ACCESSORIES SELECTION GUIDE
Action Setting Food Accessory
Chop Low or Pulse
Cheese
Chocolate
Fruits
Fresh herbs
Nuts
Tofu
Vegetables Multipurpose Stainless
Steel Blade
Mince or Purée High or Pulse
Mix Low
Pasta Sauce
Pesto
Salsa
Sauces
Batters
Slice
(thin to thick)
Low
Fruit (soft)
Potatoes
Tomatoes
Vegetables (soft) Externally Adjustable
Slicing Disc
High
Cheese
Fruit (hard)
Vegetables (hard)
Shred
(fine to medium)
Low Potatoes
Vegetables (soft)
Reversible Fine/Medium
Shredding Disc OR
Medium Shredding Disc
High
Cabbage
Cheese
Chocolate
Fruits (hard)
Vegetables (hard)
Dice Low
Potatoes
Vegetables
Fruit
Cheese
Dicing Kit
Knead Low Yeast
Dough Dough Blade
French Fry Cut Low Vegetables (hard)
Potatoes French Fry Disc
FOR DETAILED INFORMATION ON USING THE FOOD PROCESSOR
Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring
recipes, and tips on how to use your Food Processor.

ENGLISH
7
Before first use
Before using your Food Processor for the first time, wash all parts and accessories either
by hand or in the dishwasher (see “Care and Cleaning” section).
NOTE: Your Food Processor is designed so that all accessories may be stored inside the
Work Bowl.
Lift up the Lid Latch to unlock the Cover.
Tilt the Work Bowl Cover back and lift it
straight up so that the Lid Hinge pulls out
of the Handle Hinge.
Remove all parts and accessories from
the Work Bowl, and lift the Food Pusher
out of the Feed Tube.
Place the Work Bowl on the Base, aligning
the Handle with the raised button on the
right side of the Base. The Bowl will click
into place and should be flush against the
Base when properly aligned.
Place the Drive Adapter in the Work
Bowl, lowering it onto the Drive Pin.
PRODUCT ASSEMBLY
1
3
2
4
IMPORTANT: Place the Food Processor on a dry, level countertop with the controls
facing forward. Do not plug in the Food Processor until it is completely assembled.

8
PRODUCT ASSEMBLY
NOTE: For ease of assembly, install the desired Blade or Disc before attaching the Work
Bowl Cover.
NOTE: Your Food Processor will not operate unless the Work Bowl Cover is fully closed,
the large Food Pusher is in place, and the Work Bowl is properly seated on the Base.
To attach the Work Bowl Cover, hook the
Lid Hinge into the Handle Hinge on the
Work Bowl and close the Cover.
Once the Work Bowl Cover is closed, the
Lid Latch will lock in position.
5 6
INSTALLING THE MULTIPURPOSE BLADE OR DOUGH BLADE
Install the Lower Drive Adapter onto the
Upper Drive Adapter. Place the Blade on
the Drive Adapter. Rotate the Blade so it
falls down to the Base of the Adapter.
Install the Work Bowl Cover, and be sure
the Lid Latch is pushed down to the
locked position.
12

ENGLISH
9
PRODUCT ASSEMBLY
TIP: You may need to adjust the Drive Adapter with a slight turn on the power shaft until
it drops into place. For easiest installation, make sure the Adjustment Knob is in the “0”
position.
INSTALLING THE EXTERNALLY ADJUSTABLE SLICING DISC
ADJUSTING THE SLICING THICKNESS
Hold the Slicing Disc by the finger grips
and lower it onto the Drive Adapter.
To attach the Work Bowl Cover, hook the
Lid Hinge into the Handle Hinge on the
Work Bowl and close the Cover.
Once the Work Bowl Cover is closed, the
Lid Latch will lock in position.
NOTE: The Knob only works with
the Externally Adjustable Slicing Disc.
Changing thickness settings with other
discs or Blades installed will have no effect
on operation.
NOTE: Your Food Processor will not
operate unless the Work Bowl Cover is
fully closed and the Work Bowl is properly
seated on the Base.
Set the desired thickness by moving the
Knob to the left for thinner slices and to
the right for thicker slices.
Thinner Thicker
1 2
3
1

10
INSTALLING THE DICING KIT
With the Work Bowl removed from the
Base, place Dicing Kit Base, Blade (text
side up), and Cover in the Work Bowl.
Align Dicing Kit Cover with wide mouth
feed shoot.
1
2
Place the Work Bowl Cover on the Work
Bowl. Take small and/or medium Feed
Tube. Insert food to dice.
After dicing, remove the Work Bowl
Cover, Dicing Kit Cover and Dicing Blade,
then insert the Dicing Kit Clean Out Tool
into the Dicing Kit Base and push any
extra food through the grid.
1 2
3 4
PRODUCT ASSEMBLY
PRODUCT USAGE
Before operating the Food Processor, be
sure the Work Bowl, Blades/Disc, and Work
Bowl Cover are properly assembled on the
Base (see the “Product Assembly” section).

ENGLISH
11
PRODUCT USAGE
To turn on, press Low or High. The Food
Processor will run continuously and the
indicator light will glow.
To turn off, press Low or High again, or
press Off/Pulse.
To use the Pulse function:
Press Off/Pulse for short bursts, or press
and hold for longer bursts. The Pulse
function runs at high speed only. The
Food Processor will turn off when the
Off/Pulse button is released.
When finished, press the Off/Pulse
button. The indicator light will go out
and the Blade or Disc will slow to a stop.
Wait until the Blade or disc comes to a
complete stop before removing the Work
Bowl Cover. Be sure to turn off the Food
Processor before removing the Work
Bowl Cover, or before unplugging the
Food Processor.
1
3
2
4
USING THE 3-IN-1 FEED TUBE
The 3-in-1 Feed Tube features a 3-piece
Food Pusher.
Use the entire Feed Tube and the large
Food Pusher to process large items.
NOTE: The unit will not start if food is
loaded in the large Feed Tube above the
max fill line.
Use the medium Food Pusher in the Feed
Tube to process smaller items.
Use the small Food Pusher to slice or shred
the smallest, thinnest items.
Use the drizzle hole in the small Food
Pusher to slowly drizzle oil or other liquid
ingredients into the Work Bowl.
3-Piece
Food
Pusher

12
PRODUCT DISASSEMBLY
REMOVING PROCESSED FOODS
Turn the Food Processor off: Press the
Off/Pulse button and unplug the Food
Processor before disassembling.
Lift the Lid Latch to unlock the Work
Bowl Cover, then lift the Cover to
remove.
If using the disc, remove it before
removing the Bowl. Holding the disc by
the finger holes, lift it straight up.
Remove the Drive Adapter and
Multipurpose Blade, if using. The Blade
will stay in place on the Drive Adapter
when you remove the Adapter.
1 2
3 4
Lift the Work Bowl off of the Base to
remove food from the Bowl with a
spatula.
5

ENGLISH
13
CARE AND CLEANING
NOTE: If washing the Food Processor parts by hand, avoid the use of abrasive cleansers
or scouring pads. They may scratch or cloud the Work Bowl and Cover.
Press the Off/Pulse button, then unplug
the Food Processor before cleaning.
Wipe the Base and cord with a warm,
damp cloth. Thoroughly dry with a soft
cloth. Do not use abrasive cleaners or
scouring pads. Do not immerse Base in
water or other liquid.
IMPORTANT: The BPA-free Bowl requires special handling. If you choose to use a
dishwasher instead of hand washing, please follow these guidelines.
All parts are top rack dishwasher safe.
Avoid laying the Bowl on its side.
Thoroughly dry all parts after washing.
Use gentle dishwashing cycles such as
normal. Avoid high-temperature cycles.
You can store up to two Blades and three
discs as well as the Drive Adapter inside
the Work Bowl by using the in Bowl
Storage Caddy when the Food Processor
is not in use. Wrap the Power Cord
around the Cord Storage on the bottom
of the Base, then secure the plug by
clipping it to the housing.
1 2
3 4

14
TROUBLESHOOTING GUIDE
Problem Solution
If your Food Processor should
malfunction or fail to operate,
check the following:
Check to see if the Food Processor is securely plugged
into a grounded electrical outlet.
Make sure that the Bowl and Lid are properly aligned
and locked in place.
Have you pressed more than one button at the same
time?
Unplug the Food Processor, then plug it back into the
outlet.
Is the fuse in the circuit to the
Food Processor in working
order?
If you have a circuit breaker box, be sure the circuit is
closed.
The Food Processor may need
to cool to room temperature:
If the speed light turns off and the Off/Pulse light flashes,
wait until the Off/Pulse light turns off and retry.
The Food Processor may take from 5-15 minutes to cool
completely.
The motor may be locked: If the speed light stays on while the Off/Pulse light
flashes, press the Off/Pulse button to reset the motor.
Food Processor not shredding
or slicing properly:
Make sure the raised-Blade side of the disc is positioned
face up on the Drive Adapter.
Make sure ingredients are suitable for slicing or
shredding.
Make sure the disc is positioned in the process position
(near the top of the Bowl), and not the storage position
(low and inside of the Bowl).
If the Work Bowl Cover won’t
close when using the disc: Make sure the disc is installed correctly, and is positioned properly on the Drive Adapter.
If the problem cannot be
corrected:
See the “Warranty and Service” sections.
Do not return the Food Processor to the retailer.
Retailers do not provide service.

ENGLISH
15
WARRANTY AND SERVICE
KITCHENAID®FOOD PROCESSOR WARRANTY FOR THE 50 UNITED
STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND
CANADA
This warranty extends to the purchaser and any succeeding owner for Food Processors
operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.
Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay
for Your Choice of: Hassle-Free Replacement of your Food Processor.
See the next page for details on how to arrange for
service, or call the Customer eXperience Center
toll-free at 1-800-541-6390.
OR
The replacement parts and repair labor costs to
correct defects in materials and workmanship. Service
must be provided by an Authorized KitchenAid
Service Center.
KitchenAid Will
Not Pay for: A. Repairs when your Food Processor is used in other than normal single family home use.
B. Damage resulting from accident, alteration, misuse or
abuse.
C. Any shipping or handling costs to deliver your Food
Processor to an Authorized Service Center.
D. Replacement parts or repair labor costs for Food Pro-
cessor operated outside the 50 United States, District
of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES
THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE
SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO
NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE
LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND
EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO
THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID
CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state or province to
province.

16
®/™ ©2021 KitchenAid. All rights reserved. Used under license in Canada.
In the United States and Puerto Rico:
For service information, or to order
accessories or replacement parts, call
toll-free at 1-800-541-6390 or write to:
Customer eXperience Center,
KitchenAid Small Appliances,
P.O. Box 218, St. Joseph, MI 49085-0218
Outside the United States and
Puerto Rico:
Consult your local KitchenAid dealer or
the store where you purchased the Food
Processor for information on how to
obtain service.
For service information in Canada:
Call toll-free 1-800-807-6777.
For service information in Mexico:
Call toll-free 01-800-0022-767.
We’re so confident the quality of our
products meets the exacting standards
of KitchenAid that, if your Food
Processor should fail within the first year
of ownership, KitchenAid will arrange
to deliver an identical or comparable
replacement to your door free of charge
and arrange to have your original
Food Processor returned to us. Your
replacement unit will also be Covered by
our one year limited warranty.
If your Food Processor should fail within
the first year of ownership, simply call
our toll-free Customer eXperience
Center at 1-800-541-6390 Monday
through Friday. Please have your original
sales receipt available when you call.
Proof of purchase will be required to
initiate the claim. Give the consultant
your complete shipping address (no P.O.
Box numbers, please).
When you receive your replacement
Food Processor, use the carton, packing
materials, and prepaid shipping label to
pack up your original Food Processor
and send it back to KitchenAid.
We’re so confident the quality of our
products meets the exacting standards
of the KitchenAid brand that, if your
Food Processor should fail within the
first year of ownership, we will replace
your Food Processor with an identical
or comparable replacement. Your
replacement unit will also be Covered by
our one year limited warranty.
If your Food Processor should fail within
the first year of ownership, simply call
our toll-free Customer eXperience
Center at 1-800-807-6777 Monday
through Friday. Please have your original
sales receipt available when you call.
Proof of purchase will be required to
initiate the claim. Give the consultant
your complete shipping address.
When you receive your replacement
Food Processor, use the carton, packing
materials, and prepaid shipping label to
pack up your original Food Processor
and send it back to KitchenAid.
WARRANTY AND SERVICE
HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES,
DISTRICT OF COLUMBIA, AND PUERTO RICO
HASSLE-FREE REPLACEMENT WARRANTY – CANADA
ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR
ORDERING ACCESSORIES AND REPLACEMENT PARTS
PRODUCT REGISTRATION
Register your new KitchenAid appliance now:
US: https://register.kitchenaid.com
CAN: https://register.kitchenaid.com/en-ca/pr_reg

17
FRANÇAIS
PIÈCES ET CARACTÉRISTIQUES
1Base robuste
2Cordon d’alimentation et range-
cordon (non illustré)
3Axe d’entraînement
4Bol de préparation de 13tasses (3,1L)
5Charnière de la poignée
6Charnière du couvercle
7Bouton de tranchage
8Couvercle du bol d’alimentation avec
goulotte d’alimentation3 en 1
9Loquet du couvercle
10 Poussoir alimentaire3 en 1
11 Couvercle pour réfrigération
12 Disque à trancher avec système de
réglage externe (tranchage fin à épais)
13 Disque déchiqueteur réversible pour
couper moyennement ou finement
14 Lame polyvalente en acier inoxydable
15 Lame à pétrissage
16 Tige d’entraînement
17 Axe d’entraînement
18 Disque déchiqueteur moyen
1
4
7
3
10
9
6
5
8
2
11
12
13
14
15
16
17
24
18

18
PIÈCES ET CARACTÉRISTIQUES
19 Couvercle de l’ensemble de
tranchage en dés
20 Lame de tranchage en dés
21 Socle de l’ensemble de tranchage en dés
22 Outil de nettoyage de l’ensemble
detranchage en dés
23 Boîtier de rangement
24 Disque pour frites de légumes
19
21
20
12
23
17
16
22
15
13
14
GUIDE D’ACCESSOIRES
Accessoire Inclus avec le modèle
KFP1319 KFP1318 KFP1317 KFP1320
Ajustement externe de
l’épaisseur des tranches
• • • •
Boîtier de rangement
• • • •
Ouverture à large embout • • • •
Goulotte d’alimentation3-en-1
• • • •
Lame polyvalente • • • •
Lame à pétrissage • • •
Disque déchiqueteur fin et moyen
• • •
Disque déchiqueteur moyen •
Couvercle de rangement • •
Ensemble de tranchage en dés
• •
Disque pour frites de légumes •
24
18

19
FRANÇAIS
IMPORTANTES MESURES
DEPROTECTION
Lors de l’utilisation d’appareils électriques, certaines précautions élémentaires
de sécurité doivent toujours être observées, incluant les suivantes:
1. Lire toutes les instructions.
2. Pour éviter tout risque de choc électrique, ne pas immerger le robot culinaire
dans de l’eau ou tout autre liquide.
3. Cet appareil ne convient pas à une utilisation par des personnes (y compris
des enfants) à capacités physiques, sensorielles ou mentales réduites, ou
possédant un manque d’expérience et de connaissances, à moins qu’elles
ne soient placées sous supervision ou qu’elles aient reçu des instructions
concernant l’utilisation de l’appareil par une personne responsable de leur
sécurité. Une surveillance attentive s’impose lorsqu’un appareil ménager est
utilisé par ou à proximité d’enfants. Lesenfants doivent être surveillés an de
s’assurer qu’ils ne jouent pas avec l’appareil.
4. S’assurer que l’appareil est éteint et débranché de la prise murale lorsqu’il n’est
pas utilisé, avant d’y ajouter des pièces ou d’en enlever et avant de la nettoyer.
Pour débrancher, saisir la che et la retirer de la prise. Ne pas tirer sur le cordon
d’alimentation.
5. Éviter tout contact avec les pièces mobiles.
6. Ne pas faire fonctionner un appareil si le cordon ou la prise est endommagé,
si l’appareil ne fonctionne pas correctement, s’il tombe ou s’il est endommagé
d’une quelconque façon. Retourner l’appareil au centre de service agréé le plus
proche pour examen, réparation ou réglage électrique ou mécanique.
7. L’utilisation d’accessoires non recommandés ou non vendus par KitchenAid
peut causer un incendie, une décharge électrique ou des blessures.
8. Ne pas utiliser à l’extérieur.
9. Ne pas laisser le cordon pendre par-dessus le bord d’une table ou d’un comptoir.
SÉCURITÉ DU PRODUIT

20
10. Garder les mains et les ustensiles à l’écart des lames ou disques lors de la
préparation des aliments pour éviter tout blessure corporelle grave ou dommage
au robot culinaire. On peut utiliser un grattoir, mais il doit être employé uniquement
lorsque le robot culinaire ne fonctionne pas.
11. Les lames sont tranchantes. Manipuler avec précaution.
12. Pour réduire le risque de blessure, ne jamais placer la lame ou les disques sur
la base sans installer correctement le bol au préalable.
13. S’assurer que le couvercle est bien verrouillé avant de faire fonctionner l’appareil.
14. Ne jamais introduire les aliments à la main. Toujours utiliser un poussoir pour
introduire les aliments.
15. Ne pas tenter d’outrepasser le dispositif de verrouillage du couvercle.
16. Ne pas remplir le bol au-dessus de la ligne de remplissage maximale marquée
(ou de la capacité nominale) an d’éviter tout risque de blessure en cas
d’endommagement du couvercle ou du bol.
CONSERVER CES INSTRUCTIONS
SÉCURITÉ DU PRODUIT
SPÉCIFICATIONS ÉLECTRIQUES
Ce produit est conçu uniquement pour un usage domestique.
Tension: 120 VCA
Fréquence: 60Hz
REMARQUE: Ce robot culinaire comporte une fiche polarisée (avec une lame plus
large que l’autre). Pour réduire le risque de décharge électrique, cette fiche ne peut être
insérée dans une prise que dans un seul sens. Si la fiche ne s’enfonce pas complètement
dans la prise, inverser la fiche. Si la fiche ne s’introduit toujours pas, appeler un électricien
qualifié. Ne pas modifier la fiche de quelque manière que ce soit.
