KitchenAid KFP1333 Operating instructions

W11036950

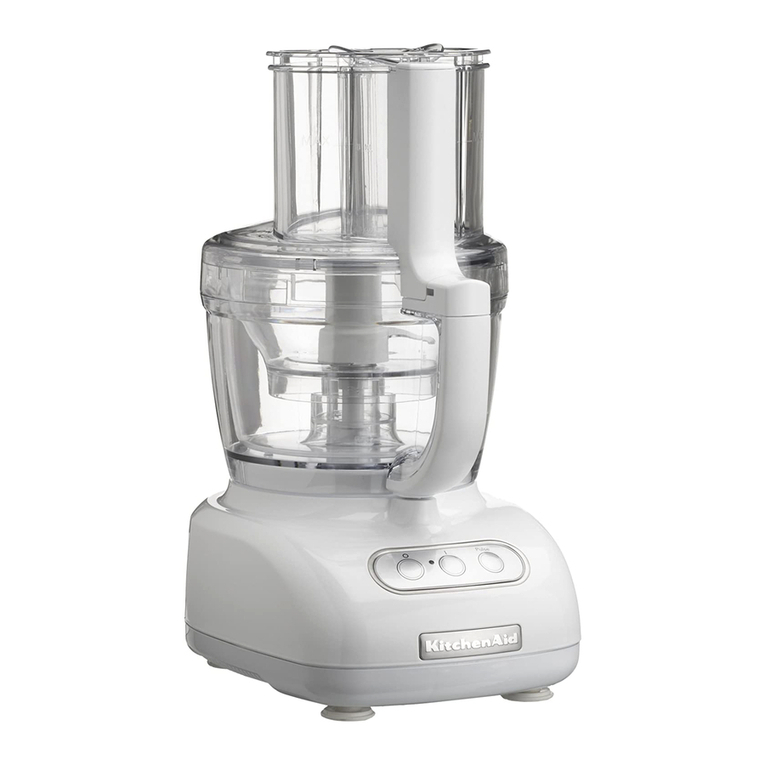

KitchenAid®Food Processor
Intended for Professional Service Technician Only
Service/Repair Manual
(Includes International model)
5KFP1333 (3.1L)
KFP1333, KFP1322, KFP1344, KFP1330, KFP1335,
KFP1356, (13 Cup)

KitchenAid®
Food Processor Service/Repair Manual
Intended for Professional Service Technician Only
© 2016 KitchenAid®
Covers Domestic Model –13-cup: KFP1322ER, KFP1333WH, KFP1333OB, KFP1333ER, KFP1333CU,
KFP1333BD, KFP1333GC, KFP1333QG, KFP1333ACS, KFP1344CA, KFP1344ES, KFP1344MS, KFP1344ACS,
KFP1344ACS, KFP1344AES, KFP1344ACA, KFP1344AFPO, KFP130CU, KFP1330SPO, KFP1355WH,
KFP1355OB, KFP1355ER, KFP1355BU, KFP1355CU, KFP1355GC, KFP1356BU, KFP1356CU, KFP1356ER,
KFP1356GA, KFP1356WH, KFP1356TG, KFP1356OB
International Model –3.1L 5KFP1333GER
Table of Contents
Subject Page(s)
Important Service Workplace Safety Recommendations 1
Service Environment 2
Personal Protection 2
Electrical Considerations 2
Electrical Requirements 3
Important Safeguards 3
List of Tools Required 4
Testing the Food Processor 4
Service Procedures: 6
Component Access (Housing Base Removal) 6
Remove Power Cord 8
Remove Slicing Disc Adjusting Knob 9
Remove Motor 10
Remove Control Board 11
Re-Assembly of the Unit 11
Motor Replacement 12
Control Board Replacement 12
Cord Replacement 13
Clean and Test Unit 14
Appendix Subject Page(s)
A Tools Required for Food Processor Service 15
B Problem Guide 16
C 13-cup Food Processor Screw Torques 17

Motor And Housing Unit Parts
Illus. No. Part No. Description
1 W10407578 Use and Care Guide
2 W10451327 Bearing Support
3 W10451328 Ball Bearing
4 W10451326 Motor Adaptor
5 W10451325 Control Panel
6 W10451324 PCB Assembly
7 W10451323 Nameplate
8 W10451322 Terminal Block
9 W10451321 120V Housing Base
10 W10451320 Foot
11 W10451329 Power Cord (2 Prong)
W10451331 Power Cord (3 Prong)

Attachment Parts
1
2
3
11
7

Attachment Parts List
Illus. No. Part Number Description
1 W10451497 Shredding Adaptor
2 W10451487 Mini Blade
3 W10451463 Multi Purpose Blade
4 W10451466 Slicing Disc
5 W10451465 Shredding Disc
6 W10461927 Spatula
7 W10451494 Large Accessory Box
W10625740 Small Accessory Box
8 W10451493 Egg Whip
9 W10451489 Dough Blade
10 W10451495 Slicing Shaft Adapter
11 W10461962 Common Adaptor
12 W10461924 Round Pusher
13 W10461925 Regular Pusher
14 W10451469 Wide Mouth Pusher
15 W10451468 13 Cup Lid
16 W10451470 Mini Bowl
17 W10461926 Chef Bowl
18 W10451467 13 Cup Bowl Onyx Black
19 W10480168 Lid Gasket
20 W10761311 Dicing Kit used on KFP1355 & KFP1356
Not Pictured W10799255 Julienne Disc

Introduction
All KitchenAid Products are well designed. Normally they will give continual use year after year without service attention.
Records have been maintained to determine and correct, through improved design, any troubles that might possibly
develop. An effort has been made in preparation of this manual to cover them all.
IMPORTANT SERVICE WORKPLACE SAFETY RECOMMENDATIONS
The purpose of this manual is to familiarize the professional house wares technician with the techniques required to repair
the following:
Domestic 13-cup Food Processor
Model KFP1333
International 3.1L Food Processor
Model 5KFP1333

- 2 -
SERVICE ENVIRONMENT
The following Safety Guidelines should be adhered to when servicing this product.
The workplace should be dry and sanitary at all times and all units should be inspected for cleanliness before any
work is started.
Visually inspect the unit requiring service in a well illuminated area.
A mild, non-abrasive dishwashing soap solution and clean towel can be used to wash any unit requiring attention.
The hands of the service technician should be clean at all times during the service procedure.
PERSONAL PROTECTION
The Service Technician should wear Protective Eyewear at all times when conducting a repair on the unit.
Loose fitting sweaters, shirt sleeves or bracelets should not be worn while servicing any product with rotating
parts.
ELECTRICAL CONSIDERATIONS
The workplace for the food processor should have properly grounded AC outlets that adhere to all Local Electrical
Codes that are applicable at the time of repair.
The food processor Power Cord should always be inspected first before plugging the unit into an energized power
outlet.
Do Not run the food processor if the Power Cord is damaged - replace it.
ESD (Electro Static Discharge) protection should be provided when servicing the electronic components.
All disassembly and assembly procedures discussed in this manual should be conducted with the unit
disconnected from the AC power source.
Do Not leave the unit unattended while running it for inspection or for any other checks.
Do Not remove the work bowl cover from the work bowl or remove the work bowl from the processor base while it
is running.
Always unplug the food processor immediately after concluding all electrical tests.

- 3 -
Electrical Requirements
This food processor is designed for use with 120 VAC, 60 Hz (240 VAC, 50 Hz International) only. It has a grounded plug
and should not be modified in any way. Do not use an extension cord or an adapter with this food processor.
A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer
cord. If the power supply cord is too short, have a qualified electrician or service technician install an outlet near the area
where the food processor will be used.
Important Safeguards
Ensure the KitchenAid®service technician is aware of the operating safeguards recommended to the customer:
1. Read all instructions in the KitchenAid®Food Processor Service Guide to Professional Results booklet.
2. Close supervision is necessary when any food processor is used by or near children.
3. The food processor has been U listed for household and commercial use.
4. To protect against electrical shock, do not immerse cord, plugs, or food processor housing in water or other liquid.
5. Do not operate any food processor with a damaged cord or plug or after the food processor has malfunctioned or has
been damaged in any manner.
6. Unplug the food processor from the outlet before cleaning.
7. Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
8. Do not use an extension cord.
9. The use of accessories not recommended by KitchenAid®may result in fire, shock, or injury to persons.
10. Do not use the food processor outdoors.
11. Do not place the food processor on or near a hot gas or electric burner or on a heated oven.
12. Do not use the food processor for other than its intended use.
13. Do not use the food processor without the work bowl cover in place while in operation.
14. Do not clean the work bowl/cover with harsh cleaners, steel wool pads or other abrasive material.

- 4 -
List of Tools Required
The following tools are necessary to service the KitchenAid®Food Processor.
Dead Blow Hammer
Phillips Screw Driver
Large Flat Head Screw Driver
Small Flat Head Screw Driver
Soft Work Surface (soft towel or foam matting)
Volt/Ohm Meter or Digital Multi-meter
NOTE: Power drivers are not recommended for servicing the KitchenAid®Food Processor.
The following equipment will greatly assist the technician in servicing the KitchenAid®Food Processor:
Low pressure compressed air to remove debris from food processor/components.
Clean rags/shop towels
Cushion the service area to keep from scratching the food processor or damaging the controls. A clean shop
towel or a folded paper towel will usually work well for this purpose.
Testing the Food Processor
The service technician will have to test the performance of the food processor to identify and diagnose the problem.
Normal electrical testing techniques, using a volt/ohm meter, are sufficient to test the food processor electrical
components.
NOTE: Refer to the PROBLEM GUIDE in this manual while performing any test.
Review any documentation accompanying the faulty food processor.
Perform a ground continuity test and a hi-pot test prior to plugging the food processor into an electrical outlet.
Prior to disassembling the food processor, plug it into an electrical outlet and perform a function test. Test the
switches, speed selections, etc. for proper operation and to troubleshoot for the problem.
If the unit does not run when plugged in, make sure that the work bowl and lid are properly installed and that the
pusher is in place. Proper installation of the work bowl, lid and pusher are essential for the safety switch interlock
system to function. The work bowl interlock can be verified by assembly of the bowl, lid and pusher while off of the
base unit.

- 5 -
Check the bottom of the work bowl handle for interlock action. Proper interlock operation can be determined as shown
below.
Working and non-working bowl safety interlock
After it is determined that the work bowl interlock is working properly, the safety switch can be tested by the following
procedures:
Lock the work bowl to the base of the unit.
Put the lid with the pusher on the work bowl and lock it into place.
With the unit unplugged, turn the power switch to the “ON” position.
Refer to Fig. 2 and measure the resistance across the power plug (L1 & Neutral for 115~120v. domestic units or
L1 & L2 for 230~240v international units).
If the switch is good, the resistance will be very low (typically less than 10Ω).
If the switch is not working (bad), the resistance will be very high (higher than 1.5 MΩ).
Safety Switch test measurement.
After troubleshooting, use the SERVICE PROCEDURES to replace any faulty component.
Working - Interlock extended with lid on bowl
and pusher fully seated.
Non-working - interlock not extended with lid
on bowl and pusher in place.

- 6 -
Service Procedures
This manual is written as a step-by-step guide to disassemble and reassemble the KitchenAid®Food Processor to gain
access to the systems within the unit that are in need of repair. For models covered in this manual, refer to the index
page.
Most of the KitchenAid® Food Processor components are contained within the food processor motor housing. Perform the
Component Access Procedure (below) to gain access to the food processor components.
NOTE: When removing self-tapping screws from any plastic or metal housing, the filings created will be scattered onto
adjoining components. Prior to performing any reassembly procedure, make sure to remove all the filings using clean
rags, low-pressure compressed air, etc.
Use of the Troubleshooting Quick Reference Guide (Appendix B) will aid in determining what steps are necessary for
repairing the unit. Not all steps will be needed for some of the repairs so it is important to consult the Troubleshooting
Quick Reference Guide first.
Appendix C lists all of the KitchenAid® Food Processor screw torques required for proper reassembly of the unit.
Component Access (Housing Base Removal)
Most replacement procedures will require access to the inside of the food processor. To gain access to the food processor
components:
1. Unplug the power cord.
2. Remove the work bowl and using a screw driver or a hammer lay across the top of the housing. Use a large flat head
Screw Driver to pry the slicing disc sleeve off.(Fig. 1)
Fig. 1) Remove slicing disc sleeve
3. Place the work bowl back on the unit with the lid removed, turn the food processor upside-down on a cushioned
surface (a soft towel is recommended)

- 7 -
4. Remove the (4) feet indicated in (Fig. 2) from the base of the unit by pulling on them.
Fig. 2) Remove these (4) feet to get to the screws.
5. Using a Medium Philips screw driver, remove the four (4) screws securing the housing base to the motor housing.
6. Remove the housing base from the motor housing.(Fig. 3)
Fig. 3) Remove the housing base and set to the side.
***Do not operate the food processor if the power cord is damaged. Replace the damaged cord with a new power cord
assembly immediately.

- 8 -
7. Remove the 2 Phillips Screws in the cord cleat.(Fig. 4)
8. Loosen the 2 flat head screws that hold the white and black power wires (blue and brown power wires on
International).(Fig. 4)
Fig. 4) Remove Cord
9. Remove the 1 Phillips head screw for the speed sensor and remove it from the motor.(Fig. 5)
Fig. 5) Remove the speed sensor
Filter for International Models

- 9 -
10. Remove the filler panel by the slicing adjustment knob.(Fig. 6) There is a clip on each side(Fig. 7), and a 3rd one in the
middle on the bottom use a flat screwdriver and release both clips(Fig. 8)
Fig. 6) Filler Panel Fig. 7) 2 Clips Fig. 8) 3rd Clip
11. Remove the slicing disc adjustment knob by using a small flat screw driver and pry outward between the plastic and
the metal from the adjustment knob.(Fig. 9) *Be careful not to break the clips You must remove the work bowl before
removing the knob and filler.
Fig. 9) Remove all at the same time.
12. Remove the 6 screws from the motor to the lower housing.(Fig. 10)

- 10 -
Fig. 10 Remove motor screws
13. Remove the 4 small Phillips Screws that holds the PCB in place.(Fig. 11)
Fig. 11 Remove control board screws
14. The motor and control board come out all in one piece.(Fig. 12)
Fig. 12) Remove motor and control board together

- 11 -
15. Remove the control panel by pushing in on the clips around the panel. (Fig. 13)
Fig. 13 Remove Control Panel
Reassembly of Food Processor
16. Line up the gears and lower motor and control board in and Watch wires do not get pinched.(Fig. 14)
Fig. 14 Reassemble motor

- 12 -
17. Replace 6 motor screws.(Fig. 15)
Fig. 15) Motor Screws
18. Move the control board into place and replace the 4 screws and tighten.(Fig. 16)
Fig. 16) Replace Control Board
19. Place speed control back on top of the motor and tighten screw.(Fig. 17)
Fig. 17) Speed Sensor

- 13 -
20. Route the cord wires and Hook them up black to black and white to white. (International will be brown to black and
blue to white) tighten the screws in the connector and the cord holder.(Fig.18)(Fig. 19)
Fig. 18) Domestic Fig, 19) International
21. Replace the lower to the housing, replace the 4 Phillips head screws.(Fig. 20)
Fig. 20) Replace lower
22. Replace the 4 feet on the lower, by pressing them into place by hand.(Fig. 21)
Fig. 21) Replace the feet.

- 14 -
23. Turn the unit right side up and replace the slicing disc sleeve by pressing it onto the motor shaft. Using a towel to help
protect your fingers and press it into place. (Fig. 22)
Fig. 22) Replace Slicing Disc Sleeve
24. Replace the bowl and Lid
25. Test Dielectric and Hi-Pot to check for pinched wires.(Fig. 23) After it passes, Plug the unit in and turn the unit on high
and loosen the bowl and the unit should shut off. Also check the lid the same way to make sure the safety switches
are all working.(Fig. 24)
Fig. 23) Hi-Pot Test Fig. 24) Test Safety Switches
