Kiwi Camping KC077-057 User manual

Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
SAFETY INSTRUCTIONS
• Regularly check nuts and bolts attaching the Rooftop Tent to your vehicle to make sure
fastenings are tight and in good condition.
• Remove the Rooftop Tent before using a commercial car wash.
• Do not use Rooftop Tent or storage bag to hoist, lift or support yourself.
• It is important when mounting to a vehicle, that all the mounting brackets supplied are
adequately spaced to support the weight of the Rooftop Tent.
• Products applied to a vehicle roof will alter vehicle handling. The manufacturer disclaims
all responsibility in relation to accidents due to improper use, incorrect maintenance, or
negligence in maintaining fastening hardware. It is recommended to not exceed 100km/h.
• This Rooftop Tent will increase the height of your vehicle. Measure the overall height and be
aware of height restrictions in car park buildings etc.
• If pitching in windy conditions it is advised to find a less exposed location. Park with the back
of the tent facing into the wind. Be aware of dropping branches and other potential hazards.
Collapse the tent in strong winds.
• Never drive with roof tent erected.
• Do not put anything on the top of the tent when it is installed.
• The load-bearing of the frame is no more than 300kg.
TUATARA SUMMIT EXTENDED
ROOFTOP TENT
Model No. KC077-057

2
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
YOUR TUATARA SUMMIT EXTENDED ROOFTOP TENT INCLUDES:
1 x Rooftop Tent
2 x mounting rails
1 x ladder (includes 2 x ladder brackets, 2 x bolts, 2 x nuts, 4 x washers)
2 x storage bags
1 x travel cover
4 x mounting brackets
4 x spacers
8 x slide plates
8 x M8 x 60 bolt sets (hexagon head bolt, nut and washer)
8 x M8 x 40 bolt sets (hexagon head bolt, nut and washer)
8 x M8 self-locking nuts
8 x M8 washers
1 x porch pole
2 x fibreglass window poles
2 x fibreglass window tensioners
4 x plastic end caps
4 x internal bungee cords
2 x spring poles
3 x pegs
3 x guy ropes
1 x 13mm ratchet spanner
2 x 10mm spanners
You will also need:
1 x person to help attach the Rooftop Tent to the vehicle
PARTS INCLUDED

3
ROOFTOP TENT INSTALLATION
The Tuatara Summit Extended can be fitted to smaller vehicles as
long as the fitted roof rack or crossbars support a dynamic weight
load of 75kg or higher. We recommend using only permanent roof
racks and crossbars. The distance between the car roof and the
bottom of the roof rack should be no less than 3cm. The roof rack or
crossbars must be between 80-100cm distance apart.
1. Decide on the orientation of your Rooftop Tent. The Tuatara
Summit Extended can open to the rear or side of your vehicle.
Side mounting is better for smaller vehicles and doesn’t
interfere with the boot opening.
2. If rear mounting is required, first determine the length the
mounting rails need to be. To adjust the length of the mounting
rails; line them up to the pre-drilled holes on the base of the
Rooftop Tent. Mark where the rails need to be cut. Ensure
protective clothing is worn when using power tools to cut metal.
Cut the rails to the required length. File o all sharp edges.
Note: If the mounting rail is cut shorter, it will not provide the same
strength if reattached back to the original position.
3. To fix the mounting rails; position the rails over the pre-drilled
holes. Feed the nuts into the mounting rail. Slightly open
the Rooftop Tent and move the mattress so you can insert
the washers and bolts through the pre-drilled holes and
nuts. Tighten the bolts from inside the Rooftop Tent. Do not
overtighten.
4. Attach the ladder brackets to the pre-drilled holes in the
metal tent frame. Secure the ladder using the bolts and nuts
provided. Do not overtighten.
5. Attach the storage bags by sliding into the track on each side of
the ladder.
3
4
5

4
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black

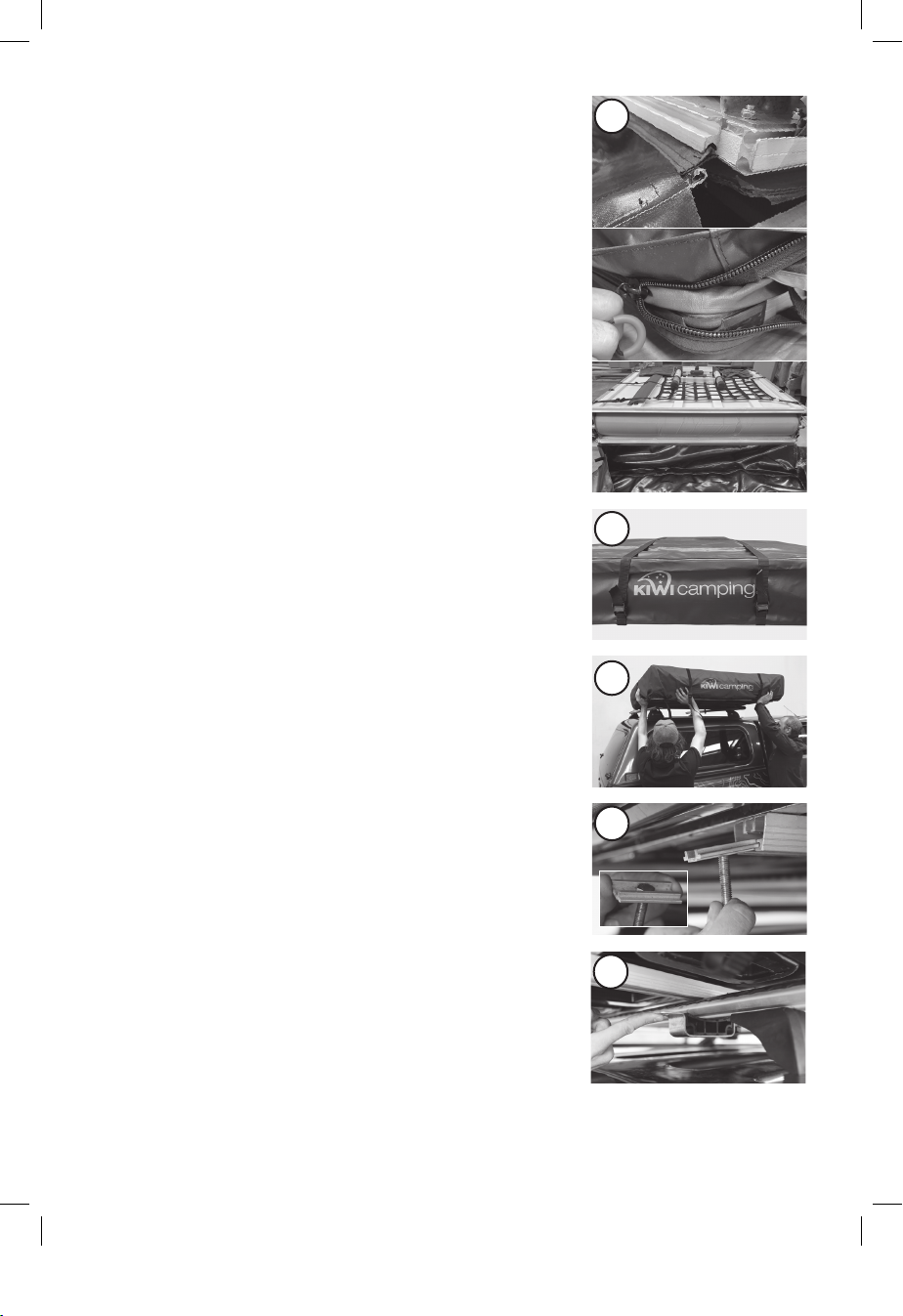

6. Attach the travel cover by feeding the zipper through the track
on the base (mounting rail) of the tent. Ensure the zipper cover
is put through the mattress/hinge side of the tent.
7. Close the Rooftop Tent and secure it with the compression
straps.
8. Position the tent onto your vehicle. Ensure the roof racks
are evenly spread under the Rooftop Tent. Carefully lift the
Rooftop Tent onto the roof rack. This will require two people.
9. Insert the supplied bolts through the holes on the grooved side
of the eight slide plates.
10. To help fit the mounting brackets onto smaller roof racks, they
are supplied with spacers. Use these to make your Rooftop
Tent more secure.
11. Attach the Rooftop Tent at the four points where the roof rack
and the frame meet. Slide two slide plates and bolts into both
ends of each mounting rail. Position so one bolt is on either
side of each roof rack. Loosely hand tighten.
12. Check the alignment and balance of the Rooftop Tent before
fully tightening all bolts. Ensure all eight points are tightened
evenly using the M8 self-locking bolts.
13. Place the end caps over each end of the frame to prevent wind
noise.
9
8
10
7
6

5
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black

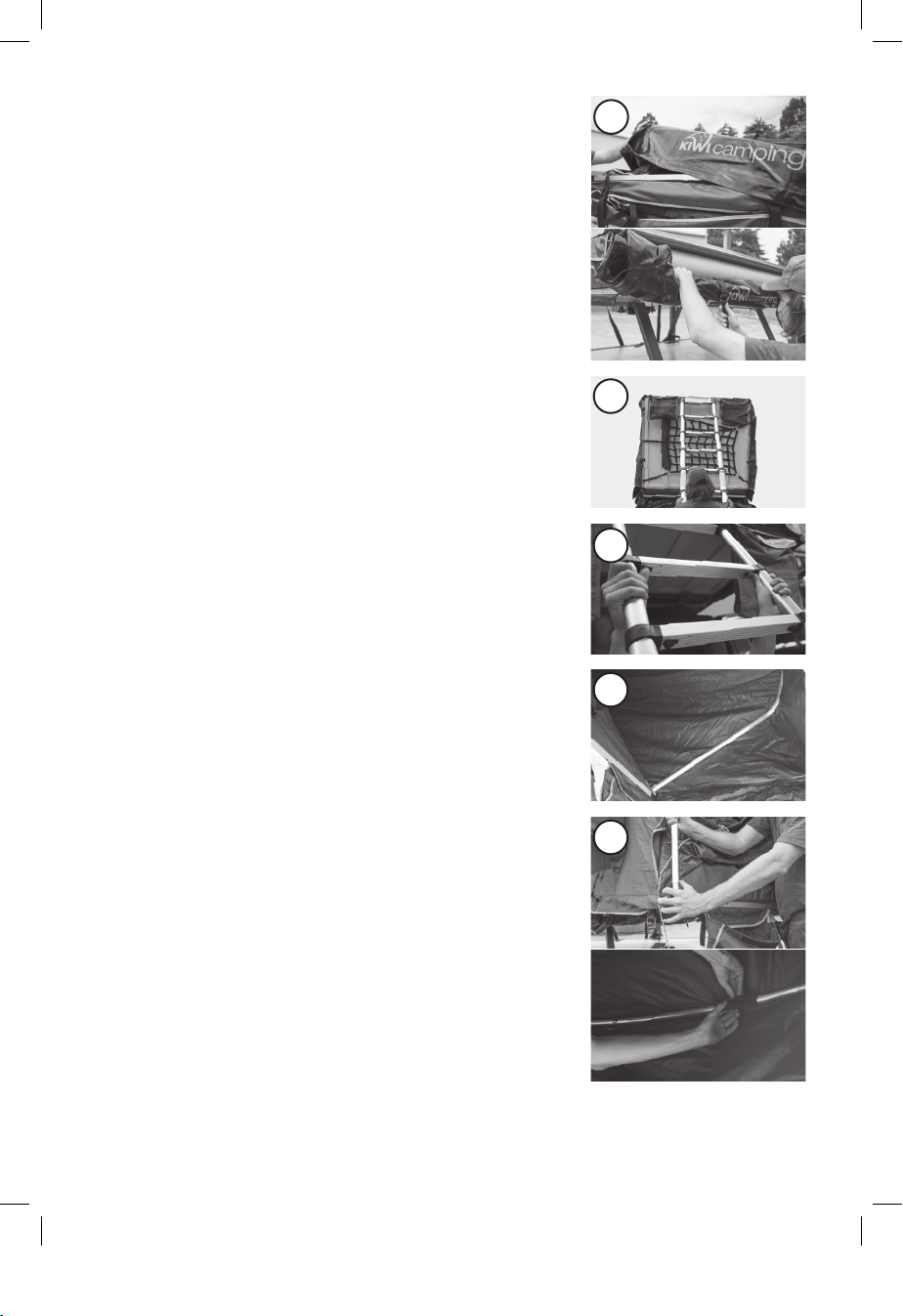

PITCHING INSTRUCTIONS
1. Before opening your Tuatara Summit Extended Rooftop Tent,
ensure that all eight bolts are fastened tight so that the tent
does not move when opening.
2. Release the straps and unzip the Travel Cover. Remove towards
the opening section. Secure the Travel Cover underneath
the fold-out section of the Rooftop tent using the attached
fastener.
3. Unclip the ladder’s travel strap and fully extend the ladder until
the telescopic rungs on both sides click into place.
4. Once the ladder is fully extended, use the ladder as leverage to
fold out the extension section on the Rooftop Tent.
5. Once unfolded, adjust the height of your ladder starting at the
top by pushing both buttons at the same time. Shorten the
ladder rungs to the desired length so that it is at a 75° angle
and the extension is sitting level with your vehicle. Adjust the
ladder to ensure it is firm and that it does not bounce or move.
6. To extend the entrance area, pull out the porch extension pole
from the Rooftop Tent. The pre-shaped corners fit into the
front porch corners.
7. Attach the other end of the porch extension pole into the pole
slots on the outer edges of the frame, this stretches out the
front porch.
6
5
2
4
7

6
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black

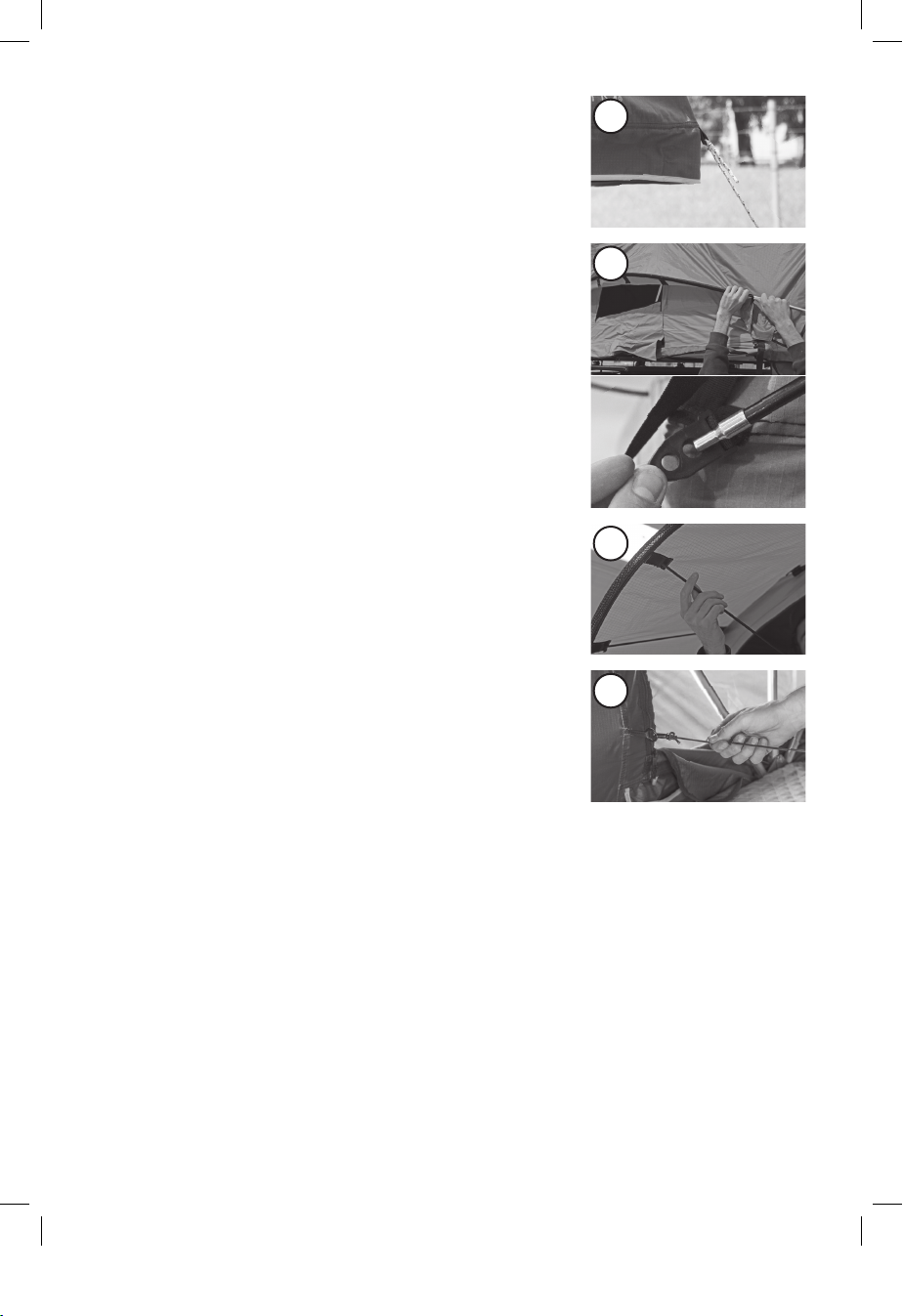

8. Pitch out the porch with the attached guy ropes. Ensure the
pegs are at a 45° angle so they remain secure. Adjust the tri-
tensioners so the ropes remain taut.
9. To pitch the side windows, assemble the fibreglass poles. Feed
the longer poles through the window power mesh sleeves and
secure each end by placing the pole into the pole connector.
10. Tension out the side windows by inserting each end of the
shorter fibreglass poles into the corresponding pockets on the
middle of the fly and window extension.
11. Once inside the Rooftop Tent, undo the internal bungees that
help to pull in the body when packing down.
12. Partly open the windows to allow for airflow, this will help to
reduce condensation build-up. If not pitching the side windows
completely, they can be rolled up for faster pitching. Ensure
all rain flaps at the main hinge joint are pulled down to prevent
water from penetrating the frame.
13. Attach the annex if required (sold separately).
11
8
9
10

7
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
PACKING INSTRUCTIONS
1. Ensure the Rooftop Tent is dry and clean inside and out before
packing down so that mildew or mould does not build up.
2. Make sure nothing heavy or bulky is left inside the Rooftop
Tent before folding. Any bedding should be laid flat.
3. Partly unzip the windows and doors so that the air can escape
from the tent when folded. Reattach the internal bungees that
will pull in the body when packing down.
4. Remove the side window fibreglass poles and the two front
spring poles and place them back into the bag. Place the poles
under the mattress of the tent.
5. Remove the porch pole. Store on top of the tent or fit around
tent after folded.
6. Use the extended ladder as leverage to fold the Rooftop Tent
in half. To compress the ladder, press and hold both buttons
on the bottom rung to collapse it up. Secure with the strap.
7. Compress the tent by pushing down from the top before
securing compression straps.
8. Pull the Travel Cover over the Rooftop Tent. Ensure all the
fabric is tucked inside the Travel Cover. Secure the corners
with the buckles. Check all fabric is clear of the zip before
zipping up the cover.
9. Finally, compress the Rooftop Tent further with the two
compression straps.
7
3
5
8
9
10

8
Filename: 5290_KC077-037_Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
1. Never store your Rooftop Tent away damp. Should mildew spots appear, brush them o before
they become attached. Mildew damage of any kind is not covered by our warranty. DO NOT use
excessive force or other harsh tools to remove soilage from your Rooftop Tent.
2. Like all assets, polyester fabric requires regular care and attention to give the life and service
expected. Regular cleaning with an abundance of clean water and a soft brush, especially after
exposure to saltwater will preserve your Rooftop Tents life. Do not allow bird droppings, earth or
vegetable matter to remain in contact with the fabric. NEVER USE SOAPS OR DETERGENTS.
3. Polyester fabric is not fireproof, if exposed to flame or high heat sources it can ignite and burn.
Always take care when using spirit or gas appliances such as stoves and lanterns near your
Rooftop Tent.
4. Some products contain chemicals, which can destroy your Rooftop Tent proofing and cause it to
leak. Avoid using aerosol sprays and keep petrol, oil, solvents and other similar fluids away from
the fabric. Do not use these inside or around your Rooftop Tent as any damage caused by these is
not covered by our warranty.
5. Always remember that your Rooftop Tent is made from cloth, and should not be compared with
a house. It is waterproof under normal conditions but in severe weather conditions, some water
may penetrate. If you apply waterproofing to your Rooftop Tent, check that you are applying the
right one for the polyester fabric type.
6. Polyester fabric is not 100% colourfast and some fading will occur naturally, however; this does
not aect the performance of the fabric. Do not leave your Rooftop Tent up and unattended for
extended periods of time. Rooftop Tents are not designed as permanent dwellings. Rooftop Tents
are guaranteed for normal camping use only.
7. Check all fixtures regularly and tighten them when necessary.
8. Always wash tent and frame if the Rooftop Tent is exposed to coastal or salty conditions.
9. Remove the mattress before storing for long periods. Air the tent and mattress regularly to
prevent dampness in bedding.
CARE INSTRUCTIONS
PLEASE READ ALL OF THE CARE INFORMATION AND INSTRUCTIONS INCLUDED WITH THIS ROOFTOP
TENT BEFORE USING IT FOR THE FIRST TIME. THE BODY OF THE TUATARA SUMMIT EXTENDED IS
RIPSTOP POLYESTER CANVAS AND THE FLY IS RIPSTOP POLYESTER.

9
Filename: 5290_KC077-037_Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
IMPORTANT INFORMATION
1. Ensure the Rooftop Tent is clean and dry before it is packed away.
2. Store in a clean, dry space when the Rooftop tent is not attached to your vehicle.
3. Do not clean with harsh chemicals, only use water and a soft cloth.
4. The Travel Cover should always be used when driving.
5. Before using the ladder, ensure that all parts are locked. Check regularly to ensure all parts are in
good condition and in working order.
6. Do not use the ladder if only supported by one leg. If on ice or unstable ground, use an anti-skid
device under the ladder.
7. When climbing the ladder, face the ladder while climbing and hold firmly. Step in the centre of the
rungs. Do not jump o the ladder.
8. Do not adjust the ladder while on the ladder.
9. Before contracting the ladder, ensure it is clean from dirt, dust and grease.
10. The frame and ladder are metal and will conduct electricity, keep away from live electrical
currents.
11. The ladder should be at an angle of 75° to the ground when in use.
12. When extending the ladder. Start at the top, extend slowly in sequence, locking each rung
carefully before moving to the next. Grip from the bottom.
13. When contracting the ladder. Start at the bottom, click the buttons on the underside of the rungs
and collapse slowly in sequence, working to the top of the ladder. Fasten the travel strap.
14. If the extended ladder isn’t sitting flat, reduce the entire ladder first, then extend again to the
correct height, starting from the top.
15. Do not use the tent and ladder in extremely high winds.
16. The ladder is designed for one person only, maximum load 150kg.
17. Do not jump inside Rooftop Tent.
18. Do not leave children unattended in or around this Rooftop Tent.

10

11

12
The original purchaser of this product is oered a warranty if during this time period the product fails due to a fault in either materials or workmanship.Service
under this warranty is available by returning the product, with your proof of purchase, to where it was purchased. If after inspection it is determined that the
product is defective, we will repair or replace it (at our discretion) free of charge.This warranty does not cover misuse, damage caused by accident, storm or
wind damage, mildew, neglect, UV degradation and fair wear and tear.Please note, the warranty on this Rooftop Tent will be deemed void if the product is used for
any purpose other than a temporary shelter. If the claim is not deemed a warranty or is outside its warranty period, we can repair the product at a nominal cost.
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black
Distributed by: Aber Living, Hamilton, NZ
www.kiwicamping.co.nz
5523-08/23
WARRANTY INFORMATION
The warranty period for this awning is found on the packaging and full details are on the Kiwi Camping
website - www.kiwicamping.co.nz.
