Kizy Tracking K-2 User manual
K-2
User Manual
K-2 User Manual December 2017,
Version 3.1 1

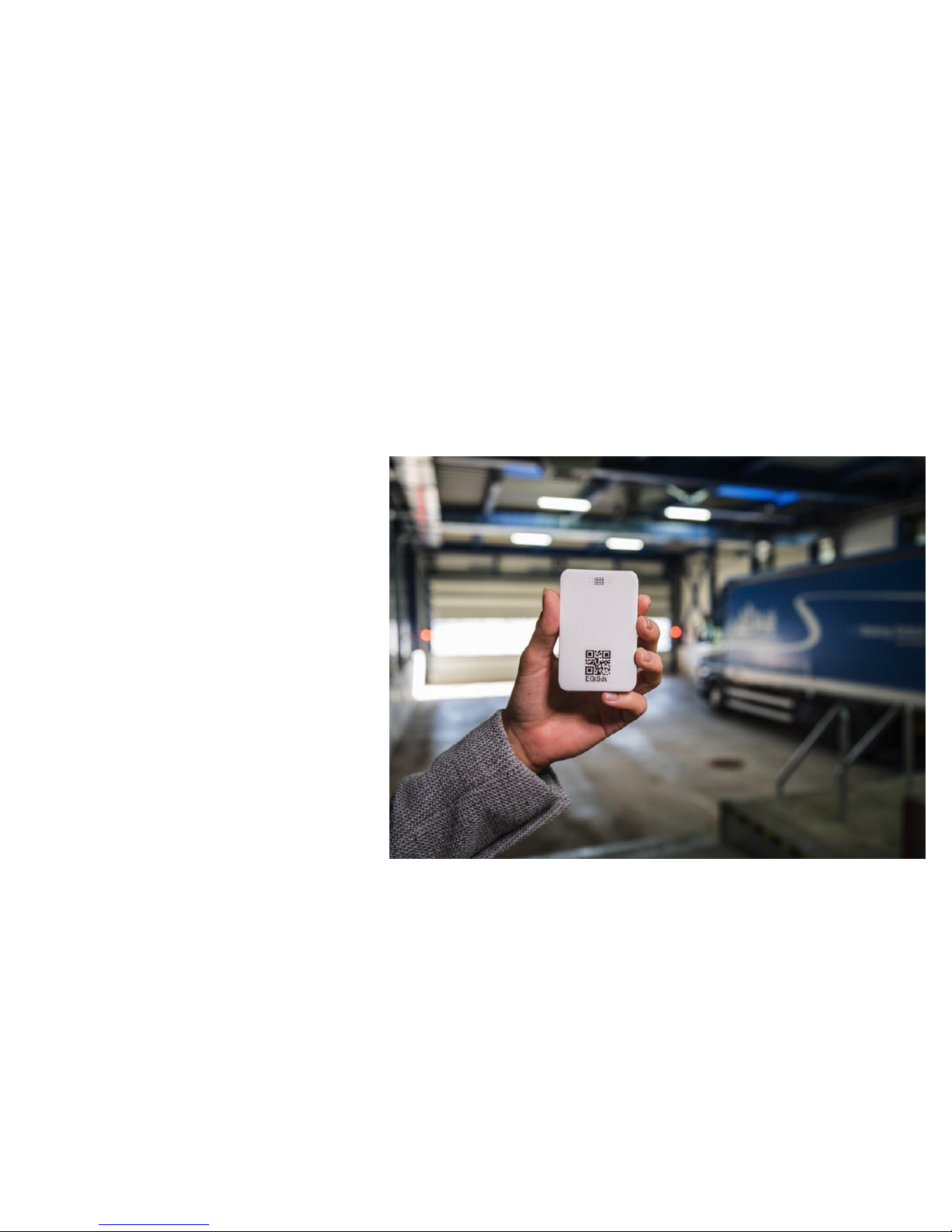

General description
Discover the most flexible and powerful supply chain
tracker available on the market.
We have built every feature around the specific
requirements of logistics applications.
The K-2 is especially designed to help you achieve
end-to-end supply chain visibility in a cost-efficient
way.
Using its GSM communication unit with its embedded
SIM-card, it can be localized based on connectivity
information from the GSM networsk.
Unlike the GPS technology, the position of the K-2 can
thus be determined as long as a 2G/3G GSM
reception is available.
The positioning data is made available through the
Online Tracking Platform.
Collect the data you need to optimize your operations.
K-2 User Manual December 2017 ,
Version 3.1 2
Design
Light, small and robust
Light sensor,
3 status indicators
QR-code and
tracker ID
Power
switch
Type and
certificates
Movement sensor
Temperature sensor
Accelerometer
USB-C
connector
87
mm
56 mm
8.5 mm
3
Weight: 47 gr
K-2 User Manual December 2017 ,
Version 3.1
Battery Charging
First remove the USB protection-lid to access the USB-C
connector on the tracker, then plug in the connector.
The USB-C plug can be plugged into any powered USB-
connector on a PC or a USB-charger (not provided).
The lights indicate the charging progress if the power switch is in
the position “on” (no indication is given if the power switch is in
position “off”):

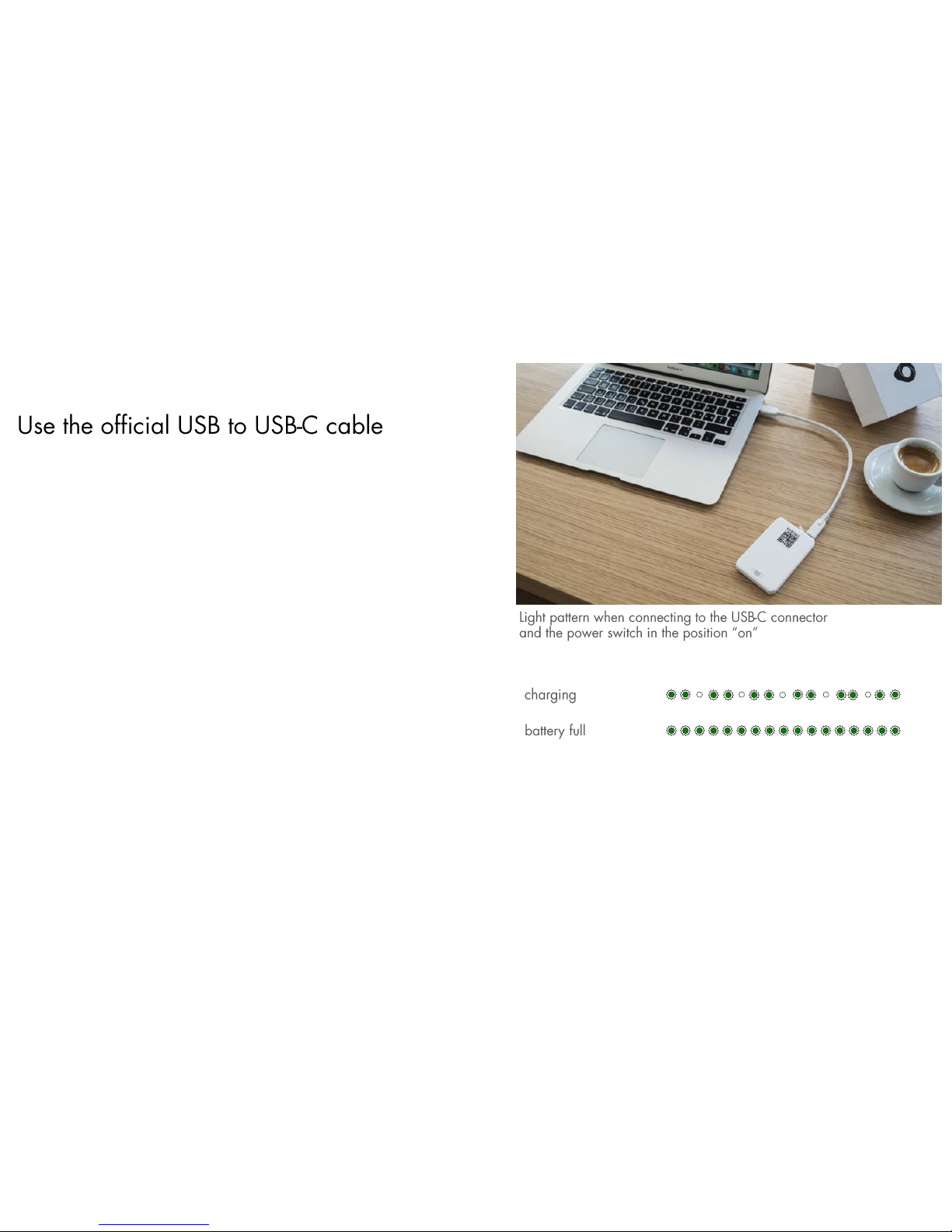

1. Charging: the green light blinks twice per second.
2. Battery full: the green light stays on all the time.
The device contains integrated control logic, which
automatically starts and stops the charging process.
Once charged, remove the charging cable and close the
protection lid.
For more information on the charging and meaning of the LED
status, visit the Support section support.kizytracking.com
4
K-2 User Manual December 2017 ,
Version 3.1
Tracker Operation
Assuming the power switch is “off”, the charging cable is not
connected and that the battery contains enough power to
operate, the following will occur when power switch is set to
“on”:

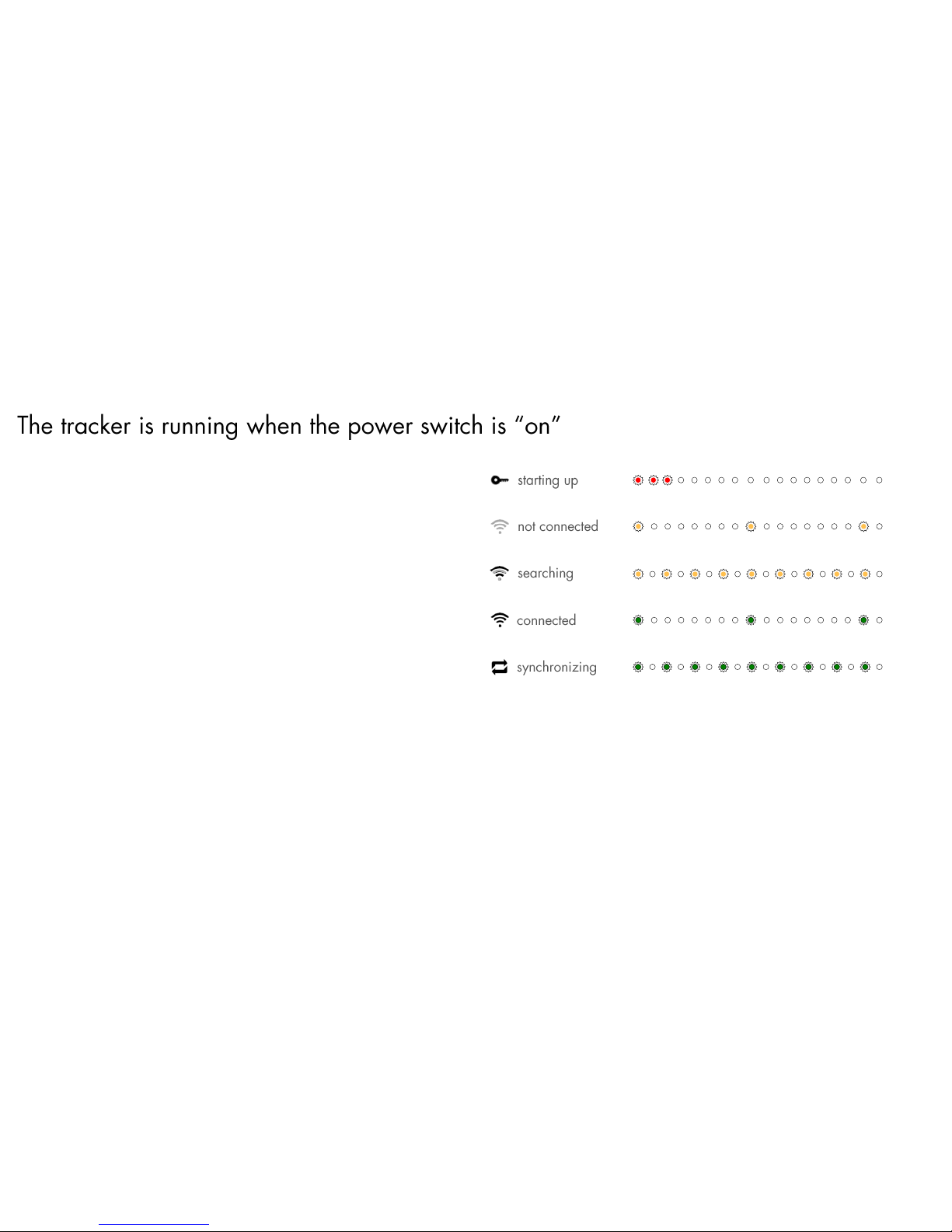

•The red light will switch on indicating the device is starting
up. It will be switched off when the device started normal
operation.
•The orange light will start flashing once per second,
indicating that the tracker is searching for a GSM network.
•As soon as the tracker can connect to the network, the color
of the light is changed to green. After successful connection,
the speed of the green light flashing will be reduced to once
every 8 seconds.
•If no network connection can be made, the flashing light
remains orange and the speed is reduced to once every 8
seconds.
•The tracker will reconnect periodically to (re-)connect to the
network and update its current position.
•In case the tracker shows red flashing twice per second
followed by six seconds of no light, the battery is low and
needs to be charged.
5
K-2 User Manual December 2017 ,
Version 3.1
Use of QR-Code
The use of K-2 is coupled to an Internet-hosted data
management platform. The device-specific URL (Internet-
address) of this platform can be obtained by scanning the QR-
code on the front of the tracker. You may either use a
dedicated scanner or you can use a smartphone application.
The URL will check the current status of the tracker and will then
display the corresponding information. This may depend on
several factors such as:
•If you are logged in as a registered user
•If you have access rights to use the tracker.
•If the tracker is currently “in use”.
•The action that has been assigned to the QR-code scanning
by the tracker owner.
Please follow the instructions on how to proceed being
provided by the platform.
6
K-2 User Manual December 2017 ,
Version 3.1
For your safety
•It’s the customer’s responsibility to use the tracker in
compliance with the local air transportation regulation.
•This device complies with part 22H and part 24E of the
FCC rules. The radiated output power of the this internal
wireless radio is far below the FCC radio frequency
exposure limits. Nevertheless, the wireless radio shall be
used in such a manner that the radio is 20 cm or further
from the human body in order to satisfy to the maximum
permissive exposure requirements (MPE).
•Do not use the tracker to track persons.
•Do not use the tracker to track objects without prior
consent of its owner.
•Do not open the tracker casing.
•Do not change the product characteristics or accept
unauthorized repairs.
•Only use compliant USB-cables for battery charging.
•Keep the tracker and its incorporated battery out of
the reach of children.
•Do not use the tracker for medical purpose or for
public information.
•Do not dispose the tracker in household waste. The
user is obligated to take end-of-life devices to a
designated collection point for the disposal of
electrical and electronic equipment in order to ensure
environmentally compliant disposal.
•Do not clean the tracker with solvents to prevent the
protective coating from getting damaged.
•Do not place the tracker near extreme temperatures,
vibration or shock.
•Do not expose the tracker to weights exceeding 50 kg
on its surface.
•Do not expose the tracker to moisture or water.
7
K-2 User Manual December 2017 ,
Version 3.1
Troubleshooting
The orange light does not start blinking when you power on the tracker.
: The battery is likely to be empty. Recharge it through the USB-C connector.
The red light blinks slowly.
The battery is almost empty and the tracker cannot connect to the GSM-network anymore. Recharge the tracker through
the USB-C connector.
The red light blinks quickly.
The tracker has detected a hardware problem and needs to be replaced.
The PC reports that no driver could be found for the device after connecting the USB-C.
Ignore this message. The USB-C -cable is only used for charging and needs no driver.
The green or orange light is blinking every second while the battery charging is active.
The tracker is trying to connect to the GSM-network. The charging pattern will be shown again when this is finished.
8
K-2 User Manual December 2017 ,
Version 3.1
Specifications
Communication technology GSM 2G/3G
SIM card embedded
I/O interface on-off switch, push button (configurable action)
3 LEDs (red, yellow, green)
USB-C
Expansion slot I2C
Battery type Li-ion, 900 mAh
tracking operation continues during charging
Accuracy down to 10m
Typical battery life from 6 months to 1 year
Casing non-flammable, white (customizable)
Size (l x w x h) 87mm x 56mm x 8.5mm
Weight < 47g
IP class > IP54
Certifications CE, FCC, RoHS, FSS
Sensors light, motion, temperature, accelerometer
support for external sensors (one-wire, I2C)
Operating system embedded Linux, over-the-air configuration
9
K-2 User Manual December 2017 ,
Version 3.1
Endnotes
Kizy Tracking Inc.
Rue de la Maladière 71c
2000 Neuchâtel
Switzerland
No part of this User Guide may be reproduced without
written consent of Kizy Tracking. The technical data are
correct at the time of submission to the certification body
and may change without prior notice.
10
K-2 User Manual December 2017 ,
Version 3.1
