KLAUS trendvario6X00 E-parking XS User manual

Assembly instructions
trendvario6X00 E-Parking XS / XL / PlugIn

Page 2 of 20
Contents
Info....................................................................................................................................... 3
Version overview charging column ...................................................................................... 3
Assembly ................................................................................................................................... 4
Assembly of XS / XL charging column - general for all levels (not for 6200+ GF) ............... 4
Assembly of PlugIn charging column - general for all levels (not for 6200+ GF) ................. 5
Attachment position basement - additional work ................................................................. 6
Attachment position GF - additional work (for 6100 / 6100+ / 6300 / 6300+)....................... 6
Attachment position UF - additional work ............................................................................ 7
Assembly of XS charging column at attachment position 6200+ GF ................................. 10
Mixed assembly 2nd power supply (for 6200+) ................................................................. 11
Assembling terminal box - all versions............................................................................... 12
Cabling..................................................................................................................................... 13
Attachment position basement .......................................................................................... 13
Attachment position GF (for 6100 / 6100+ / 6300 / 6300+)................................................ 14
Attachment position GF (for 6200+)................................................................................... 15
Attachment position UF ..................................................................................................... 15

Page 3 of 20
Info
NOTE
►These assembly instructions must only be used together with the assembly instructions
TrendVario6X00 General and the safety regulations for KLAUS multiparking systems.
►Suitable training by KLAUS Multiparking is required before using these assembly instructions.
Use is not permitted without this training.
Version overview charging column
E-parking
XS
E-parking
XL
E-parking
PlugIn

Page 4 of 20
Assembly
Assembly of XS / XL charging column - general for all levels (not for 6200+ GF)
NOTE
►The possible assembly positions of the charging column XS / XL are rear left or rear right. The
actual attachment position can be found in the assembly drawing.
The XL version is shown, however the procedure for the XS version is identical.
Attachment position shown here is GF, rear left. Right attachment position is a mirror image.
Additional assembly steps may be required depending on the attachment position and level (see additional work).
►Assemble support for charging column with 4x Taptite countersunk screws M8x12 on side member.
►Unscrew cover of charging column and assemble charging column onto the charging column holder using 6x
M8x12 Taptite countersunk screws.
►Refit cover of charging column.
►Install grommet on rear hole of the support.

Page 5 of 20

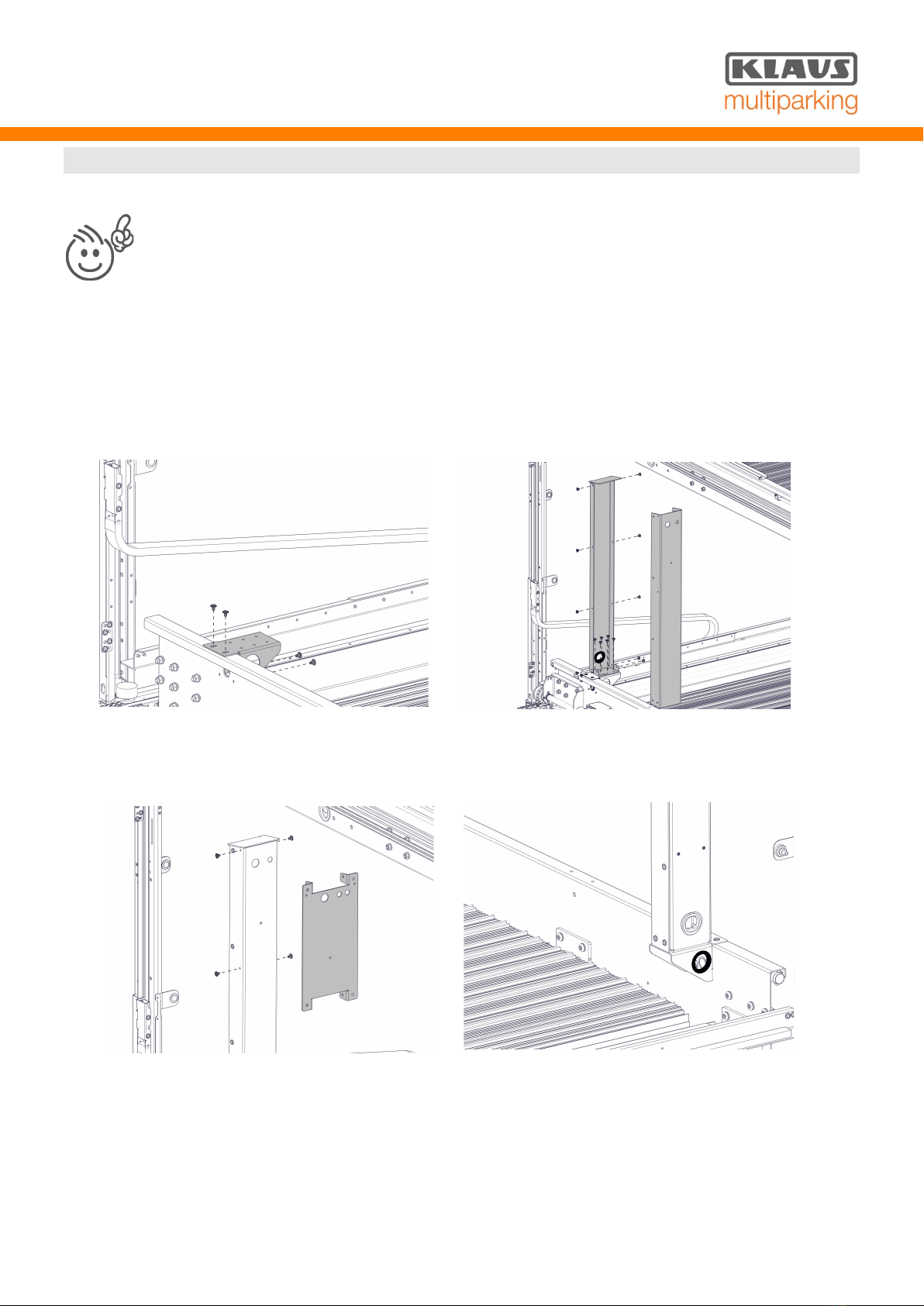

Assembly of PlugIn charging column - general for all levels (not for 6200+ GF)
NOTE
►The possible assembly positions of the charging column PlugIn are rear left or rear right. The
actual attachment position can be found in the assembly drawing.
Attachment position shown here is GF, rear left. Right attachment position is a mirror image.
Additional assembly steps may be required depending on the attachment position and level (see additional work).
►Assemble support for charging column with 4x Taptite countersunk screws M8x12 on side member.
►Assemble charging column with 6x Taptite countersunk screws M8x12 onto the charging column holder.
►Assemble cover with 10x Taptite countersunk screws M8x12.
►Assemble support plate with 4x Taptite countersunk screws M8x12 on charging column.
►Install grommet on rear hole of the support.

Page 6 of 20
Attachment position basement - additional work
Attachment position right:
►Assemble cable duct onto the side members using 2x Taptite countersunk screws M8x12.
►Assemble cable duct onto rear cross member with drill screws 5.5x22 (closure plate not shown).
Attachment position GF - additional work (for 6100 / 6100+ / 6300 / 6300+)
►Assemble assembly aid tube onto side member using fixing clamps left side shown, attachment of right side
mirror image.

Page 7 of 20
Attachment position left:
►Assemble cable duct onto the cable rail using 2x Taptite countersunk screws M8x12
Attachment position right:
►Fasten assembly aid tube to cable rail with fixing clamps.
Attachment position UF - additional work
►Assemble cable chain support with 2x Taptite countersunk screws M8x12 on right rear pillar.

Page 8 of 20
►Assemble guide plate onto the right side member using 6x Taptite countersunk screws M8x12.
►Assemble cable chain at both ends each with 2x Taptite domed socket head screws M6x10 + washer.
Attachment position left:
►Assemble cable duct onto the side members using 2x Taptite countersunk screws M8x12.

Page 9 of 20
►Assemble cable duct onto rear cross member with drill screws 5.5x22.
►Assemble cable duct onto the side members using 2x Taptite countersunk screws M8x12.
Attachment position right:
►Fasten assembly aid tube to side member with fixing clamps.

Page 10 of 20
Assembly of XS charging column at attachment position 6200+ GF
NOTE
►On the TrendVario 6200+ only the XS charging column can be installed on the GF pallet.
The attachment position is always rear left.
►Replace energy support and rear cross connection with the version for the second power supply.
The energy support must be set back an additional 3 cm.
►Assemble cable chain for 2nd power supply (see assembly instructions TrendVario6X00 GF pallet – energy
chain.
►Remove cover from charging column.
►Align charging column to cross connection according to the dimensions indicated.
►Drill the four outer screw holes with Ø 7.4 for Taptite M8 and the grommet with Ø 19.

Page 11 of 20

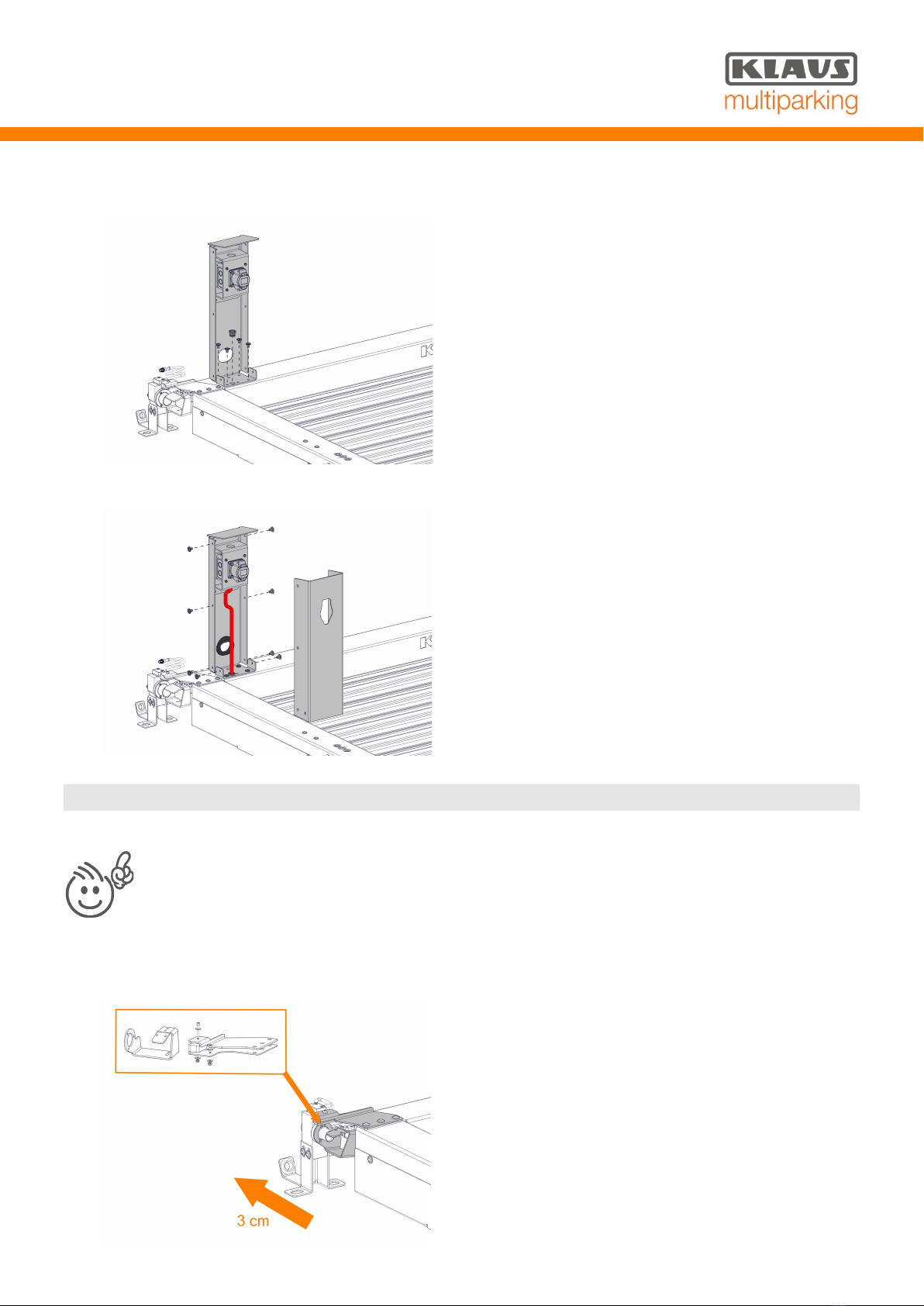

►Assemble charging column with 4x Taptite countersunk screws M8x12 onto cross connection.
►Install grommet.
►Push cable through grommet and refit the cover of the charging column.
Mixed assembly 2nd power supply (for 6200+)
NOTE
►If not all GF pallets are to be equipped with a charging column, then the mixed assembly
conversion kit must be assembled on the pallets without a charging station.
►Replace marked parts with the conversion kit mixed assembly 2nd power supply.
►Move energy support back an additional 3 cm.

Page 12 of 20
Assembling terminal box - all versions
NOTE
Always install terminal box on the GF level.
►Fasten terminal box with 2x dowels HPS 6/25 onto the rear wall.

Page 13 of 20
Cabling
Attachment position basement
Attachment position left:
►Route the cables and connect to the terminal box as shown in the following pictures.
Attachment position right:
►Route the cables and connect to the terminal box as shown in the following pictures.
Fixed to the hydraulic line
with cable fixers.
Guide cable
under the cross
member.

Page 14 of 20
Attachment position GF (for 6100 / 6100+ / 6300 / 6300+)
Attachment position left:
►Route the cables and connect to the terminal box as shown in the following picture.
Attachment position right:
►Route the cables and connect to the terminal box as shown in the following picture.

Page 15 of 20

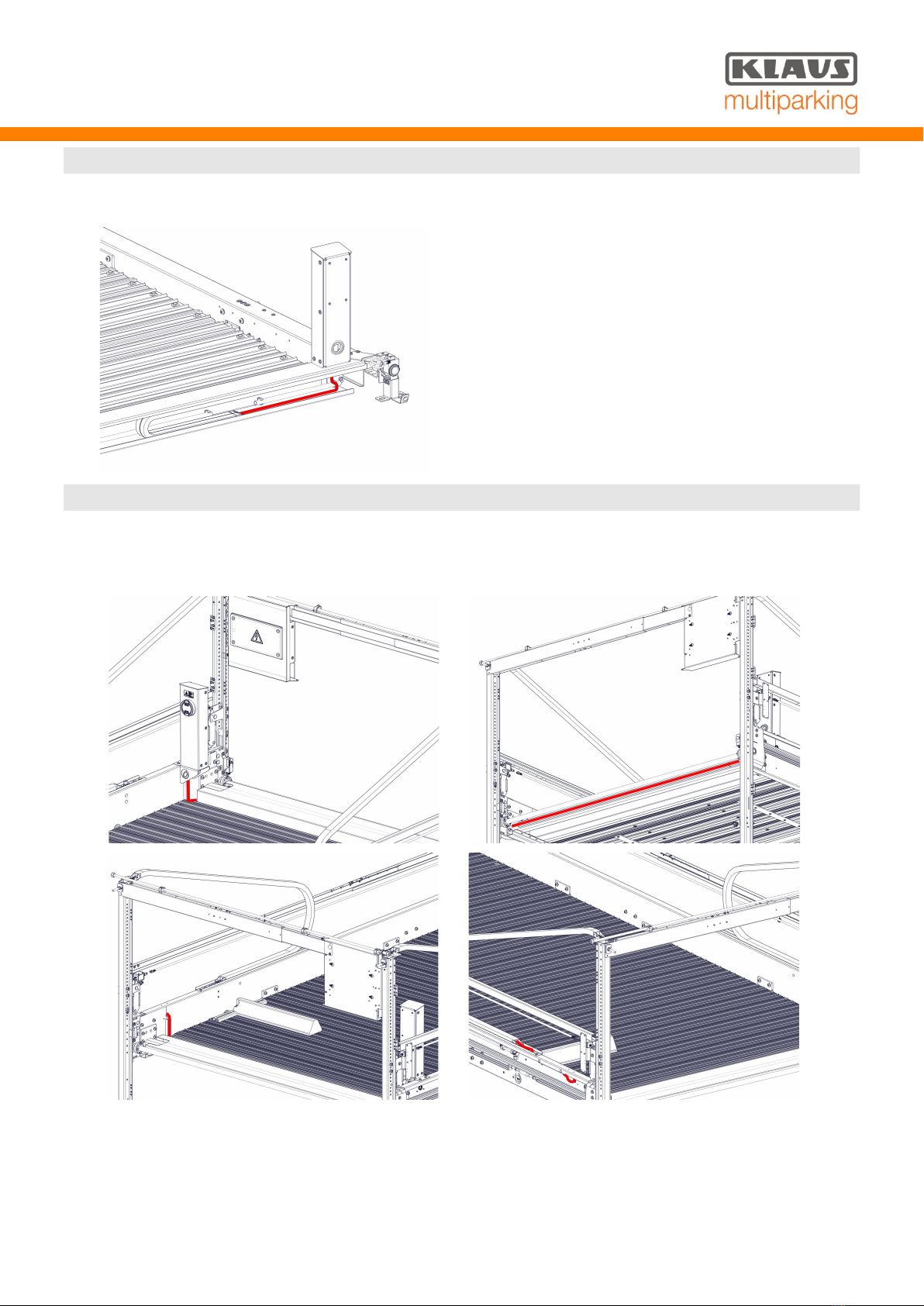

Attachment position GF (for 6200+)
►Route the cables and connect to the terminal box as shown in the following picture.
Attachment position UF
Attachment position left:
►Route the cables and connect to the terminal box as shown in the following pictures.

Page 16 of 20

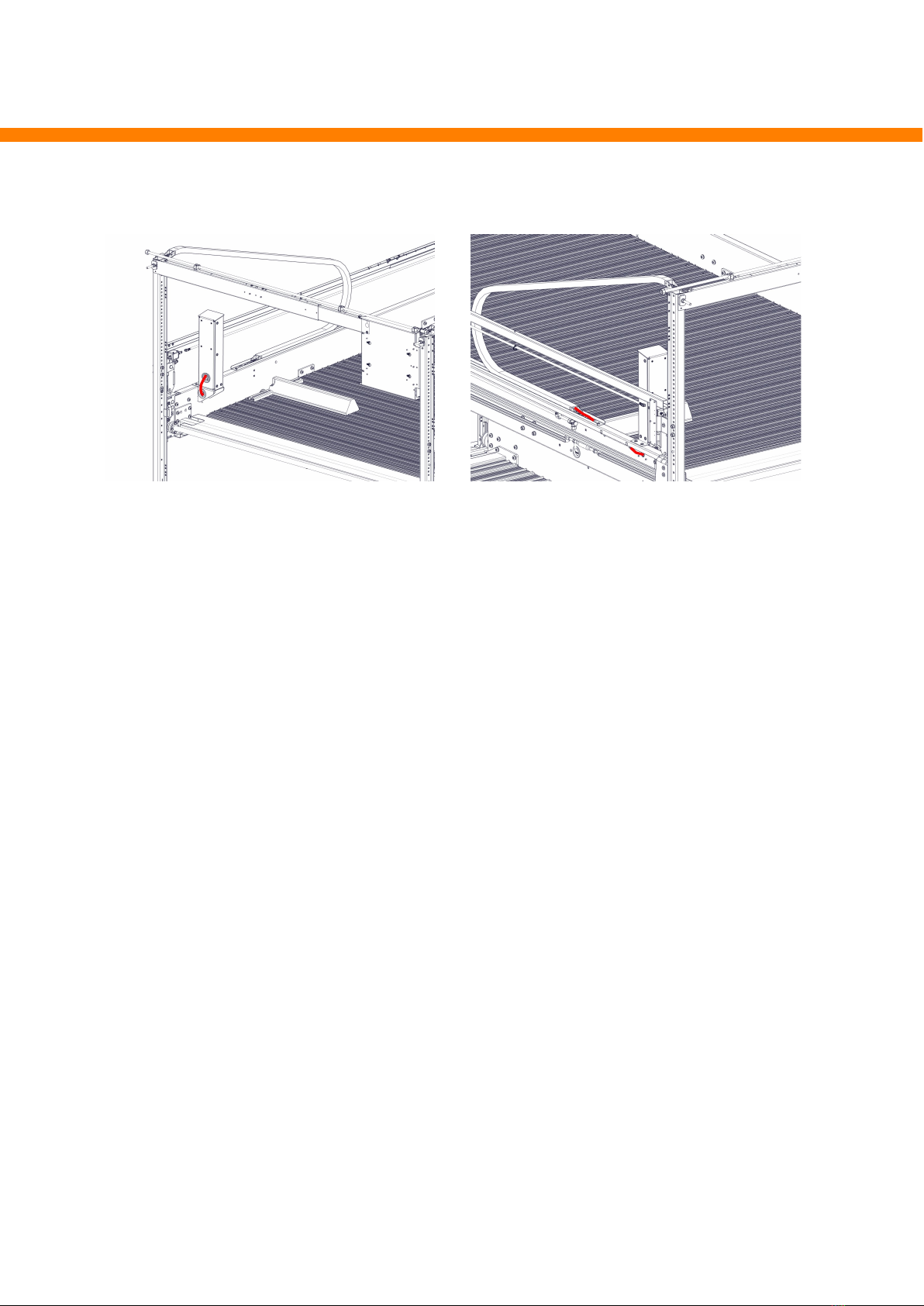

Attachment position right:
►Route the cables and connect to the terminal box as shown in the following pictures.

Page 17 of 20

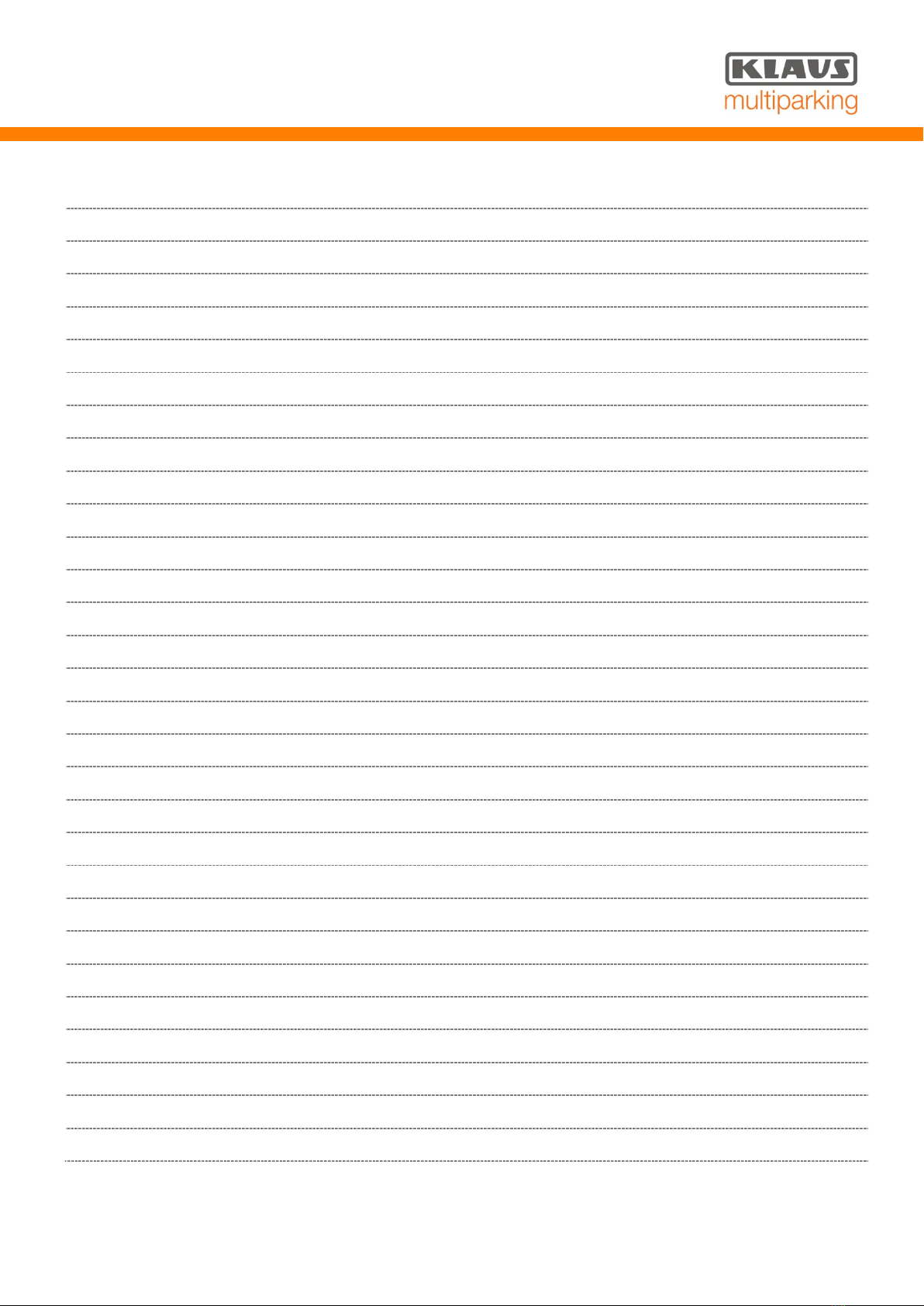

Notes

Page 18 of 20

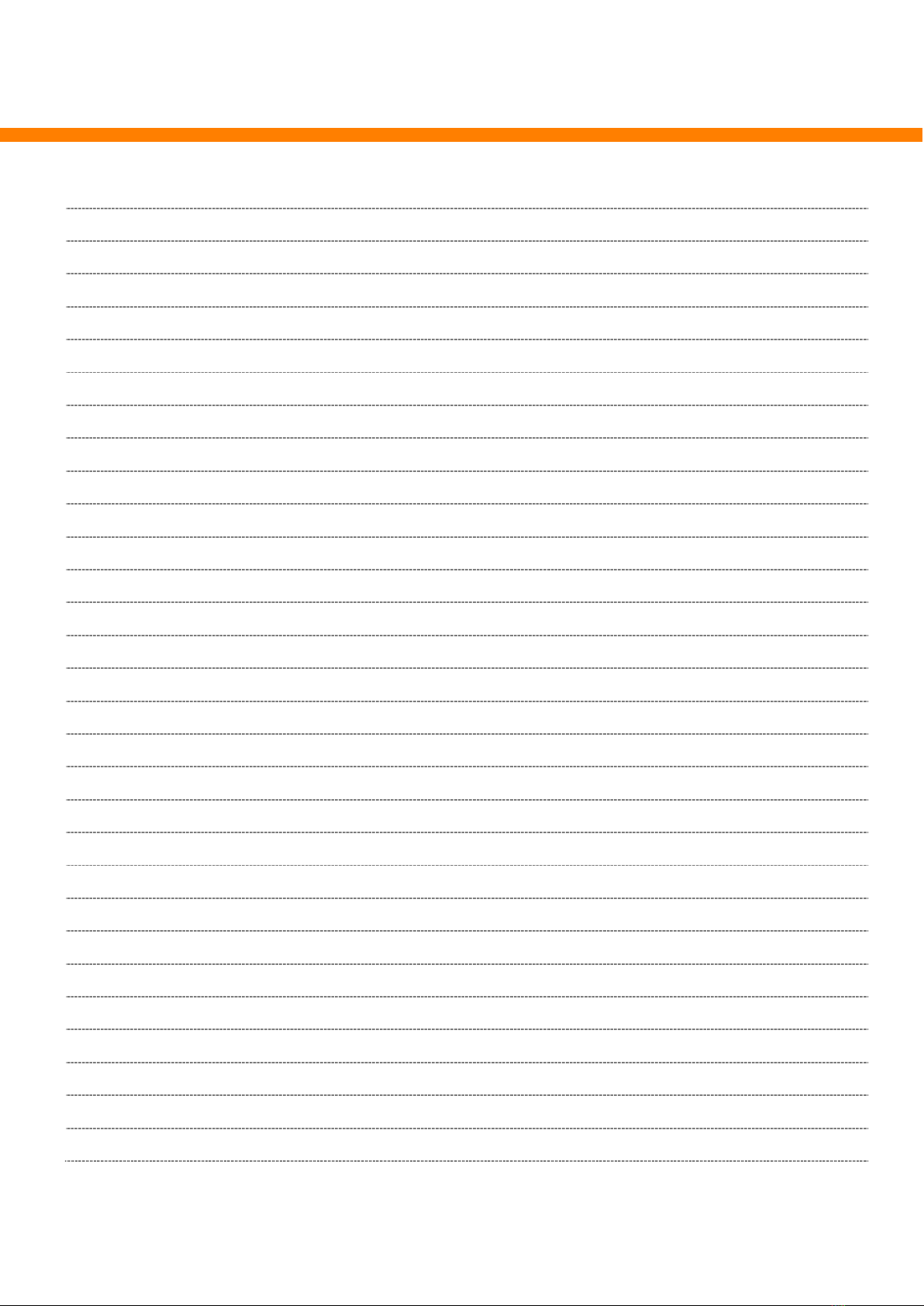

Notes

Page 19 of 20
Notes
