Nonda ZUS User manual

Quick Start
White Lights
Bluetooth Status
LEDs on top
Flashing: waiting for
connection
Solid: connected
Warning Buzzer
No warning when tire
pressure is normal.
Alarms sound when tire
is in abnormal* status.
Green Light
Tire Status LEDs
Solid: normal status
Flashing: abnormal* status
Off: sensor signal lost
* abnormal: high pressure / low pressure / high temperature /
sensor battery voltage low / no connection / sensor cannot
receive data, corresponding tire has an issue.
Reversible USB
Output Port
Charge your mobile
devices or GPS units.
Reset Button
Long press: to restart
Short press: to stop
the alarm

Introduction
P3
At a Glance
We have developed a simple and easy-to-install Tire Pressure Monitoring
System to meet the growing demand for a simple external kit to help upgrade
your vehicle’s tire safety.
Available as a self-installable external sensor kit, nonda’s Smart Tire Safety
Monitor features a USB-powered receiver with 4 external sensors that transmit
data via Bluetooth directly to the ZUS app. Showing the tire pressure of all 4
tires in real time, the monitor can quickly detect punctures and/or excess
temperature, giving both a visual and audible warning to alert the driver of
possible tire failure. While the receiver utilizes a USB port, it does come with a
USB output port for charging your mobile devices or GPS unit. As a result, you
never lose a USB port.

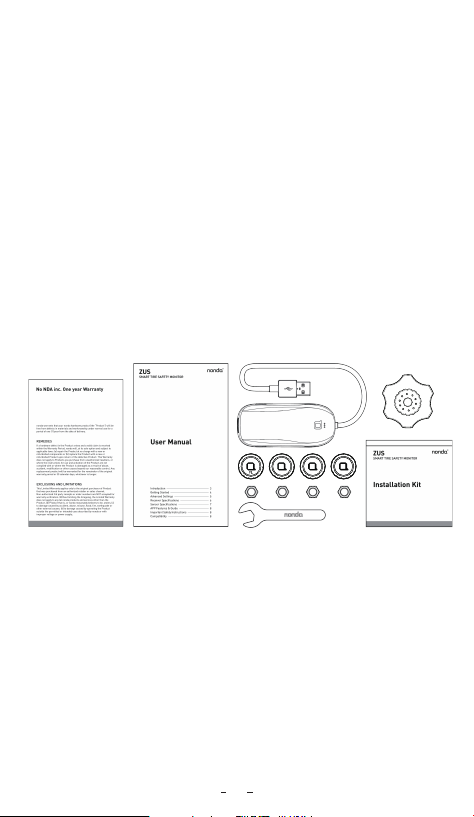

Receiver x 1pc
Screw-on Valve Cap Sensors* x 4 pcs
Anti-theft Nut x 4 pcs
Wrench x 1pc
User Manual x 1pc
Installation Kit Bag x 1 pc
Warranty Information Card x 1pc
Opener Tool x 1pc
*Factory paired and labeled to indicate the correct tire with batteries
pre-installed.
*Please make sure your valve stem core is made of brass, otherwise, there
might be a possibility of sensor seizure under extreme conditions.
FR RL RR

Getting Started
P4
App Download, Receiver Connection & Sensor Installation
Connect the receiver to a USB car charger. Pair the receiver with your mobile
device before installing the sensors.
The sensor caps are labelled with Front Right (FR), Front Left (FL), Rear Right
(RR), and Rear Left (RL). Please install each sensor onto the respective tire.
Congratulations!
Sensor installation is complete! However, if you are worried about the sensors
being stolen or air leaking, please follow the optional steps on the next page.
Search “ZUS” on the
App Store or Google Play
and download the app on
your mobile phone.
Plug the receiver into
a USB port & start the
engine to power it up.
Make sure you see the
white lights blinking.
Open the ZUS app
and turn on your
device’s Bluetooth.
Click "add a device" and
place your phone next
to receiver to pair.
Unscrew the valve
cap and put it into the
installation kit bag, and
keep it in your glove
box for future use
Screw on the
anti-theft nut to the
end of the valve stem. If
your tires have a long
valve stem, see P5 for
more info.
Screw the sensor
clockwise onto the valve
stem until it is tight.

Advanced Settings
P5
Anti-theft
Leak Check
Alarm Threshold Customization
Troubleshooting Procedures
If you are concerned about sensors being
stolen, please tighten the anti-theft nut
counterclockwise to the sensor.
If you are concerned that there may be an air
leak, spray soapy water around the sensor and
check whether there are bubbles coming out.
If that is the case then please tighten the sensor.
Configure the alarm settings as specified on your
vehicle. Recommended cold inflation pressure is
displayed on the owner's manual and on the
placard (or sticker) placed on the vehicle’s door,
pillar, glove box, or fuel filler flap.
Should any of the sensors fail to show results, please note the following:
1. The receiver may not be properly connected. Please make sure the receiver
is plugged into a USB charger and the white Bluetooth LED are blinking or
solid.
2. Drive your vehicle above 14 mph (22 kph) for about 10 mins.
3. If any of the 4 sensors fail to show readings on the ZUS app, try installing
the sensor on another tire and see if any readings appear. If not, please
contact [email protected] for further support.
If the above toubleshooting procedures don’t work, please follow the
aforementioned sensor installation steps to reinstall the sensor again.
If it still does not work, please contact our customer service at [email protected].

Receiver Specifications
P6
Cable length: 200mm; 7.9inch
Diamensions: 85mm X 38mm X 17mm; 3.3in
X 1.5in X 0.67in
Weight: 33g; 1.16oz
Features Specifications
*abnormal: high pressure / low pressure / high temperature / sensor battery voltage low / no
connection / sensor cannot receive data, corresponding tire has an issue.
** You will hear a long beep after restarting.
White Light: Bluetooth Status LEDs on top
Flashing: waiting for connection
Solid: connected
Warning Buzzer
No warning when tire pressure is normal.
Alarms sound when tire is in abnormal*
status.
Green Light: Tire Status LEDs
Solid: normal status
Flashing: abnormal* status
Button
Long press: to restart**
Short press: to stop the alarm
Warning Buzzer
Wireless Bluetooth: data exchanged
between wireless devices
USB Power Requirement
USB Output Port
Operating Temperature
Storage Temperature
1. Buzzer warning is triggered in the
following circumstances: sensors detect
abnormal tire pressure or abnormal tire
temperature; sensors detect tire
leakage; sensor battery is low; sensor
signal is lost.
2. Buzzer warning continues for 5 times
unless the alarm status returns to
normal or is manually disabled.
Operating Frequency: 433.92MHz
Bluetooth 4.0 2.4GHz
Max Output Power: -9dBm
USB Power 5V (Car charger recommended;
You can turn off the receiver by
disconnecting receiver from charger.)
Output for charging only;
Charging speed depends on charger
capacity;
Maximum one device
-20°C ~ 85°C; -4°F ~ 185°F
-30°C ~ 85°C; -22°F ~ 185°F
Radio Frequency: receiving data
transmitted by external sensors
Diamensions & Weight

Sensor Specifications
P7
*Battery life is calculated based on 3 hours of driving per day. Actual lifespan may vary
depending on environmental temperatures.
Features Specifications
Tire Pressure Threshold Pressure Range: 0 ~ 50psi; 0 ~ 3.5bar
Confidence Interval: ±1.45psi; ±0.1bar
Diameter: 21mm; 0.83in, Height: 17.5mm;
0.7in Weight: 7.5g; 0.26oz (without battery)
Tire Temperature Threshold Temperature Range: -20°C ~ 120°C;
-4°F ~ 248°F
Confidence Interval: ±1°C; ±1.8°F
Radio Frequency Operating Frequency: 433.92MHz
Output Power: <5dBm
External Sensor Battery Lithium Battery CR1632 3V x 1
Battery Life Normal Usage: 1 Year+*
Operating Temperature
Storage Temperature
-25°C ~ 125°C; -13°F ~ 257°F
Operating Humidity Maximum Humidity 100%
Water Resistance IP67
Anti-theft Anti-theft Nut & Wrench
ZUS app will alert you when the sensor battery needs to be replaced. Each
sensor requires one Lithium Battery CR1632.
Sensor Battery Replacement
Step 1 Step2 Step 3 Step 4 Step 5
Step 1: If you’ve tightened the anti-theft nut, unscrew the nut with the wrench.
Step 2: Unscrew the sensor.
Step 3: Open the sensor by unscrewing its cap.
Step 4: Replace the battery.
Step 5: Screw back the sensor cap and make sure it is tight. Use the wrench if
needed.
Diamensions & Weight
-25°C ~ 125°C; -13°F ~ 257°F

Important Safety Instructions
Compatibility
APP Features & Guide
P8
Shows tire pressure for all 4 tires in real time
Monitors pressure range: 0 ~ 50psi; 0 ~ 3.5bar
Adjustable alert threshold
Customizable pressure and temperature measuring units (psi/bar/kPa - ˚C/˚F)
Air leakage alarm (Audible & Visual)
High temperature alarm (Audible & Visual)
Low battery voltage & lost sensor alarm (Audible & Visual)
Do not place any open flame source near the devices
Avoid dropping the devices
Do not disassemble
nonda Smart Tire Safety Monitor is for use with metal tire valve stems
only. Installation of the Tire Sensors on non-metal tire valve stems may
cause tire and/or tire valve stem damage which could result in serious
personal injury or death.
Use of the Smart Tire Safety Monitor is not a substitute for proper tire
maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger the
low tire pressure alert. Failure to maintain proper tire pressure can
result in loss of control of the vehicle, which may lead to serious
personal injury or death.
Keep out of the reach of children.
It is highly recommended the sensors be removed before the car is sent
to an automatic car wash.
To avoid sensor corrosion, please re-install the sensors every two
months.
Sensors monitor tire temperature (Celsius) and pressure (0~50 psi).
Sensor signal covers 19.6 ft (5.9 m). COMPATIBLE WITH MOST CARS
EXCEPT FOR RVs, TRAILERS, TRUCKS, OR MOTORHOMES.

P9
No NDA inc. One year Warranty
REMEDIES
EXCLUSIONS AND LIMITATIONS
nonda warrants that your nonda hardware product (the “Product") will be free from
defects in materials and workmanship under normal use for a period of one (1) year
from the date of delivery.
If a hardware defect in the Product arises and a valid claim is received within the
Warranty Period, nonda will, at its sole option and subject to applicable laws: (a)
repair the Product at no charge with a new or refurbished components or (b) replace
the Product with a new or refurbished Product upon return of the defective
Product. This Warranty does not apply to Products you purchase from unauthorized
resellers, or where the instructions for use and activation of the Product are not
complied with or where the Product is damaged as a result of abuse, accident,
modication or other causes beyond our reasonable control. Any replacement
product will be warranted for the remainder of the original warranty period or 30
calendar days, whichever is longer.
This Limited Warranty applies only to the original purchaser of Product that was
purchased from an authorized retailer or sales channel. Non-authorized 3rd party
receipts or order numbers are NOT accepted for warranty verication. Without
limiting the foregoing, the Limited Warranty does not apply to any (a) nonda
products and services other than the Product, (b) Product that is, or nonda
reasonably believes to be, stolen, (c) to damage caused by accident, abuse, misuse,
ood, re, earthquake or other external causes; (d) to damage caused by operating
the Product outside the permitted or intended uses described by nonda or with
improper voltage or power supply;
OBTAIN WARRANTY SERVICES
To obtain remedies under this Warranty, nonda must receive your claim before the
end of the Warranty Period. You also must deliver the Product, in either its original
packaging or packaging providing an equal degree of protection, to the address
specied by nonda. Consumer shall bear the cost of shipping the device to nonda.
By sending the Device, consumer agrees to transfer ownership to nonda. nonda
may not return the original device to consumer. If the claim is justied based on this
Warranty, nonda shall bear the cost of shipping the repaired or replacement device
to the Consumer.
