Kleenmaid KED600 User manual

Instructions for Use
KED600
Condenser Dryer

Thank you for your trust and for buying our
condenser dryer. We congratulate you on your wise
decision.
This appliance is designed for drying clothes for
home use only.
The dryer enables quick drying of laundry, leaving
clothes soft and uffy without affecting the shape.
Our appliances are environmentally friendly:
some of the materials are recyclable while
others are disposed of and destroyed. To protect
the environment, dispose of your appliance by
delivering it to the authorized dealer.
Description of the appliance ............................ 3
Cautions ............................................................. 4
Installation and connection.............................. 8
Operation ......................................................... 11
Tips for drying and for economic use
of the dryer. ...................................................... 21
Cleaning and maintenance............................. 22
Troubles ........................................................... 25
Tables .............................................................. 26
2
3

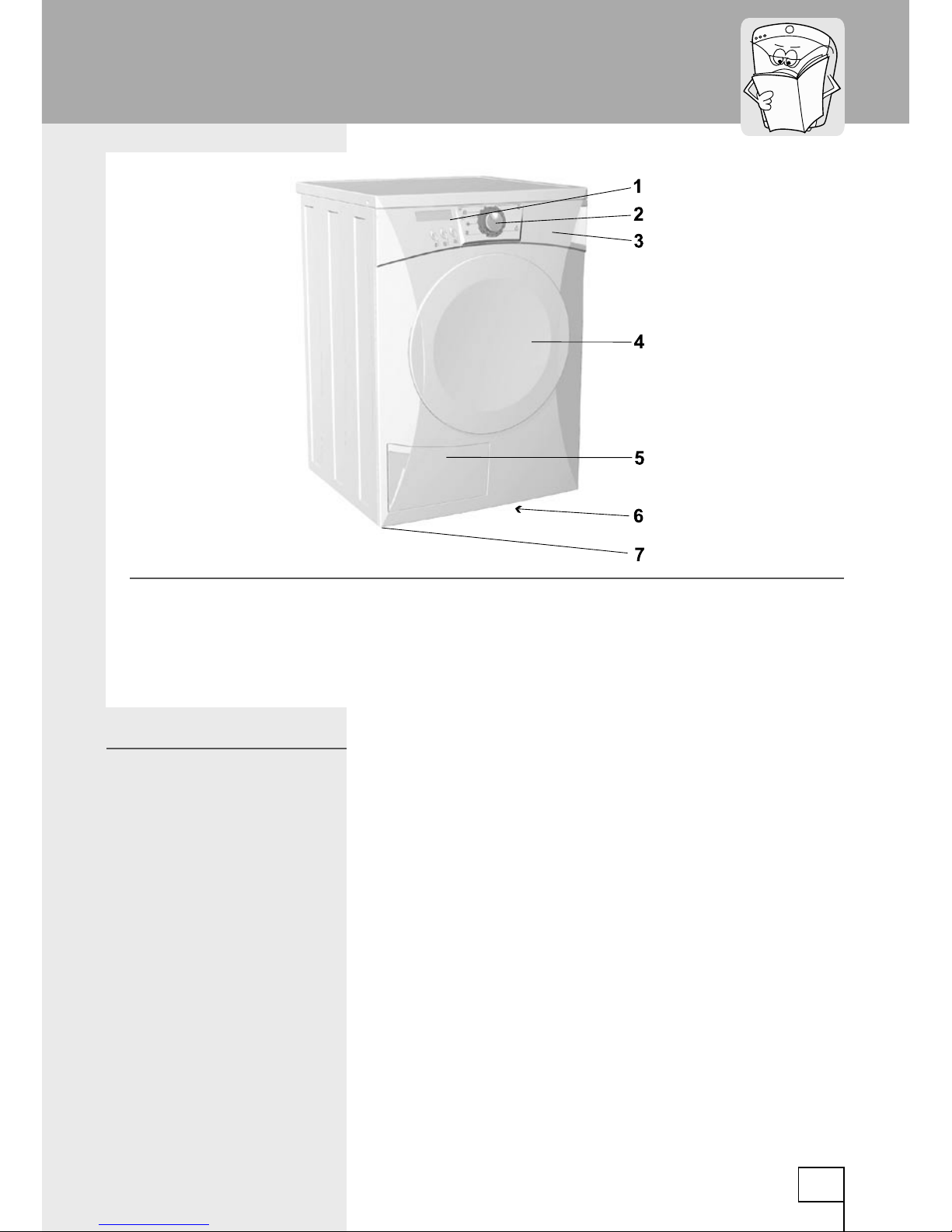

1. Front panel
2. Drying program button
3 Water container
4. Door
5. Condenser
6. Cooling air slot
7. Legs
Name plate with technical information for the appliance is located
under the door frame.
Dimensions of the appliance (w x d x h):
600 mm x 600 mm x 850 mm
Weight (net): 43kg
Weight (gross): 45kg
Nominal voltage: 240 V, 50 Hz
Connecting power: 2400 W
Max. load: 6.5 kg
Connection: power cord (240 V, 50 Hz, min 10 A)
Fuse: 10 A
Heater: 2100 W
2
3
Appliance description
Technical data

It is not recommended to reduce
temperature or switch off the heater, as the
drying time is thus extended because of
poor condensation of evaporated water.
• Use the dryer to dry only laundry washed with
water. Do not attempt to dry laundry, washed or
cleaned with ammable detergents or solutions
(gasoline, trichloroethylene etc.), as it may cause
explosion.
• Do not let the children play with the appliance.
Prevent your children or pets to enter the dryer
drum.
• When discarding the old appliance remove
the power cord and break the lock, so that the
door can not be locked (safety precautions for
children).
• After cleaning replace the condenser to the air
channel. Operating the appliance without the
condenser or with a damaged condenser may
cause a re.
• The rear wall of the appliance may be hot -
danger of burns.
• Clean lter after each drying. If the lter has
been removed, always reinsert it before the next
operation.
• After use always turn the appliance off (the
program selection jog should be in position “0”)
and unplug the power cord.
• Close the dryer door prior to pulling out the water
container.
• Leave all repairs to a qualied technician.
Tampering with the appliance or damage by
an unqualied person may cause accidents or
failures. Call your nearest authorised service
centre on 1300 652 100.
• Name plate with technical information about the
appliance is located under the door frame.
• The room must be well aired, surrounding air
must not contain dusty particles.
4
5
Warnings

• Room where the appliance is located must be well
aired to prevent back ow of gasses, released by
open re gas appliances (replace).
To minimize the risk of re in a tumble dryer, the
following should be observed:
• Items that have been spotted or soaked with
vegetable or cooking oil constitute a re hazard
and should not be placed in a tumble dryer.
Oil-affected items can ignite spontaneously,
especially when exposed to heat sources such
as in a tumble dryer. The items become warm,
causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items
can become hot enough to catch re. Piling,
stacking or storing oilaffected items can prevent
heat from escaping and so create a re hazard.
If it is unavoidable that fabrics that contain
vegetable or cooking oil or have been
contaminated by hair care products be placed
in a tumble dryer they should rst be washed in
hot water with extra detergent - this will reduce,
but not eliminate, the hazard. The ‘cool down’
cycle of tumble dryers should be used to reduce
the temperature of the items. They should not be
removed from the tumble dryer or piled or stacked
while hot.
• Items that have been previously cleaned in,
washed in, soaked in or spotted with petrol/
gasoline, dry-cleaning solvents or other ammable
or explosive substances should not be placed in a
tumble dryer.
Highly ammable substances commonly used
in domestic environments include acetone,
denatured alcohol, petrol/gasoline, kerosene, spot
removers (some brands), turpentine, waxes and
wax removers.
• Items containing foam rubber (also known as
latex foam) or similarly textured rubber. like
materials should not be dried in a tumble dryer on
4
5

a heat setting.
Foam rubber materials can, when heated,
produce re by spontaneous combustion.
• Fabric softeners or similar products should not be
used in a tumble dryer to eliminate the effects of
static electricity unless this practice is specically
recommended by the manufacturer of the fabric
softener or product.
• Undergarments that contain metal reinforcements
should not be placed in a tumble dryer.
Damage to the tumble dryer can result if metal
reinforcements come loose during drying. When
available a drying rack could be used for such
items.
• Plastic articles such as shower caps or babies’
waterproof napkin covers should not be placed in
a tumble dryer.
• Rubber-backed articles, clothes tted with foam
rubber pads, pillows, galoshes and rubber-coated
tennis shoes should not be placed in a tumble
dryer.
The belt can be replaced by a servicing
engineer only, who incorporates an original
spare part with the marking OPTIBELT EPH
1906, code 104265.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste
handling of thisproduct. For more detailed
information about recycling of this product,
6
7

please contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
This appliance is not intended for use by
young children or inrm persons unless
they have been adequately supervised by a
responsible person to ensure that they can
use the appliance safely.
Young children should be supervised
to ensure that they do not play with the
appliance.
6
7

• Packaging materials are environmentally friendly:
they can either be recycled, safely disposed of or
destroyed without any threat to the environment.
• To be able to do this effectively all materials are
marked accordingly.
Be careful not to damage cabinet of
the appliance with a sharp object when
removing the packaging.
Ventilation slots and openings on the appliance
front and rear wall should not be obstructed.
• Do not place the appliance in a room where there
is danger of freezing.
• Location should be adequately ventilated. Room
temperature should always be between 0°C and
25°C as frozen water in the condensation water
receptacle or in the pump may damage the dryer.
• Appliance can either stand on its own or can be
placed on top of a washing machine of the same
dimensions - minimum width 517 mm, depth
476 mm. The surface for placing the dryer must
be clean and at. Use supplied vacuum feet to
prevent sliding of the appliance. Washing machine
hardtop must be wooden or metallic. To conceal
the opening between the two appliances, a
decorative trim (DECPL) is available. To order call
your nearest Kleenmaid Store on 13 13 08.
Do not place the appliance behind lockable
door, sliding door, and door with hinges on
the opposite side of the appliance.
Place the appliance in the room in such
a way to ensure free opening of the dryer
door.
8
9
Installation and connection
Removing wrapping
Selecting the
appropriate location of
the appliance
Installation

• Level the machine longitudinally and transversally
by rotating the adjustable feet, thus enabling the
leveling by +/- 1 cm.
The surface beneath the appliance should
be kept dry and clean to prevent sliding of
the appliance.
Do not place the dryer on a thick carpet as
this could obstruct the air circulation.
• Moisture from laundry is extracted in the water
condensation device and is either collected in the
receptacle or discharged directly into the drain
(drain height should not exceed 800mm).
• Display reads CONTAINER FULL and a beep is
heard when the water receptacle is full and should
be emptied, preferably after each drying cycle.
8
9

The appliance is connected to the power supply by
means of a cable cord plug. The wall socket should
be earthed (safety socket). Required nominal
current and frequency are stated on the rating plate.
The wiring should withstand maximum load. Electric
connection and earthing should be carried out in
accordance with current standards and regulations.
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualied person in
order to avoid a hazard.
• The appliance should be placed in a position,
where the plug is within reach.
If used with a cord extension device
or portable outlet device, ensure such
devices are positioned so as not to be
subjected to splashing or ingress of
moisture.
10
11
Connecting to power
supply

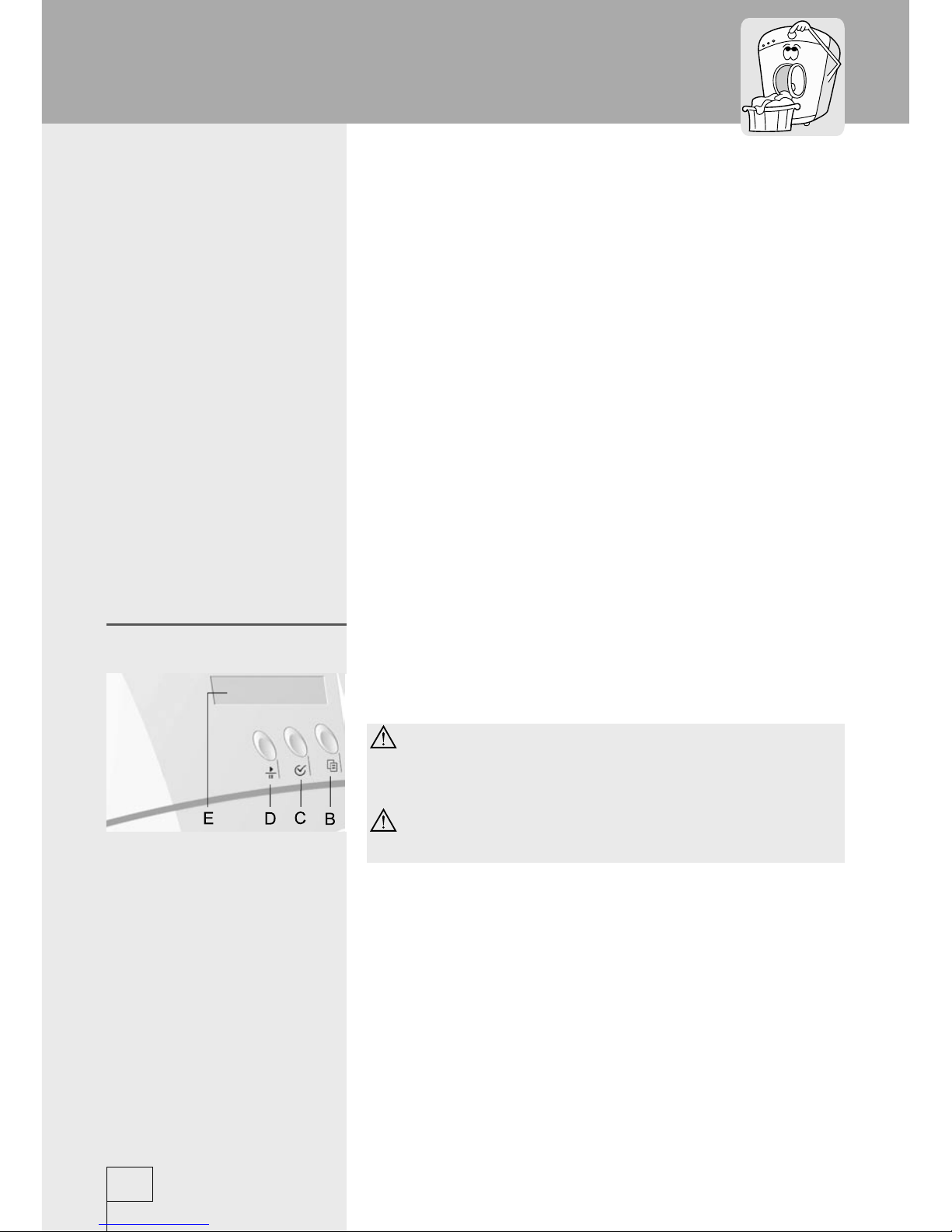

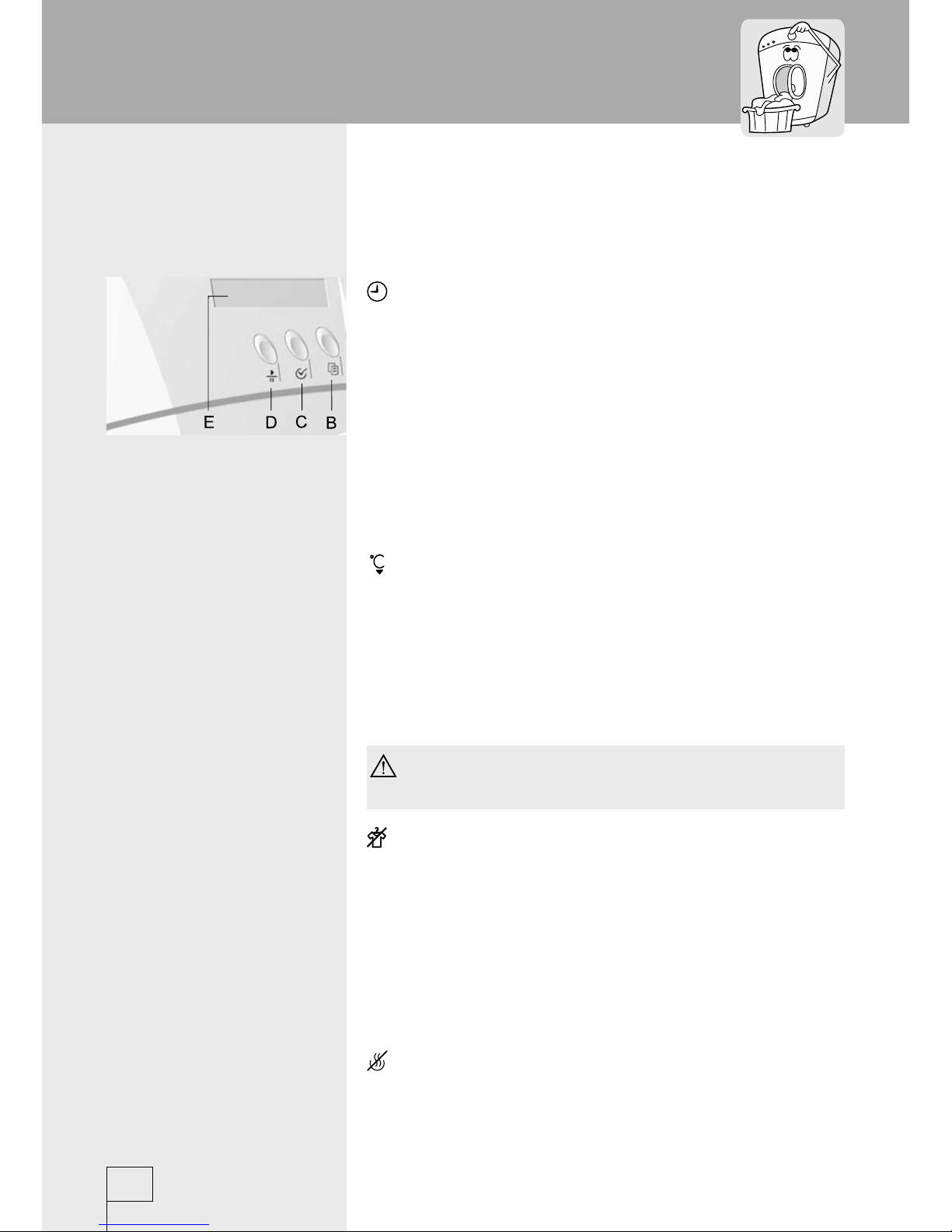

Function keys
B key (MENU) - Scrolling within main menu.
C key (SELECTION) - Selecting sub-menu
categories.
D key (START /PAUSE) - Starting, interrupting and
restarting the program.
A - program selection jog
B - MENU key
C - SELECTION key
D - START/PAUSE key
E - display
10
11
Operation
Program selection jog Program symbols Moisture level
Cottons very dry
Synthetics dry for storage
Delicates slightly damp
Quick program iron dry
Timed program damp for machine
ironing
Wool
Airing
Mix

- Open the dryer door by pushing the left-hand
side of the door towards the appliance.
- Sort the laundry according to the type of fabrics.
Do up buttons and zippers, tie strings and
pull out the pockets.
Very delicate laundry should be put in a
special laundry bag.
It is suggested to load the drum with items
of different sizes.
Do not load dripping wet laundry into the
dryer (min. 800 rpm).
Pay attention to the labels on the clothes,
indicating the recommending drying mode
(see table of textile treatment symbols on
the last page).
- Insert the laundry into the drum (prior making
sure that the drum is empty).
- Close the dryer door.

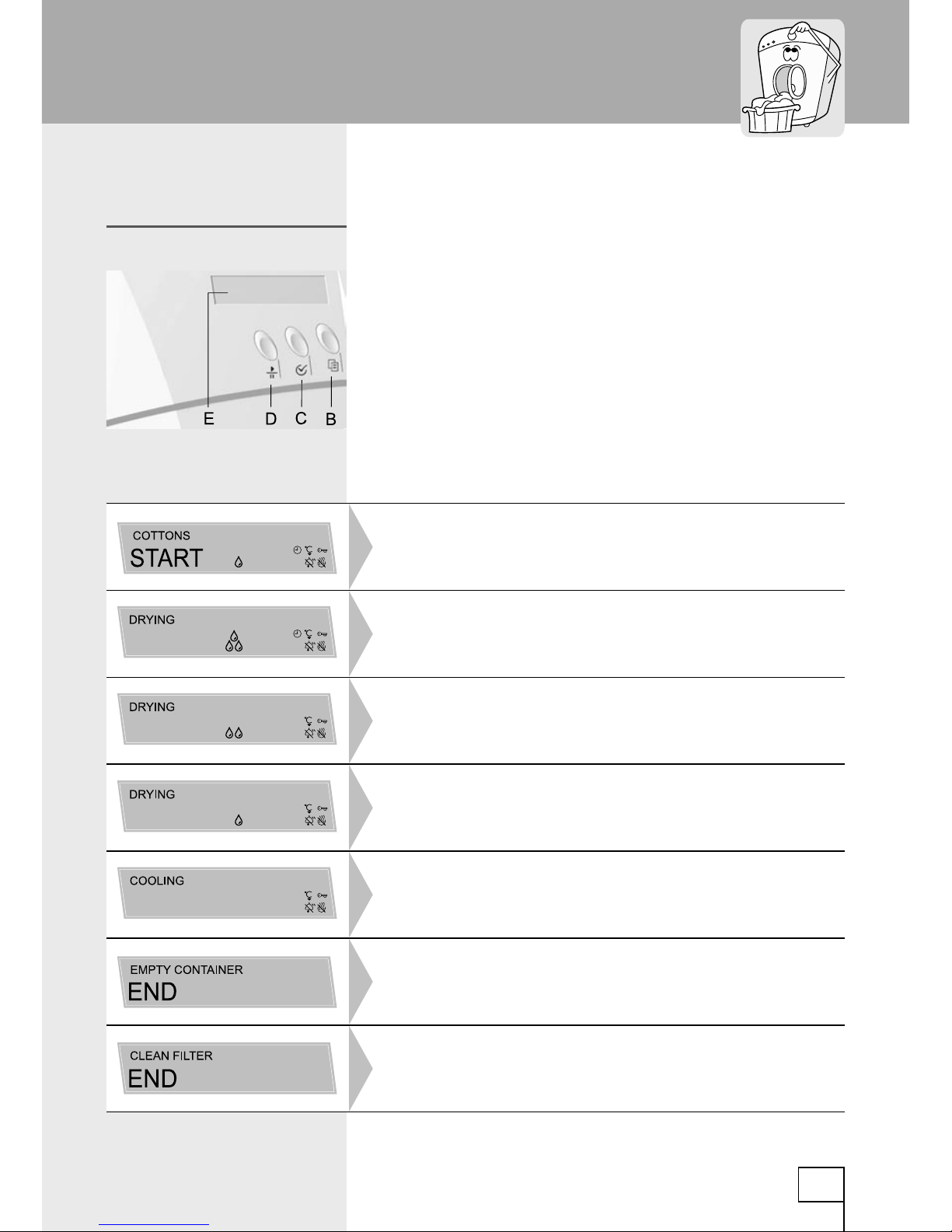

- Starting the appliance
1. Name of program, 2. Moisture level, 3. Additional functions
The appliance is switched on by turning the jog
button (A) to the desired program (depending on the
type of laundry, degree of moisture, and/or drying
time). Display is lit and indicates the program,
selected by the jog A. The LED button indicates
12
13
Drying procedure
Operating the dryer

selected program.
If you fail to do anything within 5 minutes after
starting the appliance, the display will go blank.
During the drying process the display is illuminated
and is switched off after the cooling stage.
- Selecting language
Press button C (SELECTION), and simultaneously
turn the program selector jog A to the rst clockwise
position. Display indicates the default setting of
language. Use button C (SELECTION) to select the
desired language. Last selected language is stored.
Turn the appliance off by turning the program
selector jog A to the position “0”.
- Selecting basic drying programs
• For the programs cotton , synthetics and
delicate laundry select the nal moisture level
(see program chart Page 25). To start drying cycle
press START (D) or select additional settings.
• For the timed program set the preferred
drying time. To start drying cycle press START (D)
or select additional settings.
• Mixed laundry program and quick drying
program already have one single moisture
level already predetermined. Select only the
additional settings (see program chart Page 25).
To start drying cycle press START (D).
• Wool program is a separate short time dened
program.
- Selection of additional functions
Button B (MENU) moves you within the menu,
button C (SELECTION) serves to select options
(see next page. Selection of additional functions).
Only MENU functions available for a particular
program are displayed. When the preferred
12
13

additional function is selected, the display indicates
relevant symbol. After the appliance is switched off,
all additional functions, except the sound signal and
child lock, are reset to their original settings.
Start delay
Default setting does not include delayed start
(display indicates 00:00 hours). Use button C to
select between 0 and 20 hours. For the rst two
hours the sequence may be set at 30 minute
lapses, after that the sequence is 1 hour. When the
preset time elapses, the selected program starts. In
case of power failure prior the end of the countdown
(display ashes POWER FAILURE), press button D
(START).
Lower temperature
This function is selected if you wish to dry laundry
at lower temperature than the program default (see
Page 24 Program Chart). By selecting this function
the drying time is longer. Use the C button to select.
Certain programs do not allow selection of this
function.
After drying is completed, this function
returns to the initial higher temperature.
Anti-crease program
The anti-crease program is set at 1 hour by default.
You may also select either to switch off the program
(0 h) or prolong the program to last 2 hours (2 h).
Use the C button to select.
The anti crease program is stopped if you open the
door of the appliance during the program, or if you
switch the appliance off.
Heater off
Heater may be switched off if you wish to dry
laundry at room temperature; drying time is
extended. Use the C button to select.
14
15

Quick program does not allow turning the heater off.
Child lock
Operation of the dryer may be protected against
accidental changes of programs or functions. The
function is activated by pressing the START button.
By pressing any key the sound alarm signals that
child lock is on. Relevant symbol ashes, and the
display reads CHILD LOCK ON.
If you want to set new drying program, or change
additional settings, you must rst remove the
protection.
Switching the function off:
- during drying:
If you want to interrupt the program or change
settings, switch off the function temporarily by
keeping the B button (MENU) pressed for 4
seconds. During this time the program can be
stopped by pressing D button (see page 17
interruptions). Relevant symbol ashes on the
display. The function is reactivated by pressing the
D button (START).
In case you fail to change anything within 15
seconds, the protection is automatically reactivated.
Even if you stop drying by opening the door
and child lock is temporarily switched off, it is
automatically restarted if the door is closed within
the next 15 seconds.
If you switch off the protection in the menu during
the interruption, it will no longer be active when the
program continues.
- after drying is completed:
By pressing the B button (MENU) for four seconds
after the drying program is completed, the
protection is switched off permanently. This means
that it will remain inactive also the next time you
start the drying procedure. Otherwise the protection
remains active till the next drying process. It is
switched off by a four second pressing of B button
(MENU), while the A button is turned to position “0”,
14
15

KED600 – Child Lock : Supplementary Instructions
To activate :
1. Turn the dryer on at the selector switch
2. Press the Menu button (B) and scroll through
to select the child lock function
3. Select ‘Yes’ (C) and start the dryer (D)
4. The child lock is now permanently on.
To deactivate the child lock :
1. Turn the dryer on at the selector switch
2. Press and hold the menu button (B) for 5 seconds
3. Scroll through the menu and select child lock ‘No’ (C)
4. Start the Dryer (D)
5. The child lock is now permanently deactivated

so you can select the drying program or additional
functions.
Sound signal
In default setting the sound signal is on.
You may select to switch the sound signal off, or
increase volume.
Legend: sound signal off;
normal sound signal setting;
increased volume setting.
If you switch the sound signal off the display
indicates relevant symbol .
Prior rst drying remove the basket and
any wrappings from the drum.
Drying in the basket (max. 2.5 kg of dry laundry)
This function may be selected only at timed drying.
Default setting is off. When this function is selected,
the anti-crease program is switched off.
The basket drying function is used to dry sneakers
or other things which you want to prevent from
tumbling within the drum. Be careful to avoid things
which are being dried to touch the drum as they
may get stuck and thus damaged. During this
function the basket remains still.
Dry only clean sneakers. Wring them after washing
to such extent that they do not drip water prior
inserting into the dryer.
After all functions are selected, move to the main
menu with the MENU button. Display ashes
START. If you agree with all selected functions,
press START for the commencement of drying,
otherwise select any other functions as preferred.
After the machine had been switched off
(program selector jog (A) is at the position “0”),
all additional functions return back to their
16
17

default settings, except for the sound signal and
the child lock (unless permanently inactivated).
• Drying process is turned on by pressing the
START (D) button.
• If the preset delayed start was selected, the
process will start when the preset time elapses.
• Display indicates the program with all
selected functions, and the beep signals the
commencement of drying.
• The display indicates different drying stages
in their sequence, according to the selected
program.
16
17
Drying procedure
Press the START button to conrm commencement of drying
(program starts when the delayed start time elapsed)
Maximum moisture level of laundry
Laundry has reached ironing moisture level
Laundry has reached the preset moisture level (slightly moist)
Cooling down (10 minutes at the end of a particular program)
End of drying. Empty the condenser tank.
Clean the lter.

EXAMPLE: Selected program: cotton, slightly
moist, functions selected: delayed start, decreased
temperature, child lock, no sound signal).
- End of drying procedure
At the end of the drying procedure the display
indicates END and CLEAN FILTER, and the beep is
heard.
The display intermittently ashes CLEAN FILTER
- EMPTY CONTAINER.
If the appliance is not switched off and/or the door
is not opened, the anti-crease program switches
on (according to settings from cf. Selection of
additional functions) and the dryer continues with
gentle tumbling.
Pull the power lead from the socket and cut the
power supply from the mains.
• By the user
Changing the program or the functions
After drying be careful when extracting
laundry from the appliance, as it may be
hot!
Prior any changes child lock must be
deactivated!
By pressing button D (START/PAUSE) the drying
program is paused; display reads PAUSE.
You can now change additional settings or basic
programs.
Press MENU to enter any menu and change
additional settings or select another drying program.
Conrm by pressing D (START/PAUSE).
You can switch the appliance off (turn jog A to the
position “0”) and reset all preferred settings.
18
19
Interruptions

Door opened
If the door is opened during the drying process this
will pause the operation; the display reads DOOR
OPEN.
When the door is closed, the drying process
resumes only after the START/PAUSE button (D)
is pressed. The beep reminds you that the drying
process continues.
If you press the START/PAUSE button D when
the door is open, the display indicates the CLOSE
DOOR warning and sound signal beeps.
• Power failure
After the power supply has been restored the
display intermittently reads POWER FAILURE.
To continue press the START (D) button and the
machine will continue from the point it had been
interrupted, all previous settings remain the same
as before the failure.
If you wish to change settings or originally
selected program, you can do it by simply
pressing MENU or turn the selector jog to the
desired program.
Conrm the selection by pressing START, and
continue as in normal setting procedure.
In case of power failure child lock is not
switched off (if it was active prior the
failure).
• Water container is full
When the water container is full the drying
program is interrupted. Display reads
CONTAINER FULL and a beep is heard.
After emptying the water from the container,
resume drying by pressing the D button (START/
PAUSE).
18
19
