Instruction Manual
PC939/PF993
Polypropylene and Polyester
Strapping Tensioners
Windlass
Cutter
Base Handle
Tightening Handle
Gripper Plate
PC939

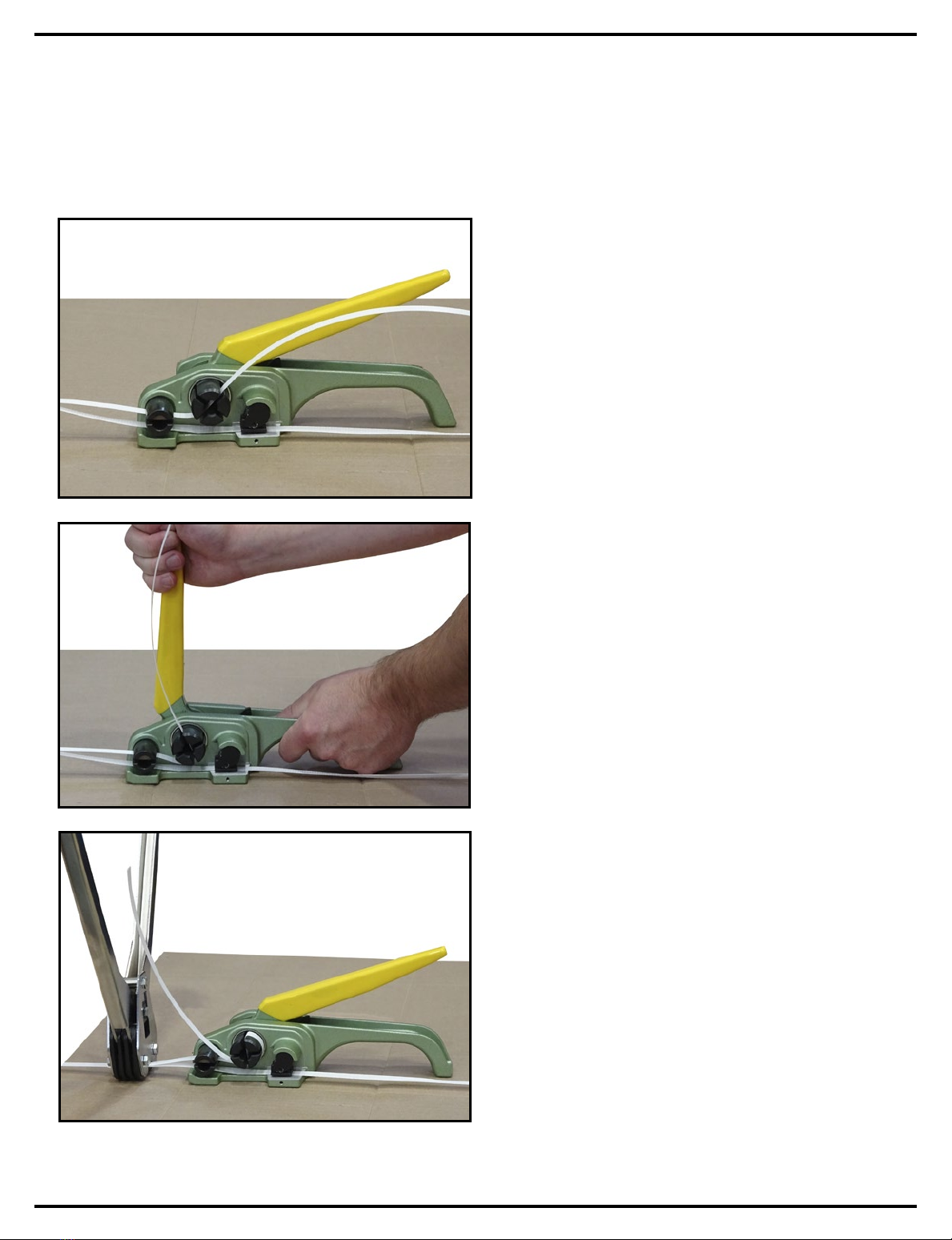

1. Threading tensioner
• Wrapbothendsofstrappingaround
 product.
• Squeezehandleandbasetogether.
• Inserttheshorterendofstrappingunder 
 thegripperplateandcutterwheel
 leavingapproximately5”ofstrappingo 
 thefrontend.
• Releasehandleandbase.
• Feedtheotherendthroughthecutter 
 wheelandupthroughthewindlass.
• Putstrappingastightaspossible.
2. Tensioning
• Movetighteninghandleforwardand
 backtobegintensioning.
• Continuebackandforthmotionuntil
 strappinghasreacheddesiredtension.
3. Placing the seal
• Sealshouldbeplacedopensidedown
 ontopoftheendsofstrapping.
4. Sealing
• Closenoseofsealeraroundseal.
• Crimptightlyaroundstrapping.
5. Removing excess
• Squeezehandleandbasetogetherto
 cutstrapping.
• Slidetoolototheright.
Maintenance
Toolsdoneedtobecleanedandmaintained
periodicallywithasteelbrushordrycom-
pressedair.Lubricateallmovingpartswith
lightmachineoil.
PC939/PF993 INSTRUCTIONS
How to use a polypropylene & polyester strapping tensioner
PF993

1. 
Thistool(orcutter)wasdesignedand
manufacturedforsafehandlingduring
operation.Foreectiveuseofthis
product,pleasereadandfollowallsafety,
maintenanceandoperatinginstructions.
4.
Whencuttingthestrap,holdthe
upperportionandstandatasafe
distanceawayfromthestrap,as
thelowerstrapwillsnapforward.
5.
Donotstandinlinewiththestrap
whileitisbeingtensioned,the
strapcouldbreakifovertensioned.
6.
Usetheoriginalpackingproducts
replacementparts.
PC939/PF993 Safety Instructions
PC939 Parts List PF993 Parts List
2.
Alwayswear,eyefaceandhandprotectionwhen
operatingthistool
3.
Donotputhandsorotherpartsof
thebodybetweenthestrapandthe
package.
Part
No.
Order
No. Description Qty
20 PC977 Handle toggle 2
21 Base shaft 1
22 Handle shaft 1
23 PC980 Cutting blade
and housing
1
25 PC982 Blade lever 1
28 Handle 1
29 Nose hook 1
30 Handle spring 1
31 Windlass 1
32 PC989 Ratchet wheel 1
33 Clip ring 1
35 Screw M4x8 1
Part
No. Description Qty
15 Retaining Ring 1
16 Screw 1
17 Washer Support 2
18 Gripper Screw 1
19 Base Plug 1
20 Spacer 1
21 Screw 1
22 Gripper 1
23 Gripper Spring (R) 1
24 Screw 1
25 Leg Spring 1
30 Plastic Sleeve 1
Part
No.
Order
No. Description Qty
1 Base 1
7 Base toggle spring 1
9 Screw M4x10 2
10 PC968 Leg 1
11 Screw M4x8 1
12 PC969 Gripper 1
13 PC970 Gripper screw 1
14 PC971 Foot spring 1
15 PC972 Lever release
assembly
1
16 PC973 Main spring 1
17 Main spring
bushing
1
18 Spring pin 1
Part
No. Description Qty
1 Handle 1
2 Base 1
3 Leg 1
4 Windlass 1
5Ratchet Wheel 1
6 Gripper Spring (L) 1
7 Cutting blade and housing 1
8 Ratchet Stop 2
9 Ratchet Spring 2
11 Cutter Cam 2
12 Cutter Spring 1
13 Gripper Cam 2
14 Retaining Ring 2
