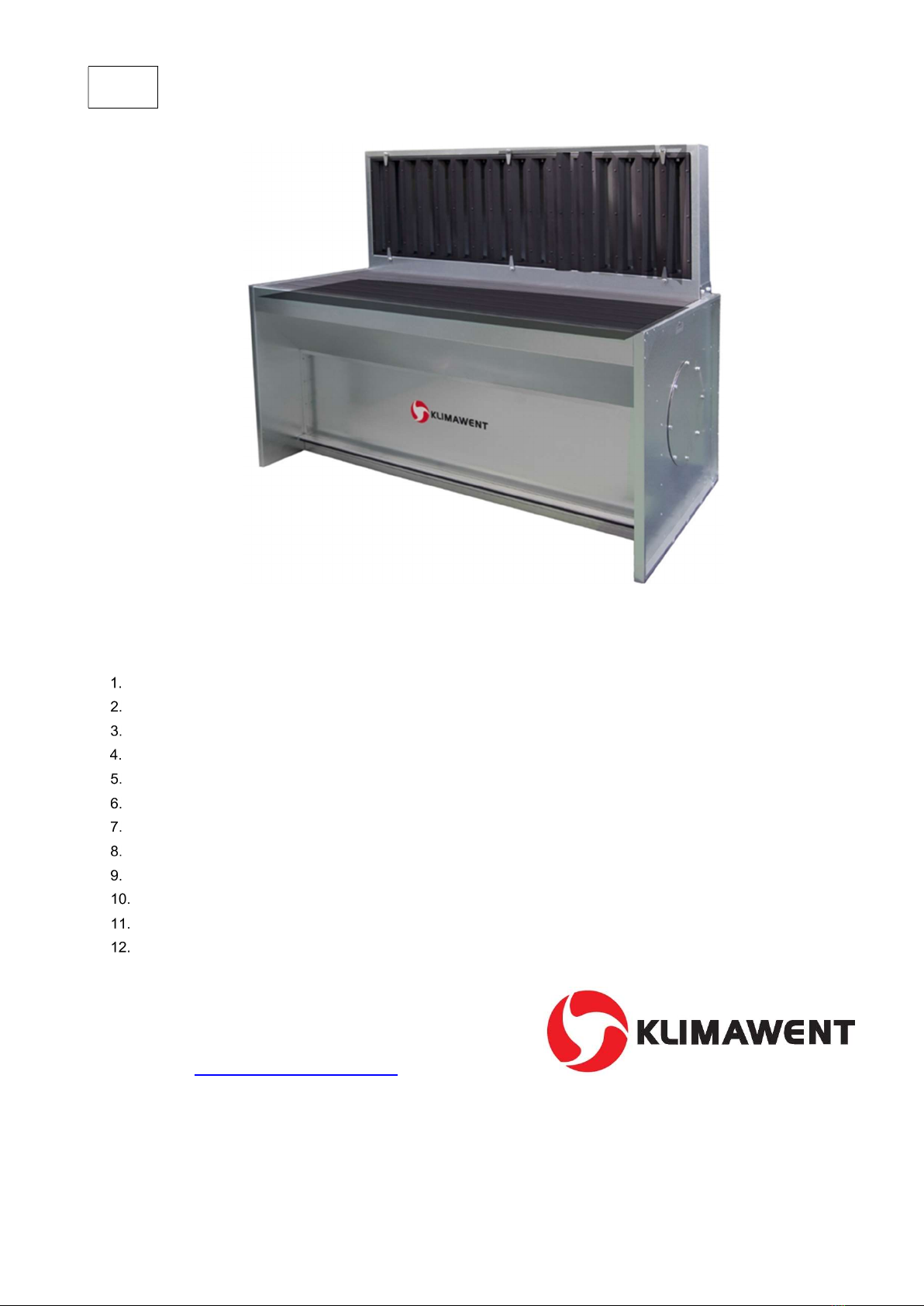

USER MANUAL
Grinding-Welding Station SLOT
CONTENTS
INTRODUCTION ........................................................................................................................................................ 2
APPLICATION ............................................................................................................................................................ 2
MANUFACTURER'S DISCLAIMER ............................................................................................................................ 2
TECHNICAL DATA ..................................................................................................................................................... 2
STRUCTURE AND FUNCTION .................................................................................................................................. 2
INSTALLATION AND COMMISSIONING ................................................................................................................... 3
OPERATIONAL USE .................................................................................................................................................. 3
TROUBLESHOOTING GUIDE .................................................................................................................................... 4
MAINTENANCE INSTRUCTIONS .............................................................................................................................. 4
OHS MANUAL ............................................................................................................................................................ 4
TRANSPORT AND STORAGE ................................................................................................................................... 4
TERMS OF WARRANTY ............................................................................................................................................ 4
19.03.2021
Manufacturer: KLIMAWENT S.A.
81-571 Gdynia, 194 Chwaszczyńska street.
phone: [phone]
fax: [phone]
e-mail: [email protected].pl
www.klimawent.com.pl edition: March 2021

Klimawent – the warranty of highest quality at attractive price
2 of 4 Grinding-Welding Station SLOT 19.03.2021
INTRODUCTION
This user manual is intended for the user of the SLOT device. Its purpose is to provide the user with instructions
on the use, assembly, commissioning and operation of the device.
Carefully read this manual before installing the device at the workplace and using it.
Due to the constant improvement of its products, the manufacturer reserves the right to make
constructional changes aimed at increasing the utility values and safety of use.
APPLICATION
Grinding-Welding Station SLOT is designed for extracting air polluted with dry dust emitted mainly during
welding works, but also during other processes such as wood processing, grinding, metal deburring, etc.
After replacing the grate, it can be used to extract dust resulting from manual cutting with a plasma torch – see
below – Table 3 Additional equipment – Replacement grates.
Dust extraction takes place directly at the source of their emission, from below through the suction chamber
with a grate and from the side through the side suction chamber.
The stand requires a connection to an exhaust fan, filtration device or central extraction system with
appropriate parameters - see below - Table 1 Technical data of SLOT stands.
MANUFACTURER'S DISCLAIMER
 The manufacturer is not liable for damages resulting from incorrect and improper use of the device.
 It is unacceptable to install any additional elements not included in the device or equipment on the
device.
 Unauthorized alterations and modifications to the device are not allowed.
 The device should be operated and repaired by an authorized and trained person.
 Protect all machine components against mechanical damage.
 The manufacturer is not liable for bodily injury resulting from incorrect use.
 Before installing the device, check the load capacity of the structural components to which it will be
attached. Incorrect, careless or unstable mounting of the device may damage it, and also pose a real
threat to people nearby.
TECHNICAL DATA
Table 1 Technical data of SLOT
Type of SLOTs Part no. Recommended volume
flow of fan [m3/h]
Mass
[kg] Load capacity *
[kg]
SLOT 1600
813S13
1600 57
500
SLOT 2000
813S1
4
2000 75
SLOT 3000
813S1
5
3000 94
SLOT 4000
813S1
6
4000 113
 Load capacity is given in relation to the entire surface of the working grate
STRUCTURE AND FUNCTION
Grinding-Welding Station SLOT is a chamber with a grate constituting the storage table and a side lashing
mounted above the grate.
Each station has a connection stub on both sides of the chamber. There is a drawer for accumulating dust
under the grate – see Figure 1.
When using a device for manual cutting with a plasma torch, a replaceable grate should be used instead of
the standard one – see Table 3.

Klimawent – the warranty of highest quality at attractive price
19.03.2021 Grinding-Welding Station SLOT 3 of 4
Figure 1 Construction and dimensions of SLOT
Note: Dimensions in the drawing above are in millimetres!
Table 2 Characteristic dimensions of SLOT
Type of SLOTs Mass
[kg]
A
[mm]
D1
[mm]
SLOT 1600
57 800 200
SLOT 2000
75 1200 250
SLOT 3000
94 1600 315
SLOT 4000
113 2000 315
Table 3 Additional equipment – Replacement grates
Type of grates Part no. Description
R-1600 801R04
Thanks to the exchangeable
grate, you can
effectively remove debris from manual plasma
cutting. The grate is mounted in place of the
standard grate.
R-2000 801R05
R-3000 801R06
R-4000 801R07
INSTALLATION AND COMMISSIONING
Grinding-Welding Station SLOT should be placed on an even and levelled surface, and then connected to an
extraction system with adequate capacity – see above – Table 1 Technical data of SLOT.
OPERATIONAL USE
The device requires no special treatment during operation. Usage boils down to cleaning the stand of
accumulated dirt on the grate surface and in the drawer and emptying the drawer of dust. Interferences in the
operation of the device and the procedure in such cases are described below – see Table 4.

Klimawent – the warranty of highest quality at attractive price
4 of 4 Grinding-Welding Station SLOT 19.03.2021
TROUBLESHOOTING GUIDE
Table 4 Typical work disruptions, causes, and remedies
DISRUPTIONS
CAUSES
REMEDIES
reducing the amount of exhausted air overfilled waste container empty container of impurities
reduction in the amount of sucked air
combined with an increase in noise
an interfering object is stuck in the
installation unblock the extraction system
larger contaminants escape open waste container properly close the waste
container
MAINTENANCE INSTRUCTIONS
SLOT station maintenance consists of cleaning the station of accumulated dirt on the grate surface and in the
drawer as well as emptying the dust drawer. Additionally, tightness and correctness of connection of suction hoses
should be checked.
OHS MANUAL
Commissioning and operation of the device may take place only after reading this manual.
The device is not dangerous, provided it is carefully installed following these instructions!
Due to the presence of sharp edges and corners, during any work such as assembly,
disassembly, repair or inspection, it is necessary to use personal protective equipment as
well as work clothing and footwear!
TRANSPORT AND STORAGE
During transport, protect the device against damage, slipping, dents and precipitation. The device should be
stored in a dry and ventilated room.
Transport and reloading should take place in a way that eliminates damage or dents to the device, as well as
damage to the packaging or blurring of markings appearing on it.
TERMS OF WARRANTY
The warranty period is specified in the device Warranty Card.
The warranty does not cover:
 mechanical and electrical damages of the device caused by the user,
 damage resulting from improper use or failure to comply with these operating instructions,
 damage resulting from improper transport, storage or improper maintenance.
Non-compliance with point 3 “MANUFACTURER'S DISCLAIMER” of this manual, especially
the unauthorized modification of the device or its improper use will void the warranty!
