4610
POULTRY HOUSE
WALL CLEANER
46-SERIES
THIS MANUAL TO ACCOMPANY MACHINE
PART NO. 46-OM-02
OPERATOR’S MANUAL
PRINTING DATE: NOV 2008

WARRANTY POLICY
KELLEY MANUFACTURING COMPANY (KMC) warrants that all goods sold
to the original purchaser of any KMC product shall be free of any defects in
material and workmanship if used under normal operating conditions. The
warranty period begins on the date of purchase by the retail customer. For
non-commercial users the warranty ends twelve (12) months thereafter. For
commercial users the warranty period ends six (6) months thereafter. KMC’s
sole responsibility is to repair and/or replace the defective part or parts at no
cost to purchaser. This remedy is the SOLE AND EXCLUSIVE REMEDY of
purchaser.
The purchaser must fill out and return the warranty registration form found in
the front of the operator’s manual. Failure to return the warranty registration
form within 30 days shall result in the goods being sold “AS IS”, and all
warranties shall be excluded.
This warranty shall not apply to those items that are by nature worn in
normal service, including but not limited to belts, springs, teeth, chains, etc.
Items such as tires, tubes, and gearboxes and all other items warranted by the
original manufacturer are warranted only to the extent of their individual
manufacturer warranty, and KMC is not warranting any of said items. All
warranty claims must be made through a KMC licensed dealer, and a warranty
form request must be submitted to KMC within 30 days of failure or the warranty
provision shall be unenforceable against KMC.
No agent or person has authority to change or add to this warranty as written.
THE ABOVE IS THE ONLY WARRANTY MADE BY KMC AND IS MADE
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED. KMC MAKES NO WARRANTY OF MERCHANTABILITY AS TO ANY
GOODS MANUFACTURED BY KMC AND FURTHER, KMC DOES NOT
WARRANT ANY SUCH GOODS AS SUITABLE FOR ANY PARTICULAR PUR-
POSE TO THE RETAIL CUSTOMER. THE SUITABILITY OF GOODS FOR
ANY PURPOSE PARTICULAR TO THE CUSTOMER IS FOR THE
CUSTOMER, IN HIS SOLE JUDGEMENT, TO DETERMINE. KMC FURTHER
MAKES NO WARRANTIES WITH RESPECT TO ITS MANUFACTURED
GOODS THAT WOULD NORMALLY BE DISCLOSED BY AN EXAMINATION.
THIS IS THE FULL AND FINAL EXPRESSION OF ALL WARRANTY LIABILITY
OF KMC. NO OTHER WARRANTY, EITHER EXPRESSED OR IMPLIED,
SHALL BE ENFORCEABLE AGAINST KMC.
Kelley Manufacturing Co.
80 Vernon Drive / Zip 31794
P.O. Drawer 1467 / Zip 31793
Tifton GA

1
TABLE OF CONTENTS
TO THE PURCHASER·······················································································2
Retail Customers Responsibility Under The KMC Warranty··································3
SAFETY PROCEDURES····················································································3
POULTRY HOUSE WALL CLEANER BASIC FEATURES ·······································4
ASSEMBLY INSTRUCTIONS ·············································································5
MACHINE SETUP
Attaching To Tractor ·················································································5
Wall Gauging Tire Adjustment ····································································6
Plastic Wall Follower·················································································7
Curb Deflector ·························································································7
Auger Rotation ························································································7
Checking Poultry House For Obstructions ·····················································7
OPERATING INSTRUCTIONS
General Instructions ·················································································8
Blade Depth ····························································································8
Operating Speed······················································································9
Slide Blade Return Force···········································································9
MAINTENANCE
Cleaning Machine ····················································································10
Blade Pivot Lock Bolt Replacement ····························································10
Scraper Blade Replacement ······································································10
Wall Follower Slide Replacement ································································10
LUBRICATION·································································································11
STORAGE·······································································································11
TRANSPORTATION ·························································································11
SPECIFICATIONS ····························································································11

2
TO THE PURCHASER
This KMC Poultry House Wall Cleaner has been carefully designed and manufac-
tured to give years of dependable service. In order to operate it efficiently and maintain if
properly, please read the instructions within this manual thoroughly.
While reading the manual through, you will notice that it is divided into sections which
clearly explain the assembly and operations of each components of this machine. A Table of
Contents is also provided for quick reference to these sections
Some components of this machine are labeled left or right. The notations are deter-
mined facing the direction the machine will travel in use.
This safety alert symbol is used throughout this manual to identify safety
messages. When you see this symbol, read the message which follows as
it will advise you of possible injury.
After reading this Operator’s Manual, Please keep it for reference each season.
To insure procurement of the proper repair parts, please record your machine’s Serial
Number and Purchase Date as shown below:
Model No.____________________________
Serial No.____________________________
Purchase Date ________________________

3
Retail Customers Responsibility Under The KMC Warranty
The retail customer’s responsibilities are:
1. To read the Operator’s Manual and operate the Poultry House Wall Cleaner in
accordance with instructions given in the manual
2. To inspect the Poultry House Wall Cleaner daily, lubricate as specified and repair
or replace parts as needed, especially when continued use would cause damage or
excess wear to other parts.
3. To maintain and keep in place all safety shields and devices.
4. When Warranty Service is necessary, it is the customer’s responsibility to deliver
the machine to the KMC dealer from which is was purchased, Warranty repairs
should be submitted to the dealer within thirty (30) days of failure.
5. Dealer travel to the machine or hauling the machine to his shop for the purpose of
performing warranty service is not allowed under KMC warranty. It is a cost to be
paid for by the retail customer. Any arrangement whereby the dealer agrees to ab-
sorb all or part of this cost is strictly between the dealer and retail customer.
SAFETY PROCEDURES
Safety and performance are the primary objectives of the designers of KMC equipment.
Safety features have been incorporated into this machine where possible and warnings given
in other areas. For your safety, PLEASE read and observe the following safety procedures.
1. READ the Owner’s Manual.
2. Do not permit anyone to ride on the machine.
3. Before starting or operating the machine, make a walk-around inspection and check
for obvious defects such as loose mounting bolts and damaged components. Cor-
rect any deficiencies before starting.
4. Keep all persons a safe distance away from the rear and sides of the machines
while it is in operation.
5. Do not allow children to operate the Wall Cleaner. Only experienced
tractor operators should operate the tractor when using the Wall Cleaner.
6. The work area should be cleared of objects that can be pickup and become entan-
gled in the auger.
7. Drive safely during transport; excessive speed while turning on rough ground or
over hills could cause tractor to tip over.
8. Make sure hitch components are attached securely before operating or transport-
ing.
9. Use flashing warning lights when on highways, except where prohibited by law.
10.Disengage auger, apply parking brake, and stop tractor engine before dismounting
tractor.
11.Keep all shields in place.
12.Keep hands, feet and clothing away from moving parts.
13.Make sure everyone is clear of machine before starting tractor or operating ma-
chine.
14.Observe all safety decals located on machine.
Please check with the proper authorities about state restrictions and/or regarding
permits that may be necessary when transporting equipment on any highways in your
state

4
POULTRY HOUSE WALL CLEANER BASIC FEATURES
Throughout this manual we will be discussing various features and components of the
KMC Poultry House Cleaner. References to various components for adjustments, settings,
performance, and lubrication are made. The following diagram will help in identifying these
components.
FIGURE 1
ADJUSTABLE REAR
GAUGE WHEEL
MAIN BLADE
WITH AUGER
MAIN FRAME
CURB DEFLECTOR
(OPTIONAL)
7” ADJUSTABLE ROLLING
TIRE WALL GAUGE
NOTE:
USE CURB DEFLECTOR FOR THIS TYPE CON-
CRETE FOOTERS. REMOVE IT FOR STRAIGHT
WALLS OR WALLS WITH INTERIOR 4 X 4 POSTS.
CONCRETE WALL
FLAT CURB
7” TIRE CURB DEFLECTOR

5
ASSEMBLY INSTRUCTIONS
The Poultry House Wall Cleaner is shipped in two pieces; the pivot frame and the blade as-
sembly. Assembling the Wall Cleaner is accomplished by bolting the two together using a 1” x 5 1/2”
long pivot bolt (and locknut) and a 5/8” x 5 1/2” grade 2 bolt for the blade pivot lock down bolt (with
lockwasher and nut). After aligning the 1” frame hole with the blade adjustment plate hole, insert the
1” pivot bolt and screw on the locknut. Tighten the locknut leaving just enough play to rotate the
blade. Install the 5/8” blade shear bolt and nut, and tighten.
NOTE: ALWAYS USE A 5/8” DIAMETER, GRADE 2 BOLT FOR THE BLADE PIVOT LOCK
DOWN BOLT. THIS BOLT LOCKS THE BLADE IN PLACE ALSO ACTS AS A SHEAR
PIN, SHEARING IF AN IMMOVABLE OBJECT IS ENCOUNTERED.
Secure the hydraulic hoses to the frame with cable ties. Make sure the hoses are routed and
secured in a manner that will keep them from getting into the auger.
MACHINE SETUP

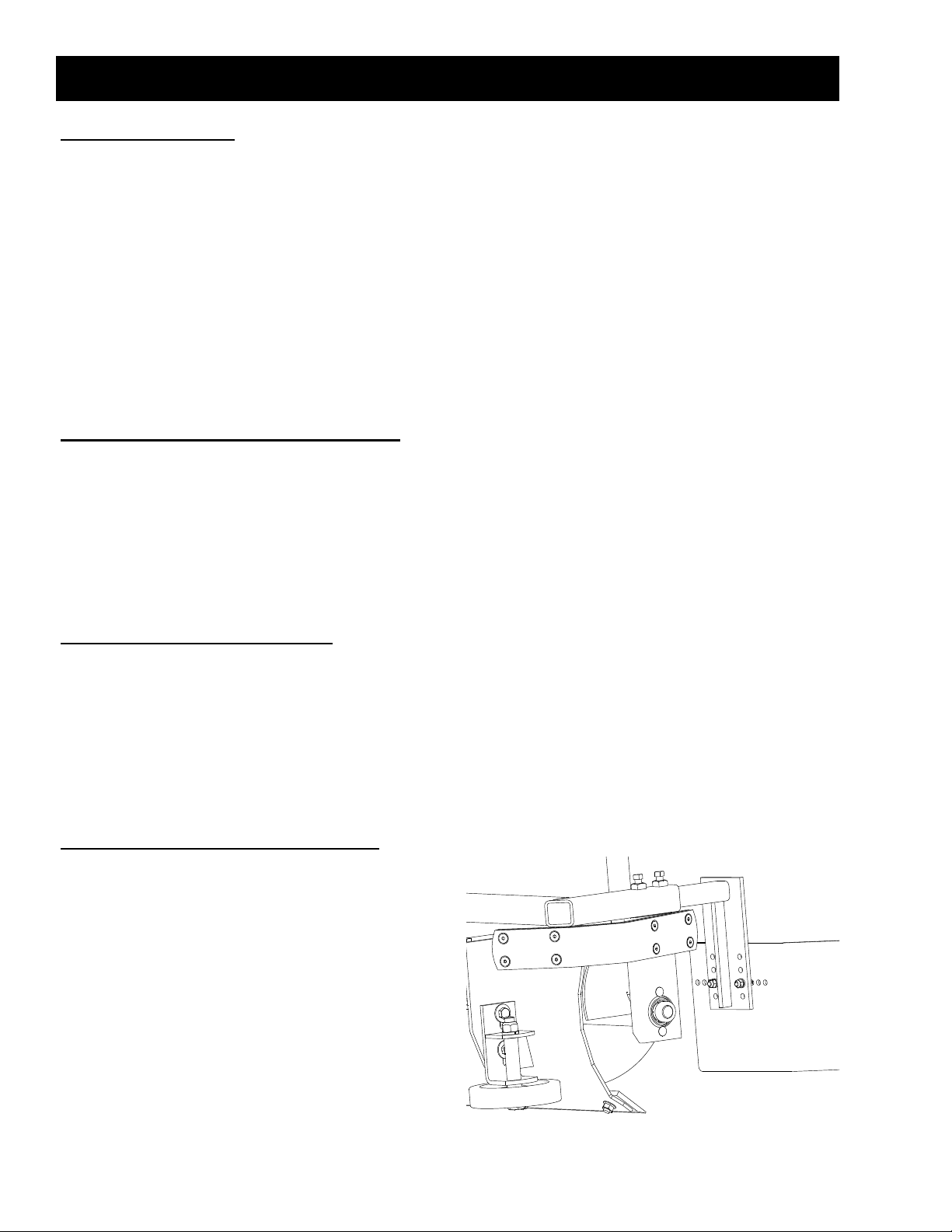

FIGURE 2
5/8” x 5 1/2 Bolt Grade 2 &
5/8” lockwasher & hex nut
1” x 5 1/2” Pivot Bolt & 1” Locknut
Blade
Assembly
Main Frame
ATTACHING TO TRACTOR
The KMC Poultry House Wall Cleaner is designed to be operated with tractors having Cate-
gory I or Category II three-point hitches. One set of tractor hydraulic remotes are also required to op-
erate the cleaner.
Once the tractor has been set, attach the Poultry House Wall Cleaner to the tractor’s lower lift
arms using the provided hitch pins. Attach the tractor top link to the cleaner using an appropriate hitch
pin. Install tractor stabilizing bars to minimize lateral movement of the Wall Cleaner. After installing a
set of hydraulic hose ends for your tractor onto the Wall Cleaner hoses, connect the hoses to one set
of the tractor’s remotes.

6
NOTE: Operation of the POULTRY HOUSE WALL CLEANER places substantial lateral
(sideways) force on the cleaner. Make sure tractor hitch stabilizing bars are
properly installed to minimize lateral movement of the wall cleaner.
DANGER ROTATING AUGER: ALL PERSONS SHOULD STAY CLEAR
OF ROTATING AUGER. BEFORE DISMOUNTING TRACTOR TO
MAKE ADJUSTMENTS, DISENGAGE AUGER DRIVE.
Wall Gauging Tire Adjustment
FIGURE 3A FIGURE 3B
NOTE: 7” Tire should gauge the machine from the wall or footer before wall cleaner blade
or scraper blade contacts the wall. It may be necessary to move spacer plates to the
opposite side of mount to keep blade or scraper blade from being too close to the
wall. The wheel can also be adjusted up or down as required for a better surface to
witness the wall.
7” TIRE FOR
GAUGING
SCRAPER
BLADE
SPACER
PLATES
SPACER
PLATES

7
Plastic Wall Follower
FIGURE 4 Position follower parallel to Poultry House Floor
An adjustable rolling wall monitoring tire is mounted on rear right side of the blade. A
plastic wall follower is located at the top to help machine pass around inside wood post and
other obstacles.
Auger Rotation
With the tractor’s 3-point hitch lowered and the Wall Cleaner’s blade on the ground,
adjust the tractor’s top link until the Wall Cleaner’s main frame tube is parallel to the ground.
Raise the blade slightly and operate the auger noting its rotation. The auger should rotate so
as to move material towards the hydraulic motor. If rotation is wrong, change the direction of
the hydraulic remote engagement lever or reverse the hoses at the remote.
Checking Poultry House for Obstructions
While the KMC Poultry House Wall
Cleaner is designed to clean out around inte-
rior posts and other obstacles, the poultry
house should be checked for obstacles that
may hang on the cleaner’s blade. These ob-
stacles may include exposed bolts, nails, wir-
ing conduit, and water lines. One method of
protecting items from the cleaner blade is to
nail a board on both sides of the obstacle.
This allows the sliding blade of the cleaner to
move around the obstacle.
FIGURE 5
WATER PIPE,
CONDUIT, ETC.
2 X 4’S.
2” (MAX)
PLASTIC WALL FOLLOWER TO BE USED IN HOUSES
WITH INSIDE WOOD POST EXTENDING FROM WALLS.
SCRAPER BLADE
7” TIRE
THE CURB DEFLEC-
TOR WILL BE RE-
M O V E D W H E N
RUNNING WITH
4 X 4 POSTS. USE
ONLY WITH WIDE
CONCRETE FOOT-
ERS.
Curb Deflector
A curb deflector is only used when the houses have wide concrete footers. This allow
the machine to push debris away from the footer so the auger can finish carrying it to the cen-
ter of the house to be picked up. It has setscrews located on the arm that allows you adjust to
the front and rear of machine. The capscrews located on the plate is for left and right and up
and down adjustments.

8
OPERATING INSTRUCTIONS
The KMC Poultry House Wall Cleaner is made up of 4 main components: a frame, a
main blade, a rear gauge wheel, and an attached augering system. An optional curb deflec-
tor attaches on the right end of the cleaner for houses with flat curbs coming off the wall.
Please remove this attachment if it is not required in your poultry house. This attach-
ment prevents cake from flipping up on top of the curb as shown on page (4) Figure 1. The
frame supports the other 3 components. The Poultry House Wall Cleaner runs along the wall
moving around interior posts and other objects. Material is moved along the blade to be dis-
charged by the augering system.
A tube bolted to the back side of blade moves through rollers located in a carriage as-
sembly attached to the main frame. The roller mechanism allows the blade 12 inches of
travel from wall. An extension spring provides the force to keep the sliding blade against the
wall.
Although the Wall Cleaner can be used before or after the poultry house is cleaned
with a house cleaner, it is suggested that it be used first if the litter is only 3” to 4” deep. If the
litter is deeper, it is better to clean the walls with the wall cleaner after the house has been
cleaned with the house cleaner.
Operating the Wall Cleaner requires the tractor operator to keep the tractor parallel
with the wall at a distance, from the wall, that allows the sliding blade assembly to operate
within its 12 inches of travel.
The blade depth is set by adjusting the tractor’s lift arms depth control and set the
blade depth to remove the desired amount of material. On tractors that have open-center
hydraulic systems, you may not be able to adjust the depth while the auger is turning. With
these systems, it may take some trial and error to initially get the proper depth set. The Wall
Cleaner blade frame must be ran level from left to right and front to rear in the operating posi-
tion. Wrenchless depth adjustment can be make by moving rear 6 x 12 gauge wheel to de-
sired depth.
Blade Depth
(2) 3/4 X 2 1/4 CAPSCREW &
(2) 3/4 STOVER LOCKNUTS
3/8” DEPTH ADJUSTMENT PIN
& 3/16 X 1 1/4 KILK PIN.
6 X 12 REAR
GAUGE WHEEL
FIGURE 6 (ADJUSTABLE REAR GAUGE WHEEL)

9
Operating Speed
Slide Blade Return Force
The auger rotational speed should be set to keep material sufficiently cleaned out from
in front of the blade. The auger speed is adjusted by varying the tractor engine RPM or ad-
justing the flow control lever found on some tractors.
The Wall Cleaner should be operated at a ground speed of 3/4 miles per hour or
slower. Ground speed will be dependent on the amount of material being removed and the
auger speed. If the auger is overloaded causing the hydraulic motor turning the auger to stall,
it may be necessary to decrease ground speed.
The Poultry House Wall Cleaner spring adjustment is preset from the manufacturer.
The amount of force used to return and hold the sliding blade against the wall is adjustable by
varying the amount of preload on the return spring. The required amount of preload is de-
pendent on the amount of material being removed and the hardness of the underlying floor.
Ideally, the spring force should be enough to sufficiently and quickly return the slide blade to
the wall after going around an obstacle. Initially, leave all the preload off the spring then ad-
just if necessary. To adjust the spring preload, first loosen the outside 3/8” hex nut. Then with
the proper wrench increase or decrease the tension by adjusting the 3/8” hex nut on the eye
bolt inside of carriage bracket. Once you have established the correct tension lock down the
setting with the outside 3/8” hex nut. (Figure 7)
FIGURE 7
3/8” NUTS
CARRIAGE BRACKET
EYE BOLT
INCREASE TENSION
DECREASE TENSION

10
Cleaning Machine
The environment that the Wall Cleaner is used in can be highly corrosive to steel com-
ponents. Therefore, the Wall Cleaner should be washed off after each use. When washing
the Wall Cleaner with a high pressure washer, do not get water stream too close to the bear-
ings on the Wall Cleaner. Although the bearings are sealed, a stream of high pressure water
placed too close to the bearings may penetrate the bearing seals allowing water to enter, and
ultimately damage, the bearings. It is recommended that the Wall Cleaner be sheltered
when not in use.
Too much build up of material in the tubes and on the rollers of the slide blade carriage
assembly can hinder movement of the sliding blade. These areas should be clean periodi-
cally.
MAINTENANCE
Blade Pivot Lock Bolt Replacement
Scraper Blade Replacement
Wall Follower Slide Replacement
If the blade hangs on an immovable object, the pivot lock bolt will shear allowing the
blade to pivot. To replace the bolt, raise the cleaner, pivot the blade to the original position,
and install a 5/8” x 5 1/2” long GRADE 2 bolt through the blade adjustment plate hole. Install
a lockwasher and nut onto the bolt and tighten securely.
The scraper blade mounts onto the bottom of the main blade with 1/2” x 1 1/4” #3 Reg.
plow bolts, lockwashers, and nuts. Mount the blade with the beveled edge down and to the
rear, flushing the left end of the blade with the discharge end of the main blade.
The Wall Follower Slide is a strip of
polyethylene bolted to the wall following arm
on the side blade. The polyethylene strip
provides a low friction surface to slide along
obstacles in the poultry house. Eventually
the strip will wear out and will have to be re-
placed. To replace the strip, remove the 8
nuts and allen head screws. When reinstall-
ing the strip, make sure the screw heads are
counter-sunk into the polyethylene to prevent
them from hanging on objects in the poultry
house.
FIGURE 8

11
LUBRICATION
TRANSPORTATION
STORAGE
SPECIFICATIONS
All bearing used on the Wall Cleaner are sealed and require no lubrication. Do not
lubricate (grease or oil) the tube on the sliding blade. Lubricating this tube will attract material
and cause build up on the tube resulting in improper operation of the slide blade.
When transporting the wall cleaner, be aware that on the right side of the tractor, the
Wall Cleaner blade extends beyond the tractor tires. Care should be taken not to hang the
blade on any objects.
The Poultry House Wall Cleaner should be washed thoroughly. After washing, treating
with a disinfectant is recommended to kill any remaining bacteria. Treat the metal compo-
nents of the machine with a soluble oil to protect from rust and corrosion. One product which
meets these requirements is called “Film Fluid” manufactured by Eureka Chemical Co., San
Francisco, CA. It is sold in some tractor dealerships and farm supply dealers.
Machine Width: 77 inches
Machine Length: 63.3 inches
Weight: 723 lbs.
Blade Width: 48 x 3 x 3/8 inches
Slide Blade: Spring loaded return; 12 in. of travel
Hydraulic Motor Rotation Speed: 190 RPM @ 8 GPM; 350 RPM @ 15 GPM
Auger: 12 in. diameter, 0.12 in. thick at O.D.
DANGER
TO AVOID DEATH OR SERIOUS
INJURY FROM ENTANGLEMENT
IN THE AUGER FEDDER SYSTEM
 STAY CLEAR OF ROTATING
AUGER
 DISENGAGE DRIVES AND SHUT
OFF TRACTOR ENGINE BEFORE
MANUALLY UNPLUGGING.

12

YEAR SERIAL NUMBERS
1985 27986-29695
1986 29696-31095
1987 31096-33234
1988 33235-35548
1989 35549-38496
1990 38497-41771
1991 41772-44466
1992 44467-47001
1993 47002-48750
1994 48751-51549
1995 51551-54262
1996 54263-56661
1997 56662-59465
1998 59466-62097
1999 62098-63986
2000 63987-65692
2001 65693-67340
2002 67341-68699
2003 68700-70482
2004 70483-72646
2005 72647-74866
2006 74867-76368
2007 76369-77883
2008 77884-79891
2009 79892-80944
2010 80945-81775
2011 81776-83453
2012 83454-85092
2013 85093-
The following is a list of serial numbers issued to our machines at the beginning of each
year. To determine when a unit was made, find the range within which the particular serial
number falls. It would have been produced between January 1 to December 31 of that year.

DEPENDABLE EQUIPMENT FOR PROGRESSIVE FARMIMG
KELLEY MANUFACTURING CO.
80 Vernon Drive / Zip 31794
P.O. Drawer 1467 / Zip 31793
Tifton, GA
Tel: [phone]
Toll Free: 1-800-444-5449
Fax: [phone]
Email Address: [e-mail]
Visit us at www.kelleymfg.com
MADE IN AMERICA
