KneeRover Ultra User manual

KneeRover® Ultra
User Manual

Congratulations on your purchase of the KneeRover®
ULTRA!
The KneeRover® ULTRA Knee Scooter provides a more reliable and com-
fortable alternave to crutches for paents needing an eecve mobility
soluon at an aordable price.
Operang Instrucons:
This medical device is designed to maximize mobility during your recovery
from foot/ankle surgery or injury.
Place the knee of your injured leg on the knee plaorm and stand as straight
as possible. Adjust the handlebar to approximately waist high or the top of
your hips. This will allow you to nd the most comfortable posion for your
hands while holding the grips. Adjust the knee plaorm height so that your
injured leg is supported at a 90 degree angle when standing.
Ensure that the hand brake is fully engaged before mounng the KneeRover®
scooter. To move the scooter, simply push forward with your good foot. Allow
the scooter to glide, and as it slows down, push again.
We recommend operang the KneeRover® scooter at a safe walking
speed (< 3 mph).
Ongoing Maintenance:
We recommend saving the tools that are provided with your KneeRover®
product, as you may need them to provide ongoing maintenance. With rou-
ne use, nuts and bolts on the KneeRover® knee walker can become loose. To
ensure safe operaon of your KneeRover® scooter, it is important to periodi-
cally inspect for loose nuts and bolts and re-ghten as appropriate.
Please visit hps://kneerover.com/pages/kneerover-maintenance-videos for
addional support in maintaining your KneeRover® product.

KneeRover® ULTRA - Tools & Parts List:
The following tools and parts are included with your KneeRover® ULTRA. Please
follow assembly instrucons for your specic KneeRover® model, using the
tools and parts provided.
Assembly videos for your KneeRover® model can also be found at:
hps://kneerover.com/pages/assembly-video
Height Adjustment
Knob
Front Axle Bolt
and Washer
Handle Bar
Column Bolt
and Washer
Kneepad Locking
Pin
Frame Locking Knob Kneepad Bolts (4)
and Washers (4)
Allen Wrench
for Front Axle
Bolt and Column
Bolt
Allen Wrench
for Kneepad
Installaon

KneeRover® Ultra Blueprint:
Basket and
Basket Frame
Handle Bar Handle Bar
Column
Kneepad Kneepad Post
Front Axle Front Frame Secon Rear Frame Secon

KneeRover® ULTRA Set Up Instrucons:
Please follow the step by step instrucons on the following pages to properly
assemble your KneeRover® scooter. The diagram below idenes the key
components of the scooter to aid with assembly.
Visit hps://kneerover.com/pages/assembly-video for assembly videos.
Weight capacity = 300 pounds
Height Adjustment
Knob
Hand Brake with Parking
Feature
Steering
Column
Brake Cable
7.5” Wheels
Rear Brake
Adjustable
Knee Plaorm
Basket

Step 1: Aach the Front Frame Secon to the Rear Frame
Secon

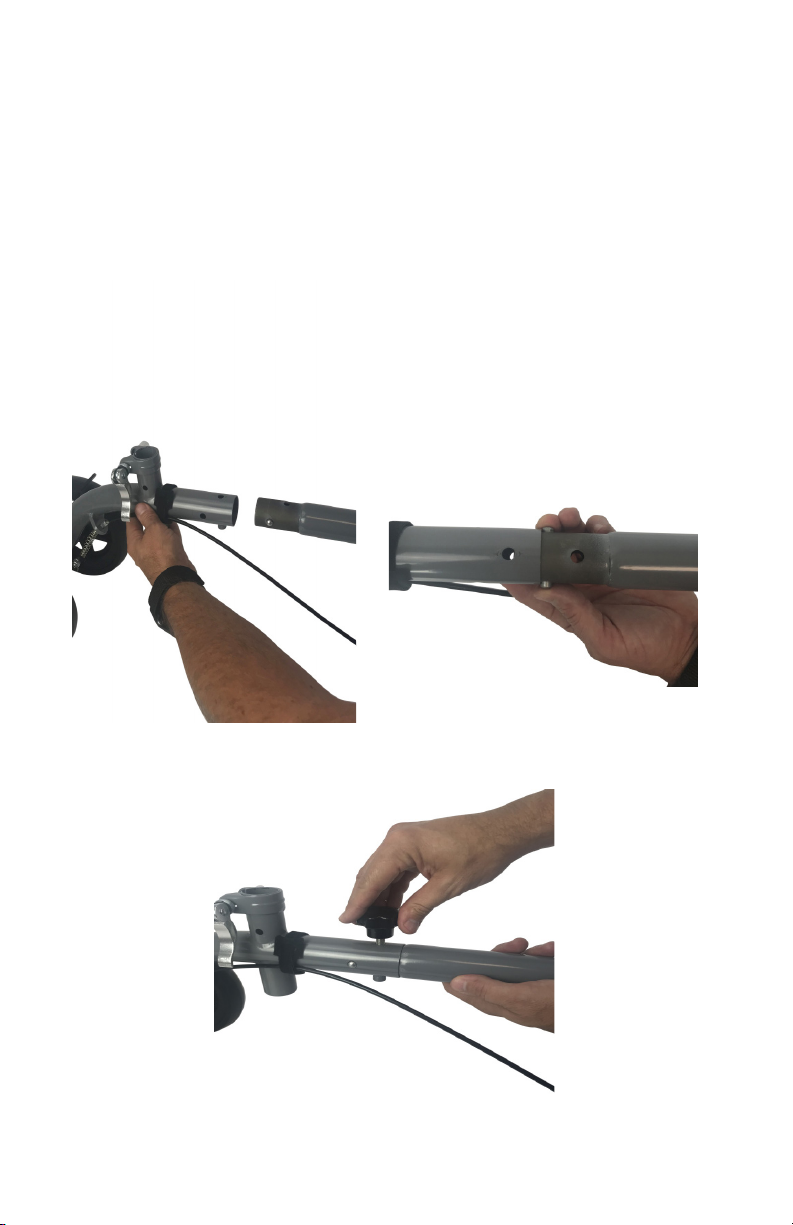

Locate the Front Frame Secon and the Rear Frame Secon (Le Photo). Aach
the two secons by inserng the Front Frame into the Rear Frame. Press the
silver pin on each side and this will allow the silver pin to align with the holes
on the side (Right Photo). Place the Frame Locking Knob through the top hole
and ghten unl secure (Boom Photo).

Step 2: Aach the front Axle
Locate the Front Axle. Aach the Front Axle to the boom of the Front Frame
Secon (Le Photo). Place a washer on the Front Axle Bolt and insert the Front
Axle Bolt into the hole on the side (Right Photo). Tighten the Front Axle Bolt
with the provided allen wrench (Boom Photo).

Step 3: Handle Bar Assembly
Aach the Handle Bar to the Handle Bar Column (Top Le Photo). Place a
washer on the Handle Bar Bolt and ghten with the provided allen wrench
(Top Right Photo). Place the assembled Handle Bar into the steering column.
Use the included Height Adjustment Knob to set the Handle Bar at the proper
height (Boom Photos). The proper height for your Handle Bar is the posion
that makes you feel the most comfortable with your hands on the grips. For
most, this is approximately waist high or even with the top of your hips.

Step 4: Kneepad Assembly

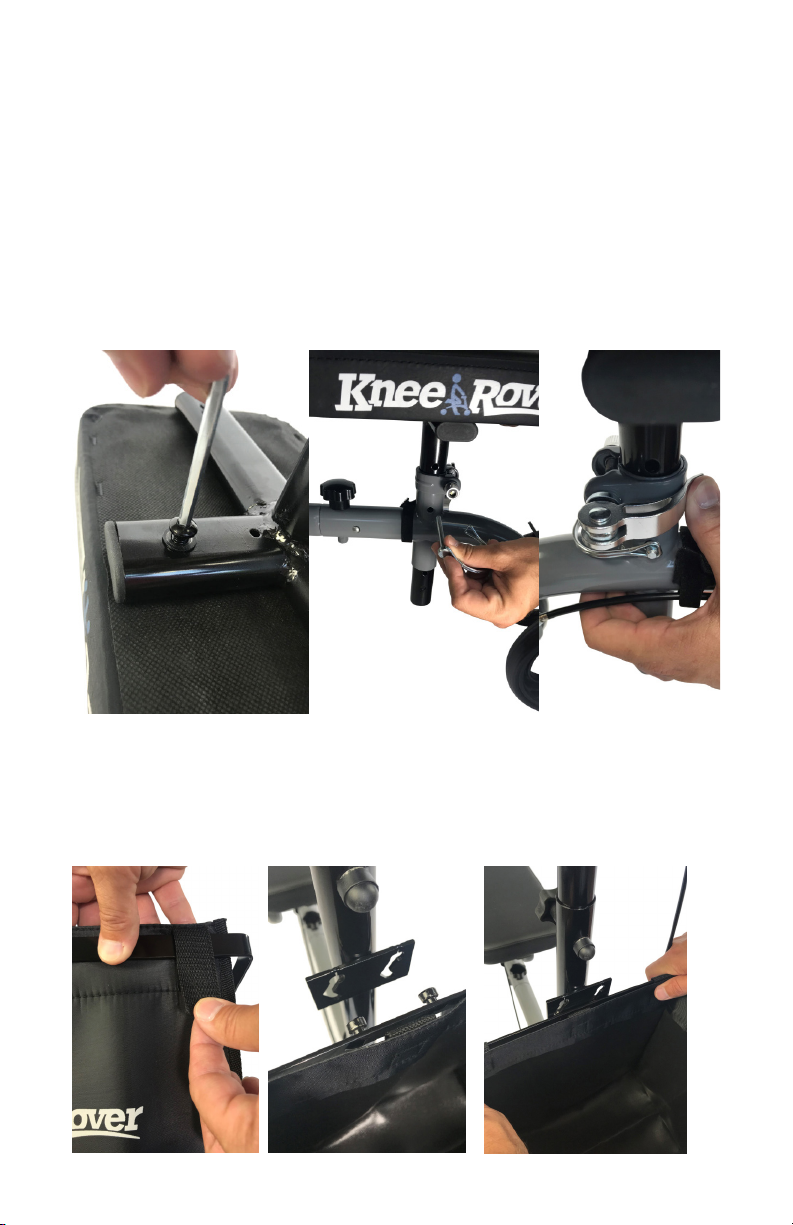

Locate the Kneepad and the Kneepad Post. Align the Kneepad Post with the
four holes on the Kneepad. Place a washer on the Kneepad Bolt and then put
a bolt into each hole and ghten with the provided allen wrench (Le Photo).
Once the Kneepad is assembled, insert the Kneepad Post into the hole on the
scooter frame and set to proper height. You should set the Kneepad to the
height where your leg will be at a 90 degree angle while standing straight with
the leg on the ground. Insert the Kneepad Locking Pin once you have the
Kneepad set to the proper height (Middle Photo). Apply the clamp to secure the
Kneepad (Right Photo).
Step5: Basket Assembly
Locate the Basket and Basket Frame. Apply the velcro straps around the Basket
Frame (Le Photo). Align the pins of the Basket Frame into the holes on the
Basket Bracket and lock into place (Middle and Right Photos).

Brake and Parking Brake Operaon
Your KneeRover® knee walker comes equipped with a Brake Lock/Parking Brake.
To engage the brake, squeeze the brake lever on the handle bar. To apply the
parking brake, squeeze brake handle rmly and while squeezing the brake
handle press the silver buon to engage the lock. While sll holding the buon
down, release the brake handle and your parking brake will be set. To release
the lock, squeeze the brake handle again and the silver buon will pop up.
If needed, the brake can be adjusted in order to make ghter or looser. Please
visit hps://kneerover.com/pages/kneerover-maintenance-videos and view the
brake adjustment video.
Unlocked Parking
Brake
Locked Parking
Brake
