Kobalt KBT2000 User manual

-
WARNING: This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk
of injury or death , user must read and understand operator's manual before using this product.
2000 PSI/1.2 GPM
ELECTRIC PRESSURE WASHER
USING DETERGENT
• Put pressure washer detergent in detergent tank .
•
Install black soap nozzle.
• Squeeze trigger and wait approx.1 minute for soap .
+ -
-
SPRAY TIP SPRAY TIP APPLICATION
Green · Narrow fan tip (25° )
'V
•
The green pressure washer tip provides high versat i lity with its 25 degree angle tip. Referred to
as the washing tip , because it provides adequate pressure to remove dirt from surfaces , but is
25"
designed to not damage many surfaces. This pressure washer tip is desiQned for " sweeping "
foliage or debris given its wi de angle . This tip is versatile due to its wide area of cleaning and
stronq pressure application .
~
White· Wide fan tip (40° )
•
The white 40 degree tip , referred to as the " fan " tip creates the widest area of clean i ng with
relatively low pressure . Th is pressure washer tip is best used for light or delicate cl ! a.fllng
40"
applications . It is recommended for light cleaning on wood decks and other soft or delicate
surfaces .
••••
Black · Soap spray tip
•••
••
•
The black soap spray tip is used for soap application . Soap is applied under low pressure
•
SOAP
high volume for optimum performance. Soap cannot be applied under high pressure with this
machine.
~
Turbo Nozzle Tip
•
This nozzle rotates in a zero to 15 degree circular motion spray pattern to break down tough
dirt and grime . The spray pattern can cover area of 4 to 8 inches wide , depending on the
TURBO
distance between the tip and the surface being cleaned .
Storing the high pressure hose
• Fix one end of the high
pressure hose to the left side
holder .
•
Turn the crank handle clockwise . •
Attach the other hose end to the
right side holder when the hose
is fully wound for storage.
NOTE:--Fully remove hose from the hose reel before use .

5
NOTE:
Set-up
Connect garden hose to pressure
washer water intake.
Assemb le pressure washer gun to spray wand.
Connect desired pressure tip .
• Take one end of the hose off the holder.
• Remove the high pressure hose
completely from hose reel, then take the
other hose end off the holder.
(REFER TO MANUAL PAGE 14)
Insert high pressure hose into trigger
handle .
onnectih - eiTigh pressure hose to th
water outlet connector.
Turn on water at outlet.
Run water hose for 120 seconds with the
motor in OFF position. This helps drain air
from the tank and lines.
Connect power cord to wall outlet
Extension cord not recommended.
Turn on Pressure Washer
IMPORTANT: Ensure wateJ outlet is On
before turning power On to avoid damage
to the pump .
AUTO ON/OFF SWITCH: This Pressure washer is equipped
with an Auto Start/Stop feature.
To operate: Turn the power switch to the On (I) position. Pump will
pressurize and shut down immediately .
Once the trigger of the gun is depressed the unit will turn on.
(J) , the frame of the
axle to secure.
1 =-
(F) with upper
'hillips screwdriver
\
- Screws
le of the upper
onto the frame (2}.
1)
\
ories or need a service center?
!turn to Store
·6-456-8934

KOBALT
ITEM #0728096
2000 PSI ELECTRIC PRESSURE WASHER
<I ® MODEL #KBT2000
~
218549
ATTACH YOUR RECEIPT HERE
Serial Number
__________ _
Purchase Date __________ _
~ Questions, problems, missing parts? Before returni ng to your retailer, call our customer
~ service department at 1-866-456-8934, 9 a.m.- 8 p.m., EST, Monday- Thursday,
9 a.m. -5 p.m., EST , Friday- Saturday.
AB17392

TABLE OF CONTENTS PACKAGE CONTENTS
ProductSpecifications.............
.. .............. .... ................... ... . .. ......... .. .... ... . .
.. 2
Package Contents................. .. .......... .... ...... ..... ... ......... ... ..... ... .... ... .......... .. . .. . ............. .. 3
\- -8
Symbols .. ..... ... .. ... .. ..... .. .. .. ......... ... ..... .... .. .. . .. ........... .. .. .. ... ...................... .. .................. ,. .... .4
Safety lnformation... ... .. . .. .. .... .. ................ ... .. ..... .. ... .. .... .. ...... .. ..... ... ........ .. ....................... ... ...6
Electrical..............
.. ................ .. ................................................... .. . .. ....................... ...... .. ......9
Preparation
10
Assembly Instructions 11
Operating Instructions.............. ... ... .. .. .... . ... .. .......... .. ..... .. ............ .... ....... .. ........... .. .............. 15
~ - ·
Care and Maintenance........ .. . .. ........... .. ..... .. ....... .. ........ .. ..... .. ... ...... ................................. .. . 21
Troubleshooting. .... . ... . .. . .. ........................ .. . .. .. .............. .... .. .. . .. .. . .. ... ..... . .. . .. .. .. .. .. . ... ..................24
Warranty...............................................
.. ....... .. . .. .................................... .. ........... .... ........... ... 27
1-•
Replacement Parts
' "
ODUCT SPECIFICATIONS
SPECIFICATIONS
Induction Motor 120
V, 60Hz , 13 Amps
Max. Pounds Per Square Inch Pressure 2,000 PSI
Rated Gallons Per Minute 1.2 gpm
Maximum Inlet Water Temperature 104°F (40°C}
Cleaning Units 2,400 C.
U.
Net Weight 42.59 lbs. (19.32 kg)
2
0
. ,,~
A
8
c
D
E
F
G
H
I
J
K
L
M
N
0
p
0
\\t- G
~ ·
,_ 0
·· -I
• •
~ -
~ - ·
II:::J."ii!~U::IIIe .. u,,,~n••·•
Axles 2
Upper Handle Assembly 1
Turbo Nozzle 1
Trigger Handle 1
Gun Wand 1
Gun Holder 1
Spray Tip Cleaning Tool 1
Screws 2
Wheels 2
Washers 2
Cotter Pins 2
High Pressure Hose 1
Power Cord 1
Cord Retainer 1
Spray Tips 3
ON/OFF Switch 1
3

A SYMBOLS
Some of the following symbols may be used on this product. Plea so study them and lun111 tltutr mean-
ing. Proper interpretation
of these symbols will allow you to opera I<' tho product bettor .tnt! ca lm
SYMBOLS DESIGNATION EXPLANATION
-
v Volts Voltage
-- -
~
A Amperes Current
Hz Hertz Frequency (cycles per second)
w Watts Power
no
No Load Speed Rational speed, at no load
'V
Alternating Current Type of current
/min Per Minute Revolutions, strokes, surface speed, orbits, etc., per
minute
A Safety Alert Indicates a potential personal injury hazard.
~
Read The Operator's Manual
To reduce the risk of injury, user must read and
understand operator's manual before using this product.
e
Eye Protection Always
wear eye protection with side shields marked to
comply with ANSI Z87.1.
~
Wet Conditions Alert Do not expose to rain or use
in damp locations.
To reduce the risk of injection or injury, never direct a
~
water system toward people or pets or place any body
~
Risk of Injection part
in the stream. Leaking hoses and fittings are also
capable
of causing injection injury. Do not hold hoses or i
fittings.
[SJ
Kickback
To reduce the risk ofinjury from kickback, hold the spray '
wand securely with both hands when the machine is on.
~
Failure to use in dry conditions and to observe safe
Electric Shock practices can result
in electric shock.
~
To reduce the risk of injury or damage, DO NOT ~
Chemical Burns USE
ACIDS , ALKALINES, BLEACHES, SOLVENTS,
FLAMMABLE MATERIAL, OR INDUSTRIAL GRADE
SOLUTIONS
in lhi~oduct.
4
A SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SYMBOL
SIGNAL MEANING
DANGER Indicates
an imminently hazardous situation, which, if not
avoided, will result
in death or serious iniurv.
WARNING Indicates a potentially hazardous situation, which, if not
A avoided, could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not
CAUTION avoided, mav result in minor or moderate iniurv.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result
in property damage.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified service
technician.
For service, return the product to your nearest AUTHORIZED SERVICE CENTER for
repair. When servicing, use only identical replacement parts.
A wARNING
• To avoid serious personal injury, do not attempt to use this product until you have read this Owner's
Manual thoroughly
and understand it completely. If you do not understand the warnings and
instructions
in this Owner's Manual, do not use this product. Call1-866-456-8934 for assistance.
•eThe operation ofany power tool can result in foreign objects being thrown into your eyes, which
can result
in severe eye damage. Before operating a power tool, always wear safety goggles,
safety glasses with side shields, or a full face shield when needed.
We recommend a Wide
Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always
use eye protection that is marked to comply with ANSI Z87 .1.
SAVE THESE INSTRUCTIONS
5

A SAFETY INFORMATION
AwARNING
Read
and understand all instructions. Failure to follow all instructions listed below rnny result
in electric shock, fire, and/or serious personal injury.
AwARNING
When using this product, basic precautions should always
be followed.
READ
ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
To reduce the risk of injury, close supervision is necessary when a product is used near children
Be thoroughly familiar with controls.
Know how to stop the product and release pressure qui ckly.
Stay alert
and exercise control. Watch what you are doing and use common sense. Do not op erate
the product
when you are tired. Do not rush.
Do not operate the product while under the influence of drugs, alcohol, or any medication.
Keep the area of operation clear of
all people, particularly small children, and pets.
Don't overreach or stand on unstable support. Keep proper footing and balance at
all times.
Follow the maintenance instructions specified
in this manual.
A wARNING
Risk of injection or injury -Do not direct discharge stream at people or animals.
EXTENSION CORDS
When using a power tool at a considerable distance from a power source, be sure to
use an
extension cord that has the capacity to handle the current the product will draw. An undersized
cord will cause a drop
in line voltage, possibly resulting in overheating, loss of power, and/
or damage to circuit breaker. Use the chart to determine the minimum wire size required in an
extension
cord . Only round jacketed cords listed by Underwriter's Laboratories (UL) should be
used. When working outdoors with a product, use an extension cord that is designed for outside
use. This type of cord
is designated with "WA" or "W" on the cord 'sjacket. Before using any
extension
cord , inspect it for loose or exposed wires and cut or worn insulation. It is possible to tie
the extension cord and power cord
in a knot to prevent them from becoming disconnected during
use. Make a
knot, then connect the plug end of the power cord into the receptacle end ofthe
extension
cord .This method can also be used to tie two extension cords together.
USE ONLY THIS SIZE ENTENSION
CORD WHEN USING THIS PRODUCT:
Cord Lenath
Wire Size IA .W.G.l
25ft.
12
50 ft. Not Allowed
100ft.
NotAllowed
AwARNING
To reduce the risk of electrocution, keep all connections dry a nd off th e ground. Do not touch plug with
wet hands.
A wARNING
Check extension cords before each use. If damaged, replace immediately. Never use the product with
a damaged cord since touching the damaged area could cause electrical shock, resulting
in serious
injury.
6
A SAFETY INFORMATION
A wARNING
Keep the extension cord clear ofthe working area. Position the cord so that it will not get caught on
lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result
in serious personal injury.
Know your product. Read the operator 's manual carefully. Learn the machine's applications and
limitations, as well as the specific potential hazards related to this product.
•
To reduce the risk of injury, keep children and visitors away. All visitors should wear safety
glasses and
be kept a safe distance from the work area.
Use
the right product for the job. Don't force the product or the attachments to do a job it was not
designed for. Don 't use it for a purpose not intended.
Dress properly.
Do not wear loose clothing, gloves, neckties, or jewelry. They can get caught and
draw you into moving parts. Rubber gloves and nonskid footwear are recommended when working
outdoors. Also wear protective hair covering
to contain long hair.
Do
not operate the equipment while barefoot or when wearing sandals or similar lightweight
footwear. Wear protective footwear that will protect your feet and improve your footing on slippery
surfaces.
Exercise
caution to avoid slipping or falling.
•
Always wear eye protection with side shields marked to comply with ANSI Z87.1. Following
this rule will reduce
the risk ofserious personal injury.
• Use
only recommended accessories. The use of improper accessories may cause risk of injury.
• Check damaged parts. Before further use of the product, all parts should be carefully checked to
determine that they will operate properly and perform their intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting,
and any other conditions that
may affect its operation.A guard or other part that is damaged must be properly repaired or replaced
by an authorized service center to avoid risk of personal injury.
Never leave product running unattended.
Turn power off. Do not leave the product until it comes
to a complete stop.
Keep
the motor free of grass, leaves, or grease to reduce the chance of a fire hazard.
Follow manufacturer's recommendations for safe loading , unloading, transport, and storage
of machine.
Keep product dry, clean, and free from oil and grease. Always use a clean cloth when cleaning.
Never use brake fluids, gasoline, petroleum-
based products, or any solvents to clean product.
Check
the work area before each use. Remove all objects such as rocks , broken glass, nails,
wire,
or string which can be thrown by the machine.
Do
not use product if switch does not turn it off. Have defective switches replaced by an autho-
rized service center.
•
Avoid dangerous environment. Don't expose to rain. Keep work area well lit.
Do
not abuse the cord. Never use the cord to carry the product or to disconnect the plug from an
outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords imme-
diately. Damaged
cords increase the risk ofelectric shock.
Never
direct a water stream toward people or pets, or any electrical device.
7

A SAFETY INFORMATION
Before starting
any cleaning operation, close doors and windows. Clear t1a1 won to be
cleaned of debris, toys, outdoor furniture,
or other objects that could create a hn;.ud
Do not use acids, alkalines, solvents, flammable material, bleaches, or lnduatrlal grade
solutions in this product. These products can cause physical injunos to tho opnrnlor nnd
irreversible damage to the machine.
AwARNING
High pressure jets can be dangerous if subject to misuse. The jet must not be directed at puoplo,
animals, electrical devices, or the machine itself.
Keep the
motor away from flammables and other hazardous materials.
Check bolts and nuts fixing the pressure washer shell for looseness before each use. A
loose bolt or nut may cause serious motor problems.
Before storing,
allow the motor to cool.
When servicing use only identical replacement parts. Use of any other parts may create a
hazard or cause product damage.
ONLY use
cold water.
Make sure
minimum clearance of 3 feet is maintained from combustible materials.
Connect
pressure washer only to an individual branch circuit.
Hold the handle and wand securely with both hands. Expect the trigger handle to move when
the trigger
is pulled due to reaction forces. Failure to do so could cause loss of control and injury
to yourself and others.
Save these
instructions. Refer to them frequently and use them to instruct other users. If you
loan someone this product, loan them these instructions also.
AwARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks
and cement and other masonry products
• Arsenic
and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type ofwork.
To reduce
your exposure to these chemicals: work
in a well-ventilated area, and work with approved safety
equipment,
such as dust masks that are specially designed to filter out microscopic particles.
AwARNING
This product contains chemical(s) including lead, known
to the state of California to cause cancer,
birth defects,
and other reproductive harm. Do not drink water from this hose. Wash hands after use.
8
A ELECTRICAL
1. ELECTRICAL CONNECTION
This product has a precision-built electric
motor. It should be connected to a power supply that is 120
volts, 60 Hz,
AC only (normal household current). Do not operate this product on direct current (DC).
A substantial voltage drop will cause a loss of power and the motor
will overheat.
If the product does not operate when plugged into an outlet, double check the
power supply.
2. DRIP LOOP
To prevent water from flowing along the power cable, and possibly reaching the electrical outlet and
plug, we recommend using a simple drip loop
as shown below.
_____ Drip Loop
A wARNING
Keep the extension cord clear of the working area. Position the cord so that it will not get caught on
lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result
in serious personal injury.
9

A PREPARATION
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from the box. Make sure that all itoms listed in
the packing list are included.
AwARNING
Do not use this product if any parts on the Package Contents List are already assembled to your
product when you unpack it. Parts on this list are not assembled to the product by the manufacturer
and
require customer installation. Use of a product that may have been improperly assembled could
result in serious personal injury.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
If any parts are damaged or missing, please call1-866-456-8934 for assistance.
AwARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of
this product with damaged or missing parts could result in serious personal injury.
AwARNING
Do not attempt to modify this product or create accessories not recommended for use with this
product.
Any such alteration or modification is misuse and could result in a hazardous condition
leading to possible serious personal injury.
AwARNING
Do not connect to power supply until assembly is complete . Failure to comply could result in
accidental starting and possible serious personal injury.
10
ASSEMBLY INSTRUCTIONS
3. ASSEMBLING THE WHEELS
Insert an axle (A) through a wheel (I), washer (J), the frame of the unit, and then another washer
(J).
• Insert a
cotter pin (K) through the hole in the axle to secure. Repeat for second wheel.
I
0
l= c .
&-
4. ASSEMBLING THE GUN HOLDER
• Line up the screw sleeves on the gun holder (F) with upper handle of the unit and push through.
Insert
screws (H) and turn clockwise with a Phillips screwdriver (not included) until tight.
11

ASSEMBLY INSTRUCTIONS
~ ASSEMBUNGTHEHANDLE
Push and hold the push-pin button on the side of the upper handle assembly (1) os you slide the
handle onto the frame (2).
NOTE: Before use, pull the handle up until the lock button snaps through the locking slots to secure
the handle
in place.
~ ~
6. ASSEMBLING THE HIGH PRESSURE HOSE
Take one end of the hose off the holder.
...
Turn the crank handle until the hose can be completely removed. Then remove the other end of
the hose from the holder.
•
Connect one end of the hose to the water outlet connector and the other end to the trigger gun.
Crank Handle
12
ASSEMBLY INSTRUCTIONS
7. CONNECTING HIGH PRESSURE HOSE TO TRIGGER HANDLE
Align the pressure hose with the trigger handle and push up and into position.
With hose pushed into position on
the trigger handle, secure in place by turning the hose lock
clockwise until fully tightened.
NOTE: For easier installation of the hose to the unit or trigger, it is suggested to add pressure washer
or dish detergent to the rubber seal at each end ofthe hose. This will allow for easier installation and
a snug fit.
G
~
~
w e~
8. ASSEMBLING THE SPRAY WAND
Push the end of the spray wand into the trigger handle and rotate clockwise to secure.
Pull on the spray wand
to be certain it is properly secured.
I
13

ASSEMBLY INSTRUCTIONS
9. CONNECTING THE GARDEN HOSE
CAUTION:
Always observe all local regulations when connecting hoses to the water main. Some areas have
restrictions against connecting directly
to public drinking water supply to prevent the feedback of
chemicals into the drinking water supply. Direct connection through a receiver tank or backflow
preventer is usually permitted.
• Uncoil the garden hose.
NOTE: There must be a minimum of 10 feet of unrestricted garden hose between the water intake
and the garden hose faucet
or shut offvalve (such as a "Y" shut off connector).
Run water through the hose for
30 seconds to clean any debris from the hose.
Inspect the screen
in the water intake.
If the screen
is damaged, do not use the machine until the screen has been replaced.
If the screen
is dirty, clean it before connecting the garden hose to the machine.
With the hose faucet turned completely off, attach the end of
the garden hose to the water intake.
Tightened
by hand only.
A
B A-Garden
Hose
8-Water Inlet Connector
14
OPERATING INSTRUCTIONS
AwARNING
Do not allow familiarity with the product to make you careless. Remember that a careless fraction of a
second is sufficient
to inflict serious injury.
AwARNING
Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so
could result in objects being thrown into your eyes resulting in possible serious injury.
AwARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
AwARNING
Never direct a water stream toward people or pets, or any electrical device. Failure to heed this warn-
ing could result in serious injury.
APPLICATIONS
You may use this product for the purposes listed below:
Cleaning boats, cars, trucks, motorcycles, outdoor furniture, grills, house siding, driveways, patios
and decks.
10. DETERGENT ADDING AND USE
Use only detergents designed for pressure washers; household detergents, acids, alkalines,
bleaches, solvents, flammable material,
or industrial grade solution can damage the pump. Many
detergents
may require mixing prior to use. Prepare cleaning solution as instructed on the solution
bottle.
SOAP APPLICATION
Soap is applied under low pressure high volume for optimum performance.
Soap can not be applied under high pressure with this machine.
Soap/detergent can only
be applied with this machine when the black (75 degree) soap tip is installed.
15

OPERATING INSTRUCTIONS
To add detergent:
Place pressure washer upright on a flat surface
Remove cap from detergent tank
Pour detergent into tank
Reinstall cap
Detergent
Tank
AcAUTION:
Use Bl ac k Soap Tip Only
Use only approved pressure washer cleane rs . Do not use bleach, chlorine,or any cleaners containing
acids.
To use:
Connect low pressure black soap spray tip to the wand connector.
Squeeze the trigger and the detergent will automatically
be mixed with the water and dispensed
from the spray tip.
NOTE: Use a funnel, if needed, to prevent accidental spilling of the detergent outside the tank. If
any detergent is spilled during the filling process, make sure the unit is cleaned and dried before
proceeding.
16
OPERATING INSTRUCTIONS
11.STARTING
AND STOPPING THE PRESSURE WASHER
CAUTION:
Do not run the pump without the water supply connected and turned on .
Connect the garden
hose.
Turn the water supply on , then squeeze the trigger and run water hose with motor in OFF position
until a steady stream of water appears. This helps drain air from tank
and lines.
NOTE: If the pressure washer pulsates and the water stream is intermittent turn the pressure washer
off
and continue to bleed air out ofthe system. Ensure to check that the garden hose is fully turned on
and not kinked.
After ensuring the On/Off switch is
in the OFF ( 0 ) position, connect the pressure washer to the
power supply.
Press the reset button
on the pressure washer's plug to make sure the unit is ready for operation.
Rotate to ON ( I ) position
on the switch to start the motor.
To stop the motor, release the trigger and rotate to OFF( 0 ) position on the switch.
NOTE: The pressure washer may be on and the system may have pressure even when the pump
and/or motor cannot be heard running. Always use caution around the pressure washer.
CAUTION:
Hold the trigger handle securely with both hands. Expect the trigger handle to move when the trigger
is pulled due to reaction forces. Failure to do so could cause loss of control and injury to yourself and
others.
NOTE: AUTO ON/OFF SWITCH: This pressure washer is equipped with an auto start/stop feature.
To operate: Turn the power switch to the On (I) position. Pump will pressurize and shut down
immediately. Once the trigger of the gun is depressed, the unit will turn
on . Unit will shut off and be in
standby mode when trigger is released.
17

OPERATING INSTRUCTIONS
12.
USING THE SPRAY TIPS
Each of the spray tips has a different spray pattern. Before starting any cleaning job, determine the
best spray tip for
the job. The following chart offers some general guidelines to help you choose the
best spray tip for your application.
NOTE: Always try spray tip in an inconspicuous area first.
Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
Engage the lock-out
on the trigger handle by pushing the trigger lock button to the right.
Pull out the desired spray tip from the tip storage on the handle.
Pull back the quick-connect collar
on the spray wand.
Push the spray tip into place
in the spray wand.
Push the collar forward so that the spray tip is secured properly. Check to see that the spray tip is
secure
IJ
Spray Tip
"" '
2 ...
1-Pull back the quick-connect collar
1 t 2-Push the spray tip into place
...
"""'
3-Push the collar forward
~
3
. //
E
SPRAY TIP APPLICATION I
Green -Narrow fan tip (25°)
1
The green pressure washer tip provides high versatility with its 25 degree angle tip.
'V
Referred to as the washing tip because it provides adequate pressure to remove dirtl
from surfaces, but
is designed to not damage many surfaces. This pressure washer
25 ' tip is designed for "sweeping" foliage
or debris given its wide angle. This tip is versatile,
due to its wide area ofcleaning and strong pressure application.
White -Wide fan tip (40°)
~
The white 40 degree tip, referred to as the "fan" tip, creates the widest area of cleaning
with relatively low pressure. This pressure washer
tip is best used for light or delicate
40 ' cleaning applications.
It is recommended for light cleaning on wood decks and other
soft
or delicate surfaces.
Black -Soap spray tip
..
The black soap spray tip is used for soap application. Soap is applied under low
SOAP
pressure high volume for optimum performance. Soap cannot be applied under high
pressure with this machine.
Turbo Nozzle Tip
~
This nozzle rotates in a zero to 15 degree circular motion spray pattern to break
down tough dirt and grime. The spray pattern can cover area
of 4 to 8 inches wide,
TURBO
depending on the distance between the tip and the surface being cleaned.
18
OPERATING INSTRUCTIONS
A wARNING
NEVER change spray tips without engaging the lock-out on the trigger handle and NEVER point the
wand at your face or at others. The quick-connect feature contains small springs that could eject the
spray tip with some force. Failure to heed this may cause personal injury.
TO DISCONNECT A SPRAY TIP FROM THE SPRAY WAND ONCE THE CLEANING JOB IS
COMPLETE:
Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure.
• Remove the spray tip
by placing hand over spray then pulling back the quick-connect collar. Place
spray tip
in the tip storage area on lhe units folding handle.
13. USING THE SPRAY WAND TRIGGER
For greater control and safety, keep both hands on the trigger handle at all times.
Pull back and hold the trigger to operate the pressure washer.
Release the trigger
to stop the flow of water through the tip.
TO ENGAGE THE LOCK-OUT:
Push up on the lock-out until it clicks into the slot.
TO DISENGAGE THE LOCK-OUT:
Push the lock-out down and into its original position.
19
Slot

OPERATING INSTRUCTIONS
14. OPERATING THE PRESSURE WASHER
Use
only detergents designed for pressure washers. Many detergents may require mixing prior to
use. Prepare cleaning solution as instructed
on the solution bottle.
a. To clean:
Pour detergent
in the detergent tank.
Install the black soap tip on the spray wand.
Start the pressure washer and spray the detergent on a dry surface using long, even, overlapping
strokes.
To prevent streaking, do not allow detergent to dry on the surface.
b. To rinse:
Using the 25• spray tip, spray away from the rinsing surface for approximate 10 seconds
to allow
any remaining detergent to be flushed from the line.
Start at the top ofthe area to be rinsed
and work down, overlapping the strokes.
For the most effective cleaning, the spray tip should be between 8
in . and 24 in . from the surface to
be cleaned. Ifthe spray is too close it can damage the surface.
15.
MOVING THE PRESSURE WASHER
To move the pressure washer:
Turn the pressure washer off. Point the spray wand in a safe direction and pull trigger to release
water pressure.
Tilt the machine toward you until it balances
on the wheels, then roll the machine to the desired
position.
20
CARE AND MAINTENANCE
A wARNING
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or
cause product damage.
A wARNING
Before inspecting, cleaning or servicing the machine, turn off the unit, unplug from the outlet, pull trig-
ger
to release water pressure and disconnect the high pressure hose. Failure to follow these instruc-
tions
can result in serious personal injury or property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from vari-
ous types
of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt,
dust,
oil , grease, etc.
A wARNING
Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come
in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in
serious personal injury.
Only the parts shown
on the parts list are intended to be repaired or replaced by the customer.
All other parts should be replaced at an authorized service center.
21

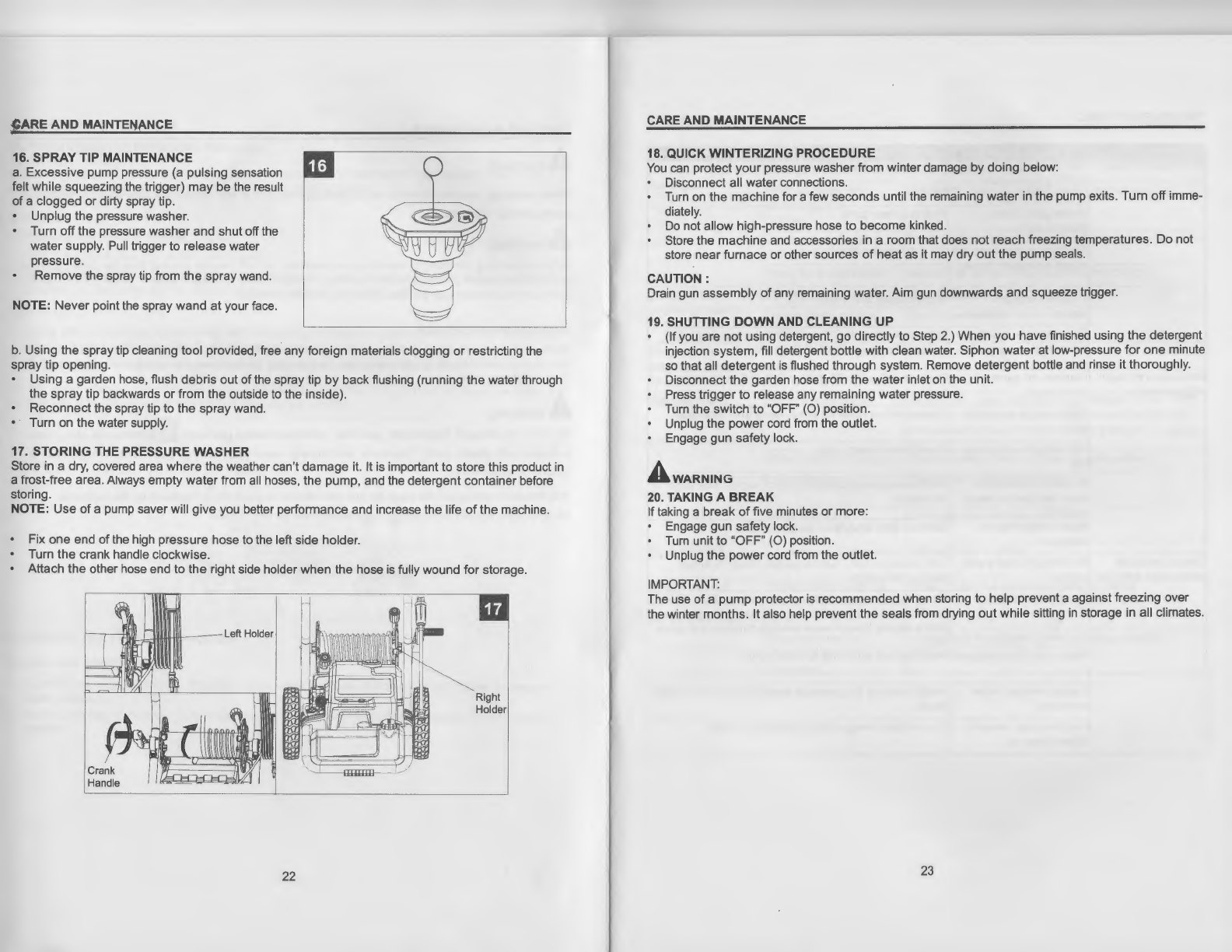

CARE AND MAINTENANCE
16. SPRAY TIP MAINTENANCE
a. Excessive pump pressure (a pulsing sensation
felt while squeezing
the trigger) may be the result
of a clogged or dirty spray tip.
Unplug the pressure washer.
Turn off the pressure washer and shut off the
water supply. Pull trigger to release water
pressure.
Remove the spray tip from the spray wand.
NOTE: Never point
the spray wand at your face.
b. Using the spray tip cleaning tool provided, free any foreign materials clogging or restricting the
spray tip opening.
Using a garden hose, flush debris out ofthe spray tip by back flushing (running the water through
the spray tip backwards or from the outside
to the inside}.
Reconnect the spray tip to the spray wand.
Turn on the water supply.
17. STORING THE PRESSURE WASHER
Store
in a dry, covered area where the weather can't damage it. It is important to store this product in
a frost-free area.Always empty water from all hoses, the pump, and the detergent container before
storing.
NOTE: Use
of a pump saver will give you better performance and increase the life of the machine.
Fix one end of the high pressure hose to
the left side holder.
Turn the crank handle clockwise.
• Attach the other hose end to the right side holder when the hose
is fully wound for storage.
Handle
22
Right
Holder
CARE AND MAINTENANCE
18. QUICK WINTERIZING PROCEDURE
You can protect your pressure washer from winter damage by doing below:
Disconnect all water connections.
Turn on the machine for a few seconds until the remaining water in the pump exits. Turn off imme-
diately.
Do not allow high-pressure hose to become kinked.
Store the machine and accessories in a room that does not reach freezing temperatures. Do not
store near furnace or other sources
of heat as it may dry out the pump seals.
CAUTION:
Drain gun assembly
of any remaining water. Aim gun downwards and squeeze trigger.
19. SHUTIING DOWN AND CLEANING UP
(If
you are not using detergent, go directly to Step 2.) When you have finished using the detergent
injection system, fill detergent bottle with clean water. Siphon
water at low-pressure for one minute
so that all detergent is flushed through system. Remove detergent bottle and rinse it thoroughly.
Disconnect the garden hose from the water inlet
on the unit.
Press trigger to release any remaining water pressure.
•
Turn the switch to "OFF" (0) position.
Unplug the
power cord from the outlet.
Engage gun safety lock.
AwARNING
20. TAKING A BREAK
If taking a break
of five minutes or more:
Engage gun safety lock.
•
Turn unit to "OFF" (0) position.
Unplug the power cord
from the outlet.
IMPORTANT:
The use
of a pump protector is recommended when storing to help prevent a against freezing over
the winter months. It also help prevent the seals from drying out while sitting
in storage in all climates.
23

TROUBLESHOOTING TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Motor will not start. On/Off switch is
in the Turn switch to the " ON " ( 1) position. Detergent is not Detergent
is too thick. Dilute detergent.
"OFF"
(0) position. coming out. Filter
on detergent Run warm water through filter to remove build-up.
Power cord is not Plug
in power cord.
plugged in.
suction tube
is
clogged.
Damaged or clogged Remove obstruction
or replace detergent suction tube.
Electrical outlet does not Try a different outlet. detergent suction tube.
supply adequate power. Spray tip
is obstructed. Blow out or remove debris with a fine needle.
Tripped pressure Allow to cool, and restart unit.
washer circuit breaker. Garden hose Loose fittings. Tighten fittings.
connection leaks. Missing/worn rubber Insert new washer.
Power switch is ON With power switch
ON push in on the gun trigger washer.
however gun trigger
is
which will engage the AUTO ON switch. Spray wand, Broken a-ring
or plastic Call customer service.
not soueezed ON. extension, or spray insert.
Unit does not reach Diameter
of garden hose Replace with a 1" (25 mm) or 5/8" (16 mm) garden tip leaks.
high pressure.
is too small. hose. Pump
is noisy. Pump is sucking air. Check that hoses and fittings are airtight. Turn "OFF"
Water supply is restrict- Check garden hose for kinks, leaks and blockage. machine, and purge pump by squeezing trigger gun
ed . until a steady flow
of water emerge through the spray
Not enough water sup- Open water source fully.
ply. tio.
Water inlet filter clogged. Remove water filter and rinse
in warm water.
Pressure Tip has not Add desired pressure tip
to end of wand. See page 18
been installed on wand for details.
Water leaks from Loose fittings. Check that all fittings are tight.
pump.
assemblv. Water seals are Call customer service.
Water intake filter
is
Remove filter and rinse in warm water. damaged or worn.
clogged.
Oil is dripping. Oil seals are damaged or Call customer service.
Output pressure Not enough inlet water
Turn water on fully. Check garden hose for kinks, worn.
varies high and low. supply. leaks or blockage. Soap does not 75 degree tip/soap tip Install
75 degree soap tip (black) on wand.
Pump
is sucking air. Check that hoses and fittings are airtight. Turn "OFF" come out or comes {black)
is not installed on
machine, and purge pump by squeezing trigger
gun
out at low pressure. wand.
until a steady flow
of water emerge through the spray
tio.
Soap tank may be Empty soap from tank, clean out using vinegar
Water inlet filter clogged. Remove filter and rinse
in warm water . plugged with debris
or
and water.
I thick
soao.
Supply voltage below Verify that
only the pressure washer is running on this !
minimum.
a~u~ i
Calcified gun, hose or Run distilled vinegar through detergent tank.
I
power spray tip.
24
25

TROUBLESHOOTING
fails to run.
No water.
ljl•l-1-11 !!31!f..l t:l
Supply voltage below
minimum.
System has residual
pressure.
Voltage loss
due to
extension cord.
Pressure washer not
used for long periods.
Residual friction
among components.
Unit miaht hum.
Water supply is
OFF.
Kink in the garden
hose.
em;;i:(!II~'A;I;>l!ll!•h
Verify that only the pressure washer is running on
this circuit.
Turn unit "OFF ", squeeze trigger on spray wand to
release pressure, then turn unit "ON ".
Unplug any extension cords attached and plug the
unit directly into the outlet.
Call customer service.
Disconnect water supply and power ON for 2
to
3 seconds, repeat couple times or until the motor
starts.
Turn ON water supply.
Remove kink in garden hose.
NOTE: AUTO ON/OFF SWITCH: This pressure washer is equipped with an auto start/stop feature.
To operate: Press power switch On (1). Pump will pressurize and shut down immediately. Once the
trigger
of the gun is depressed the unit will turn on. Unit will shut off and be in standby mode when
trigger is released.
26
WARRANTY
-1-YEAR REPAIR
W,
This Kobalt 2000PSI
purchase date
for or
This Kobalt 2000PSI
material and workm<
If
you believe that th
warranty period, sim
This warranty is void
alterations which ha'
pa rt s; the damage is
beyond capacity), irr
to
ol after partial failu
This warranty gives :
pr
ov in ce to province
RRANTY
pressure washer is warranted to the original purchaser from the original
e (1) year subject to the warranty coverage described herein.
pressure washer is warranted for the original userto
be free from defects in
nship.
Kobalt 2000PSI pressure washer
is defective at any time during the specified
ply call our Warranty service (1-866-456-8934) along with proof
of purchase.
if: defects
in materials or workmanship or damages result from repairs or
e been made or attempted by others or the unauthorized use of nonconforming
due
to normal wear , damage is due to abuse (including overloading of the tool
proper maintenance, neglect or accident;
or the damage is due to the use of the
e or
use with improper accessories or unauthorized repair or alteration.
ou specific legal rights, and
you may also have other rights that vary from
27

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-456-8934, 9 a.m. - 8 p.m
., EST,
Monday- Thursday, 9 a.m.- 5 p.m., EST, Friday- Saturday.
G
I
n
PART
0
E
L
i
DESCRIPTION PART#
Trigger Handle 31140363AC
Gun
Wand
31145363
25ft. High Pressure 311311635
Hose
Printed
in China
28
KOBALI
ARTICLE #0728096
LAVEUSE APRESSION ELECTRIQUE DE 2000 LB/P0
2
~ ®
MOD~LE #KBT2000
218549
JOIGNEZ V OTRE REI;U ICI
Numero de serie ----------
Date d'achat _______ __ _ _
~ Des questions, des problemes, des pieces manquantes? Avant de retourner I' article
~ au detaillant, appelez notre service a Ia clientele au 1 866 456-8934, entre 9 h et 20 h
(HNE),
du lundi au jeudi, ou entre 9 h et 17 h (HNE), vendredi et samedi.
'>n
