Kobalt KPW-2000 User manual

1
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
KOBALT®and the K Design®are registered
trademarks of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-206-0888, 8 a.m. - 4:30 p.m., EST, Monday - Friday.
2000 PSI
AB1501B
Français p. 18
MODEL #KPW-2000
ITEM #0571087
ELECTRIC
PRESSURE WASHER
kobalttools.com

TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
2
Product Specications......................................................................................................... 2
Package Contents .............................................................................................................. 3
Hardware Contents...............................................................................................................3
Safety Information ............................................................................................................... 4
Assembly Instructions...........................................................................................................6
Operating Instructions ....................................................................................................... 10
Care and Maintenance ..................................................................................................... 13
Troubleshooting................................................................................................................ 15
One-Year Limited Warranty .............................................................................................. 16
Replacement Parts List .................................................................................................... 18
kobalttools.com
SPECIFICATIONS
Model
Max PSI
(lbs/sq. in.)
Max GPM
(Gal/per min) Max Temp Volts Amps Weight (lbs.)
KPW-2000 2,800 1.4 122˚ F 120 14 34

PACKAGE CONTENTS
3
kobalttools.com
PART DESCRIPTION QUANTITY
I Spray Gun 1
J Spray Gun Trigger Lock
Button
1
KGarden Hose Adapter 1
LNozzle Tray 1
M Spray Gun Holder 1
PART DESCRIPTION QUANTITY
A Power Washer Unit 1
B High Pressure Hose 1
C Nozzle Cleaning Wire 1
E Stabilizer Foot 1
F Rotary Nozzle 1
G Quick Connect Nozzles 3
H Lance 1
0°– Red
25° – Green
Soap – Black
2000 PSI
H
I
C
G
F
A
J
B
E
M
L
K
HARDWARE CONTENTS (shown actual size)
AA
Screw
Qty. 2

4
kobalttools.com
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and
PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and
understand it thoroughly before using the product. The symbols listed below are used to indicate this
information.
DANGER
Potential hazard that will result in serious injury or loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or damage to equipment.
Note: The word “Note” is used to inform the reader of something the operator needs to know about
the tool.
WARNING
To reduce the risk of injury, the user must read and understand the instructions before using
this product.
• To avoid personal injury and/or damage to property and to maximize your power washing
experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become
familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts
of your power washer, and how to turn off the power washer.
• This power washer conforms to CSA and other safety and consumer standards. Do not modify or
rebuild any part of your power washer.
• DO NOT use your power washer when you are under the inuence of alcohol or drugs. Use this
power tool carefully and only when you are alert.
• Watch your balance and footing while using your power washer. Surfaces become slippery when
wet and are extra slippery when using a detergent or cleaner.
• NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
• When using the power washer near children, make sure they are closely supervised by an adult to
avoid injury. Never let a child use the power washer.
• Keep ngers, hands, feet and any part of your body clear of the stream of high pressure water. The
powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too
close when you pull the trigger on the spray gun.
•ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
• To avoid mishaps or injury, always use the trigger safety lock when not using the power washer even
if the spraying stops for a moment.
• Point the spray gun in a safe direction when beginning a power washing session.
SAFETY INFORMATION

5
kobalttools.com
SAFETY INFORMATION
• When rst using the spray gun, hold the spray gun and lance with two hands when pulling the
trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to
the “kickback” from the spray gun.
• When you press the power switch to turn off the power washer, water pressure may remain in the
system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
• NEVER spray ammable liquids.
• NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
• Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if
damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
• Only use detergent specically formulated for power washers and follow instructions on the
detergent’s label.
• Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry soap is too thick and will
clog the nozzle of your detergent bottle.
IMPORTANT: Store the power washer indoors to prevent the water in the unit from expanding under
freezing conditions. When the water freezes and expands, your power washer will be damaged and
become inoperable. Or, if storing outdoors, it is recommended you use an antifreeze (not included) to
protect pumps.
• NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
• NEVER leave the power washer unattended while it is powered “on”.
• ALWAYS turn the water supply “on ” before turning the power washer power to “on”. Running the
pump dry will cause damage to the internal components.
• NEVER use a water supply to your power washer that exceeds 150 PSI maximum.
• NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
• NEVER permanently engage the trigger mechanisms on the spray gun.
• NEVER operate the power washer unless all components are properly and securely connected.
• NEVER allow the power washer pump to run for more than one minute after you have turned off the
water supply. This can cause the motor and pump to overheat and fail.
• NEVER use lances or other parts that have not been supplied with your power washer.
• NEVER spray any electrical outlet with your power washer.
• Inspect the power cord before using. Do not use it if it is damaged.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

6
kobalttools.com
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): Phillips screwdriver, Allen wrench
ASSEMBLY INSTRUCTIONS

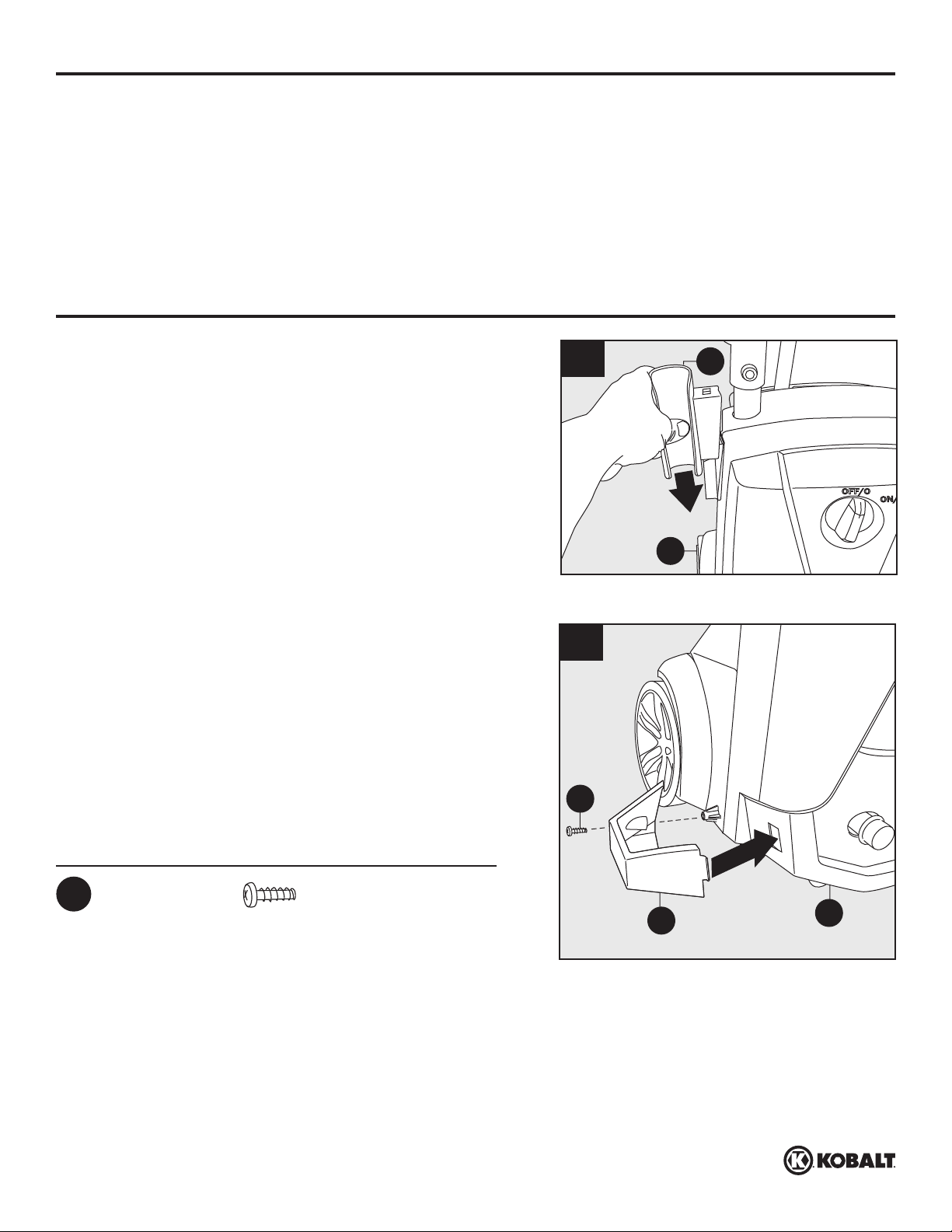

2. Slip tab into slot and screw the nozzle tray (L)
on bottom portion of power washer unit (A).
Secure with screw (AA).
Note: DO NOT use a power screwdriver. When
the screw is completely tight, give a small nal
clockwise twist of the screwdriver.
DO NOT overtighten.
Power Unit Assembly

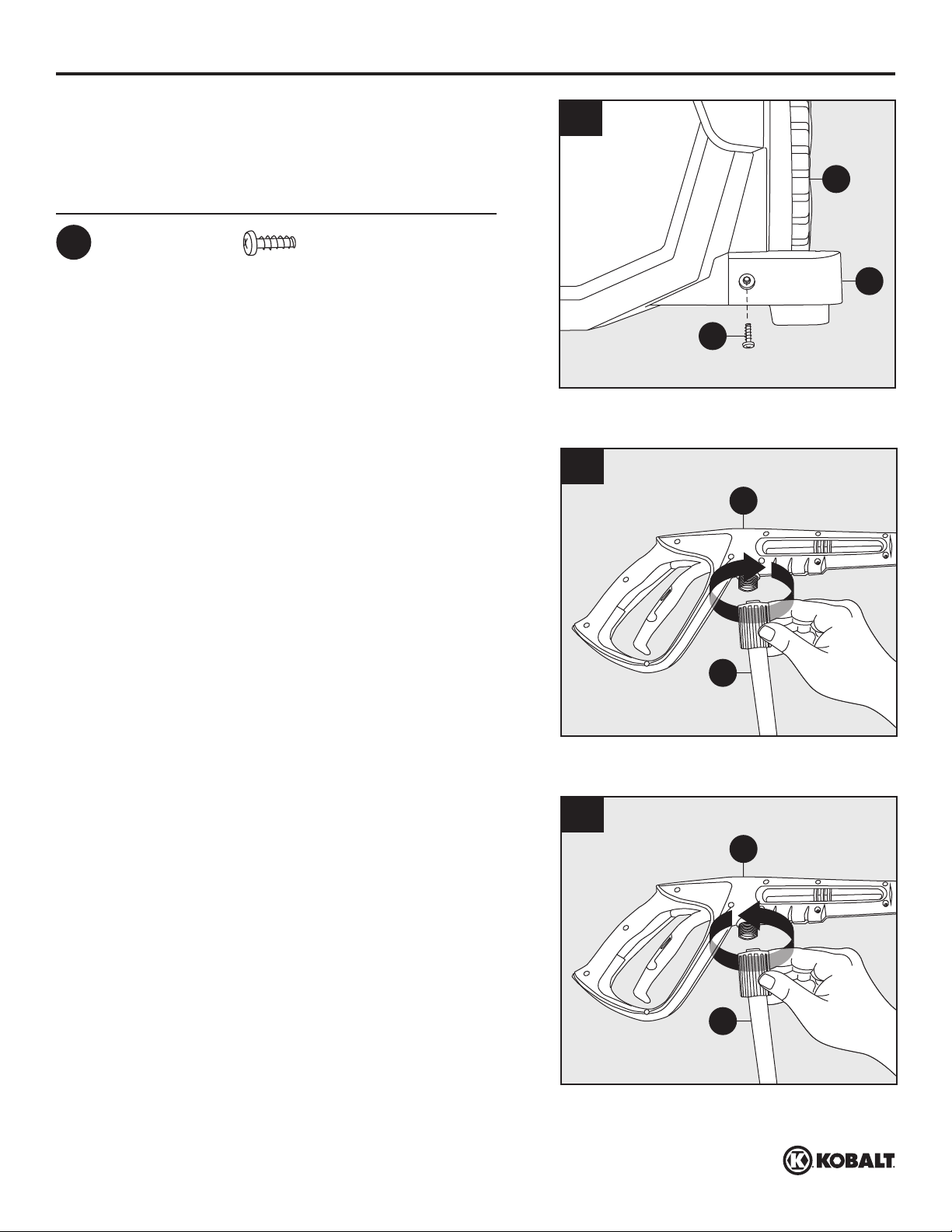

1. Slide the spray gun holder (M) onto left side of
power washer unit (A).
Note: When placing the gun with the lance
attached the nozzle will rest in this tray.
1
M
A
2
A
L
AA
Hardware Used
Screw x 1
AA
AA
Screw
Qty. 2

7
kobalttools.com
ASSEMBLY INSTRUCTIONS
High Pressure Hose Assembly
4. Connect the other end of high pressure hose (B)
to spray gun (I) by screwing collar over gun inlet.
Hand tighten (turning clockwise) until tight. Hose
is now securely attached to the spray gun.
Note: High pressure hose (B) is tted to the hose
reel and ready to use. It only needs to be at-
tached to the spray gun (I).
5. To release the hose (B) from spray gun (I), turn
black collar counterclockwise. Remove gun.
4
B
I
3. Slip tab of stabilizer foot (E) into slot on bottom
portion of power unit (A). Secure with screw (AA). 3
E
AA
A
5
B
I
Hardware Used
Screw x 1
AA
AA
Screw
Qty. 2

8
kobalttools.com
ASSEMBLY INSTRUCTIONS
Lance Installation
7. While spray gun (I) is in the locked position,
insert lance (H) into the end of spray gun by
inserting and turning clockwise until fully in
place. To remove turn counterclockwise.
Locking Spray Gun (before Lance installation)

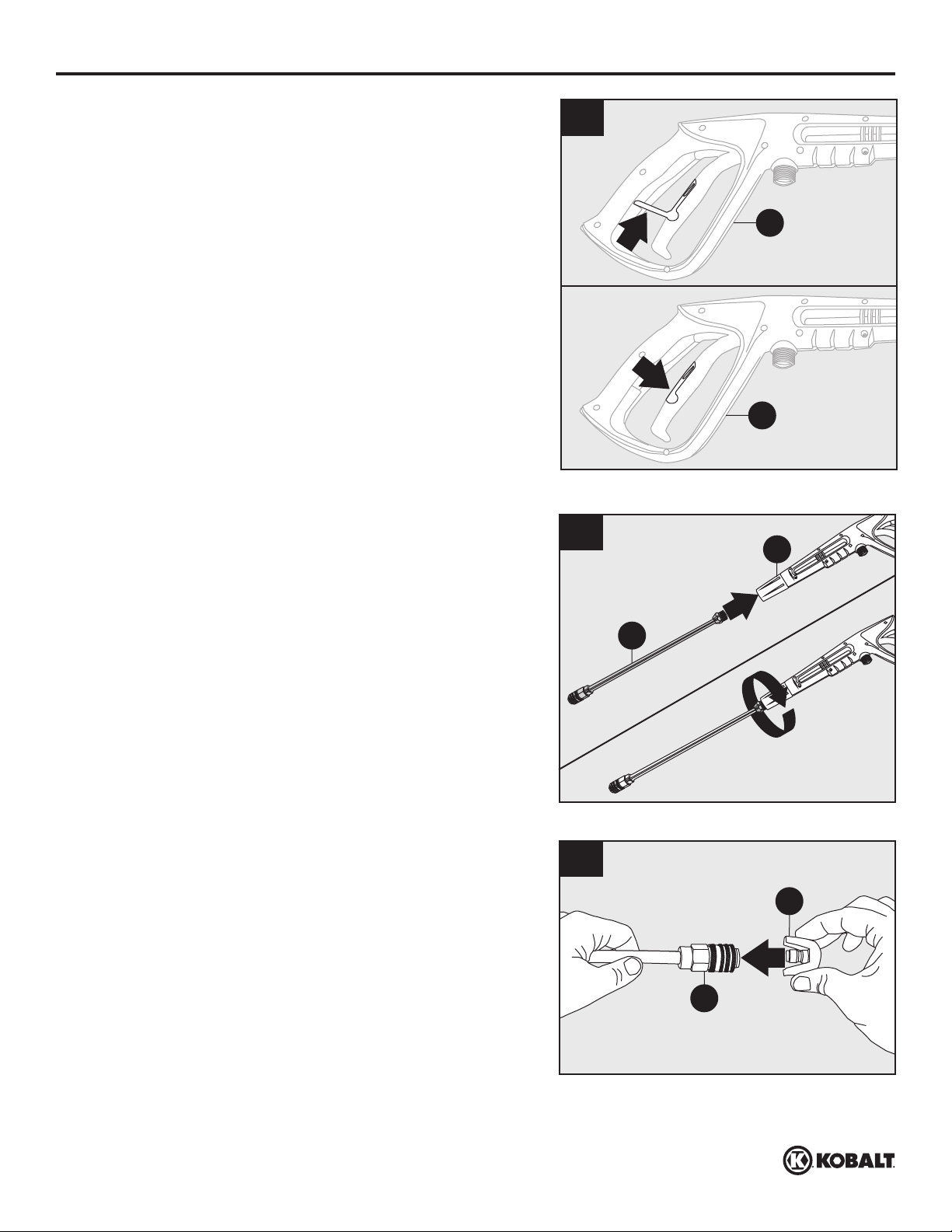

6. To lock the trigger of the spray gun (I), aim the
gun away from you and push trigger lever down
and wedge between trigger and the handle.
Always leave in locked position when not in use.
This ensures the gun is in “safe” mode until it
is ready for use. To unlock, push trigger lock up
and press into trigger.
2
1
7
H
I
6
I
I
Lock
Unlock
8. Attach nozzles (G) into end of lance (H) by
pressing selected nozzle into place. It will make
a "click" sound when rmly in place.
Note: Always push safety lock button to lock
trigger when changing lances and nozzles to
ensure that they do not accidentally eject with
force during removal.
8
H
G

9
kobalttools.com
9
ASSEMBLY INSTRUCTIONS

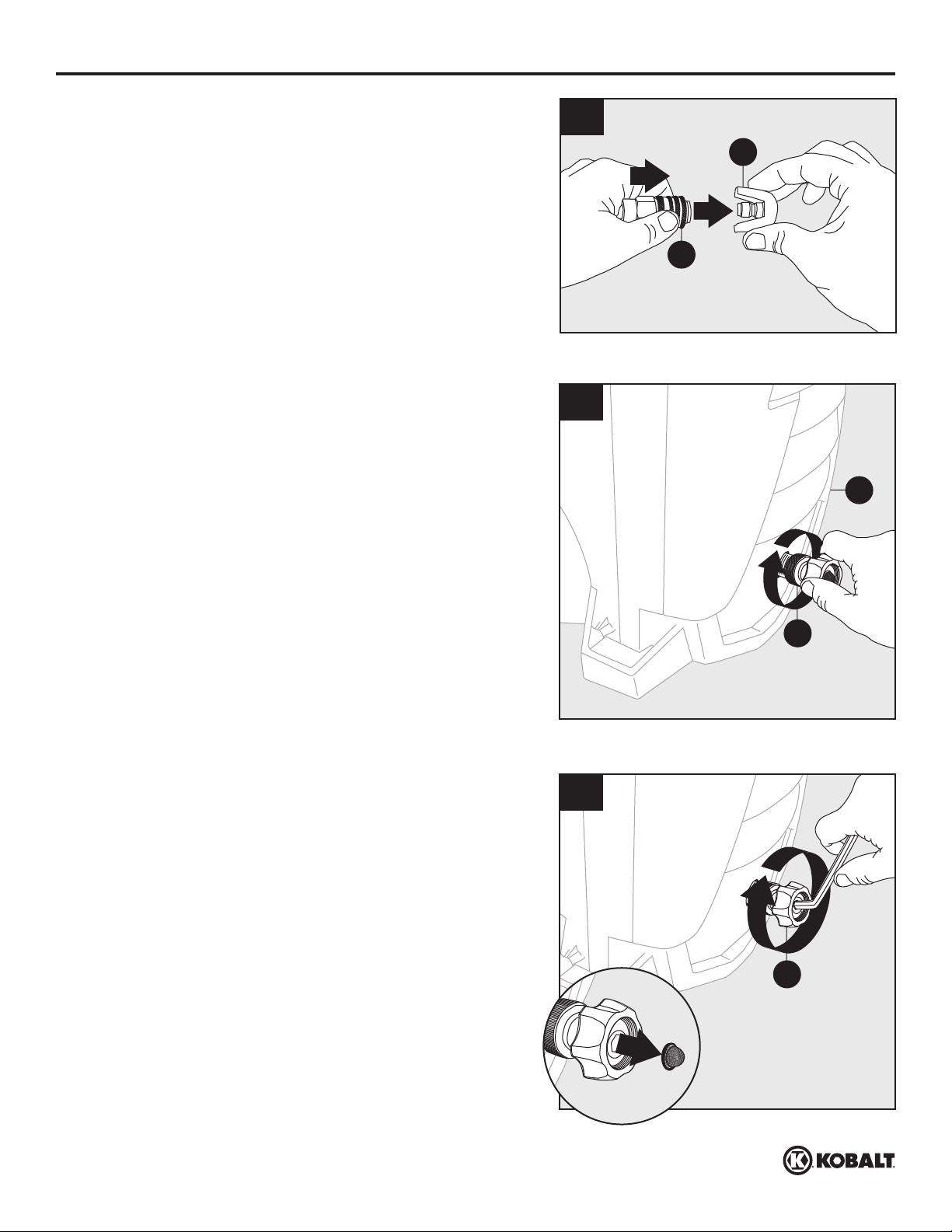

9. To remove nozzle (G), pull back on collar of
lance (H) and pull out nozzle.
Garden Hose Adapter Installation
10. Attach collar of garden hose adapter (K) directly
to power washer water inlet (A). Hand tighten.
11. Remove washer lter from garden hose
adapter (K). Using an 8 mm or 5/16 in. Allen
wrench, tighten until snug.
DO NOT overtighten.
9
H
G
1
2
10
K
A
2
11
1
K

10
kobalttools.com

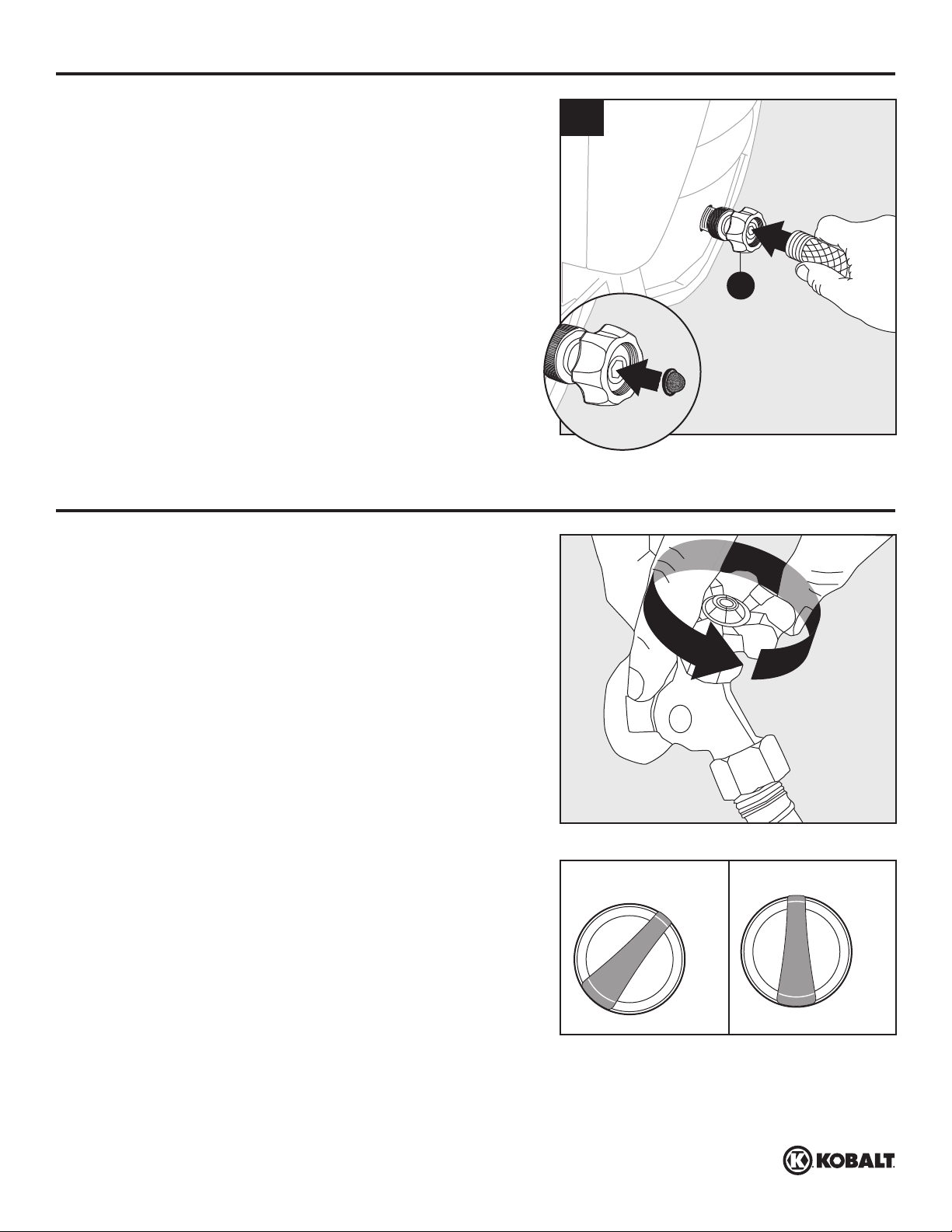

12. Replace washer lter into garden hose
adapter (K) and attach garden hose to the blue
collar of garden hose adapter (K).
You have now completed assembly and are ready
to begin using your electric power washer. Read
and observe all safety instructions.
OPERATING INSTRUCTIONS
• Turn on water supply at the faucet.
• Make sure the “ON/OFF” switch is in the “OFF” position.
The power switch has international symbols for ‘on’ and
‘off’: On (|) Off (O).
• Unwind the power cord completely and plug into a
grounded 120 volt outlet.
• Release safety push trigger lock up and back into trigger.
While pointing the spray gun in a safe direction, squeeze
the trigger on the spray gun until there is a steady stream
of water, letting the water and air out of the hose. Push
trigger lock back down to lock back into place.
• Turn the power switch to the ‘ON’ (|) position. The unit
will turn on for 1 - 2 seconds and shut off. This is a
normal function of the auto start feature. Squeeze the
spray gun trigger to begin pressure washing.
• Squeezing rapidly will cause the auto start feature to
miss an on/off cycle that may prevent it from turning on
while squeezing trigger after rapid squeezing. Use slow
deliberate trigger pulls to avoid such symptoms.
OFF/0
ON/I
OFF/0
ON/I
2
12
1
K
ASSEMBLY INSTRUCTIONS

11
kobalttools.com
OPERATING INSTRUCTIONS
• Always test a small area to avoid chance of damaging
the surface.
IMPORTANT: When applying detergent, use the soap
nozzle.
• When using the detergent, ll it with a properly
formulated detergent or cleaner with water ratio
according to instructions on the container. The detergent
tank comes with a straw which is tted into the screw-on
top. If you don’t see the straw, look inside the tank and
attach it to the screw-on top, close detergent tank when
done lling.
• When removing the detergent tank, remove lid and
place nger on both sides of the bottle and squeeze
to get past the knobs on each side and pull out. Press
down rmly when putting it back in place.

12
kobalttools.com
OPERATING INSTRUCTIONS
The power washer will pull a ratio of water to detergent of
10:1 or 10 parts water to 1 part detergent. The detergent

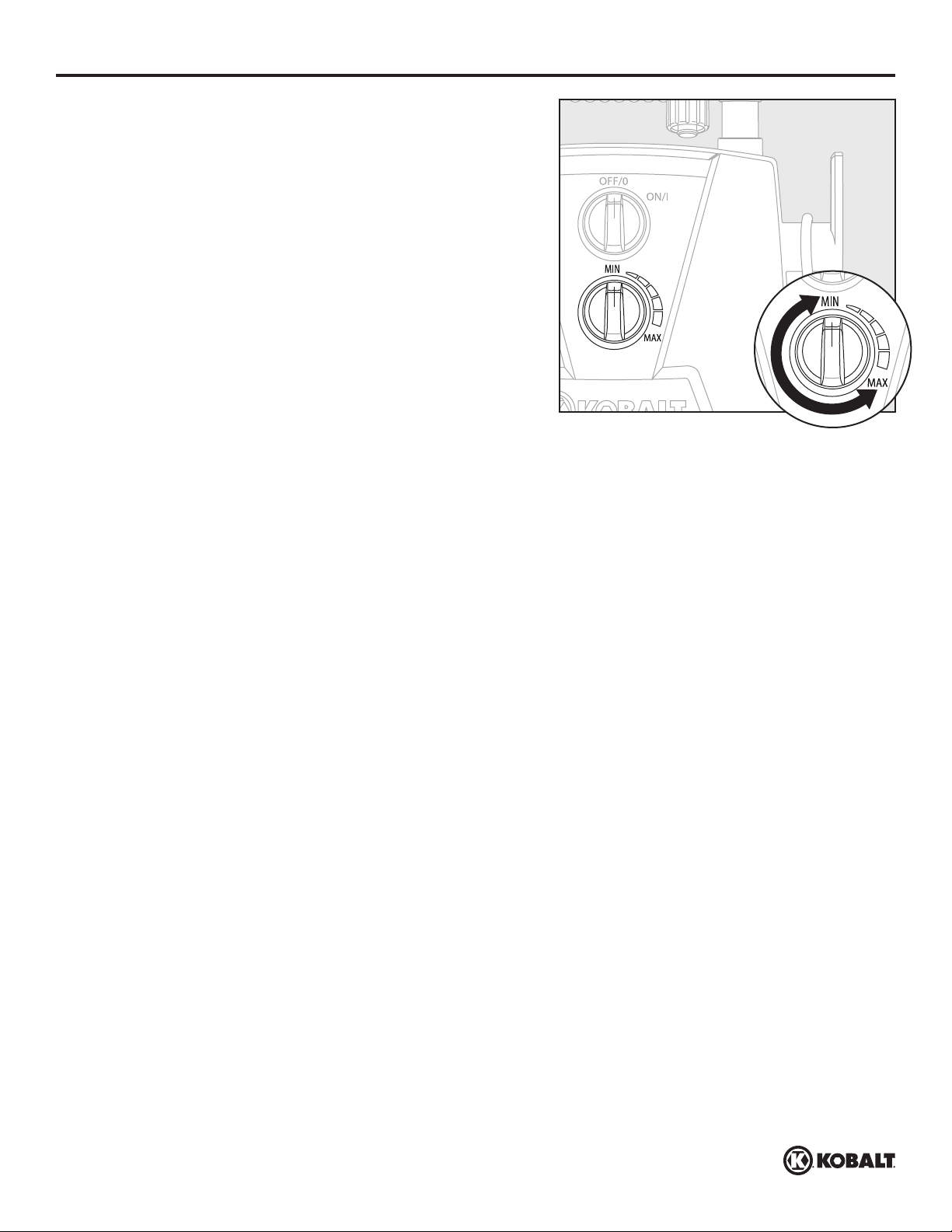

concentration can be adjusted by turning the detergent
knob on the front of the machine. Turn it right for more
concentration or turn it left for less concentration.
Operation Tips
• If you hear the motor run intermittently when the trigger is not being squeezed, that is normal.
The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power
washer if not being used after ve minutes.
• The o-rings on the bayonet end of the nozzle should be cleaned regularly and lubricated with non-
water soluble grease such as petroleum jelly.
• Keep the nozzle cleaning wire for use in unclogging the nozzle. If you lose the cleaning wire, a
straightened paper clip also works.
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs because the impact force of the water pressure exceeds
the durability of the surface. Bare wood can be penetrated; paint can be peeled off, etc. You can
vary the force of your power washer by controlling:
1. The angle of the surface being cleaned
2. The distance of the nozzle from the surface being cleaned
• NEVER use a narrow high pressure stream of water on soft surfaces susceptible to damage.
• Use the 25˚ angle quick connect nozzle when cleaning windows. Be sure to place the nozzle
approximately four to ve feet away from the window with the nozzle at forty ve degree angle.
Squeeze the trigger and vary the spray pattern and angle until optimum cleaning efciency is
achieved.

13
kobalttools.com
OPERATING INSTRUCTIONS
Using Power Cord
• Easily remove the power cord from side of unit by
swiveling the bottom cord hook to the right or left until it
faces up. The power cord then can be easily slid off of
the side of the power washer unit.
• Swivel cord hook back down when ready to wrap the
cord back into place for storage.
Detergents
• Use detergents designed for power washers. Hardware stores or home centers also have power
washer detergents for different cleaning projects. The cleaning solution should be the consistency of
water in order to prevent clogging your detergent bottle and nozzle.
• This system applies detergent under low pressure. The cleaning power of the detergents is
enhanced when applied with low pressure and enough time is given to break down dirt and
grime. The combination of low pressure and chemical action is very effective and can be
better than scrubbing if applied properly. Always spray detergent on a dry surface. Do not
pre-soak area. Wetting the surface rst dilutes the detergent and reduces its cleaning ability.
Do not allow detergent to dry on surface. On vertical surfaces being cleaned, apply detergent
to lower surfaces and work your way up to prevent detergent from causing streaks in the dirt
and grime. Rinse detergent by pressure washing from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush
to scrub the stain. Subsequent power washing after brushing should successfully complete your
cleaning job.
Cleaning Nozzles
• A clogged or partially clogged nozzle can cause signicant reduction of water pressure coming out
of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing
the trigger 2-3 times, and then lock the spray gun by
pushing the lock button from left to right.
• The screens inside the adapter should be cleaned
periodically. Rinse it with clean water, and then place it
back in the adapter.
• Using the nozzle tip cleaner provided (or an unfolded
paper clip), insert the wire into the nozzle hole and move
back and forth until debris is dislodged.
• Back ush water through the nozzles using garden hose
and highest pressure available (either standard water
nozzle or use your thumb over the nozzle to create water
pressure for back ush).
CARE AND MAINTENANCE

14
kobalttools.com
CARE AND MAINTENANCE
Storage
• When your pressure washing session has been completed, turn off the power switch located on the
front of the power washer. Unplug the power cord from the outlet. Turn off the water supply. Pull the
trigger on the spray gun 2-3 times to drain out the excess water and to release any remaining water
pressure. Disconnect the garden hose adapter from the water inlet. Do not allow the power washer
to run with no water owing through it.
• Remove detergent bottle and clean completely. Residual chemical will stick to the container and can
cause the detergent injector to clog and not function properly.
• Remove high pressure hose from spray gun and unscrew the other end of the high pressure hose
from the power washer.
• Remove lance from the gun. Place the gun in the holder on the side. Lances are placed into any of
the slots in the back of the unit. Make sure to discard any remaining detergent from the bottle. Flush
the bottle and nozzle head with fresh water to prevent clogging.
• Hook the power cord around the L-shaped tab on the right side of the machine when facing it.
• The pressure hose is stored on the hose hook located on the back of the handle.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you
use an antifreeze designed for pumps. It is recommended that you use this antifreeze for storing
in freezing temperatures. Freezing will damage the pump unless this is added to the power washer.
If not using or if storing your power washer for more than one month, it is also recommended that
an antifreeze is used to protect the pump.

15
kobalttools.com
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
Unit will not turn
on.
1. Make sure the power washer is in the “OFF” position. Plug in the electrical
cord to a grounded 120 volt outlet (no electrical extension cord should be
used). If the electrical cord will not plug into your outlet, your electrical
outlet is not properly grounded and should not be used. Use another
electrical outlet.
2. If this did not correct the problem, try plugging into another electrical outlet
and repeat the above procedure. If it is still not working, call Customer
Service at 1-866-206-0888.
The high pressure
hose will not
connect/stay
connected to
the spray gun. Is
this a spray gun
problem?
1. In most cases, the spray gun is not the problem. The problem is the rubber
sleeve covering the tting at the end of the high pressure hose. It has likely
slipped up toward the metal tip. To x: wiggle, twist and/or pull the rubber
sleeve down until the entire tip is visible plus an 1/8 in. of the metal tting
below the tip. Now try to insert the hose tip into the spray gun. It should
“click” into place and will not come out until the hose is released by pushing
in the lever on the underside of the gun. You may cut away the end of the
sleeve with a sharp knife if unable to move the sleeve down. Be careful not
to cut or puncture the hose.
The unit is running
but there is no
water ow.
1. Check the water source. Unclog the nozzle on the lance. (See nozzle
cleaning instructions under “Cleaning nozzles”.) Or take off the lance and
just spray out of the spray gun. This will indicate if the problem is with the
lance.
Why is water
leaking where the
high pressure hose
connects to the
spray gun?
1. Make sure there is an o-ring at the end of the metal tip of the high pressure
hose. If no o-ring is present, the connection between the hose and spray
gun will leak. O-Ring Kits are available by calling Customer Service at
1-866-206-0888 to place an order.
The power washer
turns on for
2 seconds, shuts
off, and will not turn
back on. Do I have
a defective unit?
1. When the water is connected, the accessories are assembled properly,
and the power switch is turned on, the power washer may turn on for 1 - 2
seconds to prime the pump. It automatically shuts off and waits for the spray
gun trigger to be pressed. When the trigger is pressed, water starts owing
through the pump. The water sensor in the pump “senses” the moving water
and automatically turns the power washer on.
2. Turn the power switch to off, hold in the trigger on the spray gun, so that you
have a steady stream of water. While you are holding the trigger open on the
spray gun, at the same time, turn the power switch on.
If you have any questions regarding the product, please call customer service at 1-866-206-0888.

16
kobalttools.com
This product is under warranty to the original retail consumer against defects in material and
workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including
the spray gun, the high pressure hose and all accessories from the date of purchase. The warranty
is not transferable or assignable. This warranty covers replacement parts. This limited one year
warranty applies only to products used in consumer applications and is void in rental or any
commercial application. Reasonable care must be used in conformity with operation and maintenance
instructions in the owner’s manual and quick start guide. Failure to follow these instructions will void
this warranty.
Warranty Process
Keep your original receipt of purchase in case of warranty claim.
If your power washer develops a problem, contact Customer Service:
• Call our toll-free number at 1-866-206-0888. Customer Service is available Monday - Friday 8:00
a.m. to 4:30 p.m. Eastern Standard Time (EST). The Customer Service person will work with you to
x the problem.
If the power washer needs to be returned for repair, shipping costs to the company must be paid by
the customer. A Return Merchandise Authorization (RMA) Number will be issued for the return.
Upon receiving the power washer, the company will repair or replace the unit. We will send unit back
to customer at no charge.
Please note: Power washers sent to the company without an RMA Number will NOT be accepted
and shipped back at the expense of the sender.
LIMITED WARRANTY

kobalttools.com
17
Printed in China
KOBALT® and the K Design® are registered
trademarks of LF, LLC. All Rights Reserved.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-206-0888, 8 a.m. - 4:30 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
ADetergent Tank PW3440710
B Hose PW4220760
C Rotary Nozzle PW4220680
D Quick Connect
Nozzle 0°– Red PW4220700
E Quick Connect
Nozzle 25° – Green PW4220710
F Quick Connect
Nozzle Soap –
Black
PW4220690
PART DESCRIPTION PART #
GGarden Hose Adapter PW3084210
H Spray Gun PW3400811
I Lance PW3400960
J O-Ring Kit
(not shown)
PW909104K
0° – Red
25° – Green
Soap – Black
HI
G
A B
C
D
E
F

18
2000 PSI
kobalttools.com
MODÈLE N° KPW-2000
ARTICLE N° 0571087
LAVEUSE
ÉLECTRIQUE À
PRESSION
KOBALT®et K Design®sont des marques de commerce
déposées de LF, LLC. Tous droits réservés.
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service à la clientèle au 1-866-206-0888, entre 8 h et 16 h 30
(HNE), du lundi au vendredi.
JOINDRE VOTRE REÇU ICI
Numéro de série Date d’achat

19
kobalttools.com
TABLE DES MATIÈRES
Caractéristiques du produit................................................................................................ 19
Contenu de l’emballage..................................................................................................... 20
Quincaillerie incluse........................................................................................................... 20
Consignes de sécurité....................................................................................................... 21
Instructions d'assemblage ................................................................................................ 23
Instructions d'utilisation ..................................................................................................... 27
Soin et entretien ................................................................................................................ 30
Dépannage........................................................................................................................ 32
Garantie limitée d'un an..................................................................................................... 33
Liste des pièces de rechange............................................................................................ 34
CARACTÉRISTIQUES DU PRODUIT
CARACTÉRISTIQUES
Modèle
PSI Max.
(lb/po²)
GPM Max.
(Gal/par min.) Temp. Max. Volts Ampères Poids (lbs.)
KPW-2000 2,800 1,4 50˚C 120 14 34 (15,4 kg)

CONTENU DE L’EMBALLAGE
20
kobalttools.com
PIÈCE DESCRIPTION QUANTITÉ
I Pistolet de pulvérisation 1
J Verrou de gâchette de
pistolet de pulvérisation
1
K Adaptateur de tuyau
d'arrosage
1
L Plateau à buse 1
M Support de pistolet de
pulvérisation
1
PIÈCE DESCRIPTION QUANTITÉ
A Laveuse à pression 1
B Tuyau à haute pression 1
C Fil de nettoyage de buse 1
E Pied stabilisateur 1
F Buse rotative 1
G Buse de raccord rapide 3
H Lance 1
0°– Rouge
25° – Vert
Détergent – Noir
2000 PSI
H
I
C
G
F
A
J
B
E
M
L
K
AA
Screw
Qty. 2
QUINCAILLERIE INCLUSE (illustré en taille réalle)
Vis
Qté. 2
