Kobalt KPW-1700 User manual

1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-206-0888, 8 a.m. - 4:30 p.m., EST, Monday - Friday.
ON/I
OFF/O
AB141075B
Français p. 21
MODEL #KPW-1700
ITEM #0571011
kobalttools.com
ELECTRIC
PRESSURE WASHER
KOBALT®and the K Design®are registered
trademarks of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
2
Product Specications......................................................................................................... 2
Package Contents .............................................................................................................. 3
Hardware Contents...............................................................................................................3
Safety Information ............................................................................................................... 4
Assembly Instructions...........................................................................................................6
Operating Instructions ....................................................................................................... 10
Care and Maintenance ..................................................................................................... 15
Troubleshooting................................................................................................................ 18
One-Year Limited Warranty .............................................................................................. 20
Replacement Parts List .................................................................................................... 21
kobalttools.com
SPECIFICATIONS
Model
Max PSI
(lbs/sq. in.)
Max GPM
(Gal/per min) Max Temp Volts Amps Weight (lbs.)
KPW-1700 1,700 1.4 122˚ F 120 13 32

PACKAGE CONTENTS
3
kobalttools.com
PART DESCRIPTION QUANTITY
HGarden Hose Adapter 1
I Quick Connect Filter 1
J Turbo Lance 1
K Spray Gun 1
L Spray Gun Trigger Lock 1
PART DESCRIPTION QUANTITY
A Power Washer Unit 1
B Spray Gun Holder 1
C Nozzle Cleaning Wire 1
E High Pressure Hose 1
FNozzle Tray 1
G High/Low Nozzle Lance 1
F
J
K
C
E
I
H
B
G
A
L
HARDWARE CONTENTS (shown actual size)
AA
Screw
Qty. 1

4
kobalttools.com
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and
PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and
understand it thoroughly before using the product. The symbols listed below are used to indicate this
information.
DANGER
Potential hazard that will result in serious injury or loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or damage to equipment.
Note: The word “Note” is used to inform the reader of something the operator needs to know about
the tool.
WARNING
To reduce the risk of injury, the user must read and understand the instructions before using
this product.
• To avoid personal injury and/or damage to property and to maximize your power washing
experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become
familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts
of your power washer, and how to turn off the power washer.
• This power washer conforms to CSA and other safety and consumer standards. Do not modify or
rebuild any part of your power washer.
• DO NOT use your power washer when you are under the inuence of alcohol or drugs. Use this
power tool carefully and only when you are alert.
• Watch your balance and footing while using your power washer. Surfaces become slippery when
wet and are extra slippery when using a detergent or cleaner.
• NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
• When using the power washer near children, make sure they are closely supervised by an adult to
avoid injury. Never let a child use the power washer.
• Keep ngers, hands, feet and any part of your body clear of the stream of high pressure water. The
powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too
close when you pull the trigger on the spray gun.
•ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
• To avoid mishaps or injury, always use the trigger safety lock when not using the power washer even
if the spraying stops for a moment.
• Point the spray gun in a safe direction when beginning a power washing session.
SAFETY INFORMATION

5
kobalttools.com
SAFETY INFORMATION
• When rst using the spray gun, hold the spray gun and lance with two hands when pulling the
trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to
the “kickback” from the spray gun.
• When you press the power switch to turn off the power washer, water pressure may remain in the
system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
• NEVER spray ammable liquids.
• NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
• Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if
damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
• Only use detergent specically formulated for power washers and follow instructions on the
detergent’s label.
• Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry soap is too thick and will
clog the nozzle of your detergent bottle.
IMPORTANT: Store the power washer indoors to prevent the water in the unit from expanding under
freezing conditions. When the water freezes and expands, your power washer will be damaged and
become inoperable. Or, if storing outdoors, it is recommended you use an antifreeze (not included) to
protect pumps.
• NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
• NEVER leave the power washer unattended while it is powered “on”.
• ALWAYS turn the water supply “on ” before turning the power washer power to “on”. Running the
pump dry will cause damage to the internal components.
• NEVER use a water supply to your power washer that exceeds 150 PSI maximum.
• NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
• NEVER permanently engage the trigger mechanisms on the spray gun.
• NEVER operate the power washer unless all components are properly and securely connected.
• NEVER allow the power washer pump to run for more than one minute after you have turned off the
water supply. This can cause the motor and pump to overheat and fail.
• NEVER use lances or other parts that have not been supplied with your power washer.
• NEVER use an extension power cord.
• NEVER spray any electrical outlet with your power washer.
• Inspect the power cord before using. Do not use it if it is damaged.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

6
kobalttools.com
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): Phillips screwdriver
ASSEMBLY INSTRUCTIONS

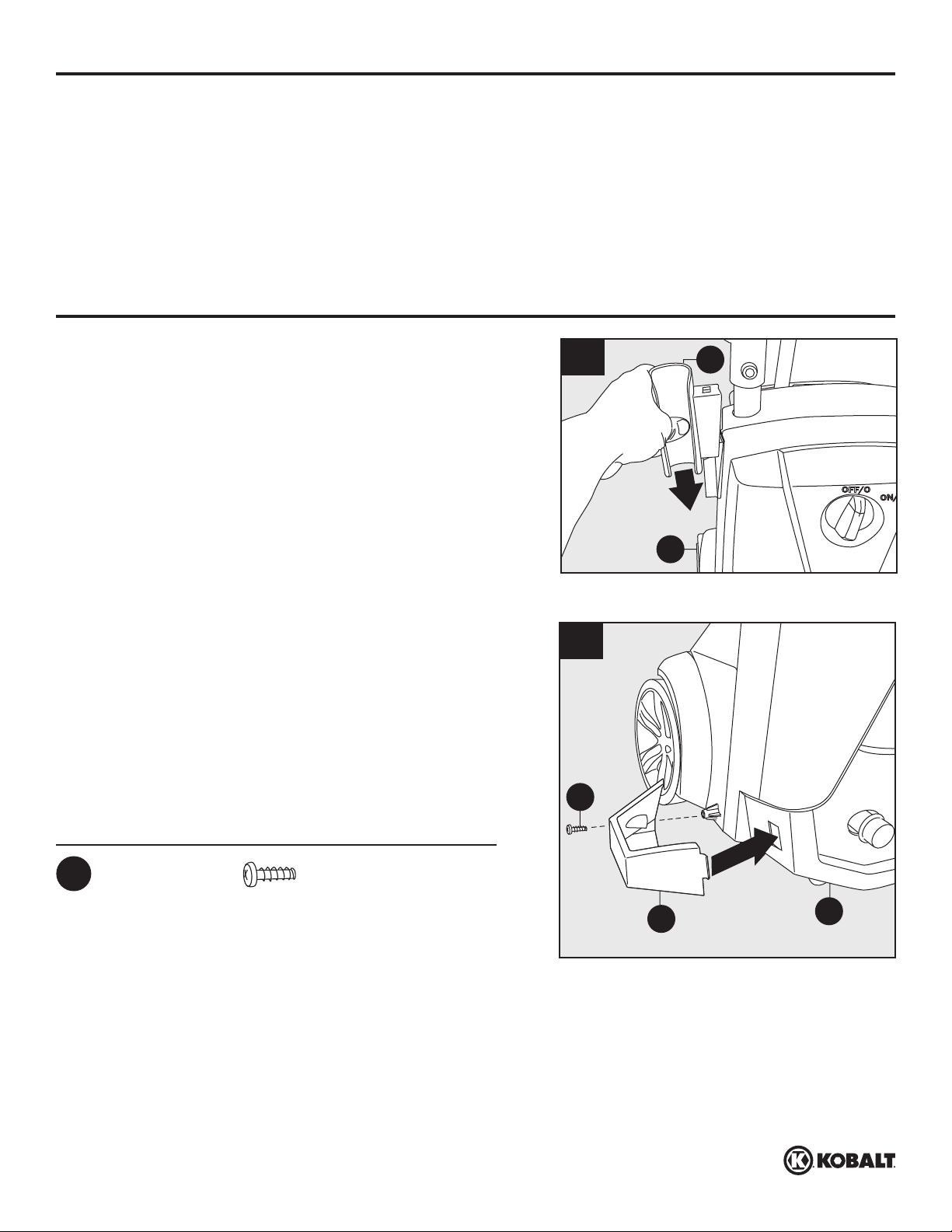

2. Slip tab into slot and screw the nozzle tray (F)
on bottom portion of power washer unit (A).
Secure with screw (AA).
Note: DO NOT use a power screwdriver. When
the screw is completely tight, give a small nal
clockwise twist of the screwdriver.
DO NOT overtighten.
Power Unit Assembly
1. Slide the spray gun holder (B) onto left side of
power washer unit (A).
Note: When placing the gun with the lance
attached, the nozzle will rest in this tray.
1
B
A
2
A
F
AA
Hardware Used
Screw x 1
AA
AA
Screw
Qty. 1

7
kobalttools.com
High Pressure Hose Assembly
3. Screw high pressure hose (E) clockwise onto
bottom front of power washer unit (A). Pull back
collar and insert o-ring post into water outlet far
enough so collar can thread onto outlet threads
until hand tight. If it takes fewer than six turns
you have not properly tightened the high
pressure hose tting. It is easier to position the
power washer in front of you to ensure that the
threads are started correctly. Failure to properly
tighten high pressure hose will result in the hose
slipping or popping off immediately upon turning
unit on. Do not worry about damage if this
occurs–just reinstall and take extra care when
screwing on the high pressure hose tting.
Note: DO NOT use pliers or locking pliers to
tighten.
3
A
E
4. Connect the other end of high pressure hose (E)
to spray gun (K) by inserting the brass metal tip
of high pressure hose into the tting just ahead
of trigger guard. It will lock into spray gun with a
“click”. Conrm hose is locked into spray gun
by slightly pulling on them. The hose is now se-
curely attached to spray gun.
4
E
K
5. To release hose (E) from spray gun (K), press
button on underside of gun toward trigger
guard. The hose will slide out from connection.
2
1
5
E
K
ASSEMBLY INSTRUCTIONS

8
kobalttools.com
ASSEMBLY INSTRUCTIONS

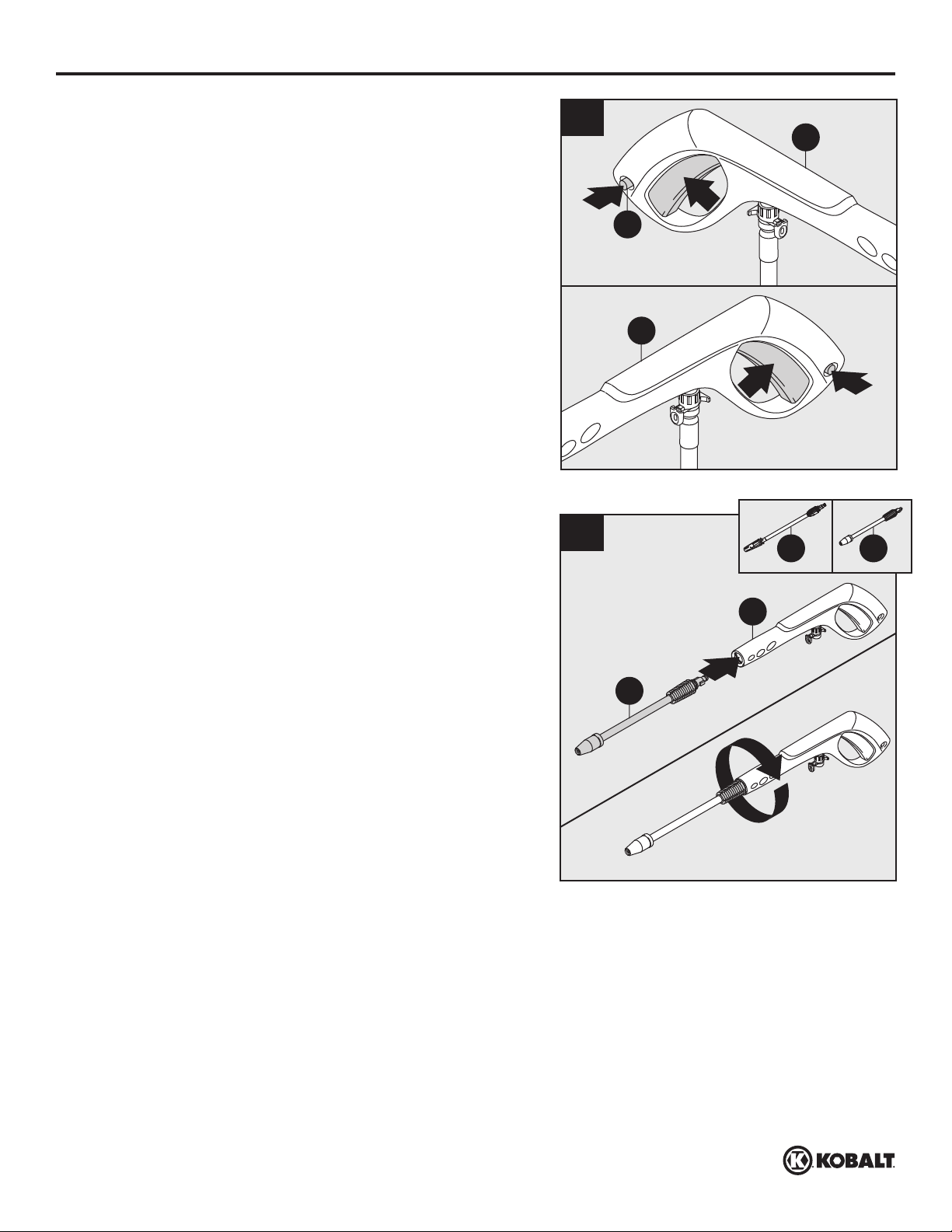

High/Low Nozzle Lance and Turbo
Nozzle Installation
7. While the spray gun (K) is in the locked position,
insert the high/low nozzle lance (G) or turbo
nozzle (J) into the end of the spray gun, by
inserting and pushing together turning clockwise
simultaneously. To remove, push together and
turn counterclockwise.
Note: Always push the safety lock button to
lock the trigger when changing lances to ensure
that they do not accidentally eject with force
during removal.
Note: When using the turbo lance, make sure
the turbo nozzle is screwed on tight at the end
of the lance each time you use it.
Locking Spray Gun (before Lance installation)
6. To lock the trigger of the spray gun (K), aim the
gun away from you and push the lock button
from right to left. After doing so, squeeze or
pull the trigger to make sure it is locked and will
not move. Always leave lock button in locked
position when not in use. This ensures the gun is
in “safe” mode until it is ready for use.
1
2
7
J
JG
K
Unlock
Lock
1
1
2
2
6
K
K
L

9
kobalttools.com
9
ASSEMBLY INSTRUCTIONS
8
A
I
Garden Hose Adapter Installation
8. Remove plastic shipping cover on water inlet on
front right side of power washer unit (A). Install
quick connect lter (I) to water inlet by hand,
tightening clockwise.
9. Slide the garden hose adapter (H) onto the
quick connect lter (I). It will "click" into place. 9
I
H
10. Attach a garden hose to garden hose
adapter (H). The water is now connected to
your power washer. Turn on water.
Note: To remove water hose, pull back on blue
collar and it will slide off the clear quick connect
lter. This can be done at any time. Water will
not come out of the garden hose as the blue/
black collar has a water stop check valve. Water
will only ow from the garden hose when it is
connected to the clear quick connect lter.
You have now completed the assembly and are
ready to begin using your electric power washer.
Read and observe all safety instructions.
2
1
10
H

10
OPERATING INSTRUCTIONS
kobalttools.com

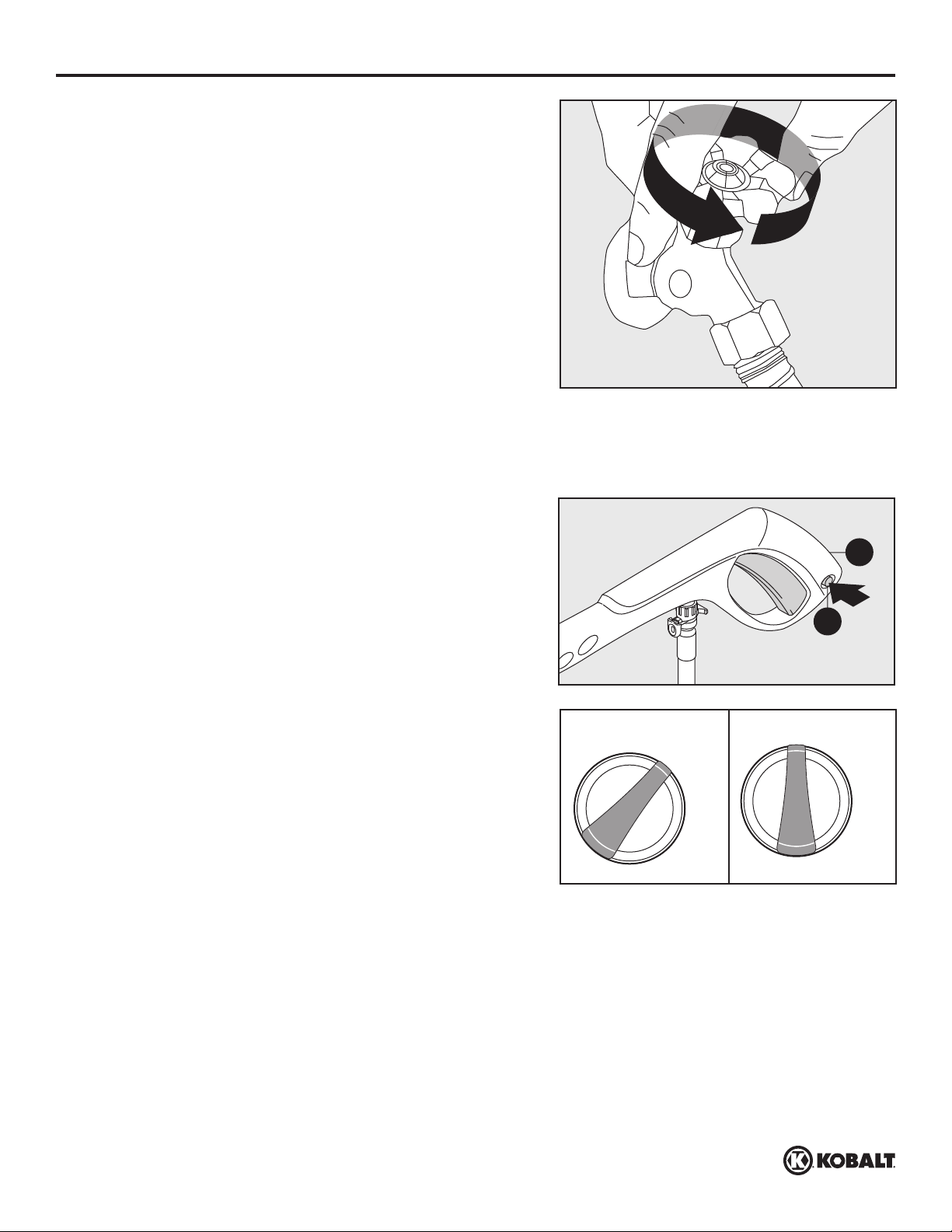

• Turn on water supply at the faucet.
• Make sure the “ON/OFF” switch is in the “OFF” position.
The power switch has international symbols for ‘on’ and ‘off’: On (|) Off (O).
• Unwind the power cord completely and plug into a
grounded 120 volt outlet.
• Release the safety lock button on the spray gun by
pressing the safety lock button from right to left. While
pointing the spray gun in a safe direction, squeeze the
trigger on the spray gun until there is a steady stream of
water, letting the water and air out of the hose.
• Turn the power switch to the ‘ON’ (|) position. The unit
will turn on for 1 - 2 seconds and shut off. This is a
normal function of the auto start feature. Squeeze the
spray gun trigger to begin pressure washing.
• Squeezing rapidly will cause the auto start feature to
miss an on/off cycle that may prevent it from turning on
while squeezing trigger after rapid squeezing. Use slow
deliberate trigger pulls to avoid such symptoms.
OFF/0
ON/I
OFF/0
ON/I
Unlock
K
L

11
kobalttools.com
OPERATING INSTRUCTIONS
• Always test a small area to avoid chance of damaging the
surface.
• The Turbo lance is designed for high impact cleaning. Only
use on hard surfaces such as driveways, cement surfaces,
patio bricks, etc.
Using High/Low Nozzle
• High pressure spray is used for cleaning and low pressure
spray activates the detergent function.
• The adjustable spray nozzle had has two (2) positions:
–IN position for high pressure spray. Twist the nozzle
clockwise until it stops and gap is closed.
–OUT position for low pressure spray for detergent function.
Twist the nozzle counterclockwise until it stops and gap is
open.
• When using the high pressure setting, twist the nozzle head
clockwise or counterclockwise to achieve the stream desired.
• When using the low pressure setting twist the nozzle head clockwise to open the fan blades
all the way.
IMPORTANT: When applying detergent using low pressure spray, the variable spray head must be set for the
“Pencil Stream”. This is when the metal blades in front of the nozzle are wide open so the detergent spray is
not constricted.
2
2
IN position
IN position
High Pressure Setting
Fan Spray Pencil Stream
1
1
2
OUT position
OUT position
LOW Pressure Setting
Pencil Stream

12
OPERATING INSTRUCTIONS
kobalttools.com

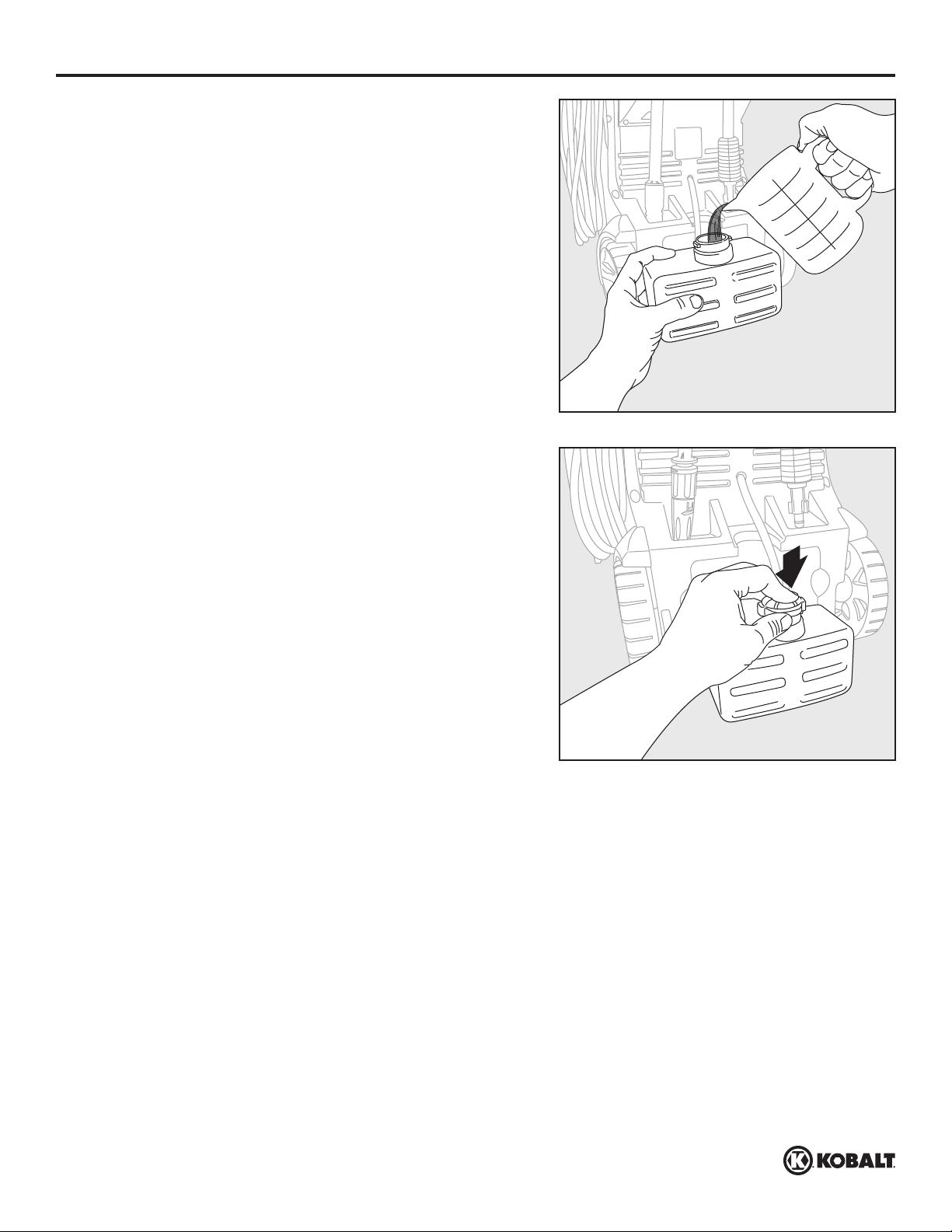

• When using the detergent, ll it with a properly
formulated detergent or cleaner with water ratio
according to instructions on the container.
• The detergent tank comes with a straw which is tted
into the screw-on top. If you don’t see the straw, look
inside the bottle and attach it to the screw-on top.
• When removing the detergent tank remove lid and
place nger in tank lifting up while pulling tank out.
Operation Tips
• If you hear the motor run intermittently when the trigger is not being squeezed, that is normal.
The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power
washer if not being used after ve minutes.
• The o-rings on the bayonet end of the variable spray nozzle should be cleaned regularly and
lubricated with non-water soluble grease such as petroleum jelly.
• Keep the nozzle cleaning wire for use in unclogging the lance nozzle. If you lose the cleaning wire,
a straightened paper clip also works.

13
OPERATING INSTRUCTIONS
kobalttools.com
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs because the impact force of the water pressure exceeds
the durability of the surface. Bare wood can be penetrated; paint can be peeled off, etc. You can
vary the force of your power washer by controlling:
1. The angle of the surface being cleaned
2. The distance of the nozzle from the surface being cleaned
• NEVER use a narrow high pressure stream of water on soft surfaces susceptible to damage.
• Use the high/low nozzle lance when cleaning windows.
Be sure to adjust the nozzle to low spray and place
the nozzle approximately four to ve feet away from
the window with the nozzle at forty ve degree angle.
Squeeze the trigger and vary the spray pattern and
angle until optimum cleaning efciency is achieved.
1
2
1
Spray
Pressure

14
OPERATING INSTRUCTIONS
kobalttools.com

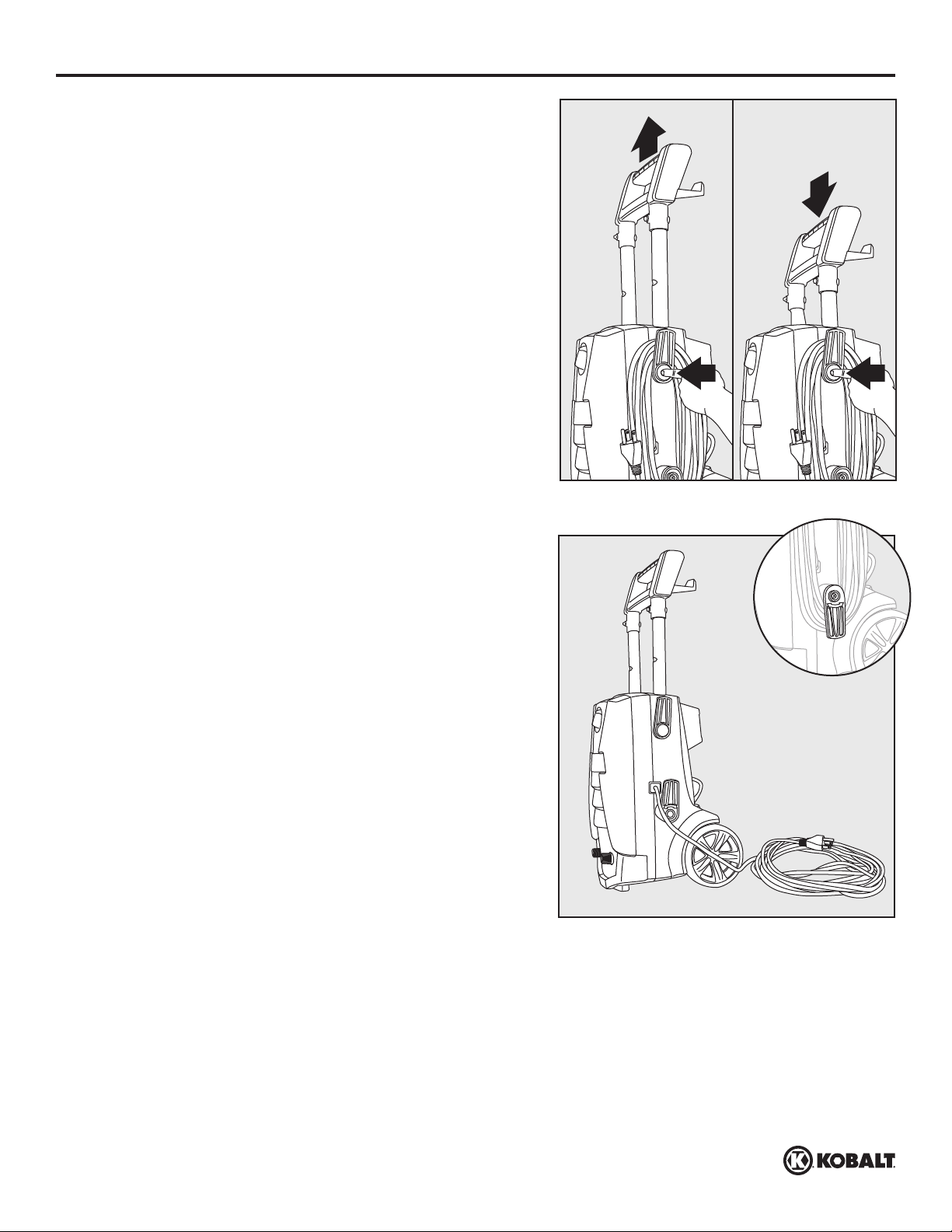

Extending and Lowering Handle
• Extend the handle up by pressing the center of the
upper cord hook and pull handle up until it locks in
place.
Note: If handle does not easily slide up, add some
petroleum jelly (not included) to help make it glide
easier.
• Lower the handle by pressing the center of the upper
cord hook and push down on the handle until all the
way down.
Using Power Cord
• Easily remove the power cord from side of unit by
swiveling the bottom cord hook to the right or left until it
faces up. The power cord then can be easily slid off of
the side of the power washer unit.
• Swivel cord hook back down when ready to wrap the
cord back into place for storage.
1 1
2
2

15
kobalttools.com
CARE AND MAINTENANCE
Detergents
• Use detergents designed for power washers. Hardware stores or home centers also have power
washer detergents for different cleaning projects. The cleaning solution should be the consistency of
water in order to prevent clogging your detergent bottle and nozzle.
• This system applies detergent under low pressure. The cleaning power of the detergents is
enhanced when applied with low pressure and enough time is given to break down dirt and
grime. The combination of low pressure and chemical action is very effective and can be
better than scrubbing if applied properly. Always spray detergent on a dry surface. Do not
pre-soak area. Wetting the surface rst dilutes the detergent and reduces its cleaning ability.
Do not allow detergent to dry on surface. On vertical surfaces being cleaned, apply detergent
to lower surfaces and work your way up to prevent detergent from causing streaks in the dirt
and grime. Rinse detergent by pressure washing from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush
to scrub the stain. Subsequent power washing after brushing should successfully complete your
cleaning job.
Cleaning Nozzles
• A clogged or partially clogged nozzle can cause signicant reduction of water pressure coming out
of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the trigger 2-3 times, and then lock the
spray gun by pushing the lock button from left to right.
• The screen inside the clear adapter should be cleaned
periodically. Insert a pen or pencil (not included) in small
hole at the end of the adapter. The screen lter will slide
out. Rinse it with clean water, then place it back in the
adapter.

16
kobalttools.com
CARE AND MAINTENANCE
• Using the nozzle tip cleaner provided (or an unfolded
paper clip), insert the wire into the nozzle hole and
move back and forth until debris is dislodged. Flush
water through the nozzle using garden hose and
highest pressure available (either standard water
nozzle or use your thumb over the nozzle to create
water pressure for back ush).
Storage
• When your pressure washing session has been completed, turn off the power switch located on the
front of the power washer. Unplug the power cord from the outlet. Turn off the water supply. Pull the
trigger on the spray gun 2-3 times to drain out the excess water and to release any remaining water
pressure. Disconnect the garden hose adapter from the water inlet. Do not allow the power washer
to run with no water owing through it.
• Remove detergent bottle and clean completely. Residual chemical will stick to the container and can
cause the detergent injector to clog and not function properly.
• Remove high pressure hose from spray gun and unscrew the other end of the high pressure hose
from the power washer.
• Remove lance from the gun. Place the gun in the holder on the side. Lances are placed into any of
the slots in the back of the unit. Make sure to discard any remaining detergent from the bottle. Flush
the bottle and nozzle head with fresh water to prevent clogging.
• Hook the power cord around the L-shaped tab on the right side of the machine when facing it.
• The pressure hose is stored on the hose hook located on the back of the handle.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you
use an antifreeze designed for pumps. It is recommended that you use this antifreeze for storing
in freezing temperatures. Freezing will damage the pump unless this is added to the power washer.
If not using or if storing your power washer for more than one month, it is also recommended that
an antifreeze is used to protect the pump.

17
kobalttools.com
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
Unit will not turn
on.
1. Make sure the power washer is in the “OFF” position. Plug in the electrical
cord to a grounded 120 volt outlet (no electrical extension cord should be
used). If the electrical cord will not plug into your outlet, your electrical
outlet is not properly grounded and should not be used. Use another
electrical outlet.
2. If this did not correct the problem, try plugging into another electrical outlet
and repeat the above procedure. If it is still not working, call Customer
Service at 1-866-206-0888.
The high pressure
hose will not
connect/stay
connected to
the spray gun. Is
this a spray gun
problem?
1. In most cases, the spray gun is not the problem. The problem is the rubber
sleeve covering the tting at the end of the high pressure hose. It has likely
slipped up toward the metal tip. To x: wiggle, twist and/or pull the rubber
sleeve down until the entire tip is visible plus an 1/8 in. of the metal tting
below the tip. Now try to insert the hose tip into the spray gun. It should
“click” into place and will not come out until the hose is released by pushing
in the lever on the underside of the gun. You may cut away the end of the
sleeve with a sharp knife if unable to move the sleeve down. Be careful not
to cut or puncture the hose.
The unit is running
but there is no
water ow.
1. Check the water source. Unclog the nozzle on the lance. (See nozzle
cleaning instructions under “Cleaning nozzles”.) Or take off the lance and
just spray out of the spray gun. This will indicate if the problem is with the
lance.
Why is water
leaking where the
high pressure hose
connects to the
spray gun?
1. Make sure there is an o-ring at the end of the metal tip of the high pressure
hose. If no o-ring is present, the connection between the hose and spray
gun will leak. O-Ring Kits are available by calling Customer Service at
1-866-206-0888 to place an order.
If you have any questions regarding the product, please call customer service at 1-866-206-0888.

18
kobalttools.com
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
I can’t remove the
lance from the
spray gun. What
should I do?
1. Insert the quick-release end of the lance/detergent bottle into the spray gun.
Press the spray gun and lance together (about a 1/8 in.) and turn clockwise.
The lance will lock in place. Remove the lance by reversing this procedure.
Press the spray gun and lance together and turn counter clockwise. The
lance will slide out.
2. Hold the spray gun and lance in an upright position with the nozzle end on
the oor. Push the whole assembly straight down to loosen the connection,
and then follow the removal process again. You may also spray soapy water
or a lubricant in the area where the lance connects to the spray gun.
The power washer
turns on for
2 seconds, shuts
off, and will not turn
back on. Do I have
a defective unit?
1. When the water is connected, the accessories are assembled properly,
and the power switch is turned on, the power washer may turn on for 1 - 2
seconds to prime the pump. It automatically shuts off and waits for the spray
gun trigger to be pressed. When the trigger is pressed, water starts owing
through the pump. The water sensor in the pump “senses” the moving water
and automatically turns the power washer on.
2. Turn the power switch to off, hold in the trigger on the spray gun, so that you
have a steady stream of water. While you are holding the trigger open on the
spray gun, at the same time, turn the power switch on.

19
kobalttools.com
This product is under warranty to the original retail consumer against defects in material and
workmanship for a period of 1 (one) year and is a complete “bumper to bumper” warranty including
the spray gun, the high pressure hose and all accessories from the date of purchase. The warranty
is not transferable or assignable. This warranty covers replacement parts. This limited one year
warranty applies only to products used in consumer applications and is void in rental or any
commercial application. Reasonable care must be used in conformity with operation and maintenance
instructions in the owner’s manual and quick start guide. Failure to follow these instructions will void
this warranty.
Warranty Process
Keep your original receipt of purchase in case of warranty claim.
If your power washer develops a problem, contact Customer Service:
• Call our toll-free number at 1-866-206-0888. Customer Service is available Monday - Friday 8:00
a.m. to 4:30 p.m. Eastern Standard Time (EST). The Customer Service person will work with you to
x the problem.
If the power washer needs to be returned for repair, shipping costs to the company must be paid by
the customer. A Return Merchandise Authorization (RMA) Number will be issued for the return.
Upon receiving the power washer, the company will repair or replace the unit. We will send unit back
to customer at no charge.
Please note: Power washers sent to the company without an RMA Number will NOT be accepted
and shipped back at the expense of the sender.
LIMITED WARRANTY

kobalttools.com
20
Printed in China
KOBALT®and the K Design®are registered
trademarks of LF, LLC. All Rights Reserved.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-206-0888, 8 a.m. - 8 p.m., EST,
Monday - Friday.
PART DESCRIPTION PART #
ADetergent Tank PW4220020
B Hose PW4220740
C Spray Gun PW3084630
D High/Low Lance
Nozzle PW4220011
E Turbo Lance
Nozzle PW50976
F Garden Hose
Adapter PW3082732
PART DESCRIPTION PART #
G Quick Connect
Filter PW3082130
H O-Ring Kit
(not shown)
PW909104K
A
B
C
D
E
FG
