Kobalt KPW-1500 User manual

1
AB141072B
Français p. 20
MODEL #KPW-1500
ITEM #0571007
ELECTRIC
PRESSURE WASHER
kobalttools.com
KOBALT®and the K Design®are registered
trademarks of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-206-0888, 8 a.m. - 4:30 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date

PRODUCT SPECIFICATIONS
2
Product Specications......................................................................................................... 2
Package Contents .............................................................................................................. 3
Hardware Contents...............................................................................................................3
Safety Information ............................................................................................................... 4
Assembly Instructions...........................................................................................................6
Operating Instructions ....................................................................................................... 12
Care and Maintenance ..................................................................................................... 15
Troubleshooting................................................................................................................ 16
One-Year Limited Warranty .............................................................................................. 18

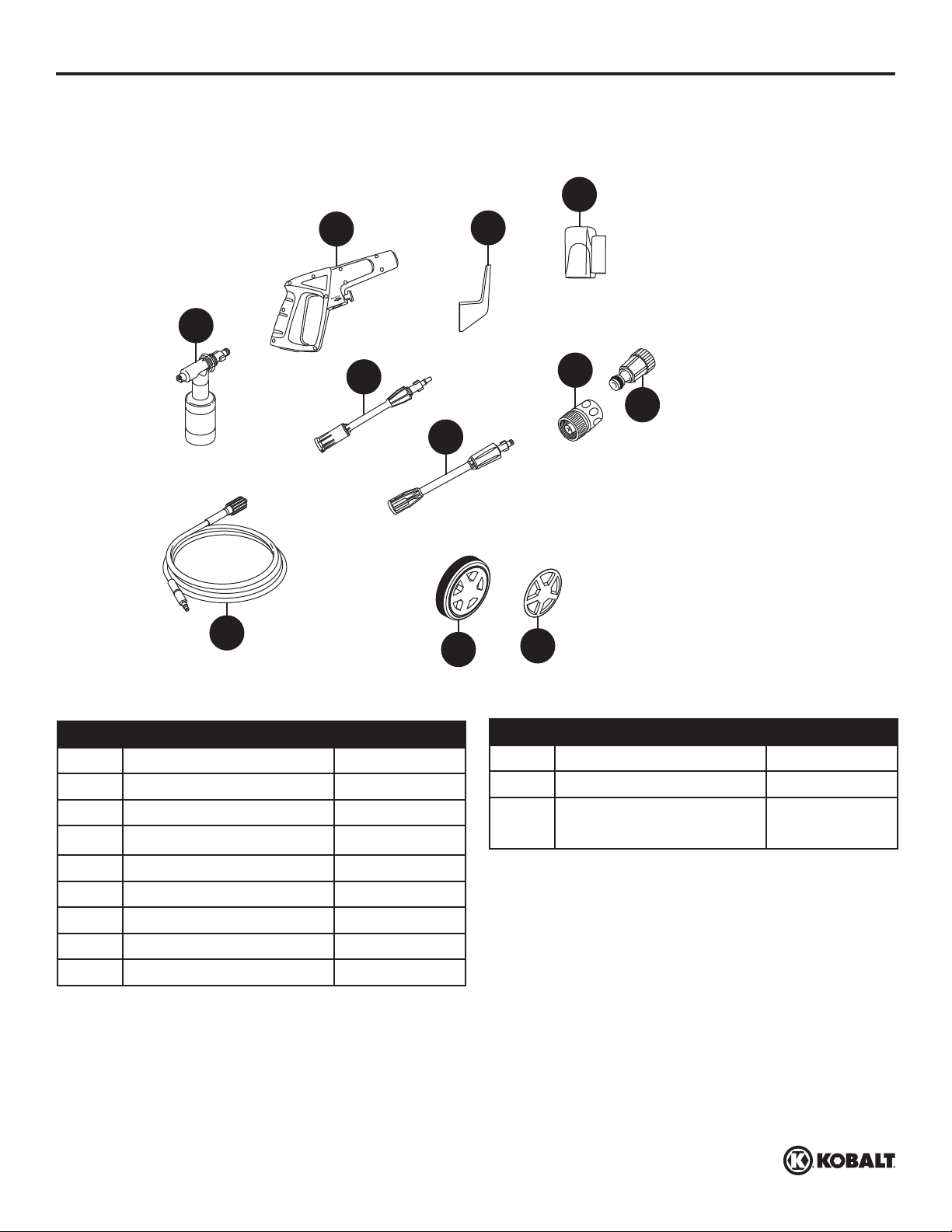

Replacement Parts List .................................................................................................... 19
kobalttools.com
SPECIFICATIONS
Model
Max PSI
(lbs/sq. in.)
Max GPM
(Gal/per min) Max Temp Volts Amps Weight (lbs.)
KPW-1500 1,500 1.4 122˚ F 120 12 15
TABLE OF CONTENTS

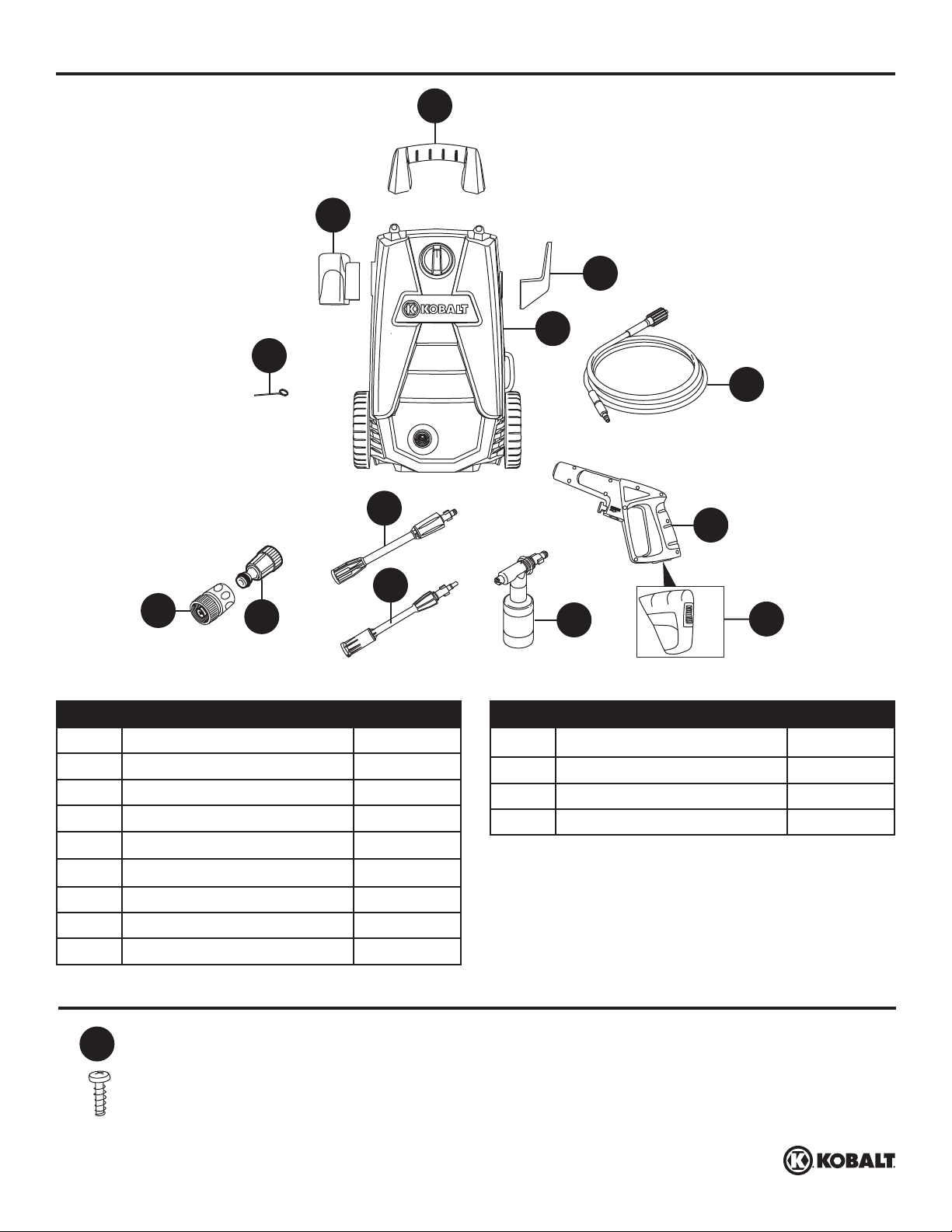

PACKAGE CONTENTS
3
kobalttools.com
PART DESCRIPTION QUANTITY
J Extension Lance 1
K Quick Connect Filter 1
LGarden Hose Adapter 1
M Nozzle Cleaning Wire 1
PART DESCRIPTION QUANTITY
A Spray Gun Holder 1
B Handle 1
C Power Washer Unit 1
D Cord Hook 1
E High Pressure Hose 1
F Spray Gun 1
G Spray Gun Lock/Unlock 1
H Detergent Bottle 1
I Variable Spray Nozzle 1
OFF/O
ON/I
1500 PSI
E
F
H
B
C
M
A
J
I
LG
K
D
HARDWARE CONTENTS (shown actual size)
AA
Screw
Qty. 2

4
kobalttools.com
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and
PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and
understand it thoroughly before using the product. The symbols listed below are used to indicate this
information.
DANGER
Potential hazard that will result in serious injury or loss of life.
WARNING
Hazard that could result in serious injury or loss of life.
CAUTION
Potential hazard that may result in moderate injury or damage to equipment.
Note: The word “Note” is used to inform the reader of something the operator needs to know about
the tool.
WARNING
To reduce the risk of injury, the user must read and understand the instructions before using
this product.
• To avoid personal injury and/or damage to property and to maximize your power washing
experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become
familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts
of your power washer, and how to turn off the power washer.
• This power washer conforms to CSA and other safety and consumer standards. Do not modify or
rebuild any part of your power washer.
• DO NOT use your power washer when you are under the inuence of alcohol or drugs. Use this
power tool carefully and only when you are alert.
• Watch your balance and footing while using your power washer. Surfaces become slippery when
wet and are extra slippery when using a detergent or cleaner.
• NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
• When using the power washer near children, make sure they are closely supervised by an adult to
avoid injury. Never let a child use the power washer.
• Keep ngers, hands, feet and any part of your body clear of the stream of high pressure water. The
powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too
close when you pull the trigger on the spray gun.
•ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
• To avoid mishaps or injury, always use the trigger safety lock when not using the power washer even
if the spraying stops for a moment.
• Point the spray gun in a safe direction when beginning a power washing session.
SAFETY INFORMATION

5
kobalttools.com
SAFETY INFORMATION
• When rst using the spray gun, hold the spray gun and lance with two hands when pulling the
trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to
the “kickback” from the spray gun.
• When you press the power switch to turn off the power washer, water pressure may remain in the
system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
• NEVER spray ammable liquids.
• NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
• Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if
damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
• Only use detergent specically formulated for power washers and follow instructions on the
detergent’s label.
• Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry soap is too thick and will
clog the nozzle of your detergent bottle.
IMPORTANT: Store the power washer indoors to prevent the water in the unit from expanding under
freezing conditions. When the water freezes and expands, your power washer will be damaged and
become inoperable.
• NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
• NEVER leave the power washer unattended while it is powered “on”.
• ALWAYS turn the water supply “on ” before turning the power washer power to “on”. Running the
pump dry will cause damage to the internal components.
• NEVER use a water supply to your power washer that exceeds 150 PSI maximum.
• NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
• NEVER permanently engage the trigger mechanisms on the spray gun.
• NEVER operate the power washer unless all components are properly and securely connected.
• NEVER allow the power washer pump to run for more than one minute after you have turned off the
water supply. This can cause the motor and pump to overheat and fail.
• NEVER use lances or other parts that have not been supplied with your power washer.
• NEVER use an extension power cord.
• NEVER spray any electrical outlet with your power washer.
• Inspect the power cord before using. Do not use it if it is damaged.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

6
kobalttools.com
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5 minutes
Tools Required for Assembly (not included): Phillips screwdriver
ASSEMBLY INSTRUCTIONS
Power Unit Assembly
1. Install handle (B) to power washer unit (C).
Secure with screws (AA).
Note: DO NOT use a power screwdriver. When
the screw is completely tight, give a small nal
clockwise twist of the screwdriver.
DO NOT overtighten.
2. Slide spray gun holder (A) onto left side of
power washer unit (C) as shown.
Note: This step does not require any screws.
1
C
B
AA
OFF/O
ON/I
1500 PSI
2
C
A
Hardware Used
Screw x 2
AA
AA
Screw
Qty. 2

7
kobalttools.com
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
3. Slide cord hook holder (D) onto right side of
power washer unit (C) as shown.
Note: This step does not require any screws.
High Pressure Hose Assembly
4. Screw high pressure hose (E) clockwise onto
bottom front of power washer unit (C). Pull back
collar and insert o-ring post into water outlet far
enough so collar can thread onto outlet threads
until hand tight. If it takes fewer than six turns
you have not properly tightened the high
pressure hose tting. It is easier to position the
power washer in front of you to ensure that the
threads are started correctly. Failure to properly
tighten high pressure hose will result in the hose
slipping or popping off immediately upon turning
unit on. Do not worry about damage if this
occurs–just reinstall and take extra care when
screwing on the high pressure hose tting.
Note: DO NOT use pliers or locking pliers to
tighten.
OFF/O
ON/I
1500 PSI
3
C
D
3
C
E

8
kobalttools.com
5
E
F
2
1
6
E
F
ASSEMBLY INSTRUCTIONS
5. Connect the other end of high pressure hose (E)
to spray gun (F) by inserting the silver metal tip
of high pressure hose into the tting just ahead
of trigger guard. It will lock into spray gun with a
“click”. Conrm hose is locked into spray gun
by slightly pulling on them. The hose is now
securely attached to spray gun.
6. To release hose (E) from spray gun (F), press
button on underside of gun toward trigger
guard. The hose will slide out from connection.
Locking Spray Gun (before Lance installation)
7. To lock trigger of spray gun (F), point gun away
from you and press top half of lock button to
engage lock. Squeeze or pull trigger to make
sure it is locked. ALWAYS leave lock button in
locked position when not in use. This ensures
the gun is in “safe” mode until it is ready for use.
To unlock, press bottom half of lock button to
release.
Note: The trigger lock prevents trigger from
being accidentally engaged.
Lock
Unlock
7
F
F

9
kobalttools.com
9
1
2
8
J
F
2
1
9
I
J
ASSEMBLY INSTRUCTIONS
Extension Lance installation
8. With spray gun (F) in locked position, attach
extension lance (J) directly to spray gun. Insert
lance extension into gun, pushing together
and turning clockwise simultaneously. Turn the
extension collar clockwise to lock into place. To
remove extension lance (J), turn extension collar
counterclockwise to unlock, then push together
and turn counterclockwise to release.
Note: The extension lance must be inserted in
gun before using any of the other attachments,
and in place for storage. It is recommended that
once extension is connected to leave it in place.
Adjustable Spray Lance installation
9. Insert variable spray nozzle (I) or detergent
bottle (H) into the end of the extension lance by
inserting and pushing together turning clockwise
simultaneously. To remove push together and
turn counterclockwise.
Note: Push the safety lock button to lock the
trigger when changing lances to ensure that
they do not accidentally eject with force during
removal.

10
kobalttools.com
11
C
K
4
3
2
1
10
H
J
H
ASSEMBLY INSTRUCTIONS
Detergent Bottle Installation
10. The detergent bottle comes with a straw which
is tted into screw-on top. If you do not see the
straw, look inside the bottle and attach it to the
screw-on top. When using detergent bottle, ll it
with a properly formulated detergent or cleaner
with a water ratio according to instructions on
the container.
Note: The ratio of water to detergent is 10:1 or
10 parts water to 1 part detergent.
• Pressure washer detergents are
recommended. See page 14 for more
information.
• Thick or gel-like detergents will clog the power
washer and can cause damage.
Garden Hose Adapter Installation
11. Remove plastic shipping cover on water inlet on
front right side of power washer unit (C). Install
the quick connect lter (K) to water inlet by
hand, tightening clockwise.

11
kobalttools.com
2
1
13
L
12
K
L
ASSEMBLY INSTRUCTIONS
12.Slide the garden hose adapter (L) onto the
quick connect lter (K). It will "click" into place.
13. Attach a garden hose to garden hose
adapter (L). The water is now connected to your
power washer. Turn on water.
Note: To remove water hose, pull back on blue
collar and it will slide off the clear adapter. This
can be done at any time. Water will not come
out of the garden hose as the blue/black collar
has a water stop check valve. Water will only
ow from the garden hose when it is connected
to the clear adapter.
You have now completed the assembly and are
ready to begin using your electric power washer.
Read and observe all safety instructions.

12
kobalttools.com

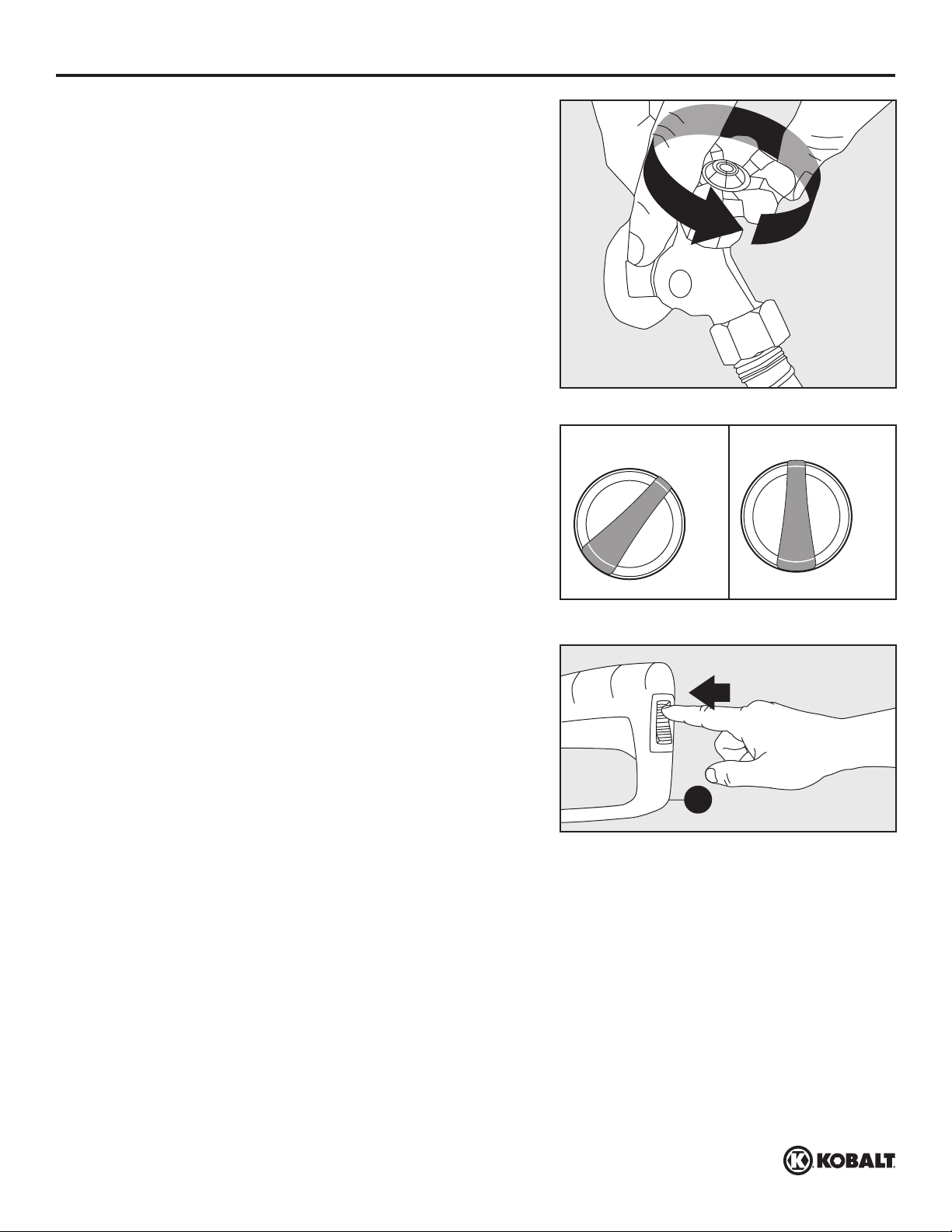

• Turn on water supply at the faucet.
• Make sure the “ON/OFF” switch is in the “OFF” position.
The power switch has international symbols for ‘on’ and ‘off’:
On (|) Off (O).
• Unwind the power cord completely and plug
into a grounded 120 volt outlet.
• Release the safety lock button on the spray gun by pressing
the safety lock button from right to left. While pointing the
spray gun in a safe direction, squeeze the trigger on the spray
gun until there is a steady stream of water, letting the water
and air out of the hose.
• Turn the power switch to the ‘ON’ (|) position. The unit will turn
on for 1 - 2 seconds and shut off. This is a normal function of
the auto start feature. Squeeze the spray gun trigger to begin
pressure washing.
• Squeezing rapidly will cause the auto start feature to miss
an on/off cycle that may prevent it from turning on while
squeezing trigger after rapid squeezing. Use slow deliberate
trigger pulls to avoid such symptoms.
OFF/0
ON/I
OFF/0
ON/I
Unlock
F
OPERATING INSTRUCTIONS

13
kobalttools.com
OPERATING INSTRUCTIONS
•Always test a small area to avoid chance of damaging
the surface.
• When using the variable spray nozzle, the spray pattern
and intensity can be adjusted for each task by twisting
the spray nozzle at the far end of the lance.
Operation Tips
•If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The
pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power
washer if not being used after ve minutes.
• The o-rings on the bayonet end of the variable spray nozzle should be cleaned regularly and
lubricated with non-water soluble grease such as petroleum jelly (not included).
• Keep the nozzle cleaning wire for use in unclogging the lance nozzle. If you lose the cleaning wire,
a straightened paper clip also works.
How to Avoid Damaging Surfaces
• Damage to surfaces being cleaned occurs because the impact force of the water pressure exceeds
the durability of the surface. Bare wood can be penetrated; paint can be peeled off, etc. You can
vary the force of your power washer by controlling:
1. the angle of the surface being cleaned
2. the distance of the nozzle from the surface being cleaned

14
kobalttools.com
CARE AND MAINTENANCE
• NEVER use a narrow high pressure stream of water on soft surfaces susceptible to damage.
• Use the variable spray nozzle when cleaning windows. Be sure to adjust the nozzle to low spray
and place the nozzle approximately four to ve feet away from the window with the nozzle at forty
ve degree angle. Squeeze the trigger and vary the spray pattern and angle until optimum cleaning
efciency is achieved.
Detergents
• Use detergents designed for power washers. Hardware stores or home centers also have power
washer detergents for different cleaning projects. The cleaning solution should be the consistency of
water in order to prevent clogging your detergent bottle and nozzle.
• The cleaning power of the detergents is enhanced when applied with low pressure and enough
time is given to break down dirt and grime. The combination of low pressure and chemical action
is very effective and can be better than scrubbing if applied properly. Always spray detergent on a
dry surface. Do not pre-soak area. Wetting the surface rst dilutes the detergent and reduces its
cleaning ability. Do not allow detergent to dry on surface. On vertical surfaces being cleaned, apply
detergent to lower surfaces and work your way up to prevent detergent from causing streaks in the
dirt and grime. Rinse detergent by pressure washing from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush
to scrub the stain. Subsequent power washing after brushing should successfully complete your
cleaning job.
Cleaning Nozzles
• A clogged or partially clogged nozzle can cause signicant reduction of water pressure coming out
of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the trigger 2-3 times, and then lock the
spray gun by pushing the lock button from left to right.
• The screen inside the clear adapter should be cleaned periodically. Insert a pen or pencil (not
included) in small hole at the end of the adapter. The
screen lter will slide out. Rinse it with clean water, then
place it back in the adapter.
OPERATING INSTRUCTIONS

15
kobalttools.com
CARE AND MAINTENANCE

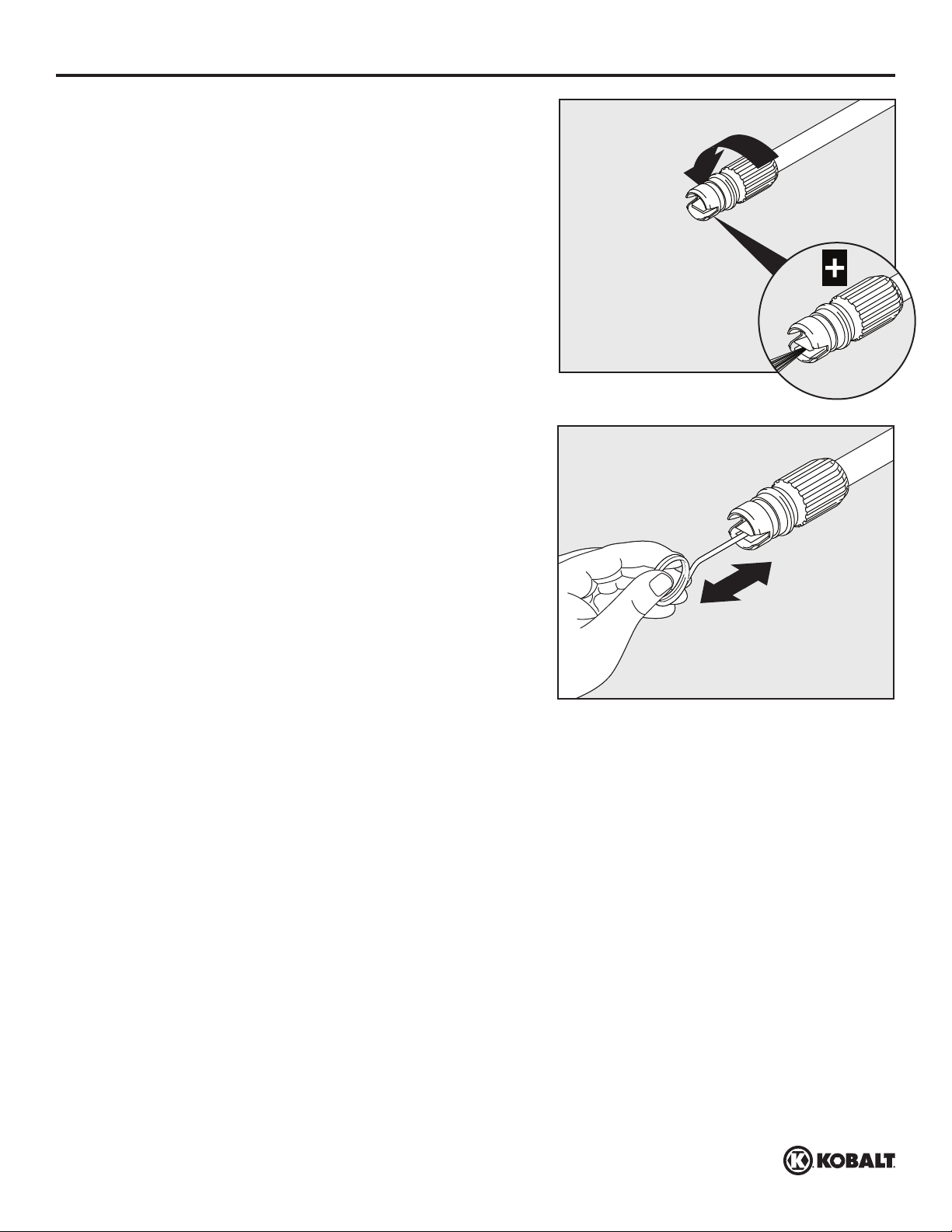

• Take off the variable spray nozzle. Rotate the nozzle
to narrow the stream setting which opens up the fan
blades.
• Using the nozzle tip cleaner provided (or an unfolded
paper clip), insert the wire into the nozzle hole and
move back and forth until debris is dislodged. Flush
water through the nozzle using garden hose and highest
pressure available (either standard water nozzle or use
your thumb over the nozzle to create water pressure for
back ush).
Storage
• When your pressure washing session has been completed, turn off the power switch located on the
front of the power washer. Unplug the power cord from the outlet. Turn off the water supply. Pull the
trigger on the spray gun 2-3 times to drain out the excess water and to release any remaining water
pressure. Disconnect the garden hose adapter from the water inlet. Do not allow the power washer
to run with no water owing through it.
• Remove detergent bottle and clean completely. Residual chemical will stick to the container and can
cause the detergent injector to clog and not function properly.
• Remove high pressure hose from spray gun and unscrew the other end of the high pressure hose
from the power washer.
• Remove lance from the gun. Place the gun in the holder on the side. Lances are placed into any of
the slots in the back of the unit. Make sure to discard any remaining detergent from the bottle. Flush
the bottle and nozzle head with fresh water to prevent clogging.
• Hook the power cord around the L-shaped tab on the right side of the machine when facing it.
• The pressure hose is stored on the hose hook located on the back of the handle.

16
kobalttools.com
CARE AND MAINTENANCE
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
Unit will not turn
on.
1. Make sure the power washer is in the “OFF” position. Plug in the electrical
cord to a grounded 120 volt outlet (no electrical extension cord should be
used). If the electrical cord will not plug into your outlet, your electrical
outlet is not properly grounded and should not be used. Use another
electrical outlet.
2. If this did not correct the problem, try plugging into another electrical outlet
and repeat the above procedure. If it is still not working, call Customer
Service at 1-866-206-0888.
The high pressure
hose will not
connect/stay
connected to
the spray gun. Is
this a spray gun
problem?
1. In most cases, the spray gun is not the problem. The problem is the rubber
sleeve covering the tting at the end of the high pressure hose. It has likely
slipped up toward the metal tip. To x: wiggle, twist and/or pull the rubber
sleeve down until the entire tip is visible plus an 1/8 in. of the metal tting
below the tip. Now try to insert the hose tip into the spray gun. It should
“click” into place and will not come out until the hose is released by pushing
in the lever on the underside of the gun. You may cut away the end of the
sleeve with a sharp knife if unable to move the sleeve down. Be careful not
to cut or puncture the hose.
The unit is running
but there is no
water ow.
1. Check the water source. Unclog the nozzle on the lance. (See nozzle
cleaning instructions under “Cleaning nozzles”.) Or take off the lance and
just spray out of the spray gun. This will indicate if the problem is with the
lance.
Why is water
leaking where the
high pressure hose
connects to the
spray gun?
1. Make sure there is an o-ring at the end of the metal tip of the high pressure
hose. If no o-ring is present, the connection between the hose and spray
gun will leak. O-Ring Kits are available at Customer Service at
1-866-206-0888 to place an order.
If you have any questions regarding the product, please call customer service at 1-866-206-0888.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you
use an antifreeze designed for pumps. It is recommended that you use this antifreeze for storing
in freezing temperatures. Freezing will damage the pump unless this is added to the power washer.
If not using or if storing your power washer for more than one month, it is also recommended that
an antifreeze is used to protect the pump.

17
kobalttools.com
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
I can’t remove the
lance from the
spray gun. What
should I do?
1. All lances and the detergent bottle are attached and removed from the spray
gun in the same manner. Insert the quick-release end of the lance/detergent
bottle into the spray gun. Press the spray gun and lance together (about a
1/8 in.) and turn clockwise. The lance will lock in place. Remove the lance by
reversing this procedure. Press the spray gun and lance together and turn
counter clockwise. The lance will slide out.
2. Hold the spray gun and lance in an upright position with the nozzle end on
the oor. Push the whole assembly straight down to loosen the connection,
and then follow the removal process again. You may also spray soapy water
or a lubricant in the area where the lance connects to the spray gun.
The power washer
turns on for
2 seconds, shuts
off, and will not turn
back on. Do I have
a defective unit?
1. When the water is connected, the accessories are assembled properly,
and the power switch is turned on, the power washer may turn on for 1 - 2
seconds to prime the pump. It automatically shuts off and waits for the spray
gun trigger to be pressed. When the trigger is pressed, water starts owing
through the pump. The water sensor in the pump “senses” the moving water
and automatically turns the power washer on.
2. Turn the power switch to off, hold in the trigger on the spray gun, so that you
have a steady stream of water. While you are holding the trigger open on the
spray gun, at the same time, turn the power switch on.

18
kobalttools.com
This power washer is warranted to the original purchaser from the original purchase date for one (1)
year subject to the warranty coverage described herein. The warranty is not transferable.
This power washer is warranted to be free from defects in material and workmanship. If you believe
that the power washer is defective at any time during the specied warranty period, please call
1-866-206-0888 for warranty services.
This warranty is void if: defects in materials or workmanship or damages result from repairs or
alterations which have been made or attempted by others or the unauthorized use of nonconforming
parts; the damage is due to normal wear, damage is due to abuse (including overloading of the
washer beyond capacity), improper maintenance, neglect or accident; or the damage is due to
the use of the washer after partial failure or use of improper accessories or unauthorized repair or
alteration.
This warranty gives you specic legal rights, and you may also have other rights that vary from state
to state. Manufacturer makes no warranties, representations or promises as to the quality of its power
washers other than those specially stated in this warranty.
For question, warranty claims, and/or warranty replacement parts, call our customer service
department at 1-866-206-0888.
Warranty Process
Keep your original receipt of purchase in case of warranty claim.
If your power washer develops a problem, contact Customer Service by calling our toll-free number
at 1-866-206-0888. Customer Service is available Monday - Friday 8:00 a.m. to 4:30 p.m. Eastern
Standard Time (EST). The Customer Service person will work with you to x the problem.
If the power washer needs to be returned for repair, shipping costs to the company must be paid by
the customer. A Return Merchandise Authorization (RMA) Number will be issued for the return.
Upon receiving the power washer, the company will repair or replace the unit. We will send unit back
to customer at no charge.
Please note: Power washers sent to the company without an RMA Number will NOT be accepted
and shipped back at the expense of the sender.
LIMITED WARRANTY

kobalttools.com
19
Printed in China
KOBALT®and the K Design®are registered
trademarks of LF, LLC. All Rights Reserved.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-866-206-0888, 8 a.m. - 4:30 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
A Detergent Bottle PW50954
B Hose PW4220600
C Spray Gun PW4120393
DVariable Spray Nozzle PW4120410
E Extension Lance PW4120400
F Gun Holder PW4220581
G Cord Hook PW4220590
HWheel PW4220540
IWheel Cover PW4220552
PART DESCRIPTION PART #
J Quick Connect Filter PW3082130
KGarden Hose Adapter PW3082732
L O-Ring Kit
(not shown)
PW909107K
A
B
HI
D
E
K
F
J
CG

20
MODÈLE N° KPW-1500
ARTICLE N° 0571007
LAVEUSE
ÉLECTRIQUE À
PRESSION
kobalttools.com
KOBALT®et K Design®sont des marques de commerce
déposées de LF, LLC. Tous droits réservés.
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service à la clientèle au 1-866-206-0888, entre 8 h et 16 h 30
(HNE), du lundi au vendredi.
JOINDRE VOTRE REÇU ICI
Numéro de série Date d’achat
