OPERATOR’S MANUAL
12V COMBI DRILL & IMPACT
DRIVER CORDLESS PACKS
Please retain this information for future reference.
WARNING:
THE SAFETY INFOR ATION GIVEN INSIDE UST BE
READ AND UNDERSTOOD BY ANY PERSON USING, INSTALLING,
REPAIRING OR AINTAINING THESE PRODUCTS.
© The Kennedy Group Ltd. 10/17
QUALITY GUARANTEE & WARRANTY
KOBE INDUSTRIAL POWER TOOLS carry a one year manufacturer’s warranty.
KOBE INDUSTRIAL POWER TOOLS are designed & manufactured
to the highest standards & specifications
Assuring the quality and performance required by all sectors of industry.
KOBE INDUSTRIAL POWER TOOLS are fully guaranteed against
faulty materials & workmanship
Should they be found to be defective, they will either be repaired or replaced free of charge (fair wear and
tear and/or misuse excepted).
Please retain supplier invoice as proof of purchase.
DECLARATION OF CONFORMITY
We hereby certify that KOBE 12V CO BI DRILL & I PACT DRIVER CORDLESS PACKS
(ORDER CODES: KBE-279-4600K, KBE-279-4620K, KBE-279-4640K) (EXCLUDING CHARGER)
complies with all the relevant provisions of the
E C Directive 2014/30/EU
Standards Applied: EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2
EC achinery Directive 2006/42/EC
Standards Applied: EN 60745-1:2009+A11, EN 60745-2-1:2010, EN 60745-2-2:2010, ZE 01.4-08/11.11
We hereby certify that KOBE 12V BATTERY CHARGER
(ORDER CODE: KBE-280-0145A)
complies with all the relevant provisions of the
E C Directive 2014/30/EU
Standards Applied: EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2, EN 61000-3-2:2014, EN 61000-3-3:2013
Low Voltage Directive 2014/35/EU
Standards Applied: EN 60335-1:2012+A11, EN 60335-2-29:2004+A2, EN 62233:2008
Restriction of the use of certain hazardous substances (RoHS2) 2011/65/EU
Standards Applied: EN 50581-1:2012
(Applicable to all)
Signed:
Date: 3rd October 2017
Name: eith Read
Position: HSQE Manager
ORDER CODES:
KBE-279-4600K 12V CO BI DRILL & I PACT DRIVER TWIN PACK WITH
2 X 1.3AH LI-ION BATTERIES
KBE-279-4620K 12V CO BI DRILL PACK WITH 2 X 1.3AH LI-ION BATTERIES
KBE-279-4640 K 12V I PACT DRIVER PACK WITH 2 X 1.3AH LI-ION BATTERIES

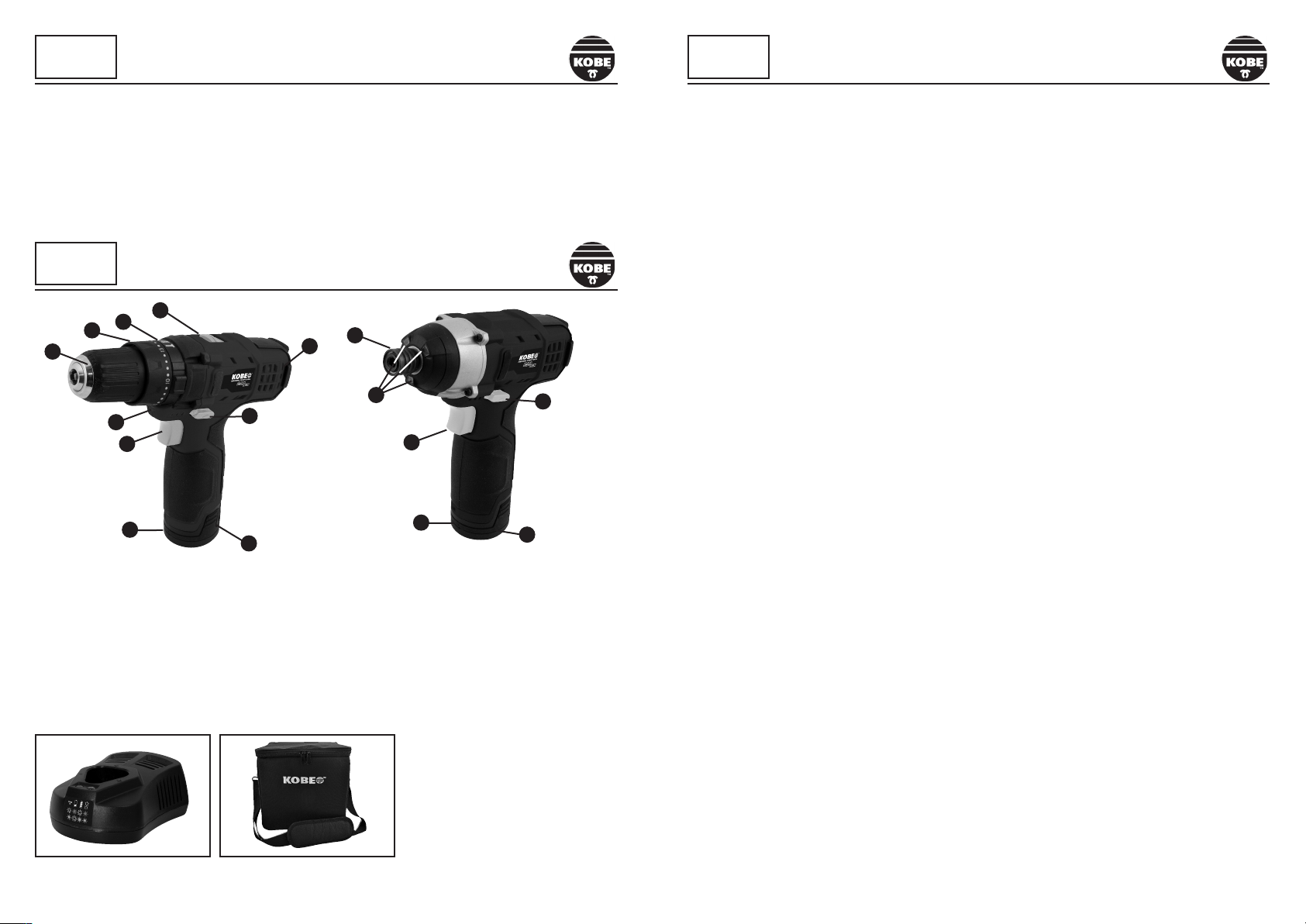

Both Combi Drill and
Impact Driver feature:
•Ergonomic soft grip handle
•Built-in LED light
•Forward and reverse switch
•60 minutes charging time
•Trigger with speed adjustment feature
Combi Drill features:
•10mm single sleeve keyless chuck
•Automatic spindle lock function
•Impact function
•2-speed gear selection
•Torque adjustment ring
•Function ring to switch between driving,
drilling and drilling with impact
Impact Driver features:
•1/
4” collet size
•Quick release chuck
•Max. torque 80-90Nm
Accessories:
•1.3Ah Li-ion battery charger with
battery power indicator lights
•Carry case with shoulder strap
KOBE TOOLS, THE KENNEDY GROUP, WIGSTON, LEICESTER, ENGLAND, LE18 2FS.
KOBE TOOLS
THE KENNEDY GROUP LTD,
WIGSTON, ENGLAND, LE18 2FS.
KOBE
IN D U S T R I A L
POWER TOOLS
THE ENVIRONMENT
Always dispose of unwanted tools, accessories and packaging materials in an environmentally
friendly manner.
In observance of European Directive 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE) and its implementation in accordance with national law, electrical goods that have reached
the end of their life must be collected separately and returned to an environmentally compatible
recycling facility.
Do not dispose of electrical goods with domestic waste materials as inappropriate disposal may
cause potential hazards to the environment and human health.
For further information, please contact your local authority or the retailer from whom you purchased
the product.
This product does not contain any restricted substances in concentrations and applications which
are banned by the European RoHS2 Directive.

2 15
KOBE INDUSTRIAL POWER TOOLS
have been specifically designed to help you work
SAFELY and EFFICIENTLY. Your care and good judgement are the best protection against injury, but
always ensure that the appropriate safety equipment is worn. All possible hazards cannot be covered here,
but the most important ones have been highlighted.
KOBE
IN D U S T R I A L
POWER TOOLS
SAFETY INSTRUCTIONS
You have purchased a quality professional product that is
designed for high performance and long service life.
If correct use, safety and maintenance procedures
are observed this machine will last for many years.
lAlways adhere to the processes and safety
warnings, which are stated in the instruction
manual.
GENERAL OPERATING HAZARDS
lAlways ensure the mains power supply
corresponds to the power rating on the
specification label on the machine.
lAlways plug the battery charger into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. Check with a qualified electrician if
you are in doubt as to whether the outlet is
properly grounded.
lAlways ensure the maintenance of electrical
components is carried out by a suitably qualified
person.
lNever allow routine to lead to mistakes.
lNever operate if any parts are missing or
damaged.
lNever allow untrained persons to operate the
power tool.
WORKPLACE HAZARDS
lAlways ensure your working area is clean and
well lit.
lWhen working at height make sure that the tool is
safely secured and be aware of objects falling
below. Make sure that no persons are working
directly below the working area.
lDo not operate in explosive atmosphere, for
instance extreme dust, gases and liquids.
leep children and bystanders away while
operating the power tool. Distractions can cause
you to lose control.
lAlways ensure all users are physically able and
competent to handle the size and weight of
items/components being drilled and have
received appropriate training to perform the task.
lNever run the power tool in areas exposed to
water or in damp conditions.
PERSONAL PROTECTION
lAlways wear approved eye protection during
operation. Use safety glasses or goggles which
conform to BSEN136 or CE equivalent that
provide protection from the front and side. The
operator of the power tool is responsible for
following accepted eye, face, respiratory, hearing
and body protection.
lAlways ensure that all long hair and loose clothing,
ties, scarves, jewellery, etc., are secured or
removed.
lAlways consult a doctor if numbness, tingling,
pain or whitening of the skin occurs. Repetitive
work motions, awkward positions and exposure
to vibration can cause “Repetitive Strain
Injuries”.
lWhen operating a power tool stay alert and use
common sense, especially when it comes to
working at height. Be aware of what’s below you.
lDo not overreach. eep a proper balance and
footing at all times.
lRemove any adjusting key or wrench before
turning the power tool on.
lIf devices are provided for the collection of dust,
ensure these are connected and properly used.
lDo not use a power tool if under the influence of
alcohol, drugs or medication.
POWER TOOL USE AND CARE
lDo not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate
for which it was designed.
lDo not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
lStore idle power tools out of the reach of
children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
lMaintain power tools. Check for misalignment or
binding of moving parts,breakage of parts and
any other condition that may affect the power
tools operation. If damaged,have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
KOBE
IN D U S T R I A L
POWER TOOLS
PARTS BREAKDOWN
No. Order Code Description Qty
1 BE2989952A SCREW 2
2 BE2989952B SCREW 7
3BE2989952C HOUSING 1
4 BE2989952D SEGREGATION 1
5 BE2989952E BATTERY 1
6 BE2989952F BATTERY REMIND LIGHT 1
7 BE2989952G LIGHT COVER 1
8 BE2989952H FORWARD-BAC BUTTON 1
9 BE2989952J 2 SPEED BUTTON 1
10 BE2989952 RING 1
11 BE2989952L SWITCH 1
12 BE2989952M GEAR BOX 1
13 BE2989952N HOUSING 1
KOBE
IN D U S T R I A L
POWER TOOLS
SERVICE & REPAIRS
A comprehensive repair and service facility is
available through your local obe agent.

14 3
KOBE
IN D U S T R I A L
POWER TOOLS
SAFETY INSTRUCTIONS continued
lUse the power tool, accessories and tool bits
etc., in accordance with these instructions and in
the manner intended for the particular type of
power tool, taking into account the working
conditions and the work to be performed. Use of
the power tool for operations different from
intended could result in a hazardous situation.
lThis product contains Lithium Ion batteries which
must be disposed of properly.
lBe aware that this tool is always in an operating
condition, because it does not have to be
plugged into an electrical outlet.
lFully charge the battery for better operation.
lBe sure the battery is snapped in place.
lWhen not in use, lock the switch.
lWhen operating at a high place, be aware of
things below and around you.
lBefore drilling into walls, ceilings, or floors,
ensure that there are no concealed power cables
inside.

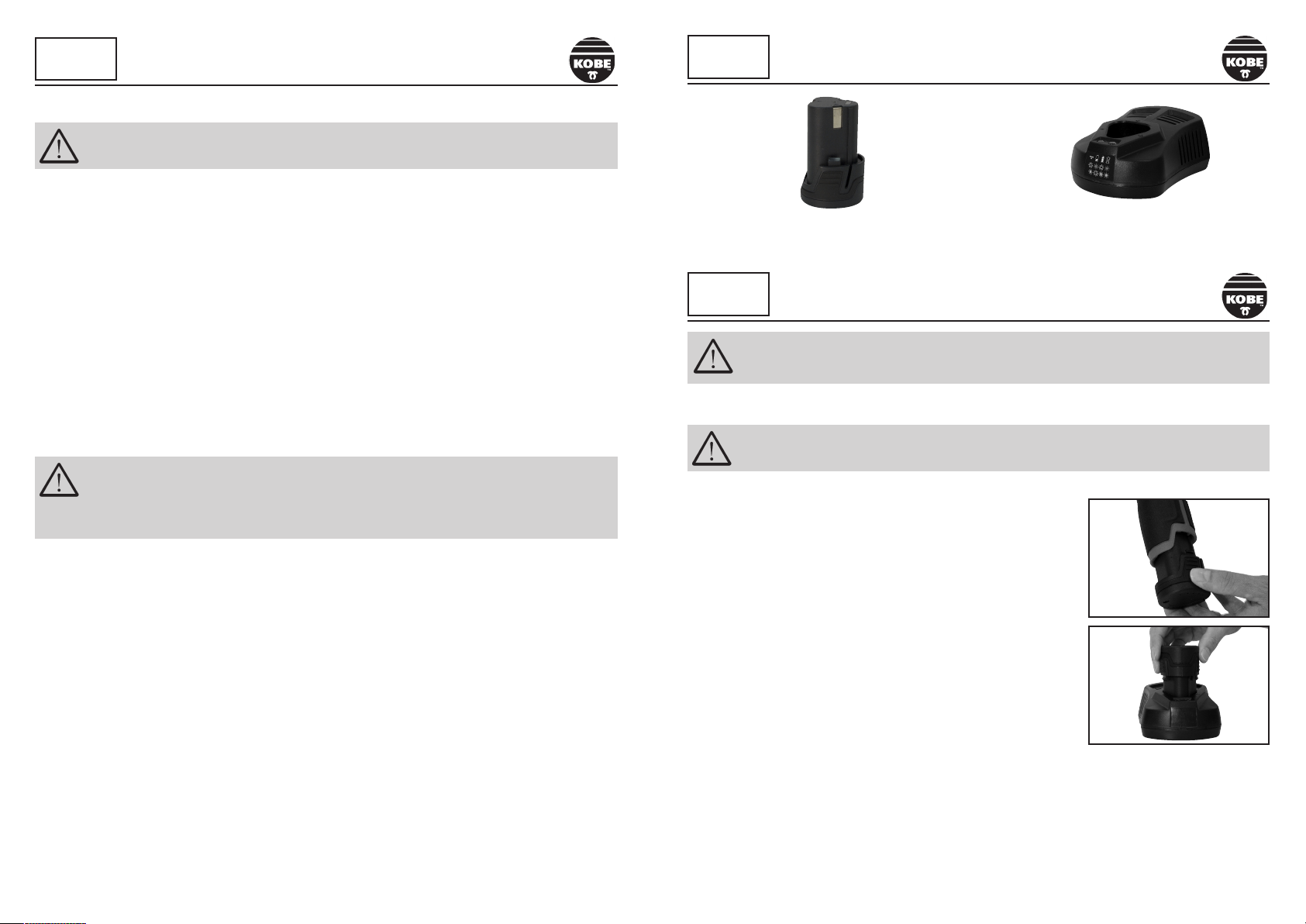

BATTERY & CHARGER
USE & CARE
lRecharge only with the charger provided by the
manufacturer. Using a charger different to that
supplied may create a fire risk
lUse power tools only with specifically designated
battery packs. Use of any other battery packs
may create a risk of injury and fire.
lWhen battery pack is not in use, keep it away
from other metal objects, paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another.
lOnly charge the battery at an atmospheric
temperature between 4˚C and 40˚C.
lEnsure that the battery and charger are kept
in a dry, safe place. Do not allow the battery
and charger to get damp or be kept in extreme
heat and cold conditions.
lDo not use the battery charger outdoors.
lNever attempt to connect two chargers together.
lThe charger is designed to operate on standard
household electrical power. Do not attempt to
use it on any other voltage.
lDo not insert foreign matter into the hole
reserved for the battery in charger stand.
lDo not charge by means of an engine generator
or DC power source.
lDo not disassemble the battery and charger by
yourself. Incorrect reassembly may result in a
risk of electric shock, electrocution or fire. Let
the battery and charger be repaired by a
professional engineer.
lAvoid dropping the battery and do not subject it
to pressure or any other form of mechanical
stress.
lDo not store the tool and battery in locations
where the temperature may reach or exceed
40˚C, such as outside sheds or metal buildings
in summer.
lDo not incinerate the battery, even if it is
severely damaged or completely worn out. The
battery may explode in fire.
lBattery leakage may occur under conditions of
extreme usage or temperature. If liquid comes in
contact with skin, wash quickly with soap and
water, then lemon juice or vinegar. If liquid gets
in your eyes, wash with a strong solution of boric
acid and seek medical attention immediately.
lNever short-circuit the rechargeable battery.
Short circuiting the battery will cause a great
electric current and over heat. It results in burn
or damage to the battery.
lAvoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges or
refrigerators. This can have an increased risk
of an electric shock if your body is earthed or
grounded.
lDo not abuse the cord of the battery charger.
Never use the cord for carrying, pulling or
unplugging the charger. eep the cord away from
heat, oil, sharp edges or moving parts.
A damaged or entangled cord increases the risk
of an electric shock.
lThe battery pack for this tool has been shipped
in a low charge condition, therefore, you should
charge it prior to use.
lThis appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
lChildren should be supervised to ensure that
they do not play with the appliance.
lDo not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
KOBE
IN D U S T R I A L
POWER TOOLS
PARTS BREAKDOWN
12V CO BI DRILL

4 13
KOBE
IN D U S T R I A L
POWER TOOLS
ELECTRICAL INFORMATION
In the United ingdom, the ELECTRICITY AT WORK ACT 1989 requires all portable electrical appliances,
if used on business premises, to be tested by a qualified electrician, using a Portable Appliance Tester (PAT),
at least once a year. The HEALTH & SAFETY AT WORK ACT 1974 makes owners of electrical appliances
responsible for the safe condition of the appliance and the safety of its operator. If in any doubt about
electrical safety, contact a qualified electrician.
ELECTRICAL SAFETY
lAn RCCB (Residual Current Circuit Breaker) should be fitted in the mains electricity distribution board. If the
power supply is not protected by an RCCB, it is highly recommended that an RCD (Residual Current Device)
is used with all portable electrical products.
lDo not use any adaptor plugs.
lDo not carry or yank the tool by the cord/hose.
lNever expose power tools to rain or wet conditions as this will increase the risk of electric shock.
lUse an outdoor extension cord when operating a power tool outside.
EXTENSION REELS
When a cable extension reel is used it should be fully unwound before being connected. Use at least 1.5mm2
section cable or to be absolutely sure use 2.5mm2section cable.
KOBE
IN D U S T R I A L
POWER TOOLS
SAFETY INSTRUCTIONS continued
lContact your local government for information
regarding the collection systems available.
lIf electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into
the groundwater and get into the food chain,
damaging your health and well-being.
lWhen replacing old appliances with new ones,
the retailer is legally obligated to take back your
old appliance for disposal at least for free of
charge.
lDo not recharge non-rechargeable batteries.
DISPOSAL OF EXHAUSTED
BATTERIES
lThis Product Contains Lithium Ion Battery. Must
Be Disposed Of Properly. Consult your local
waste authority for information regarding
available recycling and/or disposal options.
KOBE
IN D U S T R I A L
POWER TOOLS
PARTS BREAKDOWN
No. Order Code Description Qty
1BE2989950A SPRING 1
2 BE2989950B WASHER 1
3 BE2989950C SPRING 1
4BE2989950D CHUN COVER 1
5 BE2989950E STEEL BALL 28
6 BE2989950F HEAD COVER 1
7 BE2989950G LIGHT COVER 3
8 BE2989950H LED BREADBOARD 1
9 BE2989950J HEAD CONNECTING SLEEVE 1
10 BE2989950 SCREW 4
11 BE2989950L HEAD 1
12 BE2989950M O SEAL RING 1
13 BE2989950N AXLE SLEEVE 1
14 BE2989950P WASHER 1
15 BE2989950Q OUTPUT SHAFT 1
16 BE2989950R STEEL BALL 2
17 BE2989950S ASSAULT BLOC 1
18 BE2989950T WASHER OF STEEL BALL 2
19 BE2989950V IMPACT SPRING 1
20 BE2989950W SPRING BASE 1
21 BE2989950X BALL BEARING 1
22 BE2989950Y GEAR ROOM 1
23 BE2989950Z BEARING SHIM 1
24 BE2989951B CENTRAL SHAFT 1
25 BE2989951C PLANETARY GEAR \ 3
26 BE2989951D INTERNAL RING GEAR 1
27 BE2989951E WASHER 1
28 BE2989951F SCREW 2
29 BE2989951G MOTOR HOLDER 1
30 BE2989951H SCREW 3
31 BE2989951J GEAR 1
32 BE2989951 550 MOTOR 1
33 BE2989951L BATTERY REMIND LIGHT 1
34 BE2989951M FORWARD-BAC BUTTON 1
35 BE2989951N SWITCH 1
36 BE2989951P FRAME BASE 1
37 BE2989951Q POLE PIECE 2
38 BE2989951R BATTERY 1
39 BE2989951S LEFT HOUSING 1
40 BE2989951T RIGHT HOUSING 1
41 BE2989951V SCREW 6
42 BE2989951W SCREW 2

12V I PACT DRIVER
12 5
KOBE
IN D U S T R I A L
POWER TOOLS
SPECIFICATIONS
KOBE
IN D U S T R I A L
POWER TOOLS
PARTS BREAKDOWN
BATTERY:
ORDER CODE: BE-280-0145
POWER: Lithium Ion, 12V, 1.3Ah
WEIGHT: 175G
DIMENSIONS: 80(H) x 45(W) x 52(D)mm
CHARGER:
ORDER CODE: BE-280-0145A
INPUT: 230V ~ 50Hz, 25W
CHARGING VOLTAGE: DC 12V
CHARGING TIME: 60 Minutes
WEIGHT: 353G
DIMENSIONS: 40(H) x 100(W) x 135(D)mm
I PACT DRIVER: CO BI DRILL:
HEX COLLECT SIZE: (6.35mm) N/A
CHUC CAPACITY: 14" 10mm
MOTOR: 12V 12V
NO LOAD SPEED: 0-2000/Rpm LOW: 0-350/min
HIGH: 0-1300/min
IMPACTS PER MINUTE: 0-3000 I.P.M 0-13,000min
NO. OF TORQUE SETTINGS: N/A 20 Positions
MAX. TORQUE: 80-90Nm 45Nm
MAX. DRILLING DIAMETER:
- IN STEEL: N/A 10mm
- IN WOOD: N/A 18mm
WEIGHT (Not incl. battery): 0.904 G 0.844 G
DIMENSIONS (Not incl. battery): 170(H) x 50(W) x 190(D)mm 160(H) x 50(W) x 170(D)mm
SOUND PRESSURE LEVEL LpA = 84.13dB (A) pA = 3dB LpA = 80.64dB (A) pA = 3dB
SOUND POWER LEVEL LwA = 95.13dB (A) WA = 3dB LwA = 91.64dB (A) WA = 3dB
VIBRATION 4.406m/s2 = 1.5m/s27.495m/s2 = 1.5m/s2
12V CO BI DRILL & I PACT DRIVER TWIN PACK WITH 2 X 1.3AH LI-ION BATTERIES
ORDER CODE: KBE-279-4600K
GW WEIGHT: 2.451KG
12V CO BI DRILL PACK WITH 2 X 1.3AH LI-ION BATTERIES
ORDER CODE: KBE-279-4620K
GW WEIGHT: 1.547KG
12V I PACT DRIVER PACK WITH 2 X 1.3AH LI-ION BATTERIES
ORDER CODE: KBE-279-4640K
GW WEIGHT: 1.607KG

6 11
KOBE
IN D U S T R I A L
POWER TOOLS
IDENTIFICATION
CHARGER CARRY CASE
1. eyless Chuck
2. Torque Adjustment Ring
3. Driving, Drilling and Impact Function Ring
4. Gear Selector Switch
5. Cooling Vents
6. Forward/Reverse Switch
7. Battery Release Button
8. Battery Pack
9. Trigger with Speed Adjustment Feature
10. LED light
11. Quick Release Chuck
12. Forward/Reverse Switch
13. Battery Release Button
14. Battery Pack
15. Trigger with Speed Adjustment Feature
16. LED Lights
KOBE
IN D U S T R I A L
POWER TOOLS
BOX CONTENTS
KBE-279-4600K
12V Combi Drill x 1
12V Impact Driver x 1
1.3AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
KBE-279-4620K
12V Combi Drill x 1
1.3AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
KBE-279-4640K
12V Impact Driver x 1
1.3AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
Before disposing of the packaging or attempting to assemble this product please
check that all of the below components are present and are not damaged.
KOBE
IN D U S T R I A L
POWER TOOLS
MAINTENANCE
leep the Combi Drill, Impact Driver, Batteries and Battery Charger in the carry case provided and store
in a dry place where they will not be exposed to frost or direct sunlight. Also keep away from fire sources
and sources of extreme temperatures (such as solar heating, heaters or in any place above 50˚C).
lNever use the drivers, batteries or battery charger if there are any signs of wear and tear or cracks.
Remove from use until replaced or repaired using only genuine parts by a qualified person.
lTo assure the safety and reliability, all repairs should be performed by an authorised service centre.
lOnly use the recommended battery and chargers. If they need replacing please see ‘SPARES’ section
on page 7.
lThe batteries and battery charger should never be placed near any coins or metal wares such as screws
and drivers to avoid short circuit of battery or battery charger.
lDisconnect the power tool from the mains and allow it to cool before undertaking any cleaning task.
lClean the power tool and the mains connection with a dry or damp cloth and allow to dry. DO NOT
immerse in water or any other liquid or place under running water.
lDO NOT use any solvents or products with an acid or base pH such as bleach or abrasive products.
lDO NOT let water or any other liquid into the air vents as this can cause damage to the inner parts of
the power tool.
lAlways keep air ventilation holes free of dust to prevent overheating.
1
11
2
3
4
5
6
7
13
814
915
10
16 12

10 7
PLEASE NOTE: The batteries are supplied with a low charge. To prolong the life of the batteries, charge
the batteries fully before first use.
1. Remove the battery from the power tool by pressing the battery
release button (7 or 13) and pulling the battery out of the drill
(See Fig.1).
2. Insert the battery into the charger provided only. Align raised part on
the battery with the groove in the charger. Using any other charger
than the one provided can cause severe damage and may even
cause the battery to explode. (See Fig.2).
3. Connect the charger to the power supply and charge for the time
stated below.
CHARGING TI E: 60mins approx.
4. The red pilot light on the charger will remain on and the green pilot
light will flash, indicating that the battery is charging. Once the battery
is charged the red pilot light will turn off and the green pilot light will
turn on.
5. When the battery is fully charged, unplug the charger from the power
source and remove the battery from the charger by pressing the
battery release button (7 or 13).
PLEASE NOTE: The battery may feel slightly warm while charging. This is normal and does not indicate a
problem. Do not place charger in an area of extreme heat/cold. Charge the battery at an atmospheric
temperature of between 0 and 45˚C. Not for outdoor use. The battery will not reach its full charge after
the first time of charging. Allow several cycles of drilling followed by re-charging for them to become
fully charged.
KOBE
IN D U S T R I A L
POWER TOOLS
OPERATION
CHARGING THE BATTERY:
DANGER! Do not insert the battery into the charge if the battery case is
cracked or damaged in anyway.
WARNING! BEFORE ATTE PTING TO USE THE POWER TOOLS, AKE SURE
YOU ARE FA ILIAR WITH ALL OPERATING AND SAFETY INSTRUCTIONS.
KOBE
IND U S T R I A L
POWER TOOLS
OPERATION
DRILLING (CO BI DRILL ONLY):
1. Ensure that the material to be drilled is secured in a vice or with clamps to keep it from turning as the
drill bit rotates.
2. Hold the drill firmly and place the drill bit at the point to be drilled.
3. Depress the trigger (9) to start the rotation of the drill.
4. Move the drill bit into the workpiece, applying only enough pressure to feed the cutting. Do not force or
apply side pressure to elongate a hole.
5. Once hole is drilled switch the drill into reverse and guide out.
If drilling into metal use a light oil on the drill bit piece. This will help prevent the drill bit overheating and
prolong the life of the drill bit.
Please note: When drilling hard smooth surfaces use a centre punch to mark the desired hole location.
This will prevent the drill from slipping off centre as the hole is drilled. However, the lower speed
setting: 1 allows the starting of holes without punching if desired.
If the drill bit jams in the workpiece or if the drill stalls, stop the drill immediately, remove the drill bit
from the workpiece and determine the reason for jamming before continuing.
WARNING! Be prepared for binding or breakthrough. When these situations
occur, the drill has a tendency to grab and kick in the opposite direction
and could cause loss of control which could results in serious personal
injury.
FIG.1
FIG.2
LED LIGHT (10 OR 16):
Both the Combi Drill and the Impact Driver have LED Lights (10 or 16) to illuminate the workpiece.
The lights illuminate when the trigger is depressed and cuts off when the trigger is released.
WARNING! DO NOT STARE AT THE LED LIGHT NOR SHINE IT IN OTHER
PEOPLE’S EYES.
KOBE
IN D U S T R I A L
POWER TOOLS
SPARES
1.3AH LI-ION BATTERY
ORDER CODE: KBE-280-0145K
1.3AH LI-ION BATTERY CHARGER
ORDER CODE: KBE-280-0145A

8 9
KOBE
IN D U S T R I A L
POWER TOOLS

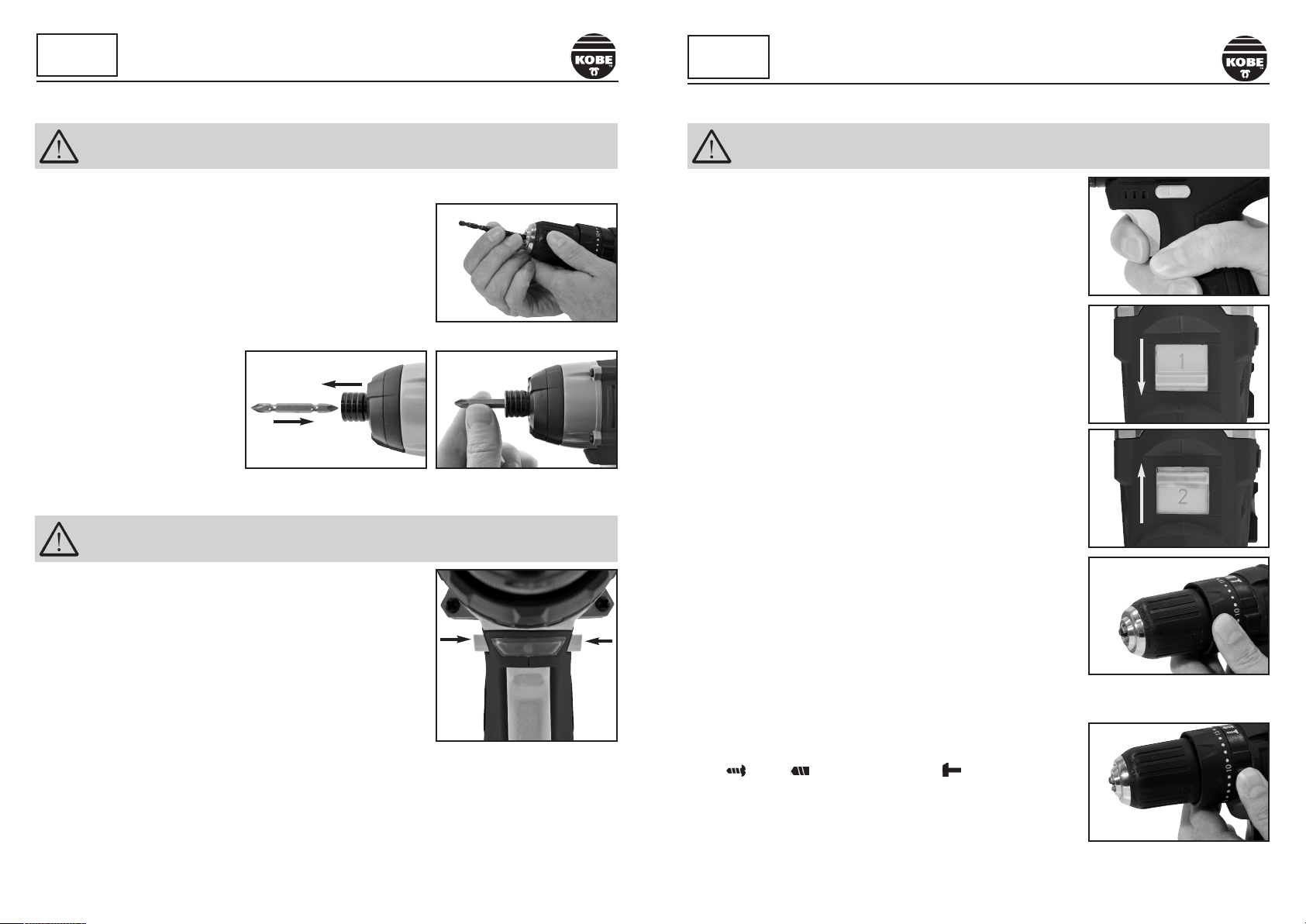

OPERATION
COMBI DRILL:
INSTALLING AND RE OVING BITS:
FORWARD/REVERSE SWITCH (6 or 12):
WARNING! Before installing or removing bits, place the Forward/Reverse
Switch in its central position, this will turn the power off to the driver.
1. The Combi Drill is fitted with a keyless chuck. To open the chuck (1)
make sure the tool is switched off, take a firm hold of the back of the
chuck and turn the front part of the chuck counter clockwise.
Place the drill bit into the chuck as far as it will go, take a firm hold of
the back part of the chuck and turn the front part of the chuck
clockwise until it is firmly closed (See Fig.2).
To place the Combi Drill or Impact Driver into the FORWARD position:
1. Ensure that the Combi Drill or the Impact Driver has come to a
complete stop.
2. Push the Forward/Reverse Switch (6 or 12) to the RIGHT (See Fig.5).
This will rotate the driver in a clockwise direction.
To place the Combi Drill or Impact Driver into the RE ERSE position:
1. Ensure that the Combi Drill or the Impact Driver has come to a
complete stop.
2. Push the Forward/Reverse Switch (6 or 12) to the LEFT (See Fig.5).
This will rotate the driver in an anti-clockwise direction.
To place the Combi Drill or Impact Driver into the NEUTRAL position:
1. Ensure that the Combi Drill or the Impact Driver has come to a complete stop.
2. Centre the Forward/Reverse Switch (6 or 12) (See Fig.5). This will stop the driver rotating.
FIG.2
IMPACT DRI ER:
1. Pull the sleeve on the chuck (11)
in the direction shown in Fig.3.
2. Insert the screw bit into the hole
of the chuck (See Fig.3).
3. Release the chuck sleeve (11)
for it to return to its original position.
4. Pull on the screw bit until it
automatically locks into place
(See Fig.4). FIG.4
FIG.5
FIG.3
WARNING! Do not change the direction of rotation until the driver comes to
a complete stop.
KOBE
IND U S T R I A L
POWER TOOLS
OPERATION
OPERATING THE TRIGGER (9 OR 15):
2-SPEED LEVEL (CO BI DRILL ONLY):
TORQUE CONTROL (CO BI DRILL ONLY):
1. Depress the Trigger (9 or 15) to rotate the driver (See Fig.6).
2. The speed of the Combi Drill and the Impact Driver can be adjusted by
the amount of pressure applied to the trigger. The more pressure
applied to the trigger, the faster the rotation speed.
3. To avoid accidentally starting the driver, position the Forward/Reverse
Switch (6 or 12) into the central position to stop the driver rotating.
The Combi Drill has a 2-speed level designed for drilling or driving at low
or high speeds.
Selecting Speed 1 (LOW):
1. The 2-speed switch (4) is located at the top of the Combi Drill.
Slide this backwards to select speed 1 (LOW) (See Fig.7). This will
decrease the speed in the drill but increase the power and torque.
Selecting Speed 2 (HIGH):
1. The 2-speed switch (4) is located at the top of the Combi Drill.
Slide this forwards to select speed 2 (HIGH) (See Fig.8). This will
increase the speed in the drill but decrease the power and torque.
It is recommended that you use Speed 1 (LOW) for high power and
torque applications and Speed 2 (HIGH) for fast drilling or driving
applications
The Combi Drill has Torque control. This prevents the heads of smaller
diameter screws being twisted off when correctly set.
Setting the Torque:
1. Turn the Torque Adjustment Ring (2) clockwise or anti-clockwise to
adjust the amount of torque (See Fig.9).
2. Fastening torque is greater as the numerals are larger. The drill
position has full torque.
Please note: Overloading and stalling the drill at any time can lead to
motor burnout and also dramatically reduces battery life.
WARNING! Do not change the direction of rotation until the driver comes to
a complete stop.
FIG.6
FIG.7
FIG.8
FIG.9
FUNCTION SETTINGS (CO BI DRILL ONLY):
The Combi Drill has a function ring. This is used to switch between
driving drilling and drilling with impact
Setting the driving, drilling and drilling with impact functions:
1. Turn the Function Ring (3) clockwise or anti-clockwise to switch
between the different settings (See Fig.10).
FIG.10
