KOBE CHX30 Series Troubleshooting guide

KOBE Range Hoods
Brillia Series
CHX-30 Series
(400 CFM with LED Lights)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

READ BEFORE INSTALLATION
1. Carefully check all contents of packages;
2. Thoroughly inspect the unit for any cosmetic damages or
defects;
3. Test the unit before installation;
4. Have a certified contractor/electrician do the installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original proof of purchase and product serial
number ready.
3. Call 1-877-BUY-KOBE (289-5623); or e-mail to
[email protected]om to report the problem
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL AND/ OR PARTS
IMPORTANT
READ THIS FIRST

[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1
COMPONENTS OF PACKAGE.................................................................................................. 3
INSTALLATION.......................................................................................................................... 4
OPERATION INSTRUCTIONS................................................................................................... 9
MAINTENANCE........................................................................................................................10
SPECIFICATIONS ....................................................................................................................11
MEASUREMENTS & DIAGRAMS.............................................................................................12

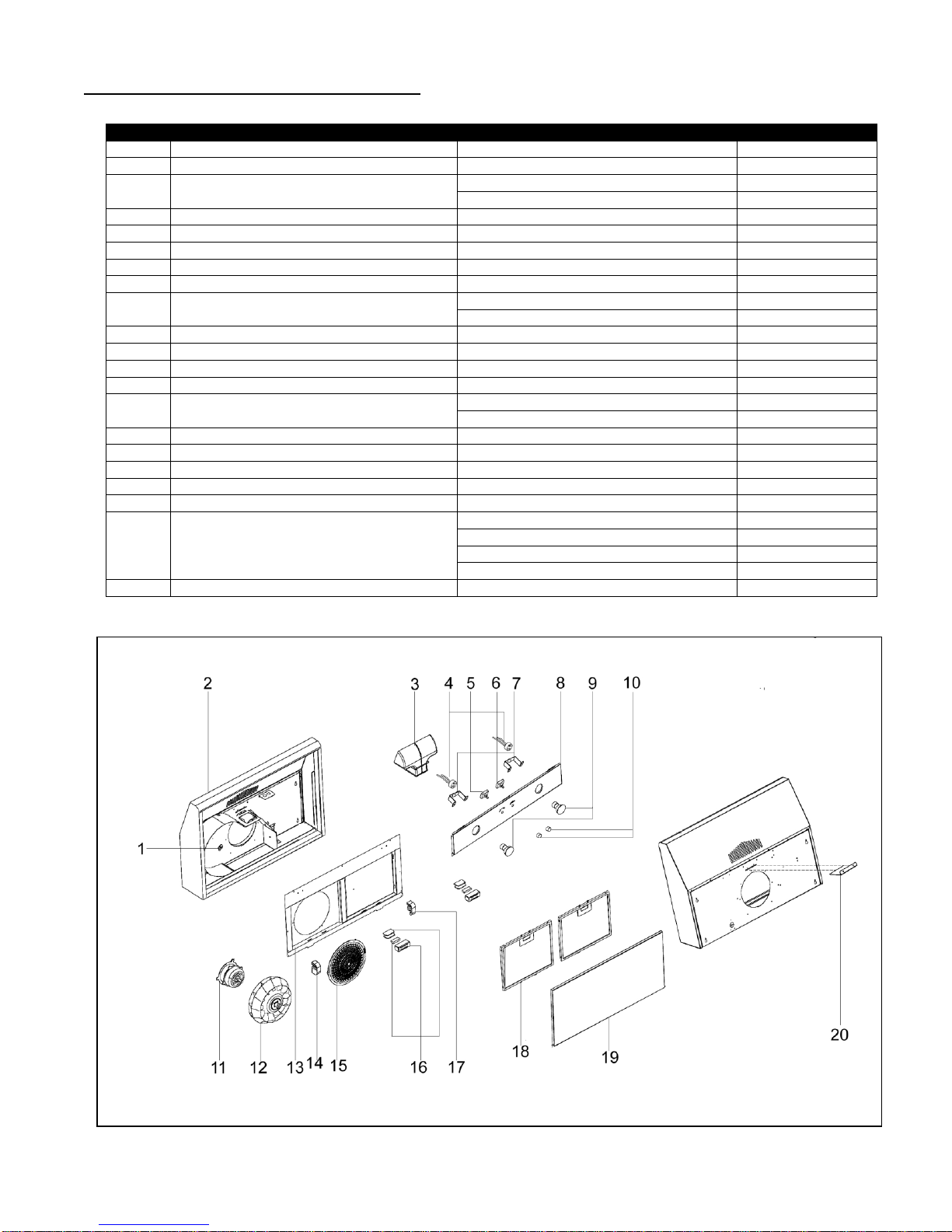

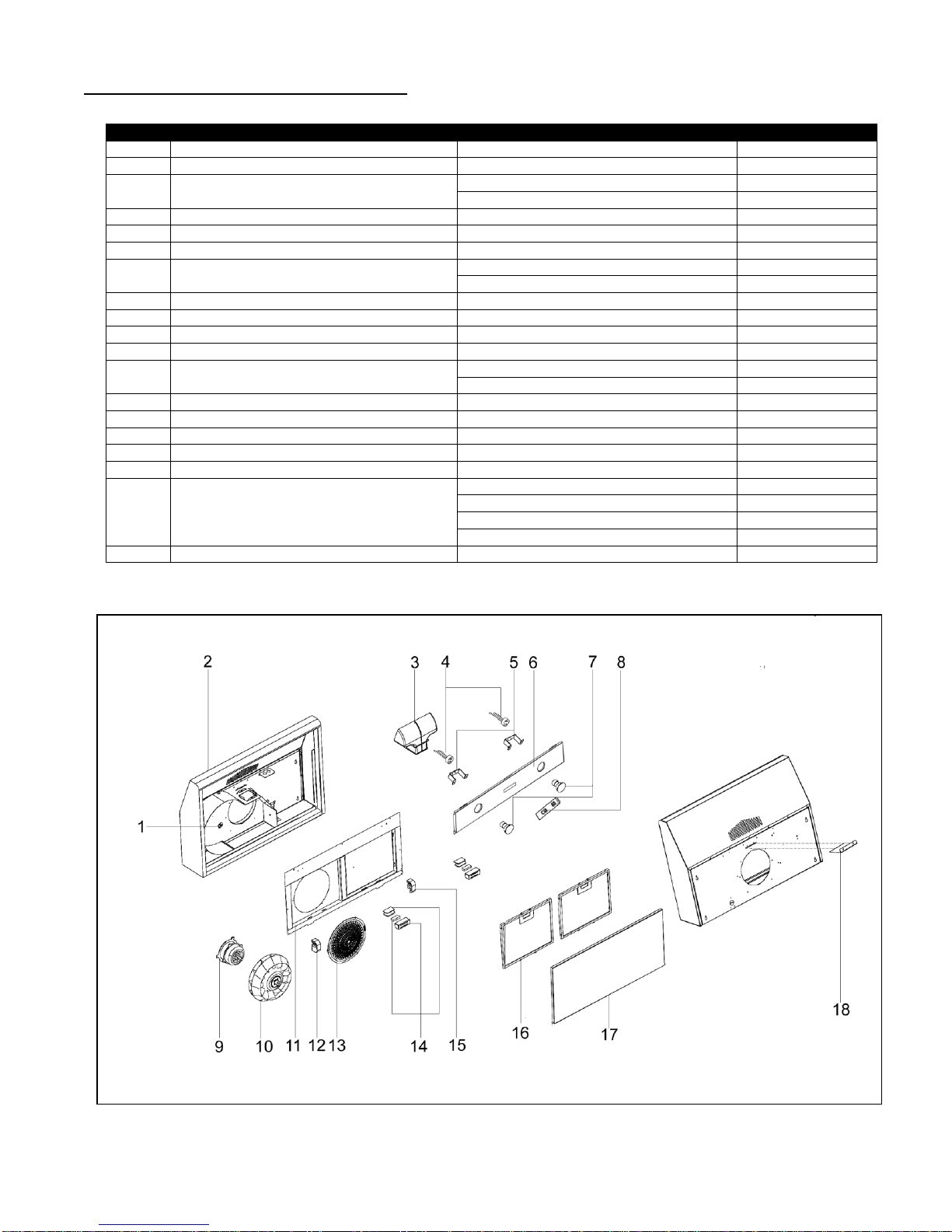

PARTS LIST..............................................................................................................................14
CIRCUIT DIAGRAM..................................................................................................................17
TROUBLE SHOOTING.............................................................................................................14
DISCLAIMER............................................................................................................................19
WARRANTY .............................................................................................................................20
PRODUCT REGISTRATION.....................................................................................................22
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL W IRING MUS T BE DONE B Y A P RO FESSION AL AND I N
ACCORD ANCE WI T H NATI ONAL AND LO CAL ELE CTRICAL CO DES

1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, OBSERVE THE FOLLOWING:
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air
properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl
spaces or garages.
NOTE
-
This warranty is invalid without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents.
-
KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF ARANGE
TOP GREASE FIRE:
1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8. Clean ventilating fan frequently.

2
What to Do In The Event Of a Range Top Grease Fire
•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.
•NEVER PICK UP A BURNING PAN –You May Get Burned.
•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.
•Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
- Extinguish any open flame.
- Do not try to turn on the lights or any type of appliance.
- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and
vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, two people installation is recommended.
ELECTRICAL SHOCK HAZARD –Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which
must be recycled or disposed of according to Local, State, and Federal
Codes.

3

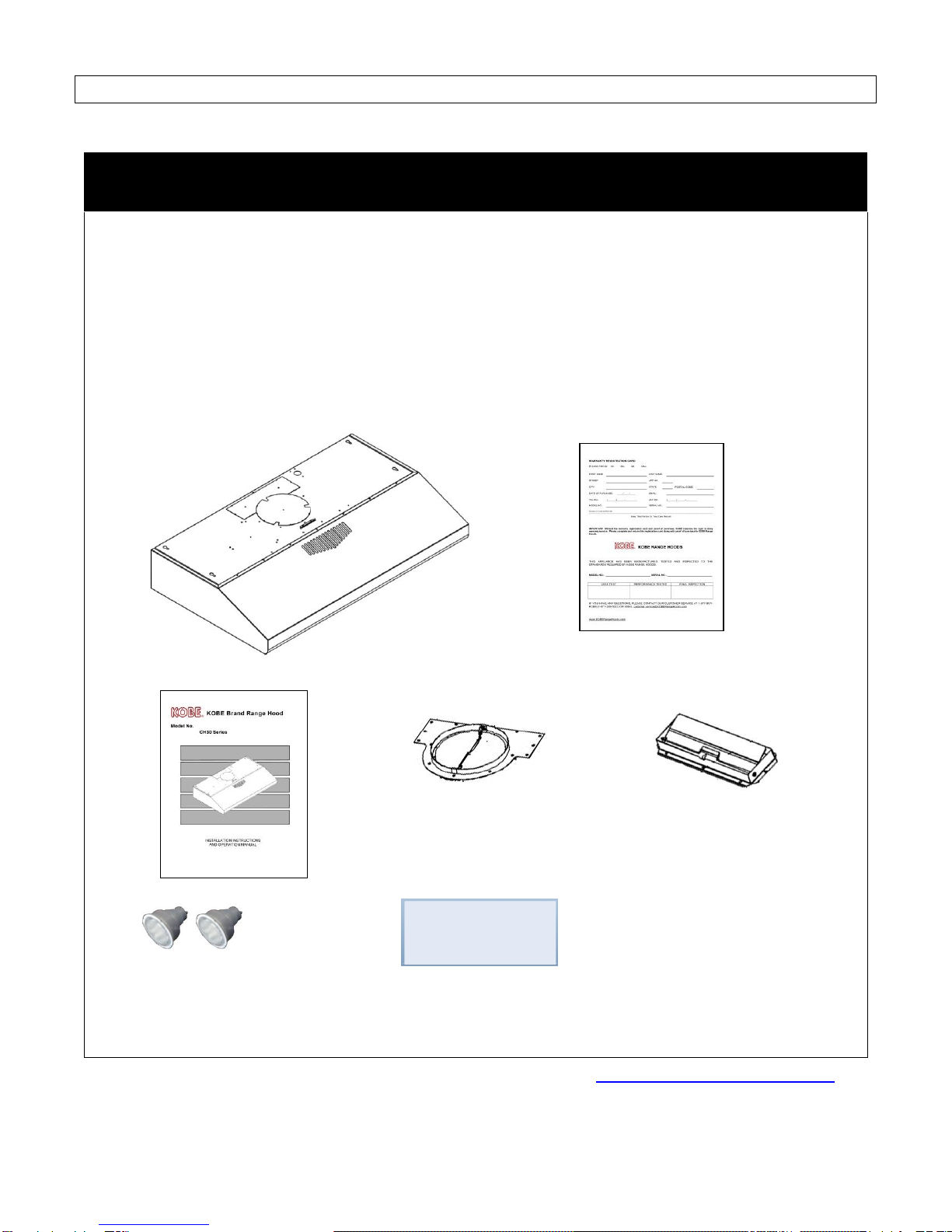

COMPONENTS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
{A} KOBE Range Hood –1
{B} Warranty Registration Card –1
{C} Instruction Manual –1
{D} Round Exhaust Plate with damper –1
{E} Rectangular Exhaust Plate with damper –1
{F} Light bulb –2
{G} Parametric Panel –1
{A} {B}
{C} {D} {E}
{F} {G}
FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR
CONTACT KOBE RANGE HOODS AT [phone].

4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculation in inches.)
- FOR UNDER THE CABINET -
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27” to 30”)
D = Height of Hood
E = Height of the Cabinet
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD
MAY OCCUR.

5
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.
Decide the location of the venting pipe
from the hood to the outside. Refer to
Figure 1.
A straight, short venting run will allow
the hood to perform more efficiently.
Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.
Temporarily wire the hood to test for
proper operation before installing.
Important: Peel protective film off
the hood (if any).
For installing under the cabinet with
recessed bottom, attach 4-inch wide
wood filler strips (not included) on each
side. Refer to Figure 2.
Using reference on Page 13 and 14 to
measure and create access opening for
electrical wires and exhaust under the
cabinet {refer to Vent Option Installation
on 7}. Refer to Figure 3.
Using reference on Page 13 and 14 to
position the mounting screws (not
included) underneath the cabinet. Refer
to Figure 4.
Install Lights before mounting hood
To install the light fixture:
-Insert the light fixture into the socket
and turn it clockwise to secure the
light fixture.
Figure 1
Figure 2
Figure 3
Figure 4

6
Vent option installation
1. Choose the require vent option.
NOTE: If the hood is to be installed as
ductless application, please do not remove
any duct knockout located at the top or the
back of the hood.
2. For 7” Round vent installation only:
-Using a flat-head screwdriver to remove
the 7” duct knockout. (Refer to Figure 5)
-Attached the 7” exhaust plate using 8
screws (provided). Refer to Figure 6.
3. For 3-1/4” x 10” vent installation only:
-Using a flat-head screwdriver to remove
the top OR the rear 3-1/4” x 10” duct
knockout. (Refer to Figure 7)
-Attached the 3-1/4” x 10” exhaust plate
using 6 screws (provided). Refer to
Figure 8 for Top Vent OR Figure 9 for
Rear Vent.
4. For ductless installation only.
-Remove the recirculating plate located
at the top of the hood, refer to Figure 10.
-Reinstall the recirculating plate
horizontally as shown in Figure 11.
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11

7
Wiring to Power Supply
SAFETY WARNING
RISK OF ELECTRICAL SHOCK. THIS
RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE
BY SPECIALIZED ELECTRICIAN IN
ACCORDANCE WITH ALL APPLICABLE
NATIONAL AND LOCAL ELECTRICAL
CODES. BEFORE CONNECTING WIRES,
SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
5. Connect the electrical wires.
-Connect three wires (black, white and
green) to house wires and cap with wire
connectors. Connect according to color:
black to black, white to white, and green
to green.
Hood Installation
CAUTION: If required to move the
cooking range to install the
hood, turn off the power on an electric range
at the main electrical box. SHUT OFF
THE GAS BEFORE MOVING A
GAS RANGE.
6. Align screws with the mounting holes on top
of the range hood, and push toward the wall
to secure the unit in place. Refer to Figure
12 and Figure 13.
Figure 12
Figure 13

8
Final Assembly

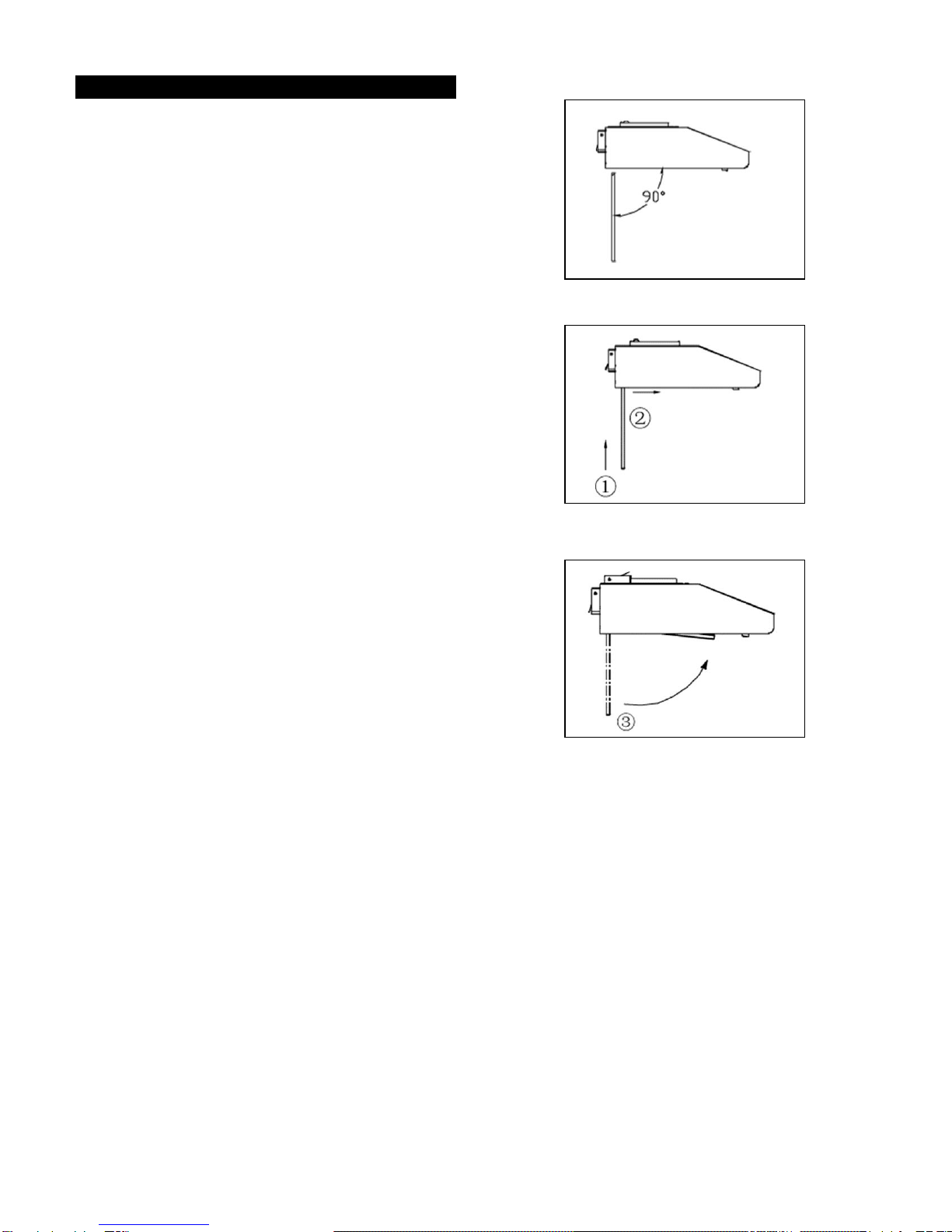

7. To install the parametric panel:
-Align the parametric panel at the
back of the unit. Refer to Figure 14.
-Push the unit upward, and slide the
parametric panel forward into the
notch to secure the panel. Refer to
Figure 15.
-Flip the parametric panel upward
until it clicks into place. Refer to
Figure 16.
CAUTION: MAKE SURE THE PARAMETRIC
PANEL IS SECURE BEFORE RELEASING.
8. Turn power ON in control panel. Check all
light and fan operation.
9. Make sure to leave this manual for the
homeowner.
Figure 14
Figure 15
Figure 16

9

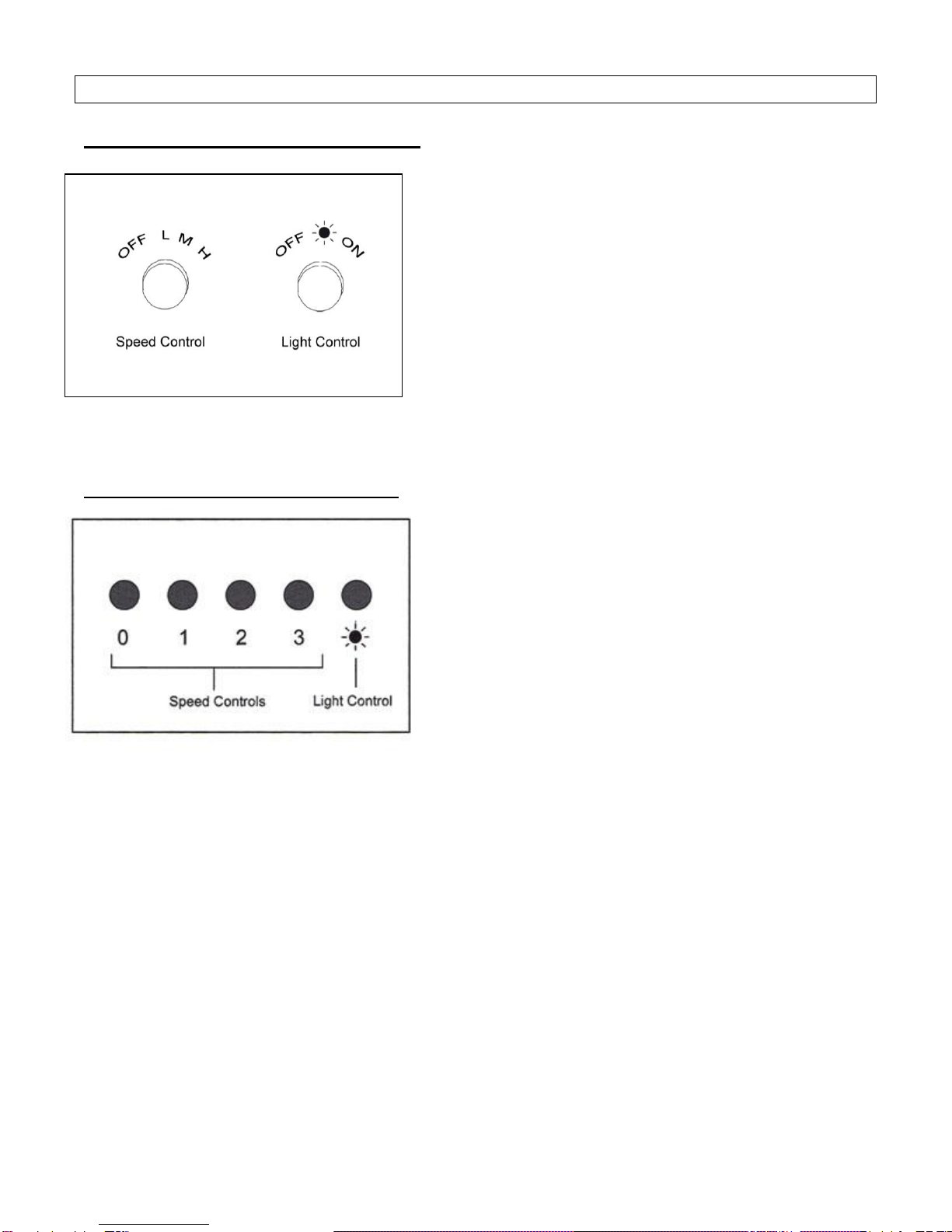

OPERATION INSTRUCTIONS
For models equipped with Rotary Switch:
To operate the fan function
Turn the Speed Control clockwise to choose
speed.
Turn the Speed Control counterclockwise to
“OFF”.
To operate the light function
Turn the Light Control clockwise to turn on the
light.
Turn the Light Control counterclockwise to
“OFF”.
For model equipped with Push Button:
To operate the fan function
Press button to choose from speed.
o1 = Low Speed
o2 = Medium Speed
o3 = High Speed
Press “0” to turn fan off.
To operate the light function
Press the Light Control to turn lights on and off.

10
MAINTENANCE
SAFETY WARNING
NEVER PUT YOUR HAND INTO AREA HOUSING THE FAN WHILE THE FAN IS OPERATING.
Cleaning Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. DO NOT USE
PAPER TOWEL ON STAINLESS STEEL.
For optimal operation, clean range hood and all baffle/spacer/filter/oil tunnel/oil container regularly.
*** Regular care will help preserve the appearance of the hood.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface
of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of
the stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in
contact with stainless steel for extended periods. Many of these compounds contain chemicals,
which may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.

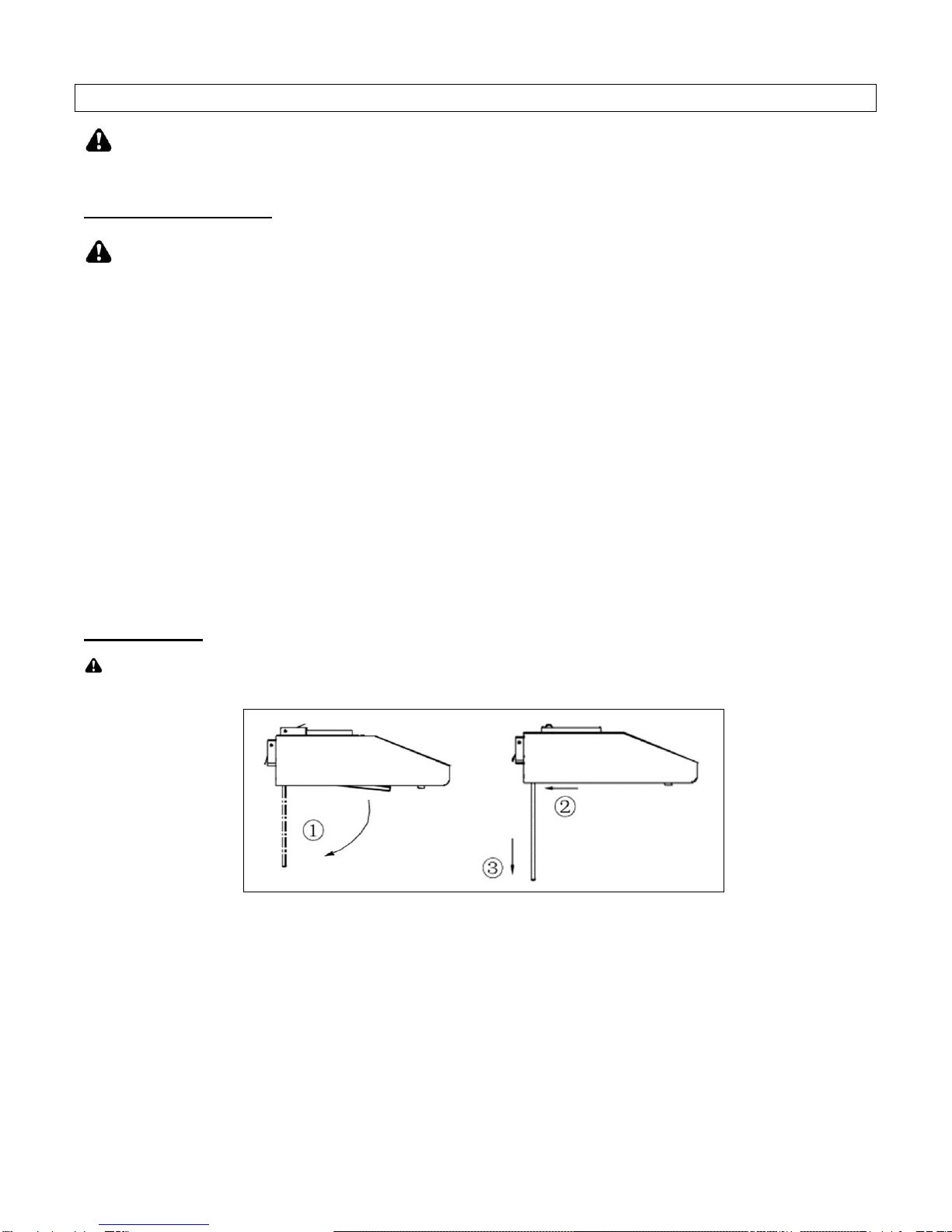

To Clean Filter
CAUTION: CLEAN FILTER AND PARAMETRIC PANEL PERIODICALLY.
1. Remove parametric panel and aluminum filters.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
NOTE: MAKE SURE THE PARAMETRIC PANEL IS SECURE BEFORE RELEASING.

11
SPECIFICATIONS
Series
CHX30 Series (400-CFM)
CONSUMPTION / AMPERE
0.82 Ampere
VOLTAGE
120V 60Hz
NUMBER OF MOTORS
1
DESIGN
20-Gauge Seamless / Satin Finish
with
Glass Parametric panel or Stainless Steel Parametric panel
EXHAUST
Top 7” Round with damper
Top 3-1/4” x 10” Rectangular with damper
Rear 3-1/4” x 10” Rectangular with damper
CONTROLS
Push Button control system
OR
Rotary control system
OR
Slide control system
LIGHTS
3-Watt LED x 2
HOOD DIMENSION
(W x D x H)
30” models – 29-3/4” x 21” x 6”
36” models –35-3/4” x 21” x 6”
WEIGHT (lbs)
Net
Gross
30”
37
42
36”
40
44
SPEED
LED Series
Air Capacity (cfm)
400
Sone
5.0
Specifications information is subject to change without notice.

12
MEASUREMENTS & DIAGRAMS
All measurements in ( ) are millimeters.
All inch measurements are converted from millimeters. Inch measurements are estimated.
- FOR TOP VENTING -
- FOR REAR VENTING -

13
- DIMENSIONS OF THE MODEL-

14
PARTS LIST
For models equipped with Push Button:
HOOD
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
Motor Mounting Plate
K-Y21-2355-P
2
Hood Frame
CH3030PD (30”)
K-Y20-1248-Q
CH3036PD (36”)
K-Y20-1219-Q
3
Recirculating Box
K-Y36-0228
4
Light socket
K-GF F005-00000
5
Push Button Control
K-Y50-0087
6
Light Support
K-Y20-1273-P
7
Light / Control Panel
CH3030PD (30”)
K-Y20-1278-Q
CH3036PD (36”)
K-Y20-1276-Q
8
Light fixture
For LED lighting system
Y53-0442
9
Motor
K-Y54-0005-1-1
10
Turbine Impeller
K-Y23-0049
11
Bottom Casing
CH3030PD (30”)
K-Y21-2743-6
CH3036PD (36”)
K-Y21-2693-6
12
Parametric Panel support clip (Left)
K-Y23-0041
13
Safety Screen
K-Y36-0227
14
Magnetic Mechanism
K-Y23-0040
15
Parametric Panel support clip (Right)
K-Y23-0042
16
Aluminum Filter
K-Y23-0043
17
Parametric Panel
Glass Parametric Panel (30”)
PPG30
Glass Parametric Panel (36”)
PPG36
Stainless Steel Parametric Panel (30”)
PPS30
Stainless Steel Parametric Panel (36”)
PPS36
18
Recirculating Panel
K-Y21-2732-P

15
For models equipped with Rotary Switch:
HOOD
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
Motor Mounting Plate
K-Y21-2355-P
2
Hood Frame
CH3030RD (30”)
K-Y20-1248-Q
CH3036RD (36”)
K-Y20-1219-Q
3
Recirculating Box
K-Y36-0228
4
Light socket
K-GF F005-00000
5
Speed Control
K-Y50-0085
6
Light Control
K-Y50-0084
7
Light Support
K-Y20-1273-P
8
Light / Control Panel
CH3030RD (30”)
K-Y20-1249-P
CH3036RD (36”)
K-Y20-1220-P
9
Light fixture
For LED lighting system
Y53-0442
10
Rotary Knobs
K-Y32-0445
11
Motor
K-Y54-0005-1-1
12
Turbine Impeller
K-Y23-0049
13
Bottom Casing
CH3030RD (30”)
K-Y21-2743-6
CH3036RD (36”)
K-Y21-2693-6
14
Parametric Panel support clip (Left)
K-Y23-0041
15
Safety Screen
K-Y36-0227
16
Magnetic Mechanism
K-Y23-0040
17
Parametric Panel support clip (Right)
K-Y23-0042
18
Aluminum Filter
K-Y23-0043
19
Parametric Panel
Glass Parametric Panel (30”)
PPG30
Glass Parametric Panel (36”)
PPG36
Stainless Steel Parametric Panel (30”)
PPS30
Stainless Steel Parametric Panel (36”)
PPS36
20
Recirculating Panel
K-Y21-2732-P

16
For models equipped with Slide Switch:
HOOD
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
1
Motor Mounting Plate
K-Y21-2355-P
2
Hood Frame
CH3030SD (30”)
K-Y20-1248-Q
CH3036SD (36”)
K-Y20-1219-Q
3
Recirculating Box
K-Y36-0228
4
Light socket
K-GF F005-00000
5
Light Support
K-Y20-1273-P
6
Light / Control Panel
CH3030SD (30”)
K-Y20-1296-Q
CH3036SD (36”)
K-Y20-1297-Q
7
Light fixture
For LED lighting system
Y53-0442
8
Slide Switch
K-Y50-0088
9
Motor
K-Y54-0005-1-1
10
Turbine Impeller
K-Y23-0049
11
Bottom Casing
CH3030SD (30”)
K-Y21-2743-6
CH3036SD (36”)
K-Y21-2693-6
12
Parametric Panel support clip (Left)
K-Y23-0041
13
Safety Screen
K-Y36-0227
14
Magnetic Mechanism
K-Y23-0040
15
Parametric Panel support clip (Right)
K-Y23-0042
16
Aluminum Filter
K-Y23-0043
17
Parametric Panel
Glass Parametric Panel (30”)
PPG30
Glass Parametric Panel (36”)
PPG36
Stainless Steel Parametric Panel (30”)
PPS30
Stainless Steel Parametric Panel (36”)
PPS36
18
Recirculating Panel
K-Y21-2732-P

17
CIRCUIT DIAGRAM
For models equipped with Push Control:
For models equipped with Rotary Switch:
For models equipped with Slide Switch:
